MONITOR STRATEGY

Related DTCsNone
Required sensors/Components (Main)ECM
Required sensors/Components (Related)Heated oxygen sensor
Frequency of operationContinuous
Duration60 seconds
MIL operationImmediately
Sequence of operationNone

TYPICAL ENABLING CONDITIONS

Monitor runs whenever following DTCs are not presentNone
EngineRunning
Estimated heated oxygen sensor temperature450 to 800°C (842 to 1472°F)

TYPICAL MALFUNCTION THRESHOLDS

Heated oxygen sensor transistorsFail

Scheme 357

Scheme 357: CONFIRMATION DRIVING PATTERN
  1. Stop the engine for 30 minutes or more [A].
  2. Connect the Techstream to the DLC3.
  3. Turn the engine switch on (IG) and turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) [B].
  5. Turn the engine switch off.
  6. Turn the engine switch on (IG) and turn the Techstream on [C].
  7. Start the engine, and wait 2 minutes [D].
  8. Warm up the engine until the engine coolant temperature is 75°C (167°F) or more [E].
  9. Idle the engine for 1 minute [F].
  10. Accelerate the vehicle to 50 mph (80 km/h) and stop the vehicle [G].
  11. Drive the vehicle at 35 to 50 mph (56 to 80 km/h) for 5 minutes or more [H].
  12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  13. Input the DTC: P0607, P0136, P0137, P0138, P0156, P0157 or P0158.
  14. Check the DTC judgment result [I]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] through [I].
  15. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  16. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  17. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

Scheme 358

Scheme 358: PROCEDURE
  1. CHECK ANY OTHER DTCS OUTPUT Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output A DTC P0607 is output B B --> See step 3 A: Go to next step
  2. INSPECT DTC (P0136, P0137, P0138, P0156, P0157 OR P0158) Inspect the P0136, P0137, P0138, P0156, P0157 or P0158 flowchart. HINT: If P0136 or P0156 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S22924944162011051800000) . Then proceed to "INSPECT ECM" 6 . If P0137 or P0157 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S22924944162011051800000) . Then proceed to "INSPECT ECM". If P0138 or P0158 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S22924944162011051800000) . Then proceed to "INSPECT ECM" 6 . If DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output, the output voltage of the heated oxygen sensor may remain close to 0 V or become high (around 1 V or more). NEXT --> See step 6
  3. CHECK FOR EXHAUST GAS LEAK Allow the engine to idle and rev the engine. Check for exhaust gas leaks around the heated oxygen sensor. If any exhaust gas leaks are present, repair it and proceed to 4 "PERFORM CONFIRMATION DRIVING PATTERN". If no exhaust gas leaks are present, proceed to «CONFIRMATION DRIVING PATTERN»(ref-400799-S20455188412011051800000) "PERFORM CONFIRMATION DRIVING PATTERN". HINT: If no exhaust gas leaks are present, a malfunction in the heated oxygen sensor circuit is suspected. If any exhaust gas leaks are present around the heated oxygen sensor, noise appears in the output voltage of the heated oxygen sensor. NEXT: Go to next step
  4. PERFORM CONFIRMATION DRIVING PATTERN Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Connect the Techstream to the DLC3. Warm up the engine until the engine coolant temperature becomes 75°C (167°F) or more. Perform the driving pattern. Accelerate the vehicle until 50 mph (80 km/h) and stop the vehicle. Drive the vehicle between 38 to 50 mph (60 to 80 km/h) for 5 minutes. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output A DTC P0607 is output B DTC is not output C C --> See step 6 B --> See step 7 A: Go to next step
  5. INSPECT DTC (P0136, P0137, P0138, P0156, P0157 OR P0158) Inspect the P0136, P0137, P0138, P0156, P0157 or P0158 flowchart. HINT: If P0136 or P0156 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S22924944162011051800000) . Then proceed to "INSPECT ECM". If P0137 or P0157 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S22924944162011051800000) . Then proceed to "INSPECT ECM". If P0138 or P0158 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S22924944162011051800000) . Then proceed to "INSPECT ECM". If DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output, the output voltage of the heated oxygen sensor may remain close to 0 V or become high (around 1 V or more). NEXT: Go to next step
  6. INSPECT ECM Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Stop the engine and wait for 30 minutes. Connect the Techstream to the DLC3. Start the engine and allow it to idle for 2 minutes. Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P0607 is output B B --> See step 7 A --> END
  7. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCsNone
Required sensors/Components (Main)ECM
Required sensors/Components (Related)Heated oxygen sensor
Frequency of operationContinuous
Duration60 seconds
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
EngineRunning
Estimated heated oxygen sensor temperature450 to 800°C (842 to 1472°F)
Heated oxygen sensor transistorsFail

CONFIRMATION DRIVING PATTERN

  1. Stop the engine for 30 minutes or more [A].
  2. Connect the Techstream to the DLC3.
  3. Turn the engine switch on (IG) and turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) [B].
  5. Turn the engine switch off.
  6. Turn the engine switch on (IG) and turn the Techstream on [C].
  7. Start the engine, and wait 2 minutes [D].
  8. Warm up the engine until the engine coolant temperature is 75°C (167°F) or more [E].
  9. Idle the engine for 1 minute [F].
  10. Accelerate the vehicle to 50 mph (80 km/h) and stop the vehicle [G].
  11. Drive the vehicle at 35 to 50 mph (56 to 80 km/h) for 5 minutes or more [H].
  12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  13. Input the DTC: P0607, P0136, P0137, P0138, P0156, P0157 or P0158.
  14. Check the DTC judgment result [I]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] through [I].
  15. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  16. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  17. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

PROCEDURE

  1. CHECK ANY OTHER DTCS OUTPUT Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output A DTC P0607 is output B B --> See step 3 A: Go to next step
  2. INSPECT DTC (P0136, P0137, P0138, P0156, P0157 OR P0158) Inspect the P0136, P0137, P0138, P0156, P0157 or P0158 flowchart. HINT: If P0136 or P0156 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S21020470312011051800000) . Then proceed to "INSPECT ECM". If P0137 or P0157 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S21020470312011051800000) . Then proceed to "INSPECT ECM". If P0138 or P0158 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S21020470312011051800000) . Then proceed to "INSPECT ECM". If DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output, the output voltage of the heated oxygen sensor may remain close to 0 V or become high (around 1 V or more). NEXT --> See step 6
  3. CHECK FOR EXHAUST GAS LEAK Allow the engine to idle and rev the engine. Check for exhaust gas leaks around the heated oxygen sensor. If any exhaust gas leaks are present, repair it and proceed to "PERFORM CONFIRMATION DRIVING PATTERN". If no exhaust gas leaks are present, proceed to "PERFORM CONFIRMATION DRIVING PATTERN". HINT: If no exhaust gas leaks are present, a malfunction in the heated oxygen sensor circuit is suspected. If any exhaust gas leaks are present around the heated oxygen sensor, noise appears in the output voltage of the heated oxygen sensor. NEXT: Go to next step
  4. PERFORM CONFIRMATION DRIVING PATTERN Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Connect the Techstream to the DLC3. Warm up the engine until the engine coolant temperature becomes 75°C (167°F) or more. Perform the driving pattern. Accelerate the vehicle until 50 mph (80 km/h) and stop the vehicle. Drive the vehicle between 38 to 50 mph (60 to 80 km/h) for 5 minutes. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output A DTC P0607 is output B DTC is not output C C --> See step 6 B --> See step 7 A: Go to next step
  5. INSPECT DTC (P0136, P0137, P0138, P0156, P0157 OR P0158) Inspect the P0136, P0137, P0138, P0156, P0157 or P0158 flowchart. HINT: If P0136 or P0156 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S21020470312011051800000) . Then proceed to "INSPECT ECM". If P0137 or P0157 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S21020470312011051800000) . Then proceed to "INSPECT ECM". If P0138 or P0158 is output, troubleshoot for that DTC first. Refer to «INSPECTION PROCEDURE»(ref-400797-S21020470312011051800000) . Then proceed to "INSPECT ECM". If DTC P0607 and P0136, P0137, P0138, P0156, P0157 or P0158 are output, the output voltage of the heated oxygen sensor may remain close to 0 V or become high (around 1 V or more). NEXT: Go to next step
  6. INSPECT ECM Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Stop the engine and wait for 30 minutes. Connect the Techstream to the DLC3. Start the engine and allow it to idle for 2 minutes. Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P0607 is output B B --> See step 7 A --> END
  7. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP060A: ECM, CPU error
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationContinuous
DurationWithin 1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
All of the following conditions are metCondition A and B
A. Either of the following conditions is metCondition 1 or 2
1. All of the following conditions are metCondition a, b and c
(a) CPU reset1 time or more
(b) Learned throttle position - Learned accelerator pedal position0.4 V or more
(c) Electronic throttle actuatorOFF
2. CPU reset2 times or more
B. CPU resetOccurred

Scheme 359

Scheme 359: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060A.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060A) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060A is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCsP060A: ECM, CPU error
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationContinuous
DurationWithin 1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
All of the following conditions are metCondition A and B
A. Either of the following conditions is metCondition 1 or 2
1. All of the following conditions are metCondition a, b and c
(a) CPU reset1 time or more
(b) Learned throttle position - Learned accelerator pedal position0.4 V or more
(c) Electronic throttle actuatorOFF
2. CPU reset2 times or more
B. CPU resetOccurred
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060A.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060A) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060A is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP060B: ECM main CPU communication error
Required sensors/components (Main)ECM
Required sensors/components (Related)
Frequency of operationOnce per driving cycle
DurationWithin 1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
One of the following conditions is met(a), (b) or (c)
(a) Internal control module serial communicationFail
(b) AD converterFail
(c) Knock sensor circuitFail
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060B.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060B) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060B is output B DTC P060B and P0327, P0328, P0332 and P0333 are output C C --> See step 4 B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
  4. GO TO DTC (P0327, P0328, P0332 AND P0333). Refer to «DTC P0327: Knock Sensor 1 Circuit Low Input (Bank 1 or Single Sensor); DTC P0328: Knock Sensor 1 Circuit High Input (Bank 1 or Single Sensor); DTC P0332: Knock Sensor 2 Circuit Low Input (Bank 2); DTC P0333: Knock Sensor 2 Circuit High Input (Bank 2)»(ref-400797-S37130479832011051800000)
Related DTCsP060B: ECM main CPU communication error
Required sensors/components (Main)ECM
Required sensors/components (Related)
Frequency of operationOnce per driving cycle
DurationWithin 1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
One of the following conditions is met(a), (b) or (c)
(a) Internal control module serial communicationFail
(b) AD converterFail
(c) Knock sensor circuitFail
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060B.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060B) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060B is output B DTC P060B and P0327, P0328, P0332 and P0333 are output C C --> See step 4 B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
  4. GO TO DTC (P0327, P0328, P0332 AND P0333). Refer to «DTC P0327: Knock Sensor 1 Circuit Low Input (Bank 1 or Single Sensor); DTC P0328: Knock Sensor 1 Circuit High Input (Bank 1 or Single Sensor); DTC P0332: Knock Sensor 2 Circuit Low Input (Bank 2); DTC P0333: Knock Sensor 2 Circuit High Input (Bank 2)»(ref-400797-S37496631542011051800000)
Related DTCsP060D: Internal control module, accelerator pedal position
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationContinuous
Duration1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Difference of main accelerator pedal position and sub accelerator pedal position0.3 V or more
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060D.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060D) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060D is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCsP060D: Internal control module, accelerator pedal position
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationContinuous
Duration1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Difference of main accelerator pedal position and sub accelerator pedal position0.3 V or more
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060D.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060D) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060D is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP060E: Internal control module, throttle position
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationContinuous
Duration1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
DMA communication errorNot detected
One of the following conditions is metCondition 1 or 2
1. Difference of main throttle position and sub throttle position0.3 V or more
2. Difference of main brake switch signal and sub brake switch signalDifferent
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060E.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060E) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060E is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCsP060E: Internal control module, throttle position
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationContinuous
Duration1 second
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
DMA communication errorNot detected
One of the following conditions is metCondition 1 or 2
1. Difference of main throttle position and sub throttle position0.3 V or more
2. Difference of main brake switch signal and sub brake switch signalDifferent
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P060E.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P060E) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P060E is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP0617: Starter signal
Required Sensors/Components (Main)ST relay, park/neutral position switch, engine switch
Required Sensors/Components (Related)Vehicle speed sensor, crankshaft position sensor
Frequency of OperationContinuous
Duration20 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Battery voltage10.5 V or more
Vehicle speed12.43 mph (20 km/h) or more
Engine speed1000 rpm or more
StarterON

Scheme 360

Scheme 360: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Idle the engine for 5 minutes or more [B].
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0617.
  9. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].
  10. Drive the vehicle at 15 mph (24 km/h) or more for 20 seconds or more [D].
  11. Check the DTC judgment result [E].
  12. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  13. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  14. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

Scheme 361

Scheme 361: WIRING DIAGRAM
Related DTCsP0617: Starter signal
Required Sensors/Components (Main)ST relay, park/neutral position switch, engine switch
Required Sensors/Components (Related)Vehicle speed sensor, crankshaft position sensor
Frequency of OperationContinuous
Duration20 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Battery voltage10.5 V or more
Vehicle speed12.43 mph (20 km/h) or more
Engine speed1000 rpm or more
StarterON
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Idle the engine for 5 minutes or more [B].
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0617.
  9. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].
  10. Drive the vehicle at 15 mph (24 km/h) or more for 20 seconds or more [D].
  11. Check the DTC judgment result [E].
  12. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  13. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  14. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ VALUE USING TECHSTREAM (STARTER SIGNAL) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / Starter Signal. Read the value displayed on the Techstream when the engine switch is turned on (IG) and the engine is started. OK Condition Techstream Display Engine switch on (IG) OFF Engine started ON NG --> See step 2 OK --> See step 3
  2. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY Disconnect the park/neutral position switch assembly connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 4 (B) - 9 (L) Shift lever in P or N Below 1 ohms 4 (B) - 9 (L) Shift lever in any position other than P or N 10 kohms or higher TEXT IN ILLUSTRATION *1 Component without harness connected (Park/Neutral Position Switch Assembly) Reconnect the park/neutral position switch assembly connector. NG --> See step 4 OK --> See step 5
  3. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  4. REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY. Refer to «REMOVAL»(ref-400804-S07140278882011051800000)
  5. GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START. Refer to «HOW TO PROCEED WITH TROUBLESHOOTING»(ref-400655-S04853642432011051800000)
Related DTCsP062F: Internal control module EEPROM error
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationOnce per driving cycle
Duration11 seconds
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Time after engine start10 seconds or more
Battery voltage8 V or more
Engine switchOn (IG)
StarterOFF
Permanent fault code dataMismatch (3 times or more)

Scheme 362

Scheme 362: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 30 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P062F.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P062F) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off and turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read DTCs. RESULT Result Proceed to DTC is not output A DTC P062F is output B B --> See step 2 A --> See step 3
  2. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
  3. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
Related DTCsP062F: Internal control module EEPROM error
Required sensors/Components (Main)ECM
Required sensors/Components (Related)
Frequency of operationOnce per driving cycle
Duration11 seconds
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Time after engine start10 seconds or more
Battery voltage8 V or more
Engine switchOn (IG)
StarterOFF
Permanent fault code dataMismatch (3 times or more)
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 30 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P062F.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ OUTPUT DTC (DTC P062F) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off and turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read DTCs. RESULT Result Proceed to DTC is not output A DTC P062F is output B B --> See step 2 A --> See step 3
  2. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
  3. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
Related DTCsP0630: VIN not programmed
Required Sensors/Components (Main)ECM
Required Sensors/Components (Related)
Frequency of OperationContinuous
Duration0.325 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Battery voltage8 V or more
Engine switchOn (IG)
StarterOFF
VIN codeNot programmed

COMPONENT OPERATING RANGE

VIN codeProgrammed

Scheme 363

Scheme 363: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0630.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ DTC OUTPUT Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P0630 is output A DTC P0630 and other DTCs are output B If any DTCs other than P0630 are output, troubleshoot those DTCs first. NOTE: If P0630 is set, the VIN must be input to the ECM using the Techstream. However, all DTCs are cleared automatically by the Techstream when inputting the VIN. If DTCs other than P0630 are set, check them first. B --> See step 3 A: Go to next step
  2. INPUT VIN Input the VIN. Refer to «REGISTRATION»(ref-400784-S01486303052011051800000) . NEXT --> END
  3. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-400784-S08158320572011051800000)
Related DTCsP0630: VIN not programmed
Required Sensors/Components (Main)ECM
Required Sensors/Components (Related)
Frequency of OperationContinuous
Duration0.325 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Battery voltage8 V or more
Engine switchOn (IG)
StarterOFF
VIN codeNot programmed
VIN codeProgrammed
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0630.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ DTC OUTPUT Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P0630 is output A DTC P0630 and other DTCs are output B If any DTCs other than P0630 are output, troubleshoot those DTCs first. NOTE: If P0630 is set, the VIN must be input to the ECM using the Techstream. However, all DTCs are cleared automatically by the Techstream when inputting the VIN. If DTCs other than P0630 are set, check them first. B --> See step 3 A: Go to next step
  2. INPUT VIN Input the VIN. Refer to «REGISTRATION»(ref-400784-S01486303052011051800000) . NEXT --> END
  3. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-400784-S30709964352011051800000)
Related DTCsP0657: Electronic throttle control system power supply
Required sensors/Components (Main)ECM
Required sensors/Components (Related)Throttle actuator
Frequency of operationOnce per driving cycle
Duration1 second or more
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Throttle actuator power supply voltage7 V or more
Engine switchOn (IG) to off
Electric throttle actuator power supplyON
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0657.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ DTC OUTPUT (DTC P0657) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Turn the engine switch on (IG) for 10 seconds. Turn the engine switch off. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Check for DTCs. Result Result Proceed to DTC is not output A DTC P0657 is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCsP0657: Electronic throttle control system power supply
Required sensors/Components (Main)ECM
Required sensors/Components (Related)Throttle actuator
Frequency of operationOnce per driving cycle
Duration1 second or more
MIL operationImmediately
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Throttle actuator power supply voltage7 V or more
Engine switchOn (IG) to off
Electric throttle actuator power supplyON
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0657.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ DTC OUTPUT (DTC P0657) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Turn the engine switch on (IG) for 10 seconds. Turn the engine switch off. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Check for DTCs. Result Result Proceed to DTC is not output A DTC P0657 is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP0705: Park/neutral position switch/verify switch input
Required sensors/ComponentsPark/neutral position switch assembly
Frequency of operationContinuous
DurationCondition (A) and (B): 2 seconds Condition (C): 60 seconds
MIL operation2 driving cycles
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Engine switchOn (IG)
Battery voltage10.5 V or more
StarterOFF

ALL

One of the following conditions is metCondition (a), (b), (c) or (d)
(a) Park/neutral position switchON
(b) Park position switchON
(c) Neutral position switchON
(d) R range position switchON

CONDITION (B)

  1. One of the following conditions is met: Condition (A), (B) or (C) CONDITION (A) Number of the following signal input at the same time 2 or more Park position switch ON Neutral position switch ON Park/neutral position switch ON R range position switch ON D range position switch ON CONDITION (B) "S" range position switch ON CONDITION (C) All of the following conditions are met - Park position switch OFF Neutral position switch OFF Park neutral position switch OFF R range position switch OFF D range position switch OFF
Park/neutral position switchThe park/neutral position switch sends only one signal to the ECM.

Scheme 364

Scheme 364: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 10 minutes or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0705.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

Scheme 365

Scheme 365: WIRING DIAGRAM
Related DTCsP0705: Park/neutral position switch/verify switch input
Required sensors/ComponentsPark/neutral position switch assembly
Frequency of operationContinuous
DurationCondition (A) and (B): 2 seconds Condition (C): 60 seconds
MIL operation2 driving cycles
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Engine switchOn (IG)
Battery voltage10.5 V or more
StarterOFF

ALL

One of the following conditions is metCondition (a), (b), (c) or (d)
(a) Park/neutral position switchON
(b) Park position switchON
(c) Neutral position switchON
(d) R range position switchON

CONDITION (B)

  1. One of the following conditions is met: Condition (A), (B) or (C) CONDITION (A) Number of the following signal input at the same time 2 or more Park position switch ON Neutral position switch ON Park/neutral position switch ON R range position switch ON D range position switch ON CONDITION (B) "S" range position switch ON CONDITION (C) All of the following conditions are met - Park position switch OFF Neutral position switch OFF Park neutral position switch OFF R range position switch OFF D range position switch OFF
Park/neutral position switchThe park/neutral position switch sends only one signal to the ECM.
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 10 minutes or more.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0705.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ VALUE USING TECHSTREAM Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / All Data. Read the values displayed on the Techstream. OK Techstream Display Shift Lever Specified Condition Neutral Position SW Signal P or N ON Except P or N OFF Shift SW Status (R Range) R ON Except R OFF Shift SW Status (P Range) P ON Except P OFF Shift SW Status (N Range) N ON Except N OFF Shift SW Status (D Range) D or S ON Except D or S OFF NG --> See step 4 OK: Go to next step
  2. READ VALUE USING TECHSTREAM (SPORTS MODE SELECTION SW) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / Sports Mode Selection SW. Read the values displayed on the Techstream. OK Techstream Display Shift Lever Specified Condition Sports Mode Selection SW S ON Except S OFF NG --> See step 3 OK --> See step 8
  3. INSPECT LOWER SHIFT LEVER ASSEMBLY (TRANSMISSION CONTROL SWITCH) Disconnect the transmission control switch connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 6 (IG) - 13 (S) Shift lever in S, "+" or "-" Below 1 ohms Shift lever in any position other than S, "+" and "-" 10 kohms or higher TEXT IN ILLUSTRATION *1 Component without harness connected (Transmission Control Switch) Reconnect the transmission control switch connector. NG --> See step 9 OK --> REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - TRANSMISSION CONTROL SWITCH)
  4. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY VOLTAGE) Disconnect the park/neutral position switch assembly connector. Turn the engine switch on (IG). Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Switch Condition Specified Condition D8-1 (RB) - Body ground Engine switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Park/Neutral Position Switch Assembly) Reconnect the park/neutral position switch assembly connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - BATTERY) OK: Go to next step
  5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY Disconnect the park/neutral position switch assembly connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 1 (RB) - 3 (PL) 4 (B) - 9 (L) Shift lever in P Below 1 ohms Shift lever in any position other than P 10 kohms or higher 1 (RB) - 2 (RL) Shift lever in R Below 1 ohms Shift lever in any position other than R 10 kohms or higher 1 (RB) - 8 (NL) 4 (B) - 9 (L) Shift lever in N Below 1 ohms Shift lever in any position other than N 10 kohms or higher 1 (RB) - 7 (DL) Shift lever in D or S Below 1 ohms Shift lever in any position other than D and S 10 kohms or higher TEXT IN ILLUSTRATION *1 Component without harness connected (Park/Neutral Position Switch Assembly) Reconnect the park/neutral position switch assembly connector. NG --> See step 10 OK: Go to next step
  6. CHECK HARNESS AND CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY) Disconnect the ECM connector. Turn the engine switch on (IG). Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Condition Specified Condition D1-2 (P) - Body ground Engine switch on (IG) Shift lever in P 11 to 14 V Engine switch on (IG) Shift lever in any position other than P 0 to 1.5 V D1-26 (R) - Body ground Engine switch on (IG) Shift lever in R 11 to 14 V Engine switch on (IG) Shift lever in any position other than R 0 to 1.5 V D1-25 (N) - Body ground Engine switch on (IG) Shift lever in N 11 to 14 V Engine switch on (IG) Shift lever in any position other than N 0 to 1.5 V D1-27 (D) - Body ground Engine switch on (IG) Shift lever in D or S 11 to 14 V Engine switch on (IG) Shift lever in any position other than D or S 0 to 1.5 V TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to ECM) Reconnect the ECM connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY) OK: Go to next step
  7. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM) Disconnect the park/neutral position switch assembly connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance (Check for Open) Tester Connection Condition Specified Condition D8-4 (B) - D1-120 (NSW) Always Below 1 ohms Standard Resistance (Check for Short) Tester Connection Condition Specified Condition D8-4 (B) or D1-120 (NSW) - Body ground Always 10 kohms or higher TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Park/Neutral Position Switch Assembly) *2 Front view of wire harness connector (to ECM) Reconnect the ECM connector. Reconnect the park/neutral position switch assembly connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY) OK --> See step 11
  8. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  9. REPLACE LOWER SHIFT LEVER ASSEMBLY (TRANSMISSION CONTROL SWITCH). Refer to «REMOVAL»(ref-400805-S06026103722011051800000)
  10. REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY. Refer to «REMOVAL»(ref-400805-S14596804292011051800000)
  11. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP0724: Stop light switch/Rationality
Required sensors/ComponentsStop light switch assembly, vehicle speed sensor
Frequency of operationContinuous
DurationGO and STOP 5 times
MIL operation2 driving cycles
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Engine switchOn (IG)
StarterOFF
Battery voltage8 V or more
GO: Vehicle speed18.65 mph (30 km/h) or more
STOP: Vehicle speedLess than 1.86 mph (3 km/h)
Stop light switch statusON stuck

Scheme 366

Scheme 366: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds after clear the DTCs.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0724.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [C] through [E].
  10. Start the engine [C].
  11. Accelerate the vehicle to 19 mph (30 km/h) or more, depress the brake pedal and decelerate the vehicle to 1.8 mph (3 km/h) or less [D]. Repeat step [D] 5 times.
  12. Check the DTC judgment result [E].
  13. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  14. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  15. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
Related DTCsP0724: Stop light switch/Rationality
Required sensors/ComponentsStop light switch assembly, vehicle speed sensor
Frequency of operationContinuous
DurationGO and STOP 5 times
MIL operation2 driving cycles
Sequence of operationNone
Monitor runs whenever following DTCs are not presentNone
Engine switchOn (IG)
StarterOFF
Battery voltage8 V or more
GO: Vehicle speed18.65 mph (30 km/h) or more
STOP: Vehicle speedLess than 1.86 mph (3 km/h)
Stop light switch statusON stuck
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds after clear the DTCs.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P0724.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [C] through [E].
  10. Start the engine [C].
  11. Accelerate the vehicle to 19 mph (30 km/h) or more, depress the brake pedal and decelerate the vehicle to 1.8 mph (3 km/h) or less [D]. Repeat step [D] 5 times.
  12. Check the DTC judgment result [E].
  13. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  14. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  15. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / Stop Light Switch. Read the value displayed on the Techstream when the brake pedal is depressed and released. OK Techstream Display Measurement Item: Range Normal Condition Stop Light Switch Stop light switch assembly status: ON or OFF ON: Brake pedal depressed OFF: Brake pedal released NG --> See step 2 OK --> See step 4
  2. INSPECT STOP LIGHT SWITCH ASSEMBLY Disconnect the stop light switch assembly connector. Remove the stop light switch assembly. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Switch Position Specified Condition 1 - 2 Switch pin not pushed Below 1 ohms Switch pin pushed 10 kohms or higher 3 - 4 Switch pin not pushed 10 kohms or higher Switch pin pushed Below 1 ohms Reinstall the stop light switch assembly. Reconnect the stop light switch assembly connector. NG --> See step 5 OK: Go to next step
  3. CHECK HARNESS AND CONNECTOR (ECM - STOP LIGHT SWITCH ASSEMBLY) Disconnect the ECM connector. Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Condition Specified Condition A43-36 (STP) - Body ground Brake pedal depressed 7.5 to 14 V A43-36 (STP) - Body ground Brake pedal released 0 to 1.5 V TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to ECM) Reconnect the ECM connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - STOP LIGHT SWITCH ASSEMBLY) OK --> See step 6
  4. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  5. REPLACE STOP LIGHT SWITCH ASSEMBLY. Refer to «REMOVAL»(ref-400664-S02446165732011051800000)
  6. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCP1607: Internal control module range check
Required sensors/Components (main)ECM
Required sensors/Components (sub)Cruise control
Frequency of OperationContinuous
Duration0.3 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever the following DTCs are not presentNone
Cruise controlForbiddance
Either of the following condition is metCondition (a) or (b)
(a) Cruise controlOperating
(b) Low speed controlOperating

Scheme 367

Scheme 367: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
  8. Input the DTC: P1607.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ DTC OUTPUT Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off and turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC is not output A DTC P1607 is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCP1607: Internal control module range check
Required sensors/Components (main)ECM
Required sensors/Components (sub)Cruise control
Frequency of OperationContinuous
Duration0.3 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever the following DTCs are not presentNone
Cruise controlForbiddance
Either of the following condition is metCondition (a) or (b)
(a) Cruise controlOperating
(b) Low speed controlOperating
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Wait 16 seconds or more.
  7. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
  8. Input the DTC: P1607.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. READ DTC OUTPUT Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off and turn the Techstream off. Disconnect the Techstream. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute. Connect the cable to the negative (-) battery terminal. Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC is not output A DTC P1607 is output B B --> See step 3 A --> See step 2
  2. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  3. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP2102: Throttle actuator current (low current) P2103: Throttle actuator current (high current)
Required Sensors / Components (Main)Throttle actuator (throttle with motor body assembly)
Required Sensors / Components (Related)None
Frequency of OperationContinuous
DurationP2102: 2 seconds P2103: 25 times or 0.6 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone

ALL

Throttle actuatorON
Duty-cycle ratio to open throttle actuator80% or more
Throttle actuator power supply8 V or higher
Motor current change during latest 0.016 secondsLess than 0.2 A

P2102

Throttle actuatorON
Either of the following conditions 1 or 2 is met
1. Throttle actuator power supply8 V or higher
2. Throttle actuator powerON

P2103

Throttle actuator currentBelow 0.5 A

P2102

Either of the following conditions is metCondition 1 or 2
1. Hybrid IC diagnosis signalFail
2. Hybrid IC current limiter monitor portFail

P2103

Scheme 368

Scheme 368: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine.
  7. With the vehicle stationary, fully depress the accelerator pedal and quickly release it [B].
  8. Check that 16 seconds or more have elapsed from the instant when the accelerator pedal is first depressed.
  9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  10. Input the DTC: P2102 or P2103.
  11. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] through [C] again.
  12. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  13. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  14. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

FAIL-SAFE

When either of these DTCs, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

Scheme 369

Scheme 369: WIRING DIAGRAM
Related DTCsP2102: Throttle actuator current (low current) P2103: Throttle actuator current (high current)
Required Sensors / Components (Main)Throttle actuator (throttle with motor body assembly)
Required Sensors / Components (Related)None
Frequency of OperationContinuous
DurationP2102: 2 seconds P2103: 25 times or 0.6 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone

ALL

Throttle actuatorON
Duty-cycle ratio to open throttle actuator80% or more
Throttle actuator power supply8 V or higher
Motor current change during latest 0.016 secondsLess than 0.2 A

P2102

Throttle actuatorON
Either of the following conditions 1 or 2 is met
1. Throttle actuator power supply8 V or higher
2. Throttle actuator powerON

P2103

Throttle actuator currentBelow 0.5 A

P2102

Either of the following conditions is metCondition 1 or 2
1. Hybrid IC diagnosis signalFail
2. Hybrid IC current limiter monitor portFail

P2103

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine.
  7. With the vehicle stationary, fully depress the accelerator pedal and quickly release it [B].
  8. Check that 16 seconds or more have elapsed from the instant when the accelerator pedal is first depressed.
  9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  10. Input the DTC: P2102 or P2103.
  11. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] through [C] again.
  12. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  13. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  14. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When either of these DTCs, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

  1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY (RESISTANCE OF THROTTLE ACTUATOR) Disconnect the throttle with motor body assembly connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 2 (M+) - 1 (M-) 20°C (68°F) 0.3 to 100 ohms TEXT IN ILLUSTRATION *1 Component without harness connected (Throttle with Motor Body Assembly) Reconnect the throttle with motor body assembly connector. NG --> See step 5 OK: Go to next step
  2. CHECK HARNESS AND CONNECTOR (THROTTLE WITH MOTOR BODY ASSEMBLY - ECM) Disconnect the throttle with motor body assembly connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance (Check for Open) Tester Connection Condition Specified Condition D28-2 (M+) - D1-19 (M+) Always Below 1 ohms D28-1 (M-) - D1-18 (M-) Always Below 1 ohms Standard Resistance (Check for Short) Tester Connection Condition Specified Condition D28-2 (M+) or D1-19 (M+) - Body ground Always 10 kohms or higher D28-1 (M-) or D1-18 (M-) - Body ground Always 10 kohms or higher TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Throttle with Motor Body Assembly) *2 Front view of wire harness connector (to ECM) Reconnect the ECM connector. Reconnect the throttle with motor body assembly connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (THROTTLE WITH MOTOR BODY ASSEMBLY - ECM) OK: Go to next step
  3. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE) Check for foreign objects between the throttle valve and the housing. OK No foreign objects between throttle valve and housing. NG --> REMOVE FOREIGN OBJECT AND CLEAN THROTTLE WITH MOTOR BODY ASSEMBLY OK: Go to next step
  4. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY (THROTTLE VALVE) Check if the throttle valve opens and closes smoothly. OK Throttle valve opens and closes smoothly. NG --> See step 5 OK --> See step 6
  5. REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY. Refer to «REMOVAL»(ref-400788-S13675110742011051800000)
  6. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP2111: Throttle actuator stuck open P2112: Throttle actuator stuck closed
Required Sensors / Components (Main)Throttle actuator (throttle with motor body assembly)
Required Sensors / Components (Related)
Frequency of OperationContinuous
Duration0.5 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone

ALL

All of the following conditions are met
System guard* judge conditionON
Throttle actuator current2 A or more
Duty-cycle to close throttle80% or more

P2111 (THROTTLE ACTUATOR STUCK OPEN)

All of the following conditions are met
System guard* judge conditionON
Throttle actuator current2 A or more
Duty-cycle to open throttle80% or more

P2112 (THROTTLE ACTUATOR STUCK CLOSED)

*: System guard is ON when the following conditions set
Throttle actuatorON
Throttle actuator duty calculationExecuting
Throttle position sensor failNot detected
Throttle actuator current-cut operationNot executing
Throttle actuator power supply4 V or more
Throttle actuator failNot detected
Difference throttle position sensor voltage measurements taken at 0.016 seconds intervalsBelow 0.1 V for 0.5 seconds or more

P2111 (THROTTLE ACTUATOR STUCK OPEN)

Difference throttle position sensor voltage measurements taken at 0.016 seconds intervalsBelow 0.1 V for 0.5 seconds or more

P2112 (THROTTLE ACTUATOR STUCK CLOSED)

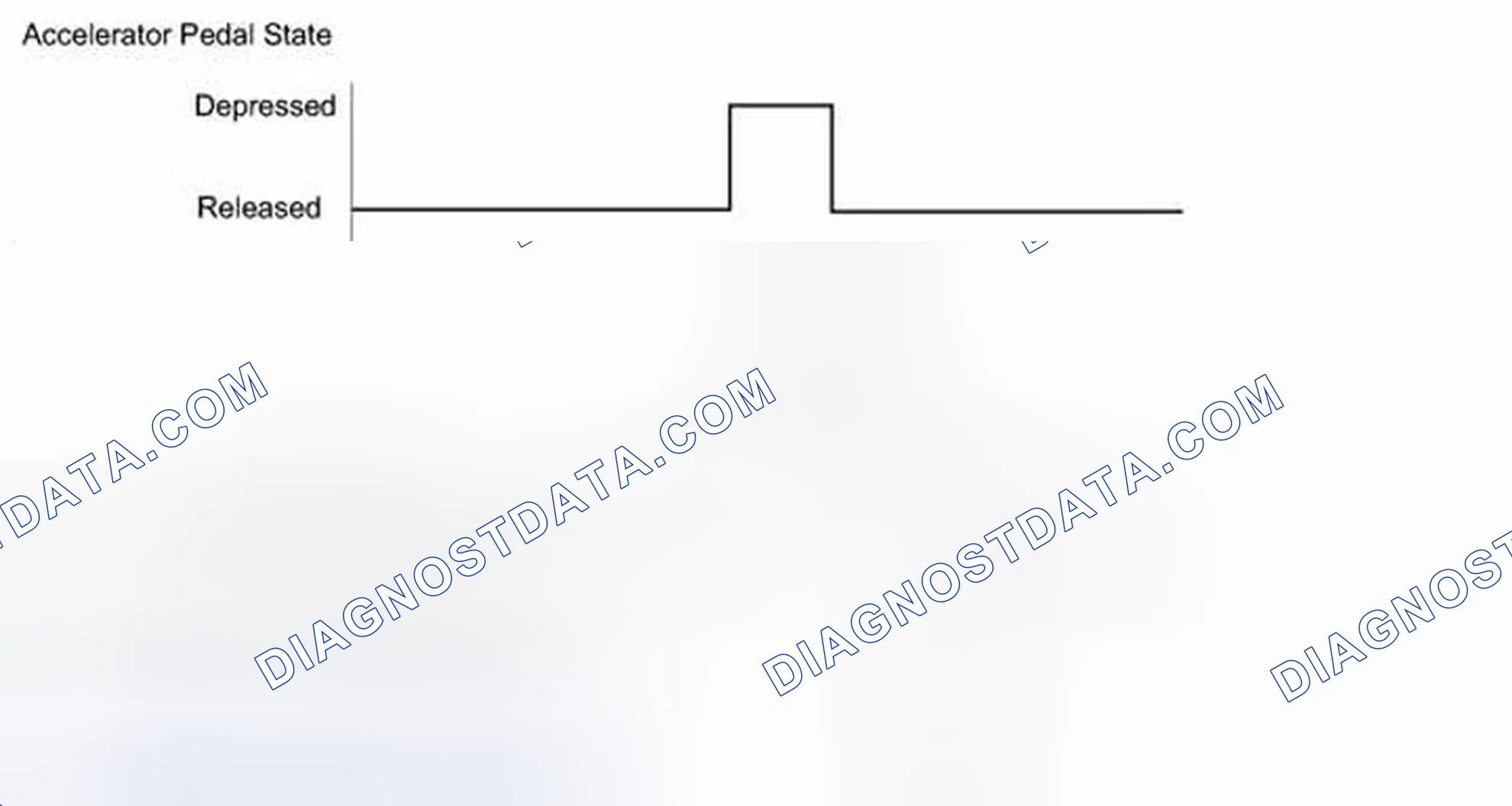

Scheme 370

Scheme 370: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine and fully depress and release the accelerator pedal quickly (to fully open and close the throttle valve).
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P2111 or P2112.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When either of these DTCs, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

  1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE) Check for contamination between the throttle valve and the housing. If necessary, clean the throttle with motor body assembly. And check that the throttle valve moves smoothly. OK Throttle valve is not contaminated with foreign objects and moves smoothly. NG --> See step 3 OK: Go to next step
  2. CHECK WHETHER DTC OUTPUT RECURS (DTC P2111 OR P2112) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Start the engine, and fully depress and release the accelerator pedal quickly (to fully open and close the throttle valve). Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P2111 or P2112 is output B B --> See step 4 A --> See step 5
  3. REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY. Refer to «REMOVAL»(ref-400788-S10183594902011051800000)
  4. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
  5. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
Related DTCsP2111: Throttle actuator stuck open P2112: Throttle actuator stuck closed
Required Sensors / Components (Main)Throttle actuator (throttle with motor body assembly)
Required Sensors / Components (Related)
Frequency of OperationContinuous
Duration0.5 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone

ALL

All of the following conditions are met
System guard* judge conditionON
Throttle actuator current2 A or more
Duty-cycle to close throttle80% or more

P2111 (THROTTLE ACTUATOR STUCK OPEN)

All of the following conditions are met
System guard* judge conditionON
Throttle actuator current2 A or more
Duty-cycle to open throttle80% or more

P2112 (THROTTLE ACTUATOR STUCK CLOSED)

*: System guard is ON when the following conditions set
Throttle actuatorON
Throttle actuator duty calculationExecuting
Throttle position sensor failNot detected
Throttle actuator current-cut operationNot executing
Throttle actuator power supply4 V or more
Throttle actuator failNot detected
Difference throttle position sensor voltage measurements taken at 0.016 seconds intervalsBelow 0.1 V for 0.5 seconds or more

P2111 (THROTTLE ACTUATOR STUCK OPEN)

Difference throttle position sensor voltage measurements taken at 0.016 seconds intervalsBelow 0.1 V for 0.5 seconds or more

P2112 (THROTTLE ACTUATOR STUCK CLOSED)

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine and fully depress and release the accelerator pedal quickly (to fully open and close the throttle valve).
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P2111 or P2112.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction.
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When either of these DTCs, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

  1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE) Check for contamination between the throttle valve and the housing. If necessary, clean the throttle with motor body assembly. And check that the throttle valve moves smoothly. OK Throttle valve is not contaminated with foreign objects and moves smoothly. NG --> See step 3 OK: Go to next step
  2. CHECK WHETHER DTC OUTPUT RECURS (DTC P2111 OR P2112) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Start the engine, and fully depress and release the accelerator pedal quickly (to fully open and close the throttle valve). Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC is not output A DTC P2111 or P2112 is output B B --> See step 4 A --> See step 5
  3. REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY. Refer to «REMOVAL»(ref-400788-S13675110742011051800000)
  4. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
  5. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
Related DTCsP2118: Throttle actuator power supply
Required Sensors / Components (Main)Throttle actuator, throttle valve (throttle with motor body assembly), ETCS fuse
Required Sensors / Components (Related)None
Frequency of OperationContinuous
Duration0.8 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Battery voltage8 V or higher
Electronic throttle actuator powerON
Throttle actuator power supply voltage (+BM)Below 4 V
Throttle actuator power supply voltage (+BM)11 to 14 V

Scheme 371

Scheme 371: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine.
  7. Slowly depress the accelerator pedal, raise the engine speed to approximately 3000 rpm for approximately 5 seconds, and then idle the engine [B].
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2118.
  10. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When this DTC or other DTCs relating to electronic throttle control system malfunctions, are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly. Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

Scheme 372

Scheme 372: WIRING DIAGRAM
Related DTCsP2118: Throttle actuator power supply
Required Sensors / Components (Main)Throttle actuator, throttle valve (throttle with motor body assembly), ETCS fuse
Required Sensors / Components (Related)None
Frequency of OperationContinuous
Duration0.8 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Battery voltage8 V or higher
Electronic throttle actuator powerON
Throttle actuator power supply voltage (+BM)Below 4 V
Throttle actuator power supply voltage (+BM)11 to 14 V
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine.
  7. Slowly depress the accelerator pedal, raise the engine speed to approximately 3000 rpm for approximately 5 seconds, and then idle the engine [B].
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2118.
  10. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When this DTC or other DTCs relating to electronic throttle control system malfunctions, are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly. Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

  1. READ VALUE USING TECHSTREAM (+BM VOLTAGE) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / +BM voltage. Read the value displayed on the Techstream. Standard Voltage 11 to 14 V NG --> See step 2 OK --> See step 3
  2. CHECK HARNESS AND CONNECTOR (ECM - BATTERY, BODY GROUND) Disconnect the ECM connectors. Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Condition Specified Condition D1-41 (+BM) - Body ground Always 11 to 14 V TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to ECM) Measure the resistance according to the value(s) in the table below. Standard Resistance (Check for Open) Tester Connection Condition Specified Condition D1-82 (ME01) - Body ground Always Below 1 ohms D1-81 (E1) - Body ground Always Below 1 ohms Reconnect the ECM connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - BATTERY, BODY GROUND) OK --> See step 4
  3. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  4. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP2119: Electronic throttle control system malfunction
Required Sensors / Components (Main)Throttle actuator (throttle with motor body assembly)
Required Sensors / Components (Related)
Frequency of OperationContinuous
Duration1 second
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
System guard* judge conditionON
*System guard is ON when the following conditions set
Throttle actuatorON
Throttle actuator duty calculationExecuting
Throttle position sensor failNot detected
Throttle actuator current-cut operationNot executing
Throttle actuator power supply4 V or more
Throttle actuator failNot detected
Either of the following conditions A or B is met
A. Commanded closed throttle position - current closed throttle position0.3 V or higher for 1 second
B. Commanded open throttle position - current open throttle position0.3 V or higher for 0.6 seconds

Scheme 373

Scheme 373: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine.
  7. Idle the engine for 20 seconds.
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2119.
  10. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, fully depress and release the accelerator pedal 3 times, and then check the DTC judgment result at step [C].
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When this DTC, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly. Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

Related DTCsP2119: Electronic throttle control system malfunction
Required Sensors / Components (Main)Throttle actuator (throttle with motor body assembly)
Required Sensors / Components (Related)
Frequency of OperationContinuous
Duration1 second
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
System guard* judge conditionON
*System guard is ON when the following conditions set
Throttle actuatorON
Throttle actuator duty calculationExecuting
Throttle position sensor failNot detected
Throttle actuator current-cut operationNot executing
Throttle actuator power supply4 V or more
Throttle actuator failNot detected
Either of the following conditions A or B is met
A. Commanded closed throttle position - current closed throttle position0.3 V or higher for 1 second
B. Commanded open throttle position - current open throttle position0.3 V or higher for 0.6 seconds
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine.
  7. Idle the engine for 20 seconds.
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2119.
  10. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, fully depress and release the accelerator pedal 3 times, and then check the DTC judgment result at step [C].
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When this DTC, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly. Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2119) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P2119 is output A DTC P2119 and other DTCs are output B HINT: If any DTCs other than P2119 are output, troubleshoot those DTCs first. B --> See step 5 A: Go to next step
  2. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY (RESISTANCE OF THROTTLE ACTUATOR) Disconnect the throttle with motor body assembly connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 2 (M+) - 1 (M-) 20°C (68°F) 0.3 to 100 ohms TEXT IN ILLUSTRATION *1 Component without harness connected (Throttle with Motor Body Assembly) Reconnect the throttle with motor body assembly connector. NG --> See step 6 OK: Go to next step
  3. REPLACE ECM Replace the ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000) . NEXT: Go to next step
  4. CHECK WHETHER DTC OUTPUT RECURS (DTC P2119) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Allow the engine to idle for 15 seconds or more. Fully depress and release the accelerator pedal several times quickly. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. HINT: The output voltage of the throttle position sensor can be checked using the Techstream. Variations in the output voltage indicate that the throttle actuator is in operation. To check the output voltage using the Techstream, enter the following menus: Powertrain / Engine / Data List / Throttle Position No. 1. Result Result Proceed to DTC is not output A DTC P2119 is output B B --> See step 6 A --> END
  5. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-400784-S30709964352011051800000)
  6. REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY. Refer to «REMOVAL»(ref-400788-S13675110742011051800000)
Related DTCsP2120: Accelerator pedal position sensor 1 range check (chattering) P2122: Accelerator pedal position sensor 1 range check (low voltage) P2123: Accelerator pedal position sensor 1 range check (high voltage) P2125: Accelerator pedal position sensor 2 range check (chattering) P2127: Accelerator pedal position sensor 2 range check (low voltage) P2128: Accelerator pedal position sensor 2 range check (high voltage) P2138: Accelerator pedal position sensor range check (correlation)
Required Sensors/Components (Main)Accelerator pedal position sensor
Required Sensors/Components (Related)
Frequency of OperationContinuous
Duration0.5 seconds: P2120, P2122, P2125 and P2127 2.0 seconds: P2123, P2128 and P2138
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Engine switchOn (IG)
Electronic throttle actuator powerON
Either of the following conditions is metCondition 1 or 2
1. VPA voltage when VPA2 voltage is 0.04 V or more0.4 V or less
2. VPA voltage4.8 V or more

P2120

VPA voltage when VPA2 voltage is 0.04 V or more0.4 V or less

P2122

VPA voltage4.8 V or more

P2123

Either of the following conditions is metCondition 1 or 2
1. VPA2 voltage when VPA is 0.04 V or more1.2 V or less
2. VPA2 voltage when VPA is 0.4 to 3.45 V4.8 V or more

P2125

VPA2 voltage when VPA is 0.04 V or more1.2 V or less

P2127

VPA2 voltage when VPA is 0.4 to 3.45 V4.8 V or more

P2128

Either of the following conditions A or B is met
Condition A
Difference between VPA and VPA 2 voltage0.02 V or less
Condition B
VPA voltage0.4 V or less
VPA2 voltage1.2 V or less

P2138

VPA voltageMore than 0.4 V, and less than 4.8 V
VPA2 voltageMore than 1.2 V, and less than 4.8 V
Difference between VPA and VPA2 voltagesMore than 0.02 V

Scheme 374

Scheme 374: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Fully depress and release the accelerator pedal [B].
  7. Check that 5 seconds or more have elapsed since the DTCs were cleared.
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2120, P2122, P2123, P2125, P2127, P2128 or P2138.
  10. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When any of DTCs P2120, P2122, P2123, P2125, P2127, P2128 and P2138 are set, the ECM enters fail-safe mode. If either of the 2 sensor circuits malfunctions, the ECM uses the remaining circuit to calculate the accelerator pedal position to allow the vehicle to continue driving. If both of the circuits malfunction, the ECM regards the accelerator pedal as being released. As a result, the throttle valve is closed and the engine idles. Fail-safe mode continues until a pass condition is detected, and the engine switch is turned off.

Scheme 375

Scheme 375: WIRING DIAGRAM
Related DTCsP2120: Accelerator pedal position sensor 1 range check (chattering) P2122: Accelerator pedal position sensor 1 range check (low voltage) P2123: Accelerator pedal position sensor 1 range check (high voltage) P2125: Accelerator pedal position sensor 2 range check (chattering) P2127: Accelerator pedal position sensor 2 range check (low voltage) P2128: Accelerator pedal position sensor 2 range check (high voltage) P2138: Accelerator pedal position sensor range check (correlation)
Required Sensors/Components (Main)Accelerator pedal position sensor
Required Sensors/Components (Related)
Frequency of OperationContinuous
Duration0.5 seconds: P2120, P2122, P2125 and P2127 2.0 seconds: P2123, P2128 and P2138
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Engine switchOn (IG)
Electronic throttle actuator powerON
Either of the following conditions is metCondition 1 or 2
1. VPA voltage when VPA2 voltage is 0.04 V or more0.4 V or less
2. VPA voltage4.8 V or more

P2120

VPA voltage when VPA2 voltage is 0.04 V or more0.4 V or less

P2122

VPA voltage4.8 V or more

P2123

Either of the following conditions is metCondition 1 or 2
1. VPA2 voltage when VPA is 0.04 V or more1.2 V or less
2. VPA2 voltage when VPA is 0.4 to 3.45 V4.8 V or more

P2125

VPA2 voltage when VPA is 0.04 V or more1.2 V or less

P2127

VPA2 voltage when VPA is 0.4 to 3.45 V4.8 V or more

P2128

Either of the following conditions A or B is met
Condition A
Difference between VPA and VPA 2 voltage0.02 V or less
Condition B
VPA voltage0.4 V or less
VPA2 voltage1.2 V or less

P2138

VPA voltageMore than 0.4 V, and less than 4.8 V
VPA2 voltageMore than 1.2 V, and less than 4.8 V
Difference between VPA and VPA2 voltagesMore than 0.02 V
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Fully depress and release the accelerator pedal [B].
  7. Check that 5 seconds or more have elapsed since the DTCs were cleared.
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2120, P2122, P2123, P2125, P2127, P2128 or P2138.
  10. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When any of DTCs P2120, P2122, P2123, P2125, P2127, P2128 and P2138 are set, the ECM enters fail-safe mode. If either of the 2 sensor circuits malfunctions, the ECM uses the remaining circuit to calculate the accelerator pedal position to allow the vehicle to continue driving. If both of the circuits malfunction, the ECM regards the accelerator pedal as being released. As a result, the throttle valve is closed and the engine idles. Fail-safe mode continues until a pass condition is detected, and the engine switch is turned off.

  1. READ VALUE USING TECHSTREAM (ACCEL SENSOR OUT NO. 1 AND ACCEL SENSOR OUT NO. 2) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2. Read the values displayed on the Techstream. Standard Voltage Accelerator Pedal Operation Accel Sensor Out No. 1 Accel Sensor Out No. 2 Released 0.5 to 1.1 V 1.2 to 2.0 V Depressed 2.6 to 4.5 V 3.4 to 4.8 V NG --> See step 2 OK --> See step 8
  2. CHECK HARNESS AND CONNECTOR (ACCELERATOR PEDAL SENSOR ASSEMBLY - ECM) Disconnect the accelerator pedal sensor assembly connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance (Check for Open) Tester Connection Condition Specified Condition A46-6 (VPA) - A43-55 (VPA) Always Below 1 ohms A46-5 (EPA) - A43-58 (EPA) Always Below 1 ohms A46-4 (VCPA) - A43-57 (VCPA) Always Below 1 ohms A46-3 (VPA2) - A43-56 (VPA2) Always Below 1 ohms A46-2 (EPA2) - A43-60 (EPA2) Always Below 1 ohms A46-1 (VCP2) - A43-59 (VCP2) Always Below 1 ohms Standard Resistance (Check for Short) Tester Connection Condition Specified Condition A46-6 (VPA) or A43-55 (VPA) - Body ground Always 10 kohms or higher A46-5 (EPA) or A43-58 (EPA) - Body ground Always 10 kohms or higher A46-4 (VCPA) or A43-57 (VCPA) - Body ground Always 10 kohms or higher A46-3 (VPA2) or A43-56 (VPA2) - Body ground Always 10 kohms or higher A46-2 (EPA2) or A43-60 (EPA2) - Body ground Always 10 kohms or higher A46-1 (VCP2) or A43-59 (VCP2) - Body ground Always 10 kohms or higher TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Accelerator Pedal Sensor Assembly) *2 Front view of wire harness connector (to ECM) Reconnect the accelerator pedal sensor assembly connector. Reconnect the ECM connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (ACCELERATOR PEDAL SENSOR ASSEMBLY - ECM) OK: Go to next step
  3. INSPECT ECM (VCPA AND VCP2 VOLTAGE) Disconnect the accelerator pedal sensor assembly connector. Turn the engine switch on (IG). Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Switch Condition Specified Condition A46-4 (VCPA) - A46-5 (EPA) Engine switch on (IG) 4.5 to 5.5 V A46-1 (VCP2) - A46-2 (EPA2) Engine switch on (IG) 4.5 to 5.5 V TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Accelerator Pedal Sensor Assembly) Reconnect the accelerator pedal sensor assembly connector. NG --> See step 6 OK: Go to next step
  4. REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY Replace the accelerator pedal sensor assembly. Refer to «REMOVAL»(ref-400788-S22677338542011051800000) . NEXT: Go to next step
  5. CHECK WHETHER DTC OUTPUT RECURS (ACCELERATOR PEDAL SENSOR ASSEMBLY DTCS) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2120, P2122, P2123, P2125, P2127, P2128 or P2138. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2120, P2122, P2123, P2125, P2127, P2128 or P2138 is output) B B --> See step 7 A --> END
  6. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
  7. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
  8. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
Related DTCsP2121: Accelerator pedal position sensor rationality
Required Sensors / Components (Main)Accelerator pedal position sensor
Required Sensors / Components (Related)
Frequency of OperationContinuous
Duration0.5 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Either of the following conditions is metCondition 1 or 2
1. Engine switchOn (IG)
2. Electronic throttle actuator powerON
Difference between VPA1 voltage (learned value) and VPA2 voltage (learned value)Less than 0.4 V, or more than 1.2 V

Scheme 376

Scheme 376: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream ON.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Fully depress and release the accelerator pedal [B].
  7. Check that 20 seconds or more have elapsed since the DTCs were cleared.
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2121.
  10. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

The accelerator pedal sensor assembly has 2 (main and sub) sensor circuits. If a malfunction occurs in either of the sensor circuits, the ECM detects the abnormal signal voltage difference between the 2 sensor circuits and switches to limp mode. In limp mode, the functioning circuit is used to calculate the accelerator pedal angle to allow the vehicle to continue driving. If both circuits malfunction, the ECM regards the angle of the accelerator pedal as being fully closed. In this case, the throttle valve remains closed as if the engine is idling. If a pass condition is detected and then the engine switch is turned off, the fail-safe operation stops and the system returns to a normal condition.

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2121) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P2121 is output A DTC P2121 and other DTCs are output B HINT: If any DTCs other than P2121 are output, troubleshoot those DTCs first. B --> See step 5 A: Go to next step
  2. READ VALUE USING TECHSTREAM (ACCEL SENSOR OUT NO. 1 AND ACCEL SENSOR OUT NO. 2) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2. Read the values displayed on the Techstream. Standard Voltage Accelerator Pedal Operation Accel Sensor Out No. 1 Accel Sensor Out No. 2 Released 0.5 to 1.1 V 1.2 to 2.0 V Depressed 2.6 to 4.5 V 3.4 to 4.8 V NG --> See step 3 OK --> See step 6
  3. REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY Replace the accelerator pedal sensor assembly. Refer to «REMOVAL»(ref-400788-S22677338542011051800000) . NEXT: Go to next step
  4. CHECK WHETHER DTC OUTPUT RECURS (DTC P2121) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2121. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2121 is output) B B --> See step 7 A --> END
  5. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-400784-S08158320572011051800000)
  6. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S03039419332011051800000)
  7. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
Related DTCsP2121: Accelerator pedal position sensor rationality
Required Sensors / Components (Main)Accelerator pedal position sensor
Required Sensors / Components (Related)
Frequency of OperationContinuous
Duration0.5 seconds
MIL OperationImmediately
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentNone
Either of the following conditions is metCondition 1 or 2
1. Engine switchOn (IG)
2. Electronic throttle actuator powerON
Difference between VPA1 voltage (learned value) and VPA2 voltage (learned value)Less than 0.4 V, or more than 1.2 V
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream ON.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Fully depress and release the accelerator pedal [B].
  7. Check that 20 seconds or more have elapsed since the DTCs were cleared.
  8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  9. Input the DTC: P2121.
  10. Check the DTC judgment result [C]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.
  11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  12. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

The accelerator pedal sensor assembly has 2 (main and sub) sensor circuits. If a malfunction occurs in either of the sensor circuits, the ECM detects the abnormal signal voltage difference between the 2 sensor circuits and switches to limp mode. In limp mode, the functioning circuit is used to calculate the accelerator pedal angle to allow the vehicle to continue driving. If both circuits malfunction, the ECM regards the angle of the accelerator pedal as being fully closed. In this case, the throttle valve remains closed as if the engine is idling. If a pass condition is detected and then the engine switch is turned off, the fail-safe operation stops and the system returns to a normal condition.

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2121) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P2121 is output A DTC P2121 and other DTCs are output B HINT: If any DTCs other than P2121 are output, troubleshoot those DTCs first. B --> See step 5 A: Go to next step
  2. READ VALUE USING TECHSTREAM (ACCEL SENSOR OUT NO. 1 AND ACCEL SENSOR OUT NO. 2) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2. Read the values displayed on the Techstream. Standard Voltage Accelerator Pedal Operation Accel Sensor Out No. 1 Accel Sensor Out No. 2 Released 0.5 to 1.1 V 1.2 to 2.0 V Depressed 2.6 to 4.5 V 3.4 to 4.8 V NG --> See step 3 OK --> See step 6
  3. REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY Replace the accelerator pedal sensor assembly. Refer to «REMOVAL»(ref-400788-S22677338542011051800000) . NEXT: Go to next step
  4. CHECK WHETHER DTC OUTPUT RECURS (DTC P2121) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2121. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2121 is output) B B --> See step 7 A --> END
  5. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-400784-S30709964352011051800000)
  6. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  7. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
Related DTCsP2195: Air fuel ratio sensor (Bank 1) signal stuck lean P2196: Air fuel ratio sensor (Bank 1) signal stuck rich P2197: Air fuel ratio sensor (Bank 2) signal stuck lean P2198: Air fuel ratio sensor (Bank 2) signal stuck rich
Required Sensors/Components (Main)Air fuel ratio sensor
Required Sensors/Components (Related)Heated oxygen sensor
Frequency of OperationContinuous
Duration3 seconds: Sensor current 5 seconds: Rationality
MIL Operation2 driving cycles
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentP0016, P0018 (VVT system bank 1, 2 - misalignment) P0017, P0019 (Exhaust VVT system bank 1, 2 - misalignment) P0031, P0032, P0051, P0052 (Air fuel ratio sensor heater) P0102, P0103 (Mass air flow meter) P0112, P0113 (Intake air temperature sensor) P0115, P0117, P0118 (Engine coolant temperature sensor) P0120, P0121, P0122, P0123, P0220, P0222, P0223, P2135 (Throttle position sensor) P0125 (Insufficient engine coolant temperature for closed loop) P0128 (Thermostat) P0171, P0172, P0174, P0175 (Fuel system) P0301, P0302, P0303, P0304, P0305, P0306 (Misfire) P0335 (Crankshaft position sensor) P0451, P0452, P0453 (Evaporative emission control system) P0500 (Vehicle speed sensor) P0505 (Idle speed control)

ALL

Time after engine start30 seconds or more
Fuel system statusClosed-loop

SENSOR VOLTAGE DETECTION MONITOR

Battery voltage11 V or more
Engine coolant temperature75°C (167°F) or more
Atmospheric pressure76 kPa (570 mmHg) or more
Air fuel ratio sensor statusActivated
Continuous time of fuel cut3 to 10 seconds

SENSOR CURRENT DETECTION MONITOR

Rear heated oxygen sensor voltageRises from less than 0.21 V to 0.59 V or more
Air fuel ratio sensor voltageMore than 3.8 V

SENSOR VOLTAGE DETECTION MONITOR (LEAN SIDE MALFUNCTION P2195, P2197)

Rear heated oxygen sensor voltageFails from 0.59 V or more, to less than 0.21 V
Air fuel ratio sensor voltageLess than 2.8 V

SENSOR VOLTAGE DETECTION MONITOR (RICH SIDE MALFUNCTION P2196, P2198)

Air fuel ratio sensor current3.6 mA or more

SENSOR CURRENT DETECTION MONITOR (HIGH SIDE MALFUNCTION P2195, P2197)

Air fuel ratio sensor currentLess than 1.4 mA

SENSOR CURRENT DETECTION MONITOR (LOW SIDE MALFUNCTION P2196, P2198)

MONITOR RESULT

Refer to Checking Monitor Status. Refer to CHECKING MONITOR STATUS .

Scheme 377

Scheme 377: WIRING DIAGRAM

This confirmation driving pattern is used in the "Perform Confirmation Driving Pattern" procedure of the following diagnostic troubleshooting procedure.

Scheme 378

Scheme 378: CONFIRMATION DRIVING PATTERN

Scheme 379

Scheme 379
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  5. Turn the engine switch off.
  6. Turn the engine switch on (IG) and turn the Techstream on.
  7. Start the engine, and warm it up until the engine coolant temperature reaches 75°C (167°F) or more [A].
  8. On Techstream, enter the following menus to check the fuel-cut status: Powertrain / Engine / Data List / Idle Fuel Cut.
  9. Drive the vehicle at between 38 and 75 mph (60 and 120 km/h) for at least 10 minutes [B]. WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws.
  10. Shift the transmission to 2nd gear [C].
  11. Accelerate the vehicle to 40 mph (64 km/h) or more by depressing the accelerator pedal for at least 10 seconds [D].
  12. Soon after performing step [D] above, release the accelerator pedal for at least 4 seconds without depressing the brake pedal in order to execute fuel-cut control [E]. HINT: Fuel-cut is performed when the following conditions are met: Accelerator pedal is fully released. Engine speed is 2500 rpm or more (fuel injection returns at 1000 rpm).
  13. Allow the vehicle to decelerate until the vehicle speed decreases to less than 6 mph (10 km/h).
  14. Repeat steps [C] through [E] above at least 3 times in one driving cycle.
  15. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  16. Input the DTC: P2195, P2196, P2197 or P2198.
  17. Check the DTC judgment result [F]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] through [F].
  18. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  19. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  20. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
Related DTCsP2195: Air fuel ratio sensor (Bank 1) signal stuck lean P2196: Air fuel ratio sensor (Bank 1) signal stuck rich P2197: Air fuel ratio sensor (Bank 2) signal stuck lean P2198: Air fuel ratio sensor (Bank 2) signal stuck rich
Required Sensors/Components (Main)Air fuel ratio sensor
Required Sensors/Components (Related)Heated oxygen sensor
Frequency of OperationContinuous
Duration3 seconds: Sensor current 5 seconds: Rationality
MIL Operation2 driving cycles
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentP0016, P0018 (VVT system bank 1, 2 - misalignment) P0017, P0019 (Exhaust VVT system bank 1, 2 - misalignment) P0031, P0032, P0051, P0052 (Air fuel ratio sensor heater) P0102, P0103 (Mass air flow meter) P0112, P0113 (Intake air temperature sensor) P0115, P0117, P0118 (Engine coolant temperature sensor) P0120, P0121, P0122, P0123, P0220, P0222, P0223, P2135 (Throttle position sensor) P0125 (Insufficient engine coolant temperature for closed loop) P0128 (Thermostat) P0171, P0172, P0174, P0175 (Fuel system) P0301, P0302, P0303, P0304, P0305, P0306 (Misfire) P0335 (Crankshaft position sensor) P0451, P0452, P0453 (Evaporative emission control system) P0500 (Vehicle speed sensor) P0505 (Idle speed control)

ALL

Time after engine start30 seconds or more
Fuel system statusClosed-loop

SENSOR VOLTAGE DETECTION MONITOR

Battery voltage11 V or more
Engine coolant temperature75°C (167°F) or more
Atmospheric pressure76 kPa (570 mmHg) or more
Air fuel ratio sensor statusActivated
Continuous time of fuel cut3 to 10 seconds

SENSOR CURRENT DETECTION MONITOR

Rear heated oxygen sensor voltageRises from less than 0.21 V to 0.59 V or more
Air fuel ratio sensor voltageMore than 3.8 V

SENSOR VOLTAGE DETECTION MONITOR (LEAN SIDE MALFUNCTION P2195, P2197)

Rear heated oxygen sensor voltageFails from 0.59 V or more, to less than 0.21 V
Air fuel ratio sensor voltageLess than 2.8 V

SENSOR VOLTAGE DETECTION MONITOR (RICH SIDE MALFUNCTION P2196, P2198)

Air fuel ratio sensor current3.6 mA or more

SENSOR CURRENT DETECTION MONITOR (HIGH SIDE MALFUNCTION P2195, P2197)

Air fuel ratio sensor currentLess than 1.4 mA

SENSOR CURRENT DETECTION MONITOR (LOW SIDE MALFUNCTION P2196, P2198)

Refer to Checking Monitor Status. CHECKING MONITOR STATUS .

This confirmation driving pattern is used in the "Perform Confirmation Driving Pattern" procedure of the following diagnostic troubleshooting procedure.

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) .
  5. Turn the engine switch off.
  6. Turn the engine switch on (IG) and turn the Techstream on.
  7. Start the engine, and warm it up until the engine coolant temperature reaches 75°C (167°F) or more [A].
  8. On Techstream, enter the following menus to check the fuel-cut status: Powertrain / Engine / Data List / Idle Fuel Cut.
  9. Drive the vehicle at between 38 and 75 mph (60 and 120 km/h) for at least 10 minutes [B]. WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws.
  10. Shift the transmission to 2nd gear [C].
  11. Accelerate the vehicle to 40 mph (64 km/h) or more by depressing the accelerator pedal for at least 10 seconds [D].
  12. Soon after performing step [D] above, release the accelerator pedal for at least 4 seconds without depressing the brake pedal in order to execute fuel-cut control [E]. HINT: Fuel-cut is performed when the following conditions are met: Accelerator pedal is fully released. Engine speed is 2500 rpm or more (fuel injection returns at 1000 rpm).
  13. Allow the vehicle to decelerate until the vehicle speed decreases to less than 6 mph (10 km/h).
  14. Repeat steps [C] through [E] above at least 3 times in one driving cycle.
  15. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  16. Input the DTC: P2195, P2196, P2197 or P2198.
  17. Check the DTC judgment result [F]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] through [F].
  18. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  19. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  20. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO P2195, P2196, 2197 OR P2198) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine / Trouble Codes. Read the DTCs. Result Result Proceed to DTC P2195, P2196, P2197, or P2198 is output A DTC P2195, P2196, P2197, or P2198 and other DTCs are output B HINT: If any DTCs other than P2195, P2196, P2197 or P2198 are output, troubleshoot those DTCs first. B --> See step 19 A: Go to next step
  2. CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST Has the vehicle run out of fuel in the past? NO --> See step 4 YES: Go to next step
  3. PERFORM CONFIRMATION DRIVING PATTERN Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000). Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2195, P2196, P2197 or P2198. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195, P2196, P2197 or P2198 is output) B B --> See step 4 A --> DTC CAUSED BY RUNNING OUT OF FUEL
  4. READ VALUE USING TECHSTREAM (TEST VALUE OF AIR FUEL RATIO SENSOR) Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000). Allow the vehicle to drive in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Monitor / O2 Sensor. Check that the status of O2 Sensor is Complete. If the status is still Incomplete, drive the vehicle according to the driving pattern again. Enter the following menus: Powertrain / Engine / Monitor / O2 Sensor / Details / RANGE B1S1 or RANG B2S1 / Details. Check the test value of the air fuel ratio sensor output current during fuel cut. Result Test Value Proceed to Within normal range (1.4 mA or more, and less than 3.6 mA) A Outside normal range (Less than 1.4 mA, or 3.6 mA or more) B B --> See step 16 A: Go to next step
  5. READ VALUE USING TECHSTREAM (OUTPUT VOLTAGE OF AIR FUEL RATIO SENSOR) Connect the Techstream to the DLC3. Start the engine. Turn the Techstream on. Warm up the air fuel ratio sensor at an engine speed of 2500 rpm for 90 seconds. Enter the following menus: Powertrain / Engine / Data List / A/F Control System / AFS Voltage B1S1 or AFS Voltage B2S1 and Engine Speed. Check the air fuel ratio sensor voltage 3 times, when the engine is in each of the following conditions: While idling (check for at least 30 seconds) (Step "A") At an engine speed of approximately 2500 rpm (without any sudden changes in engine speed) (Step "B") The engine speed is raised to 4000 rpm and then the accelerator pedal is quickly released so that the throttle valve is fully closed (Step "C"). Standard Condition Air Fuel Ratio Sensor Voltage Variation Reference Step "A" and "B" Changes at approximately 3.3 V Between 3.1 V and 3.4 V Step "C" Increases to 3.8 V or more This occurs during engine deceleration (when fuel cut performed) HINT: For more information, see the diagrams below. If the output voltage of the air fuel ratio sensor remains at approximately 3.3 V (see Malfunction Condition diagram above) under any conditions, including those above, the air fuel ratio sensor may have an open circuit. (This will also happen if the air fuel ratio sensor heater has an open circuit.) If the output voltage of the air fuel ratio sensor remains at either approximately 3.8 V or more, or 2.8 V or less (see Malfunction Condition diagram see scheme 98 ) under any conditions, including those above, the air fuel ratio sensor may have a short circuit. The ECM stops fuel injection (fuel cut) during engine deceleration. This causes a lean condition and results in a momentary increase in the air fuel ratio sensor output voltage. The ECM must establish a closed throttle valve position learning value to perform fuel cut. If the battery terminal has been reconnected, the vehicle must be driven over 10 mph (16 km/h) to allow the ECM to learn the closed throttle valve position. When the vehicle is driven: The output voltage of the air fuel ratio sensor may be below 2.8 V during fuel enrichment. For the vehicle, this translates to a sudden increase in speed with the accelerator pedal fully depressed when trying to overtake another vehicle. The air fuel ratio sensor is functioning normally. The air fuel ratio sensor is a current output element; therefore, the current is converted into a voltage inside the ECM. Measuring the voltage at the connectors of the air fuel ratio sensor or ECM will show a constant voltage result. NG --> See step 9 OK: Go to next step
  6. PERFORM CONFIRMATION DRIVING PATTERN Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000). Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2195, P2196, P2197 or P2198. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195, P2196, P2197 or P2198 is output) B B --> See step 7 A --> See step 20
  7. REPLACE AIR FUEL RATIO SENSOR Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-400788-S35731488742011051800000). NEXT: Go to next step
  8. PERFORM CONFIRMATION DRIVING PATTERN Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000). Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2195, P2196, P2197 or P2198. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195, P2196, P2197 or P2198 is output) B B --> See step 21 A --> END
  9. INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE) Disconnect the air fuel ratio sensor connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 1 (HA1A) - 2 (+B) 20°C (68°F) 1.8 to 3.4 ohms 1 (HA1A) - 4 (A1A-) Always 10 kohms or higher 1 (HA2A) - 2 (+B) 20°C (68°F) 1.8 to 3.4 ohms 1 (HA2A) - 4 (A2A-) Always 10 kohms or higher TEXT IN ILLUSTRATION *1 Component without harness connected (Air Fuel Ratio Sensor) *2 Bank 1 *3 Bank 2 Reconnect the air fuel ratio sensor connector. NG --> See step 22 OK: Go to next step
  10. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM) Disconnect the air fuel ratio sensor connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance (Check for Open) Tester Connection Condition Specified Condition D20-1 (HA1A) - D1-22 (HA1A) Always Below 1 ohms D20-3 (A1A+) - D1-126 (A1A+) Always Below 1 ohms D20-4 (A1A-) - D1-125 (A1A-) Always Below 1 ohms D19-1 (HA2A) - D1-20 (HA2A) Always Below 1 ohms D19-3 (A2A+) - D1-103 (A2A+) Always Below 1 ohms D19-4 (A2A-) - D1-102 (A2A-) Always Below 1 ohms Standard Resistance (Check for Short) Tester Connection Condition Specified Condition D20-1 (HA1A) or D1-22 (HA1A) - Body ground Always 10 kohms or higher D20-3 (A1A+) or D1-126 (A1A+) - Body ground Always 10 kohms or higher D20-4 (A1A-) or D1-125 (A1A-) - Body ground Always 10 kohms or higher D19-1 (HA2A) or D1-20 (HA2A) - Body ground Always 10 kohms or higher D19-3 (A2A+) or D1-103 (A2A+) - Body ground Always 10 kohms or higher D19-4 (A2A-) or D1-102 (A2A-) - Body ground Always 10 kohms or higher TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Air Fuel Ratio Sensor) *2 Front view of wire harness connector (to ECM) *3 Bank 1 *4 Bank 2 Reconnect the ECM connector. Reconnect the air fuel ratio sensor connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (AIR FUEL RATIO SENSOR - ECM) OK: Go to next step
  11. CHECK INTAKE SYSTEM Check the intake system for vacuum leaks. Refer to «ON-VEHICLE INSPECTION»(ref-400792-S33062746192011051800000). OK No leaks in intake system. NG --> REPAIR OR REPLACE INTAKE SYSTEM OK: Go to next step
  12. CHECK FUEL PRESSURE Check the fuel pressure. Refer to «ON-VEHICLE INSPECTION - Step 2»(ref-400801-S16632970622011051800000). NG --> See step 18 OK: Go to next step
  13. INSPECT FUEL INJECTOR ASSEMBLY Check the fuel injector assembly (whether fuel volume is high or low, and whether injector pattern is poor). Refer to «INSPECTION»(ref-400791-S21918100082011051800000). NG --> See step 23 OK: Go to next step
  14. REPLACE AIR FUEL RATIO SENSOR Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-400788-S35731488742011051800000). NEXT: Go to next step
  15. PERFORM CONFIRMATION DRIVING PATTERN Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000). Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2195, P2196, P2197 or P2198. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195, P2196, P2197 or P2198 is output) B B --> See step 21 A --> END
  16. REPLACE AIR FUEL RATIO SENSOR Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-400788-S35731488742011051800000). NEXT: Go to next step
  17. PERFORM CONFIRMATION DRIVING PATTERN Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S02158227972011051800000). Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2195, P2196, P2197 or P2198. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195, P2196, P2197 or P2198 is output) B B --> See step 21 A --> END
  18. CHECK FUEL LINE Check the fuel lines for leaks or blockage. NG --> REPAIR OR REPLACE FUEL LINE OK --> See step 24
  19. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-400784-S30709964352011051800000)
  20. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-400784-S22487773382011051800000)
  21. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S10545316742011051800000)
  22. REPLACE AIR FUEL RATIO SENSOR. Refer to «REMOVAL»(ref-400788-S35731488742011051800000)
  23. REPLACE FUEL INJECTOR ASSEMBLY. Refer to «REMOVAL»(ref-400791-S00216025722011051800000)
  24. REPLACE FUEL PUMP. Refer to «REMOVAL»(ref-400791-S28766966852011051800000)
Related DTCsP2237: Air fuel ratio sensor (Bank 1) open circuit between A1A+ and A1A- P2238: Air fuel ratio sensor (Bank 1) short circuit between A1A+ and A1A- P2238: Air fuel ratio sensor (Bank 1) short circuit between A1A+ and GND P2238: Air fuel ratio sensor (Bank 1) low admittance P2239: Air fuel ratio sensor (Bank 1) short circuit between A1A+ and +B P2240: Air fuel ratio sensor (Bank 2) open circuit between A2A+ and A2A- P2241: Air fuel ratio sensor (Bank 2) short circuit between A2A+ and A2A- P2241: Air fuel ratio sensor (Bank 2) short circuit between A2A+ and GND P2241: Air fuel ratio sensor (Bank 2) low admittance P2242: Air fuel ratio sensor (Bank 2) short circuit between A2A+ and +B P2252: Air fuel ratio sensor (Bank 1) short circuit between A1A- and GND P2253: Air fuel ratio sensor (Bank 1) short circuit between A1A- and +B P2255: Air fuel ratio sensor (Bank 2) short circuit between A2A- and GND P2256: Air fuel ratio sensor (Bank 2) short circuit between A2A- and +B
Required Sensors / Components (Main)Air fuel ratio sensor
Required Sensors / Components (Related)Engine coolant temperature sensor, crankshaft position sensor
Frequency of OperationContinuous
DurationP2237 and P2240: 10 seconds P2238 and P2241 (air fuel ratio sensor low admittance): 10 seconds Others: 5 seconds
MIL Operation2 driving cycles
Sequence of OperationNone
Monitor runs whenever following DTCs are not presentP0016, P0018 (VVT system bank 1, 2 - misalignment) P0017, P0019 (Exhaust VVT system bank 1, 2 - misalignment) P0031, P0032, P0051, P0052 (Air fuel ratio sensor heater) P0102, P0103 (Mass air flow meter) P0112, P0113 (Intake air temperature sensor) P0115, P0117, P0118 (Engine coolant temperature sensor) P0120, P0121, P0122, P0123, P0220, P0222, P0223, P2135 (Throttle position sensor) P0125 (Insufficient engine coolant temperature for closed loop) P0128 (Thermostat) P0171, P0172, P0174, P0175 (Fuel system) P0301, P0302, P0303, P0304, P0305, P0306 (Misfire) P0335 (Crankshaft position sensor) P0451, P0452, P0453 (Evaporative emission control system) P0500 (Vehicle speed sensor) P0505 (Idle speed control)
Estimated sensor temperature450 to 550°C (842 to 1022°F)
EngineRunning
Battery voltage11 V or more

P2237 AND P2240 (AIR FUEL RATIO SENSOR OPEN CIRCUIT BETWEEN A1A+ AND A1A-/A2A+ AND A2A-)

Estimated sensor temperature700 to 800°C (1292 to 1472°F)
Engine coolant temperature5°C (41°F) or more (varies with engine coolant temperature at engine start)
Fuel cutNot executed

P2238 AND P2241 (LOW ADMITTANCE)

Battery voltage11 V or more
Engine switchOn (IG)
Time after engine switch is off to on (IG)5 seconds or more

OTHERS

Air fuel ratio sensor admittanceLess than 0.002 1/ohms

P2237 AND P2240 (OPEN CIRCUIT BETWEEN A1A+ AND A1A-/A2A+ AND A2A-)

Air fuel ratio sensor admittanceLess than 0.015 1/ohms

P2238 AND P2241 (LOW ADMITTANCE)

A1A+/A2A+ terminal voltage0.5 V or less

P2238 AND P2241 (SHORT CIRCUIT BETWEEN A1A+ AND GND/A2A+ AND GND)

Difference between A1A+ and A1A-/A2A+ and A2A- terminal voltage0.1 V or less

P2238 AND P2241 (SHORT CIRCUIT BETWEEN A1A+ AND A1A-/A2A+ AND A2A-)

A1A+/A2A+ terminal voltageMore than 4.5 V

P2239 AND P2242 (SHORT CIRCUIT BETWEEN A1A+ AND +B/A2A+ AND +B)

A1A-/A2A- terminal voltage0.5 V or less

P2252 AND P2255 (SHORT CIRCUIT BETWEEN A1A- AND GND/A2A- AND GND)

A1A-/A2A- terminal voltageMore than 4.5 V

P2253 AND P2256 (SHORT CIRCUIT BETWEEN A1A- AND +B/A2A- AND +B)

Air fuel ratio sensor admittance0.015 1/ohms or higher
A1A+/A2A+ terminal voltage0.5 to 4.5 V
A1A-/A2A- terminal voltage0.5 to 4.5 V
Difference between A1A+/A2A+ and A1A-/A2A- terminal voltages0.1 to 0.8 V

Scheme 380

Scheme 380: CONFIRMATION DRIVING PATTERN
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) .
  4. Turn the engine switch off.
  5. Turn the engine switch on (IG) and turn the Techstream on [A].
  6. Start the engine and wait 2 minutes.
  7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  8. Input the DTC: P2237, P2238, P2239, P2240, P2241, P2242, P2252, P2253, P2255 or P2256.
  9. Check the DTC judgment result [B]. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions UNKNOWN Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or UNKNOWN, idle the engine for 3 minutes and check the DTC judgment result again [C].
  10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  11. Read Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning.
  12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.
  1. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM) Disconnect the air fuel ratio sensor connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance (Check for Open) Tester Connection Condition Specified Condition D20-1 (HA1A) - D1-22 (HA1A) Always Below 1 ohms D20-3 (A1A+) - D1-126 (A1A+) Always Below 1 ohms D20-4 (A1A-) - D1-125 (A1A-) Always Below 1 ohms D19-1 (HA2A) - D1-20 (HA2A) Always Below 1 ohms D19-3 (A2A+) - D1-103 (A2A+) Always Below 1 ohms D19-4 (A2A-) - D1-102 (A2A-) Always Below 1 ohms Standard Resistance (Check for Short) Tester Connection Condition Specified Condition D20-1 (HA1A) or D1-22 (HA1A) - Body ground Always 10 kohms or higher D20-3 (A1A+) or D1-126 (A1A+) - Body ground Always 10 kohms or higher D20-4 (A1A-) or D1-125 (A1A-) - Body ground Always 10 kohms or higher D19-1 (HA2A) or D1-20 (HA2A) - Body ground Always 10 kohms or higher D19-3 (A2A+) or D1-103 (A2A+) - Body ground Always 10 kohms or higher D19-4 (A2A-) or D1-102 (A2A-) - Body ground Always 10 kohms or higher TEXT IN ILLUSTRATION *1 Front view of wire harness connector (to Air Fuel Ratio Sensor) *2 Front view of wire harness connector (to ECM) *3 Bank 1 *4 Bank 2 Reconnect the air fuel ratio sensor connector. Reconnect the ECM connector. NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR (AIR FUEL RATIO SENSOR - ECM) OK: Go to next step
  2. REPLACE AIR FUEL RATIO SENSOR Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-400788-S16324759872011051800000) . NEXT: Go to next step
  3. CHECK WHETHER DTC OUTPUT RECURS Connect the Techstream to the DLC3. Turn the engine switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-400784-S05337578742011051800000) . Turn the engine switch off. Turn the engine switch on (IG) and turn the Techstream on. Start the engine and warm it up. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine / Utility / All Readiness. Input the DTC: P2237, P2238, P2239, P2240, P2241, P2242, P2252, P2253, P2255 or P2256. Check the DTC judgment result. Result Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2237, P2238, P2239, P2240, P2241, P2242, P2252, P2253, P2255 or P2256 is output) B B --> See step 4 A --> END
  4. REPLACE ECM. Refer to «REMOVAL»(ref-400788-S26250166532011051800000)
