Engine Control System (2ZR-FXE) (Diagnostic Codes (P148F - U0293) & Circuit Tests)): Other Lexus CT I

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P148F) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC P148F is output A DTC P148F and other DTCs are output B HINT: If any DTCs other than P148F are output, troubleshoot those DTCs first. B --> See step 11 A: Go to next step
2. CHECK RADIATOR RESERVOIR TANK ASSEMBLY (ENGINE COOLANT LEVEL) Check that the engine coolant level is between the FULL and LOW lines. Refer to «ON-VEHICLE INSPECTION - Step 2»(ref-568726-S04853020212013072300000) . RESULT Result Proceed to Engine coolant level is below the LOW line A Engine coolant level is above the LOW line B B --> See step 6 A: Go to next step
3. CHECK FOR COOLANT LEAKS Check the areas around the engine and heater for coolant leaks. Refer to «ON-VEHICLE INSPECTION - Step 1»(ref-568726-S04853020212013072300000) . OK No leaks. HINT: If the engine oil is cloudy during the engine oil level gauge check, it means that coolant has entered the engine lubrication system. NG --> See step 5 OK: Go to next step
4. ADD ENGINE COOLANT Fill the reservoir tank up to the FULL line with engine coolant. NOTE: Make sure not to add engine coolant when the engine is hot. NEXT --> See step 6
5. REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA Repair any coolant leaks. HINT: Add coolant and perform air bleeding after repair. Refer to «REPLACEMENT»(ref-568743-S25116833622013072300000) . NEXT: Go to next step
6. CLEAR DTC (DTC P148F) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTC. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . NEST: Go to next step
7. INSPECT ENGINE WATER PUMP ASSEMBLY HINT: Perform repair indoors or in a workshop. Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Coolant Temp and Elec Water Pump Spd. HINT: Display the Data List diagram. Idle the engine for about 20 minutes and check Coolant Temp, Elec Water Pump Spd using the Techstream, and check the cooling fans. RESULT Result Proceed to Either of the following conditions is met: The engine coolant temperature becomes 95°C (203°F) or higher and the engine water pump assembly performs intermittent operation (5 seconds pause after 25 seconds operation). The engine water pump assembly do not start operating even after the engine coolant temperature becomes 95°C (203°F) or higher.*1, *2 A The cooling fans start operating after the engine coolant temperature becomes 95°C (203°F) or less and decrease in the engine coolant temperature is observed.*3 B HINT: *1: Be careful when the cooling fans do not start operating even after the engine coolant temperature becomes 95°C (203°F) or higher because the engine coolant temperature increases rapidly. (Make sure to stop the engine if the engine coolant temperature becomes 105°C (221°F) or higher.) *2: If the ECM voltage is 14 V or higher and the engine water pump assembly is run excessively due to insufficient coolant etc., the water pump motor speed will exceed 5000 RPM. Enter the following menus to check the voltage of the ECM: Powertrain / Engine and ECT / Data List / Primary / Battery Voltage. Refer to «DATA LIST / ACTIVE TEST»(ref-568607-S17841424132013072300000) . *3: When the engine is warmed up, the cooling fans operate and the engine coolant temperature will decrease. After the cooling fans begin operating, the engine coolant temperature will stabilize between 88 to 95°C (190 to 203°F). B --> END A: Go to next step
8. REPLACE ENGINE WATER PUMP ASSEMBLY Replace the engine water pump assembly. Refer to «REMOVAL»(ref-568743-S04990838952013072300000) . NEXT: Go to next step
9. ADD ENGINE COOLANT Fill the reservoir tank up to the FULL line with engine coolant. NOTE: Make sure not to add engine coolant when the engine is hot. NEXT: Go to next step
10. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED HINT: Perform repair indoors or in a workshop. Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Coolant Temp and Elec Water Pump Spd. Idle the engine for about 20 minutes and check Coolant Temp, Elec Water Pump Spd using the Techstream, and check the cooling fans. Result The cooling fans start operating after the engine coolant temperature becomes 95°C (203°F) or less and decrease in the engine coolant temperature is observed. NEXT --> END
11. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-568607-S40570208092013072300000)

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

ALL

P2102

P2103

TYPICAL MALFUNCTION THRESHOLDS

P2102

P2103 (CASE 1)

P2103 (CASE 2)

Scheme 82

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on [A].
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine.
8. With the vehicle stationary, fully depress the accelerator pedal and quickly release it [B].
9. Check that 16 seconds or more have elapsed from the instant when the accelerator pedal is first depressed.
10. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].
11. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
12. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
13. Input the DTC: P2102 or P2103.
14. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, perform steps [B] and [C] again.
15. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

FAIL-SAFE

When either of these DTCs, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 5.5° throttle angle by the return spring. The ECM stops the engine and the vehicle can be driven using solely the hybrid system. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the power switch is then turned off.

Scheme 83

1. INSPECT THROTTLE BODY ASSEMBLY (RESISTANCE OF THROTTLE ACTUATOR) Inspect the throttle body assembly. Refer to «INSPECTION»(ref-568740-S02576767352013072300000) . NG --> See step 5 OK: Go to next step
2. CHECK HARNESS AND CONNECTOR (THROTTLE BODY ASSEMBLY - ECM) Disconnect the throttle body assembly connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition D4-2 (M+) - D27-21 (M+) Always Below 1 ohms D4-1 (M-) - D27-20 (M-) Always Below 1 ohms D4-2 (M+) or D27-21 (M+) - Body ground Always 10 kohms or higher D4-1 (M-) or D27-20 (M-) - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step
3. INSPECT THROTTLE BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE) Check for foreign objects between the throttle valve and the housing. OK No foreign objects between throttle valve and housing. NG --> REMOVE FOREIGN OBJECT AND CLEAN THROTTLE BODY ASSEMBLY OK: Go to next step
4. INSPECT THROTTLE BODY ASSEMBLY (THROTTLE VALVE) Check if the throttle valve opens and closes smoothly. OK Throttle valve opens and closes smoothly. NG --> See step 5 OK --> See step 6
5. REPLACE THROTTLE BODY ASSEMBLY. Refer to «REMOVAL»(ref-568740-S27680346492013072300000)
6. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)

ALL

P2111: THROTTLE ACTUATOR STUCK OPEN

P2112: THROTTLE ACTUATOR STUCK CLOSED

P2111: THROTTLE ACTUATOR STUCK OPEN

P2112: THROTTLE ACTUATOR STUCK CLOSED

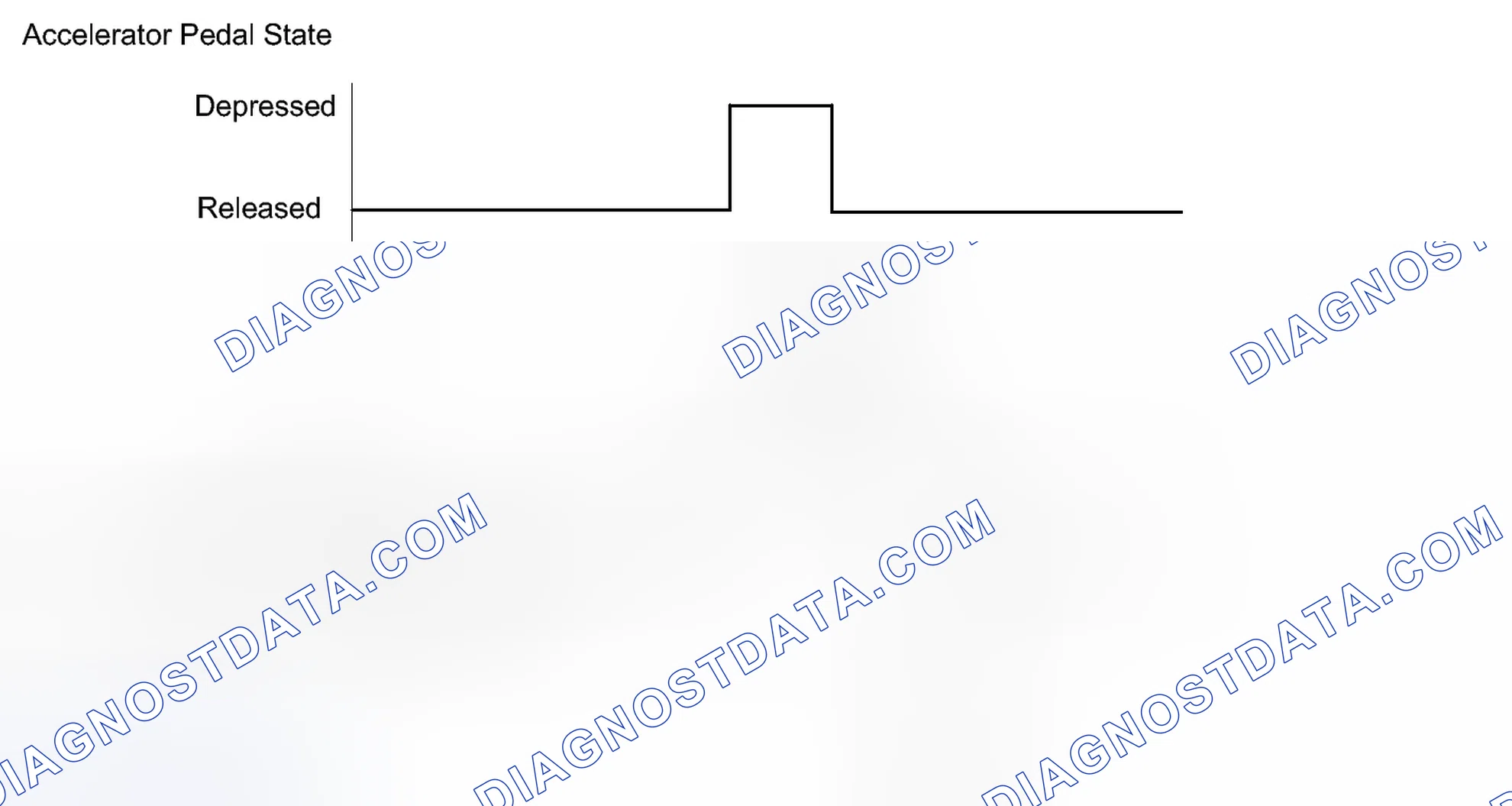

Scheme 84

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on [A].
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine and fully depress and release the accelerator pedal quickly (to fully open and close the throttle valve).
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [B].
9. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
11. Input the DTC: P2111 or P2112.
12. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction.
13. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When either of these DTCs, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 5.5° throttle angle by the return spring. The ECM stops the engine and the vehicle can be driven using solely the hybrid system. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the power switch is then turned off.

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2111 OR P2112) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC P2111 or P2112 is output A DTC P2111 or P2112 and other DTCs are output B HINT: If any DTCs other than P2111 or P2112 are output, troubleshoot those DTCs first. B --> See step 8 A: Go to next step
2. INSPECT THROTTLE BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE) Check for contamination between the throttle valve and housing. If necessary, clean the throttle body assembly. Also, check that the throttle valve moves smoothly. OK Throttle valve is not contaminated with foreign objects and moves smoothly. NG --> See step 5 OK: Go to next step
3. READ VALUE USING TECHSTREAM (THROTTLE POSITION) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for at least 30 seconds. Turn the power switch on (IG) and turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas Throttle / Throttle Position No. 1, Throttle Position No. 2 and Throttle Position Command. Check the values displayed on the Techstream while wiggling the ECM wire harness. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to Value in Data List changes when wire harness is wiggled, or DTC is output A Other than above B B --> See step 6 A: Go to next step
4. REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - THROTTLE BODY ASSEMBLY) As the DTC was stored due to a change in the contact resistance of the connector, repair or replace the wire harness or connector. Refer to «ELECTRONIC CIRCUIT INSPECTION PROCEDURE»(ref-568589-S42645766622013072300000) . NEXT --> END
5. REPLACE THROTTLE BODY ASSEMBLY Replace the throttle body assembly. Refer to «REMOVAL»(ref-568740-S27680346492013072300000) . NEXT: Go to next step
6. CHECK WHETHER DTC OUTPUT RECURS (DTC P2111 OR P2112) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC is not output A DTC P2111 or P2112 is output B B --> See step 7 A --> END
7. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)
8. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-568607-S40570208092013072300000)

COMPONENT OPERATING RANGE

Scheme 85

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on [A].
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine.
8. Slowly depress the accelerator pedal, raise the engine speed to approximately 2500 RPM for approximately 5 seconds, and then idle the engine [B]. HINT: During charging control, the engine speed is set at idle. Therefore, the engine speed does not increase when depressing the accelerator pedal. In this case, perform step [B] after charging control has completed.
9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].
10. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
12. Input the DTC: P2118.
13. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, perform steps [B] and [C] again.
14. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When this DTC or other DTCs relating to electronic throttle control system malfunctions, are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 5.5° throttle angle by the return spring. The ECM stops the engine and the vehicle can be driven using solely the hybrid system. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly. Fail-safe mode continues until a pass condition is detected, and the power switch is then turned off.

1. READ VALUE USING TECHSTREAM (+BM VOLTAGE) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas Throttle / +BM voltage. Read the value displayed on the Techstream. RESULT Result Proceed to Below 4 V A 11 to 14 V B B --> See step 4 A: Go to next step
2. CHECK HARNESS AND CONNECTOR (ECM - AUXILIARY BATTERY, BODY GROUND) Disconnect the ECM connectors. Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Condition Specified Condition A60-3 (+BM) - Body ground Always 11 to 14 V Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition D27-19 (ME01) - Body ground Always Below 1 ohms D27-104 (E1) - Body ground Always Below 1 ohms NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK --> See step 3
3. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)
4. CHECK FOR INTERMITTENT PROBLEMS. Refer to «CHECK FOR INTERMITTENT PROBLEMS»(ref-568607-S36791760822013072300000)

Scheme 86

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on [A].
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine.
8. Idle the engine for 20 seconds.
9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [B].
10. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
12. Input the DTC: P2119.
13. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, fully depress and release the accelerator pedal 3 times, and the check the DTC judgment result [C].
14. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

When this DTC, as well as other DTCs relating to electronic throttle control system malfunctions is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 5.5° throttle angle by the return spring. The ECM stops the engine and the vehicle can be driven using solely the hybrid system. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly. Fail-safe mode continues until a pass condition is detected, and the power switch is then turned off.

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2119) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC P2119 is output A DTC P2119 and other DTCs are output B HINT: If any DTCs other than P2119 are output, troubleshoot those DTCs first. B --> See step 9 A: Go to next step
2. READ VALUE USING TECHSTREAM (THROTTLE POSITION) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for at least 30 seconds. Turn the power switch on (IG). Turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas Throttle / Throttle Position No. 1 and Throttle Position Command. Read the values displayed on the Techstream while fully depressing and releasing the accelerator pedal quickly. RESULT Result Proceed to Throttle Position No. 1 does not change A Throttle Position No. 1 changes even a little B HINT: When a DTC is output, the system changes to fail-safe mode. Therefore, only use the data up until the time the DTC is stored for confirmation. B --> See step 4 A: Go to next step
3. INSPECT THROTTLE BODY ASSEMBLY (RESISTANCE OF THROTTLE ACTUATOR) Inspect the throttle body assembly. Refer to «INSPECTION»(ref-568740-S02576767352013072300000) . NG --> See step 7 OK: Go to next step
4. INSPECT THROTTLE BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE) Check for contamination between the throttle valve and housing. If necessary, clean the throttle body assembly. Also, check that the throttle valve moves smoothly. OK Throttle valve is not contaminated with foreign objects and moves smoothly. NG --> See step 7 OK: Go to next step
5. READ VALUE USING TECHSTREAM (THROTTLE POSITION) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for at least 30 seconds. Turn the power switch on (IG) and turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas Throttle / Throttle Position No. 1, Throttle Position No. 2 and Throttle Position Command. Check the values displayed on the Techstream while wiggling the ECM wire harness. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to Value in Data List changes when wire harness is wiggled, or DTC is output A Other than above B B --> See step 8 A: Go to next step
6. REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - THROTTLE BODY ASSEMBLY) As the DTC was stored due to a change in the contact resistance of the connector, repair or replace the wire harness or connector. Refer to «ELECTRONIC CIRCUIT INSPECTION PROCEDURE»(ref-568589-S42645766622013072300000) . NEXT --> END
7. REPLACE THROTTLE BODY ASSEMBLY Replace the throttle body assembly. Refer to «REMOVAL»(ref-568740-S27680346492013072300000) . NEXT: Go to next step
8. CHECK WHETHER DTC OUTPUT RECURS (DTC P2119) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC is not output A DTC P2119 is output B B --> See step 10 A --> END
9. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-568607-S40570208092013072300000)
10. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)

ALL

P2195 AND P2196: SENSOR VOLTAGE DETECTION MONITOR

P2195 AND P2196: SENSOR CURRENT DETECTION MONITOR

P2195: SENSOR VOLTAGE DETECTION MONITOR (LEAN SIDE MALFUNCTION)

P2196: SENSOR VOLTAGE DETECTION MONITOR (RICH SIDE MALFUNCTION)

P2195: SENSOR CURRENT DETECTION MONITOR (HIGH SIDE MALFUNCTION)

P2196: SENSOR CURRENT DETECTION MONITOR (LOW SIDE MALFUNCTION)

MONITOR RESULT

Refer to detailed information in Checking Monitor Status. Refer to CHECKING MONITOR STATUS .

P2195, P2196: O2 SENSOR / RANGE B1S1

Scheme 87

Scheme 88

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
5. Turn the power switch off and wait for 30 seconds.
6. Turn the power switch on (IG) and turn the Techstream on.
7. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
8. Start the engine, and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
9. On the Techstream, enter the following menus to check the fuel-cut status: Powertrain / Engine and ECT / Data List / Primary / Idle Fuel Cut.
10. Drive the vehicle at between 75 and 120 km/h (47 and 75 mph) for at least 10 minutes [B]. WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws.
11. Move the shift lever in B [C].
12. Accelerate the vehicle to 75 km/h (47 mph) or more by depressing the accelerator pedal for at least 10 seconds [D]. WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws.
13. Soon after performing step [D] above, release the accelerator pedal for at least 4 seconds without depressing the brake pedal in order to execute fuel-cut control [E]. HINT: While "Fuel Cut Condition" on the Data List is ON, fuel-cut control is being executed.
14. Allow the vehicle to decelerate until the vehicle speed decreases to less than 10 km/h (6 mph).
15. Repeat steps [C] through [E] above at least 3 times in one driving cycle.
16. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [F].
17. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
18. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
19. Input the DTC: P2195 or P2196.
20. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, perform steps [B] through [E].
21. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

Scheme 89

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2195 OR P2196) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC P2195 or P2196 is output A DTC P2195 or P2196 and P0136, P0137 or P0138 are output A DTC P2195 or P2196 and other DTCs are output B HINT: If any DTCs relating to the air fuel ratio sensor (DTCs for the air fuel ratio sensor heater or air fuel ratio sensor admittance) are output, troubleshoot those DTCs first. B --> See step 19 A: Go to next step
2. CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST Has the vehicle run out of fuel in the past? NO --> See step 4 YES: Go to next step
3. CHECK WHETHER DTC OUTPUT RECURS (DTC P2195 OR P2196) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for 30 seconds. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness. Input the DTC: P2195 or P2196. Check the DTC judgment result. RESULT Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195 or P2196 is output) B B --> See step 4 A --> DTC CAUSED BY RUNNING OUT OF FUEL
4. READ VALUE USING TECHSTREAM (TEST VALUE OF AIR FUEL RATIO SENSOR) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Monitor / Current Monitor / O2 Sensor / Current. Check that the status of O2 Sensor is Complete. If the status is still Incomplete, drive the vehicle according to the driving pattern again. Enter the following menus: Powertrain / Engine and ECT / Monitor / Current Monitor / O2 Sensor / Details / RANGE B1S1. Check the test value of the air fuel ratio sensor output current during fuel cut. RESULT Test Value Proceed to Within normal range (0.7 mA or higher, and below 2.2 mA) A Outside normal range (Below 0.7 mA, or 2.2 mA or higher) B B --> See step 16 A: Go to next step
5. READ VALUE USING TECHSTREAM (OUTPUT VOLTAGE OF AIR FUEL RATIO SENSOR) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine. Warm up the air fuel ratio sensor at an engine speed of 2500 RPM for 90 seconds. HINT: During charging control, the engine speed is set at idle. Therefore, the engine speed does not increase when depressing the accelerator pedal. In this case, warm up the engine after charging control has completed. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume / Data List / Gas AF Control / AFS Voltage B1S1 and O2S B1S2. Perform the Control the Injection Volume operation with the engine idling. Monitor the output voltages of the air fuel ratio and heated oxygen sensors (AFS Voltage B1S1 and O2S B1S2) displayed on the Techstream. HINT: Change the fuel injection volume within the range of -12% to +12%. The injection volume can be changed in fine gradations. The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds. If the sensor output voltage does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning. Techstream Display (Sensor) Injection Volume Status Voltage AFS Voltage B1S1 (Air fuel ratio) +12% Rich Below 3.1 V AFS Voltage B1S1 (Air fuel ratio) -12% Lean Higher than 3.4 V O2S B1S2 (Heated oxygen) +12% Rich Higher than 0.55 V O2S B1S2 (Heated oxygen) -12% Lean Below 0.4 V RESULT Status of AFS Voltage B1S1 Status of O2S B1S2 Air Fuel Ratio Condition and Air Fuel Ratio Sensor Condition Proceed to Lean Lean Actual air fuel ratio lean A Rich Rich Actual air fuel ratio rich A Lean Lean/Rich Air fuel ratio sensor malfunction B Rich Lean/Rich Air fuel ratio sensor malfunction B Lean/Rich Lean/Rich Normal B Lean: During the Control the Injection Volume Active Test, the air fuel ratio sensor output voltage (AFS Voltage B1S1) is consistently higher than 3.4 V, and the heated oxygen sensor output voltage (O2S B1S2) is consistently below 0.4 V. Rich: During the Control the Injection Volume Active Test, the AFS Voltage B1S1 is consistently below 3.1 V, and the O2S B1S2 is consistently higher than 0.55 V. Lean/Rich: During the Control the Injection Volume Active Test, the output voltage of the heated oxygen sensor alternates correctly. HINT: Refer to "Data List / Active Test" [AFS Voltage B1S1 and O2S B1S2]. Refer to «DATA LIST / ACTIVE TEST»(ref-568607-S17841424132013072300000) . B --> See step 16 A: Go to next step
6. CHECK INTAKE SYSTEM Check the intake system for vacuum leaks. Refer to «ON-VEHICLE INSPECTION»(ref-568742-S28571627562013072300000) . OK No leaks in intake system. NG --> REPAIR OR REPLACE INTAKE SYSTEM OK: Go to next step
7. CHECK FOR EXHAUST GAS LEAK Check for exhaust gas leaks. OK No gas leaks. NG --> REPAIR OR REPLACE EXHAUST SYSTEM OK: Go to next step
8. CHECK FUEL PRESSURE Check the fuel pressure. Refer to «ON-VEHICLE INSPECTION - Step 2»(ref-568736-S33207421652013072300000) . NG --> See step 18 OK: Go to next step
9. INSPECT FUEL INJECTOR ASSEMBLY Check the fuel injector assembly (whether fuel volume is high or low, and whether injector pattern is poor). Refer to «INSPECTION»(ref-568741-S13114467992013072300000) . NG --> See step 21 OK: Go to next step
10. REPLACE AIR FUEL RATIO SENSOR NO. 2 Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-568740-S38248071332013072300000) . NEXT: Go to next step
11. CHECK WHETHER DTC OUTPUT RECURS (DTC P2195 OR P2196) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for 30 seconds. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness. Input the DTC: P2195 or P2196. Check the DTC judgment result. RESULT Result Proceed to ABNORMAL (DTC P2195 or P2196 is output) A NORMAL (DTC is not output) B B --> END A: Go to next step
12. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher. HINT: The A/C switch and all accessory switches should be off. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position / Data List / Primary / MAP. Check the engine idling condition and MAP values in the Data List while performing the Active Test. HINT: Do not leave the EGR valve open for 10 seconds or more during Active Test. Be sure to return the EGR valve to step 0 when Active Test is completed. Do not open the EGR valve 30 steps or more during the Active Test. OK MAP and idling condition change in response to EGR step position. Standard - EGR Step Position (Active Test) 0 Steps 0 to 30 Steps Idling condition Steady idling Idling changes from steady to rough idling or engine stalls MAP (Data List) MAP value is 20 to 40 kPa (150 to 300 mmHg) (EGR valve is fully closed) MAP value is at least +10 kPa (75 mmHg) higher than when EGR valve is fully closed HINT: During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in EGR valve. RESULT Result Proceed to Outside of standard range A Within standard range B B --> See step 14 A: Go to next step
13. INSPECT EGR VALVE ASSEMBLY Remove the EGR valve assembly. Refer to «REMOVAL»(ref-568729-S20442253562013072300000) . Check if the EGR valve is stuck open. OK EGR valve us tightly closed. NG --> See step 20 OK: Go to next step
14. REPLACE ECM Replace the ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000) . NEXT: Go to next step
15. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for 30 seconds. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness. Input the DTC: P2195 or P2196. Check the DTC judgment result. RESULT Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit NEXT --> END
16. REPLACE AIR FUEL RATIO SENSOR NO. 2 Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-568740-S38248071332013072300000) . NEXT: Go to next step
17. CHECK WHETHER DTC OUTPUT RECURS (DTC P2195 OR P2196) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for 30 seconds. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness. Input the DTC: P2195 or P2196. Check the DTC judgment result. RESULT Result Proceed to NORMAL (DTC is not output) A ABNORMAL (DTC P2195 or P2196 is output) B B --> See step 23 A --> END
18. CHECK FUEL LINE Check the fuel lines for leaks or blockage. NG --> REPAIR OR REPLACE FUEL LINE OK --> See step 22
19. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-568607-S40570208092013072300000)
20. REPLACE EGR VALVE ASSEMBLY. Refer to «REMOVAL»(ref-568729-S20442253562013072300000)
21. REPLACE FUEL INJECTOR ASSEMBLY. Refer to «REMOVAL»(ref-568741-S26257196172013072300000)
22. REPLACE FUEL PUMP. Refer to «REMOVAL»(ref-568741-S18771218602013072300000)
23. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)

ALL

AIR FUEL RATIO SENSOR MONITORING METHOD

CRANKSHAFT POSITION SENSOR MONITORING METHOD (FIRST JUDGMENT)

CRANKSHAFT POSITION SENSOR MONITORING METHOD (SECOND JUDGMENT)

AIR FUEL RATIO SENSOR MONITORING METHOD

CRANKSHAFT POSITION SENSOR MONITORING METHOD (FIRST JUDGMENT)

CRANKSHAFT POSITION SENSOR MONITORING METHOD (SECOND JUDGMENT)

HINT

If the first judgment while driving shows that the value of Engine Speed Fluctuation Average is between 0.5 and 1.5, then second judgment will be performed when the vehicle is stopped and the engine is idling.

Refer to detailed information in Checking Monitor Status. Refer to CHECKING MONITOR STATUS .

P219A: FUEL SYSTEM / A/F SENSOR DETERMINATION B1

P219A: FUEL SYSTEM / ENGINE SPEED FLUCTUATION AVERAGE B1

Scheme 90

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
4. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A]. HINT: Warm up the engine so that the SOC (State of Charge) may become 60% or more.
5. Turn the Techstream on.
6. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . WARNING: Use the Techstream to clear the DTCs (Do not disconnect the cable from negative (-) auxiliary battery terminal to clear the DTCs).
7. Gradually accelerate the vehicle from 60 km/h (37 mph) taking approximately 10 to 20 seconds. HINT: Refer to Typical Enabling Conditions for mass air flow and engine speed, and then accelerate the vehicle from 60 km/h (37 mph).
8. Drive the vehicle at 60 km/h (37 mph) or higher for 1 minute or more [B]. WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: Electrical load can be applied while the vehicle is driven.
9. Idle the engine for 1 minute or more [C]. HINT: Drive (D) has been selected.
10. Repeat steps [B] and [C] above at least 3 times [D].
11. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [E].
12. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
13. Gradually accelerate the vehicle from 60 km/h (37 mph) taking approximately 20 to 30 seconds. HINT: Refer to Typical Enabling Conditions for mass air flow and engine speed, and then accelerate the vehicle from 60 km/h (37 mph).
14. Drive the vehicle at 60 km/h (37 mph) or higher for 1 minutes or more [F]. WARNING: When performing the confirmation driving pattern, obey all speed limits and traffic laws. HINT: Electrical load can be applied while the vehicle is driven.
15. Idle the engine for 1 minute or more [G]. HINT: Drive (D) has been selected.
16. Repeat steps [F] and [G] above at least 2 times [H].
17. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [I].
18. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
19. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
20. Input the DTC: P219A.
21. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, perform the following procedure.
22. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

P2237 AND P2238

P2239, P2252 AND P2253

P2237: AIR FUEL RATIO SENSOR (SENSOR 1) OPEN CIRCUIT BETWEEN A1A+ AND A1A

P2238: AIR FUEL RATIO SENSOR (SENSOR 1) LOW IMPEDANCE

P2238: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A+ AND GND

P2239: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A+ AND +B

P2252: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A- AND GND

P2253: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A- AND +B

P2238: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A+ AND A1A

P2237: AIR FUEL RATIO SENSOR (SENSOR 1) OPEN CIRCUIT BETWEEN A1A+ AND A1A

P2238: AIR FUEL RATIO SENSOR (SENSOR 1) LOW IMPEDANCE

P2238: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A+ AND GND

P2239: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A+ AND +B

P2252: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A- AND GND

P2253: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A- AND +B

P2238: AIR FUEL RATIO SENSOR (SENSOR 1) SHORT CIRCUIT BETWEEN A1A+ AND A1A

CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on.
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine and wait 5 minutes.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
9. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
11. Input the DTC: P2237, P2238, P2239, P2252 or P2253.
12. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, idle the engine for 5 minutes and check the DTC judgment result again.
13. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

1. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM) Disconnect the air fuel ratio sensor connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition D23-1 (HA1A) - D27-18 (HA1A) Always Below 1 ohms D23-3 (A1A+) - D27-103 (A1A+) Always Below 1 ohms D23-4 (A1A-) - D27-126 (A1A-) Always Below 1 ohms D23-1 (HA1A) or D27-18 (HA1A) - Body ground Always 10 kohms or higher D23-3 (A1A+) or D27-103 (A1A+) - Body ground Always 10 kohms or higher D23-4 (A1A-) or D27-126 (A1A-) - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step
2. REPLACE AIR FUEL RATIO SENSOR NO. 2 Replace the air fuel ratio sensor. Refer to «REMOVAL»(ref-568740-S38248071332013072300000) . NEXT: Go to next step
3. CHECK WHETHER DTC OUTPUT RECURS (DTC P2237, P2238, P2239, P2252 OR P2253) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Drive the vehicle referring to the Confirmation Driving Pattern. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending. Read the Pending DTCs. RESULT Result Proceed to DTC is not output A DTC P2237, P2238, P2239, P2252 or P2253 is output B B --> See step 4 A --> END
4. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)

Refer to EVAP system. Refer to MONITOR RESULT .

Note. The Evaporative System Check (Automatic Mode) consists of 6 steps performed automatically by the Techstream. It takes a maximum of approximately 24 minutes. Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable. Do not run the engine during this operation. When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature below 35°C (95°F).

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on.
6. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
7. After the "Evaporative System Check" is completed, check for All Readiness by entering the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
8. Input the DTC: P2420.
9. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction.
10. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

ALL

CASE 1

CASE 2

CASE 3

CASE 1

CASE 2

CASE 3

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on.
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine.
8. Idle the engine for 10 minutes or more.
9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
10. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
12. Input the DTC: P2610.
13. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction.
14. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

1. REPLACE ECM Replace the ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000) . NEXT: Go to next step
2. CHECK WHETHER DTC OUTPUT RECURS (DTC P2610) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine and wait for 10 minutes or more. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending. If no pending DTC is displayed, the repair has been successfully completed. NEXT --> END

ALL

P261B: ENGINE WATER PUMP CIRCUIT PERFORMANCE

P261C AND P261D: ENGINE WATER PUMP CIRCUIT RANGE CHECK (LOW VOLTAGE, HIGH VOLTAGE)

P261B: ENGINE WATER PUMP CIRCUIT PERFORMANCE

P261C: ENGINE WATER PUMP CIRCUIT RANGE CHECK (LOW VOLTAGE)

P261D: ENGINE WATER PUMP CIRCUIT RANGE CHECK (HIGH VOLTAGE)

P261B: ENGINE WATER PUMP CIRCUIT PERFORMANCE

P261C AND P261D: ENGINE WATER PUMP CIRCUIT RANGE CHECK (LOW VOLTAGE, HIGH VOLTAGE)

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on.
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or higher).
8. Idle the engine for 20 seconds or more [A].
9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [B].
10. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
12. Input the DTC: P261B, P261C or P261D.
13. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction. If the judgment result shows INCOMPLETE or N/A, perform steps [A] and [B] again.
14. If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

Scheme 91

P3190

P3191

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for at least 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on.
6. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) .
7. Start the engine.
8. Allow the engine to idle for 10 seconds or more.
9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
10. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
12. Input the DTC: P3190, P3191 or P3193.
13. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction.
14. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P3190, P3191 AND/OR P3193) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Read the DTCs. RESULT Result Proceed to DTC P3190, P3191 and/or P3193 are output A DTC P3190, P3191 and/or P3193 and other DTCs are output B HINT: If any other codes besides P3190, P3191 and/or P3193 are output, perform troubleshooting for those DTCs first. B --> See step 17 A: Go to next step
2. CHECK SHORTAGE OF FUEL HINT: When an insufficient amount of fuel is added to the vehicle and when the hybrid control system will not engage because the DTCs P3190, P3191 and/or P3193 that are output regard the vehicle as out of gas, continue refueling the vehicle until the fuel level warning light turns off. NG --> REFILL FUEL OK: Go to next step
3. CHECK INTAKE SYSTEM Check the intake system for vacuum leaks. Refer to «ON-VEHICLE INSPECTION»(ref-568742-S28571627562013072300000) . OK No leaks in intake system. NG --> REPAIR OR REPLACE INTAKE SYSTEM OK: Go to next step
4. CHECK FOR UNUSUAL NOISE OR VIBRATION WHEN STARTING ENGINE OR REVVING UP OK Unusual noise and vibration do not occur. NG --> REPAIR OR REPLACE MALFUNCTIONING PART OK: Go to next step
5. CHECK FUEL PRESSURE Check the fuel pressure. Refer to «ON-VEHICLE INSPECTION - Step 2»(ref-568736-S33207421652013072300000) . NG --> See step 22 OK: Go to next step
6. INSPECT FREEZE FRAME DATA Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT Trouble Codes / Freeze Frame Data. Calculate the requested torque* and compare it with Actual Engine Torque. HINT: *: The requested torque is calculated by putting "Requested Engine Torque" and "HV Target Engine Speed" from the freeze frame data into the following formula: Requested torque = Requested Engine Torque (kW) / HV Target Engine Speed (RPM) x 9554 Standard Actual Engine Torque is 60% or more of the request torque. RESULT Result Proceed to NG A OK B B --> See step 8 A: Go to next step
7. INSPECT THROTTLE BODY ASSEMBLY Inspect the throttle body assembly. Refer to «INSPECTION»(ref-568740-S02576767352013072300000) . NG --> See step 21 OK: Go to next step
8. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY Inspect the mass air flow meter sub-assembly. Refer to «INSPECTION»(ref-568740-S17575267492013072300000) . NG --> See step 18 OK: Go to next step
9. INSPECT ENGINE COOLANT TEMPERATURE SENSOR Inspect the engine coolant temperature sensor. Refer to «INSPECTION»(ref-568740-S01302968502013072300000) . NG --> See step 19 OK: Go to next step
10. INSPECT CRANKSHAFT POSITION SENSOR Inspect the crankshaft position sensor. Refer to «INSPECTION»(ref-568740-S17254227062013072300000) . NG --> See step 20 OK: Go to next step
11. REPLACE CAMSHAFT POSITION SENSOR Replace the camshaft position sensor. Refer to «REMOVAL»(ref-568740-S07758050282013072300000) . NEXT: Go to next step
12. CHECK WHETHER DTC OUTPUT RECURS (DTC P3190, P3191 OR P3193) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off. Turn the power switch on (IG) and turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine. Allow the engine to idle for 10 seconds or more. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending. Read the pending DTCs. RESULT Result Proceed to DTC P3190, P3191 or P3193 is output A DTC is not output B B --> END A: Go to next step
13. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher. HINT: The A/C switch and all accessory switches should be off. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position / Data List / Primary / MAP. Check the engine idling condition and MAP values in the Data List while performing the Active Test. HINT: Do not leave the EGR valve open for 10 seconds or more during the Active Test. Be sure to return the EGR valve to step 0 when the Active Test is completed. Do not open the EGR valve 30 steps or more during the Active Test. OK MAP and idling condition change in response to EGR step position. Standard - EGR Step Position (Active Test) 0 Steps 0 to 30 Steps Idling condition Steady idling Idling changes from steady to rough idling or engine stalls MAP (Data List) MAP value is 20 to 40 kPa (150 to 300 mmHg) (EGR valve is fully closed) MAP value is at least +10 kPa (75 mmHg) higher than when EGR valve is fully closed HINT: During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in the EGR valve. RESULT Result Proceed to Outside of standard range A Within standard range B B --> See step 15 A: Go to next step
14. INSPECT EGR VALVE ASSEMBLY Remove the EGR valve assembly. Refer to «REMOVAL»(ref-568729-S20442253562013072300000) . Check if the EGR valve is stuck open. OK EGR valve is tightly closed. NG --> See step 23 OK: Go to next step
15. REPLACE ECM Replace the ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000) . NEXT: Go to next step
16. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Turn the power switch off and wait for 30 seconds. Turn the power switch on (IG) and turn the Techstream on. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine. Allow the engine to idle for 10 seconds or more. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness. Input the DTC: P3190, P3191 or P3193. Check the DTC judgment result. NEXT --> END
17. GO TO DTC CHART. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-568607-S40570208092013072300000)
18. REPLACE MASS AIR FLOW METER SUB-ASSEMBLY. Refer to «REMOVAL»(ref-568740-S27089628202013072300000)
19. REPLACE ENGINE COOLANT TEMPERATURE SENSOR. Refer to «REMOVAL»(ref-568740-S16880215132013072300000)
20. REPLACE CRANKSHAFT POSITION SENSOR. Refer to «REMOVAL»(ref-568740-S33899137392013072300000)
21. REPLACE THROTTLE BODY ASSEMBLY. Refer to «REMOVAL»(ref-568740-S27680346492013072300000)
22. CHECK FUEL PUMP CONTROL CIRCUIT. Refer to «Fuel Pump Control Circuit»(ref-568734-S28120638122013072300000)
23. REPLACE EGR VALVE ASSEMBLY. Refer to «REMOVAL»(ref-568729-S20442253562013072300000)

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) .
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on.
6. Wait 5 seconds or more.
7. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
8. Read the pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. If a pending DTC is not output, perform the following procedure.
9. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
10. Input the DTC: U0293.
11. Check the DTC judgment result. Techstream Display Description NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit HINT: If the judgment result shows NORMAL, the system is normal. If the judgment result shows ABNORMAL, the system has a malfunction.
12. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . HINT: If a permanent DTC is output, the system is malfunctioning. If no permanent DTC is output, the system is normal.

Scheme 92

RELATED DTCS

If any EVAP system DTCs are output, the malfunctioning area can be determined using the table below.

Scheme 93

Note. If the reference pressure difference between the first and second checks is more than the specification, all the DTCs relating to the reference pressure (P043E, P043F, P0441, P0455, P0456, P2401, P2420) will all be stored.

Scheme 94

TEXT IN ILLUSTRATION

HINT

The canister pressure sensor, the leak detection pump and the vent valve are built into the canister pump module.

Scheme 95

TEXT IN ILLUSTRATION

Note. In the EVAP system of this vehicle, turning on the vent valve does not seal off the EVAP system. To check for leaks in the EVAP system, disconnect the air inlet vent hose and apply pressure from atmospheric side of the canister.

While the engine is running, if a predetermined condition (closed-loop, etc.) is met, the purge VSV is opened by the ECM and fuel vapors stored in the canister are purged to the intake manifold. The ECM changes the duty cycle ratio of the purge VSV to control purge flow volume.

The purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve to ensure that the purge flow is maintained when negative pressure (vacuum) is applied to the canister.

The following two monitors run to confirm appropriate EVAP system operation.

Scheme 96

Scheme 97

Scheme 98

Scheme 99

1. Key-off monitor This monitor checks for EVAP (evaporative emission) system leaks and canister pump module malfunctions. The monitor starts 5 hours* after the power switch is turned off. At least 5 hours are required for the fuel to cool down to stabilize the EVAP pressure, thus making the EVAP system monitor more accurate. The leak detection pump creates negative pressure (vacuum) in the EVAP system and the pressure is measured. Finally, the ECM monitors for leaks from the EVAP system, and malfunctions in both the canister pump module and purge VSV based on the EVAP pressure. HINT: *: If the engine coolant temperature is not below 35°C (95°F) 5 hours after the power switch is turned off, the monitor check starts 2 hours later. If it is still not below 35°C (95°F) 7 hours after the power switch is turned off, the monitor check starts 2.5 hours later.
2. Purge flow monitor The purge flow monitor consists of the 2 monitors. The 1st monitor is conducted every time and the 2nd monitor is activated if necessary. The 1st monitor While the engine is running and the purge VSV (Vacuum Switching Valve) is on (open), the ECM monitors the purge flow by measuring the EVAP pressure change. If negative pressure is not created, the ECM begins the 2nd monitor. The 2nd monitor The vent valve is turned on (closed) and the EVAP pressure is then measured. If the variation in the pressure is less than 0.5 kPa(gauge) [3.75 mmHg(gauge)], the ECM interprets this as the purge VSV being stuck closed, and illuminates the MIL and stores DTC P0441 (2 trip detection logic). Atmospheric pressure check: In order to ensure reliable malfunction detection, the variation between the atmospheric pressures, before and after of the purge flow monitor, is measured by the ECM. TEXT IN ILLUSTRATION *1 ECM *2 Soak Timer *3 Fuel Cap *4 Canister Filter *5 Fuel Tank *6 Canister Pressure Sensor *7 Canister Pump Module *8 Canister *a EVAP Purge Flow *b to Intake Manifold *c Purge VSV: on *d Leak Detection Pump: off *e Reference Orifice (0.02 inch) *f Vent Valve: off Component Operation Canister Contains activated charcoal to absorb EVAP (evaporative emissions) generated in fuel tank. Cut-off valve Located in fuel tank. Valve floats and closes when fuel tank is 100% full. Purge VSV (Vacuum Switching Valve) Opens or closes line between canister and intake manifold. ECM uses purge VSV to control EVAP purge flow. In order to discharge EVAP absorbed by canister to intake manifold, ECM opens purge VSV. EVAP discharge volume to intake manifold controlled by purge VSV duty cycle (current-carrying time) (Open: on; Closed: off). Soak timer Built into ECM. To ensure accurate EVAP monitor, measures 5 hours (+/-15 min) after power switch is turned off. This allows fuel to cool down, stabilizing EVAP pressure. When approximately 5 hours elapsed, ECM activates ( (Scheme 84)(Scheme 99) ). Canister pump module Consists of (a) to (d) below. Canister pump module cannot be disassembled. (a) Vent valve Vents and closes EVAP system. When ECM turns valve on, EVAP system is closed. When ECM turns valve off, EVAP system is vented. Negative pressure (vacuum) is created in EVAP system to check for EVAP leaks by closing purge VSV, turning on vent valve (closing it) and operating leak detection pump ( (Scheme 82)(Scheme 97) ). (b) Canister pressure sensor Indicates pressure as voltage. ECM supplies regulated 5 V to canister pressure sensor, and uses feedback from sensor to monitor EVAP system pressure ( (Scheme 83)(Scheme 98) ). (c) Leak detection pump Creates negative pressure (vacuum) in EVAP system for leak check. (d) Reference orifice Has opening with 0.02 inch diameter. Vacuum is produced through orifice by closing purge VSV, turning off vent valve and operating leak detection pump to monitor reference pressure. Reference pressure indicates small leak of EVAP. TEXT IN ILLUSTRATION *1 Canister *2 Reference Orifice (0.02 Inch) *3 Canister Pressure Sensor - - *a Canister Pump Module (Scheme 82) *b Airflow *c Condition: Purge Flow *d Condition: Leak Check *e Vent Valve: Off (vent) *f to Canister Filter (Atmosphere) *g Leak Detection Pump: Off *h Vent Valve: On (closed) *i Leak Detection Pump: On

HINT

After a repair, check Monitor Status by performing the Key-Off Monitor Confirmation and Purge Flow Monitor Confirmation described below.

1. KEY-OFF MONITOR CONFIRMATION Preconditions The monitor will not run unless: The vehicle has been driven for 10 minutes or more (in a city area or on a freeway). The fuel tank is less than 90% full. The altitude is less than 8000 ft. (2438 m). The engine coolant temperature is between 4.4 and 35°C (40 and 95°F). The intake air temperature is between 4.4 and 35°C (40 and 95°F). The vehicle remains stationary (the vehicle speed is 0 km/h [0 mph]). Monitor Conditions Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Allow the engine to idle for at least 5 minutes. Turn the power switch off and wait for 6 hours (8 or 10.5 hours). HINT: Do not start the engine until checking Monitor Status. If the engine is started, the steps described above must be repeated. Monitor Status Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Monitor / Current Monitor / Evaporative System. Check the Monitor Status displayed on the Techstream. HINT: If Incomplete is displayed, the monitor did not complete. Make sure that the preconditions have been met, and perform the Monitor Conditions again.
2. PURGE FLOW MONITOR CONFIRMATION (P0441) HINT: Perform this monitor confirmation after the Key-Off Monitor Confirmation shows Complete. Preconditions The monitor will not run unless: The vehicle has been driven for 10 minutes or more (in a city area or on a freeway). The engine coolant temperature is between 4.4 and 35°C (40 and 95°F). The intake air temperature is between 4.4 and 35°C (40 and 95°F). Monitor Conditions Release the pressure from the fuel tank by removing and reinstalling the fuel cap. Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Warm the engine up until the engine coolant temperature reaches more than 75°C (167°F). Increase the engine speed to 2500 RPM once. Allow the engine to idle and turn the A/C switch on for 1 minute. Monitor Status Turn the power switch off (if on (IG) or if the engine is running). Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Monitor / Current Monitor / Evaporative System. Check the Monitor Status displayed on the Techstream. HINT: If Incomplete is displayed, the monitor did not complete. Make sure that the preconditions have been met, and perform the Monitor Conditions again.

Refer to detailed information in Checking Monitor Status. Refer to CHECKING MONITOR STATUS .

P0456: EVAPORATIVE SYSTEM / SMALL LEAK

P0455: EVAPORATIVE SYSTEM / GROSS LEAK

P2401: EVAPORATIVE SYSTEM / VACUUM PMP OFF

P2402: EVAPORATIVE SYSTEM / VACUUM PMP ON

P2420: EVAPORATIVE SYSTEM / VENT VALVE OFF

P2419: EVAPORATIVE SYSTEM / VENT VALVE ON

P043E: EVAPORATIVE SYSTEM / ORIFICE CLOGGED

P043F: EVAPORATIVE SYSTEM / ORIFICE HI-FLW

P0441: EVAPORATIVE SYSTEM / PURGE VSV CLOSED

P0441: EVAPORATIVE SYSTEM / PURGE VSV OPENED

P0441: EVAPORATIVE SYSTEM / PURGE FLOW

1. CHECK MIL Check that the Malfunction Indicator Lamp (MIL) illuminates when turning the power switch on (IG). OK MIL lights up. NG --> See step 2 OK --> See step 11
2. CHECK CONNECTION BETWEEN TECHSTREAM AND ECM Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Check the communication between the Techstream and ECM. RESULT Result Proceed to Communication is not possible A Communication is possible B B --> See step 9 A: Go to next step
3. CHECK MIL (THROTTLE POSITION SENSOR) Disconnect the throttle position sensor connector. Turn the power switch on (IG). Check the MIL. RESULT Result Proceed to MIL does not illuminate A MIL illuminates B B --> See step 10 A: Go to next step
4. CHECK MIL (CAMSHAFT POSITION SENSOR) Disconnect the camshaft position sensor connector. Turn the power switch on (IG). Check the MIL. RESULT Result Proceed to MIL does not illuminate A MIL illuminates B B --> See step 12 A: Go to next step
5. CHECK MIL (MANIFOLD ABSOLUTE PRESSURE SENSOR) Disconnect the manifold absolute pressure sensor connector. Turn the power switch on (IG). Check the MIL. RESULT Result Proceed to MIL does not illuminate A MIL illuminates B B --> See step 14 A: Go to next step
6. CHECK MIL (CANISTER PUMP MODULE) Disconnect the canister pump module connector. Turn the power switch on (IG). Check the MIL. RESULT Result Proceed to MIL does not illuminate A MIL illuminates B B --> See step 13 A: Go to next step
7. CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM) Disconnect the throttle position sensor connector. Disconnect the camshaft position sensor connector. Disconnect the manifold absolute pressure sensor connector. Disconnect the canister pump module connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition D4-5 (VC) or D27-88 (VCTA) - Body ground Always 10 kohms or higher D18-3 (VC) or D27-99 (VCV1) - Body ground Always 10 kohms or higher D3-3 (VC) or D27-72 (VCPM) - Body ground Always 10 kohms or higher R1-6 (VCC) or D27-113 (VCPP) - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK --> See step 8
8. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)
9. GO TO MIL CIRCUIT. Refer to «MIL Circuit»(ref-568734-S40460594652013072300000)
10. REPLACE THROTTLE BODY ASSEMBLY. Refer to «REMOVAL»(ref-568740-S27680346492013072300000)
11. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to «PROBLEM SYMPTOMS TABLE»(ref-568607-S08029264032013072300000)
12. REPLACE CAMSHAFT POSITION SENSOR. Refer to «REMOVAL»(ref-568740-S07758050282013072300000)
13. REPLACE CANISTER ASSEMBLY. Refer to «REMOVAL»(ref-568729-S41155687212013072300000)
14. REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR. Refer to «REMOVAL»(ref-568729-S19989838632013072300000)

1. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED) Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed. Check whether the fuel pump operation sound occurs when performing the Active Test on the Techstream. OK Fuel pump operating sound occurs. NG --> See step 2 OK --> See step 9
2. INSPECT NO. 2 INTEGRATION RELAY (C/OPN RELAY) Inspect the No. 2 integration relay (C/OPN relay). Refer to «INSPECTION»(ref-568740-S23859448242013072300000) . NG --> See step 10 OK: Go to next step
3. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (C/OPN RELAY) - ECM) Disconnect the ECM connector. Remove the No. 2 integration relay (C/OPN relay) from the engine room relay block and junction block assembly. Disconnect the No. 2 integration relay connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 1B-7 - A60-8 (FC) Always Below 1 ohms 1B-7 or A60-8 (FC) - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step
4. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (C/OPN RELAY - IG2 RELAY)) Remove the No. 2 integration relay (C/OPN relay and IG2 relay) from the engine room relay block and junction block assembly. Disconnect the No. 2 integration relay connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 1B-6 - 1A-4 Always Below 1 ohms 1B-6 or 1A-4 - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step
5. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (C/OPN RELAY) - FUEL PUMP) Disconnect the fuel pump connector. Remove the No. 2 integration relay (C/OPN relay) from the engine room relay block and junction block assembly. Disconnect the No. 2 integration relay connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition 1B-8 - P9-4 Always Below 1 ohms 1B-8 or P9-4 - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step
6. CHECK HARNESS AND CONNECTOR (FUEL PUMP - BODY GROUND) Disconnect the fuel pump connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition P9-5 - Body ground Always Below 1 ohms NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK: Go to next step
7. INSPECT FUEL PUMP Inspect the fuel pump. Refer to «INSPECTION»(ref-568741-S21076649172013072300000) . NG --> See step 11 OK: Go to next step
8. CHECK ECM POWER SOURCE CIRCUIT Check the ECM power source circuit. Refer to «ECM Power Source Circuit»(ref-568734-S10888225042013072300000) . NG --> REPAIR OR REPLACE ECM POWER SOURCE CIRCUIT OK --> See step 12
9. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to «PROBLEM SYMPTOMS TABLE»(ref-568607-S08029264032013072300000)
10. REPLACE NO. 2 INTEGRATION RELAY (C/OPN RELAY). Refer to «REMOVAL»(ref-568740-S34448099602013072300000)
11. REPLACE FUEL PUMP. Refer to «REMOVAL»(ref-568741-S18771218602013072300000)
12. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)

1. CHECK THAT MIL IS ILLUMINATED Turn the power switch on (IG). Check the illumination of the MIL. RESULT Condition Proceed to MIL remains ON A MIL does not illuminate B B --> See step 5 A: Go to next step
2. CHECK WHETHER MIL TURNS OFF Connect the Techstream to the DLC3. Turn the power switch on (IG). Turn the Techstream on. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. Check if any DTCs have been stored. Note down the DTCs. Clear the DTCs. Refer to «DTC CHECK / CLEAR»(ref-568607-S14015113742013072300000) . Check if the MIL goes off. OK MIL goes off. NG --> See step 3 OK --> See step 8
3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS) Disconnect the A60 ECM connector. Turn the power switch on (IG). Check that the MIL is not illuminated. OK MIL is not illuminated. NG --> See step 4 OK --> See step 9
4. CHECK HARNESS AND CONNECTOR (COMBINATION METER SUB-ASSEMBLY - ECM) Disconnect the combination meter sub-assembly connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition H19-28 (EFI) or A60-36 (W) - Body ground Always 10 kohms or higher NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK --> See step 11
5. CHECK THAT ENGINE STARTS Turn the power switch on (IG). Put the engine in inspection mode (maintenance mode). Refer to «INSPECTION MODE PROCEDURE»(ref-568589-S23460353802013072300000) . Start the engine. Result Result Proceed to Engine starts A Engine cannot be put in inspection mode* (Engine cannot start) B HINT: *: The Techstream cannot communicate with the ECM. B --> See step 10 A: Go to next step
6. CHECK HARNESS AND CONNECTOR (ECM TERMINAL VOLTAGE) Disconnect the ECM connector. Turn the power switch on (IG). Measure the voltage according to the value(s) in the table below. Standard Voltage Tester Connection Condition Specified Condition A60-36 (W) - Body ground Power switch on (IG) 11 to 14 V NG --> See step 7 OK --> See step 9
7. CHECK HARNESS AND CONNECTOR (COMBINATION METER SUB-ASSEMBLY - ECM) Disconnect the combination meter sub-assembly connector. Disconnect the ECM connector. Measure the resistance according to the value(s) in the table below. Standard Resistance Tester Connection Condition Specified Condition H19-28 (EFI) - A60-36 (W) Always Below 1 ohms NG --> REPAIR OR REPLACE HARNESS OR CONNECTOR OK --> See step 11
8. REPAIR CIRCUITS INDICATED BY OUTPUT DTCS. Refer to «DIAGNOSTIC TROUBLE CODE CHART»(ref-568607-S40570208092013072300000)
9. REPLACE ECM. Refer to «REMOVAL»(ref-568740-S18557757702013072300000)
10. GO TO VC OUTPUT CIRCUIT. Refer to «VC Output Circuit»(ref-568734-S32625259792013072300000)
11. REPLACE COMBINATION METER SUB-ASSEMBLY. Refer to «REMOVAL»(ref-568747-S11946107832013072300000)
