Engine - Special Tools - x5 (e53) BMW X5 E53

Minimum set: Mechanical tools

Engine: M10, M47T2, M47TU, M52, M52TU, M54, M56, M60, M62, M67, M70, M73, N52, N62, N73, S14, S54, S62, W10, W11

SI number: 1 13 94 (888)

Order number: 11 0 000

Engine lifter for removing and installing engines

Scheme 1012

Consisting of

1 = 11 0 001 Lifting beam

2 = 11 0 002 Chain, long

3 = 11 0 003 Chain, short

4 = 11 0 009 Shackle (2 x)

11 0 070 Engine hoist

Note. For removing and installing engines

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

Scheme 1013

SI number: 1 16 96 (107)

Order number: 11 0 070

Engine hoist

Consisting of

1 = 11 0 071 Lifting beam

2 = 11 0 072 Carrying chain, long

3 = 11 0 073 Carrying chain, short

4 = 11 0 079 Shackle (2 x)

11 0 080 Engine support plates

In conjunction with: 00 1 450

Note. For securing engine on assembly stand

Engine: M60, M62, S62

SI number: 1 05 92 (507)

Order number: 11 0 080

Engine support plates

Scheme 1014

Consisting of

1 = 11 0 081 Locating plate with adjusting flange

2 = 11 0 082 Locating plate

11 0 190 Accessories

In conjunction with: 11 1 060, 11 1 065, 11 1 067, 11 3 131, 11 3 132

Note. For removing and installing valve springs

Engine: M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M57, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S54, S62

Scheme 1015

SI number: 1 09 91(416)

Order number: 11 0 190

Accessories

Consisting of

2 = 11 0 192 Guide tube

Note. Engine: all

4 = 11 0 194 Valve spring cage

Note. Engine: M41, M51, S50

Note. For guide of hydraulic valve lash adjusters (12)

Engine: M41, M51, M60, M62, S62

SI number: 1 09 91(416)

Order number: 11 0 200

Plastic guard

Scheme 1016

11 0 210 Installation accessory for valve springs

In conjunction with: 11 1 060

Note. For removing and installing valve springs

Engine: M60, M62, S62

SI number: 1 05 92(507)

Order number: 11 0 210

Installation accessory for valve springs

Scheme 1017

Consisting of

1 = 11 0 211 Placement board for cylinder head

Note. Engine: M60, M62, S62

2 = 11 0 212 Valve spring cage

Note. Engine: M60

3 = 11 0 213 Mounting bracket

Note. Engine: M60, M62, S62

Note. For all petrol/gasoline and diesel engines.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Scheme 1018

SI number: 1 09 92 (558)

Order number: 11 0 220

Compression test kit

Consisting of

16 = 11 0 239 Adapter

Note. Engine M67, M67TU

11 0 221 Compression recorder for diesel engines

11 0 222 Test probe

Note. For compression recorder 11 0 221 and 11 0 160 / Engine: M21, M41, M47, M51, M57

In conjunction with: 11 0 240

11 0 223 Test sheets (100 x)

Note. For compression recorder for 11 0 221

11 0 224 Compression recorder for petrol/gasoline engines

11 0 226 Test probe

Note. For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S50US, S52US, S62

In conjunction with: 11 0 240

11 0 228 Rubber taper with fitting

Note. For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30

In conjunction with: 11 0 240

11 0 229 Test charts (100 x)

Note. For compression recorder 11 0 224

11 0 231 Case

Note. With foam inlay for compression recorder

11 0 233 Non-return valve

11 0 234 Filter 3 x 3 mm

11 0 235 Test probe, screw-in

Note. For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54

In conjunction with: DIS and DIS pressure sensor

11 0 236 Test probe

Note. For compression recorder 11 0 221 or DIS pressure sensor / engine: M47, M57, M57TU

11 0 237 Adapter

Note. For measuring "absolute compression" at all cylinders. Engine: W17

In conjunction with: 11 0 221, 11 0 235 or DIS pressure sensor, 11 0 235

11 0 240 Coupling

In conjunction with: 11 0 222, 11 0 226, 11 0 227, 11 0 225

Note. For adapting test probes to pressure gauge 11 0 162

Engine: All models

Order number: 11 0 240

Coupling

Scheme 1019

11 0 340 Accessories

In conjunction with: 11 1 060

Note. For removing and installing valve springs

Engine: M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M57, M57D25, M57D30, M60, M62, M70, M73, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S54, S62

SI number: 1 12 93(701)

Order number: 11 0 340

Accessories

Scheme 1020

Consisting of

1 = 11 0 341 Valve spring cage

Note. Engine: M43, M73

2 = 11 0 342 Pressure lever

Note. Engine: all, except M10

3 = 11 0 343 Hook

Note. Length 220 mm - Engine: all, except M10

5 = 11 0 345 Valve spring cage

Note. Engine: M44, M52, M62, S62, S54

6 = 11 0 346 Valve spring cage

Note. Engine: M47, M47TU, M57, N40, N42

Note. For fitting valve stem seals

Engine: M20, M21, M40, M41, M42, M43, M44, M50, M51, M52, M52TU, M54, M56, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S54, S62

Storage location: B14, C14

Order number: 11 1 200

Drift

Scheme 1021

Note. For rotary shaft seal in timing case cover (crankshaft front)

Engine: M60, M62, M70, S50B30, S50B32, S54, W10, W11

Storage location: C19

SI number: 1 02 87(721)

Order number: 11 1 220

Installation bushing

Scheme 1022

In conjunction with: 00 5 500

Note. For rotary shaft seal in rear crankshaft end cover

Engine: M60, M62, M70, M73

Storage location: C19

SI number: 1 02 87(721)

Order number: 11 1 230

Drift

Scheme 1023

Note. For inserting into cylinder head covers when pressing down timing case covers at cylinder bank 1...4 and 5...8

Engine: M62

SI number: 1 04 96(049)

Order number: 11 1 410

Molded strips

Scheme 1024

Consisting of

1 = 11 1 411 Molded strip for cylinder bank 1...4

2 = 11 1 412 Molded strip for cylinder bank 5...8

11 1 470 Pressure-testing fixture

Note. For pressure testing cylinder head

Engine: M60, M62

SI number: 1 05 92(507)

Order number: 11 1 470

Pressure-testing fixture

Scheme 1025

Consisting of

1 = 11 1 471 Sealing strip

Note. With rubber seal (wide version)

5 = 11 1 475 Rubber seal for sealing strip 11 1 471

7 = 11 1 477 Sealing strip

Note. With rubber seal (narrow version)

8 = 11 1 478 Rubber seal for sealing strip 11 1 477

Note. For removing valve stem seal

Engine: M40, M41, M42, M43, M44, M50, M51, M52, M52TU, M54, M56, M60, M62, M70, M73, N52, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11

Storage location: A10, B10

SI number: 1 01 93(621)

Order number: 11 1 480

Pliers

Scheme 1026

Note. For fitting valve stem seals, 6 mm diameter

Engine: M41, M42, M44, M47, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, S54, S62

Order number: 11 1 960

Assembly sleeves

Scheme 1027

Note. For crankshaft sprocket

Engine: M10, M30, M50, M52, M60, M62, M70, M73, N73, S14, S38, W10, W11

Storage location: B9, C42

Order number: 11 2 000

Puller

Scheme 1028

Consisting of

1 = 11 2 001 Bell housing

2 = 11 2 002 Plate

Note. Engine: M10, M30, S14, S38, N73

3 = 11 2 003 Spindle

Note. Engine: M10, M30, M70, M73, S14, S38, N73

4 = 11 2 004 Plate

Note. Engine: M50, M52, M60, M62

5 = 11 2 005 Spindle 165 mm

Note. Engine: M50, M52, M60, M62

6 = 11 2 006 Plate

Note. Engine: M70, M73, N73

7 = 11 2 007 Thrust piece

Note. Engine: N73

Note. For removing guide bearing in crankshaft, stem diameter 12 mm

Engine: M10, M20, M21, M30, M40, M42, M50, M60, M62, S14, S38, S62, S85

Storage location: C25

Order number: 11 2 010

Extractor

Scheme 1029

Consisting of

1 = 11 2 011 Extractor claw I

Note. With threaded bush - Engine: except M60, M62

2 = 11 2 012 Extractor claw II

Note. Engine: except M60, M62

3 = 11 2 013 Pressure spindle

Note. Engine: except M60, M62

4 = 11 2 014 Sleeve

Note. Engine: except M60, M62

5 = 11 2 015 Threaded bush

Note. Engine: except M60, M62

6 = 11 2 016 Pressure spindle

Note. Engine: M60/B30, M62, S62

Note. For locking flywheel in position

Engine: M60, M62, M70, M73, S62

Storage location: C21

SI number: 1 02 87(721)

Order number: 11 2 070

Holder

Scheme 1030

Note. With 1/2" extension for releasing and tightening cylinder head bolts

Engine: M42, M43, M44, M50, M52, M60, M62, S85

Storage location: A22

SI number: 1 05 89(099)

Order number: 11 2 250

Torx socket E12

Scheme 1031

Note. For compressing piston rings while installing pistons

Engine: M47T2, M47TU, M52, M52TU, M54, M56, M57, M57TU, M60, M62, S14, S38

Storage location: C1

Order number: 11 2 260

Piston ring compressor

Scheme 1032

11 2 290 Placement board

Note. For placing pistons with connecting rods

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M60, M62, M70, M73, M88, S14, S38, S50B30, S50B32

Order number: 11 2 290

Placement board

Scheme 1033

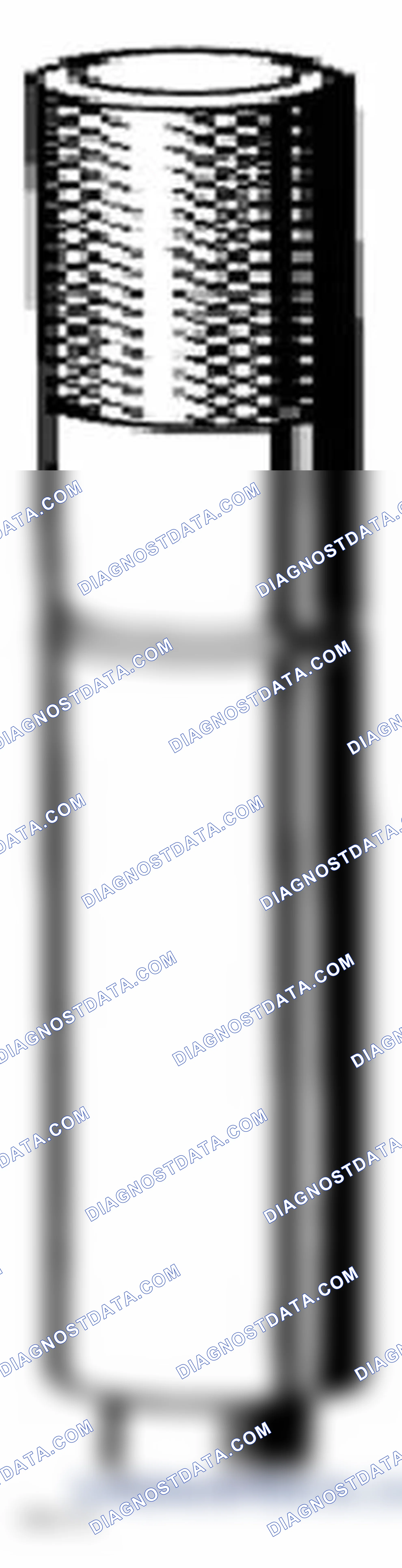

Note. For locking crankshaft in ignition TDC position when adjusting timing

Engine: M21, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, M70, M73, S50B30, S50B32, S54, S62

Storage location: C32

Order number: 11 2 300

Plug mandrel

Scheme 1034

In conjunction with: 11 2 016 (M60, M62)

Note. For guide bearing in crankshaft, stem diameter 15 mm

Engine: M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, M70, M73, N40, N42, N45, N46, S50B30, S50B32, S54, S62, S85

Scheme 1035

Storage location: C26

SI number: 1 05 90(207)

Order number: 11 2 340

Extractor

Consisting of

1 = 11 2 341 Extractor claw with threaded bush

2 = 11 2 342 Extractor claw

3 = 11 2 343 Pressure spindle

4 = 11 2 344 Sleeve

Note. For fitting guide bearing of crankshaft

Engine: M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M57, M57TU, M60, M62, M70, M73, N40, N42, N45, N46, S50B30, S50B32, S52US, S54, S62, S85

Storage location: A28

SI number: 1 05 90(207)

Order number: 11 2 350

Drift

Scheme 1036

Note. For removing rotary shaft seal from timing case cover

Engine: M41, M47, M50, M51, M52, M52TU, M54, M56, M60, M62, S50B30, S50B32, S54, S62, W10, W11

Storage location: A38, C25

SI number: 1 05 92(507)

Order number: 11 2 380

Puller

Scheme 1037

Consisting of

1 = 11 2 381 Threaded bell housing

2 = 11 2 382 Spindle

3 = 11 2 383 Thrust piece

Note. Engine: M41, M47, M50, M51, M52, M60, M62, PENT

11 2 384 Thrust piece

Note. Engine: S50, S54

11 2 385 Spacer bushing

Note. Engine: M41, M50, M51, M52

11 2 386 Thrust piece

Note. Engine: S62

Note. For preventing damage to rotary shaft seal while installing rear end cover

Engine: M60, M62, M70, M73, S62

Storage location: A17

SI number: 1 05 92(507)

Order number: 11 2 390

Slip bush

Scheme 1038

Note. For locking camshaft in position when adjusting timing

Engine: M60, M62

SI number: 1 05 92(507)

Order number: 11 2 440

Locking fixture

Scheme 1039

Consisting of

1 = 11 2 441 Gauge for inlet side 1...4

2 = 11 2 442 Gauge for inlet side 5...8

3 = 11 2 443 Fastening plate (2)

4 = 11 2 444 Special screw (2)

5 = 11 2 445 Gauge for exhaust side 1...4

Note. Reference value 3.5°

6 = 11 2 446 Gauge for exhaust side 5...8

Note. Reference value 3.5°

Note. For installing connecting rods with piston

Engine: M40, M41, M50, M52, M52TU, M54, M56, M60, M62

Storage location: B2, C2

SI number: 1 05 92(507)

Order number: 11 2 470

Guide mandrel (2)

Scheme 1040

11 3 030 Placement board for tappet

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M52TU, M54, M56, M60, M62, M70, M73, M88, S14, S38, S50B30, S50B32, S62

Order number: 11 3 030

Placement board for tappet

Scheme 1041

Note. For lifting out tappets in cylinder head

Engine: M40, M41, M42, M43, M44, M50, M51, M52, M52TU, M54, M56, M60, M62, S62

Storage location: A 104

SI number: 1 05 89(099)

Order number: 11 3 250

Suction cup

Scheme 1042

Consisting of

1 = 11 3 251 Sucker (8 x)

Note. For secondary chain tensioner to lock chain tensioner piston in position, e.g. when removing and installing sprockets

Engine: M62

Storage location: B12

SI number: 1 04 96(049)

Order number: 11 3 310

Locking clip (2)

Scheme 1043

11 3 340 Locking pin (2)

Minimum set: Mechanical tools

Note. For locking chain tensioner piston in position (e.g. when removing and installing cylinder head) as well as for locking drive belt tensioner

Engine: M41, M43, M44, M47, M47T2, M47TU, M51, M57, M57TU, M62, N40, N42, N45, N46, N52, N62, N73

Storage location: A13

SI number: 1 09 91(416)

Order number: 11 3 340

Locking pin (2)

Scheme 1044

Note. For turning installed camshaft to removal position

Engine: M60, M62

Storage location: B20

SI number: 1 05 92(507)

Order number: 11 3 430

Turning fixture

Scheme 1045

In conjunction with: 11 2 450

Note. For fitting on brace 11 2 450 when tightening central bolt using torsion angle tightening method

Engine: M60, M62, M73, N62, N62TU, N73

Storage location: C10

SI number: 1 08 92 (555)

Order number: 11 3 460

Protractor

Scheme 1046

11 4 030 Adapter

In conjunction with: BMW SERVICE TESTER

Note. For pressure gauge used for checking oil pressure

Engine: M10, M20, M21, M30, M50, M51, M52, M60, M62, M70, M73, S14, S38, S50B30, S50B32

Storage location: B13

SI number: 1 01 88(812)

Order number: 11 4 030

Adapter

Scheme 1047

In conjunction with: 13 3 063 or 13 6 051

Note. For connection of pipe bend 13 6 054 to pressure gauge 13 3 061 or BMW DIS for checking oil pressure

Engine: M10, M20, M21, M30, M47, M47T2, M47TU, M50, M51, M52, M54, M56, M57, M57TU, M60, M62, M70, M73, N62, N73, S14, S38, S50B30, S50B32, S62

Storage location: B9

Scheme 1048

Order number: 11 4 050

Reducer

Note. For releasing and tightening dual-mass flywheel - model year: from Jan 94

Engine: M60, M62, S62, S85

Storage location: B8

SI number: 1 02 94(777)

Order number: 11 4 180

Screwdriver socket Torx T60

Scheme 1049

In conjunction with: 11 3 390, 00 2 050

Note. M73 For removing and installing pedal travel sensor M60 Pretensioning timing chain E53 Mounting airbag control unit

Series: All models

Storage location: B6

SI number: 1 06 94(801)

Order number: 11 4 190

1/4" extension piece

Scheme 1050

Note. For tensioning primary chain when adjusting valve timing

Engine: M52TU, M54, M56, M62, M62VAN, N40, N42

Storage location: A40

SI number: 1 15 99(483)

Order number: 11 4 230

Chain tensioner

Scheme 1051

Consisting of

1 = 11 4 231 Nut

Note. With external thread

2 = 11 4 232 Spindle

In conjunction with: Torque wrench 3/8" connection

Note. For loosening and tightening fan wheel

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M60, M62, M70, M73, M88, N42, N62, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62

Storage location: A11, B11

Scheme 1052

SI number: 1 01 87(670)

Order number: 11 5 040

Open-ended spanner WAF 32

Note. For pulley while loosening and tightening fan

Engine: M40, M41, M42, M43, M44, M60, M62, N62, S62

Storage location: B3, C3

SI number: 1 03 87(739)

Order number: 11 5 050

Holder

Scheme 1053

Note. For locking flywheel in TDC position

Engine: M47T2, M54, M57TU, M62, M62VAN, M67

Storage location: C39

SI number: 1 15 99 (483)

Order number: 11 5 180

Plug mandrel, angled

Scheme 1054

Note. For removing and installing solenoid valves

Engine: M54, M62VAN

Storage location: A38

SI number: 1 12 98(339)

Order number: 11 6 420

Socket wrench WAF32

Scheme 1055

Note. For inserting into cylinder head covers when pressing down timing case covers in assembly position at cylinder bank 1...4 and 5...8

Engine: M62VAN

SI number: 1 21 98(383)

Order number: 11 6 430

Molded strips

Scheme 1056

Note. For adjusting VANOS to left stop during assembly as well as for adjusting valve timing

Engine: M62VAN

Storage location: B34

SI number: 1 21 98(383)

Order number: 11 6 440

Hook wrench

Scheme 1057

Note. For fixing camshaft sensor wheel in position during assembly

Engine: M62VAN

Storage location: B35

SI number: 1 21 98(383)

Order number: 11 6 450

Locking fixture

Scheme 1058

Consisting of

1 = 11 6 451 Blocking fixture, cylinder bank 1...4

2 = 11 6 452 Blocking fixture, cylinder bank 5...8

Note. For loosening and tightening oxygen sensor

Engine: M40, M43, M43TU, M44, M52, M52TU, M54, M56, M62, N40, N42, N45, N46, N62, N62TU, N73, S54, S62

Storage location: B15

SI number: 1 06 95(963)

Order number: 11 7 030

Socket wrench socket WAF 22

Scheme 1059

11 7 300 Placement board

Note. For valves, valve springs, hydraulic tappet, rocker fingers etc.

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M60, M62, M70, M73, M88, S14, S38, S50B30, S50B32, S50US, S52US

Order number: 11 7 300

Placement board

Scheme 1060

In conjunction with: 11 3 390

Note. For screwing in chain tensioner with top right timing case cover removed

Engine: M62

Storage location: A17

SI number: 1 04 96(049)

Order number: 11 7 380

Tensioning bracket

Scheme 1061

11 7 450 Simulator

In conjunction with: Standard workshop exhaust emission tester

Note. For Bosch oxygen sensor

Engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S50US, S52US

Scheme 1062

Storage location: K 102

SI number: 2 07 93(700)

Order number: 11 7 450

Simulator

Consisting of

1 = 11 7 451 Simulator (operator unit)

2 = 11 7 452 4-pin connecting cable, coding A

Note. Connection to wiring harness and oxygen sensor - engine: M40, M42, M43, M50, M70

3 = 11 7 453 4-pin plug connection, coding B

Note. Connection to oxygen sensor - engine: S50/B30

4 = 11 7 454 4-pin plug connection, coding B

Note. Connection to wiring harness - engine: S50/B30

5 = 11 7 455 1- and 3/4-pin plug connection

Note. Connection to oxygen sensor with Bosch or Cannon plug connection - engine: M10, M20, M30, S14

6 = 11 7 456 1- and 3/4-pin plug connection

Note. Connection to wiring harness with Bosch or Cannon plug connection - engine: M10, M20, M30, S14

8 = 11 7 458 Plug-in jumper

8 = 11 7 459 Operating instructions

In conjunction with: Assembly stand 00 1 450

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

Scheme 1063

Storage location: Single

SI number: 1 03 02 (833)

Order number: 11 9 000

Cylinder head expander tool

Consisting of

1 = 11 9 001 Fixture

2 = 11 9 002 Rod

3 = 11 9 003 Sliding block with M10 thread

4 = 11 9 004 Tab

5 = 11 9 005 Quick tensioner

6 = 11 9 006 Aluminum profile insert

7 = 11 9 007 Slide

8 = 11 9 008 Profile plastic part

9 = 11 9 009 Lever

10 = 11 9 011 Hook

11 = 11 9 012 Valve spring cage

Note. Engine M41, M51, S50

12 = 11 9 013 Valve spring cage

Note. Engine M43, M73

13 = 11 9 014 Valve spring cage

Note. Engine M44, M52, M54, M56, M62, S52, S54, S62

14 = 11 9 015 Valve spring cage

Note. Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73

15 = 11 9 016 Valve spring cage

Note. Engine M21, M40

16 = 11 8 421 Valve spring cage

Note. Engine: W10, W11, W17

18 = 11 9 017 Valve spring cage

Note. Engine N52

11 9 500 Pliers

Note. For mounting pistons in engine block - 92 mm dia.

Engine: M62, N62, N73, S85

Storage location: A46

SI number: 1 14 01(766)

Order number: 11 9 500

Pliers

Scheme 1064
