# Power door locks circuit

# Power door locks circuit (1 of 5)

Power door locks — Power door locks circuit — Power door locks circuit (1 of 5). Mazda 3 BM (2013-2016)

Components on the diagram

# Power door locks circuit (2 of 5)

Power door locks — Power door locks circuit — Power door locks circuit (2 of 5). Mazda 3 BM (2013-2016)

Components on the diagram

# Power door locks circuit (3 of 5)

Power door locks — Power door locks circuit — Power door locks circuit (3 of 5). Mazda 3 BM (2013-2016)

Components on the diagram

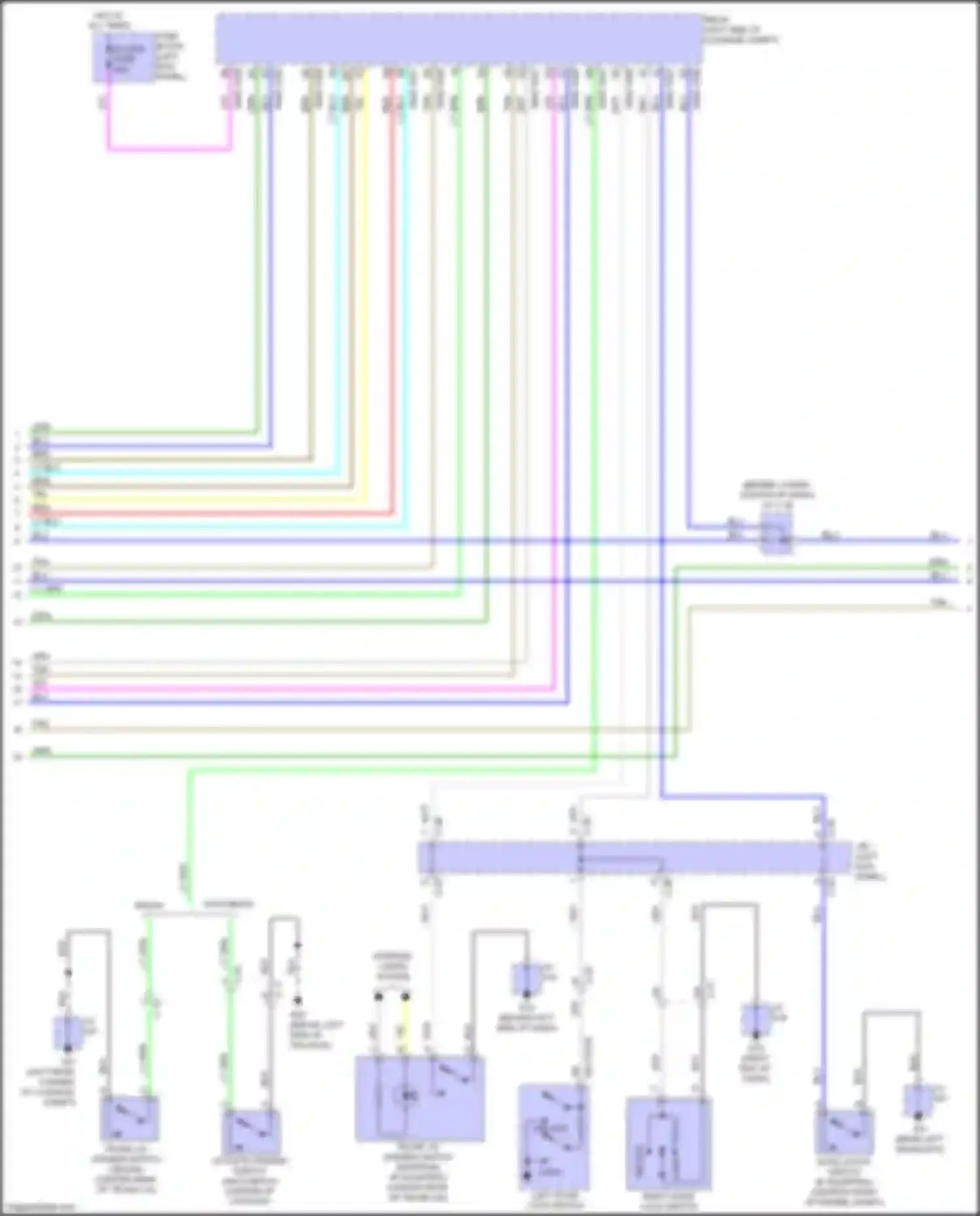

# Power door locks circuit (4 of 5)

Power door locks — Power door locks circuit — Power door locks circuit (4 of 5). Mazda 3 BM (2013-2016)

Components on the diagram

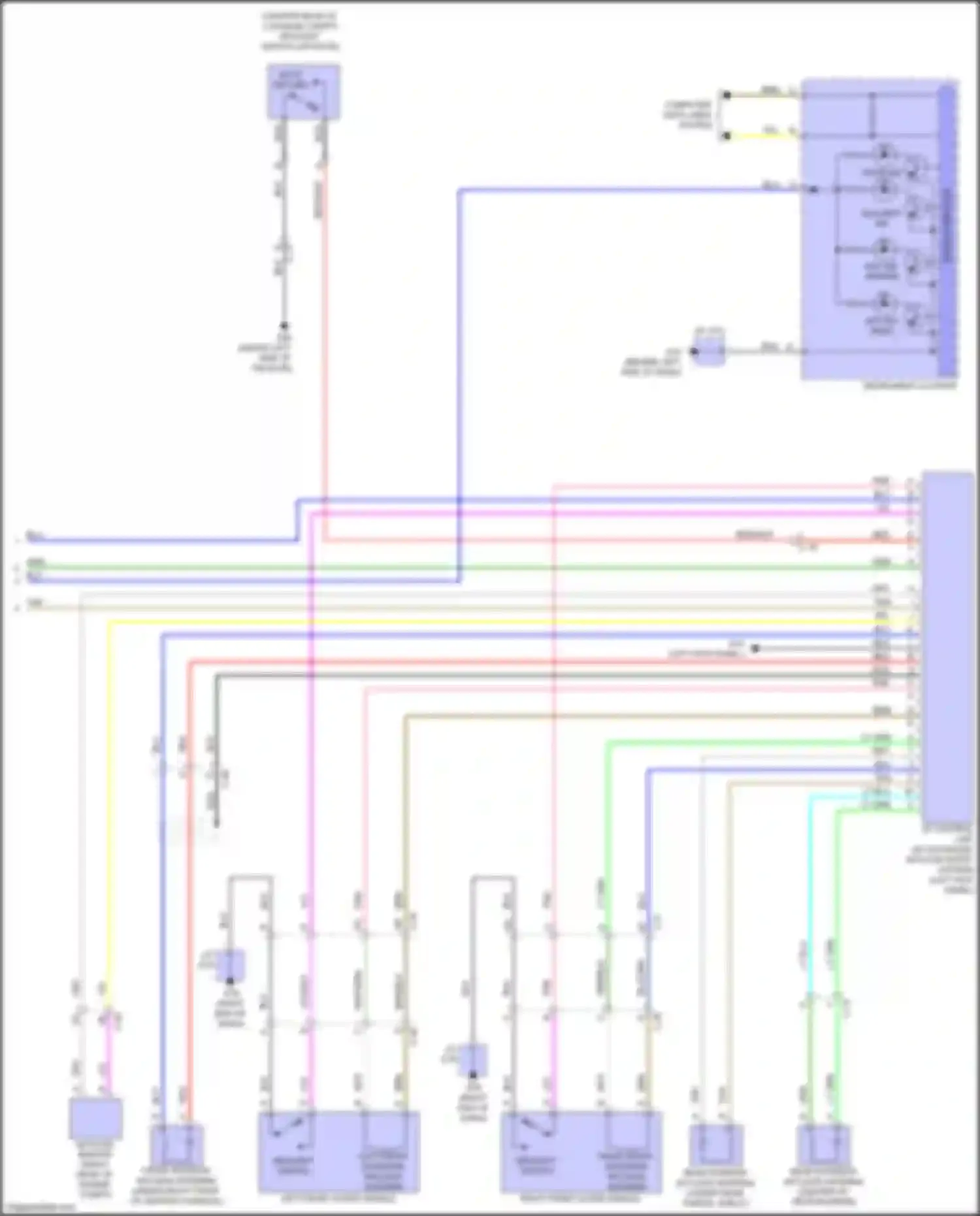

# Power door locks circuit (5 of 5)

Power door locks — Power door locks circuit — Power door locks circuit (5 of 5). Mazda 3 BM (2013-2016)

Components on the diagram
