Wiring Diagrams GMC Sierra 2500 (2000-2004)
Wiring diagrams for GMC Sierra 2500 in English. Pick a system — each diagram has interactive components, connector pinouts and cross-links to fuses and ground points.

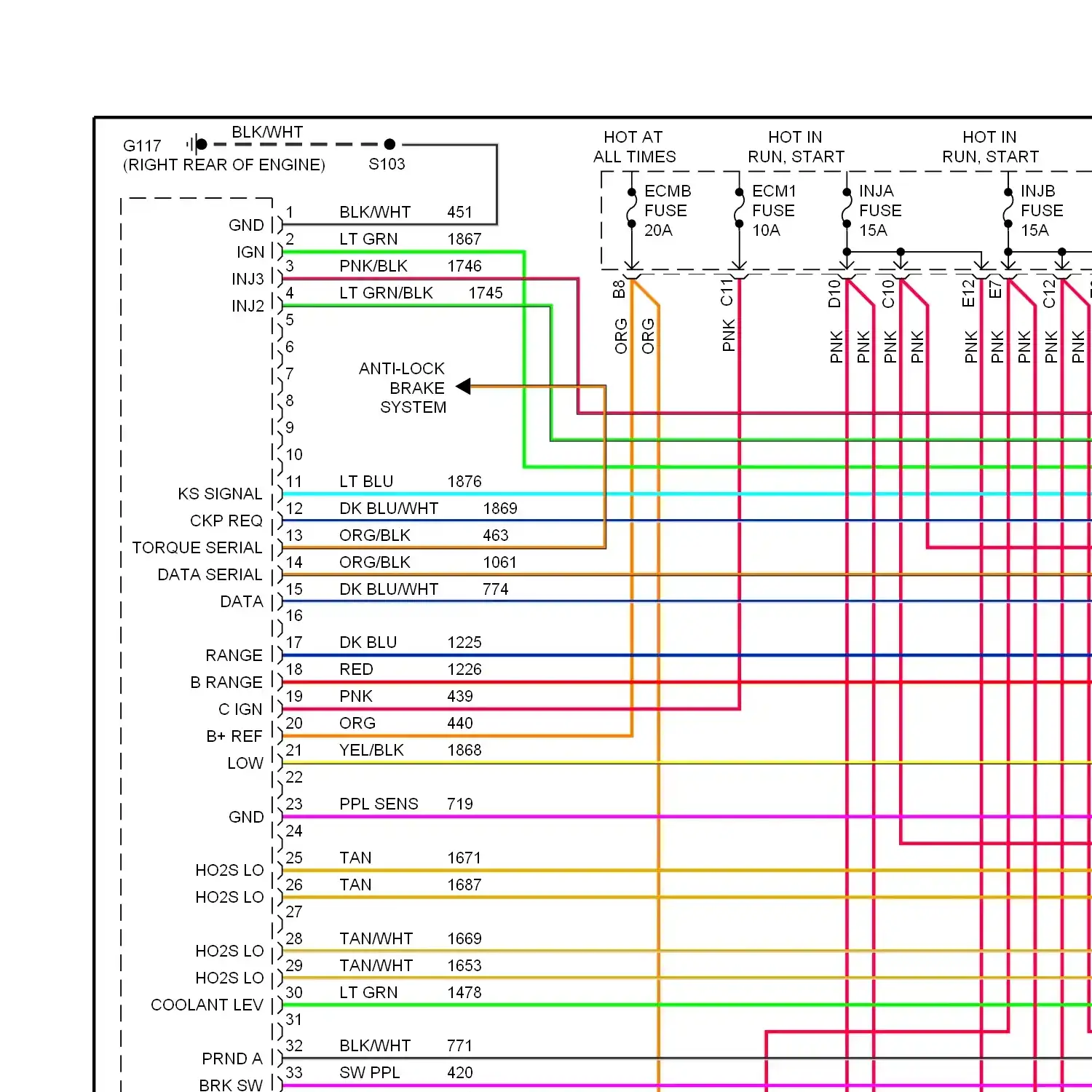

Repair manual- Wiring diagram engine performance 5.3l vin t, engine controls circuit, except canadian built (1 of 5)
- Wiring diagram engine performance 5.3l vin t, engine controls circuit, except canadian built (2 of 5)
- Wiring diagram engine performance 5.3l vin t, engine controls circuit, except canadian built (3 of 5)
- Wiring diagram engine performance 5.3l vin t, engine controls circuit, except canadian built (4 of 5)
- Wiring diagram engine performance 5.3l vin t, engine controls circuit, except canadian built (5 of 5)

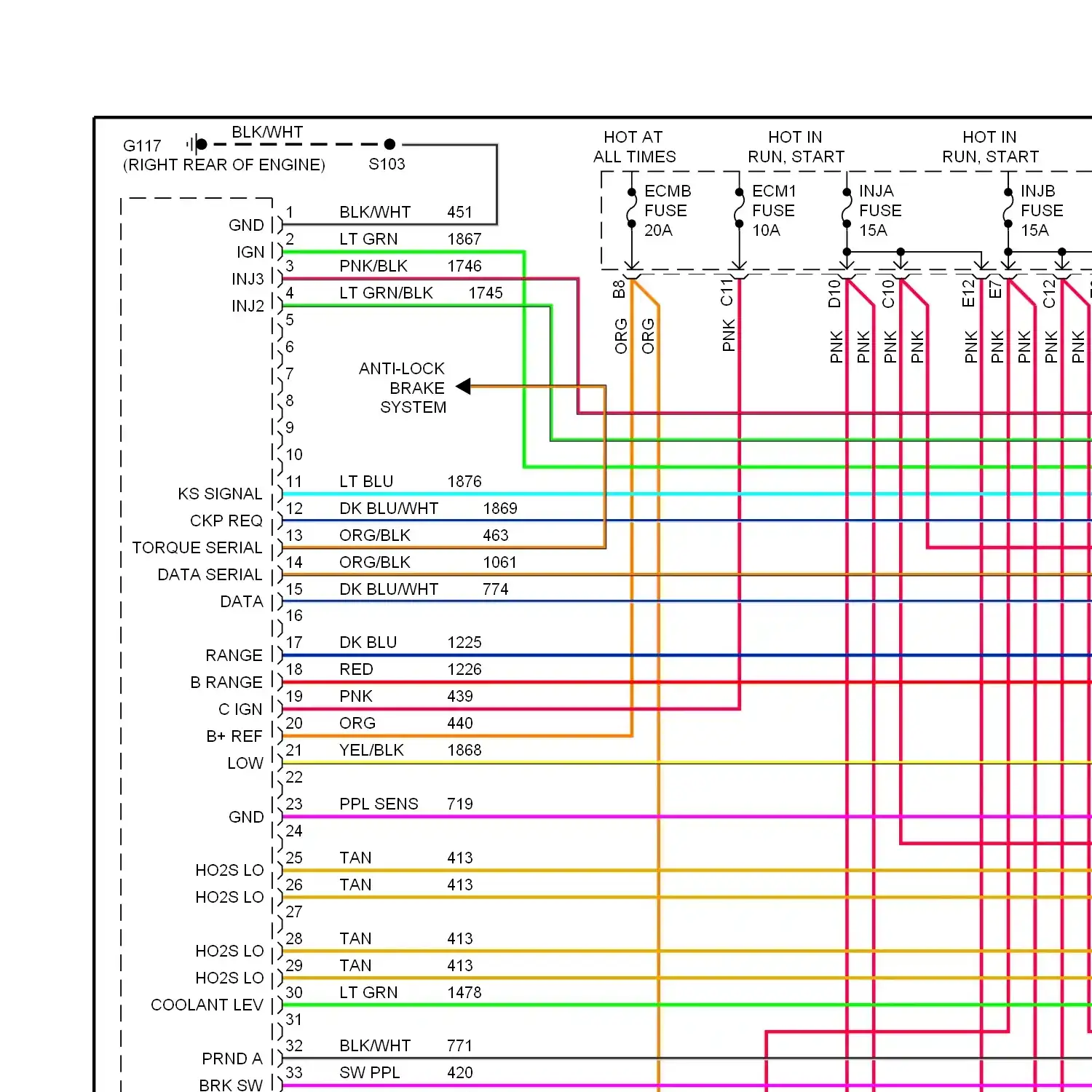

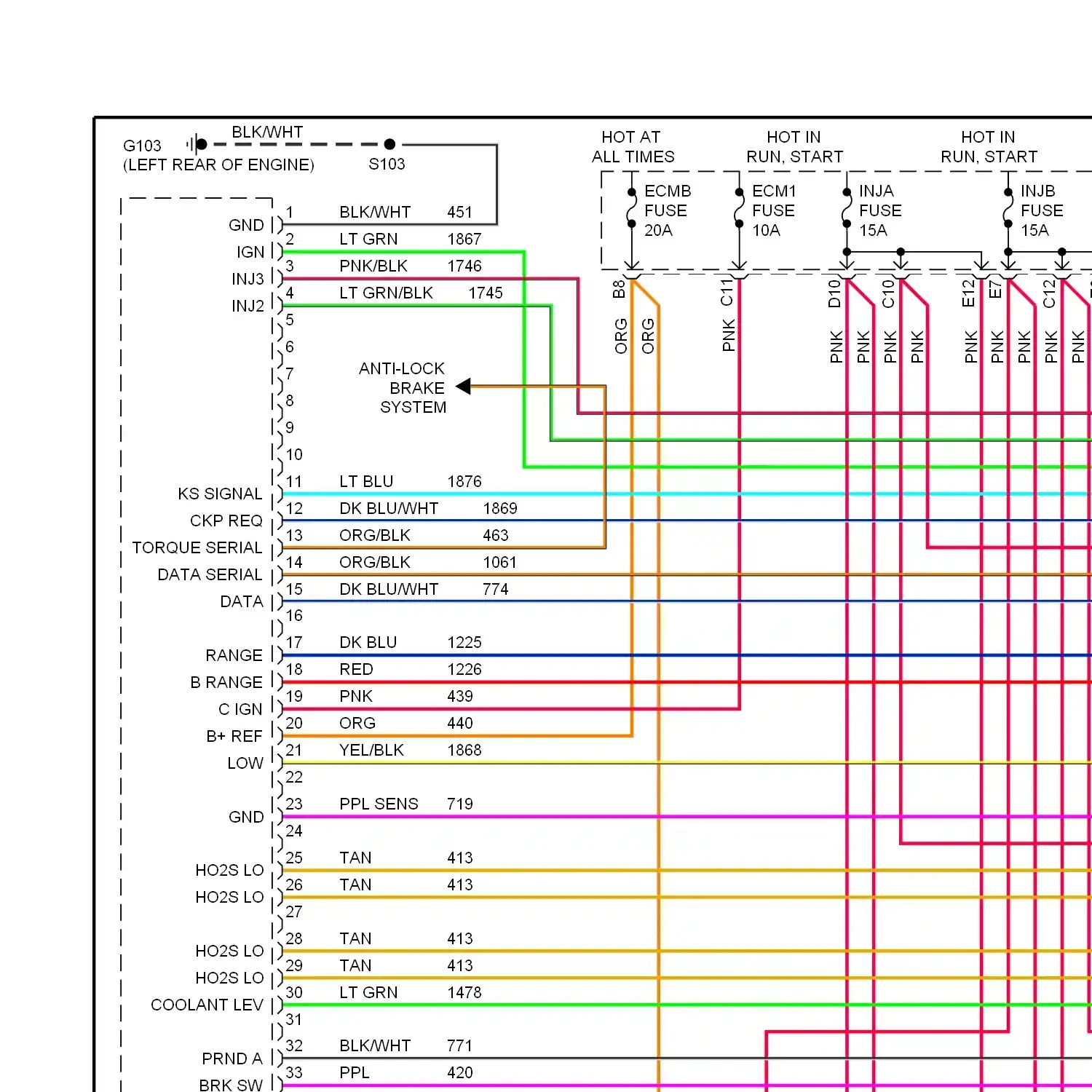

- Wiring diagram engine performance 5.3l vin ts, canadian built (1 of 5)
- Wiring diagram engine performance 5.3l vin ts, canadian built (2 of 5)
- Wiring diagram engine performance 5.3l vin ts, canadian built (3 of 5)
- Wiring diagram engine performance 5.3l vin ts, canadian built (4 of 5)
- Wiring diagram engine performance 5.3l vin ts, canadian built (5 of 5)
- Base radio circuit
- Mid-line radio circuit, with rear seat audio
- Mid-line radio circuit, without rear seat audio
- Premium sound radio circuit, with cd
- Premium sound radio circuit, with cd, with rear entertainment, with digital receiver
- Premium sound radio circuit, with digital radio receiver

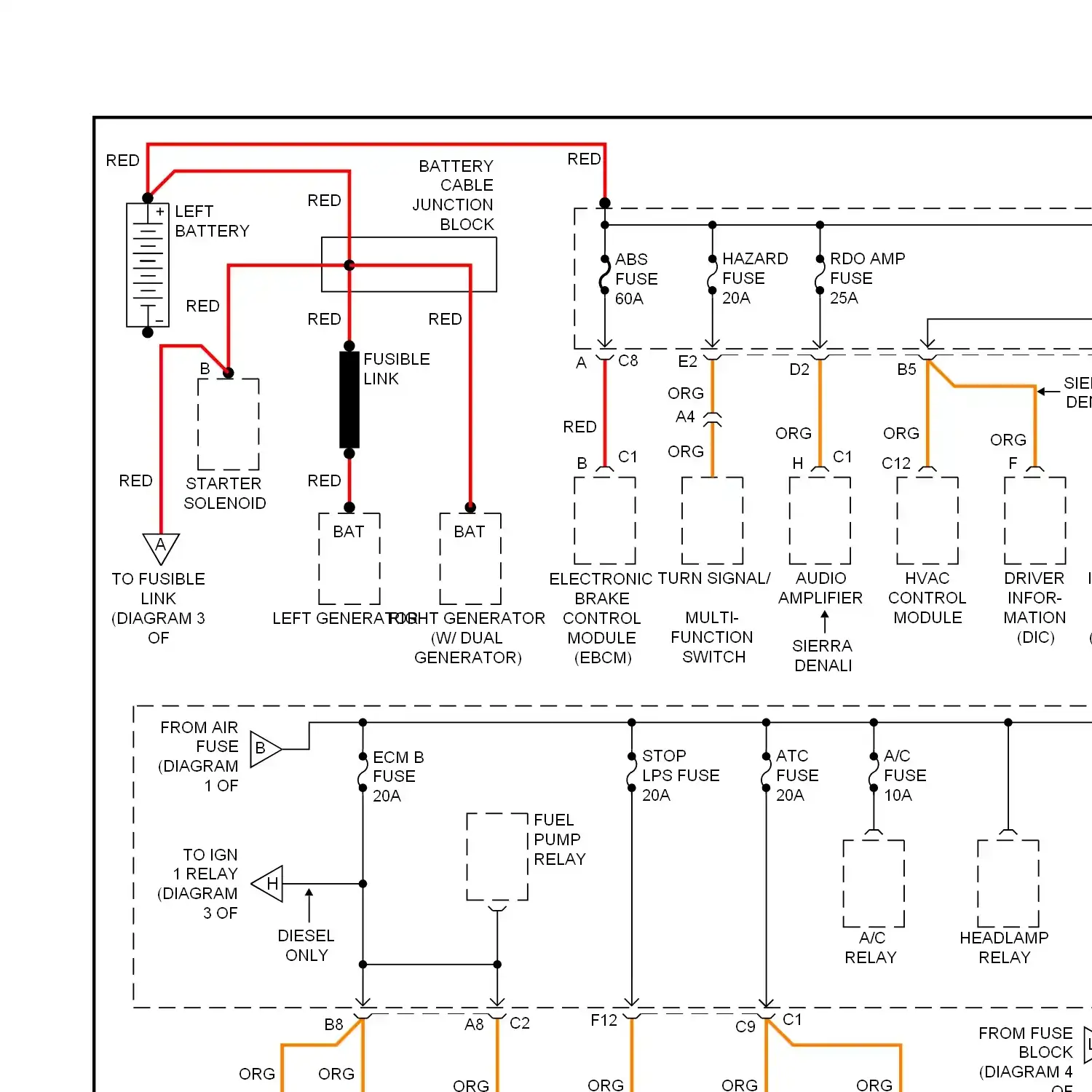

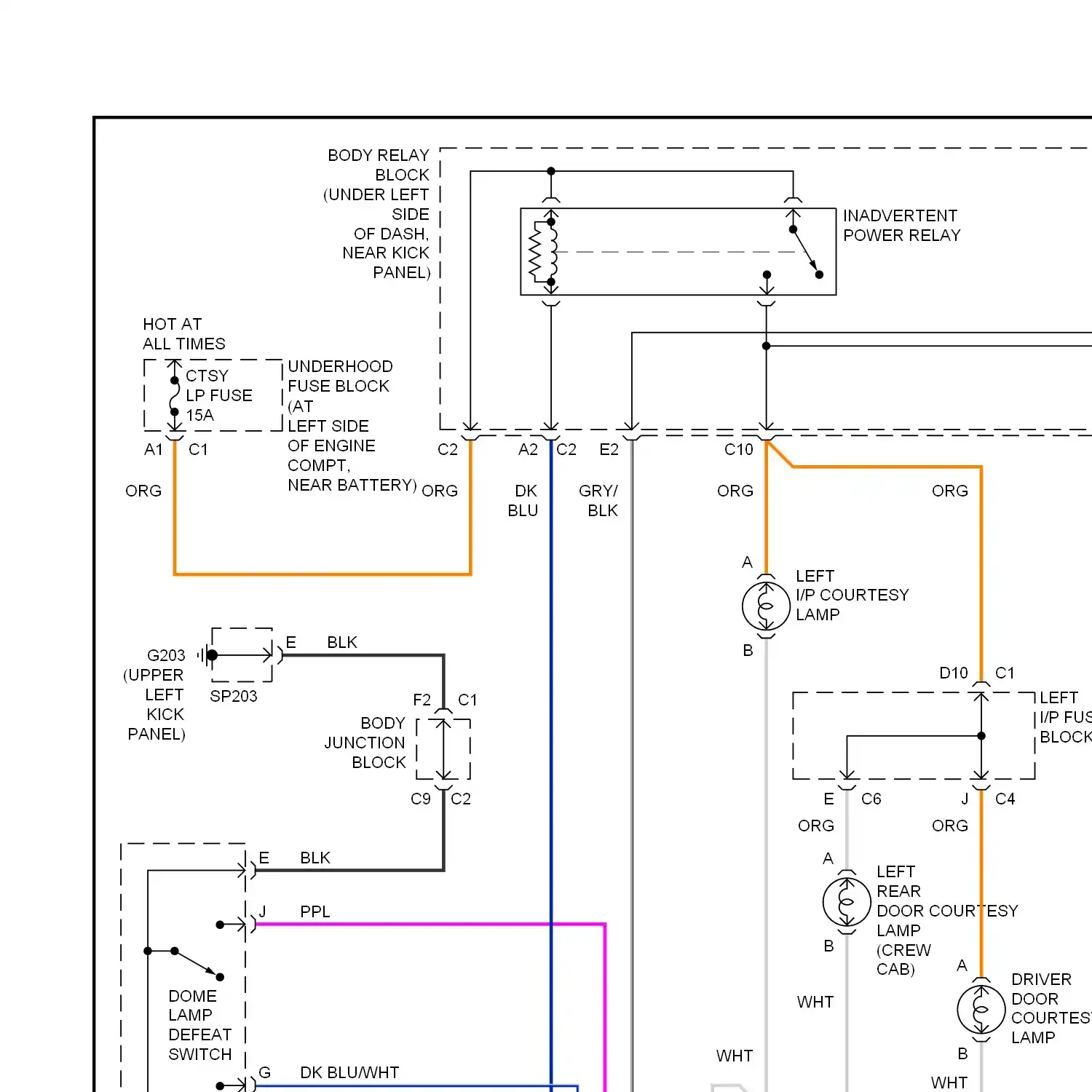

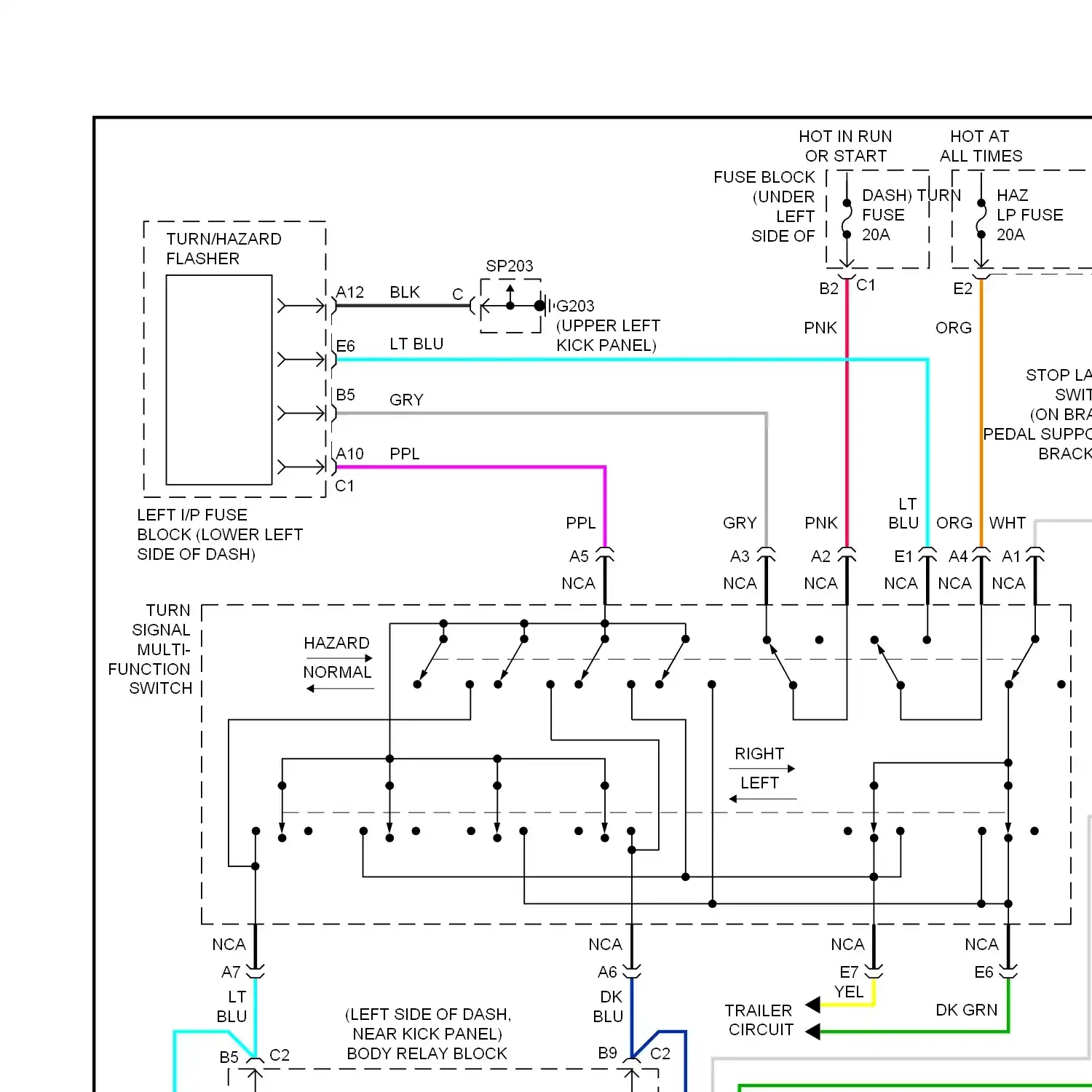

- Circuits
- Circuits, base
- Circuits, base crew cab
- Circuits, up level with onstar
- Circuits, up level without onstar
