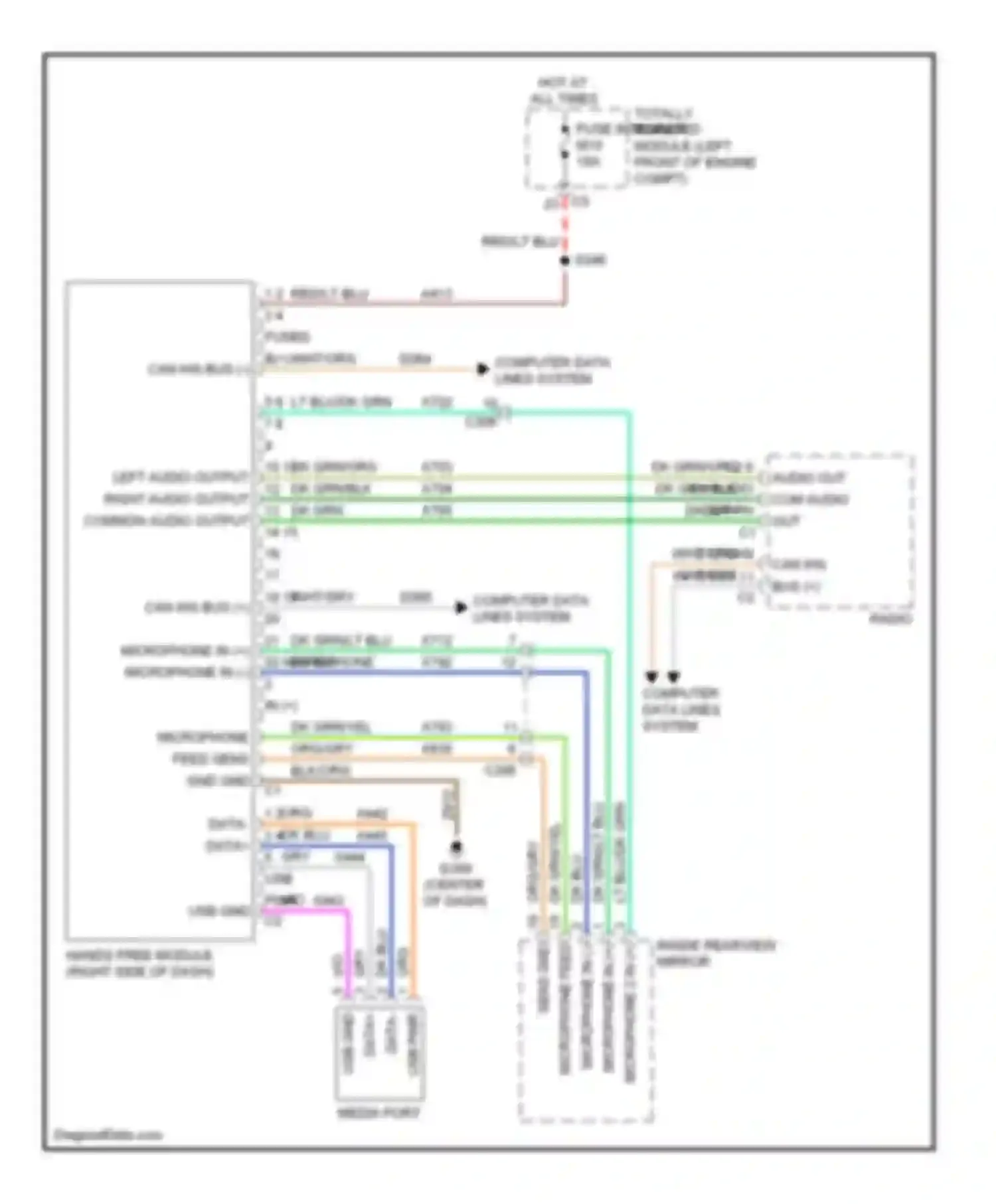

Wiring diagram: Radio — Hands free module circuit RAM Pickup 2500
All systems
- Air conditioning 5.7l 2
- Air conditioning 6.7l turbo diesel
- Anti-lock brakes
- Anti-theft
- Body control modules
- Computer data lines
- Cooling fan 5.7l
- Cooling fan 6.7l turbo diesel
- Cruise control 5.7l
- Cruise control 6.7l turbo diesel
- Defoggers
- Engine performance 5.7l
- Engine performance 6.7l turbo diesel
- Exterior lights 3
- Ground distribution
- Headlights
- Horn
- Instrument cluster
- Interior lights 2
- Memory systems 2
- Navigation 3
- Power distribution
- Power door locks
- Power mirrors 6
- Power seats 6
- Power top/sunroof
- Power windows
- Radio 3
- Shift interlock
- Starting/charging 5.7l 2
- Starting/charging 6.7l turbo diesel 2
- Supplemental restraints
- Transmission 5.7l 2
- Transmission 6.7l turbo diesel 2
- Warning systems 2
- Wiper/washer
Components on these wiring diagrams
Click a component to highlight it on every diagram it appears on.
