Air conditioning
# A/c circuit

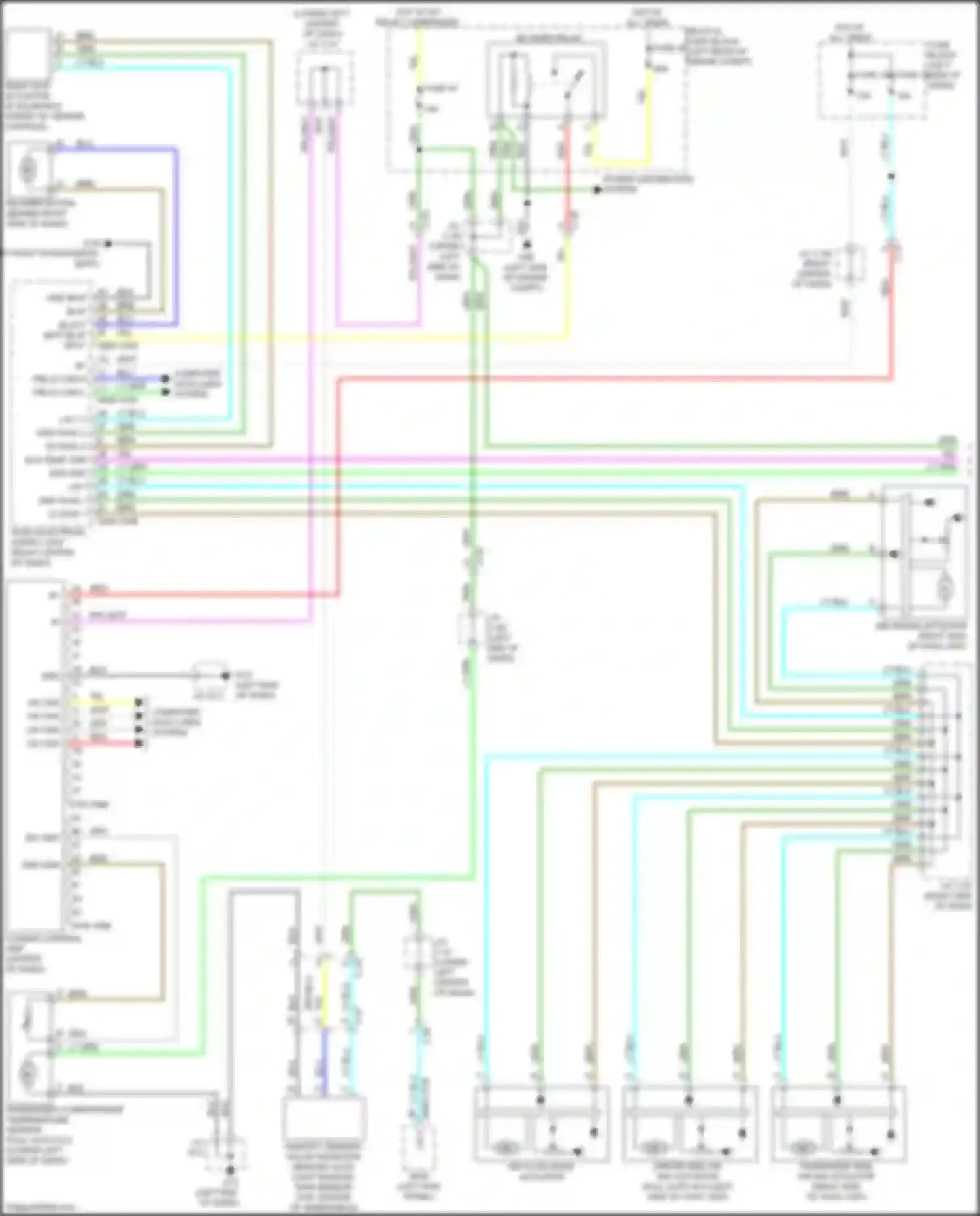

# A/c circuit (1 of 2)
Components on the diagram

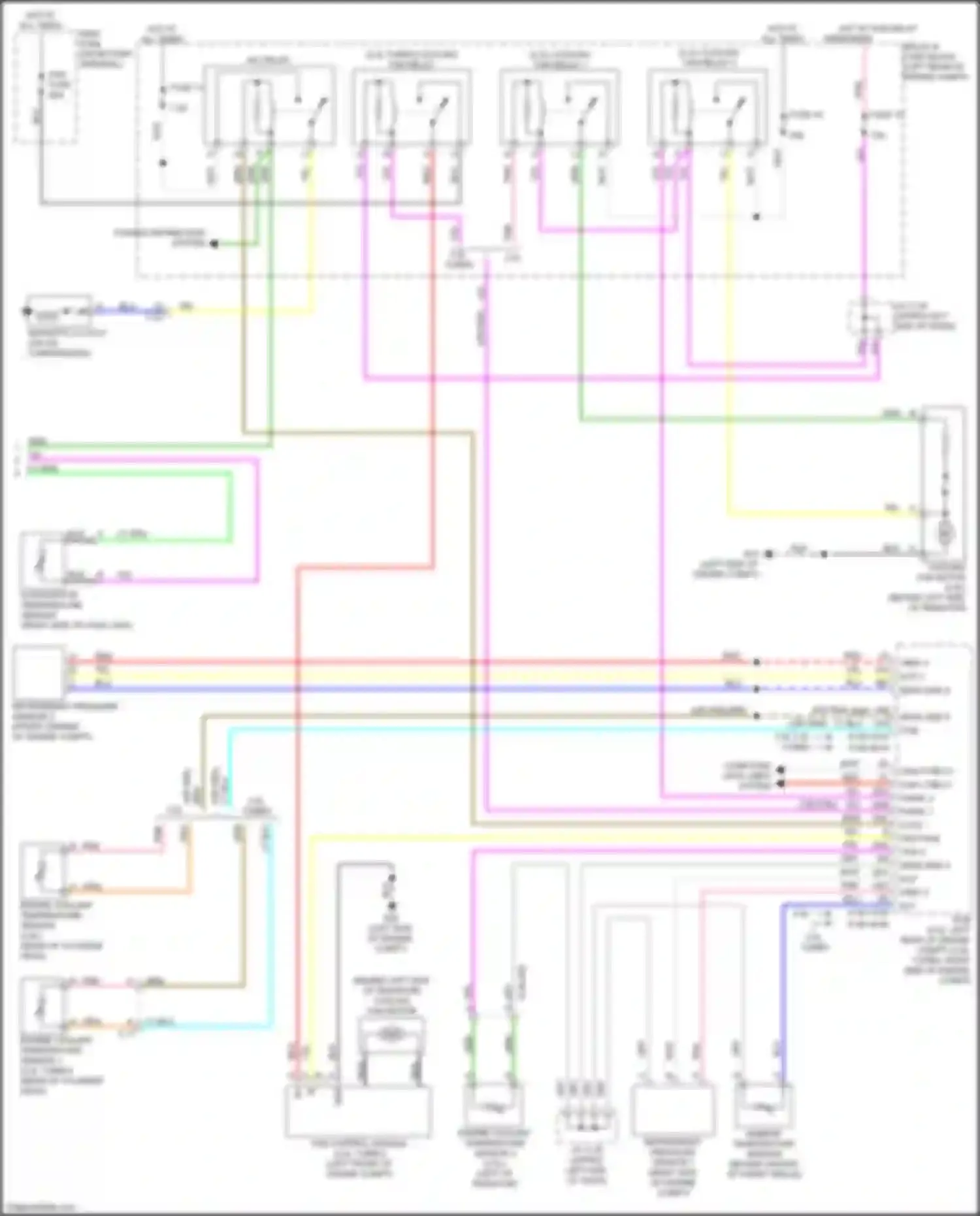

# A/c circuit (2 of 2)
Components on the diagram
Components on these wiring diagrams 70
Click a component to highlight it on every diagram it appears on.
