Wiring Diagrams for Lexus RC I facelift (2018-2024)

Active bodyworks circuit

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

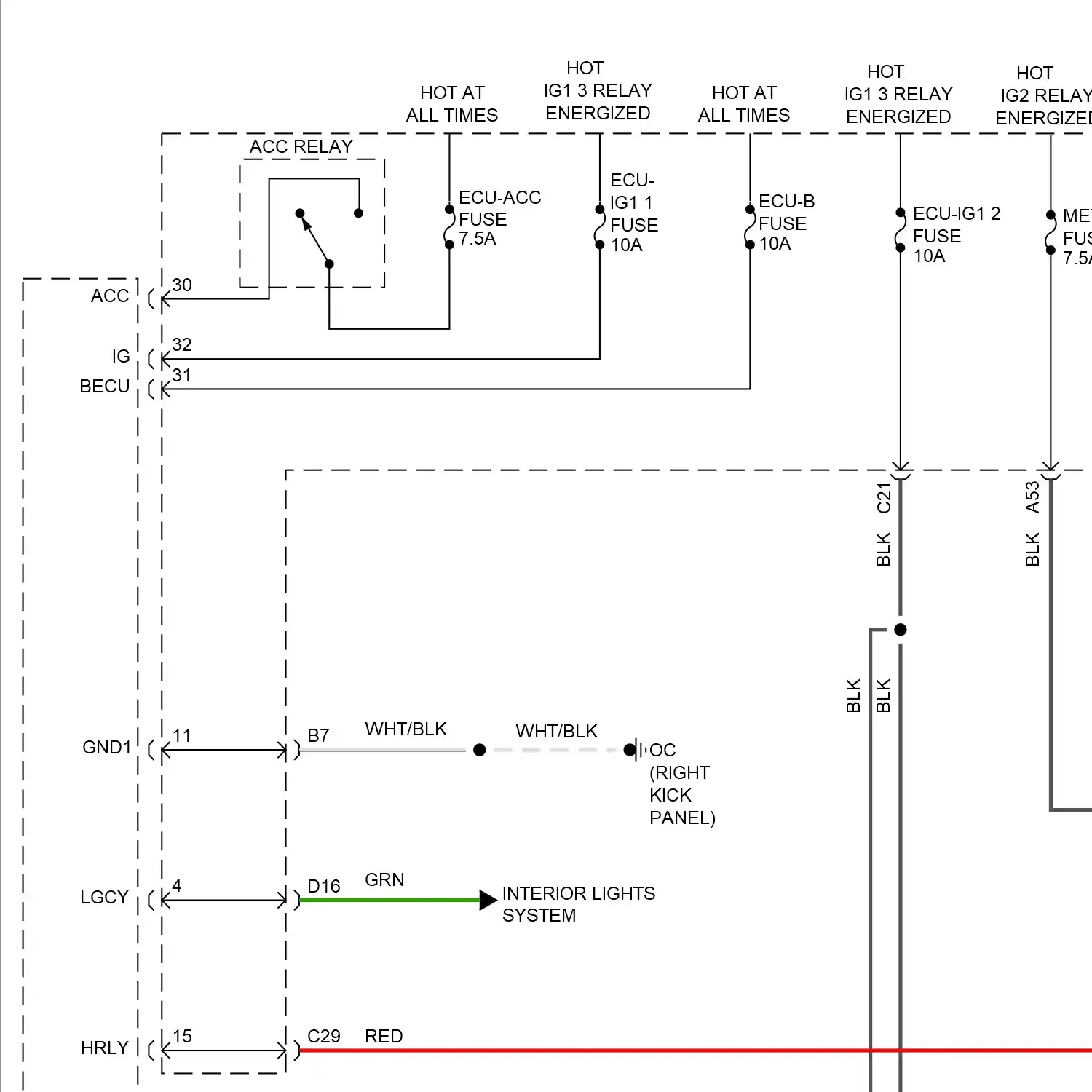

Body ecu circuit Semiconductor power integration ecu circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit Cruise control circuit, w/ dynamic radar controls Cruise control circuit, w/o dynamic radar controls

Front deicer circuit Rear defogger & heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit Progressive power steering circuit

Electronic suspension circuit

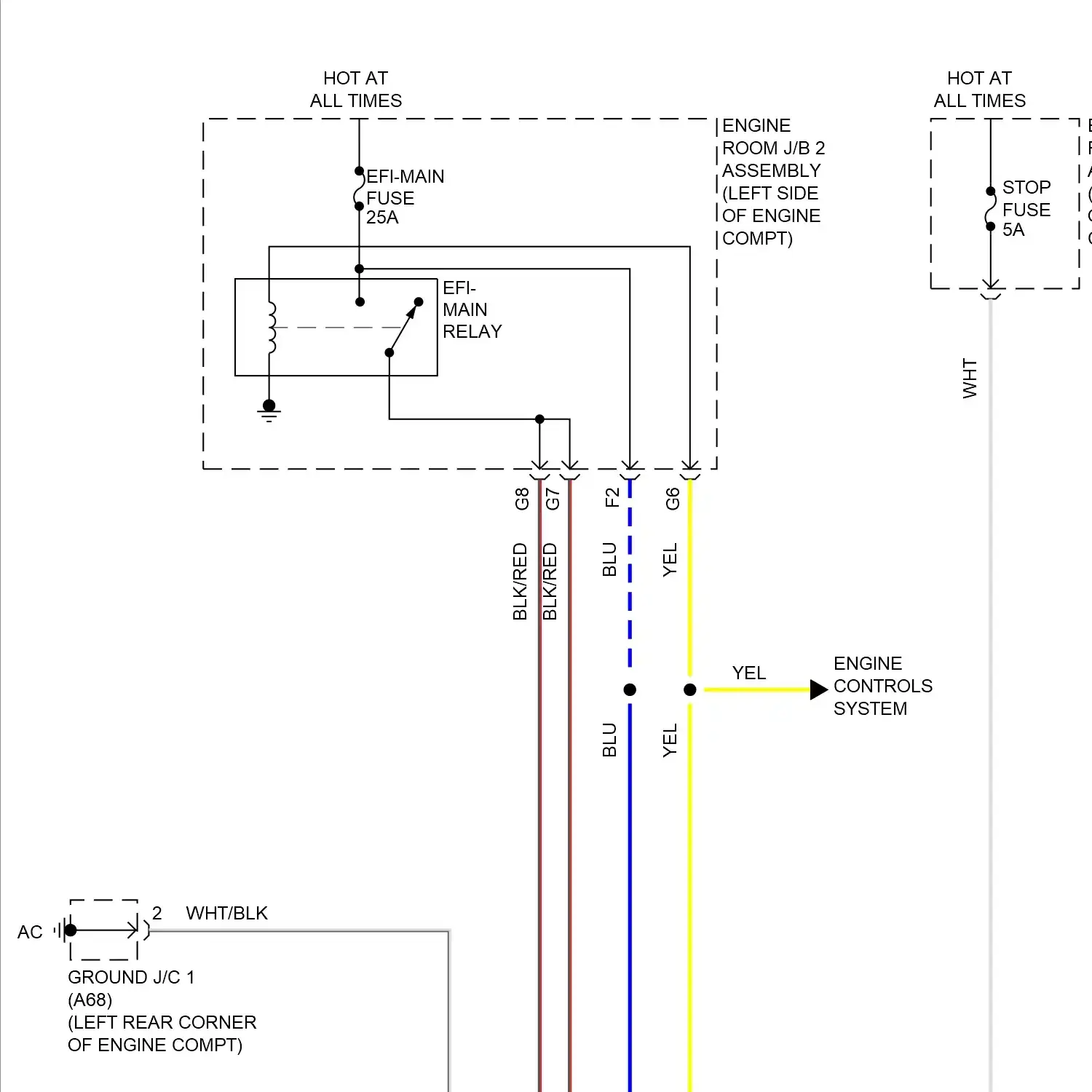

Wiring diagram engine performance 2.0l turbo

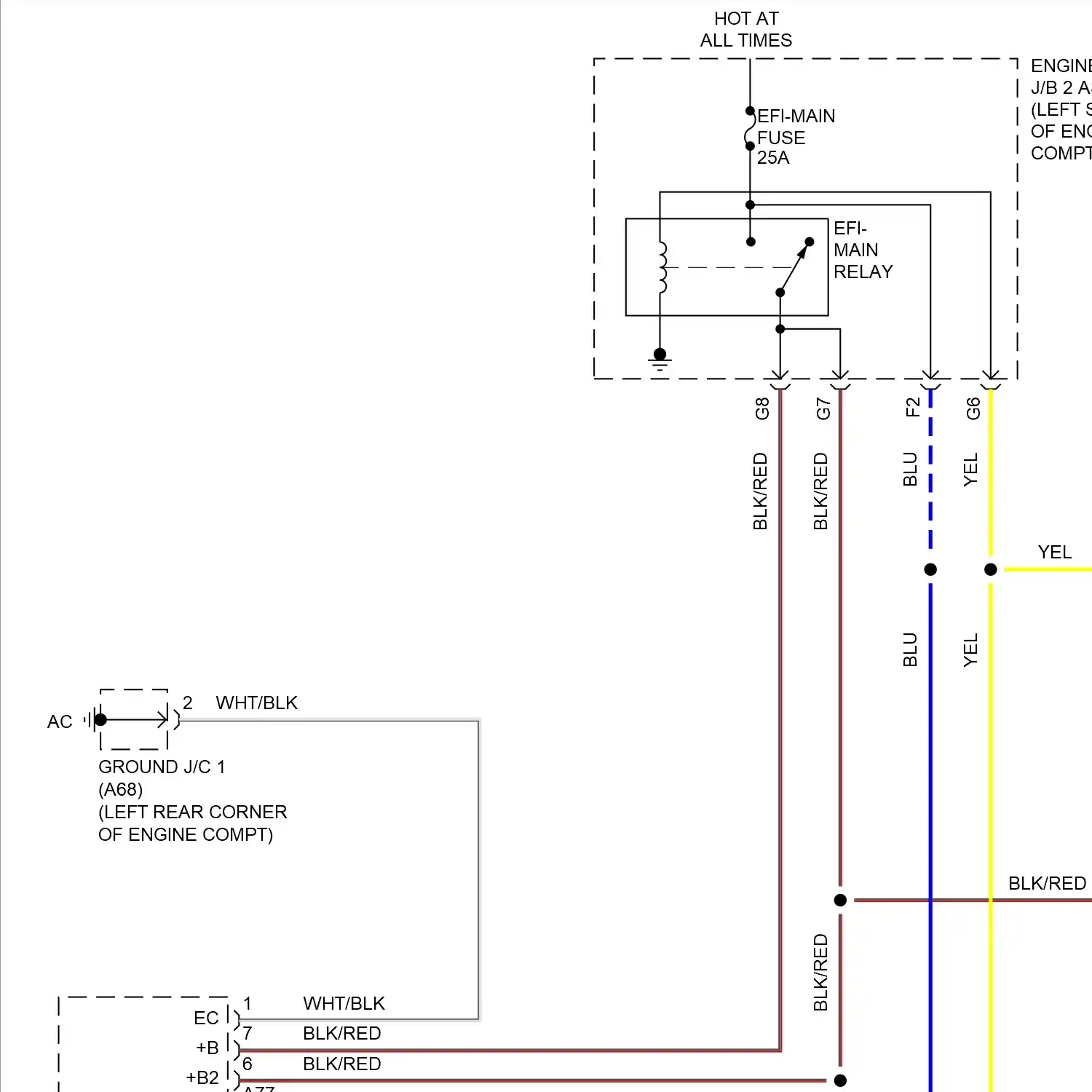

Wiring diagram engine performance 3.5l

Wiring diagram engine performance 5.0l

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

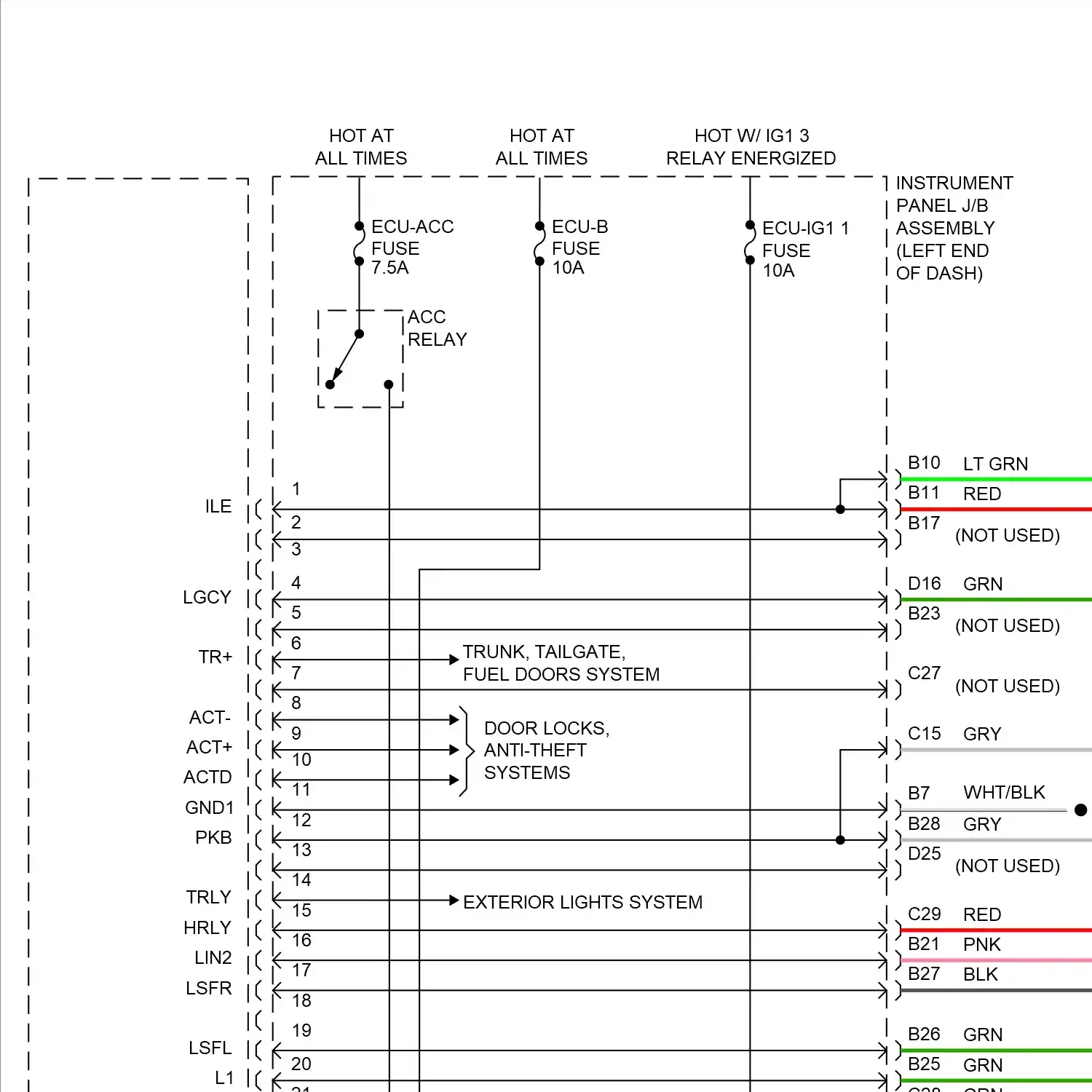

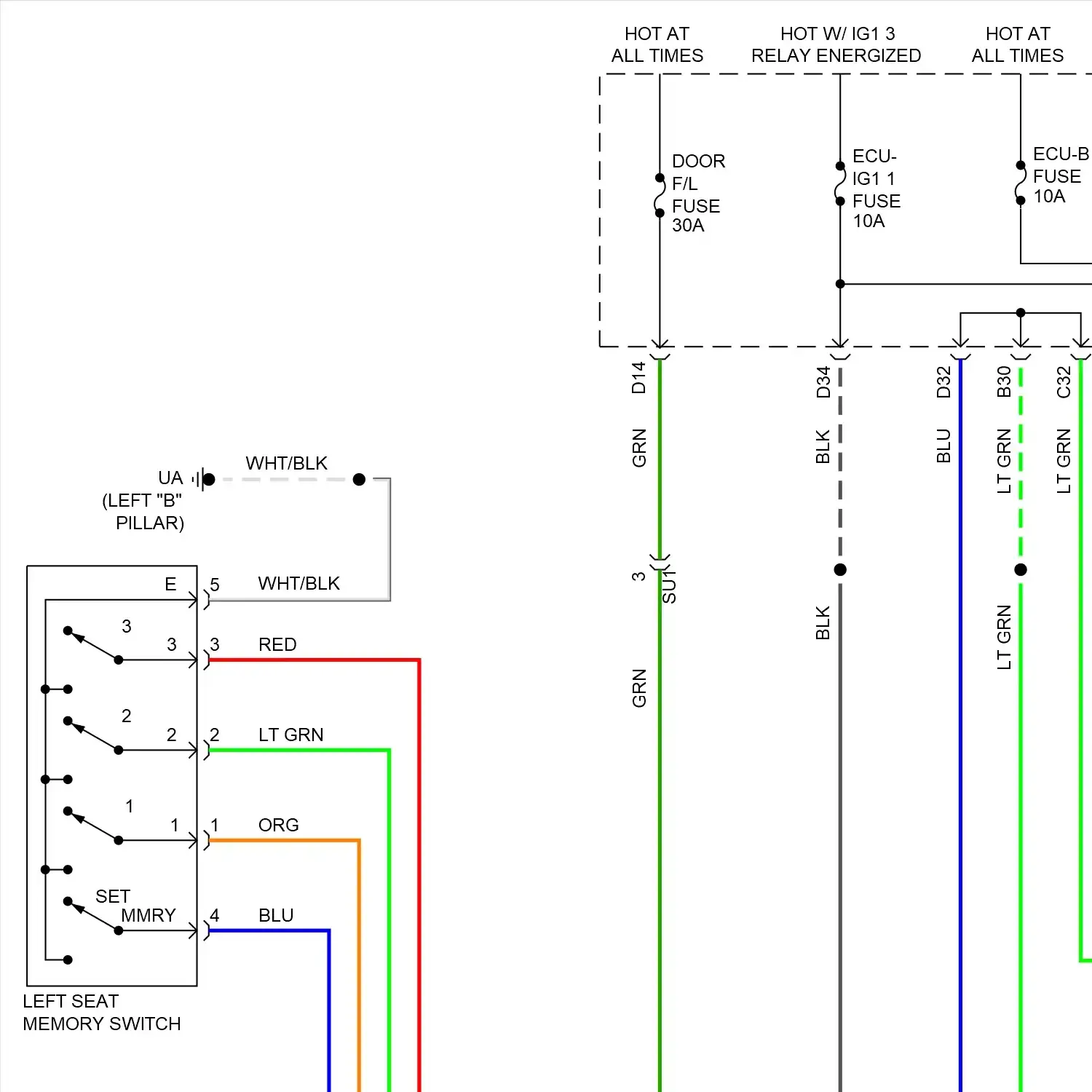

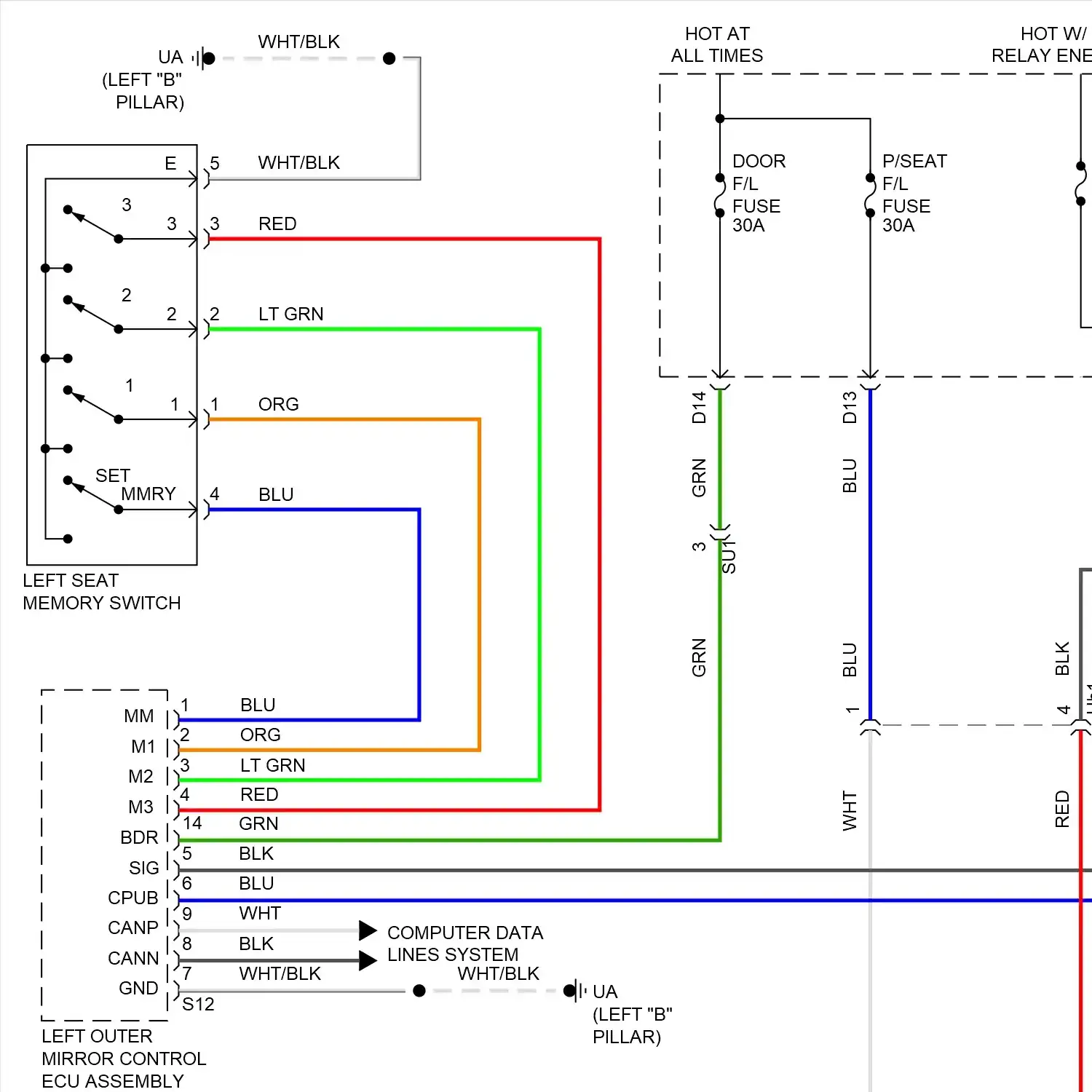

Driver"s memory seat circuit Memory mirrors circuit Memory power tilt & power telescopic circuit

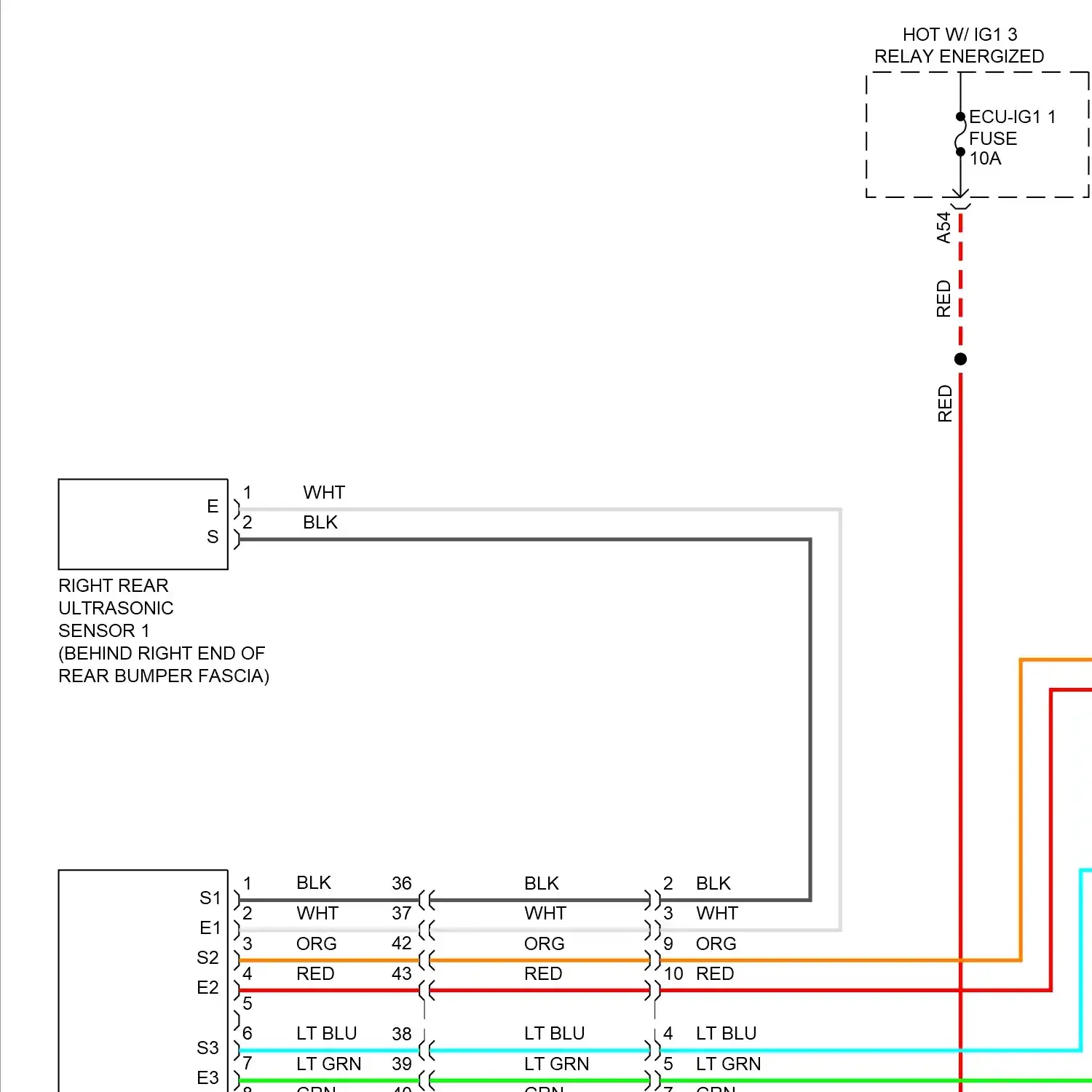

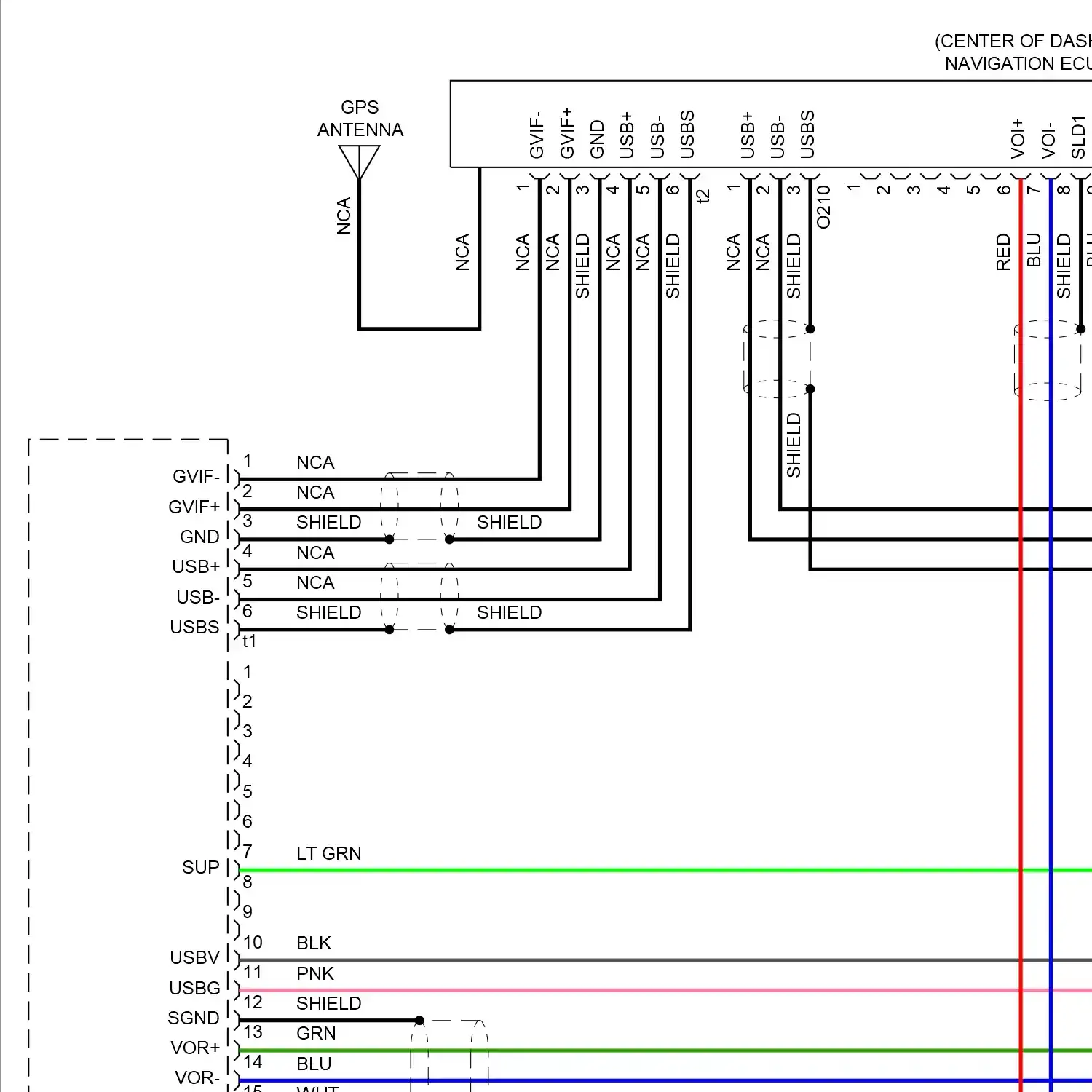

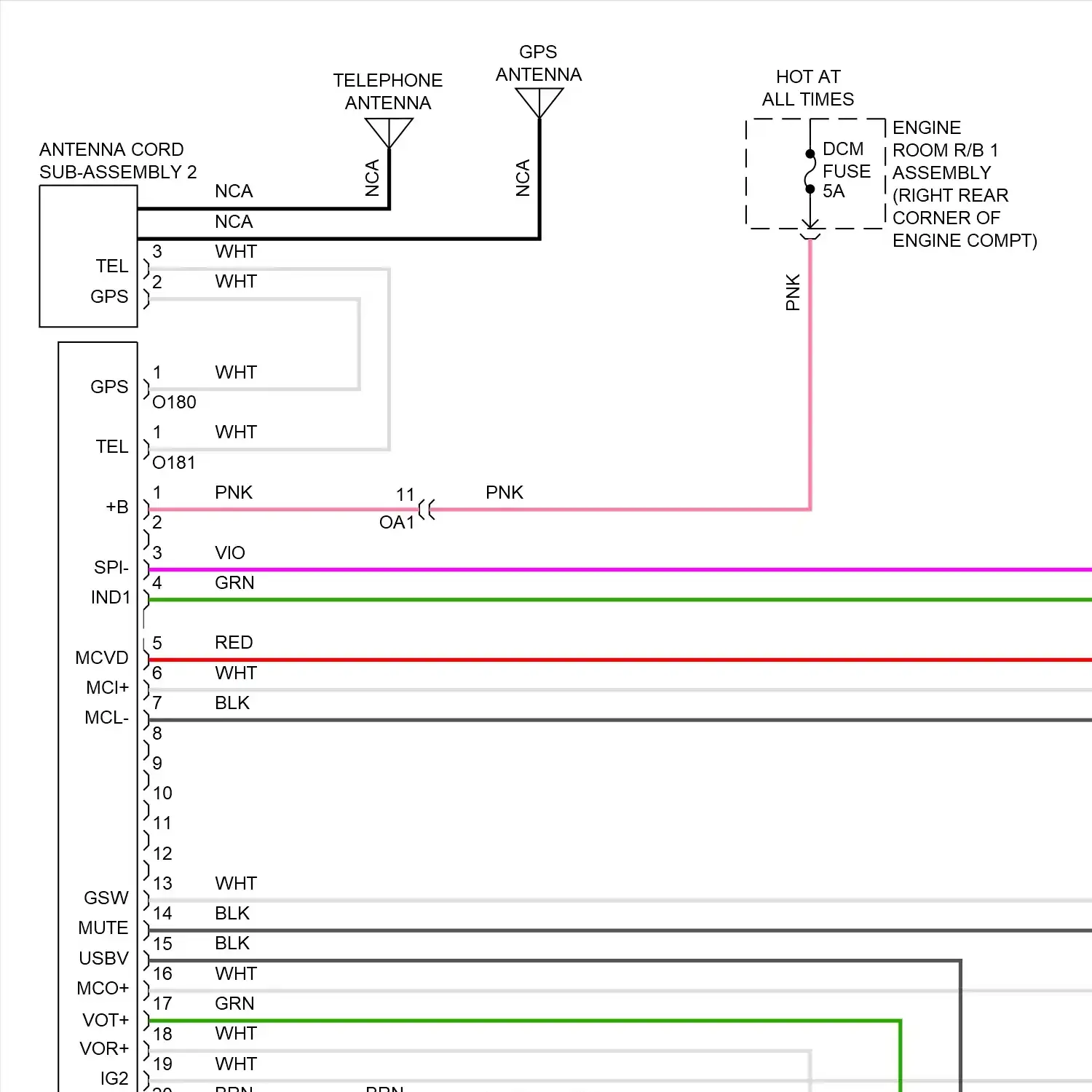

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit Rear sonar circuit Telematics circuit

Passive restraints circuit

Power distribution circuit

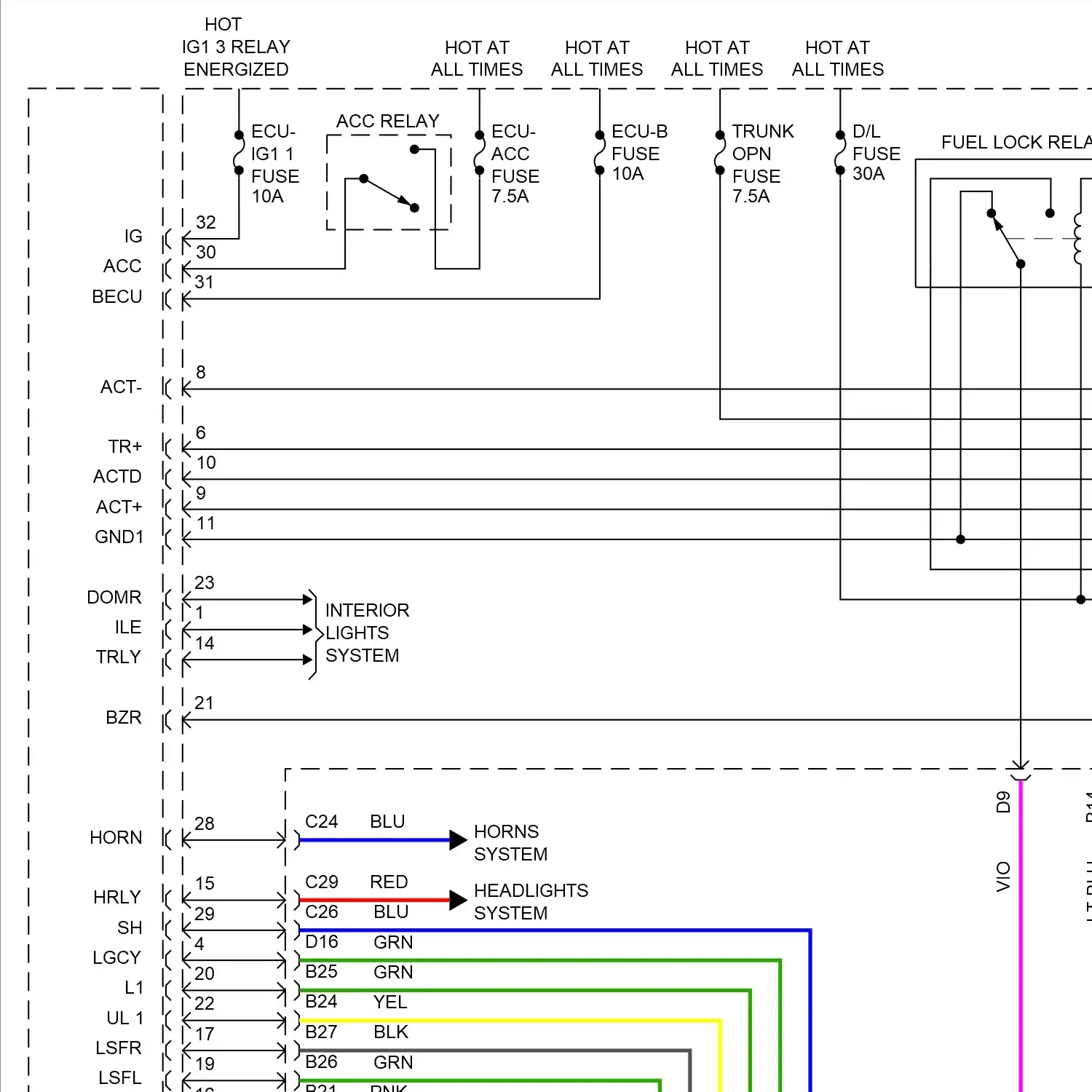

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Climate control seats circuit Driver power seat circuit Heated seats circuit Heated steering wheel circuit Passenger power seat circuit

Power top/sunroof circuit

Power windows circuit

Active sound control circuit Radio circuit Radio circuit, w/ navigation Radio circuit, w/o navigation

Shift interlock circuit Steering column circuit

Charging circuit Starting circuit

Supplemental restraints circuit

4wd circuit A/t circuit Torque vectoring differential circuit

2.0l turbo, transmission circuit

3.5l, 4wd circuit 3.5l, a/t circuit

Trunk & fuel door release circuit

Seat belt warning circuit Tire pressure monitoring circuit

Front wiper/washer circuit Headlamp washer circuit

A/C AMPLIFIER ASSEMBLY ANTENNA COIL ANTI-LOCK BRAKES SYSTEM DOOR LOCK GENERATOR ASSEMBLY HIGH PITCHED HORN ASSEMBLY IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 IGNITION COIL ASSEMBLY 5 IGNITION COIL ASSEMBLY 6 IGNITION COIL ASSEMBLY 7 IGNITION COIL ASSEMBLY 8 KEY LOCK LOW PITCHED HORN ASSEMBLY LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY MICROPHONE, MICROPHONE AMPLIFIER SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY THEFT WARNING SIREN ASSEMBLY W/ SECURITY HORN ASSEMBLY W/O SECURITY HORN ASSEMBLY WINDOW LOCK WIRELESS DOOR LOCK BUZZER

(RIGHT FRONT OF ENGINE (RIGHT OF ENGINE (RIGHT SIDE OF ENGINE BLOWER MOTOR W/ FAN SUB-ASSEMBLY BRAKE ACTUATOR ASSEMBLY COOLING FAN MOTOR COOLING FAN MOTOR 2 ENGINE CONTROLS SYSTEM ENGINE ROOM J/B 1 ASSEMBLY ENGINE ROOM J/B 2 ASSEMBLY ENGINE ROOM J/B ASSEMBLY 1 ENGINE ROOM J/B ASSEMBLY 2 ENGINE ROOM R/B 1 ASSEMBLY ENGINE ROOM R/B 2 ASSEMBLY ENGINE ROOM R/B 3 ASSEMBLY ENGINE ROOM R/B ASSEMBLY 1 ENGINE ROOM R/B ASSEMBLY 2 ENGINE ROOM R/B ASSEMBLY 3 FUEL LID LOCK W/ MOTOR ASSEMBLY HEADLIGHT CLEANER MOTOR, PUMP ASSEMBLY HEADLIGHT LEVELING MOTOR LEFT CAMSHAFT TIMING CONTROL W/ EDU MOTOR ASSEMBLY LEFT FRONT ABSORBER CONTROL ACTUATOR LEFT FRONT DOOR LOCK W/ MOTOR ASSEMBLY LEFT PARKING BRAKE ACTUATOR ASSEMBLY LEFT REAR ABSORBER CONTROL ACTUATOR LEFT TORQUE VECTORING DIFFERENTIAL MOTOR SUB-ASSEMBLY RIGHT CAMSHAFT TIMING CONTROL W/ EDU MOTOR ASSEMBLY RIGHT FRONT ABSORBER CONTROL ACTUATOR RIGHT FRONT DOOR LOCK W/ MOTOR ASSEMBLY RIGHT PARKING BRAKE ACTUATOR ASSEMBLY RIGHT REAR ABSORBER CONTROL ACTUATOR RIGHT TORQUE VECTORING DIFFERENTIAL MOTOR SUB-ASSEMBLY STEERING LOCK ACTUATOR ASSEMBLY TELESCOPIC MOTOR THROTTLE BODY W/ MOTOR ASSEMBLY TILT MOTOR TILT STEERING GEAR W/ MOTOR ASSEMBLY TOP OF ENGINE) WINDSHIELD WASHER MOTOR, PUMP ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

ANTENNA CORD SUB-ASSEMBLY 2 ELECTRICAL KEY ANTENNA GPS ANTENNA INDOOR ELECTRICAL KEY ANTENNA MAIN ANTENNA REAR INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 1 REAR INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 2 SDARS ANTENNA SUB ANTENNA TELEPHONE ANTENNA

LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT POWER WINDOW REGULATOR MOTOR ASSEMBLY POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT POWER WINDOW REGULATOR MOTOR ASSEMBLY

FORWARD RECOGNITION CAMERA REAR TELEVISION CAMERA ASSEMBLY

CONNECTOR HOUSING DATA LINK CONNECTOR 3 OPTIONAL CONNECTOR POWER OUTLET SOCKET ASSEMBLY 1

ABSORBER CONTROL ECU AIR BAG ECU ASSEMBLY CERTIFICATION ECU CLEARANCE WARNING ECU ASSEMBLY COOLING FAN ECU COOLING FAN ECU 2 DRIVING SUPPORT ECU ASSEMBLY ECU-ACC FUSE ECU-B FUSE FRONT STEERING CONTROL ECU FUEL PUMP CONTROL ECU FUEL PUMP CONTROL ECU ASSEMBLY LEFT COOLING FAN ECU LEFT HEADLIGHT CONTROL ECU SUB-ASSEMBLY LEFT OUTER MIRROR CONTROL ECU ASSEMBLY LEFT POSITION CONTROL ECU, SWITCH ASSEMBLY MAIN BODY ECU MULTIPLEX TILT, TELESCOPIC ECU NAVIGATION ECU NETWORK GATEWAY ECU OCCUPANT DETECTION ECU POWER STEERING ECU ASSEMBLY REAR STEERING CONTROL ECU RIGHT COOLING FAN ECU RIGHT HEADLIGHT CONTROL ECU SUB-ASSEMBLY RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY RIGHT POSITION CONTROL ECU, SWITCH ASSEMBLY SEMICONDUCTOR POWER INTEGRATION ECU SEMICONDUCTOR POWER INTEGRATION ECU ENGINE ROOM J/B 2 ASSEMBLY SEMICONDUCTOR POWER INTEGRATION ECU ENGINE ROOM J/B ASSEMBLY 2 SPOILER CONTROL ECU ASSEMBLY STEERING VIBRATION, HEATER ECU TORQUE VECTORING DIFFERENTIAL ECU ASSEMBLY TRANSMISSION CONTROL ECU ASSEMBLY

A/C FUSE A/F FUSE ABS 1 FUSE ABS 2 FUSE ALT FUSE AMP 1 FUSE AMP 2 FUSE ARW FUSE ARW SW FUSE AVS FUSE BKUP LP FUSE COMB SW FUSE D/C CUT FUSE D/L FUSE DCM FUSE DOME FUSE DOOR F/L FUSE DOOR F/R FUSE DRS FUSE EFI 2 FUSE EFI MAIN FUSE ENG +B FUSE ENG- IG 1 FUSE ENG-AM FUSE ENG-IG 2 FUSE EPS FUSE EPS-B FUSE EPS-IG FUSE ETCS FUSE FAN 1 FUSE FAN FUSE FAN LH FUSE FAN RH FUSE FAN-2 FUSE FUEL PMP FUSE H-LP CLN FUSE H-LP MAIN LH FUSE H-LP MAIN RH FUSE HAZ FUSE HORN FUSE HTR FUSE IGN 1 FUSE IGN 2 FUSE INJ 1 FUSE INJ 2 FUSE INJ FUSE J/B LH-AM FUSE J/B LH-B FUSE J/B-AM FUSE J/B-B FUSE METER FUSE MIR HTR FUSE MPX-B 1 FUSE NOISE FILTER FUSE OBD FUSE ODS FUSE P INJ FUSE P/I-AM FUSE P/I-B FUSE P/OUTLET 1 FUSE P/SEAT F/L FUSE P/W FUSE PANEL FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE RADAR-IG FUSE RADIO 1 FUSE RADIO 2 FUSE RADIO FUSE S-HORN FUSE S/HTR F/L FUSE S/HTR F/R FUSE S/ROOF FUSE SMART FUSE ST FUSE STOP FUSE STRG HTR FUSE STRG LOCK FUSE TAIL FUSE TI, TE FUSE TRUNK OPN FUSE TVD AM FUSE TVD FUSE VGRS FUSE VVT FUSE WASHER FUSE WASHER-S FUSE WIPER FUSE WIPER SW-IG FUSE

FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY MIRROR HEATER QUICK HEATER ASSEMBLY SEAT HEATER CONTROL STEERING HEATER STEERING WHEEL HEATER CONTROL ASSEMBLY W/ SEAT HEATER W/O SEAT HEATER

PASSENGER AIR BAG ON/OFF INDICATOR SECURITY INDICATOR SHIFT POSITION INDICATOR

INTERIOR LIGHTS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS LIGHTS SYSTEM

CANISTER PUMP MODULE ELECTRIC WATER PUMP ASSEMBLY FUEL PUMP FUEL PUMP ASSEMBLY FUEL PUMP ASSEMBLY SHIELD FUEL SUCTION TUBE W/ PUMP AND GAUGE ASSEMBLY FUEL SUCTION TUBE W/ PUMP, GAUGE ASSEMBLY LEAK DETECTION PUMP LEAK DETECTION PUMP CANISTER PUMP MODULE LEFT FUEL PUMP W/ SEAL SUB-ASSEMBLY LEFT FUEL PUMP W/ SEAL SUB-ASSEMBLY SHIELD RIGHT FUEL PUMP W/ SEAL SUB- ASSEMBLY SHIELD RIGHT FUEL PUMP W/ SEAL SUB-ASSEMBLY

A/F RELAY ACC RELAY ALL DR LOCK RELAY BKUP LP RELAY C/OPN RELAY D DR UNLOCK RELAY DOME CUT RELAY EFI MAIN 2 RELAY EFI MAIN RELAY ENGINE ROOM R/B ASSEMBLY 2 ST 1 RELAY EPS RELAY FAN LH RELAY FAN RELAY FAN RELAY 2 FAN RH RELAY FUEL LOCK RELAY H-LP LH RELAY H-LP RH RELAY H-LP RH/ MIR HTR RELAY HEADLIGHT CLEANER CONTROL RELAY HORN RELAY INJ 1 RELAY INJ 2 RELAY INJ RELAY INSTRUMENT PANEL J/B ASSEMBLY ACC RELAY INT RELAY L/D-DR UNLOCK RELAY MAIN RELAY ENERGIZED MIR HTR RELAY P/OUTLET RELAY PTC HTR 1 RELAY PTC HTR 2 RELAY RELAY ENERGIZED SECURITY WARNING RELAY ST RELAY STRG HTR RELAY TAIL RELAY TRUNK OPN RELAY TVD RELAY VVT LH RELAY VVT RH RELAY WIPER RELAY

A/C EVAPORATOR TEMPERATURE SENSOR A/C PRESSURE SENSOR ACCELERATOR PEDAL SENSOR ASSEMBLY AUTOMATIC LIGHT CONTROL SENSOR CAMSHAFT POSITION SENSOR CANISTER PRESSURE SENSOR CRANK POSITION SENSOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR FRONT ACCELERATION SENSOR FUEL PRESSURE SENSOR LEFT BLIND SPOT MONITOR SENSOR LEFT DOOR SIDE AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT OCCUPANT CLASSIFICATION SENSOR LEFT FRONT SPEED SENSOR LEFT FRONT ULTRASONIC SENSOR 1 LEFT REAR AIR BAG SENSOR LEFT REAR CENTER ULTRASONIC SENSOR 1 LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR OCCUPANT CLASSIFICATION SENSOR LEFT REAR SPEED SENSOR LEFT REAR ULTRASONIC SENSOR 1 LEFT SIDE AIR BAG SENSOR ASSEMBLY MILLIMETER WAVE RADAR SENSOR ASSEMBLY OIL TEMPERATURE SENSOR RAIN SENSOR REAR ACCELERATION SENSOR REAR STEERING SENSOR RESOLVER SENSOR REVOLUTION SENSOR RIGHT BLIND SPOT MONITOR SENSOR RIGHT DOOR SIDE AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT SPEED SENSOR RIGHT FRONT ULTRASONIC SENSOR 1 RIGHT REAR AIR BAG SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR 1 RIGHT REAR SPEED SENSOR RIGHT REAR ULTRASONIC SENSOR 1 RIGHT SIDE AIR BAG SENSOR ASSEMBLY SEAT POSITION AIR BAG SENSOR SMOG VENTILATION SENSOR SOLAR SENSOR SPIRAL CABLE W/ SENSOR SUB-ASSEMBLY STEERING SENSOR STROKE SENSOR TORQUE SENSOR TURBO PRESSURE SENSOR 1 TURBO PRESSURE SENSOR 2 YAW RATE SENSOR YAW RATE SENSOR 1

10 SPEAKER 17 SPEAKER 17 SPEAKER 10 SPEAKER FRONT SPEAKER ASSEMBLY 3 LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 2 LEFT REAR HEADER SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY 2 REAR SPEAKER ASSEMBLY 3 RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT REAR HEADER SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY 2 SPEAKER W/ BOX ASSEMBLY 1

A/C SWITCH AUTO HIGH BEAM SWITCH AUTO WIPER SWITCH BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY BACK SONAR/ CLEARANCE SONAR SWITCH ASSEMBLY BSM SWITCH BUCKLE SWITCH COMBINATION SWITCH ASSEMBLY COURTESY SWITCH CRUISE CONTROL MAIN SWITCH DIMMER SWITCH DISTANCE CONTROL SWITCH DOOR LOCK, UNLOCK SWITCH DOOR UNLOCK SWITCH SUB-ASSEMBLY DRIVER SIDE AUTO SWITCH DRIVER SIDE DOWN SWITCH DRIVER SIDE UP SWITCH EMERGENCY SWITCH ENGINE OIL PRESSURE SWITCH ASSEMBLY ENGINE SWITCH FRONT LUMBAR POWER SEAT SWITCH FRONT PASSENGER SIDE POWER WINDOW SWITCH FRONT SEAT HEATER SWITCH FRONT SEAT VENTILATION SWITCH FRONT SEAT HEATER SWITCH FRONT WIPER DEICER SWITCH HAZARD SWITCH HEADLIGHT DIMMER SWITCH ASSEMBLY HOLD SWITCH HORN SWITCH KICK DOWN SWITCH ASSEMBLY LANE DEPARTURE ALERT SWITCH LEFT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT PADDLE SHIFT SWITCH LEFT SEAT MEMORY SWITCH LEFT STEERING PAD SWITCH LEVEL WARNING SWITCH ASSEMBLY LIGHT CONTROL SWITCH LOCK SWITCH LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY LUGGAGE DOOR OPENING SWITCH ASSEMBLY LUGGAGE ELECTRICAL KEY SWITCH MIRROR ADJUST SWITCH MIRROR ADJUST SWITCH IND MIRROR L SELECT SWITCH IND MIRROR R SELECT SWITCH IND MIRROR R/L SELECT SWITCH MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY P POSITION DETECTION SWITCH PAD SWITCH PARK/ NEUTRAL POSITION SWITCH ASSEMBLY PARK/NEUTRAL POSITION SWITCH ASSEMBLY PARKING BRAKE SWITCH ASSEMBLY POWER WINDOW SWITCH REAR WINDOW DEFOGGER SWITCH, MIRROR HEATER SWITCH REFRESHING SEAT SWITCH RELEASE SWITCH RIGHT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT PADDLE SHIFT SWITCH RIGHT STEERING PAD SWITCH RIGHT STEERING PAD SWITCH STEERING PAD SWITCH ASSEMBLY SEAT MEMORY SWITCH SELECT SWITCH IND SHIFT SWITCH SPOILER CONTROL SWITCH STEERING HEATER SWITCH STEERING PAD SWITCH ASSEMBLY STOP LIGHT SWITCH ASSEMBLY SWITCH IND TELESCO SHORTEN SWITCH TELESCO STRETCH SWITCH TELESCOPIC SHORTEN SWITCH TELESCOPIC STRETCH SWITCH TILT DOWN SWITCH TILT UP SWITCH TILT, TELESCOPIC SWITCH TIRE PRESSURE WARNING SWITCH TRIP SWITCH TRUNK OPENER CANCEL SWITCH LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY TURN SWITCH UNLOCK SWITCH IND VACUUM WARNING SWITCH ASSEMBLY VEHICLE SOUND SWITCH VOLUME SWITCH INT SWITCH VSC OFF SWITCH WASHER SWITCH WINDOW LOCK SWITCH WINDOW SWITCH IND WINDSHIELD WIPER SWITCH ASSEMBLY WIPER SWITCH

AIR BY-PASS VALVE ASSEMBLY CAM TIMING OIL CONTROL SOLENOID ASSEMBLY OIL PRESSURE SWITCHING VALVE ASSEMBLY SHIFT LOCK SOLENOID VACUUM REGULATING VALVE ASSEMBLY VENT VALVE

(OR RED/ WIRE BLK WIRE BLK/ BLU WIRE BLK/BLU WIRE BLK/DK GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/WHT WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/WHT WIRE BSW PNK BGND WIRE CANH PNK IGB WIRE CANH PNK WIRE CANL PNK CANH WIRE CRUISE CONTROL SWITCH WIRE CSV PNK WIRE CTR- PNK RL- WIRE EC- PNK +B WIRE EPA PNK WIRE FL+ PNK FL- WIRE FR- PNK FR+ WIRE FRV+ PNK RCL+ WIRE GRN WIRE GRN/BLK WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/RED WIRE IG PNK SSRL WIRE IGB PNK VS WIRE LEFT FRONT PAD WEAR INDICATOR WIRE ASSEMBLY LT BLU WIRE LT GRN WIRE MILE 5 6 PNK TSW WIRE MREL PNK LNCI WIRE NCA WIRE ORG/ WIRE PNK CANH WIRE PNK CANP WIRE PNK IG PNK PKB WIRE PNK IG WIRE PNK LIN WIRE PNK RLIN WIRE PNK SHD + WIRE PNK SYSB WIRE PNK TSR WIRE PNK TSW- WIRE PNK VS WIRE PNK WIRE RED WIRE RED/BLU WIRE RED/WHT WIRE RIGHT FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RRFR PNK OTRG WIRE SG-3 PNK TSR WIRE SR- PNK FL- PNK FR- WIRE SSCL PNK TSW WIRE STEERING WHEEL HEATER CONTROL ASSEMBLY, SWITCH WIRE 1 SWITCH WIRE 1 TEM- PNK TIM- WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/GRN WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE

1) LEFT TURN 2) LEFT LANE CHANGE 3) NEUTRAL 4) RIGHT LANE CHANGE 5) RIGHT TURN 2.0L TURBO 2.0L TURBO 3.5L 3.5L (IF (LOWER REAR OF DRIVER'S DOOR (RIGHT SIDE OF TRANSMISSION +BI +BM +BO +SR -SL -DP -TW A/C CONTROL ASSEMBLY A/C HARNESS ASSEMBLY ACT- 9 10 ACT+ ANTI-THEFT SYSTEM AUTO DRL OFF OFF TAIL AUTO TAIL OFF DRL OFF HEAD AUTOMATIC GLARE- RESISTANT EC MIRROR GARAGE DOOR OPENER B+ BUS BACKUP LAMPS CIRCUIT BBL+ BBR+ BCL+ BCR+ BDL- BMU+ BMV+ BMW+ BSL+ BSL+ EC+ BSR+ BUS - BUS G BZR 22 23 CA+ CAN I/F CAN I/F CANL CAN I/F CPU CAN JUNCTION TERMINAL 1 CAN JUNCTION TERMINAL 2 CAN JUNCTION TERMINAL 3 CAN L CAN- 9 23 CAN+ CANADA USA CANH CAN CANL I/F CANH I/F CANL CAN CANL CANH CB+ CENTER STOP LIGHT ASSEMBLY CLEARANCE WARNING BUZZER 1 CLOCK ASSEMBLY COMBINATION METER ASSEMBLY COMPUTER DATA LINES SYSTEM CONTROL CIRCUIT COOLER COMPRESSOR ASSEMBLY COOLING FAN COOLING FANS SYSTEM CRUISE CONTROL SYSTEM CSS+ CTR + CUSHION CENTER CUTB STA CV+ DATA LINES DEFOGGER SYSTEM DIRECT FUEL INJECTOR ASSEMBLY 1 DIRECT FUEL INJECTOR ASSEMBLY 1 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 2 DIRECT FUEL INJECTOR ASSEMBLY 2 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 3 DIRECT FUEL INJECTOR ASSEMBLY 3 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 4 DIRECT FUEL INJECTOR ASSEMBLY 4 SHIELD DISPLAY DRIVER DK+ DOME LIGHT DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOWN AUTO DOWN MANUAL DRIVER DISPLAY DRIVER INJECTOR 1 SHIELD DRIVER INJECTOR 2 SHIELD DRIVER SIDE POWER DRIVER TIRE PRESSURE MONITOR INITIATOR DRIVER'S DOOR DRL OFF OFF DRL/ PARKING EC MIRROR EC+ ECI+ ECM SHIELD ECO MODE ELECTROCHROMIC MIRROR CIRCUIT ETM- EX+ F IN F OT FAL+ FAR- FLASHER CIRCUIT FLCY IG FP- FPD + FRONT PASSENGER SIDE FRONT TIRE PRESSURE MONITOR INITIATOR FRV- FSW+ FUEL RETURN VENT TUBE SUB-ASSEMBLY FUEL RETURN VENT TUBE SUB-ASSEMBLY FUEL SENDER GAUGE FUEL SENDER GAUGE FUEL SENDER GAUGE 2 FUEL TANK VENT TUBE ASSEMBLY GLOVE BOX LIGHT ASSEMBLY GROUND DISTRIBUTION SYSTEM HEADLAMP WASHER CIRCUIT HEADLIGHTS SYSTEM HEATED STEERING WHEEL CIRCUIT HORNS SYSTEM HOT AT ALL TIMES HOT W/ ICL- ICR+ ID CODE BOX IG 15 16 IG+ TELLTALES IL+2 IMMOBILIZER CIRCUIT IMMOBILIZER CIRCUIT COMPUTER DATA LINES SYSTEM INNER REAR VIEW MIRROR ASSEMBLY INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL J/B ASSEMBLY INSTRUMENT PANEL PASSENGER AIR BAG W/O DOOR ASSEMBLY INTAKE MASS AIR FLOW METER SUB-ASSEMBLY KEY UNLOCK KNEE AIR BAG L+ IG LBR- LDW GND LED DRIVER LED TELLTALES DRIVER LEFT "C" PILLAR) LEFT BLIND SPOT MONITOR LEFT BLIND SPOT MONITOR IND LEFT BOLSTER LEFT CORNERING LIGHT ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT FOG LIGHT ASSEMBLY LEFT FRONT COURTESY LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT MAP LIGHT LEFT FRONT MARKER LIGHT ASSEMBLY LEFT FRONT SEAT AIR BAG ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT SEAT OUTER BELT ASSEMBLY LEFT FRONT SHOCK ABSORBER ASSEMBLY LEFT LICENSE PLATE LIGHT ASSEMBLY LEFT OUTER REAR VIEW LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT PADDLE LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR LIGHT ASSEMBLY LEFT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY PRETENSIONER LEFT REAR SEAT INNER BELT ASSEMBLY 1 LEFT REAR SHOCK ABSORBER ASSEMBLY LEFT SEAT BACK CLIMATE CONTROL BLOWER LEFT SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LEFT TURN IND LEFT VANITY LIGHT ASSEMBLY LEFT VISOR ASSEMBLY LFT- LG+ LIN 2 LM+R LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 2 LSP + LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 M+ MH MV M- M+ MACC SHIELD SGND MAIN BOARD MAIN BOARD MAP LIGHT ASSEMBLY MAP LIGHT ASSEMBLY MCI- MCO- MEMORY SYSTEMS MG+ MH+ VR MI+ MI- SHIELD SLDI MIC - MICRO COMPUTER MIRROR DRIVE IC MIRROR R/L MIRRORS SYSTEM MIRRORS SYSTEM NAVIGATION SYSTEM MO- MO- SHIELD SLDO MRL+ MSCL MSCH MSM+ MULTI- DISPLAY ASSEMBLY MV HORIZONTAL MV+ HL VL NAVIGATION SYSTEM NE+ NT- ODO TRIP OFF DRL OFF OFF DRL OFF HEAD OFF HOOK OIL PRESSURE SENDER GAUGE ASSEMBLY ON HOOK OUSN OUCS PASSENGER'S DOOR PASSIVE RESTRAINTS SYSTEM PGND PIG PK- PKB FRCY PL- PLR+ PORT FUEL INJECTOR ASSEMBLY 1 PORT FUEL INJECTOR ASSEMBLY 2 PORT FUEL INJECTOR ASSEMBLY 3 PORT FUEL INJECTOR ASSEMBLY 4 POWER DISTRIBUTION SYSTEM POWER SUPPLY POWER WINDOWS SYSTEM PR- PRETENSIONER RIGHT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY PRR- PURGE VSV PUSH NORMAL NORM PWR SPORT S/S+ R IN R OT RADIO RECEIVER ASSEMBLY RAL+ RAR+ RBR- RCL- REAR PASSENGER'S SEAT BELT WARNING LIGHT REAR STEERING LINK ASSEMBLY REAR TIRE PRESSURE MONITOR INITIATOR REMOTE OPERATION CONTROLLER ASSEMBLY RG+ RIGHT BLIND SPOT MONITOR RIGHT BLIND SPOT MONITOR IND RIGHT BOLSTER RIGHT CORNERING LIGHT ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT MAP LIGHT RIGHT FRONT MARKER LIGHT ASSEMBLY RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT SEAT OUTER BELT ASSEMBLY RIGHT FRONT SHOCK ABSORBER ASSEMBLY RIGHT LICENSE PLATE LIGHT ASSEMBLY RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT PADDLE RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR LIGHT ASSEMBLY RIGHT REAR SEAT INNER BELT ASSEMBLY 1 RIGHT REAR SHOCK ABSORBER ASSEMBLY RIGHT SEAT BACK CLIMATE CONTROL BLOWER RIGHT SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY RIGHT STEERING RIGHT TURN RIGHT TURN IND RIGHT VANITY LIGHT ASSEMBLY RIGHT VISOR ASSEMBLY RL- RL+ RM+R ROOM LIGHT ASSEMBLY 1 RV+ RZCS INSN RZG SRZG SEAT BACK) SEAT) SEATS SYSTEM SET MMRY SFL- SFR- SG-1 SG-2 SG-3 SG-4 SHIELD W/ LEXUS ENFORM SHIFT INTERLOCK SYSTEM SHP+ SIDE MARKER SKID CONTROL BUZZER SKID CONTROL BUZZER ASSEMBLY SL- SLC+ SLS+ SLS- STP SLT- SLU+ SNOW MODE SOL + SOUND SYSTEMS SPI+ SPO- SPORT S/S+ SR- SS+ SSCL 19 20 SSR+ STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN) STEERING WHEEL) STEREO COMPONENT EQUALIZER ASSEMBLY STEREO JACK ADAPTER ASSEMBLY 1 STP+ SUPPLEMENTAL RESTRAINTS SYSTEM SW 6 TAIL AUTO HEAD TAIL HEAD DRL OFF OFF AUTO TELEPHONE MICROPHONE ASSEMBLY THERMISTOR ASSEMBLY TIRE PRESSURE MONITOR INITIATOR DRIVER TOUCH LENS TRANSMISSIONS SYSTEM TRN+ TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN IND TURN LIGHT TX+1 TX-1 TX- TX+ UDO+ UL 1 UP AUTO UP MANUAL VOLUME- VOR- VOT+ VSC OFF VVE- VVI+ VVL+ VVR+ W/ ASC W/ BLIND SPOT MONITOR SYSTEM W/ LEXUS ENFORM W/ LEXUS ENFORM, NAVIGATION W/ LEXUS ENFORM, SAFETY CONNECT W/ LEXUS ENFORM, SAFETY CONNECT, NAVIGATION W/ MEMORY W/ NAVIGATION W/ PARKING ASSIST W/ SAFETY CONNECT W/O ADAPTIVE VARIABLE SUSPENSION W/O CLIMATE CONTROL SEATS W/O DYNAMIC RADAR CRUISE CONTROL W/O LEXUS ENFORM W/O LEXUS ENFORM, SAFETY CONNECT W/O LEXUS ENFORM, SAFETY CONNECT, NAVIGATION W/O MEMORY W/O NAVIGATION W/O NAVIGATION SYSTEM W/O NAVIGATION W/ LEXUS ENFORM W/O VGRS W/O VGRS W/ VGRS WARNING SYSTEMS WFL- WFR- WGV+ WIPER/WASHER SYSTEM WIRING HARNESS CONDENSER ASSEMBLY 1
