Parts Requiring Angle Tightening
- Use angle wrench [SST: KV10112100 (BT8653-A)] for the final tightening of the following engine parts: Cylinder head bolts Main bearing cap bolts Connecting rod cap bolts Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular tightening)
- Do not use a torque value for final tightening.
- The torque value for these parts are for a preliminary step.
- Ensure thread and seat surfaces are clean and coated with engine oil.

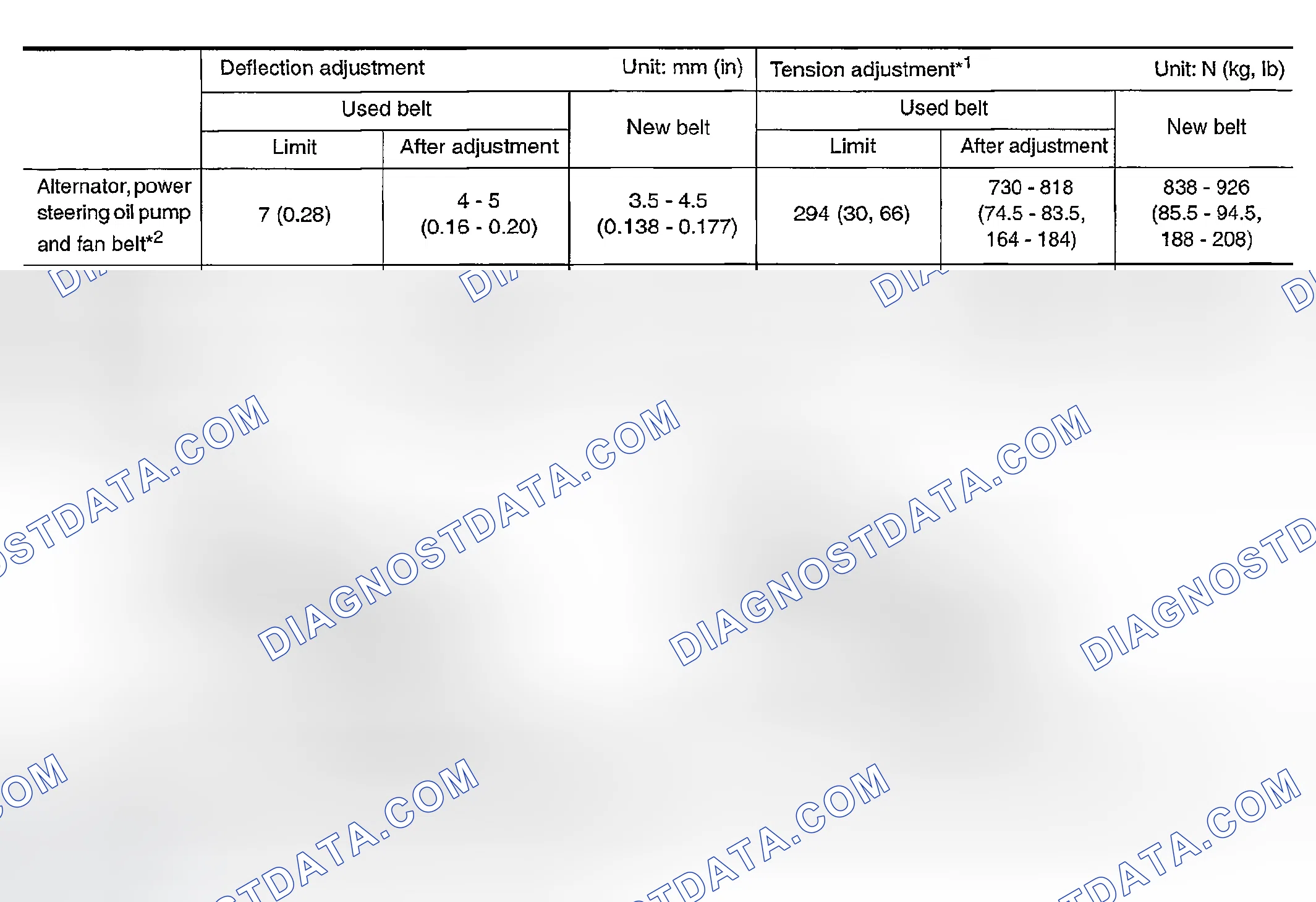

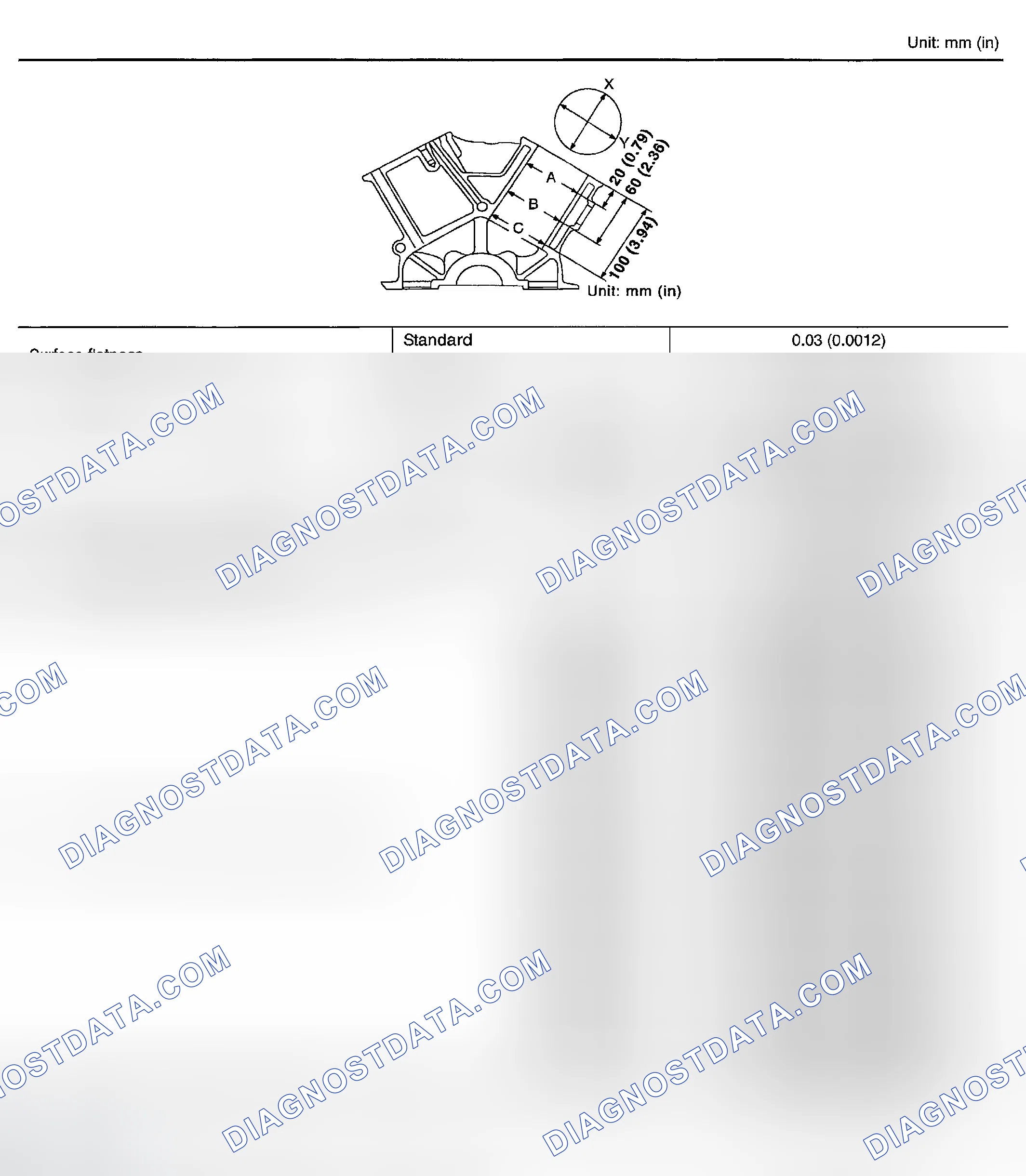

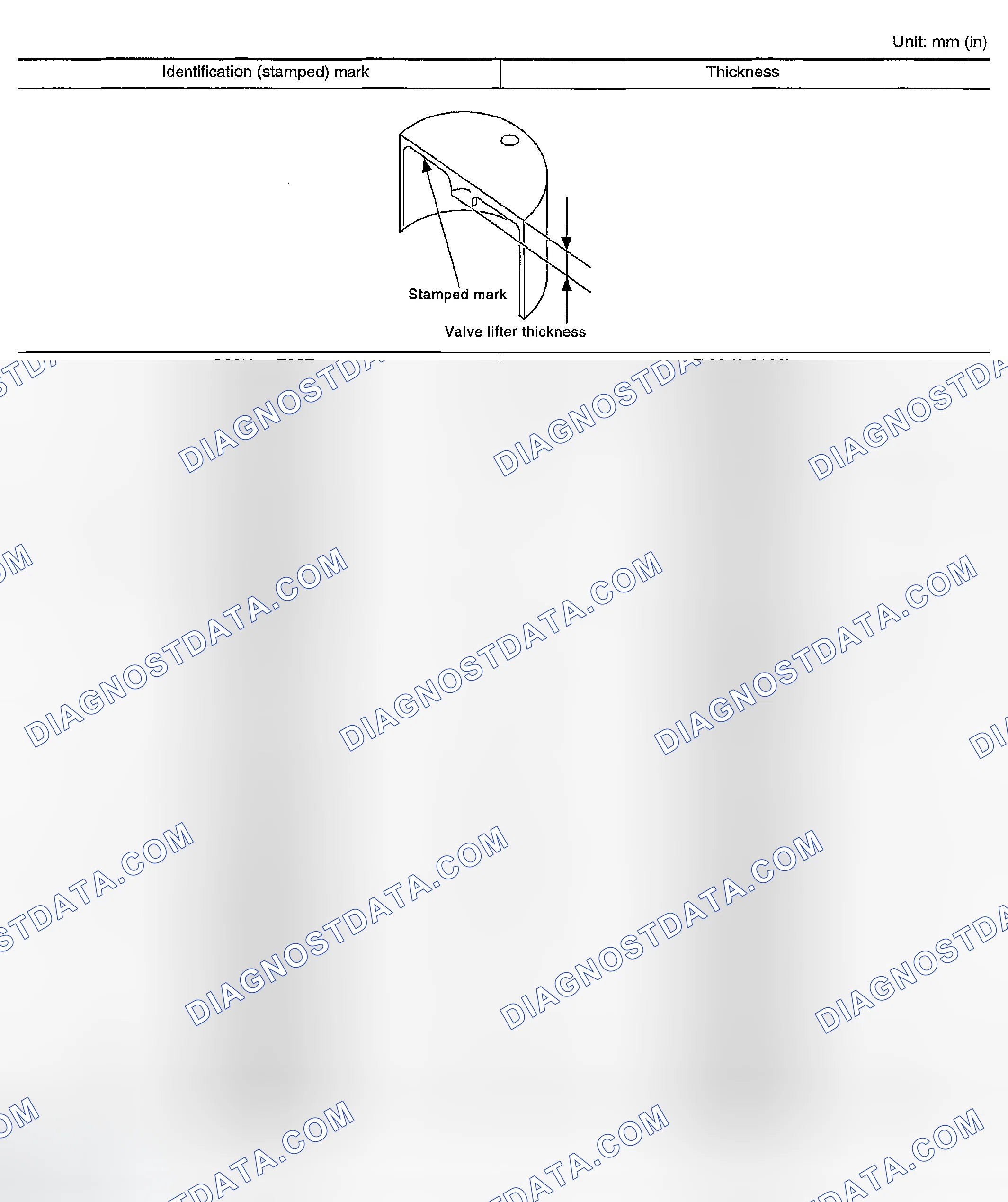

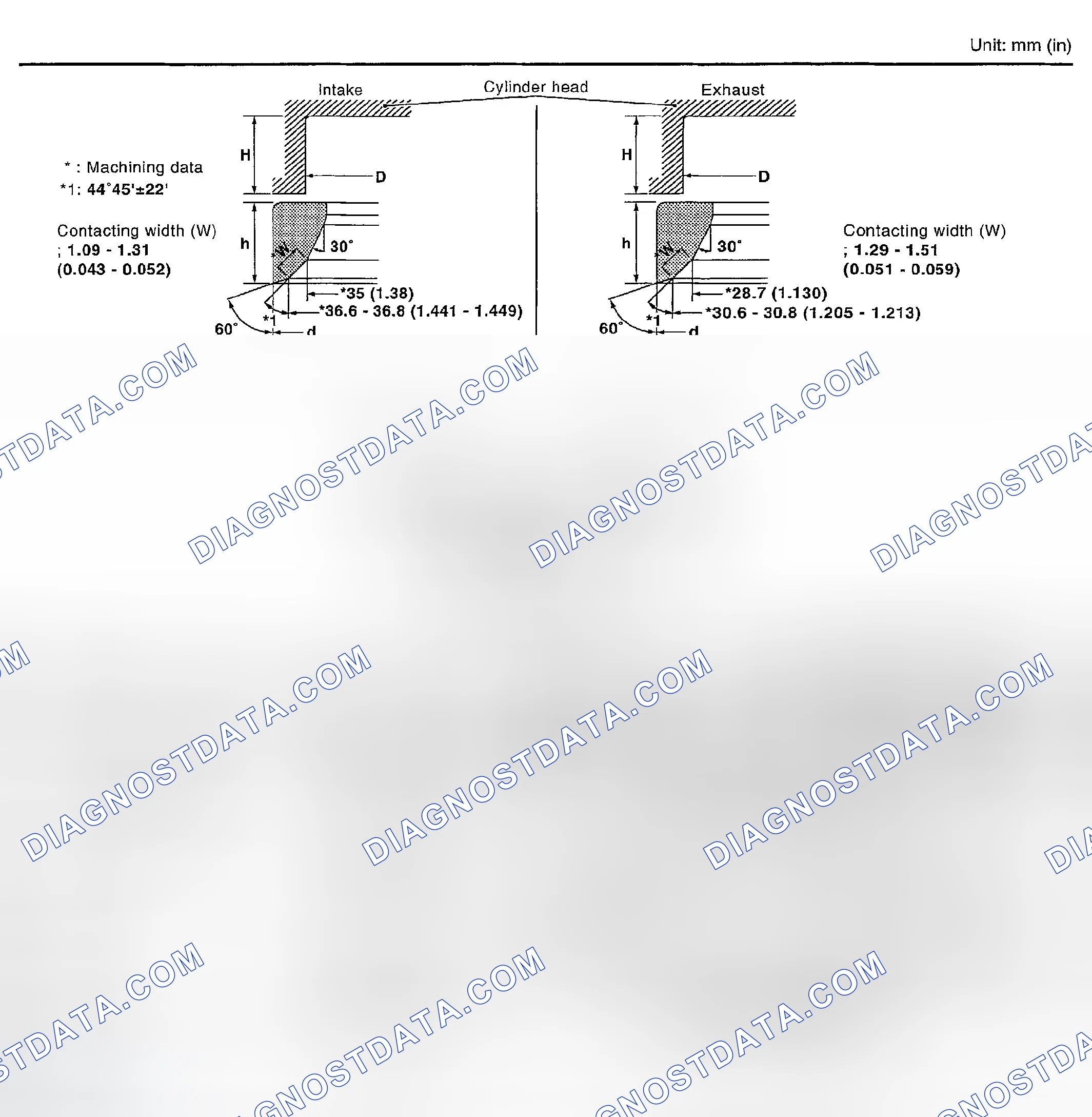

GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS Cylinder arrangement V-6 Displacement cm 3 (cu in) 3,498 (213.45) Bore and stroke mm ( in) 95.5x81.4 (3.76x3.205) Valve arrangement DOHC Firing order 1-2--3-4--5-6 Number of piston rings Compression 2 Oil 1 Number of main bearings 4 Compression ratio 10.3 Compression pressure kPa (kg/cm 2 , psi)/300 rpm Standard 1,275(13.0, 185) Minimum 981 (10.0, 142) Differential limit between cylinders 98(1.0,14) Cylinder number Valve timing (Intake valve timing control - "OFF") Unit: degree a b C d e f 240 238 -6 64 8 52
