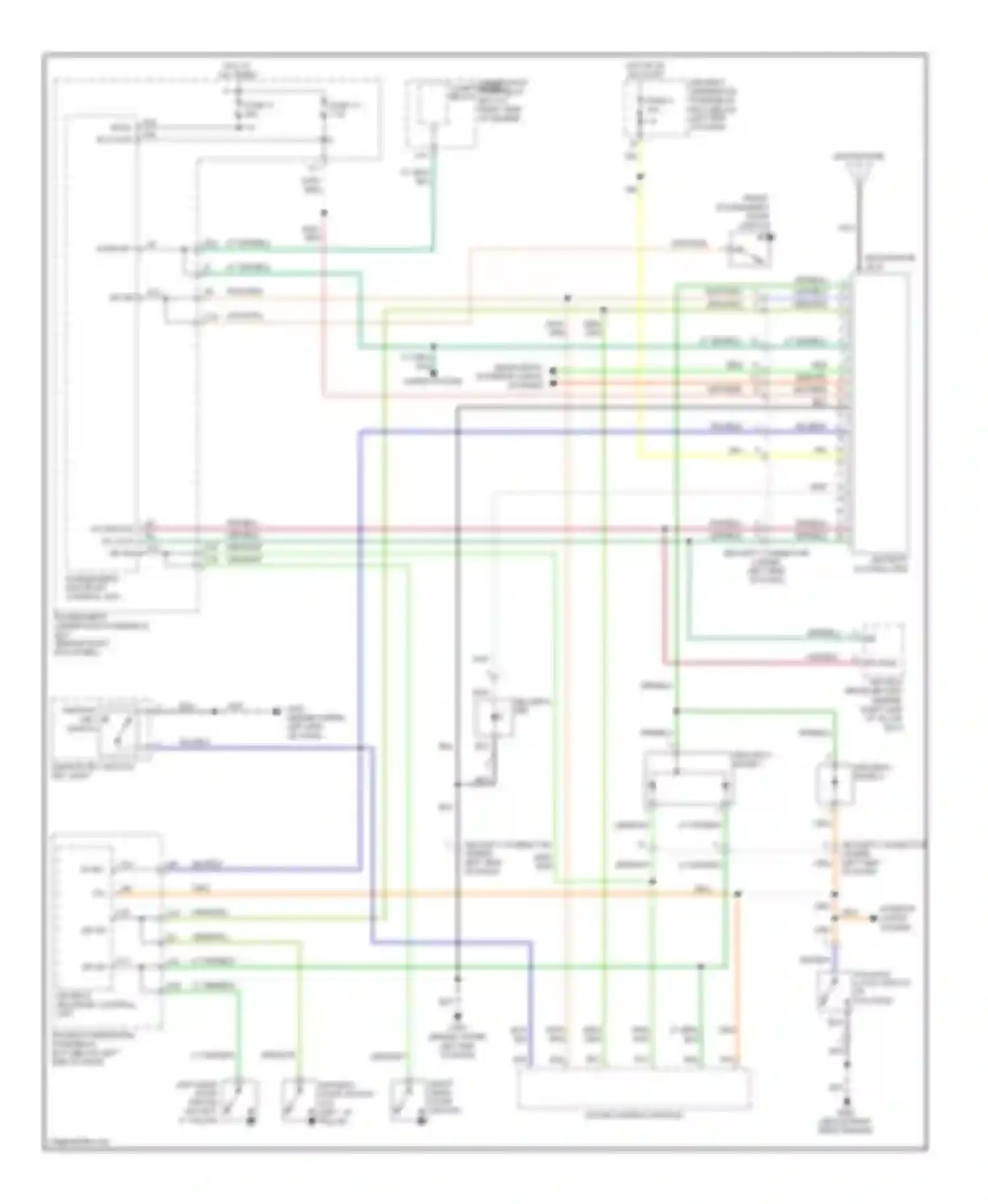

Anti-theft — Forced entry circuit, lx Honda Pilot I
All systems — 29 systems
- Air conditioning 2
- Anti-lock brakes
- Anti-theft 3
- Body control modules
- Computer data lines
- Cooling fan
- Cruise control 2
- Defoggers 2
- Engine performance 3.5l 2
- Exterior lights 2
- Ground distribution
- Headlights 2
- Horn
- Instrument cluster
- Interior lights 2
- Navigation 3
- Power distribution
- Power door locks 2
- Power mirrors 2
- Power seats 2
- Power top/sunroof
- Power windows
- Radio 7
- Shift interlock
- Starting/charging 2
- Supplemental restraints
- Transmission 2
- Warning systems 2
- Wiper/washer 2
Components on these wiring diagrams 26
Click a component to highlight it on every diagram it appears on.
