Engine Block: Overview Honda Odyssey III

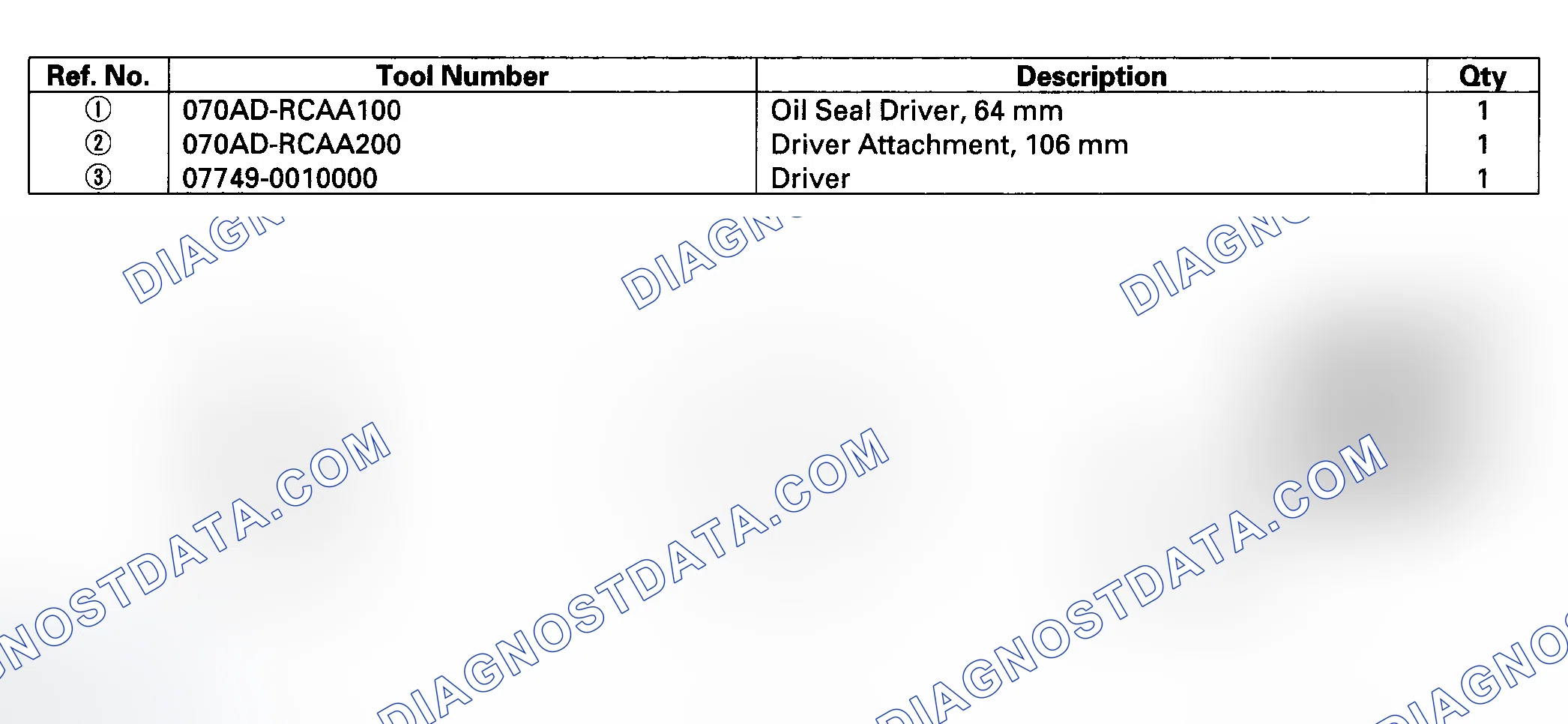

Scheme 414

Scheme 415

Scheme 416

Scheme 417

Scheme 418

Scheme 419

Scheme 420

Scheme 421

Scheme 422

1. Remove the oil pump (see «REMOVAL»(ref-220941-S07134091502006022100000) ).
2. Remove the baffle plate (see step 10 in «CRANKSHAFT AND PISTON REMOVAL»(ref-220940-S39187594552006022100000) ).
3. Measure the connecting rod end play with a feeler gauge (A) between the connecting rod (B) and crankshaft (C). Connecting Rod End Play Standard (New): 0.15-0.35 mm (0.006-0.014 in.) Service Limit: 0.45 mm (0.018 in.)
4. If the connecting rod end play is out-of-tolerance, install a new connecting rod and recheck. If it is still out-of-tolerance, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(ref-220940-S39187594552006022100000) ).
5. Push the crankshaft firmly away from the dial indicator, and zero the dial against the end of the crankshaft. Then pull the crankshaft firmly back toward the indicator; the dial reading should not exceed the service limit. Crankshaft End Play Standard (New): 0.10-0.35 mm (0.004-0.014 in.) Service Limit: 0.45 mm (0.018 in.)
6. If the end play is excessive, replace the thrust washers and recheck. If it is still out-of-tolerance, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(ref-220940-S39187594552006022100000) ).

Scheme 423

1. Remove the main bearing caps and bearing halves (see «CRANKSHAFT INSPECTION»(ref-220940-S41437054452006022100000) ).
2. Clean each main journal and bearing half with a clean shop towel.
3. Place one strip of plastigage across each main journal. NOTE: If the engine is still in the vehicle when you bolt the main cap down to check the clearance, the weight of the crankshaft and drive plate will flatten the plastigage further than just the torque on the cap bolt and give you an incorrect reading. For an accurate reading, support the crank with a jack under the counterweights, and check only one bearing at a time.
4. Reinstall the bearings and caps, then torque the bearing cap bolts to 74 N.m (7.5 kgf.m, 54 lbf.ft), and the bearing cap side bolts to 49 N.m (5.0 kgf.m, 36 lbf.ft) in the proper sequence (see step 23 in «CRANKSHAFT AND PISTON INSTALLATION»(ref-220940-S37568737972006022100000) ). NOTE: Do not rotate the crankshaft during inspection.
5. Remove the cap and bearing half, and measure the widest part of the plastigage. Main Bearing-to-Journal Oil Clearance Standard (New): 0.020-0.044 mm (0.0008-0.0017 in.) Service Limit: 0.050 mm (0.0020 in.)
6. If the plastigage measures too wide or too narrow, remove the crankshaft, and remove the upper half of the bearing. Install a new, complete bearing with the same color code, and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.
7. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(ref-220940-S39187594552006022100000) ) and start over.
