Air conditioning
# Manual a/c circuit

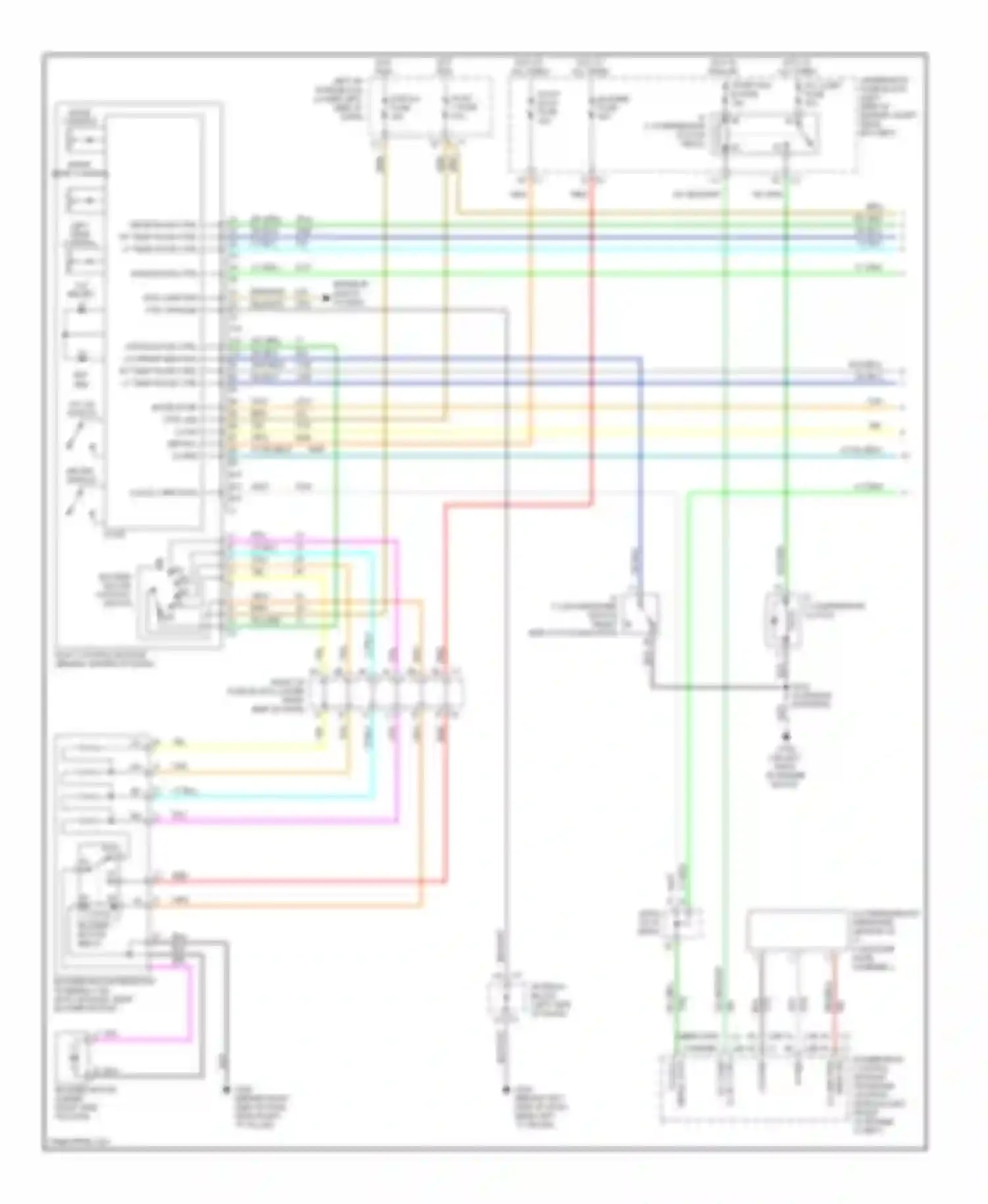

# Manual a/c circuit (1 of 2)
Components on the diagram

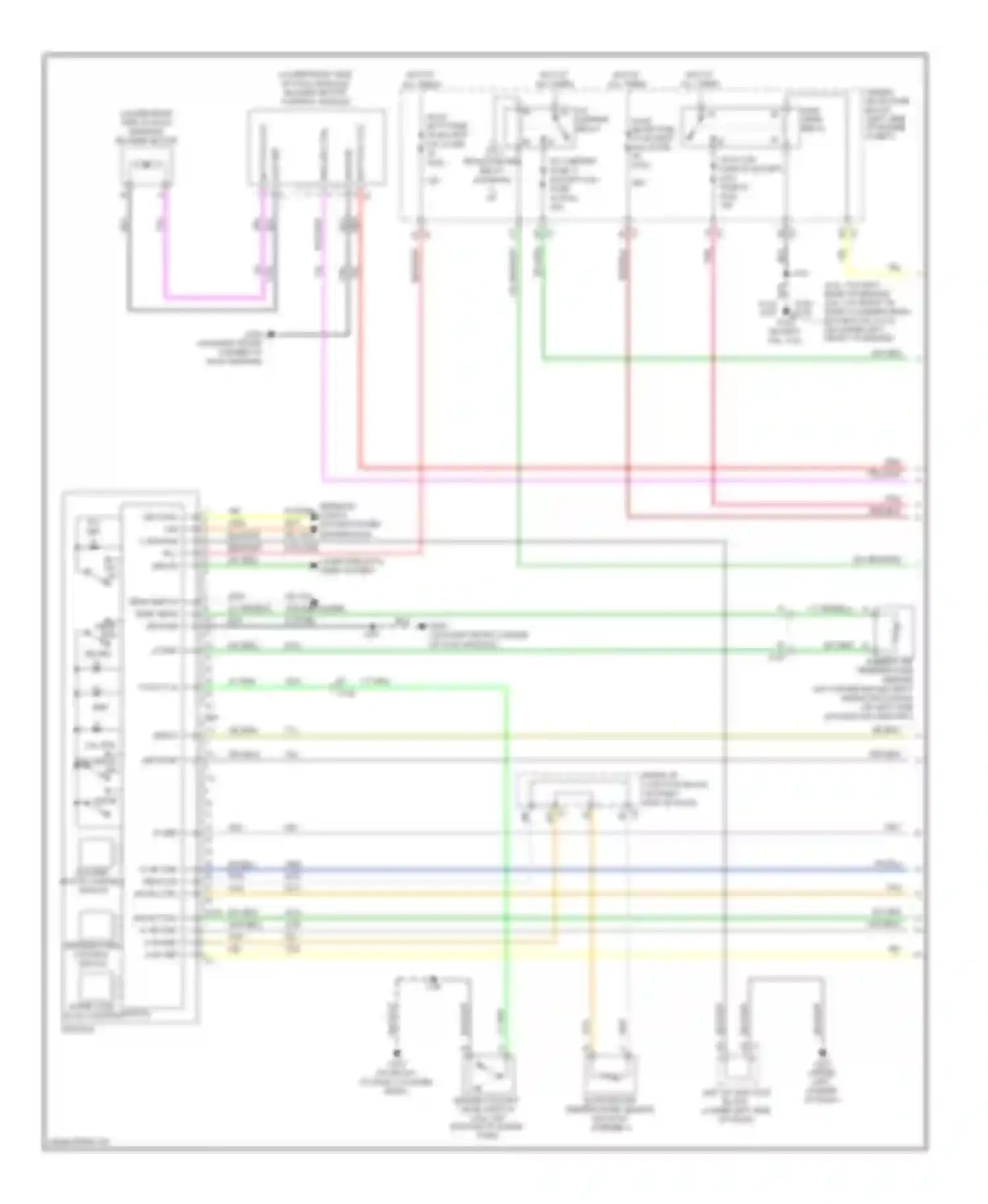

# Manual a/c circuit (1 of 3)
Components on the diagram

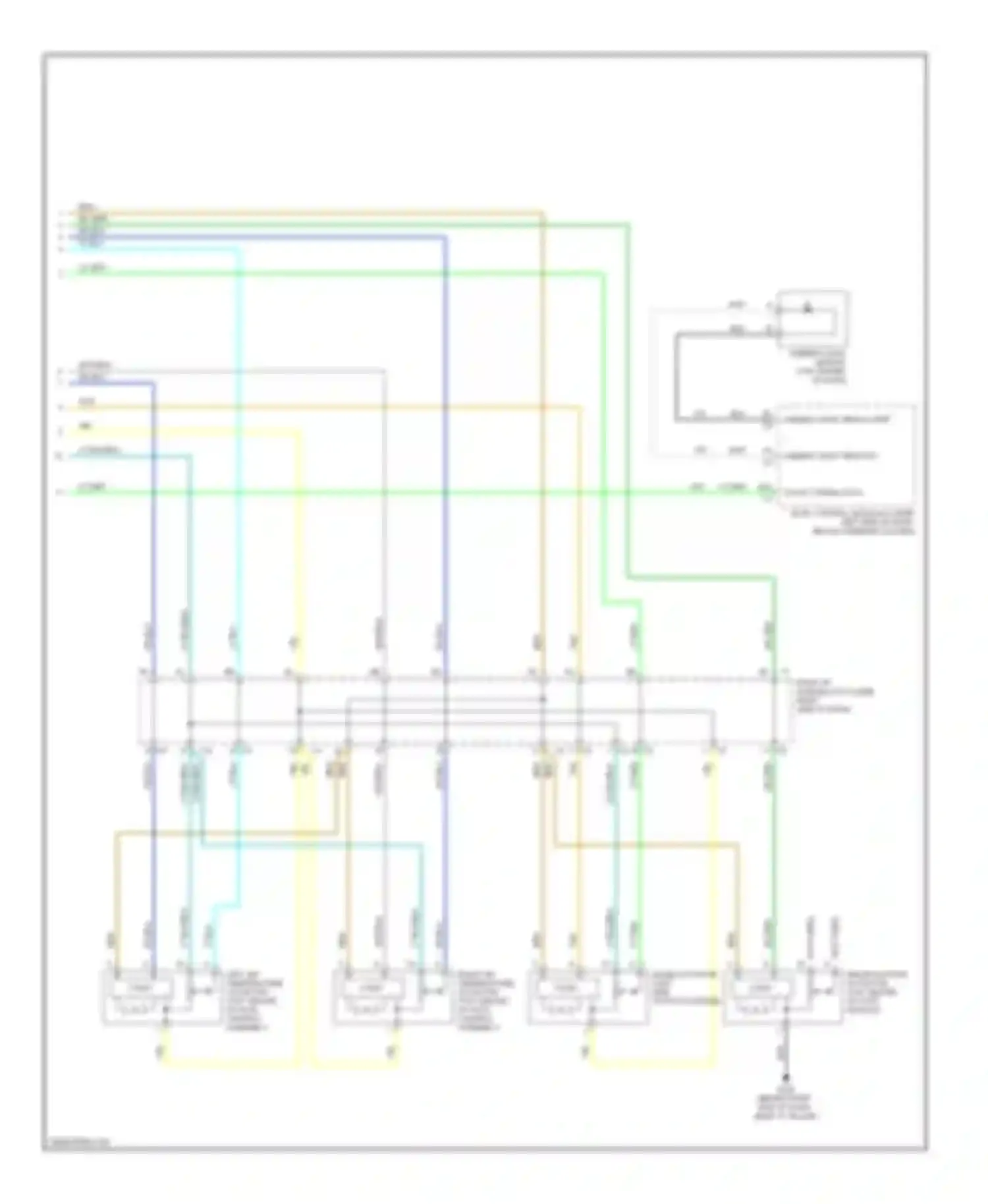

# Manual a/c circuit (2 of 2)
Components on the diagram

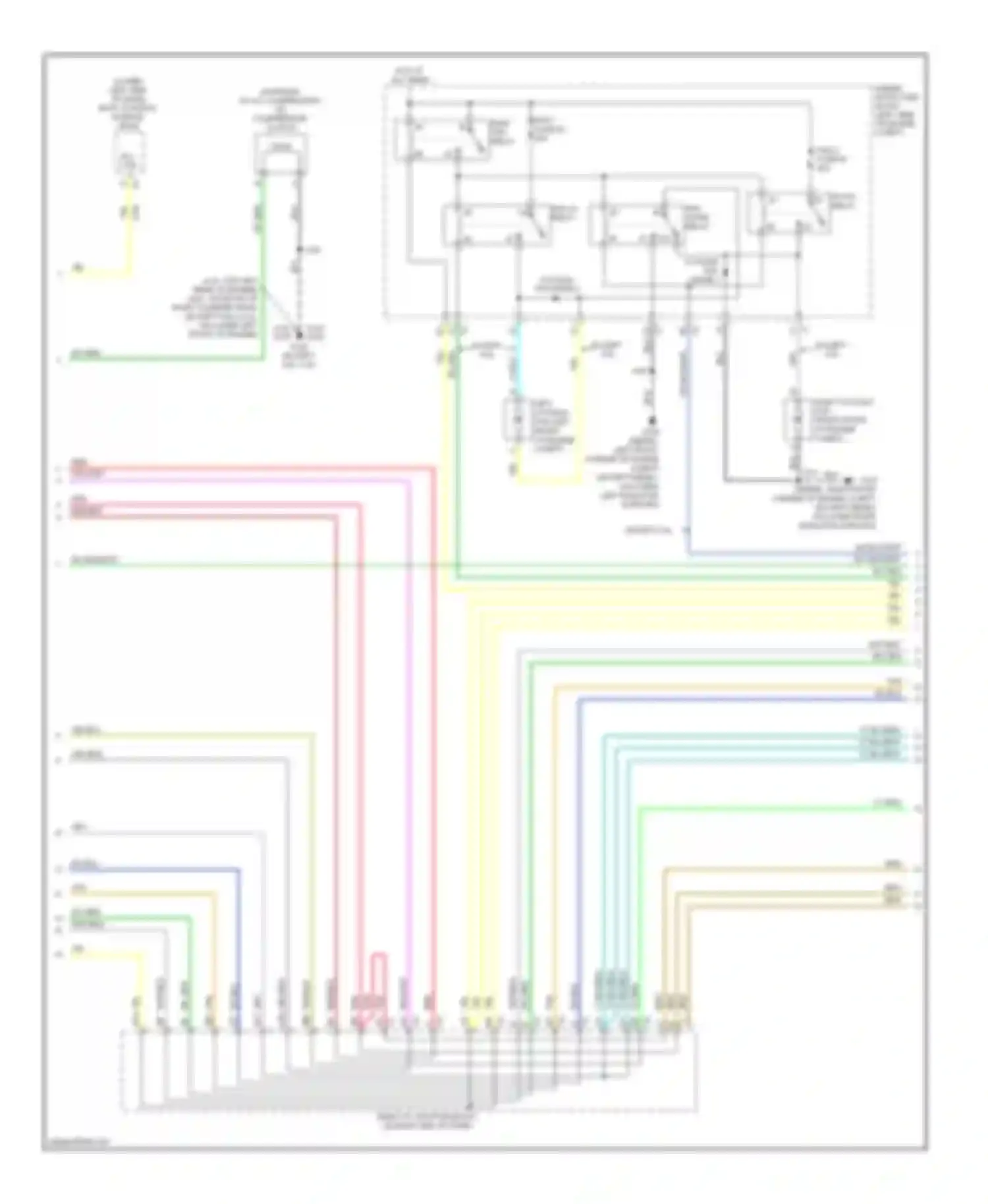

# Manual a/c circuit (2 of 3)
Components on the diagram

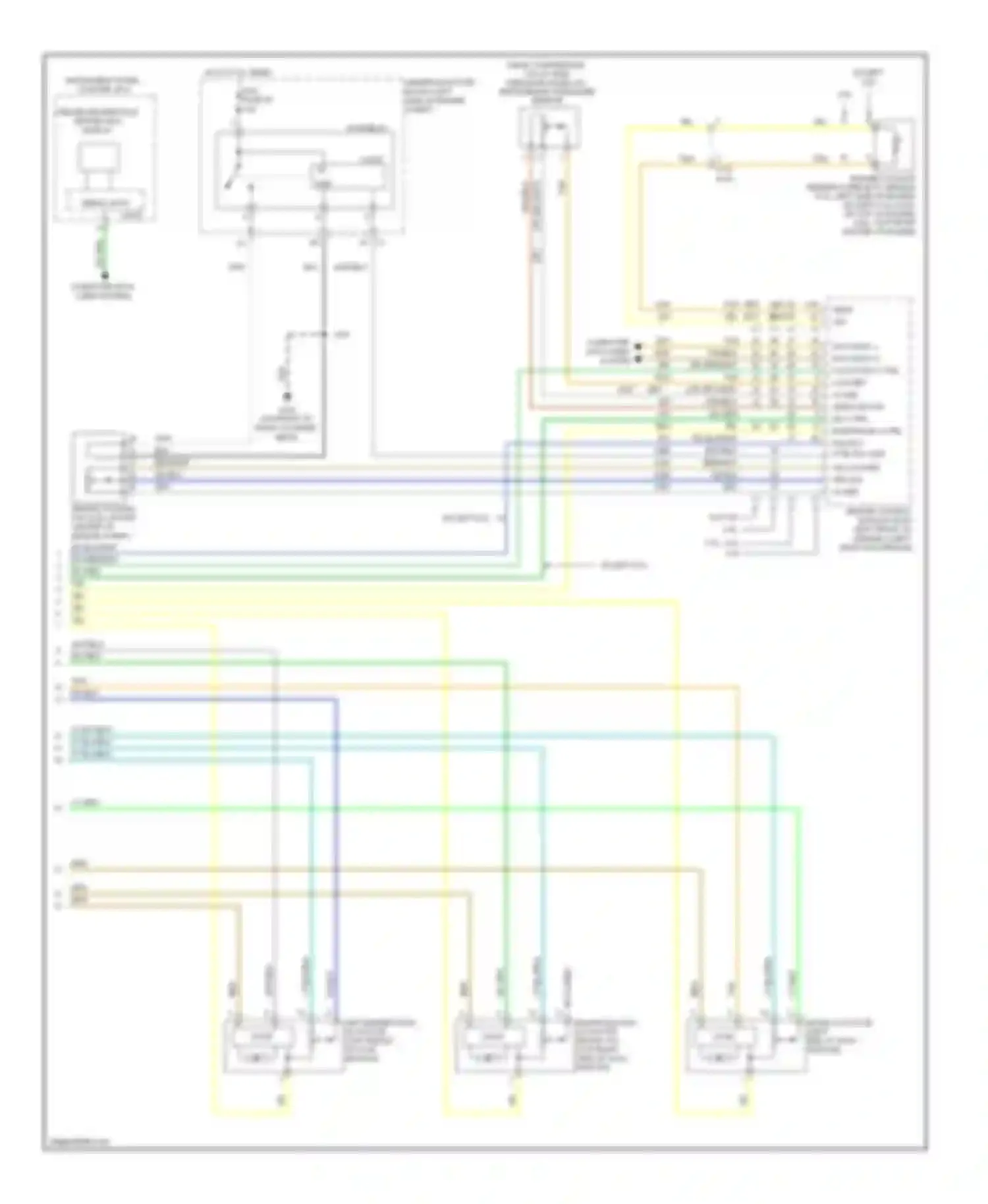

# Manual a/c circuit (3 of 3)
Components on the diagram
Components on these wiring diagrams 59
Click a component to highlight it on every diagram it appears on.
