Vehicle - Overview - m3 BMW M3 E46

Purpose of The System

The S54B32 engine is an in-line 6 cylinder power plant. This 3246 ccm displacement engine is used worldwide.

Scheme 488

The S54B32 is a 4-valve per cylinder dual VANOS naturally aspirated engine with high torque and high-rev concepts. High torque is developed by a large volume engine at low engine RPM and a long total gear ratio. High-rev is achieved with a small displacement "lightweight" (internal components) engine and short total gear ratio. This powertrain provides the best of both worlds by using a 3.2 liter in-line 6 cylinder configuration coupled to a 6 speed manual transmission.

Power Output for the E46 M3

POWER OUTPUT FOR THE E46 M3

Power Output for the M roadster and M coupe

POWER OUTPUT M ROADSTER AND M COUPE

Scheme 489

Technical Data

TECHNICAL DATA

M3 Hp Shown

Scheme 490

M3 Torque Shown

Scheme 491

Engine Block

The S54 engine block is cast iron in order to absorb the high forces produced by the crankshaft (combustion pressure and high engine RPM).

The engine block has cast provisions for 3 knock sensors and the crankshaft position/RPM Sensor (on the intake side).

The cylinder bores are 87 mm in diameter and are spaced 91 mm on center.

The "bare" block weighs approximately 105 lbs. (48 kg).

Scheme 492

Crankshaft and Bearings

The S54 crankshaft is forged steel with 12 counterweights and a 91 mm stroke. The crankshaft is supported by 7 (60 mm diameter) main bearings with 49 mm diameter connecting rod journals.

The "thrust" bearing is a multi-piece shell assembled as a unit and is located on the number 6 main journal of the crankshaft.

Bearing Clearance

BEARING CLEARANCE

Scheme 493

The impulse wheel is bolted to the number 6 connecting rod journal counterweight.

The S54 impulse wheel is bolted directly to the crankshaft providing accurate

CRANKSHAFT POSITION - REFERENCE

Scheme 494

The Crankshaft Position/RPM Sensor is mounted on the rear of the engine block (below the intake manifold).

The sensor protrudes through the engine block (arrow) to scan the impulse wheel gear teeth.

The cast sensor mounting is shown from the rear view of the engine.

Scheme 495

The torsional vibration damper is specifically designed for the higher engine RPM.

The damper is secured by 4 bolts which must be angle torqued.

Note the installation location for the crankshaft position locating tool (arrow).

Scheme 496

Connecting Rods and Bearings

The S54 uses reinforced forged steel "cracked" connecting rods

CONNECTING RODS SPECIFICATION CHART

Scheme 497

The "cracked" connecting rod refers to the cap which is split off leaving rough surfaces on both the cap and the rod.

Centering of the cap on the rod is carried out through the structure of the split which eliminates the alignment sleeves. Pairing codes are stamped into the rod to ensure proper installation of the cap.

The S54 connecting rods are weight-optimized (+/- 4 grams). Only one set of connecting rods (the same weight class) is available to maintain balance.

Scheme 498

The connecting rod bolts must be angle torqued. The bolts can not be replaced separately , if damaged; the connecting rod must be replaced (supplied with new bolts).

The S54 connecting rod bearings use end mounted locating tabs.

Scheme 499

Pistons and Piston Rings

The S54 uses graphite coated cast aluminum (full slipper skirt) pistons with valve recesses.

The piston diameter is 86.965 mm, weighs approximately 470 grams with a compression ratio of 11.5:1.

Install the pistons with the arrow pointing towards the front of the engine.

Scheme 500

Piston Rings

Scheme 501

A Special Tool (ring compressor) is required to install the pistons.

The pistons are cooled by oil spray nozzles that are bolted into the crankcase.

The nozzles are "tapped" into the main oil gallery and delivers a constant oil spray to the underside of the pistons.

Scheme 502

The wrist pins are 21 mm in diameter and have tapered f ends (inside diameter) for weight reduction.

Scheme 503

Note. The recommended oil for the S54 is CASTROL TWS MOTORSPORT SAE 10W-60 or CASTROL FORMULA RS 10W-60 SYNTHETIC OIL - PN 07 51 0 009 420.

Oil Pump

The S54 oil pump is two stage, supply and scavenge. The pump is driven by the crankshaft with a single row chain.

The oil pump has two separate chambers, the scavenge chamber (1) draws oil from the pickup at the front of the oil pan. The oil is transferred from the pump through a small pipe to the main sump at the rear of the oil pan (2).

The supply chamber (3) draws oil from the main sump through a large pipe (4) to supply oil to the main gallery. The main gallery circuit returns to the pump housing which contains the oil pressure control piston.

Scheme 504

The oil pressure is tested at the oil filter housing using the Special Tool #90 88 6 114 390.

Scheme 505

The adapter retainer bolt replaces the oil filter housing cover retaining bolt and provides an adapter fitting for the oil pressure gauge.

Crankcase Ventilation

The S54 features a non-pressurized sealed crankcase ventilation system for the blow-by vapors.

The crankcase blow-by vapors are "purged" by intake manifold vacuum. The vapors are drawn from the cylinder head cover (4) through the inlet of the Oil Separator (6). The Labyrinth (3) separates the oil from the vapors, and the condensate (oil) returns to the oil pan through the return line (9). The vapors exit the Oil Separator through the outlet hose (7) to the intake manifold to be inducted into the combustion chambers.

When the engine is running, intake manifold vacuum will close the Check Valve in the return line (8). When the engine is not running, the Check Valve will open. This allows any condensation (oil) that have collected in the intake manifold to drain back to the oil pan through the dipstick tube.

Scheme 506

The cylinder head cover is sealed by a perimeter seal, spark plug port seals and sealing washers under the retaining bolts.

These individual seals must all be properly installed to prevent oil and vacuum leaks.

Scheme 507

Cylinder Head

The S54 features an aluminum cross-flow cylinder head designed as a single component that houses the camshafts and valve train.

Scheme 508

Scheme 509

The combustion chamber reveals the 4 valve per cylinder arrangement and the optimized (flow enhanced) intake and exhaust ports. The spark plugs are centrally located in the combustion area for the most effective power and reduced emission outputs.

To remove the cylinder head, the camshafts must first be removed to access the cylinder head bolts. The timing chain guide rail bolt must also be removed (upper picture #1) and the special sealing washer must be replaced.

To pressure test the cylinder head, a Special Tool (Pressure Tester Adapter Kit) is required. Cylinder head machining is not permitted.

Coolant Circuit Flow

The S54 uses a high efficiency water pump (4) to enhance the Cross Flow cylinder head design.

The cross-flow design ensures even temperature distribution through out the cylinder head. The coolant flows from the engine block on the exhaust side into the cylinder head.

The coolant flows through (across) the cylinder head and exits at the intake side through three outlets (6, 7, 8). The coolant is routed through the Return Pipe (9) to the thermostat housing (2).

Scheme 510

Camshaft Drive

Camshafts are driven by the crankshaft using a double-roller timing chain.

The chain is routed from the crankshaft over a guide rail to the intake and exhaust camshaft sprockets. A two piece hydraulically tensioned guide rail lubricates (three oil outlets provided) and "self adjusts" the chain.

Scheme 511

Camshafts

The S54 cast iron overhead camshafts are hollow and are strengthened by heat treating the journals and cam lobes. The duration and lift (12 mm) of the lobes are the same on both camshafts.

The camshafts are not interchangeable, therefore they should be marked before disassembly.

The camshaft lobes have oil grooves (shown by arrows to the right) that provide lubrication from the camshaft journals to the lobes and the valve fingers.

Scheme 512

The camshafts must be removed and installed with the press fixture (Special Tool #90 88 6 114 380).

Scheme 513

CAMSHAFT SPECIFICATION CHART

The camshafts are supported by 7 bearing journals machined into the cylinder head.

The bearing journal caps are location specific.

BEARING JOURNAL CAPS LOCATION SPECIFIC

The first camshaft bearing journal also serves as the thrust bearing (unmarked).

This two-piece bearing flange is forged to support VANOS axial loads.

Scheme 514

The thrust bearing flange is bolted to the face of the cylinder head. This component is not separately available because the journals are machined with the cylinder head.

An impulse wheel is mounted on the end of each camshaft for position detection. The impulse wheels are secured by a removable bolt (1).

The intake camshaft impulse wheel has 6 lugs and the exhaust camshaft impulse wheel has 7 lugs (with gap).

Scheme 515

Valve Train

The camshaft lobe actuates the valve finger (rocker arm) which rotates on a finger (rocker) shaft. The valve finger is secured by a spring clip and contacts the valve clearance shim (9 mm diameter) to open the valve.

The adjustable valve clearance set by various shim thickness is

VALVE CLEARANCE

Two feeler gages and a holder with a magnetic tip (Special Tools) are required to adjust the valve clearance. The cam lobe must be rotated away from the valve finger for maximum clearance.

Scheme 516

To access the valve clearance shim, remove the finger securing clip. Slide the finger away from the valve spring to expose the shim. Use the magnetic tip holder to extract the shim.

The shims (shown by the arrow to the right) are available in sizes from 1.72 to 2.52 mm at 0.04 mm increments.

Scheme 517

The finger (rocker) shafts are secured with locating bolts (one per side) at the back of the cylinder head (1).

Scheme 518

Remove the threaded access bolts from the rear face of the cylinder head and push the shafts through.

Scheme 519

Both finger shafts are hollow, the exhaust shaft is unique because it supplies oil to the camshaft bearing journals.

The exhaust shaft receives oil from the main oil gallery through the transfer hole (arrow).

Scheme 520

The intake camshaft is lubricated directly from the main oil gallery.

The valve fingers are identical but must be marked for location when previously used.

Lubrication for the slide contact is provided from the camshafts (lobe grooves) and an inlet hole (arrow) allows lubrication for the finger pivot journal.

Scheme 521

Valves and Valve Springs: The intake and exhaust valves are lightweight in design to reduce reciprocating mass.

VALVE DIAMETER

The exhaust valve stems are sodium filled to enhance cooling.

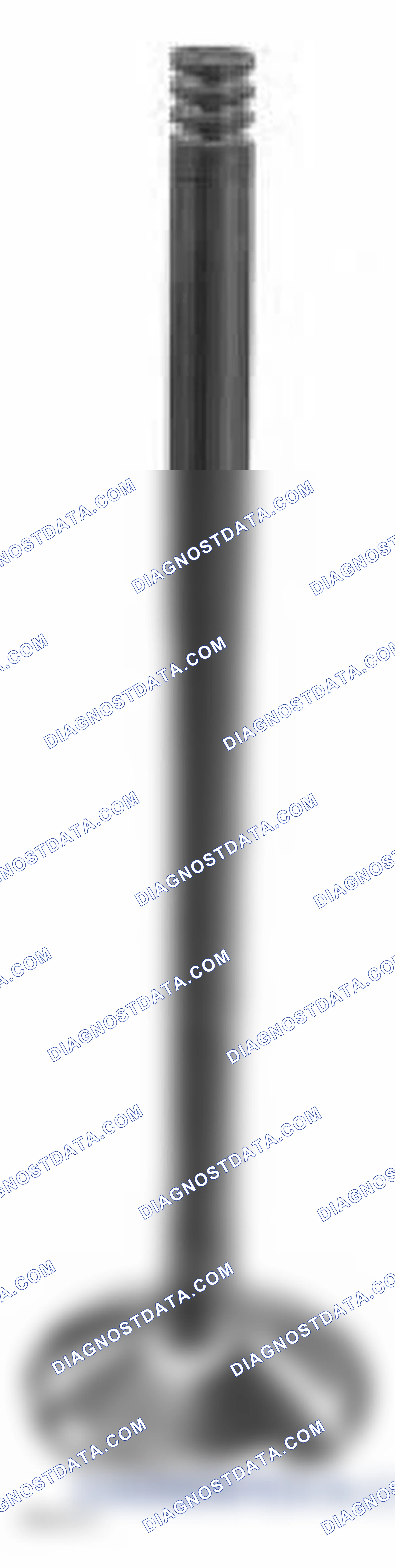

Scheme 522

The valve spring assembly consists of two progressive tensioned valve springs. The springs are marked for correct installation due to progressive tensioning (paint stripes facing down towards cylinder head).

VANOS

Performance, torque, idle characteristics and exhaust emissions reduction are improved by variable camshaft timing (VANOS).

The S54 engine uses double VANOS to adjust the spread angles of the intake and exhaust camshafts.

This system uses a high pressure (100 Bar) control system that ensures responsive and accurate camshaft adjustments to meet the high performance requirements of the M Engines.

Scheme 523

The VANOS unit is mounted directly on the front of the cylinder head.

The VANOS unit contains the hydraulically actuated mechanical drives (1), the electronically controlled oil pressure regulating solenoids (2) and the 100 Bar pressure regulating valve (3).

The back view of the VANOS unit shows the inlet oil supply pressure reducing valve (4) and the radial piston high pressure output pump driven by the exhaust camshaft (5).

Scheme 524

The VANOS solenoid electrical assembly (removed from the VANOS unit) contains four solenoids.

Two solenoids are required for each adjusting piston circuit, one for advancing and one for retarding the camshaft timing. The solenoids are controlled by the ECM.

Scheme 525

The adjustment shafts contain two sets of splines that engage with camshaft sleeves (straight splines) and chain driven socket (helical splines).

Scheme 526

The camshaft sleeves are bolted to the end of the camshafts and engage with the straight spline of the adjustment shaft.

Scheme 527

The chain driven sprocket and spacer sleeve assembly is shown to the right (one assembly per camshaft). The sprocket engages with the helical splines of the adjustment shaft shown above.

The exhaust camshaft sprocket assembly has two drive "lugs" that must be aligned with the radial piston oil pump during installation.

Scheme 528

Scheme 529

VANOS mechanical operation is dependent on oil pressure applied to position the control pistons. The double VANOS camshafts are infinitely adjustable within the mechanical travel limits of the drive gears.

When oil pressure is applied to the control piston, the piston moves causing the splined adjustment shaft to move. The straight splines slide within the camshaft sleeve. The helical splines rotate the camshaft drive sprocket changing the position in relation to the camshaft position which advances/retards the camshaft timing.

The total adjustment range of the intake camshaft is 60°.

The total adjustment range of the exhaust camshaft is 45°

The "default" mechanical stop position without VANOS influence is

CAMSHAFT SPECIFICATION CHART

Oil is supplied from the main gallery through the front of cylinder head (arrow) to the inlet pressure reducing valve.

Pressure Reducing Valve: The pressure reducing valve supplies oil to the radial piston high pressure oil pump. It is located between the cylinder head and the VANOS unit.

Scheme 530

The valve ensures the oil pressure supply to the VANOS pump is 0.5 Bar regardless of the varying pressure from the main oil pressure gallery. The pressure reducing valve is pressed into the VANOS unit and secured by an "o-ring".

Scheme 531

100 Bar Pressure Regulating Valve: The 100 Bar pressure regulating valve is mounted in the VANOS unit. This valve regulates the pressure produced by the radial piston high pressure oil pump.

Scheme 532

Note. The 100 Bar pressure regulating valve is not adjustable.

VANOS Accumulator: The VANOS accumulator ensures that there is a sufficient volume of oil under pressure to adjust the camshafts under all engine operating conditions.

The accumulator is Nitrogen charged and is located on the exhaust side of the engine behind the A/C compressor. It is connected to the VANOS unit by a high pressure line.

Scheme 533

Scheme 534

VANOS system hydraulic operation

1. When the engine starts, oil from the main engine oil pump is fed under pressure to the pressure reducing valve.
2. The oil pressure is dropped to approximately 0.5 Bar and fed to the radial piston high pressure oil pump.
3. The pump is driven by the exhaust camshaft and the 100 bar pressure is built up by the pressure regulating valve. The volume of pressurized oil is stored in the accumulator supplying both adjustment pistons. Both pistons are held in the default position by the high pressure oil.
4. At the same time the high pressure oil is available at the inlet solenoids of both adjustment pistons.
5. VANOS adjustment is carried out by the ECM pulsing the inlet and outlet solenoids to allow pressurized oil to the back side of the adjustment pistons. The surface area on this side of the piston is larger so that the oil pressure is greater and the adjustment piston will move causing the valve timing to change.
6. The piston is connected to the adjustment shaft. As the piston moves, the shaft turns the helical splines varying the camshaft sprocket position in relation to the camshafts.

Workshop Hints

When installing the intake camshaft, a visual "sight" is the cam lobes on cylinder number 1 should be pointing horizontally inwards.

When installing the exhaust camshaft, the cam lobes for cylinder number 1 should be pointing horizontally inwards.

Scheme 535

The VANOS function test can be performed by using Special Tools

#90 88 6 126 411

#90 88 6 126 050

Regulated Compressed Air (2-8 bar)

Scheme 536

Intake Air Plenum

The intake air plenum is designed for maximum volume required for the S54 engine. The air filter housing and intake manifold are different on the M roadster and M coupe as compared with the M3 due to the under hood dimensions.

The flow characteristics of the one-piece plastic shell is enhanced by internal "funnel" cones to direct the intake air to the throttle housings.

Scheme 537

The plenum is attached to the throttle housings by rubber sleeves. A Special Tool (clamp pliers) is required to secure the one-time use clamps.

Intake Air System

The S54 uses six individual throttle housings operated by an EDR actuator (1 electronic throttle control). For low engine speed (low load) and idling, intake air is provided by an idle air actuator (2). The valve regulates air flow through an external air distribution pipe to the individual throttle housings. Fuel tank vapor intake is regulated by the Evaporative Emission Valve (3).

Fuel Supply

The fuel is supplied through a Non Return Fuel Rail System. This system is used on the S54 for LEV compliancy.

Scheme 538

The fuel supply pressure is controlled by the 5 Bar fuel pressure regulator integrated in the fuel filter assembly. The regulator is influenced by engine vacuum via a hose connected to the external air distribution pipe. The fuel exits the fuel pressure regulator supplying the fuel rail and the injectors. The E46 M3 fuel filter assembly is located under the left front floor area (next to the frame rail).

The fuel return line is located on the filter/regulator assembly which directs the unused fuel back to the fuel tank. The fuel tank hydrocarbons are reduced by returning the fuel from this point instead of from the fuel rail.

The S54 uses Bosch (4 hole plate) fuel injectors. The ECM controls the fuel injectors to regulate the air/fuel mixture.

Scheme 539

The injector identification markings are

IDENTIFICATION MARKINGS

Ignition Coils

The S54 uses "pencil type" ignition coils manufactured by Bremi. The six individual ignition coils are integrated with the spark plug connector (boot).

Scheme 540

The coils are removed by lifting the swivel latch connector retainer to release the wiring harness, apply a slight twist and lift the assembly upwards.

For this vehicle NGK DCPR8EKP dual electrode spark plugs are used.

Clutch Assembly

The S54 clutch assembly is specially designed to transfer the high torque to the driveline and dampen vibrations throughout the RPM range.

The clutch assembly consists of :Hydraulically Dampened Dual-Mass Flywheel Diaphragm Type Pressure Plate and Drive Disk.

Scheme 541

Exhaust System

The US S54 uses two high performance stainless steel exhaust manifolds. The catalytic converters are integral with each exhaust manifold.

Each exhaust manifold/catalyst contains a pre (1) and post (2) oxygen sensor. The sensors require a Special Tool (crescent wrench with swivel adapter) for removal.

Scheme 542

The E46 M3 exhaust system is a dual channel up to the muffler. By using the M-mobility kit, additional clearance is provided for the 40 liter half-shell muffler with four outlets. The M roadster and M coupe have separate dual mufflers

Scheme 543
