Wiring diagrams
Wiring Diagrams BMW 6 series F06/F13/F12 facelift (2015-2018)

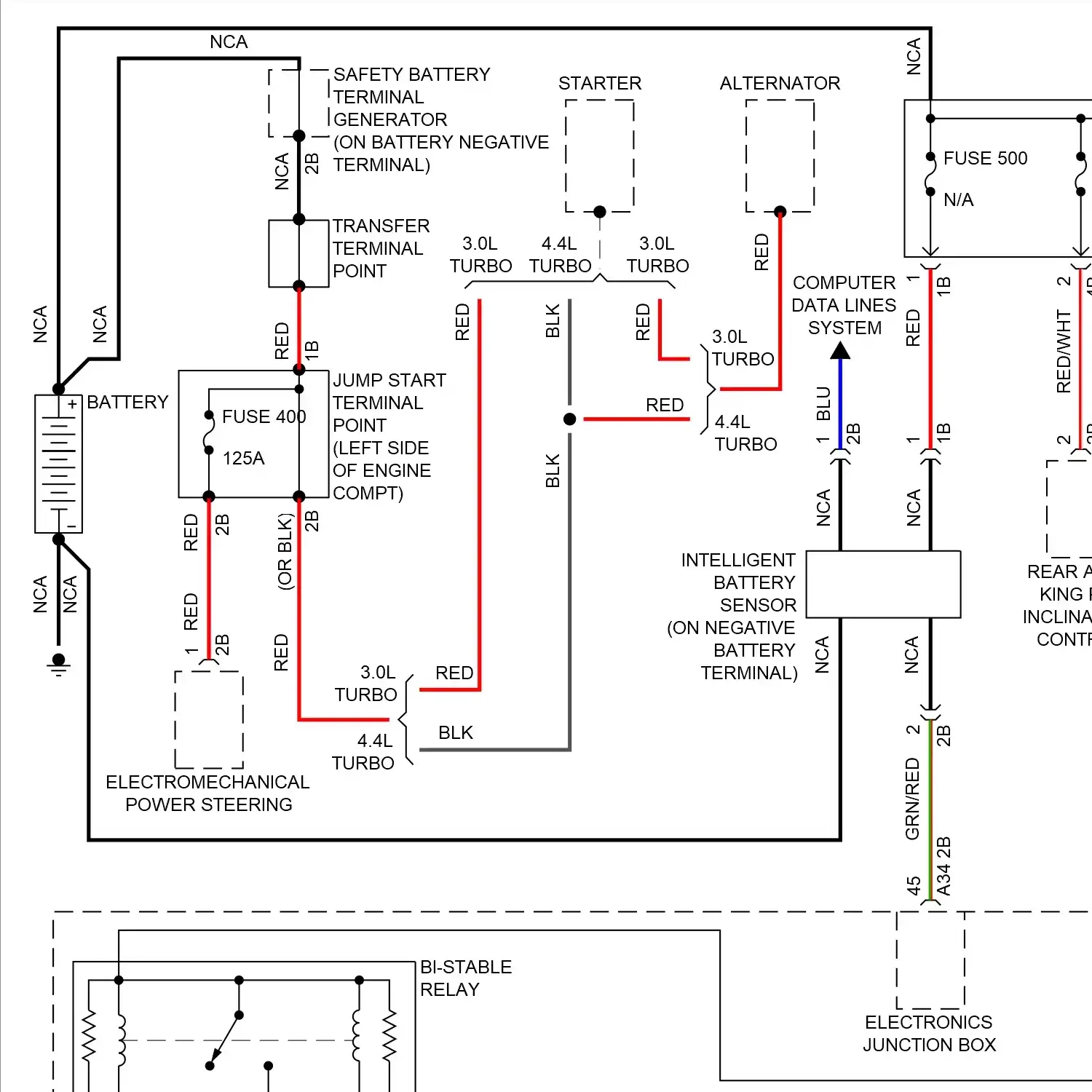

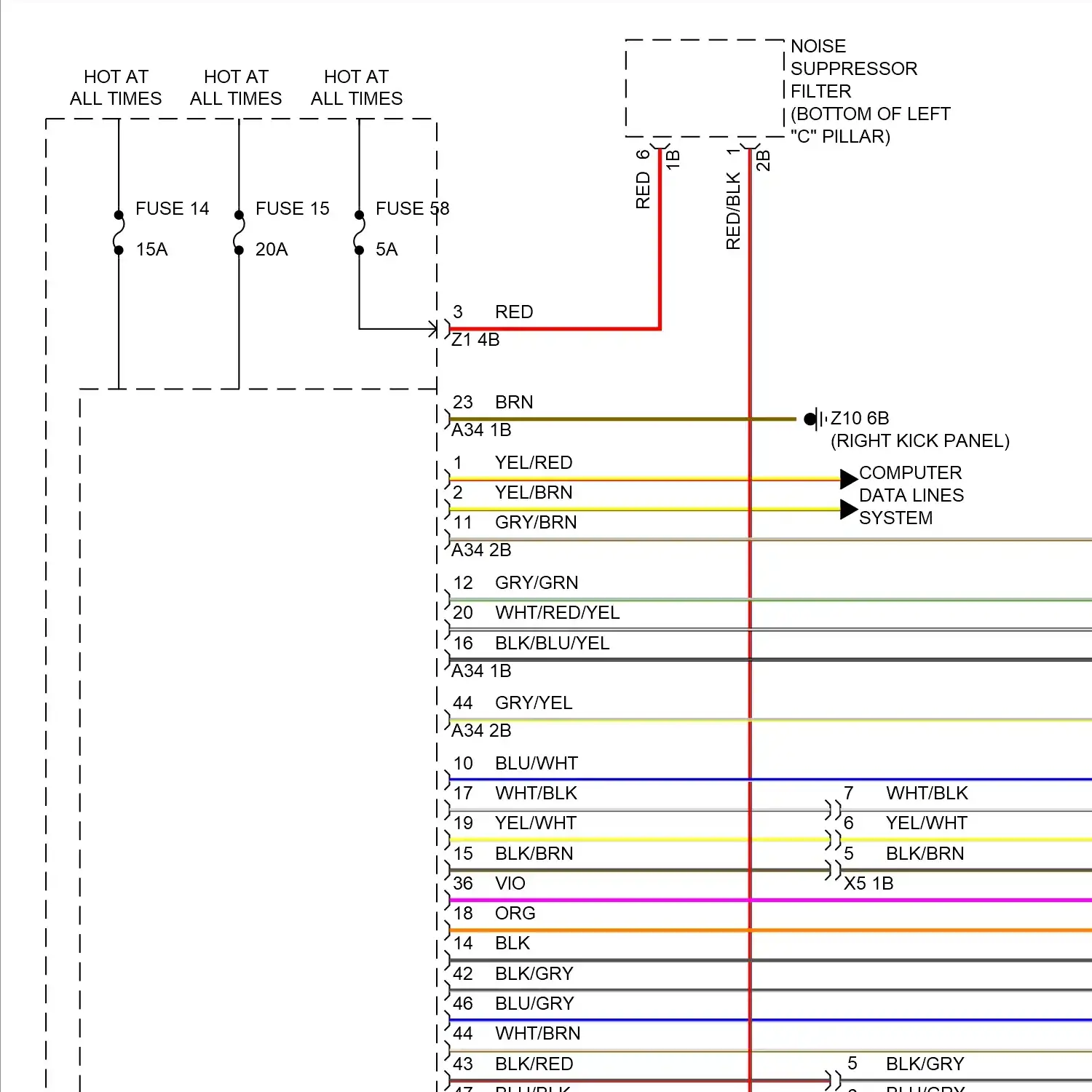

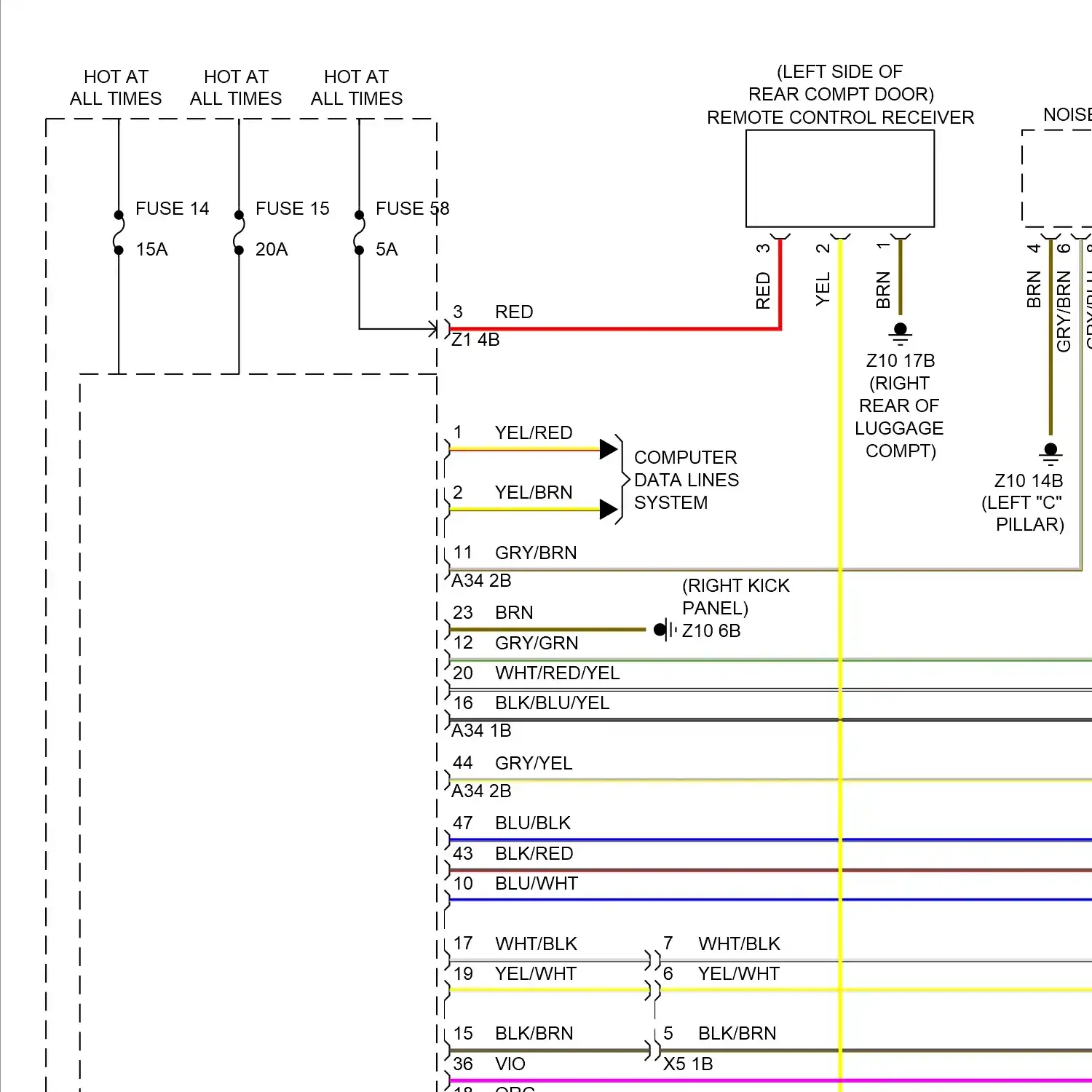

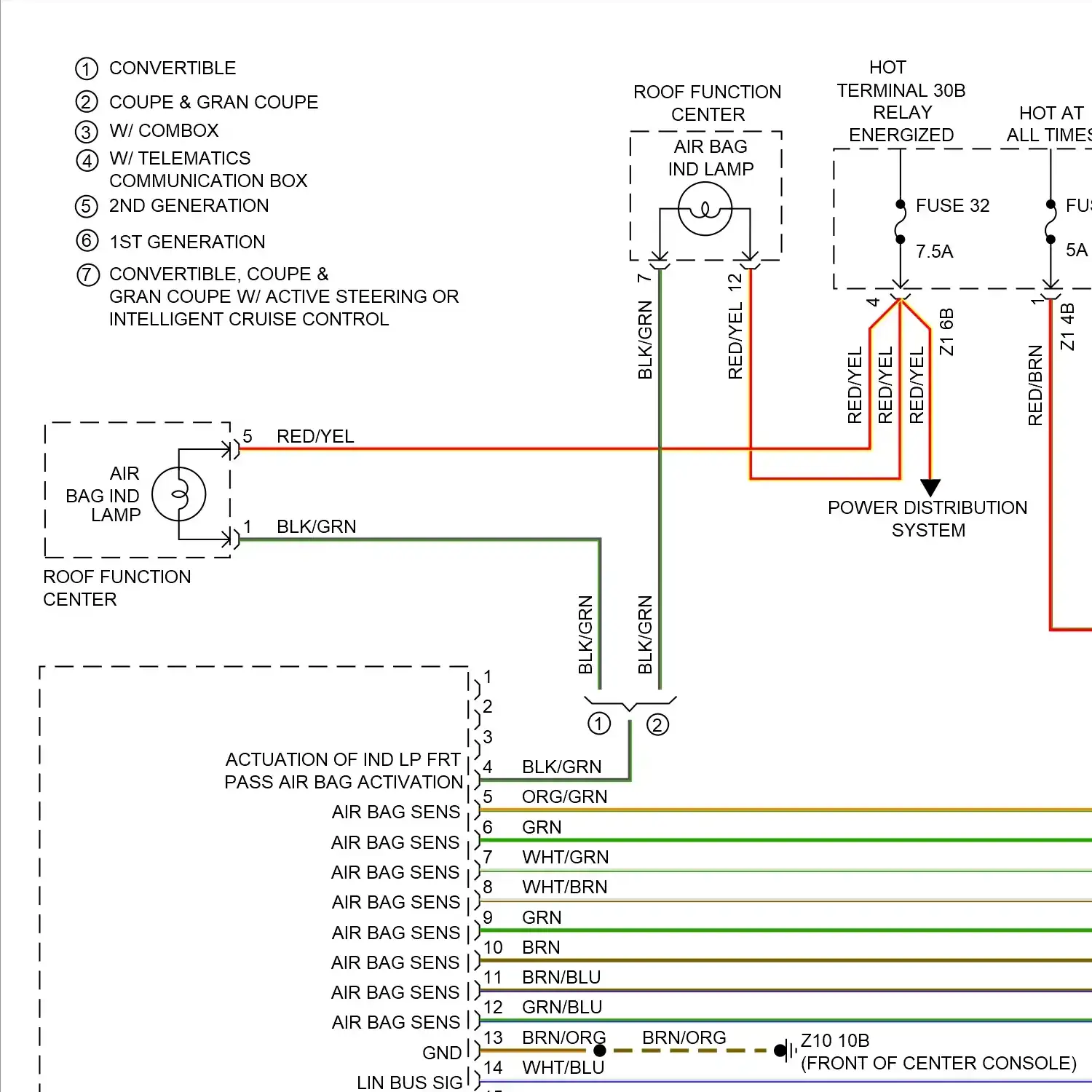

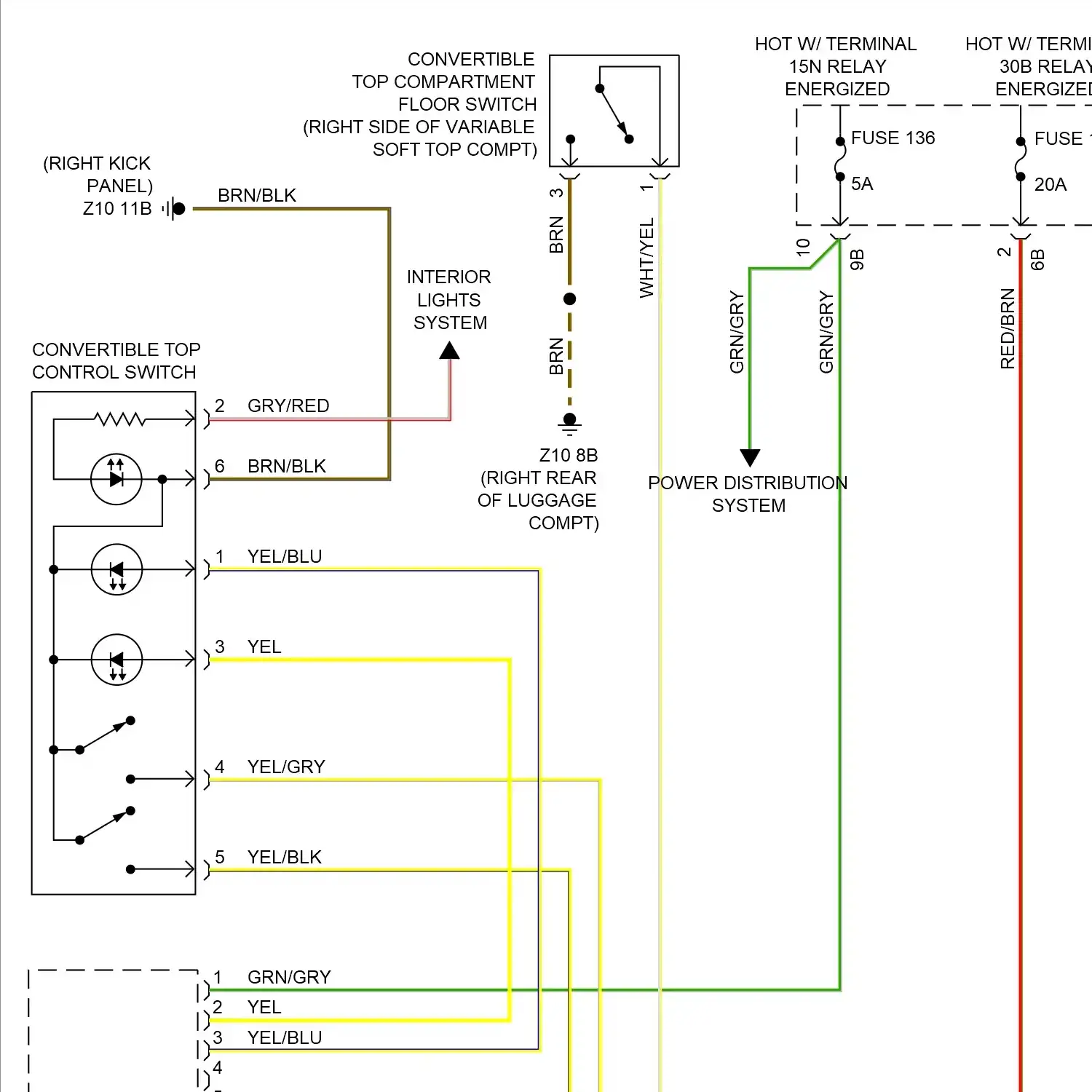

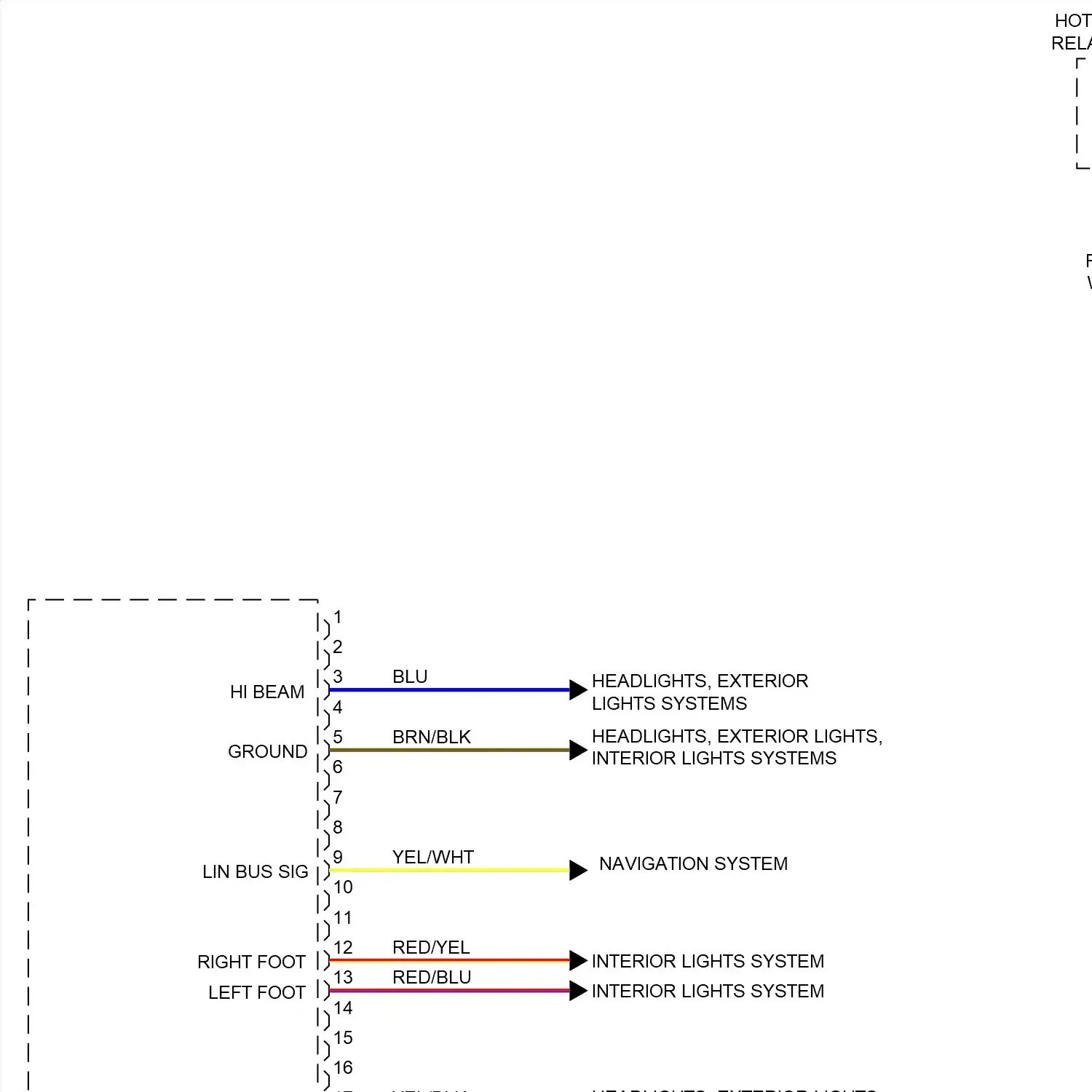

Wiring diagrams for BMW 6 series F06/F13/F12 facelift in English. Pick a system — each diagram has interactive components, connector pinouts and cross-links to fuses and ground points.
Repair manual- Hifi radio circuit, w/ active sound design

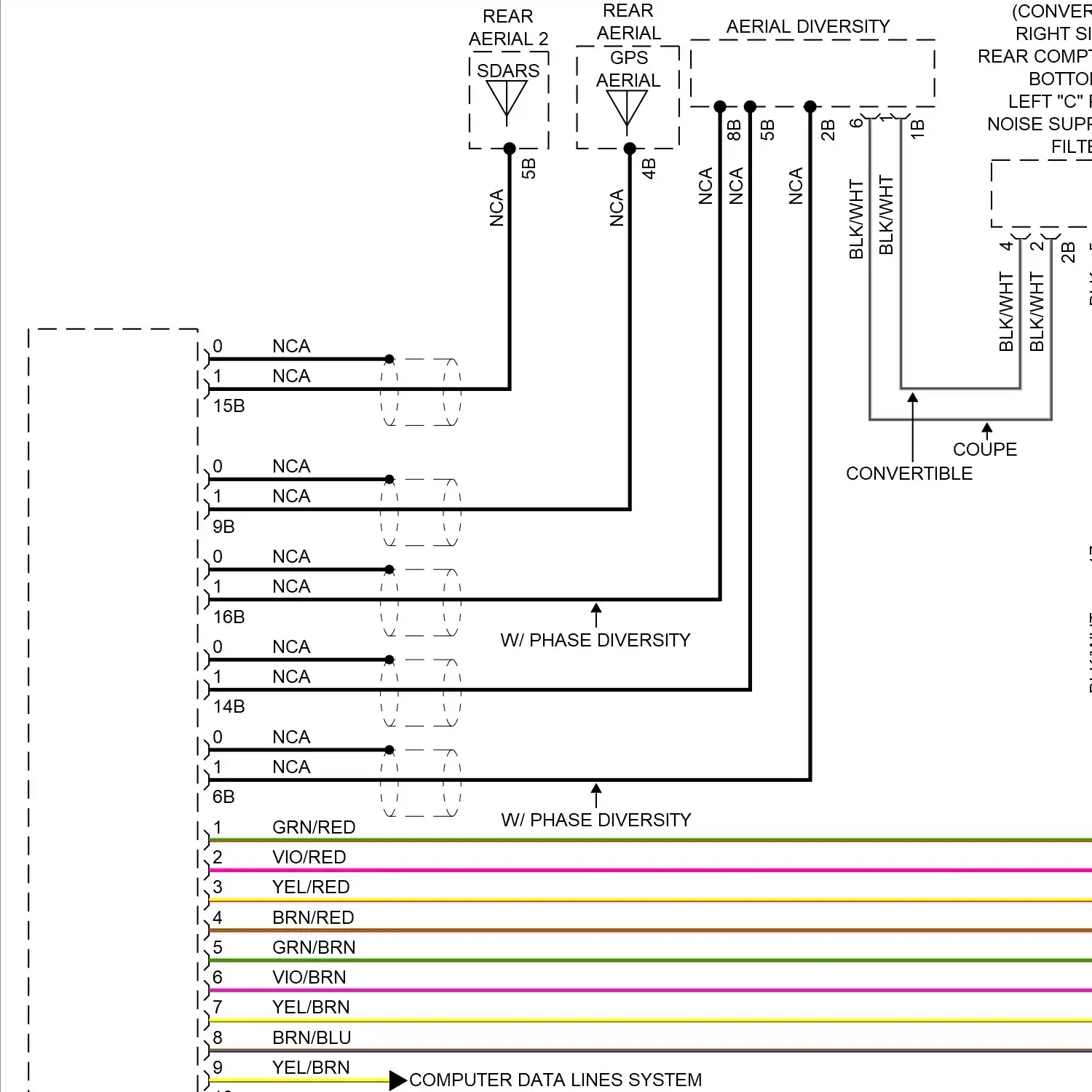

- Hifi radio circuit, w/o active sound design
- Most data bus circuit
- Rear seat entertainment circuit
- Top hifi radio circuit, except premium w/ active sound design
- Top hifi radio circuit, except premium w/o active sound design

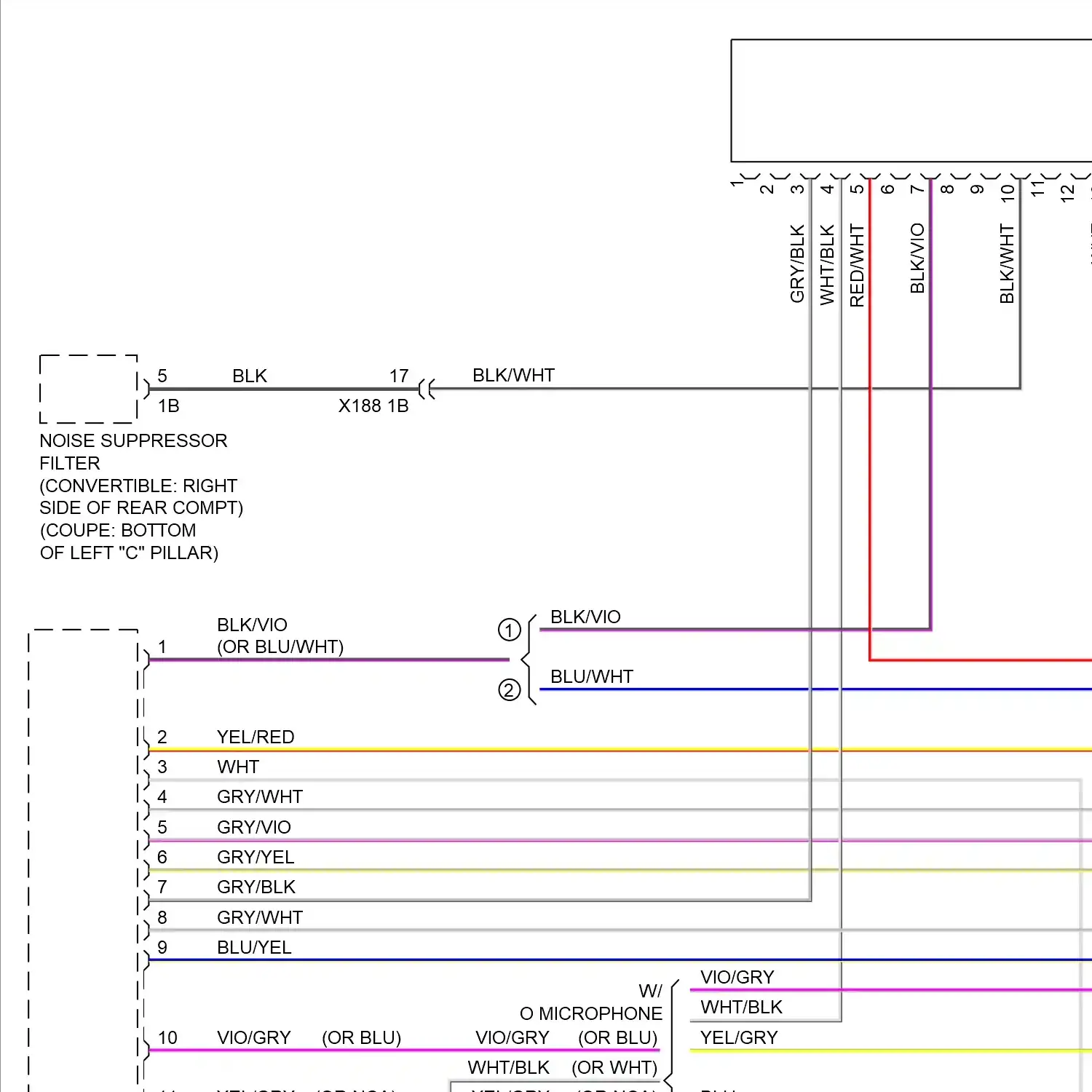

- Top hifi radio circuit, premium
- Video system circuit
