Audi RS3 8V facelift (2017–2021) wiring diagrams

List of systems:

Automatic a/c circuit

Anti-lock brakes circuit

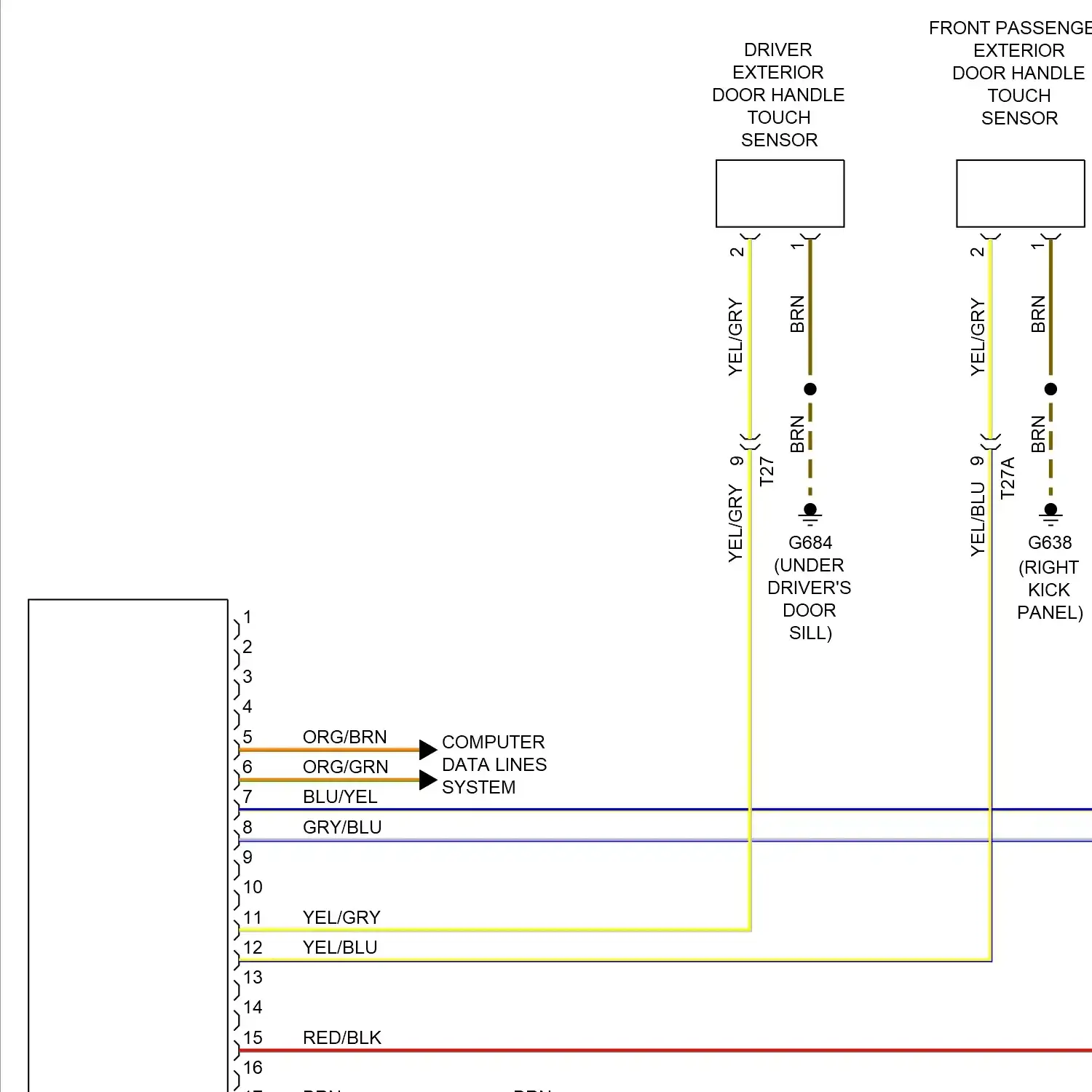

Access/start circuit Forced entry circuit

Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

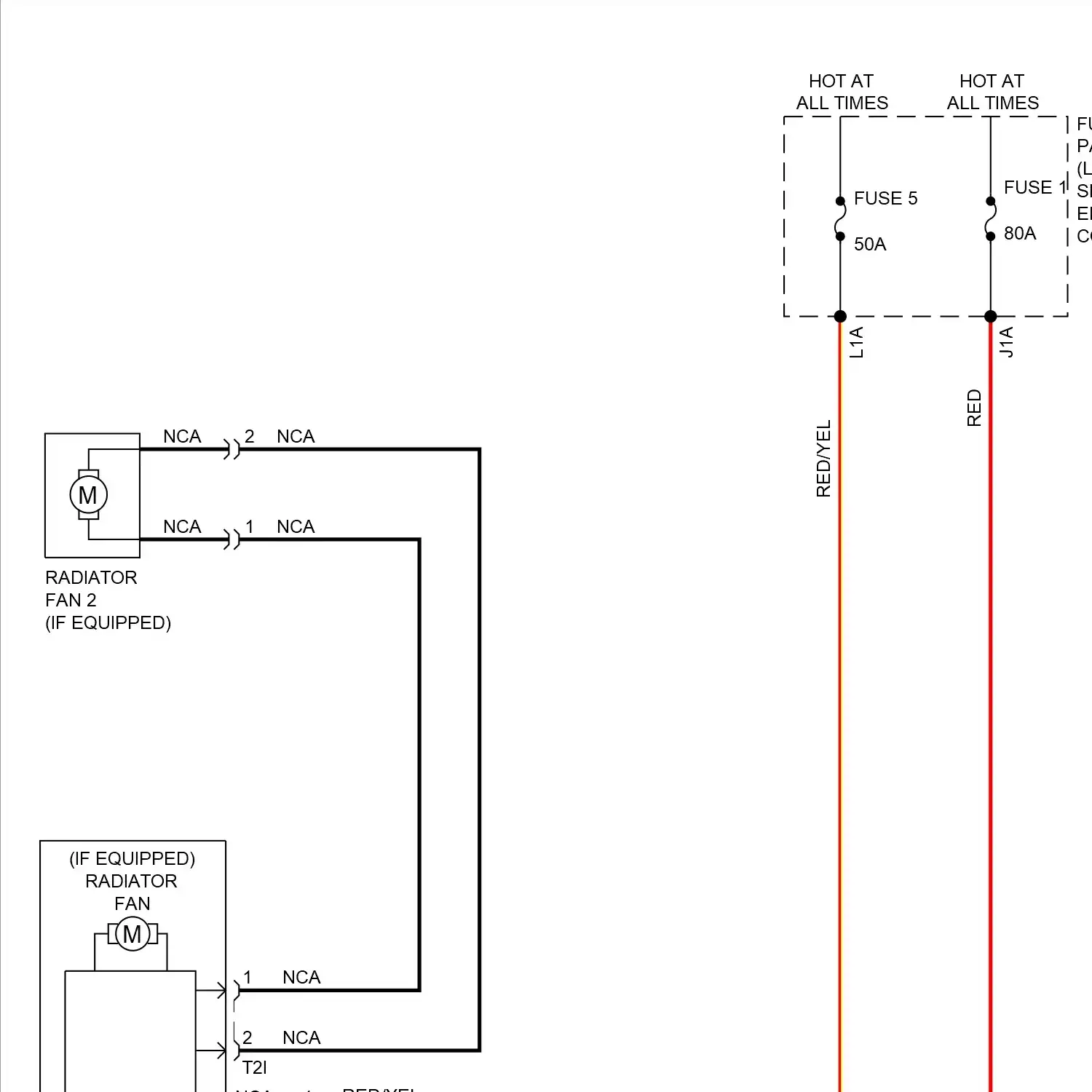

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.5l turbo

Backup lamps circuit Exterior lamps circuit

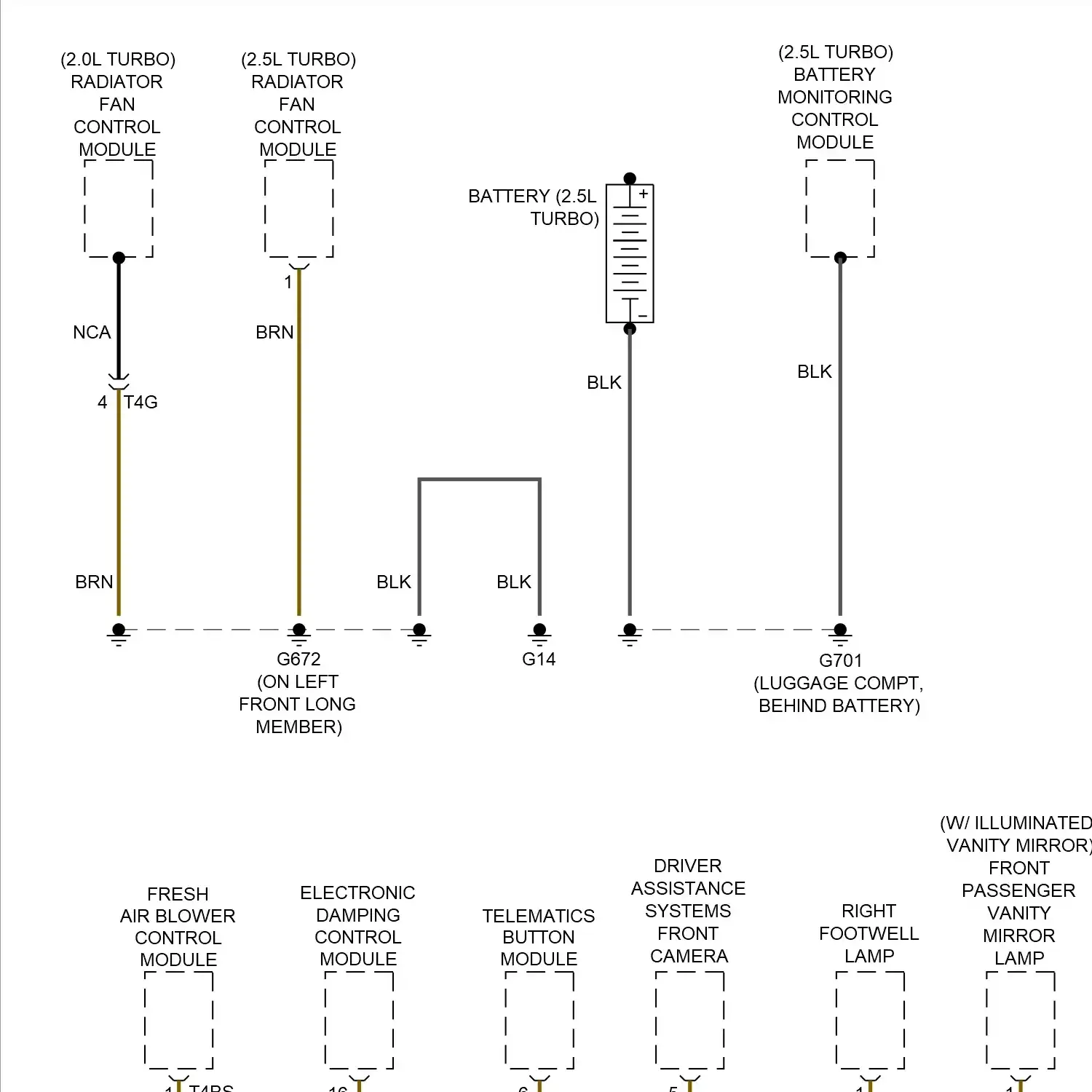

Ground distribution circuit

Headlights circuit, w/ hid, bi-xenon headlights & dynamic bending light Headlights circuit, w/ hid & bi-xenon headlights w/o dynamic bending light Headlights circuit, w/ hid w/o bi-xenon headlights Headlights circuit, w/ led & matrix beam Headlights circuit, w/ led w/o matrix beam

Horn circuit

Instrument cluster circuit, w/ multi-function display Instrument cluster circuit, w/o multi-function display

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Passenger"s memory seat circuit

Emergency call circuit Lane change assistance circuit Lane departure warning circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Parking assistant circuit, w/o parallel parking Parking assistant circuit, w/ parallel parking Rear camera circuit

Power distribution circuit

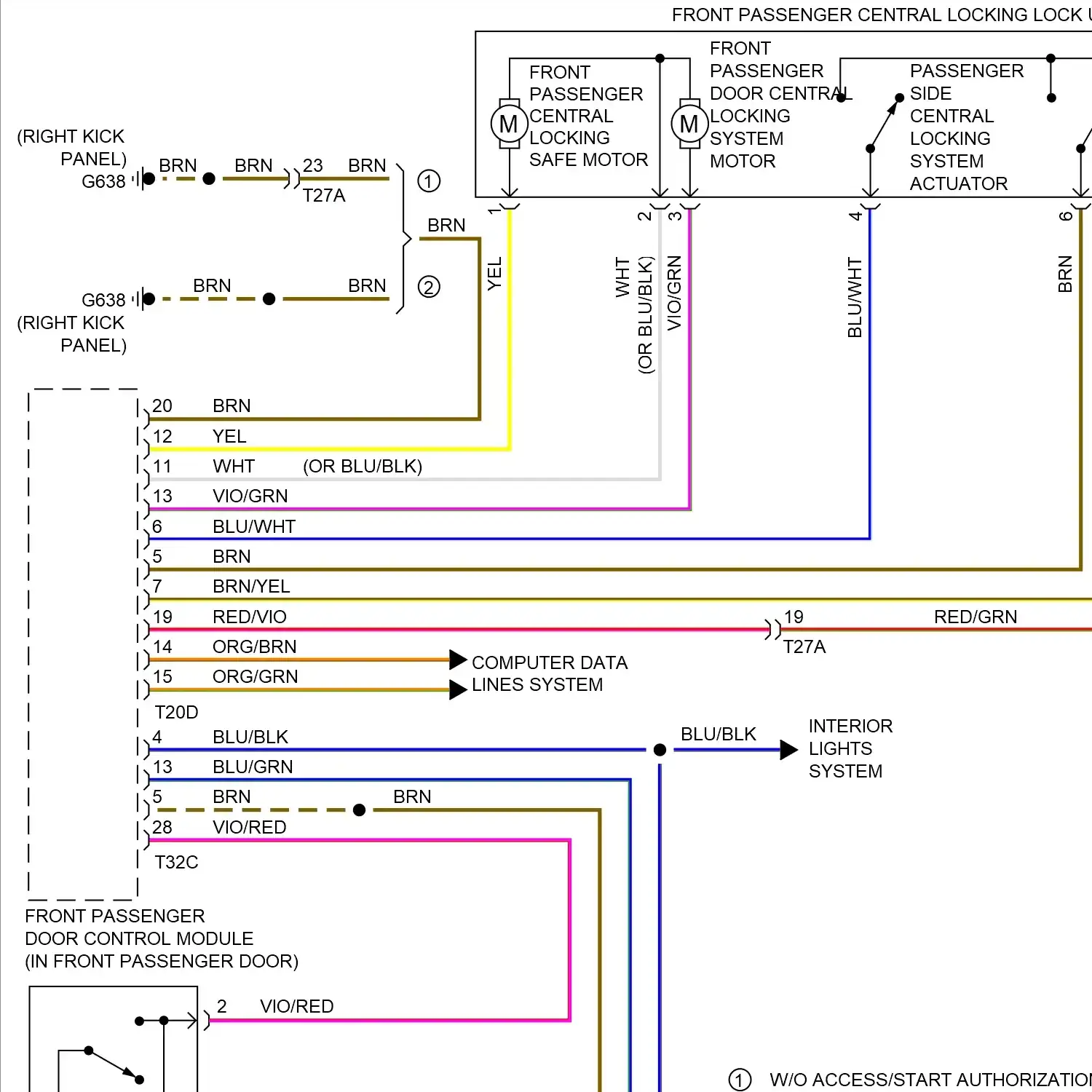

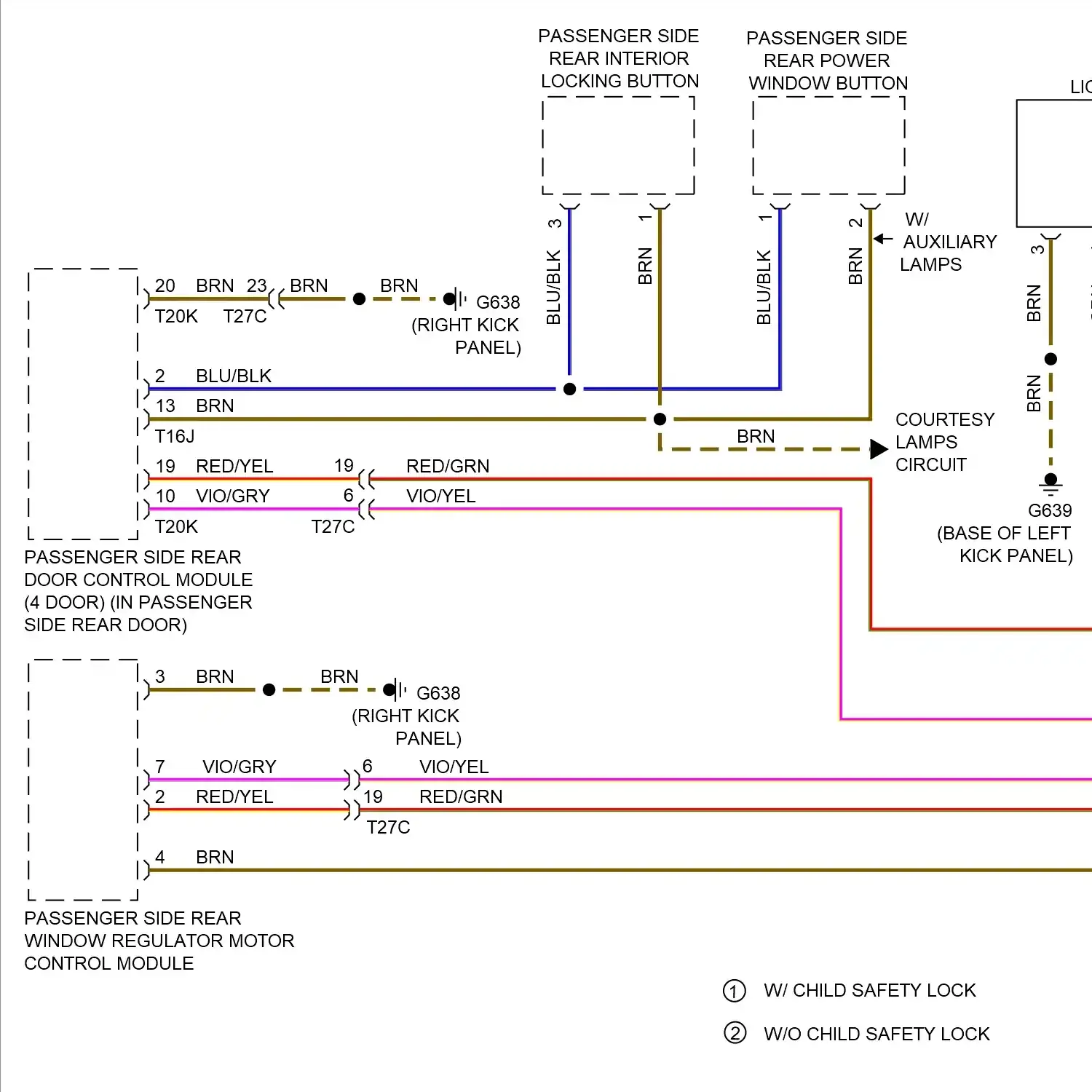

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit

Heated seats circuit Lumbar circuit, w/ massage seats Lumbar circuit, w/o massage seats Power seats circuit

Sunroof circuit

Power windows circuit

Most data bus circuit Radio circuit, w/ basic Radio circuit, w/ navigation & amplifier Radio circuit, w/ navigation w/o amplifier Radio circuit, w/o navigation & amplifier & special upgrade measures Radio circuit, w/o navigation & amplifier w/ special upgrade measures Radio circuit, w/o navigation w/ amplifier & special upgrade measures Radio circuit, w/o navigation w/ amplifier w/o special upgrade measures Tv tuner circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk & fuel door release circuit

Buzzer circuit Tire pressure monitoring circuit

Jet heater circuit Wiper/washer circuit
