Air conditioning — Automatic a/c circuit Acura TL IV facelift

1 system 3 wiring diagrams 2081 components
All systems — 33 systems

Air conditioning

# Automatic a/c circuit

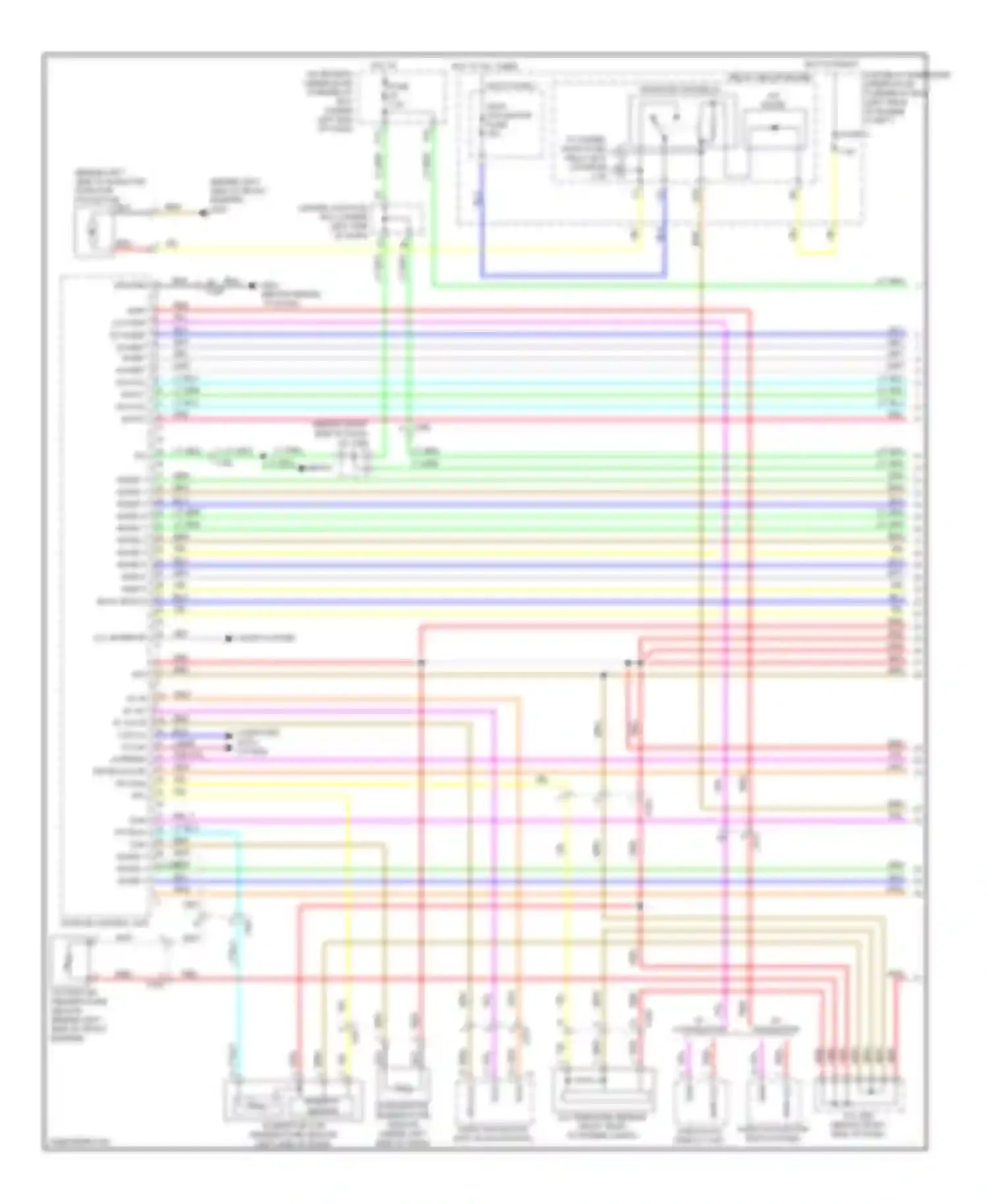

# Automatic a/c circuit (1 of 3)

Air conditioning — Automatic a/c circuit — Automatic a/c circuit (1 of 3). Acura TL IV facelift (2011-2014)
Components on the diagram

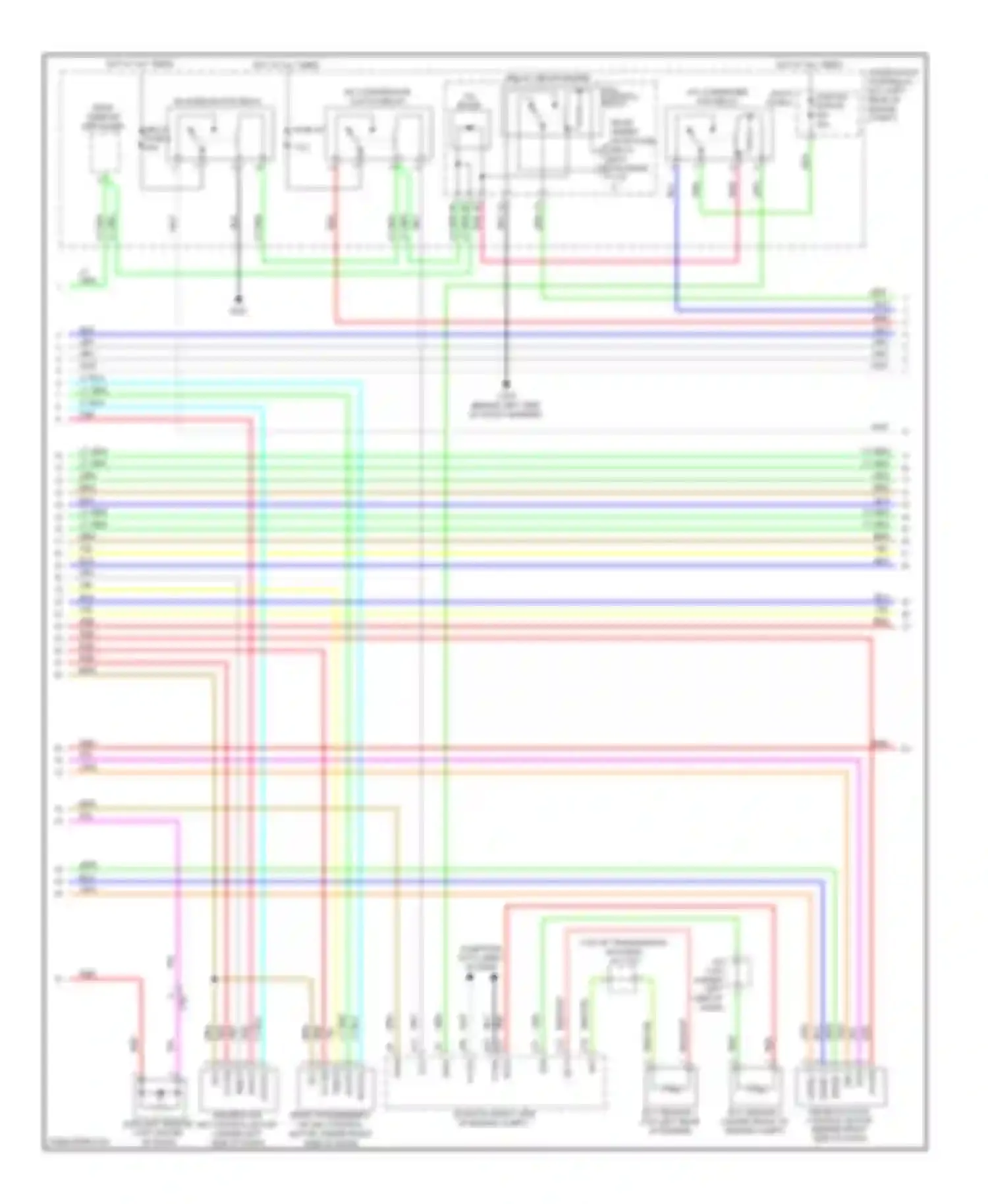

    # Automatic a/c circuit (2 of 3)

    Air conditioning — Automatic a/c circuit — Automatic a/c circuit (2 of 3). Acura TL IV facelift (2011-2014)
    Components on the diagram

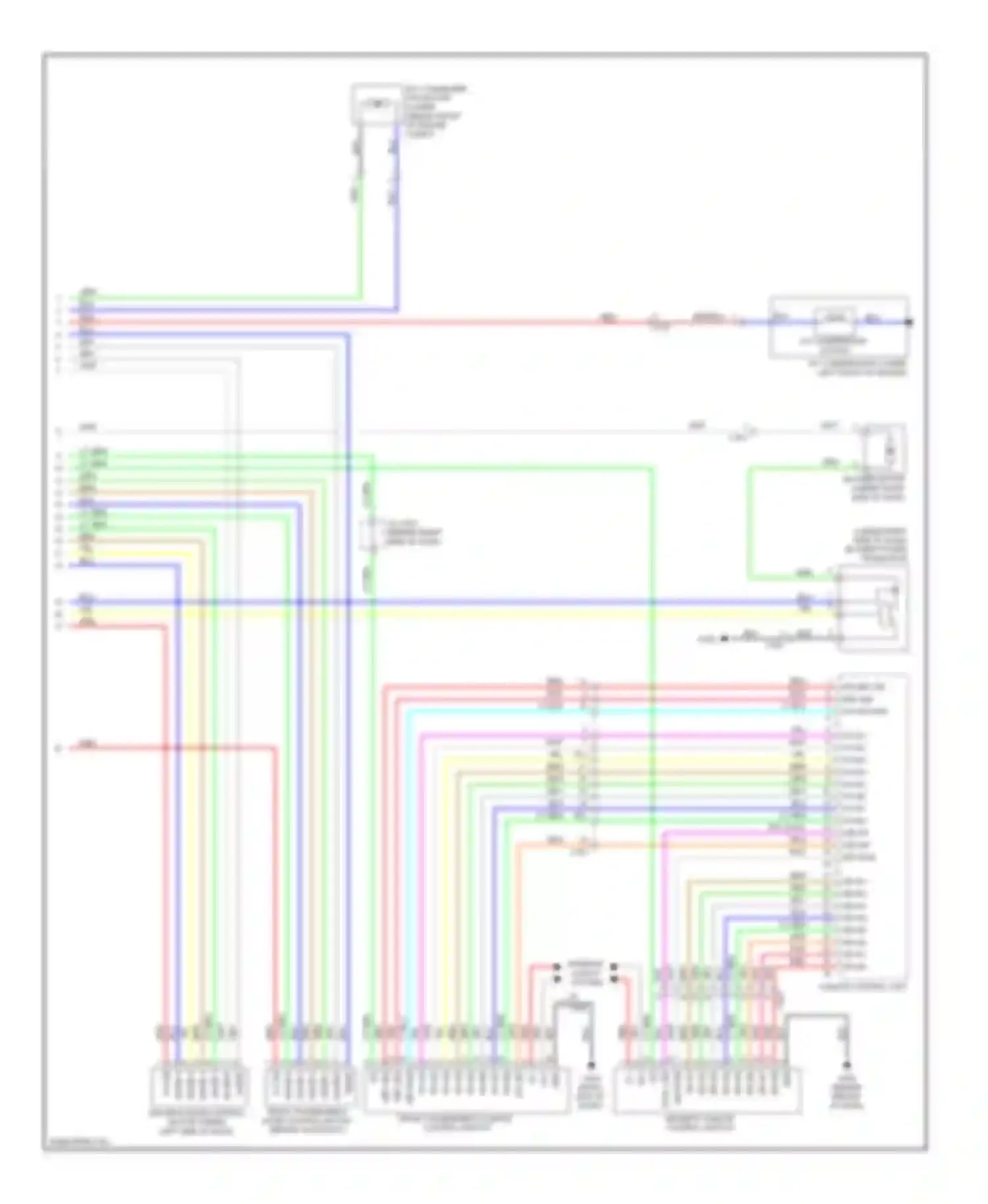

      # Automatic a/c circuit (3 of 3)

      Air conditioning — Automatic a/c circuit — Automatic a/c circuit (3 of 3). Acura TL IV facelift (2011-2014)
      Components on the diagram

        Components on these wiring diagrams 51

        Click a component to highlight it on every diagram it appears on.
