Engine Block Acura TL III

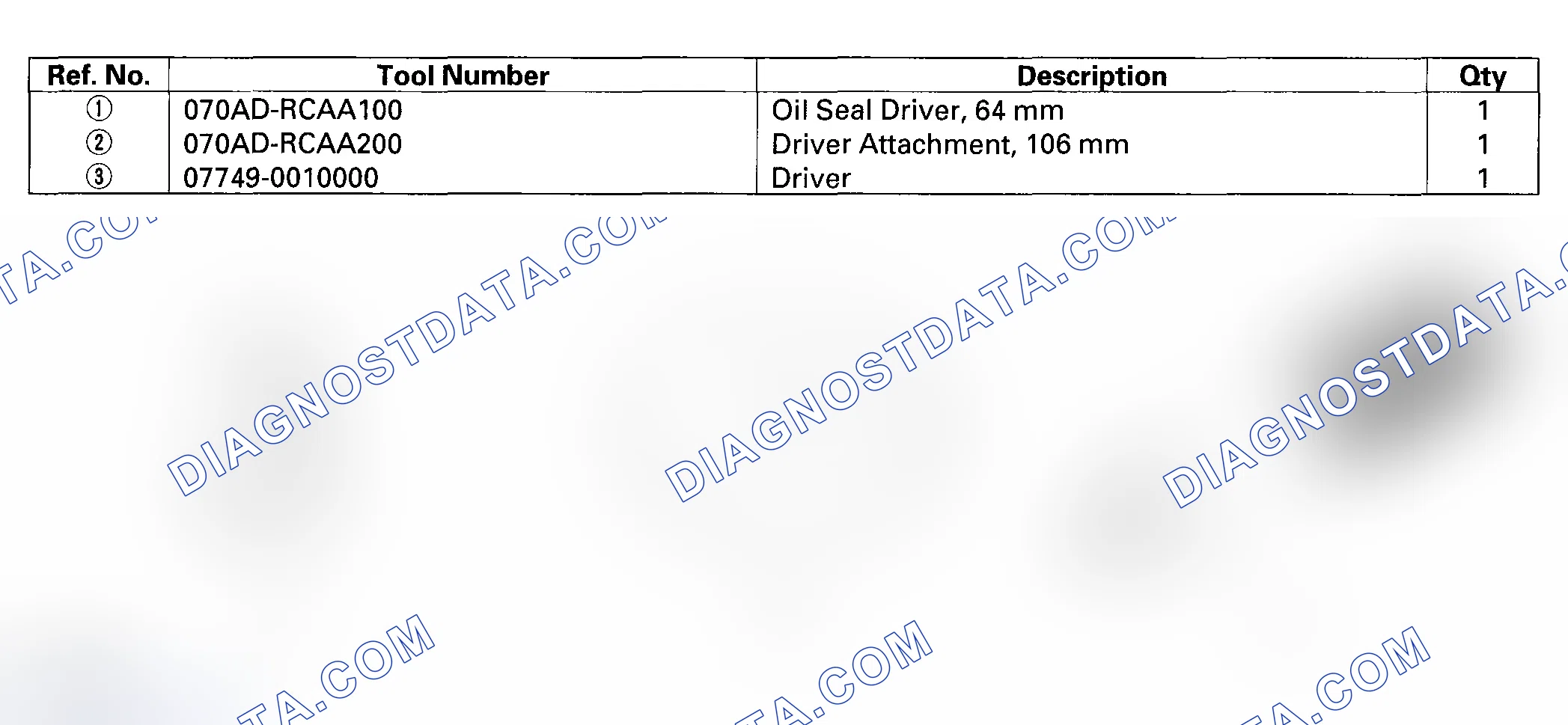

Scheme 236

Scheme 237

Scheme 238

Scheme 239

Scheme 240

Scheme 241

1. Remove the oil pump (see «REMOVAL»(/acura/tl/iii-2003-2006/remont/lubrication-system/#engine-lubrication) ).
2. Remove the baffle plate (see step 11 ).
3. Measure the connecting rod end play with a feeler gauge (A) between the connecting rod (B) and crankshaft (C). Connecting Rod End Play Standard (New): 0.15-0.35 mm (0.006-0.014 in.) Service Limit: 0.45 mm (0.018 in.)
4. If the connecting rod end play is out-of-tolerance, install a new connecting rod and recheck. If it is still out-of-tolerance, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
5. Push the crankshaft firmly away from the dial indicator, and zero the dial against the end of the crankshaft. Then pull the crankshaft firmly back toward the indicator; the dial reading should not exceed the service limit. Crankshaft End Play Standard (New): 0.10-0.35 mm (0.004-0.014 in.) Service Limit: 0.45 mm (0.018 in.)
6. If the end play is excessive, replace the thrust washers and recheck. If it is still out-of-tolerance, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).

Scheme 242

1. Remove the main bearing caps and bearing halves (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
2. Clean each main journal and bearing half with a clean shop towel.
3. Place one strip of plastigage across each main journal. NOTE: If the engine is still in the vehicle when you bolt the main cap down to check the clearance, the weight of the crankshaft and drive plate will flatten the plastigage further than just the torque on the cap bolt, and give you an incorrect reading. For an accurate reading, support the crank with a jack under the counterweights, and check only one bearing at a time.
4. Reinstall the bearings and caps, then torque the bearing cap bolts to 74 N.m (7.5 kgf.m, 54 lbf.ft), and the bearing cap side bolts to 49 N.m (5.0 kgf.m, 36 lbf.ft) in the proper sequence (see step 22 ). NOTE: Do not rotate the crankshaft during inspection.
5. Remove the cap and bearing half, and measure the widest part of the plastigage. Main Bearing-to-Journal Oil Clearance Standard (New): 0.020-0.044 mm (0.0008-0.0017 in.) Service Limit: 0.050 mm (0.0020 in.)
6. If the plastigage measures too wide or too narrow, remove the crankshaft, and remove the upper half of the bearing. Install a new, complete bearing with the same color code, and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.
7. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ) and start over.

Crankshaft Bore Code Location

Letters or bars have been stamped on the end of the block as a code for the size of each of the four main journal bores.

Use them, and the numbers stamped on the crankshaft (codes for main journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Scheme 243

Scheme 244

Scheme 245

Scheme 246

1. Remove the connecting rod cap and bearing half (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
2. Clean the crankshaft rod journal and bearing half with a clean shop towel.
3. Place a strip of plastigage across the rod journal.
4. Reinstall the bearing half and cap, and torque the bolts. NOTE: Apply new engine oil to the bolt threads and flanges. Do not rotate the crankshaft during inspection. Tightening Torque: 20 N.m (2.0 kgf.m, 14 lbf.ft) +90°
5. Remove the rod cap and bearing half and measure the widest part of the plastigage. Connecting Rod Bearing-to-Journal Oil Clearance Standard (New): 0.020-0.044 mm (0.0008-0.0017 in.) Service Limit: 0.050 mm (0.0020 in.)
6. If the plastigage measures too wide or too narrow, remove the upper half of the bearing, then install a new, complete bearing with the same color code, and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.
7. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check clearance again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ) and start over.

Rod Bearing Selection

Each rod falls into one of four tolerance ranges (from 0 to 0.024 mm (0.0009 in.), in 0.006 mm (0.0002 in.) increments) depending on the size of its big end bore. It's then stamped with a number or bar (1, 2, 3, or 4/I, II, III, or IIII) indicating the range. You may find any combination of 1, 2, 3, or 4/I, II, III, or IIII in any engine.

Normal Bore Size: 58.0 mm (2.28 in.)

Inspect the connecting rod for cracks and heat damage.

Connecting Rod Bore Code Locations

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Scheme 247

Scheme 248

Scheme 249

Scheme 250

Scheme 251

Scheme 252

1. If the engine is out of the vehicle, go to step 7 .
2. Raise the vehicle on the hoist to full height.
3. Drain the engine oil (see «OIL PRESSURE TEST»(/acura/tl/iii-2003-2006/remont/lubrication-system/#engine-lubrication__oil-pressure-test) ).
4. Remove the splash shield (see step 35 on «ENGINE REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-removal-and-installation) ).
5. Remove the under cover.
6. Remove exhaust pipe A (see step 45 on «ENGINE REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-removal-and-installation) ).
7. Remove the torque converter cover (A) and the two bolts (B) securing the transmission.
8. Remove the bolts securing the oil pan.
9. Using a flat blade screwdriver, separate the oil pan from the block in the places shown.
10. Remove the oil pan.

Scheme 253

Scheme 254

Scheme 255

Scheme 256

Scheme 257

Scheme 258

Scheme 259

Scheme 260

1. Remove the engine assembly (see «ENGINE REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-removal-and-installation) ).
2. Remove the transmission: Manual transmission (see «TRANSMISSION REMOVAL»(/acura/tl/iii-2003-2006/remont/manual-trans/#manual-transmission__transmission-removal) ) Automatic transmission (see «TRANSMISSION REMOVAL»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) )
3. M/T model: Remove the flywheel (see «FLYWHEEL AND PILOT BEARING REPLACEMENT»(/acura/tl/iii-2003-2006/remont/clutches-manual-hydraulic/#clutch-system) ).
4. A/T model: Remove the drive plate (see «DRIVE PLATE REMOVAL AND INSTALLATION»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ).
5. Remove the cylinder heads (see «CYLINDER HEAD REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#cylinder-head) ).
6. Remove the crankshaft position (CKP) sensor A/B (see «MAP SENSOR REPLACEMENT»(/acura/tl/iii-2003-2006/remont/testing-diagnostics/#pgm-fi-system) ).
7. Remove the timing belt drive pulley from the crankshaft.
8. Remove the oil pan (see «OIL PAN REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
9. Remove the engine block end cover.
10. Remove the rocker arm oil control solenoid (VTEC solenoid valve)/oil filter assembly.
11. Remove the oil screen (A), baffle plate (B), and oil pump (C).
12. If you can feel a ridge of metal or hard carbon around the top of any cylinder, remove it with a ridge reamer (A). Follow the reamer manufacturer's instructions. If the ridge is not removed, it may damage the piston as it's pushed out.
13. Remove the connecting rod caps after setting the crank pin at bottom dead center (BDC) for each cylinder. Remove the piston/connecting rod assembly by pushing on the connecting rod. Take care not to damage the crank pin or cylinder with the connecting rod.
14. Remove the bearing from the cap. Keep all caps/bearings in order.
15. Remove the upper bearing halves from the connecting rods, and set them aside with their respective caps.
16. After removing a piston/connecting rod assembly, reinstall the cap on the rod.
17. To avoid confusion during reassembly, mark each piston/connecting rod assembly with its cylinder number.
18. Unscrew the bearing cap bolts and bearing cap side bolts in sequence 1/3 turn at a time; repeat the sequence until all bolts are loosened.
19. Remove the bearing cap bolts (A) and bearing cap side bolts (B), then remove the bearing cap (C).
20. Lift the crankshaft (A) out of the engine block, being careful not to damage the journals.
21. Reinstall the main caps and bearings on the engine block in the proper order.

Crankshaft Inspection

Out-of-Round and Taper

Scheme 261

Scheme 262

1. Remove the crankshaft from the engine block (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
2. Clean the crankshaft oil passages with pipe cleaners or a suitable brush.
3. Check the keyway and threads.
4. Measure out-of-round at the middle of each rod and main journal in two place. The difference between measurements on each journal must not be more than the service limit. Journal Out-of-Round Standard (New): 0.005 mm (0.0002 in.) max. Service Limit: 0.010 mm (0.0004 in.)
5. Measure taper at the edges of each rod and main journal. The difference between measurements on each journal must not be more than the service limit. Journal Taper Standard (New): 0.005 mm (0.0002 in.) max. Service Limit: 0.010 mm (0.0004 in.) Straightness
6. Place the engine block on the surface plate.
7. Clean and install the bearings on the No. 1 and No. 4 journal of the engine block.
8. Lower the crankshaft into the engine block.
9. Measure the runout on all of the main journals. Rotate the crankshaft two complete revolutions. The difference between measurements on each journal must not be more than the service limit. Crankshaft Total Runout Standard (New): 0.025 mm (0.0010 in.) max. Service Limit: 0.030 mm (0.0012 in.)

Scheme 263

Scheme 264

Scheme 265

Scheme 266

1. Remove the piston from the engine block (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
2. Check the piston for distortion or cracks.
3. Measure the piston diameter at a point 16.0 mm (0.63 in.) from the bottom of the skirt. Piston Diameter Standard (New): 88.975-88.985 mm (3.5029-3.5033 in.) Service Limit: 88.965 mm (3.5026 in.) Oversize Piston Diameter 0.25: 89.225-89.235 mm (3.5128-3.5132 in.)
4. Measure wear and taper in direction X and Y at three levels in each cylinder as shown. If measurements in any cylinder are beyond the oversize bore service limit, replace the engine block. If the engine block has to be rebored, refer to step 7 after reboring. Cylinder Bore Size Standard (New): 89.000-89.015 mm (3.5039-3.5045 in.) Service Limit: 89.065 mm (3.5065 in.) Oversize 0.25: 89.250-89.265 mm (3.5138-3.5144 in.) Reboring Limit: 0.25 mm (0.01 in.) Bore Taper Limit: (Difference between first and third measurement) 0.05 mm (0.002 in.)
5. Scored or scratched cylinder bores must be honed (see «CYLINDER BORE HONING»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
6. Check the top of the engine block for warpage. Measure along the edges and across the center as shown. Engine Block Warpage Standard (New): 0.07 mm (0.003 in.) max. Service Limit: 0.10 mm (0.004 in.)
7. Calculate the difference between cylinder bore diameter and piston diameter. If the clearance is near or exceeds the service limit, inspect the piston and cylinder bore for excessive wear. Piston-to-Block Clearance Standard (New): 0.015-0.040 mm (0.0006-0.0016 in.) Service Limit: 0.08 mm (0.003 in.)

Scheme 267

1. Measure the cylinder bores (see step 4 ). If the engine block is to be reused, hone the cylinders and remeasure the bores. Only scored or scratched cylinder bores must be honed.
2. Hone the cylinder bores with honing oil and a fine (400 grit) stone in a 60 degree crosshatch pattern. NOTE: Use only a rigid hone with 400 grit or finer stone, such as Sunnen, AMMCO, or equivalent. Do not use stones that are worn or broken.
3. When honing is complete, thoroughly clean the engine block of all metal particles. Wash the cylinder bores with hot soapy water, then dry and oil them immediately to prevent rusting. Never use solvent, it will only redistribute the grit on the cylinder walls.
4. If scoring or scratches are still present in the cylinder bores after honing to the service limit, rebore the engine block. Some light vertical scoring and scratching is acceptable if it is not deep enough to catch your fingernail and does not run the full length of the bore.

Scheme 268

Scheme 269

Scheme 270

1. Remove the piston from the engine block (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
2. Apply new engine oil to the piston pin snap rings (A) and turn them in the ring grooves until the end gaps are lined up with the cutouts in the piston pin bores (B). NOTE: Take care not to damage the ring grooves.
3. Remove snap rings (A) from both sides of the piston. Start at the cutout in the piston pin bore. Remove the snap rings carefully so they do not go flying or get lost. Wear eye protection.
4. Heat the piston and connecting rod assembly to about 158°F (70°C), then remove the piston pin.

Inspection

Note. Inspect the piston, piston pin, and connecting rod when they are at room temperature.

Scheme 271

Scheme 272

Scheme 273

Scheme 274

1. Measure the diameter of the piston pin. Piston Pin Diameter Standard (New): 21.962-21.965 mm (0.8646-0.8648 in.) Service Limit: 21.954 mm (0.8643 in.)
2. Zero the dial indicator to the piston pin diameter.
3. Check the difference between the piston pin diameter and piston pin hole diameter on the piston. Piston Pin-to-Piston Clearance Standard (New): -0.0050 to +0.0010 mm (-0.00020 to +0.00004 in.) Service Limit: 0.004 mm (0.0002 in.)
4. Measure the piston pin-to-connecting rod clearance. Piston Pin-to-Connecting Rod Clearance Standard (New): 0.005-0.014 mm (0.0002-0.0006 in.) Service Limit: 0.019 mm (0.0007 in.)

Scheme 275

Scheme 276

Scheme 277

1. Install a piston pin snap ring (A) only on one side.
2. Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.
3. Heat the piston to about 158°F (70°C).
4. Assemble the piston (A) and connecting rod (B) with the embossed marks (C) on the same side. Install the piston pin (D).
5. Install the remaining snap ring.

Scheme 278

Scheme 279

Scheme 280

Scheme 281

Scheme 282

1. Remove the piston from the engine block (see «CRANKSHAFT AND PISTON REMOVAL»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ).
2. Using a ring expander (A), remove the old piston rings (B).
3. Clean all the ring grooves thoroughly with a squared-off broken ring, or a ring groove cleaner with a blade to fit the piston grooves. File down the blade, if necessary. The top ring and second ring grooves are 1.2 mm (0.05 in.) wide, and the oil ring groove is 2.8 mm (0.11 in.) wide. Do not use a wire brush to clean the ring grooves, or cut the ring grooves deeper with the cleaning tool. NOTE: If the piston is to be separated from the connecting rod, do not install new rings yet.
4. Using a piston, push a new ring (A) into the cylinder bore 15-20 mm (0.6-0.8 in.) from the bottom.
5. Measure the piston ring end-gap (B) with a feeler gauge: If the gap is too small, check to see if you have the proper rings for your engine. If the gap is too large, recheck the cylinder bore diameter against the wear limits (see step 4 ). If the bore is over the service limit, the engine block must be rebored. Piston Ring End-Gap Top Ring: Standard (New): 0.20-0.35 mm (0.008-0.014 in.) Service Limit: 0.60 mm (0.024 in.) Second Ring: Standard (New): 0.40-0.55 mm (0.016-0.022 in.) Service Limit: 0.70 mm (0.028 in.) Oil Ring: Standard (New): 0.20-0.70 mm (0.008-0.028 in.) Service Limit: 0.80 mm (0.031 in.)
6. Install the rings as shown. The top ring (A) has a 1D mark and the second ring (B) has a 2C mark. The manufacturing marks (C) must be facing upward.
7. After installing a new set of rings, measure the ring-to-groove clearance: Top Ring Clearance Standard (New): 0.055-0.080 mm (0.0022-0.0031 in.) Service Limit: 0.15 mm (0.006 in.) Second Ring Clearance Standard (New): 0.030-0.055 mm (0.0012-0.0022 in.) Service Limit: 0.13 mm (0.005 in.)
8. Rotate the rings in their grooves to make sure they do not bind.
9. Position the ring end gaps as shown

Crankshaft and Piston Installation

Special Tools Required

Scheme 283

Scheme 284

Scheme 285

Scheme 286

Scheme 287

Scheme 288

Scheme 289

Scheme 290

Scheme 291

Scheme 292

Scheme 293

Scheme 294

Scheme 295

Scheme 296

Scheme 297

1. Driver 07749-0010000
2. Driver attachment, 106 mm 070AD-RCAA200 Check the connecting rod bearing clearance with plastigage (see «CONNECTING ROD BEARING REPLACEMENT»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ). Check the main bearing clearance with plastigage (see «CRANKSHAFT MAIN BEARING REPLACEMENT»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ). Install the bearing halves in the engine block and connecting rods. Apply new engine oil to inside of the main bearings and rod bearings. Lower the crankshaft (A) into the engine block. Apply new engine oil to the side with the thrust washer groove. Install the thrust washers (A) in the No. 3 journal. Install the bearings (A) and bearing caps (B) with the arrow (C) facing the timing belt end of the engine. Apply new engine oil to the bolt threads and flanges, then loosely install the bearing cap bolts (D) and bearing cap side bolts (E). Set the crankshaft to bottom dead center (BDC) for the cylinder you are installing the piston in. Apply new engine oil to the piston, inside of the ring compressor, and the cylinder bore. Attach the ring compressor to the piston/connecting rod assembly, and check that the bearing is securely in place. Position the piston/connecting rod assembly with the arrow (A) facing the timing belt side of the engine. Position the piston/connecting rod assembly in the cylinder, and tap it in using the wooden handle of a hammer (A). Maintain downward force on the ring compressor (B) to prevent the rings from expanding before entering the cylinder bore. Stop after the ring compressor pops free, and check the connecting rod-to-crank journal alignment before pushing the piston into place. Measure the diameter of each connecting rod bolt at point A and point B. Calculate the difference in diameter between point A and point B. Point A-Point B = Difference in Diameter Difference in Diameter Specification: 0-0.1 mm (0-0.004 in.) If the difference in diameter is out of tolerance, replace the connecting rod bolt. Line up the mark (A) on the connecting rod and cap, then install the cap. Apply new engine oil to the bolt threads and flanges. Torque the bolts (B) to 20 N.m (2.0 kgf.m, 14 lbf.ft). Mark the connecting rod (A) and bolt head (B) as shown. Tighten the bolt until the mark on the bolt head lines up with the mark on the connecting rod (turn the bolt 90°). NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, and go back to step 15 of the procedure. Do not loosen it back to the specified angle. Tighten the bearing cap bolts, and then the bearing cap side bolts to the specified torque in the sequence as shown. Repeat the torque sequence again to measure the bolts are properly torqued. Remove any old liquid gasket from the engine block end cover mating surfaces, bolts, and bolt holes. Clean and dry the engine block end cover mating surfaces. The seal mating surface on the engine block end cover should be dry. Apply a light coat of multipurpose grease to the crankshaft and to the lip of the seal. Drive the new crankshaft oil seal until the special tool bottoms on the engine block end cover. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0002, 08718-0003, or 08718-0009, evenly to the engine block mating surface of the engine block end cover. NOTE: Do not install components if too much time has passed after applying the liquid gasket (for P/N 08718-0002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket. Install the dowel pins (A), new O-ring (B), and the engine block end cover (C) on the engine block. Clean the excess grease off the crankshaft, and check the seal for distortion. Install a new crankshaft oil seal in the oil pump (see step 2 on «INSTALLATION»(/acura/tl/iii-2003-2006/remont/lubrication-system/#engine-lubrication) ). Remove all of the old liquid gasket from the oil pump mating surfaces, bolts, and bolt holes. Clean and dry the oil pump mating surfaces. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0002, 08718-0003, or 08718-0009, evenly to the engine block mating surface of the oil pump. NOTE: Do not install components if too much time has passed after applying the liquid gasket (for P/N 08718-0002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket. Grease the lip of the oil seal, and apply oil to the new O-ring (A). Install the dowel pins (B), then align the inner rotor with the crankshaft, and install the oil pump (C). Clean the excess grease off the crankshaft, and check the seal for distortion. Install the baffle plate (D), then install the oil screen (E) with new O-ring (F). Install the rocker arm oil control solenoid (VTEC solenoid valve)/oil filter assembly (A), with a new rocker arm oil control solenoid (VTEC solenoid valve) filter (B). Install the oil pan (see «OIL PAN INSTALLATION»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-block) ). Install the crankshaft position (CKP) sensor (see «MAP SENSOR REPLACEMENT»(/acura/tl/iii-2003-2006/remont/testing-diagnostics/#pgm-fi-system) ). Install the cylinder heads (see «CYLINDER HEAD INSTALLATION»(/acura/tl/iii-2003-2006/remont/mechanical/#cylinder-head) ). M/T model: Install the flywheel (see «FLYWHEEL AND PILOT BEARING REPLACEMENT»(/acura/tl/iii-2003-2006/remont/clutches-manual-hydraulic/#clutch-system) ). A/T model: Install the drive plate (see «DRIVE PLATE REMOVAL AND INSTALLATION»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ). Install the transmission: Manual Transmission (see «TRANSMISSION INSTALLATION»(/acura/tl/iii-2003-2006/remont/manual-trans/#manual-transmission__transmission-installation) ) Automatic Transmission (see «TRANSMISSION INSTALLATION»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ) Install the engine assembly (see «ENGINE INSTALLATION»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-removal-and-installation__engine-installation) ). NOTE: When any crankshaft or connecting rod bearing is replaced, after assembly it is necessary to run the engine at idling speed until it reaches normal operating temperature, then continue to run it for about 15 minutes.

Scheme 298

Scheme 299

Scheme 300

Scheme 301

1. Remove all of the old liquid gasket from the oil pan mating surfaces, bolts, and bolt holes.
2. Clean and dry the oil pan mating surfaces.
3. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0002, 08718-0003, or 08718-009, evenly to the oil pan mating surface of the engine block. NOTE: Do not install components if too much time has passed after applying the liquid gasket (for P/N 08718-0002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket.
4. Install the oil pan on the engine block.
5. Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 N.m (1.2 kgf.m, 8.7 lbf.ft). NOTE: After assembly, wait at least 30 minutes before filling the engine with oil.
6. Tighten the two bolts (A) securing the transmission, then install the torque converter cover (B).
7. If the engine is still in the vehicle, do the following steps.
8. Install exhaust pipe A using new gaskets and new self locking nuts (see step 28 on «ENGINE INSTALLATION»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-removal-and-installation__engine-installation) ).
9. Install the engine under cover.
10. Install the splash shield (see step 35 on «ENGINE INSTALLATION»(/acura/tl/iii-2003-2006/remont/mechanical/#engine-removal-and-installation__engine-installation) ).
11. Refill the engine with oil (see step 3 on «OIL PRESSURE TEST»(/acura/tl/iii-2003-2006/remont/lubrication-system/#engine-lubrication__oil-pressure-test) ).
12. Lower the vehicle on the hoist.

Pulley End Crankshaft Oil Seal Installation - In Car

Special Tools Required

Oil seal driver, 64 mm 070AD-RCAA100

Scheme 302

1. Remove the crankshaft position (CKP) sensor A/B, timing belt, and timing belt drive pulley (see «TIMING BELT ADJUSTER REPLACEMENT»(/acura/tl/iii-2003-2006/remont/mechanical/#cylinder-head) ).
2. Remove the pulley end crankshaft oil seal.
3. Clean and dry the crankshaft oil seal housing.
4. Apply a light coat of multipurpose grease to the crankshaft and to the lip of the seal.
5. Using the seal driver, drive in the crankshaft oil seal until the driver bottoms against the oil pump. When the seal is in place, clean any excess grease off the crankshaft, and check that the oil seal lip is not distorted.
6. Install the timing belt drive pulley, CKP sensor A/B, and timing belt (see «TIMING BELT ADJUSTER REPLACEMENT»(/acura/tl/iii-2003-2006/remont/mechanical/#cylinder-head) ).

Transmission End Crankshaft Oil Seal Installation - In Car

Special Tools Required

Scheme 303

1. Driver 07749-0010000
2. Driver attachment, 106 mm 070AD-RCAA200 M/T model: Remove the transmission (see «TRANSMISSION REMOVAL»(/acura/tl/iii-2003-2006/remont/manual-trans/#manual-transmission__transmission-removal) ), the clutch disc and pressure plate (see «CLUTCH REPLACEMENT»(/acura/tl/iii-2003-2006/remont/clutches-manual-hydraulic/#clutch-system__clutch-replacement) ), and the flywheel (see «FLYWHEEL AND PILOT BEARING REPLACEMENT»(/acura/tl/iii-2003-2006/remont/clutches-manual-hydraulic/#clutch-system) ). A/T model: Remove the transmission (see «TRANSMISSION REMOVAL»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ) and drive plate (see «DRIVE PLATE REMOVAL AND INSTALLATION»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ). Remove the transmission end crankshaft oil seal. Clean and dry the crankshaft oil seal housing. Apply a light coat of multipurpose grease to the crankshaft and to the lip of the seal. Using the special tools, drive in the crankshaft oil seal until the driver attachment bottoms against the engine block end cover. Align the hole in the driver attachment with the pin on the crankshaft. Clean any excess grease off the crankshaft, and check that the oil seal lip is not distorted. M/T model: Install the flywheel (see «FLYWHEEL AND PILOT BEARING REPLACEMENT»(/acura/tl/iii-2003-2006/remont/clutches-manual-hydraulic/#clutch-system) ), the clutch disc and pressure plate (see «CLUTCH DISC AND PRESSURE PLATE INSTALLATION»(/acura/tl/iii-2003-2006/remont/clutches-manual-hydraulic/#clutch-system__clutch-disc-and-pressure-plate-installation) ), and the transmission (see «TRANSMISSION INSTALLATION»(/acura/tl/iii-2003-2006/remont/manual-trans/#manual-transmission__transmission-installation) ). A/T model: Install the drive plate (see «DRIVE PLATE REMOVAL AND INSTALLATION»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ), and the transmission (see «TRANSMISSION INSTALLATION»(/acura/tl/iii-2003-2006/remont/automatic-trans/#automatic-transmission) ).

Drain Bolt Installation

Note. When installing the drain bolt, always use a new washer.

Scheme 304
