Power distribution
# Power distribution circuit

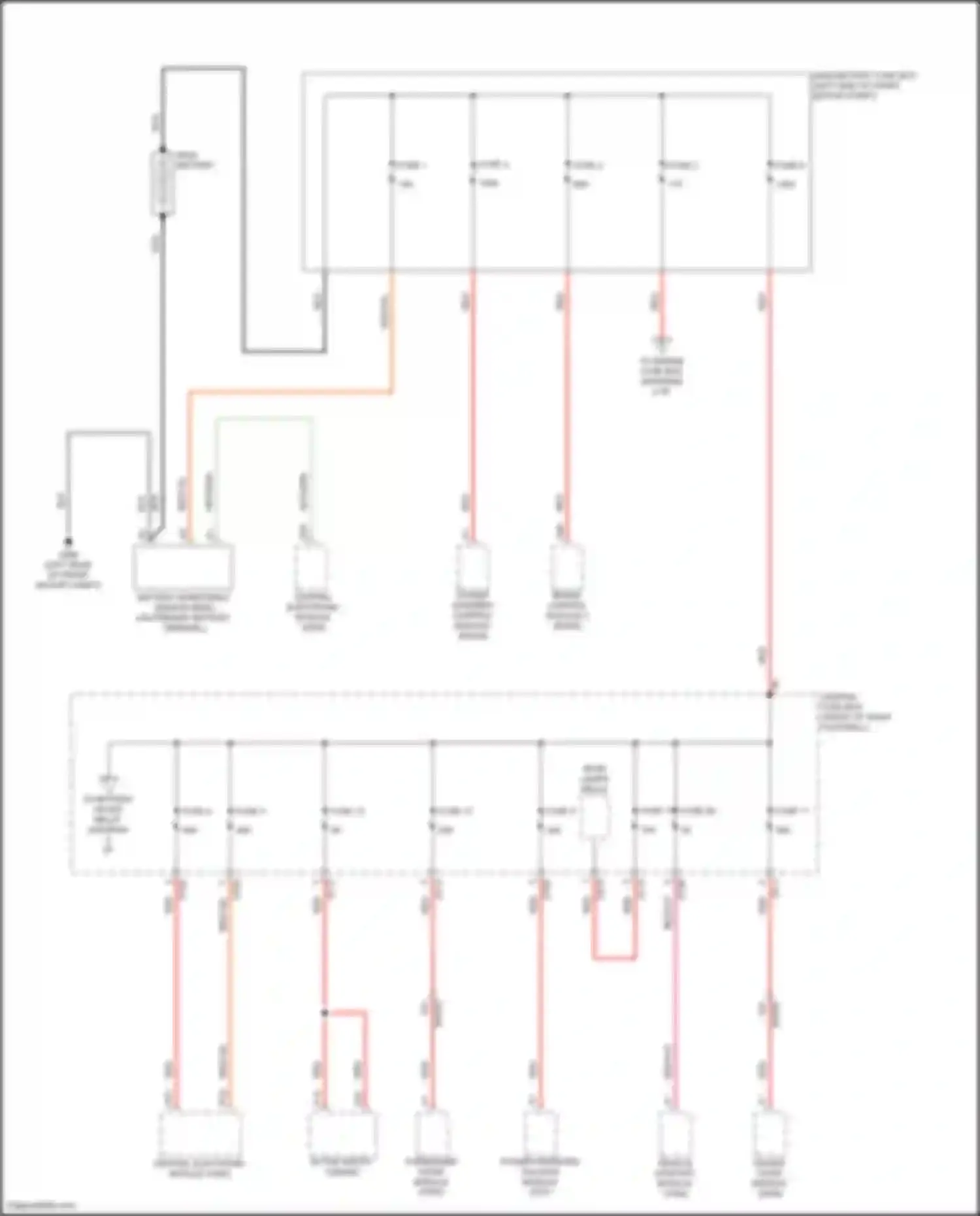

# Power distribution circuit (1 of 8)
Components on the diagram

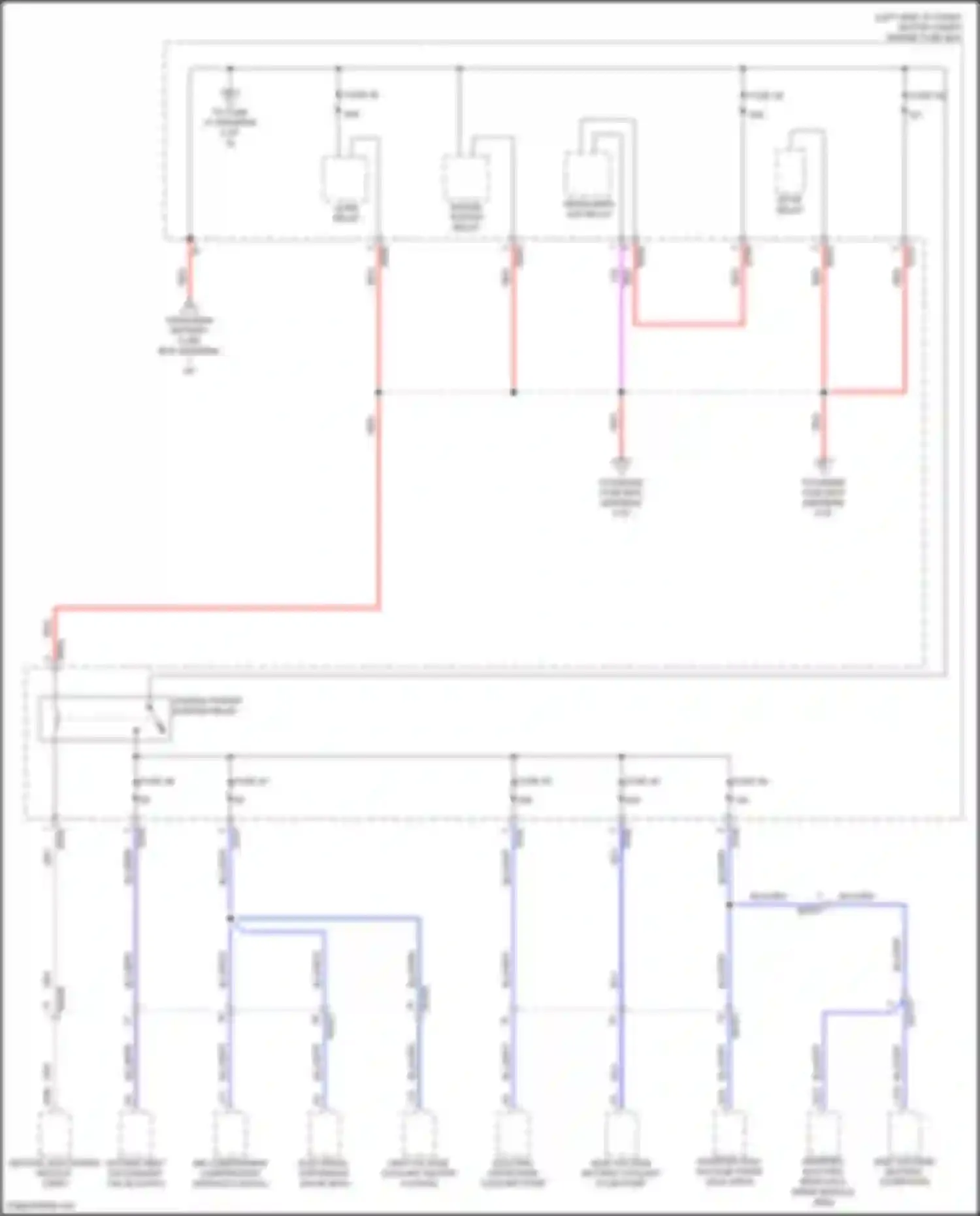

# Power distribution circuit (2 of 8)
Components on the diagram

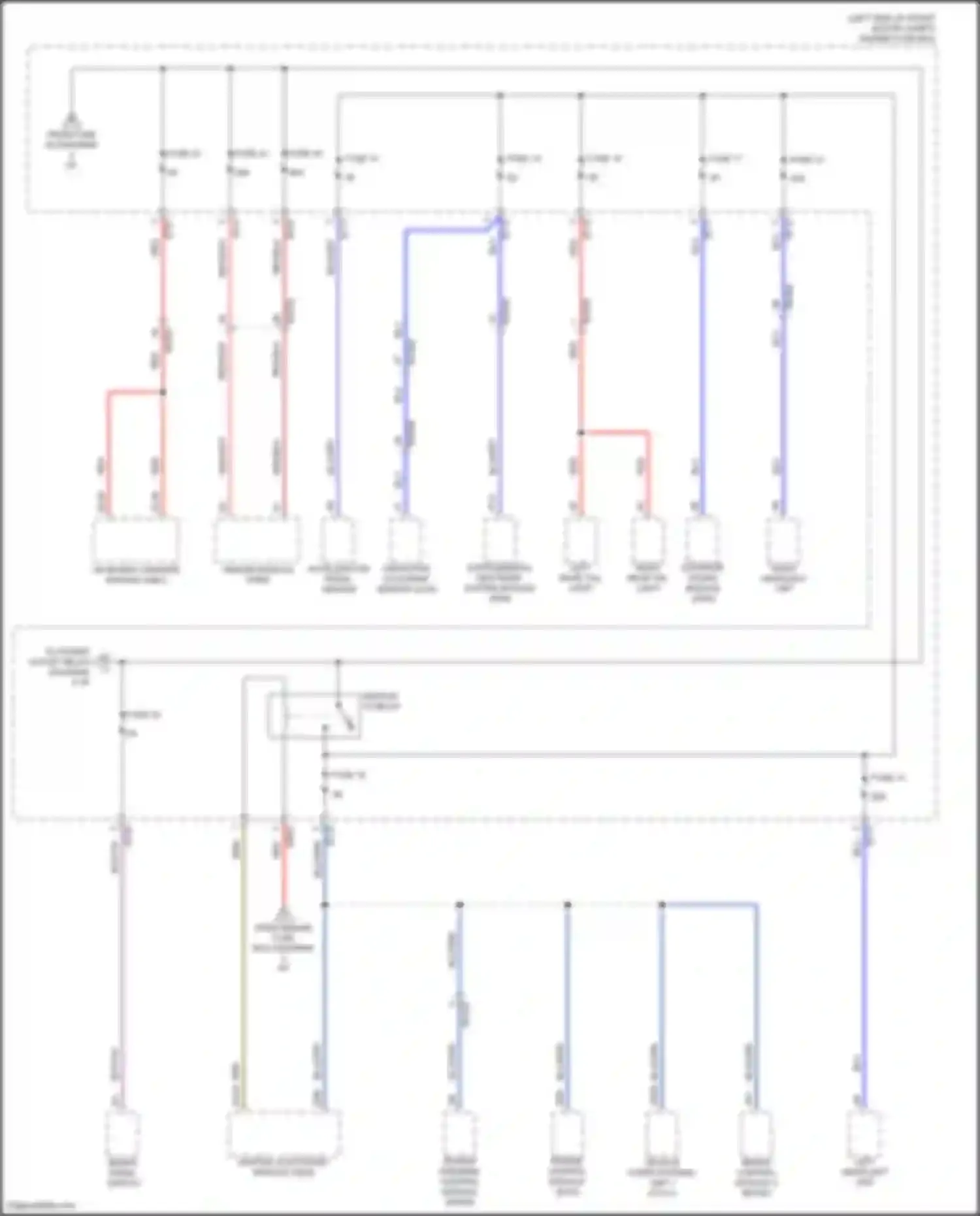

# Power distribution circuit (3 of 8)
Components on the diagram

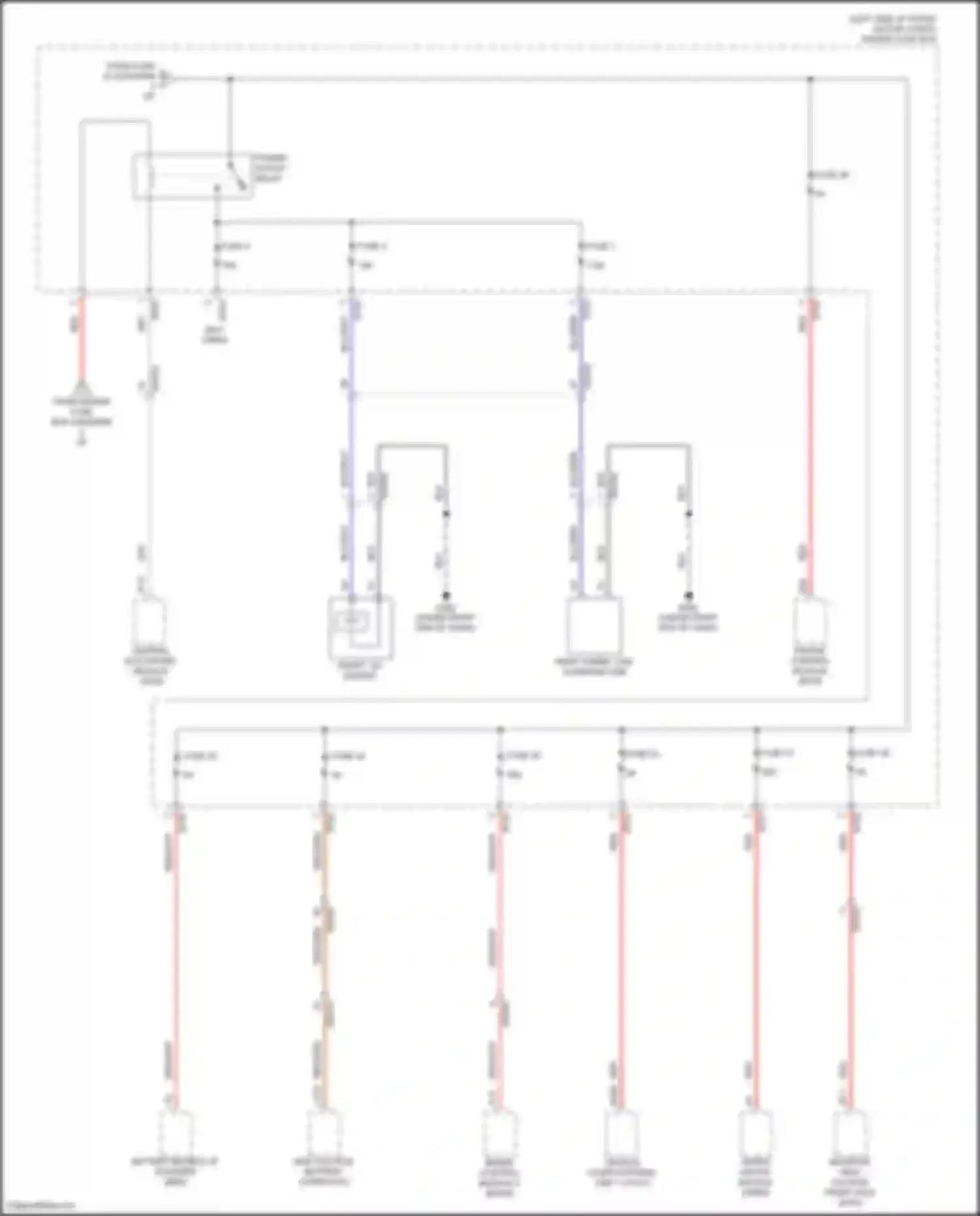

# Power distribution circuit (4 of 8)
Components on the diagram

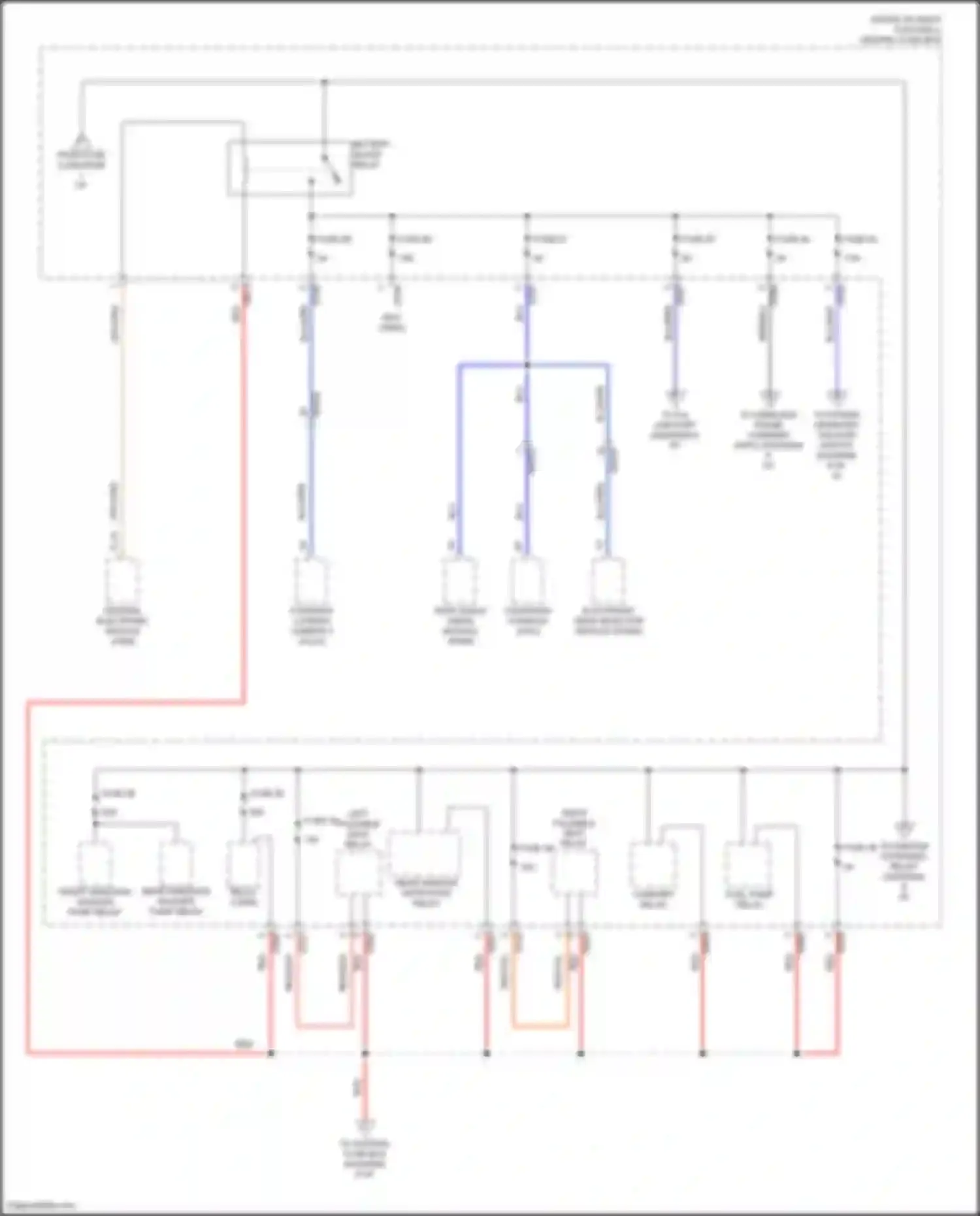

# Power distribution circuit (5 of 8)
Components on the diagram

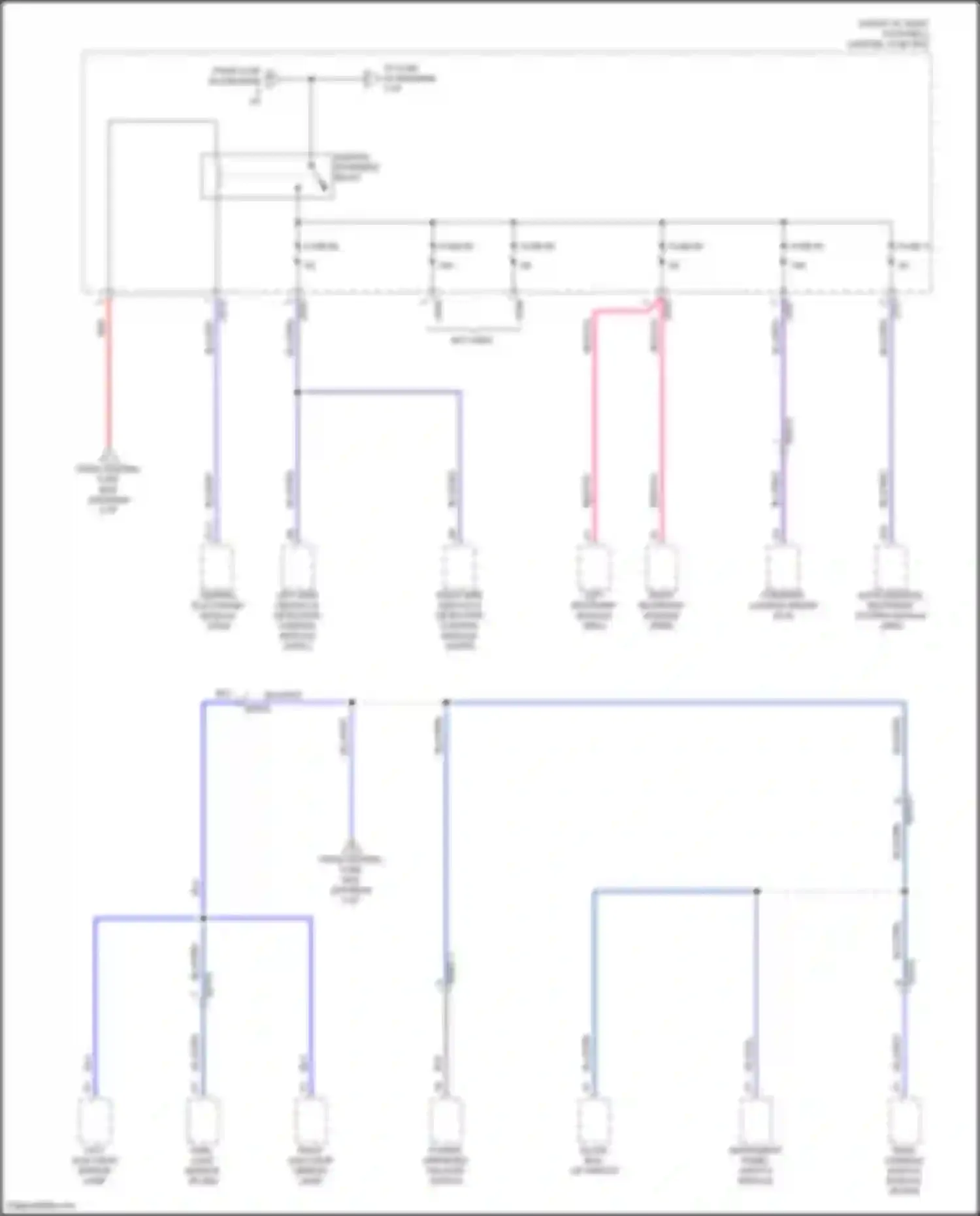

# Power distribution circuit (6 of 8)
Components on the diagram

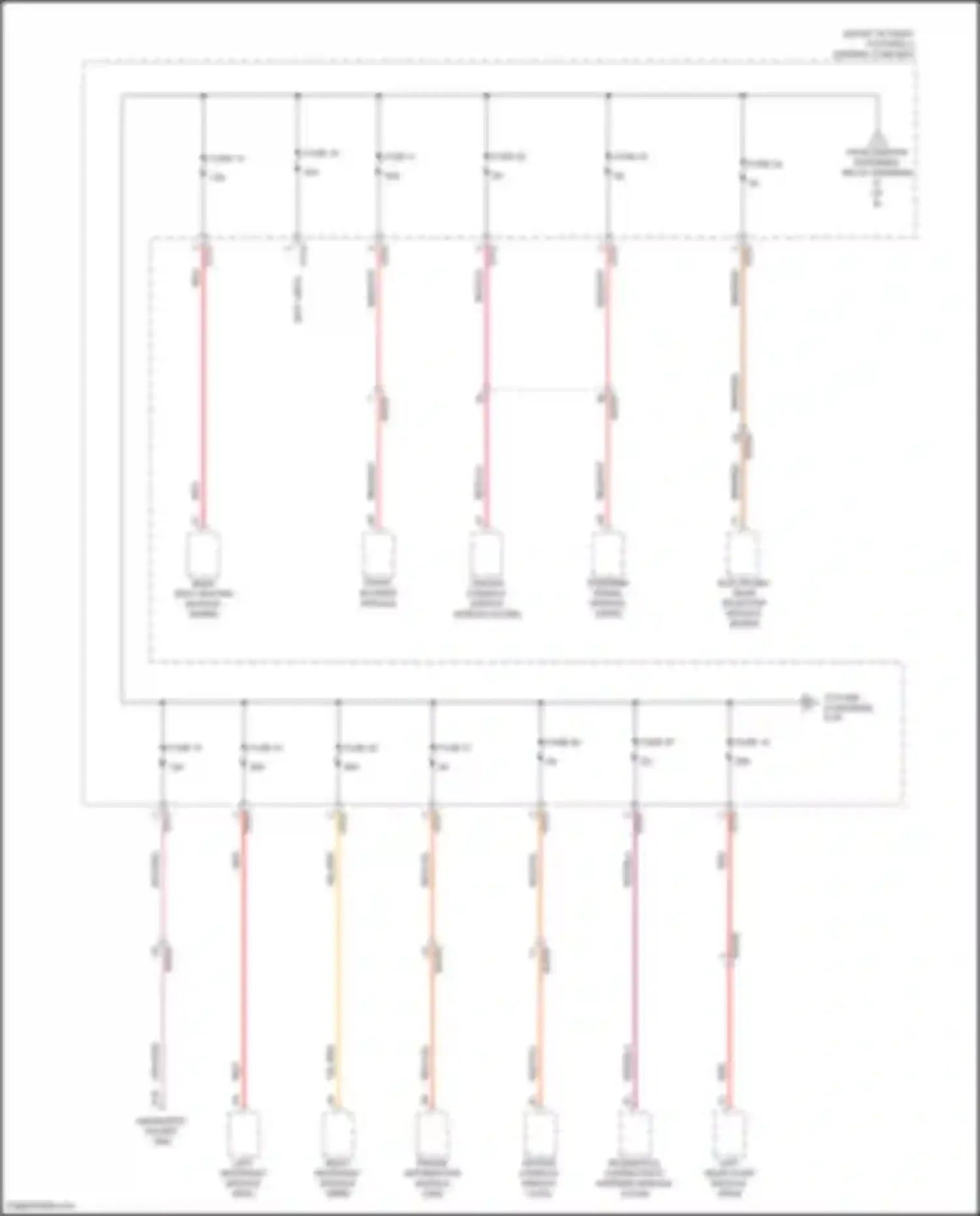

# Power distribution circuit (7 of 8)
Components on the diagram

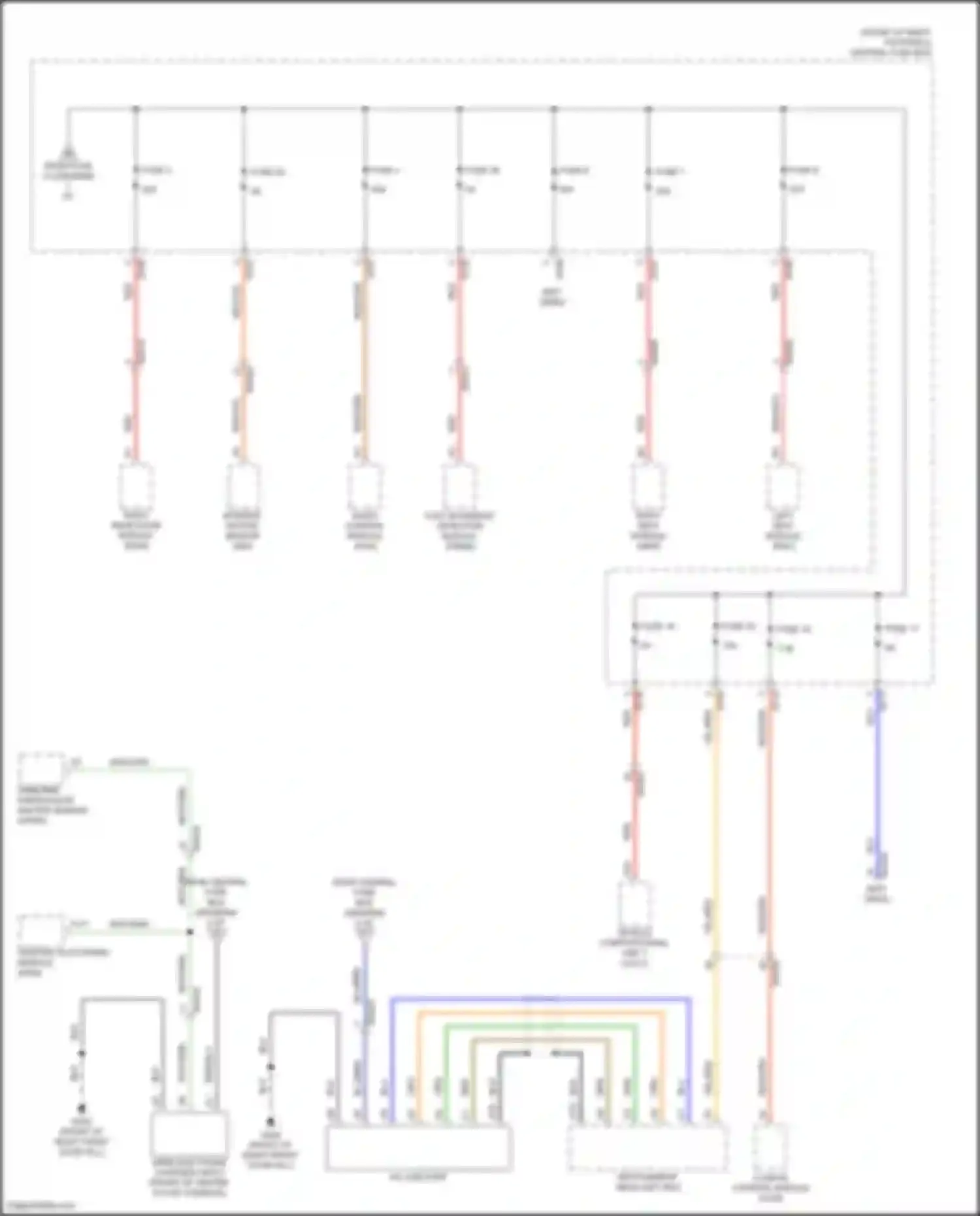

# Power distribution circuit (8 of 8)
Components on the diagram
Components on these wiring diagrams 183
Click a component to highlight it on every diagram it appears on.
