Wiring Diagrams for Volkswagen Golf Mk6 (2008-2012)

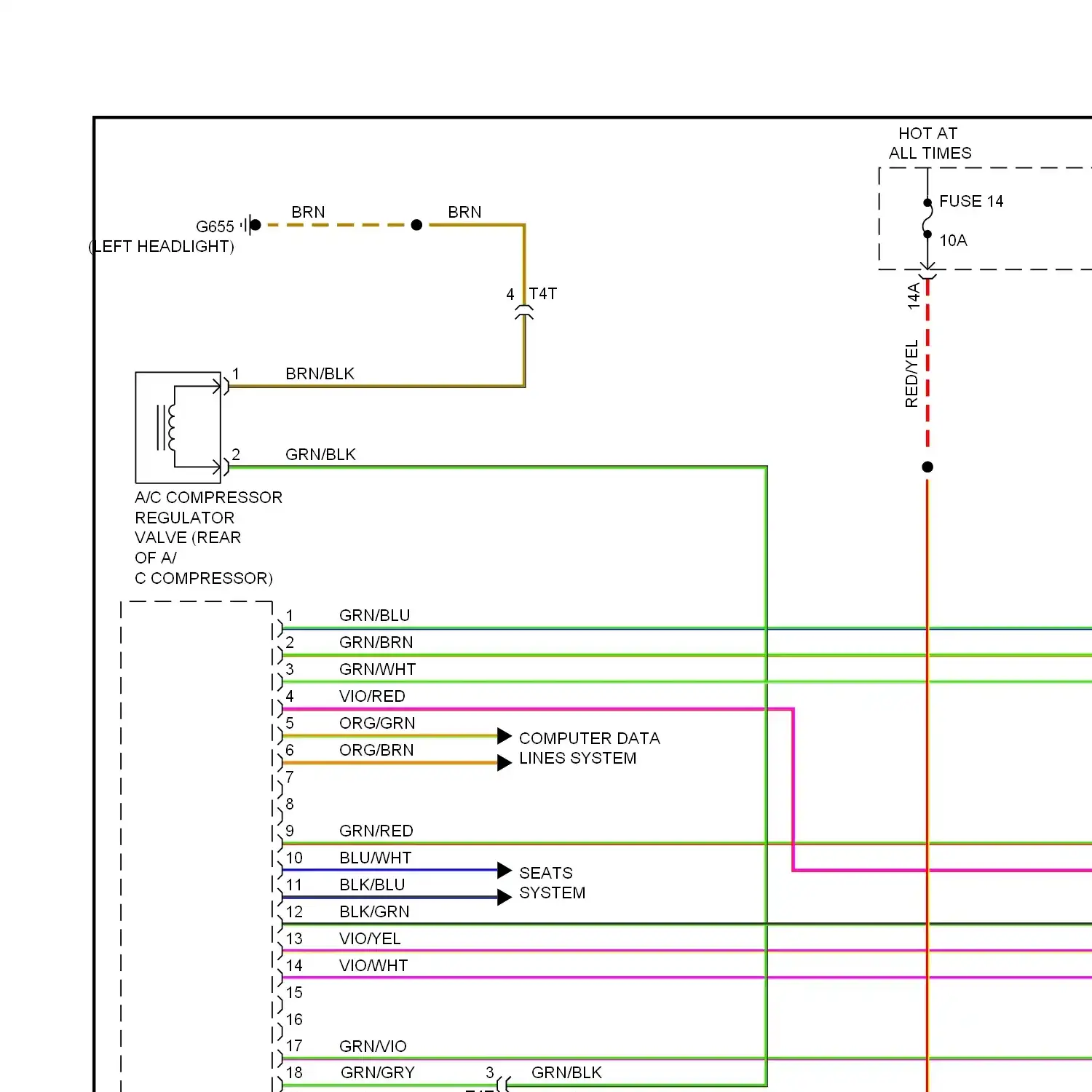

Automatic a/c circuit Auxiliary heater circuit Manual a/c circuit

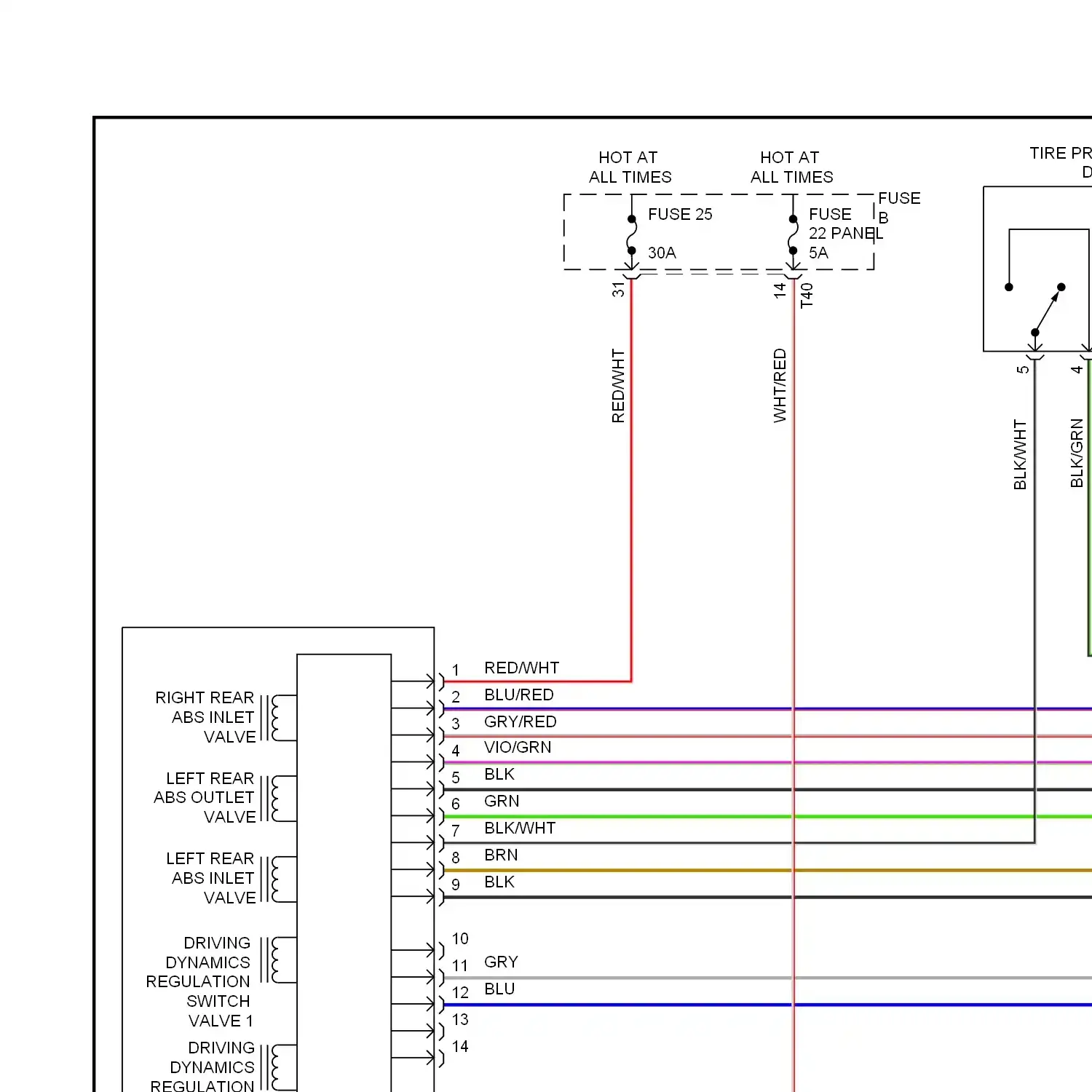

Anti-lock brakes circuit, with esp Anti-lock brakes circuit, without esp

Access/start circuit Forced entry circuit, 2 door Forced entry circuit, 4 door

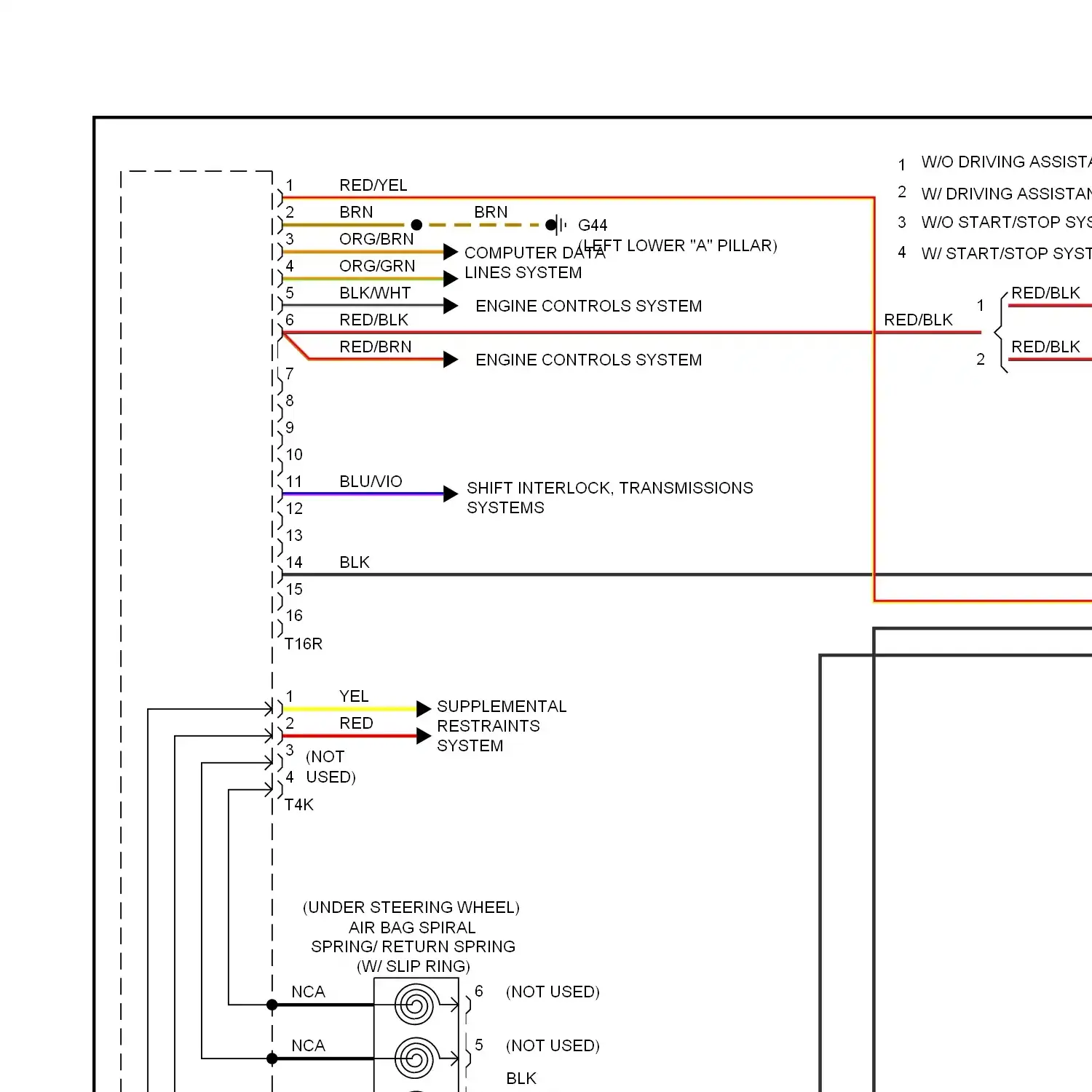

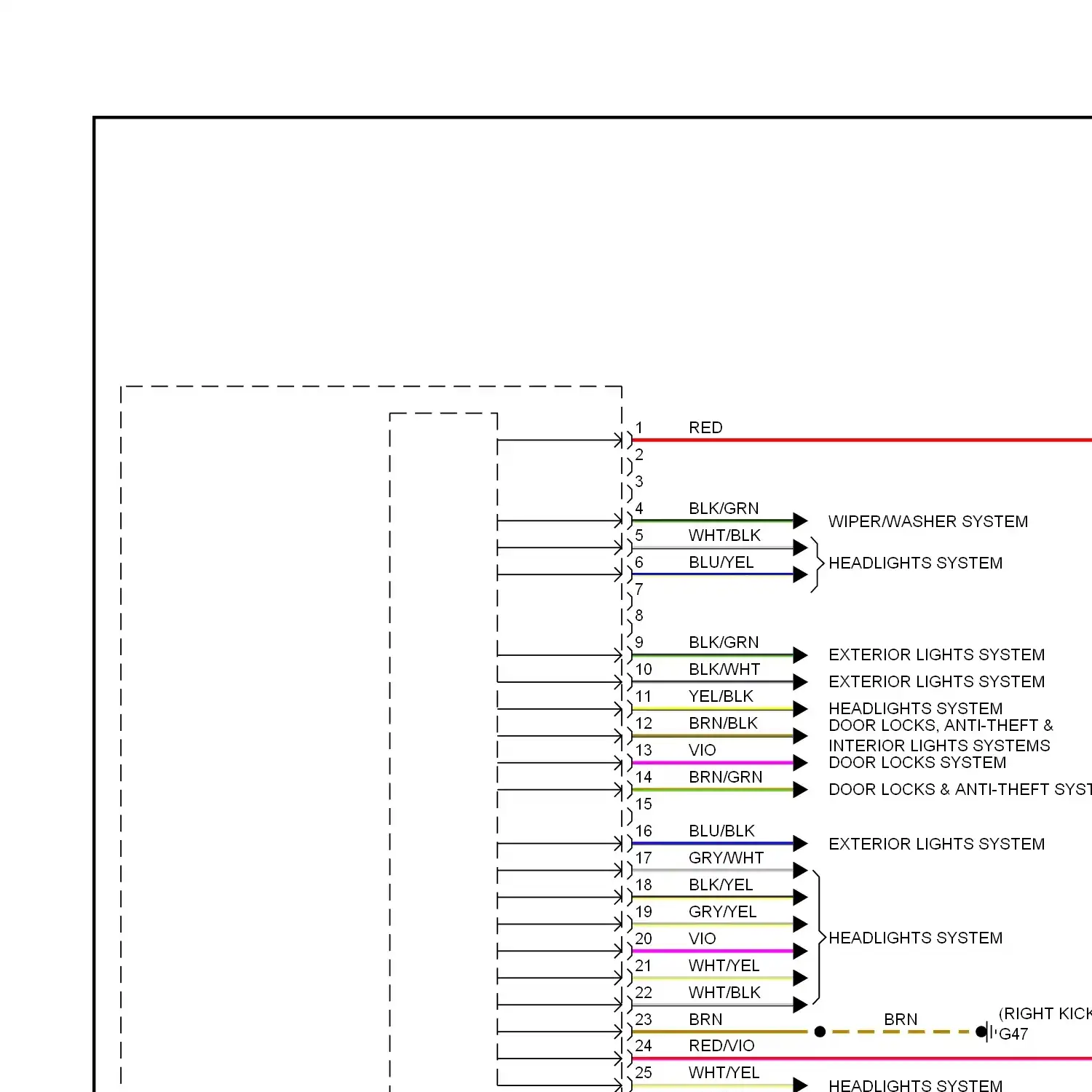

Steering column electronic systems control module circuit, early production Steering column electronic systems control module circuit, late production Vehicle electrical system control module circuit, early production Vehicle electrical system control module circuit, late production

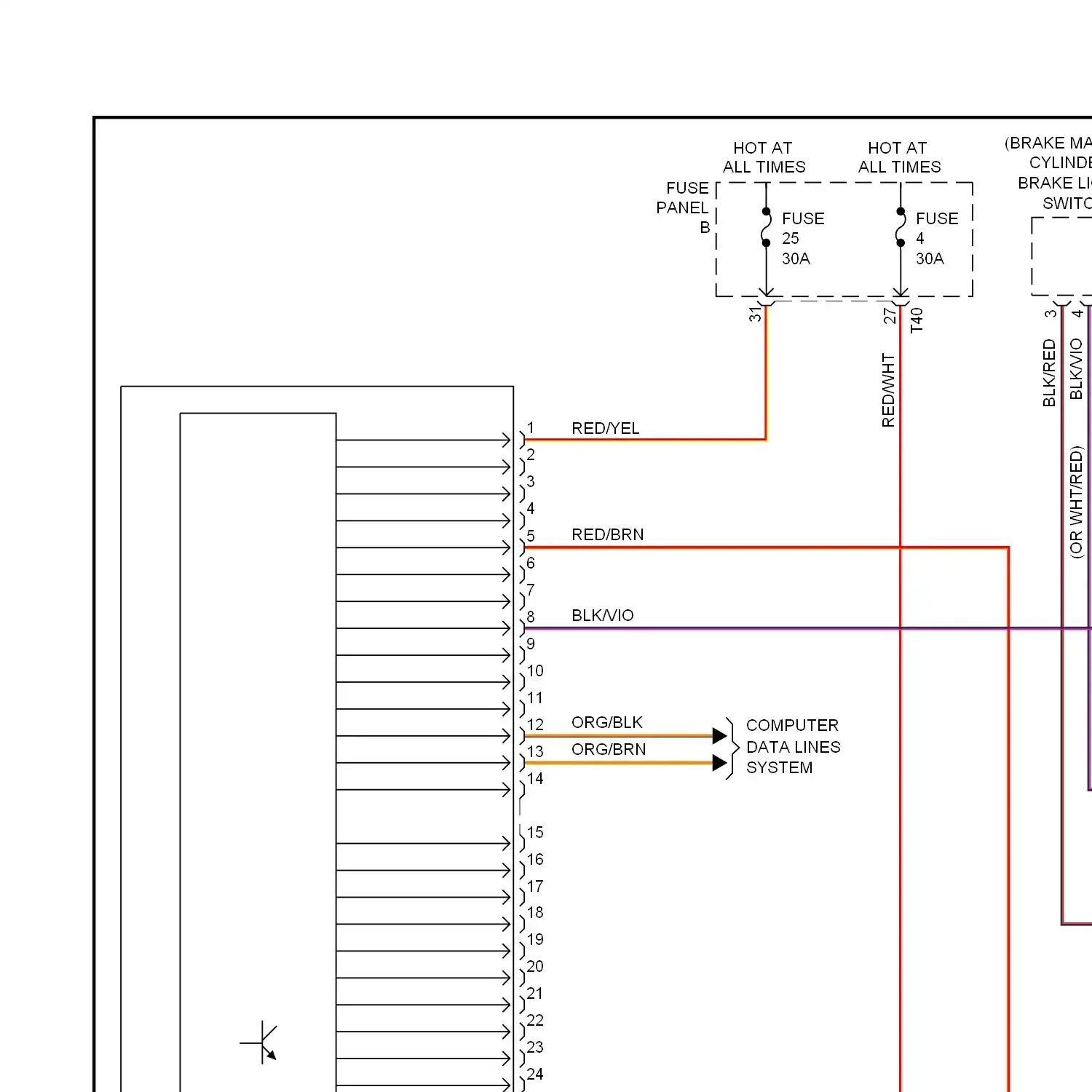

Computer data lines circuit

Cooling fan circuit

Cruise control circuit, early production Cruise control circuit, late production

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo diesel

Wiring diagram engine performance 2.5l, early production Wiring diagram engine performance 2.5l, late production

Backup lamps circuit, a/t Backup lamps circuit, m/t Exterior lamps circuit, early production Exterior lamps circuit, late production

Ground distribution circuit, early production Ground distribution circuit, late production

Headlights circuit, early production with hid headlamps Headlights circuit, early production without hid headlamps Headlights circuit, late production with hid headlamps Headlights circuit, late production without hid headlamps

Horn circuit, early production Horn circuit, late production

Electronic compass circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Navigation circuit, with amplifier Navigation circuit, without amplifier Parking assistant circuit

Power distribution circuit, early production Power distribution circuit, late production

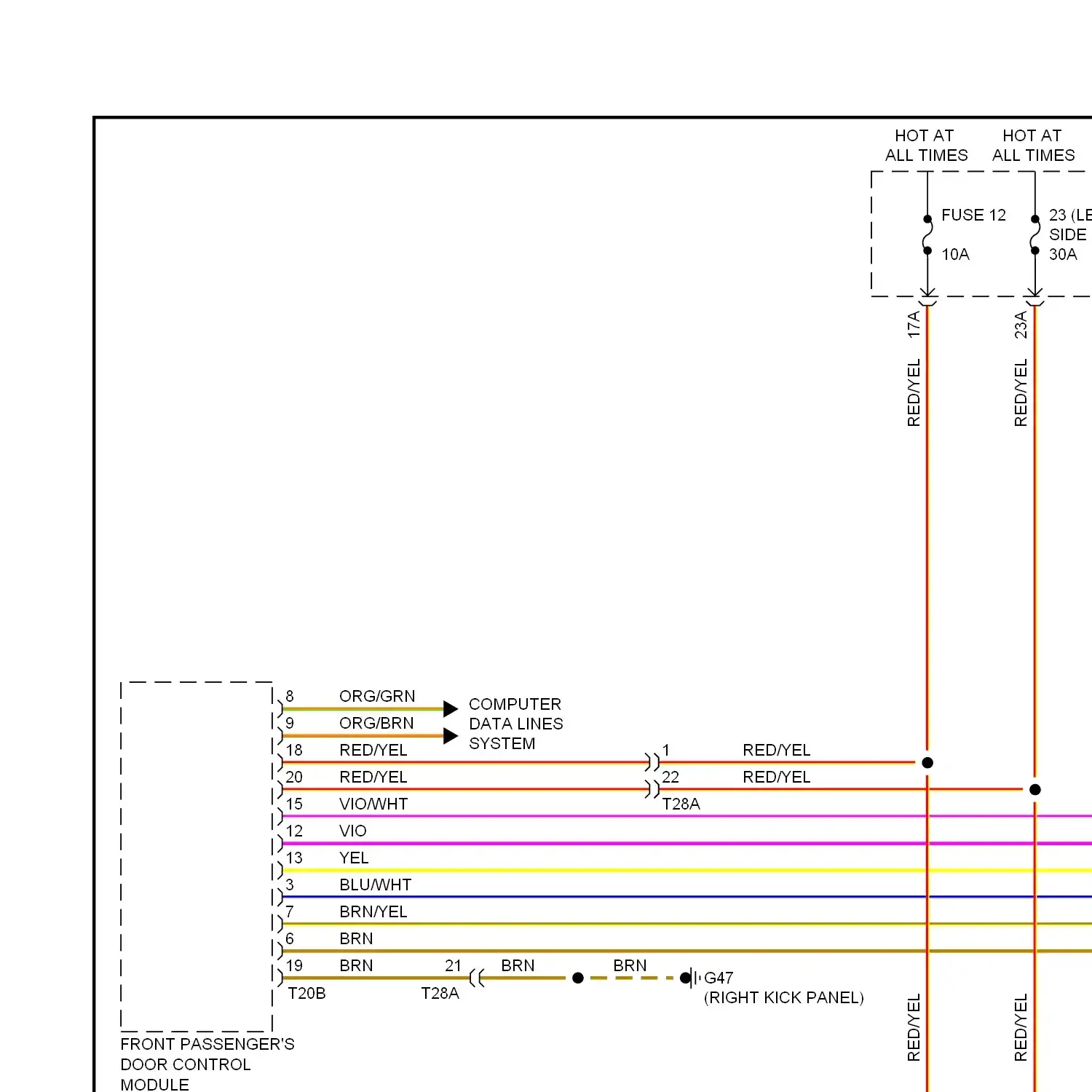

Power door locks circuit, 2 door Power door locks circuit, 4 door

Automatic day/night mirror circuit, early production Automatic day/night mirror circuit, late production Power mirrors circuit

Heated seats circuit Lumbar circuit Power seats circuit

Power top/sunroof circuit

Power windows circuit, 2 door Power windows circuit, 4 door

Multimedia interface circuit Radio circuit, with navigation, with amplifier Radio circuit, with navigation, without amplifier Radio circuit, without navigation, with amplifier Radio circuit, without navigation, without amplifier

Shift interlock circuit, early production with direct shift Shift interlock circuit, early production without direct shift Shift interlock circuit, late production with direct shift Shift interlock circuit, late production without direct shift

Charging circuit Starting circuit

Supplemental restraints circuit, early production without rear side air bag Supplemental restraints circuit, early production with rear side air bag Supplemental restraints circuit, late production without rear side air bag Supplemental restraints circuit, late production with rear side air bag

A/t circuit, early production A/t circuit, late production Awd circuit Direct shift a/t circuit, early production Direct shift a/t circuit, late production

Warning systems circuit

Wiper/washer circuit, early production Wiper/washer circuit, late production

ALARM HORN ANTI-LOCK BRAKES SYSTEM ANTI-THEFT IMMOBILIZER READER COIL ANTI-THEFT IMMOBILIZER READING COIL BLOCKING DIODE CHILD SAFETY LOCK-IND LAMP CIGARETTE LIGHTER BLOCKING ILLUMINATION DIODE BULB FRONT PASSENGER DOOR CENTRAL LOCKING LOCK HIGH TONE HORN IGNITION COIL 1 IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION IGNITION COIL 1 COIL 2 IGNITION IGNITION COIL 2 COIL 3 LEFT WASHER NOZZLE LOW TONE HORN RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION

AUXILIARY ENGINE COOLANT HEATER RADIO FREQUENCY RECEIVER DRIVER'S BACKREST ADJUSTMENT MOTOR DRIVER'S SEAT FORE/AFT ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR DRIVER'S SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR ELECTRO- MECHANICAL POWER STEERING MOTOR ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMPERATURE GAUGE ENGINE ELECTRONICS IND ENGINE PREHEATING HEATING ELEMENT FOLD-IN MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR FUEL FILLER DOOR UNLOCK MOTOR FUEL FILTER DOOR UNLOCK MOTOR HEADLAMP LEFT LOW RANGE/ BEAM CORNERING REFLECTOR LAMP CONTROL MOTOR MODULE LEFT ADAPTIVE CORNERING LAMP MOTOR LEFT ADAPTIVE CORNERING LAMP MOTOR 2 3 4 6 5 1 LEFT HEADLAMP BEAM ADJUSTMENT MOTOR LEFT HEADLAMP BEAM ADJUSTMENT MOTOR LEFT HEADLAMP ASSEMBLY LEFT LOW BEAM HEADLAMP REFLECTOR MOTOR LEFT LOW BEAM REFLECTOR MOTOR LEFT TEMPERATURE DOOR POTENTIOMETER/ ACTUATOR, MOTOR LOCK ACTUATOR REAR A/C WINDOW CONTROL WIPER MODULE MOTOR REAR LID UNLOCK MOTOR REAR WINDOW WIPER MOTOR RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR RIGHT LOW BEAM HEADLAMP REFLECTOR MOTOR RIGHT LOW BEAM REFLECTOR MOTOR RIGHT TEMPERATURE DOOR POTENTIOMETER/ ACTUATOR, MOTOR SEAT TILT ADJUSTMENT MOTOR SECONDARY AIR INJECTION PUMP MOTOR TOP OF ENGINE) WINDOW MOTOR WINDSHIELD WIPER MOTOR

ACCESS/START AUTHORIZATION ANTENNA 1 IN VEHICLE INTERIOR ACCESS/START AUTHORIZATION ANTENNA 3 IN VEHICLE INTERIOR ACCESS/START AUTHORIZATION ANTENNA IN REAR BUMPER ANTENNA SPLITTER AUXILIARY HEATER ANTENNA AUXILIARY HEATER, TELEPHONE ANTENNA AUXILIARY NAVIGATION SYSTEM HEATER ANTENNA ANTENNA, TELEPHONE ANTENNA CENTRAL LOCKING, ANTI-THEFT ALARM SYSTEM ANTENNA LEFT ANTENNA MODULE NAVIGATION SYSTEM ANTENNA RADIO ANTENNA 2 RADIO ANTENNA 2 DIGITAL RADIO ANTENNA RIGHT ANTENNA MODULE W/ DIGITAL RADIO ANTENNA

A/C COMPRESSOR REGULATOR VALVE ASR/ ESP BUTTON ASR/ESP BUTTON AUTOMATIC A/C GLOW TIME COMPRESSOR CONTROL REGULATOR MODULE VALVE BACKREST ADJUSTMENT BUTTON CHILD SAFITY LOCK BUTTON CRUISE CONTROL SET BUTTON, CRUISE CONTROL SWITCH CRUISE CONTROL SWITCH, CRUISE CONTROL SET-BUTTON DAMPENING ADJUSTMENT BUTTON DAMPENING ADJUSTMENT BUTTON, INDICATOR LAMP DRIVER'S INTERIOR LOCKING BUTTON EGR POTENTI- OMETER, EGR VACUUM REGULATOR SOLENOID VALVE EMERGENCY FLASHER BUTTON FRESH AIR REGULATOR LIGHT FRONT SEAT HEATING INCLINATION CONTROL ADJUSTMENT MODULE BUTTON HEADLAMP RANGE DAMPENING CONTROL ADJUSTMENT MODULE BUTTON IMMEDIATE HEATING BUTTON INCLINATION ADJUSTMENT BUTTON MULTI-FUNCTION INDICATOR CALL-UP BUTTON PARKING AID BUTTON PUSH BUTTON ILLUMINATION BULB REAR WINDOW DEFOGGER BUTTON REAR WINDOW DEFOGGER BUTTON 7 RELEASE BUTTON REAR LID HANDLE SEAT FORE/AFT ADJUSTMENT BUTTON SEAT HEATING ADJUSTMENT BUTTON SEAT HEIGHT ADJUSTMENT BUTTON START SYSTEM BUTTON SUNROOF ADJUSTMENT REGULATOR SUNROOF BUTTON SYSTEM BUTTON TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON TIRE PRESSURE MONITOR- ING DISPLAY BUTTON TIRE PRESSURE MONITORING DISPLAY BUTTON WINDSHIELD WIPER INTERMITTENT REGULATOR

W/ REARVIEW CAMERA W/O REARVIEW CAMERA

BRIDGE CONNECTOR CONVERTER FRESH W/ SOCKET AIR BLOWER CONVERTER W/ SOCKET, DATA LINK CONNECTOR DC/AC CONVERTER SWITCH, ELECTRIC SOCKET CONTROL LAMP DIAGNOSTIC CONNECTOR EXTERIOR SOCKET EXTERNAL AUDIO SOURCE CONNECTOR W/ TRAILER SOCKET W/O TRAILER SOCKET

A/C CONTROL MODULE ABS CONTROL MODULE ACCESS/START AUTHORIZATION CONTROL MODULE AIR BAG CONTROL MODULE ALL- WHEEL DRIVE CONTROL MODULE ANTI-THEFT IMMOBILIZER CONTROL MODULE AUTHORIZATION CONTROL MODULE AUTOMATIC GLOW TIME CONTROL MODULE AUXILIARY ENGINE HEATER CONTROL CONTROL MODULE MODULE AUXILIARY HEATER CONTROL MODULE BATTERY MONI- TORING SYSTEM CONTROL MODULE BATTERY MONITORING CONTROL MODULE BRAKE ABS SYSTEM IND IND LAMP LAMP INSTRUMENT CLUSTER CONTROL MODULE CELL PHONE OPERATING ELECTRONICS CONTROL MODULE CLIMATRONIC CONTROL MODULE CONTROL MODULE COOLANT FAN CONTROL MODULE CORNERING LAMP, HEADLAMP RANGE CONTROL MODULE DISTANCE REGULATION CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER'S DOOR CONTROL MODULE ELECTRONIC DAMPING CONTROL MODULE ELECTRONIC INSTRUMENT DAMPING CLUSTER CONTROL CONTROL MODULE MODULE ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE ELECTRONIC STEERING COLUMN LOCK SYSTEM CONTROL MODULE BUTTON ELECTRONICS STEERING COLUMN CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL POWER MODULE STEERING CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE (FRONT FRONT SEAT HEATING CONTROL MODULE HEADLAMP RANGE CONTROL MODULE HEADLAMP RANGE/ CORNERING LAMP CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE W/ DISPLAY UNIT LEFT DAYTIME RUNNING LAMP, PARKING LAMP CONTROL MODULE LEFT HID HEADLAMP CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MULTI-FUNCTION STEERING WHEEL CONTROL MODULE PARKING AID CONTROL MODULE POWER STEERING CONTROL MODULE POWER SUNROOF CONTROL MODULE RADIO/ NAVIGATION DISPLAY CONTROL MODULE RADIO/NAVIGATION DISPLAY CONTROL MODULE RIGHT DAYTIME RUNNING LAMP, PARKING LAMP CONTROL MODULE RIGHT HID HEADLAMP CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE (ON STEERING STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE (ON STEERING COLUMN, STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE CIRCUIT SUNROOF MOTOR POWER SUNROOF CONTROL MODULE THROTTLE COOLANT VALVE FAN CONTROL CONTROL MODULE MODULE THROTTLE VALVE CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE WINDOW MOTOR DRIVER'S DOOR DOOR CONTROL MODULE WIPER AMPLIFIER MOTOR CONTROL MODULE WIPER MOTOR CONTROL MODULE

DRIVER DOOR CENTRAL LOCKING LOCK UNIT DRIVER'S CENTRAL LOCKING LOCK UNIT DRIVER'S DOOR CENTRAL LOCKING LOCK UNIT EXHAUST DOOR CONTROL UNIT FRONT PASSENGER'S CENTRAL LOCKING LOCK UNIT FRONT PASSENGER'S DOOR CENTRAL LOCKING LOCK UNIT LEFT REAR CENTRAL LOCKING LOCK UNIT REAR LID LOCK UNIT RIGHT REAR CENTRAL LOCKING LOCK UNIT UNIT)

FUSE 1 FUSE 1 FUSE 13 FUSE 1 FUSE 41 FUSE 9 FUSE 2 FUSE 2 OF DASH) FUSE 3 FUSE 3 FUSE 52 FUSE 4 FUSE 5 FUSE 5 FUSE 6 FUSE 5 FUSE 7 FUSE 5 FUSE 36 FUSE 6 FUSE 6 FUSE 4 FUSE 6 FUSE 5 FUSE 6 FUSE 7 FUSE 7 FUSE 7 FUSE 20 FUSE 8 FUSE 10 FUSE 10 FUSE 6 FUSE 7 FUSE 13 FUSE 23 FUSE 15 FUSE 21 FUSE 10 FUSE 11 FUSE 11 FUSE 12 FUSE 13 FUSE 13 48 FUSE 13 FUSE 15 FUSE 14 FUSE 14 FUSE 22 FUSE 24 FUSE 14 FUSE 23 FUSE 15 FUSE 16 FUSE 17 FUSE 17 FUSE 20 FUSE 18 FUSE 20 FUSE 21 FUSE 22 FUSE 22 PANEL B FUSE 23 FUSE 24 FUSE 24 FUSE 22 FUSE 25 FUSE 26 FUSE 26 FUSE 16 FUSE 26 PANEL FUSE 27 FUSE 28 FUSE 28 FUSE 47 FUSE 29 FUSE 30 FUSE 2 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 37 FUSE 30 FUSE 53 FUSE 40 FUSE 41 FUSE 41 FUSE 9 FUSE 42 FUSE 43 FUSE 54 FUSE 47 FUSE 48 FUSE 49 FUSE 18 FUSE 19 FUSE 51 FUSE FUSE FUSE FUSE 19 FUSE PANEL FUSE PANEL A FUSE PANEL B FUSE PANEL B FUSE 16 FUSE PANEL C FUSE PANEL C (LEFT SIDE FUSE PANEL C (LEFT SIDE OF HOT AT ALL TIMES FUSE HOT AT ALL TIMES FUSE FUSE 33 PANEL HOT AT ALL TIMES FUSE PANEL HOT AT ALL TIMES FUSE PANEL A FUSE 2 HOT AT ALL TIMES FUSE PANEL B FUSE 22 HOT AT ALL TIMES FUSE PANEL FUSE HOT AT ALL TIMES FUSE PANEL FUSE 22 HOT AT ALL TIMES FUSE PENAL FUSE 18

LEFT HEADLIGHT RIGHT HEADLIGHT

AUXILIARY HEATER HEATING ELEMENT AUXILIARY HEATER OPERATION DRIVER'S BACKREST HEATING ELEMENT FRONT PASSENGER BACKREST HEATING ELEMENT FRONT PASSENGER'S BACKREST HEATING ELEMENT MIRROR HEATER W/ AUXILIARY HEATER W/ AUXILIARY WATER HEATER W/O AUXILIARY HEATER W/O AUXILIARY WATER HEATER

A/C SYSTEM INDICATOR LAMP AIR BAG FRONT CONTROL PASSENGER'S MODULE AIR BAG DISABLED INDICATOR LAMP AIR BAG INDICATOR LAMP AIR BAG MALFUNCTION INDICATOR LAMP ANTI-THEFT IMMOBILIZER INDICATOR LAMP ASR/ESP INDICATOR LAMP BRAKE PAD WEAR INDICATOR LAMP BRAKE SYSTEM INDICATOR LAMP CENTRAL LOCKING SAFE INDICATOR LAMP CRUISE CONTROL INDICATOR LAMP DIESEL PARTICLE FILTER INDICATOR LAMP DIESEL PARTICULATE FILTER INDICATOR LAMP DOOR AJAR INDICATOR LAMP DRIVER'S CENTRAL LOCKING SAFE INDICATOR LAMP ELECTRO- MECHANICAL POWER STEERING INDICATOR LAMP ELECTRONIC POWER CONTROL MALFUNCTION INDICATOR LAMP ENGINE ELECTRONICS INDICATOR LAMP FRESH AIR, RECIRCULATING INDICATOR LAMP FRONT PASSENGER'S AIR BAG DISABLED INDICATOR LAMP GENERATOR INDICATOR LAMP IND GLOW PLUG INDICATOR LAMP HIGH BEAM INDICATOR HIGH BEAM INDICATOR LAMP HOOD OPEN INDICATOR LAMP LAMP FAILURE INDICATOR LEFT TURN SIGNAL INDICATOR LEFT TURN SIGNAL INDICATOR LAMP LOW FUEL LEVEL INDICATOR LAMP MULTI-FUNCTION INDICATOR MULTI-FUNCTION INDICATOR MEMORY SWITCH MULTIFUNCTION INDICATOR OIL LEVEL INDICATOR LAMP OIL PRESSURE INDICATOR LAMP PARKING BRAKE INDICATOR LAMP SWITCH PARKING LAMP INDICATOR REAR FOG LAMP INDICATOR REAR WINDOW DEFOGGER INDICATOR LAMP RIGHT TURN SIGNAL INDICATOR RIGHT TURN SIGNAL INDICATOR LAMP SAFETY BELT INDICATOR LAMP SEAT BELT INDICATOR LAMP TIRE PRESSURE MONITORING DISPLAY INDICATOR LAMP TRACTION CONTROL INDICATOR LAMP WINDSHIELD WASHER FLUID LEVEL INDICATOR LAMP ABS WARNING LAMP

ABS WARNING LAMP IND ASR/ESP WARNING IND BUZZER LAMP BRAKE PAD WEAR IND LAMP BRAKE SYSTEM WARNING LAMP BRAKE SYSTEM WARNING LAMP IND CRUISE CONTROL IND LAMP DEFOGGER SYSTEM INTERIOR LIGHTS SYSTEM DEFOGGER SYSTEM STARTING/CHARGING SYSTEM INTERIOR LIGHTS SYSTEM DOOR AJAR IND LAMP DOOR LOCKS, INTERIOR LIGHTS SYSTEMS DRIVER'S ENTRY LAMP DRIVER'S EXTERIOR REARVIEW MIRROR DRIVER'S VANITY MIRROR LAMP ELECTRONIC POWER CONTROL OIL MALFUNCTION PRESSURE IND IND LAMP LAMP EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM FOG LAMP FRESH AIR CONTROL ILLUMINATION BULB FRONT INTERIOR LAMP FRONT INTERIOR LIGHT/ DRIVER READING LAMP FRONT PASSENGER REAR VIEW MIRROR TURN SIGNAL LAMP FRONT PASSENGER'S ENTRY LAMP FRONT PASSENGER'S VANITY MIRROR LAMP GLOVE COMPARTMENT LAMP HEAD- LIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HEADLIGHTS SYSTEM INTERIOR LIGHTS SYSTEM HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH-MOUNTED BRAKE LAMP BULB HORNS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM INSTRUMENT CLUSTER REAR FOG LAMP IND INTERIOR LIGHTS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS, TRANSMISSIONS SYSTEMS LAMP FAILURE IND LEFT BACKUP LAMP/ LEFT REAR FOG LAMP LEFT BRAKE/ TAIL LAMP LEFT BRAKE/ TAIL LAMP BULB, LEFT REAR TURN SIGNAL BULB LEFT DAYTIME RUNNING LAMP, PARKING LAMP BULB LEFT DAYTIME RUNNING LAMP, PARKING LAMP LED MODULE LEFT FOOTWELL LAMP LEFT FRONT FOG LAMP BULB LEFT FRONT FOG LAMP/ CORNERING LAMP LEFT FRONT FOG LAMP/LEFT CORNERING LAMP LEFT FRONT POSITIONING LAMP LEFT FRONT TURN SIGNAL BULB LEFT FRONT TURN SIGNAL LAMP LEFT HID HEADLAMP BULB LEFT HIGH LEFT SIDE BEAM HEADLAMP BULB LEFT LOW BEAM HEADLAMP BULB LEFT PARKING LAMP, LEFT DAYTIME RUNNING LAMP LEFT REAR FOG LAMP BULB LEFT REAR TURN SIGNAL BULB LEFT REAR TURN SIGNAL LAMP LEFT SIDE MARKER LAMP LEFT STATIONARY CORNERING LAMP LEFT TAIL LAMP LEFT TAIL LAMP BULB, LEFT REAR FOG LAMP BULB LEFT TAILLAMP LEFT BRAKE/ TAIL LAMP ASSEMBLY LIGHTING CONTROL ILLUMINATION BULB LOW FUEL LEVEL IND LAMP LUGGAGE COMPARTMENT LAMP MALFUNCTION IND LAMP MARKER LAMP BULB OIL LEVEL IND LAMP OIL PRESSURE IND LAMP PARKING LAMP IND POWER DISTRIBUTION SYSTEM INTERIOR LIGHTS SYSTEM POWER DISTRIBUTION SYSTEM POWER DISTRIBUTION SYSTEM INTERIOR LIGHTS SYSTEM REAR COURTESY/ READING LIGHTS REAR FOG LAMP REAR FOG LAMP IND RIGHT BACKUP LAMP/ RIGHT REAR FOG LAMP RIGHT DAY- TIME RUNNING LAMPS, RIGHT HIGH BEAM HEADLAMP BULB RIGHT DAYTIME RUNNING LAMP, PARKING LAMP LED MODULE RIGHT DAYTIME RUNNING LAMP, RIGHT FRONT POSITIONING LAMP RIGHT FRONT FOG LAMP BULB RIGHT FRONT FOG LAMP BULB, RIGHT CORNERING LAMP RIGHT FRONT FOG LAMP/ CORNERING LAMP RIGHT FRONT FOG LAMP/RIGHT CORNERING LAMP RIGHT FRONT POSITION LAMP RIGHT FRONT POSITIONING LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT HID HEADLAMP BULB RIGHT HIGH BEAM HEADLAMP BULB RIGHT LED DAYTIME RUNNING LAMP, PARKING LAMP LED MODULE RIGHT LICENSE PLATE LAMP RIGHT LOW BEAM HEADLAMP BULB RIGHT PARKING LAMP, RIGHT DAYTIME RUNNING LAMP RIGHT REAR FOG LAMP BULB RIGHT REAR READING LAMP RIGHT REAR TURN SIGNAL LAMP RIGHT REAR TURN SIGNAL LAMP RIGHT BRAKE/ TAIL LAMP RIGHT RIGHT SIDE FRONT MARKER TURN LAMP SIGNAL BULB BULB RIGHT SIDE MARKER LAMP RIGHT SIDE MARKER LAMP BULB RIGHT STATIONARY CORNERING LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP BULB, RIGHT REAR FOG LAMP BULB RIGHT TAILLAMP ASSEMBLY RIGHT BRAKE/ TAIL LAMP SAFETY BELT WARNING LAMP TPM DISPLAY IND LAMP

ABS HYDRAULIC PUMP AFTER-RUN COOLANT PUMP FUEL PUMP 2 HALDEX CLUTCH PUMP HEADLAMP WASHER PUMP METERING PUMP RECIRCULATION PUMP WINDSHIELD, REAR WINDOW WASHER PUMP

AUXILIARY HEATER OPERATION RELAY DUAL TONE HORN RELAY FRESH AUXILIARY AIR HEATER BLOWER OPERATION RELAY RELAY FUEL PRIMER RELAY FUEL PUMP RELAY HEADLAMP WASHER RELAY HEADLIGHT WASHER RELAY HOT W/ LOAD REDUCTION RELAY ENERGIZED HOT W/ TERMINAL 15 POWER SUPPLY RELAY 2 ENERGIZED HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED HOT W/ TERMINAL 15 RELAY ENERGIZED HOT W/ TERMINAL 30 POWER SUPPLY RELAY ENERGIZED FUSE PANEL B FUSE 22 LIGHT REAR WINDOW SWITCH DEFOGGER RELAY LOAD REDUCTION RELAY POWER SUPPLY RELAY REAR LIGHT WINDOW SWITCH DEFOGGER RELAY REAR WINDOW DEFOGGER RELAY RELAY CARRIER SECONDARY AIR INJECTION PUMP RELAY STARTER RELAY 1 STARTER RELAY 2 TERMINAL 15 POWER SUPPLY RELAY 2 TERMINAL 50 POWER SUPPLY RELAY TONE DUAL HORN RELAY

AIR DISTRIBUTION DOOR MOTOR, AIR DISTRIBUTION DOOR MOTOR POSITION SENSOR AIR QUALITY SENSOR BRAKE PRESSURE SENSOR 1 BRAKE RAIN/LIGHT LAMP RECOGNITION SWITCH SENSOR CENTER VENT TEMPERATURE SENSOR CHARGE PRESSURE ACTUATOR POSITION SENSOR CLUTCH POSITION SENSOR COMPASS MAGNETIC FIELD SENSOR DEFROSTER DOOR MOTOR, POSITION SENSOR DIFFERENTIAL PRESSURE SENSOR DISTANCE DISTANCE REGULATION REGULATION CONTROL SENSOR MODULE HEATER DISTANCE REGULATION SENSOR HEATER DRIVE SHAFT 1 SPEED SENSOR DRIVE SHAFT 2 SPEED SENSOR DRIVER ACCESS/START AUTHORIZATION ANTENNA, EXTERIOR DOOR HANDLE TOUCH SENSOR DRIVER EXTERIOR DOOR HANDLE TOUCH SENSOR DRIVER HEATED BACKREST DRIVER SEAT HEATING TEMPERATURE ELEMENT SENSOR DRIVER SEAT POSITION SENSOR DRIVER THORAX AIR BAG CRASH SENSOR DRIVER'S HEATED SEAT TEMPERATURE SENSOR/HEATING ELEMENT DRIVESHAFT 1 SPEED SENSOR DRIVESHAFT 2 SPEED SENSOR DUAL COMPASS TONE MAGNETIC HORN FIELD RELAY SENSOR ENGINE COOLANT LEVEL SENSOR FRESH AIR/ RECIRCULATING AIR/ BACK PRESSURE DOOR MOTOR POSITION SENSOR FRONT AIR DISTRIBUTION DOOR MOTOR, POSITION SENSOR FRONT PASSENGER EXTERIOR DOOR HANDLE TOUCH SENSOR FRONT PASSENGER HEATED SEAT TEMPERATURE SENSOR FRONT PASSENGER'S HEATED SEAT TEMPERATURE SENSOR/HEATING ELEMENT FRONT SEAT HEATING DRIVER SEAT CONTROL TEMPERATURE MODULE SENSOR FUEL LEVEL SENSOR, TRANSFER FUEL PUMP FUEL LEVEL SENSOR, TRANSFER METERING FUEL PUMP PUMP FUEL TEMPERATURE SENSOR HIGH PRESSURE SENSOR INTERIOR MONITORING SENSOR INTERNAL PRESSURE SENSOR CYLINDER 1, GLOW PLUG 1 INTERNAL PRESSURE SENSOR CYLINDER 2, GLOW PLUG 2 INTERNAL PRESSURE SENSOR CYLINDER 3, GLOW PLUG 3 INTERNAL PRESSURE SENSOR CYLINDER 4, GLOW PLUG 4 LEFT DAYTIME RUNNING LAMP, PARKING LAMP LED MODULE, TEMPERATURE SENSOR LEFT FRONT BODY ACCELERATION SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT PARKING AID SENSOR LEFT FRONT TIRE PRESSURE MONITORING SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR PARKING AID SENSOR LEFT REAR THORAX AIR BAG CRASH SENSOR LEFT REAR TIRE PRESSURE MONITORING SENSOR LEFT SWIVEL MODULE 1 2 3 POSITION SENSOR LEFT VARIABLE HEADLAMP POSITIONING MOTOR SENSOR MAGNETIC FIELD SENSOR FOR COMPASS OIL PRESSURE/ TEMPERATURE SENSOR OVERHEAT SENSOR PARKING HIGH AID PRESSURE CONTROL SENSOR MODULE RAIN/LIGHT RECOGNITION SENSOR REAR BODY ACCELERATION SENSOR RIGHT DAYTIME RUNNING LAMP, PARKING LAMP LED MODULE, TEMPERATURE SENSOR RIGHT FRONT BODY ACCELERATION SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT LEFT FRONT LEVEL CONTROL LEVEL SENSOR CONTROL SYSTEM SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT FRONT TIRE PRESSURE MONITORING SENSOR RIGHT LED DAYTIME RUNNING LAMP, PARKING LAMP LED MODULE, TEMPERATURE SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR PARKING AID SENSOR RIGHT REAR THORAX AIR BAG CRASH SENSOR RIGHT REAR TIRE PRESSURE MONITORING SENSOR RIGHT SWIVEL MODULE POSITION SENSOR RIGHT VARIABLE HEADLAMP POSITIONING MOTOR SENSOR ROTATION REAR SENSOR SEAT OCCUPIED RECOGNITION PRESSURE SENSOR SECONDARY AIR INJECTION SENSOR 1 SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE SENSOR FOR RIGHT VARIABLE HEADLAMP POSITIONING MOTOR STEERING ANGLE SENSOR STEERING TORQUE SENSOR TEMPERATURE SENSOR TRANSFER FUEL PUMP, FUEL LEVEL SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR, TRANSMISSION INPUT/OUTPUT SPEED SENSORS TRANSVERSE ACCELERATION SENSOR VACUUM SENSOR WEAR SENSOR WINDSHIELD WASHER FLUID LEVEL SENSOR

2 DOOR W/ REAR SPEAKER 4 DOOR W/ REAR SPEAKER 4 DOOR W/ REAR SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT LEFT FRONT BASS SPEAKER TREBLE SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR BASS SPEAKER LEFT REAR TREBLE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASS SPEAKER RIGHT REAR TREBLE SPEAKER

A/C SWITCH ANTI-SLIP CONTROL SWITCH ASR SWITCH ASR/ESP SWITCH BACKUP LIGHT SWITCH BRAKE FLUID LEVEL WARNING SWITCH CENTER REAR SEAT BELT SWITCH CHILD SAFETY SWITCH CRUISE CONTROL SWITCH/ TURN SIGNAL SWITCH/ HEADLAMP DIMMER/ FLASHER SWITCH DOOR CONTACT SWITCH DRIVER DOOR CONTACT SWITCH DRIVER SEAT BELT SWITCH DRIVER SIDE REAR SEAT BELT SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH DRIVER VANITY RIGHT REAR MIRROR LAMP READING CONTACT LAMP SWITCH DRIVER'S DOOR CONTACT SWITCH DRIVER'S SAFETY BELT SWITCH DRIVER'S SEAT ADJUSTMENT SWITCH DRIVER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER'S SIDE POWER WINDOW SWITCH DRIVER'S VANITY MIRROR CONTACT SWITCH DRIVING DYNAMICS REGULATION SWITCH VALVE 1 DRIVING DYNAMICS REGULATION SWITCH VALVE 2 EGR COOLER SWITCH- OVER VALVE EMERGENCY FLASHER SWITCH ENGINE HOOD CONTACT SWITCH EXTERIOR REARVIEW MIRROR HEATER SWITCH EXTERIOR REARVIEW MIRROR HEATING SWITCH EXTERIOR REARVIEW MIRROR SWITCH EXTERIOR REARVIEW MIRROR SWITCH MIRROR ADJUSTMENT SWITCH FRESH AIR BLOWER SWITCH FRESH AIR/ RECIRCULATING DOOR SWITCH FRONT PASSENGER AIR BAG DEACTIVATION SWITCH FRONT PASSENGER SIDE REAR SEAT BELT SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH FRONT PASSENGER'S DOOR CONTACT SWITCH FRONT PASSENGER'S SAFETY BELT SWITCH FRONT PASSENGER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER'S VANITY MIRROR CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH HAND BRAKE WARNING SWITCH HAND- ANTI-SLIP BRAKE CONTROL WARNING SWITCH SWITCH HEADLAMP DIMMER/ FLASHER SWITCH HEADLAMP SWITCH ILLUMINATION BULB HEADLIGHT DIMMER/ FLASHER SWITCH HEATER/ HEAT OUTPUT SWITCH HEATER/ TRANSMISSION CONTROL HEAT OUTPUT MODULE SWITCH HEATER/HEAT OUTPUT SWITCH HIGH PRESSURE SWITCH VALVE 1 HIGH PRESSURE SWITCH VALVE 2 IGNITION SWITCH KEY LOCK SOLENOID IGNITION/STARTER SWITCH INSTRUMENT PANEL LAMP DIMMER SWITCH LEFT FRONT WINDOW SWITCH LEFT HEADLAMP POWER OUTPUT MULTIFUNCTION STAGE TRANSMISSION RANGE SWITCH LEFT HID HEADLAMP MULITI-FUNCTION CONTROL TRANSMISSION MODULE RANGE SWITCH LEFT REAR DOOR WINDOW SWITCH LEFT REAR WINDOW SWITCH LIGHT SWITCH LIGHT SWITCH 17 19 22 20 18 26 9 45 LIGHTING SWITCH LUGGAGE COMPARTMENT LIGHT SWITCH MIRROR FOLDING SWITCH MIRROR SELECTOR SWITCH MULITI-FUNCTION TRANSMISSION RANGE SWITCH MULTI- FUNCTION SWITCH MULTIFUNCTION TRANSMISSION RANGE SWITCH REAR FOG LAMP SWITCH REAR WINDOW WIPER SWITCH, WINDSHIELD, HEADLAMP WASHER PUMP SWITCH REAR WINDOW WIPER SWITCH/WINDSHIELD, HEADLAMP WASHER PUMP SWITCH RIGHT FRONT DOOR WINDOW SWITCH RIGHT FRONT WINDOW SWITCH RIGHT REAR DOOR WINDOW SWITCH RIGHT REAR WINDOW SWITCH SELECTOR LEVEL PARK POSITION SWITCH, TIPTRONIC SWITCH SELECTOR LEVER PARK POSITION LOCK SWITCH SELECTOR LIGHT LEVER SWITCH SWITCH ILLUMINATION BULB TIPTRONIC DOWNSHIFT SWITCH TIPTRONIC SWITCH TIPTRONIC UPSHIFT SWITCH TRANSMISSION HEATER/ CONTROL HEAT MODULE OUTPUT SWITCH TRANSMISSION RANGE SWITCH TURN SIGNAL SWITCH TURN SIGNAL SWITCH, HEAD LAMP DIMMER/FLASHER SWITCH TURN SIGNAL SWITCH, HEADLIGHT DIMMER/ FLASHER SWITCH TURN SIGNAL SWITCH/ HEADLAMP DIMMER/FLASHER SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH WINDSHIELD WIPER INTERMITTENT SWITCH WINDSHIELD WIPER/WASHER SWITCH

FUEL METERING VALVE HALDEX CLUTCH CONTROL VALVE HEATER COOLANT SHUT-OFF VALVE LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT DAMPENING ADJUSTMENT VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR DAMPENING ADJUSTMENT VALVE RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT FRONT DAMPENING ADJUSTMENT VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR DAMPENING ADJUSTMENT VALVE SHIFT LOCK SOLENOID SOLENOID VALVES SOLENOID VALVES TRANSMISSION

BLK RED/ WIRE BLK WIRE BLK/ VIO WIRE BLK/BLU BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/ BLK WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN BLK/ WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/VIO WIRE PNK WIRE RED WIRE RED/ BLU WIRE RED/ VIO WIRE RED/ WHT WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/ BLK WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT RED/ WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL RED/ WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.0L 2.0L 2.5L 2.0L TURBO DIESEL 2.0L TURBO DIESEL 2.5L 2.0L TURBO DIESEL 2.5L W/ DSG TRANSMISSION W/ M/T 2.0L TURBO DIESEL 2.5L, 2.0L W/ DUAL CLUTCH 2.0L W/ DSG TRANSMISSION 2.5L 2.5L 2.0L TURBO 2.5L 2.0L TURBO DIESEL 2.5L, 2.0L W/ DUAL 2.5L TURBO DIESEL 2.5L, 2.0L W/ DUAL TRANSMISSION 2.0L W/ DSG TRANSMISSION 2.5L, 2.0L DUAL CLUTCH TRANSMISSION 2.OL TURBO DIESEL 4 DOOR 28 29 COMPUTER DATA LINES SYSTEM 29 28 COMPUTER DATA LINES SYSTEM 67 68 65 24 19 43 17 83 82 11 61 81 COMPUTER DATA LINES SYSTEM (OR (OR (OR ADJUSTMENT MOTORS AIR BAG SPIRAL SPRING/ AIR CONDITIONING SYSTEM AM FREQUENCY FILTER ANTI-THEFT SYSTEM AUTHORIZATION SYSTEM AUTOMATIC A/C AUTOMATIC DAY/NIGHT INTERIOR MIRROR AUTOMATIC DAY/NIGHT MIRROR CIRCUIT AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR AUTOMATIC DIMMING INTERIOR REARVIEW MIRROR AUTOMATIC DIMMING MIRROR AUTOMATIC DIMMING MIRROR DRIVER'S EXTERIOR REARVIEW MIRROR AUTOMATIC TRANSMISSION AUTOMATIC TRANSMISSION HYDRAULIC PRESSURE SENSORS AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVES BACKUP LAMPS CIRCUIT CD CHANGER CHARGING CIRCUIT CIGARETTE LIGHTER CIGARETTE LIGHTER ILLUMINATION COMBUSTION AIR BLOWER COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM CRUISE CONTROL SYSTEM DASH) DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA LINES SYSTEM DEFOGGER IND DEFOGGER SYSTEM DIAGNOSTIC CONNECTION DIRECT SHIFT GEARBOX MECHATRONIC DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM POWER DISTRIBUTION SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS POWER DISTRIBUTION SYSTEM DRIVER EXTERIOR REARVIEW HEATED MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER KNEE AIR BAG IGNITER DRIVER SEAT BELT TENSIONER IGNITER 1 DRIVER THORAX AIR BAG IGNITER DRIVER THROAX AIR BAG IGNITER DRIVER'S AIR BAG IGNITER DRIVER'S DOOR DRIVER'S EXTERIOR REARVIEW MIRROR DRIVER'S HEAD CURTAIN AIR BAG IGNITER DRIVER'S HEATED SEAT ADJUSTER DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 DRIVER'S SIDE AIR BAG IGNITER DRIVING DYNAMICS REGULATION SW VLV 1 DRIVING DYNAMICS REGULATION SW VLV 2 DSG TRANSMISSION MECHATRONIC EARLY PRODUCTION EARLY PRODUCTION LATE PRODUCTION ENTRY LIGHT EXTERNAL MULTIMEDIA DEVICE INTERFACE EXTERNAL MULTIMEDIA DEVICE INTERFACE SHIELD FLAT CONDUCTOR FRESH AIR BLOWER FRESH AIR, RECIRCULATING AIR MODE IND LIGHT FRONT DRIVER HEAD PASSENGER CURTAIN AIR BAG HEAD IGNITER CURTAIN AIRBAG IGNITER FRONT DRIVER PASSENGER HEATED HEATED SEAT SEAT ADJUSTER ADJUSTER FRONT PARKING AID WARNING BUZZER FRONT PASSENGER AIR BAG IGNITER 1 FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER REAR VIEW MIRROR FRONT PASSENGER SEAT BELT TENSIONER IGNITER 1 FRONT PASSENGER THORAX AIR BAG IGNITER FRONT PASSENGER THROAX AIR BAG IGNITER FRONT PASSENGER'S AIR BAG IGNITER FRONT PASSENGER'S EXTERIOR REARVIEW MIRROR FRONT PASSENGER'S HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER'S HEATED SEAT ADJUSTER FRONT PASSENGER'S READING FRONT PASSENGER'S SIDE AIR BAG IGNITER FUEL GAUGE GEAR POSITION DISTANCE SENSORS GLOVE COMPARTMENT LIGHT HEADLIGHTS SYSTEM HEATED REAR WINDOW HIGH MOUNT BRAKE LIGHT HORNS SYSTEM HOT AT ALL TIMES IGNITER IGNITER INSTRUMENT CLUSTER INSTRUMENT CLUSTER MODULE INSTRUMENT CLUSTER SYSTEM LATE PRODUC- TION EARLY LATE PRODUCTION LEFT FOOTWELL LIGHT LEFT FRONT BRAKE PAD LEFT FRONT POSITION LEFT HEADLAMP POWER OUTPUT STAGE LEFT HID HEADLAMP LEFT HIGH BEAM HEADLAMP LEFT LICENSE PLATE LEFT LICENSE PLATE LIGHT RIGHT LICENSE PLATE LIGHT LEFT LOW BEAM HEADLAMP LEFT MULTI-FUNCTION BUTTONS LEFT REAR READING LIGHT LEFT TAILLAMP ASSEMBLY LINES SYSTEM COMPUTER DATA LUGGAGE COMPARTMENT LIGHT M/T A/T MANUAL A/C MANUAL A/C CIRCUIT MIL IND MIRRORS SYSTEM MULTI-FUNCTION IND MULTI-FUNCTION STEERING WHEEL NOT USED NOT USED ODOMETER DISPLAY PASSENGER EXTERIOR REARVIEW HEATED MIRROR PASSENGER'S DOOR POWER DISTRIBUTION SYSTEM POWER DISTRIBUTION, DOOR LOCKS, ANTI-THEFT SYSTEMS POWER TOPS SYSTEM PRODUC- TION REAR INTERIOR LIGHT REAR PARKING AID WARNING BUZZER REAR WINDOW DEFOGGER RIGHT FOOTWELL LIGHT RIGHT FRONT ABS WHEEL RIGHT HEADLAMP ASSEMBLY RIGHT HEADLAMP POWER OUTPUT STAGE RIGHT HID HEADLAMP RIGHT HIGH BEAM HEADLAMP RIGHT LICENSE PLATE RIGHT LOW BEAM HEADLAMP RIGHT MULTI-FUNCTION BUTTONS RIGHT REAR READING LIGHT RIGHT TAILLAMP ASSEMBLY SEATS SYSTEM SELECTOR LEVER SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS SOLID STATE SPIRAL SPRING STARTING/CHARGING SYSTEM STEERING COLUMN) SUNROOF ILL SUPPLEMENTAL RESTRAINTS SUPPLEMENTAL RESTRAINTS SYSTEM TEMP SELECTOR KNOB POTENTIOMETER TIPTRONIC DOWNSHIFT TO SPARK PLUG TRANSMI- SSIONS SYSTEM TRANSMISSION 2.0L W/ DSG TRANSMISSION TRANSMISSION RANGE DISPLAY TRANSMISSION SYSTEM TURN SIGNAL BULBS VEHICLE ELECTRICAL SYSTEM CONTROL VOLTAGE STABILIZER W/ A/C SYSTEM, W/ ACCESS/ W/ DRIVING ASSISTANCE W/O DRIVING ASSISTANCE W/ DSG TRANSMISSION W/ M/T W/ DSG TRANSMISSION W/O DSG TRANSMISSION W/ ESP W/ FOG LAMPS W/ FRONT POWER WINDOWS W/ HEATED SEATS W/O HEATED SEATS W/ HID W/ MULTI-FUNCTION STEERING WHEEL CONTROLS W/ MULTIFUCTION W/ NAVIGATION W/ PARK DISTANCE CONTROL W/ POWER OUTPUT STAGE W/ POWER SEATS W/O POWER SEATS W/ REAR POWER WINDOWS W/ REAR SIDE AIR BAGS W/O REAR SIDE AIR BAGS W/ START/ STOP SYSTEM W/ START/STOP SYSTEM W/ START/STOP SYSTEM W/O START/STOP SYSTEM W/ STOP/ START SYSTEM W/ STOP/START SYSTEM W/O STOP/START SYSTEM W/ W/O HID HID W/O ACCESS/ W/O AUTOMATIC MIRROR ADJUSTMENT W/ AUTOMATIC MIRROR ADJUSTMENT W/O ESP W/O HID W/O HID W/ HID W/O HIGH BEAM ASSIST W/ HIGH BEAM ASSIST W/O MULTI-FUNCTION STEERING WHEEL CONTROLS W/O MULTIFUCTION W/O NAVIGATION W/O PARK DISTANCE CONTROL W/O START/STOP SYSTEM W/O START/STOP SYSTEM W/ START/STOP SYSTEM W/O STOP/ START SYSTEM WARNING BUZZER WARNING BUZZER, TONE WINDSHIELD WASHER FLUID LEVEL IND WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM HORNS SYSTEM
