Wiring Diagrams for Volkswagen Bora III (2012-2018)

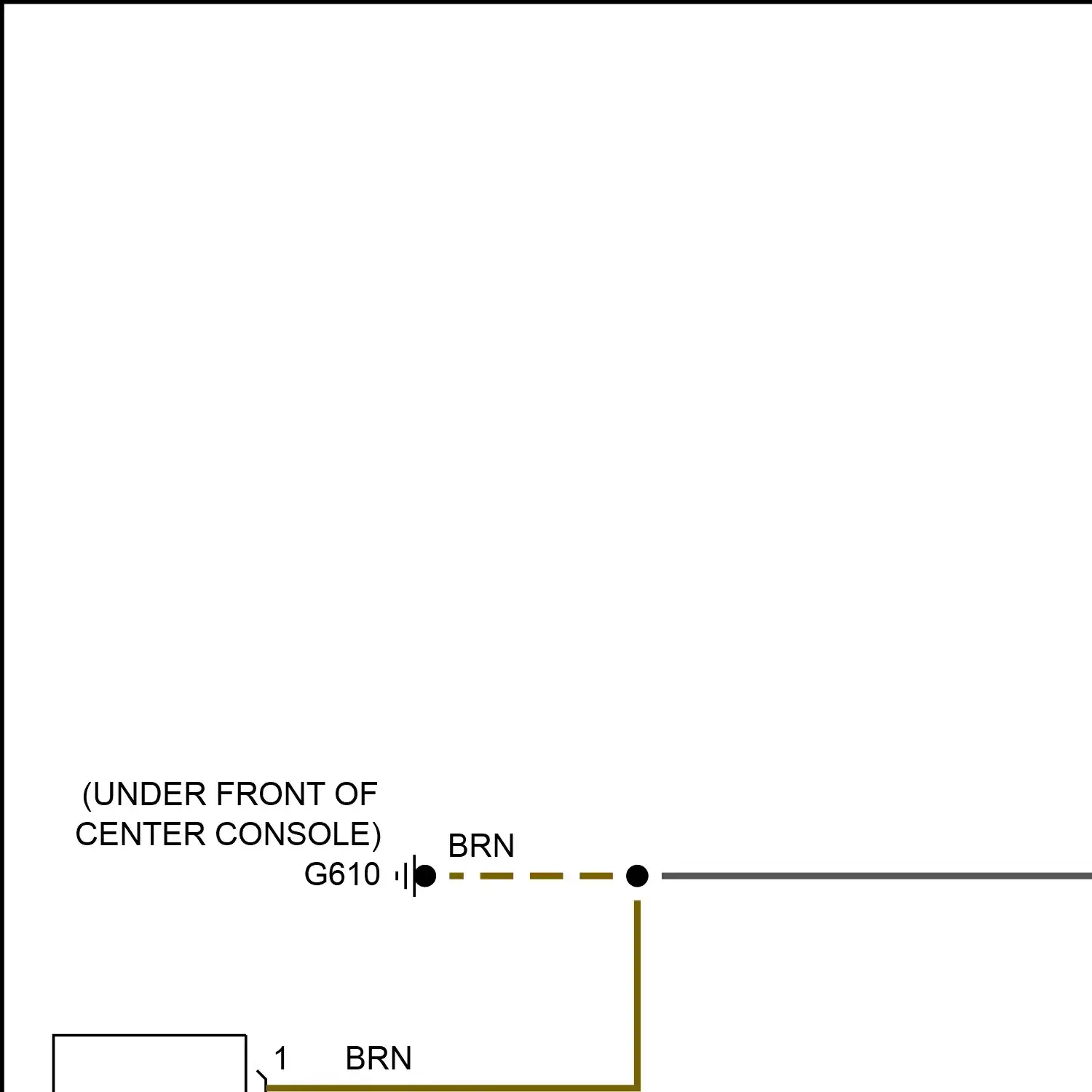

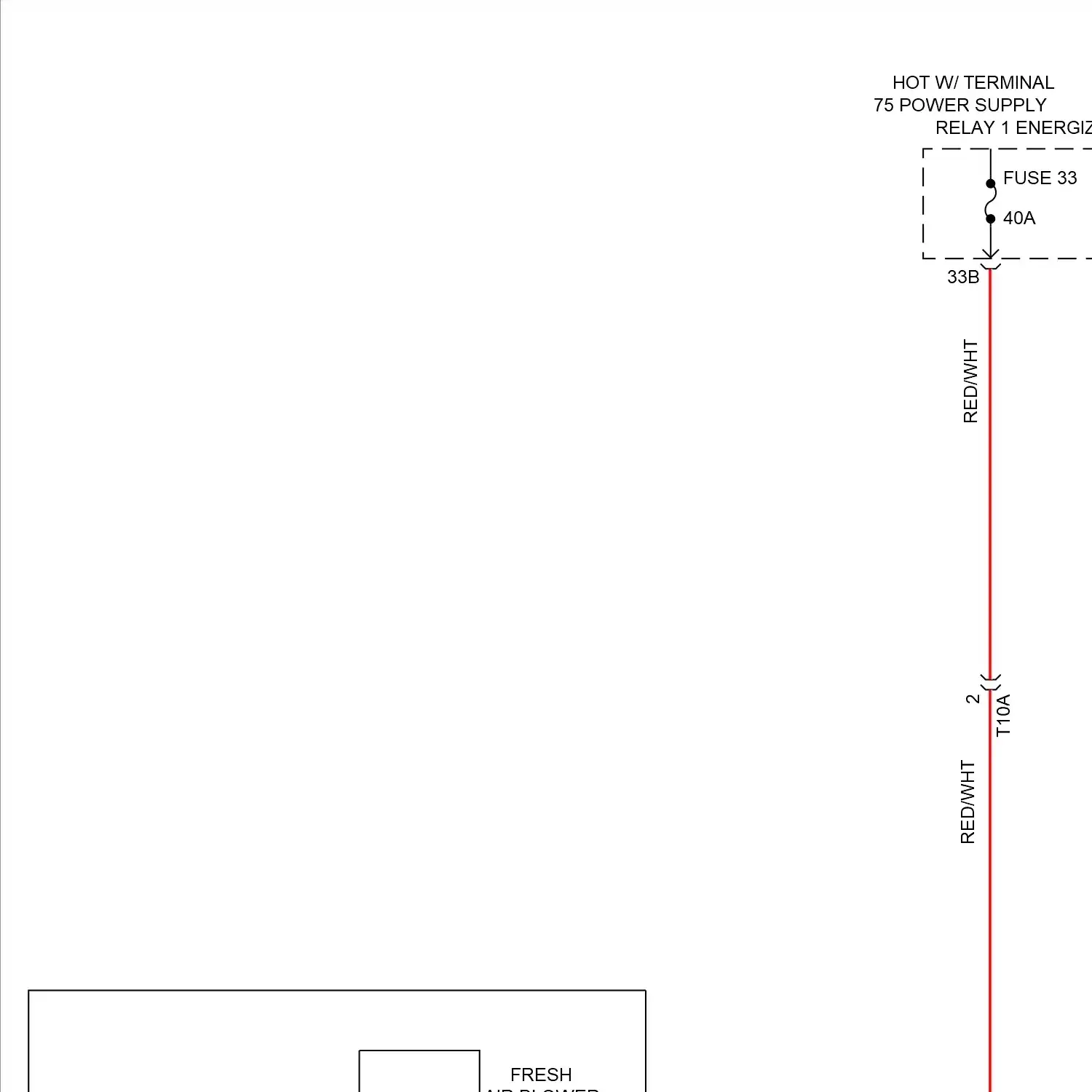

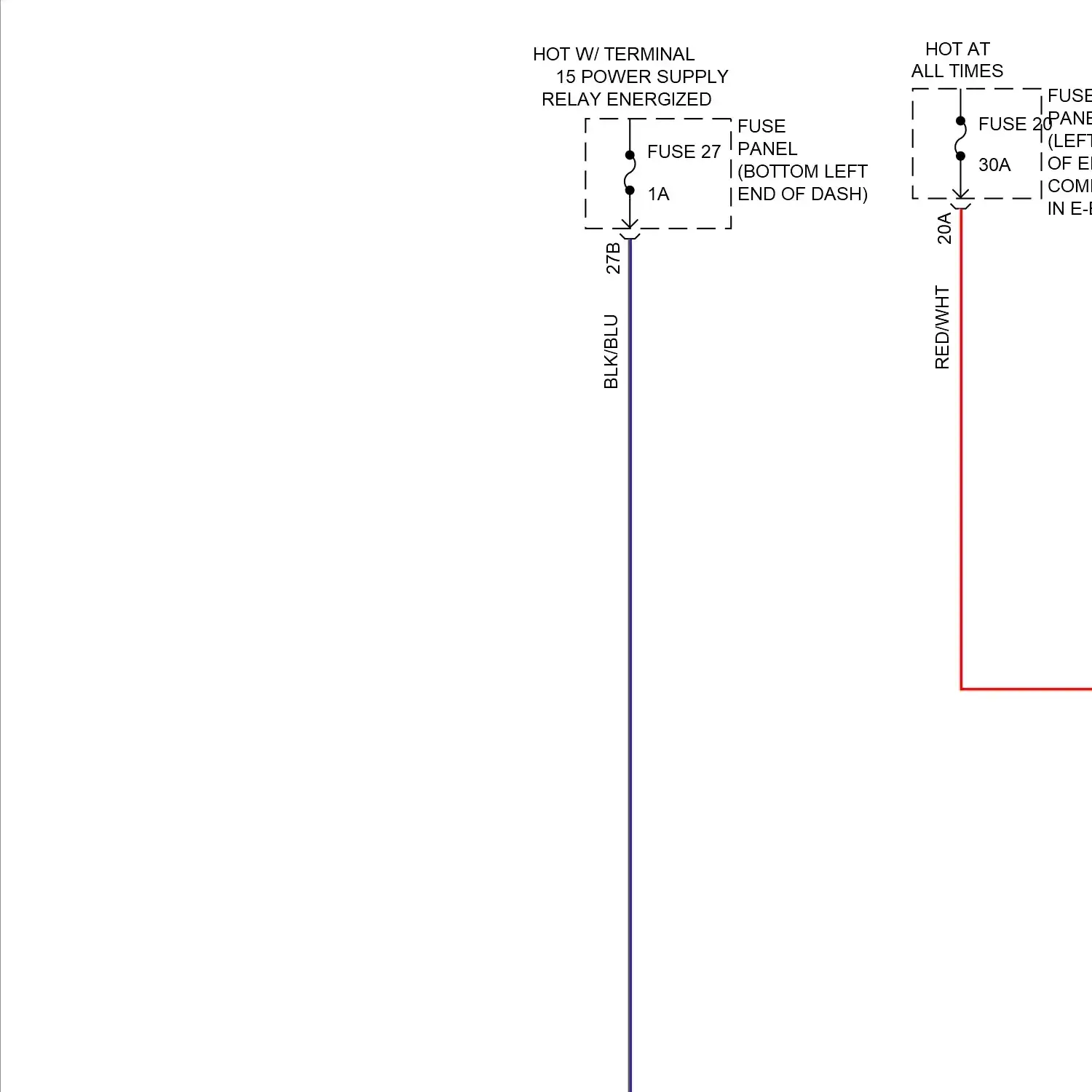

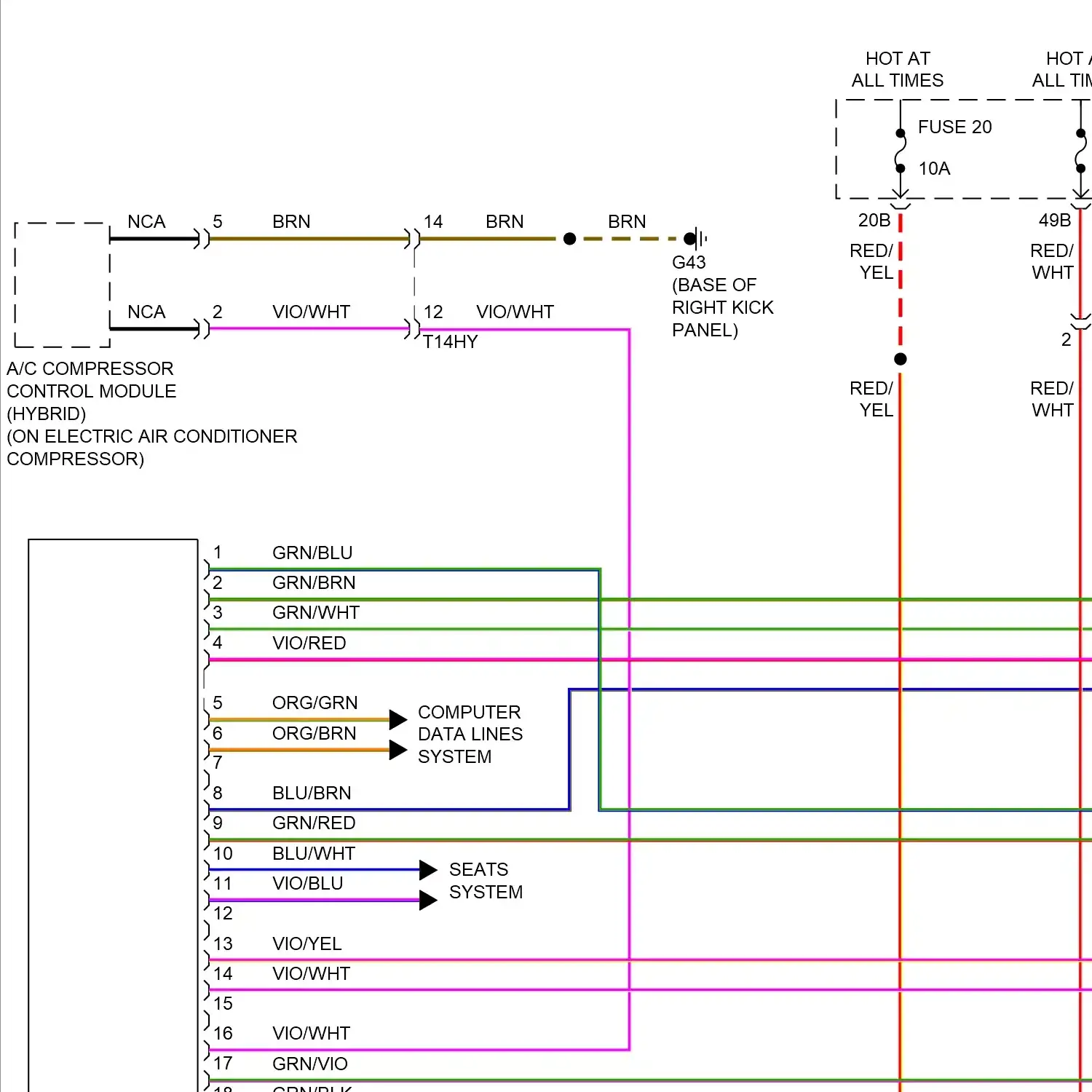

Automatic a/c circuit, w/ climatronic Automatic a/c circuit, w/o climatronic Heater circuit Manual a/c circuit

Anti-lock brakes circuit, w/ esp Anti-lock brakes circuit, w/o esp

Access/start circuit, w/ high equipment Access/start circuit, w/ low equipment Forced entry circuit, w/ high equipment Forced entry circuit, w/ low equipment

Steering column electronic systems control module circuit Vehicle electrical system control module circuit, w/ high equipment Vehicle electrical system control module circuit, w/ low equipment

Computer data lines circuit, w/ high equipment Computer data lines circuit, w/ low equipment

Cooling fan circuit

1.4l turbo hybrid, cruise control circuit

1.8l turbo, cruise control circuit

2.0l, cruise control circuit

2.0l turbo, cruise control circuit

2.0l turbo diesel, cruise control circuit

Defoggers circuit, w/ high equipment Defoggers circuit, w/ low equipment

Electronic power steering circuit

Wiring diagram engine performance 1.4l turbo hybrid

Wiring diagram engine performance 1.8l turbo

Wiring diagram engine performance 2.0l

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.0l turbo diesel

Backup lamps circuit, w/ high equipment Backup lamps circuit, w/ low equipment Exterior lamps circuit, w/ high equipment Exterior lamps circuit, w/ low equipment

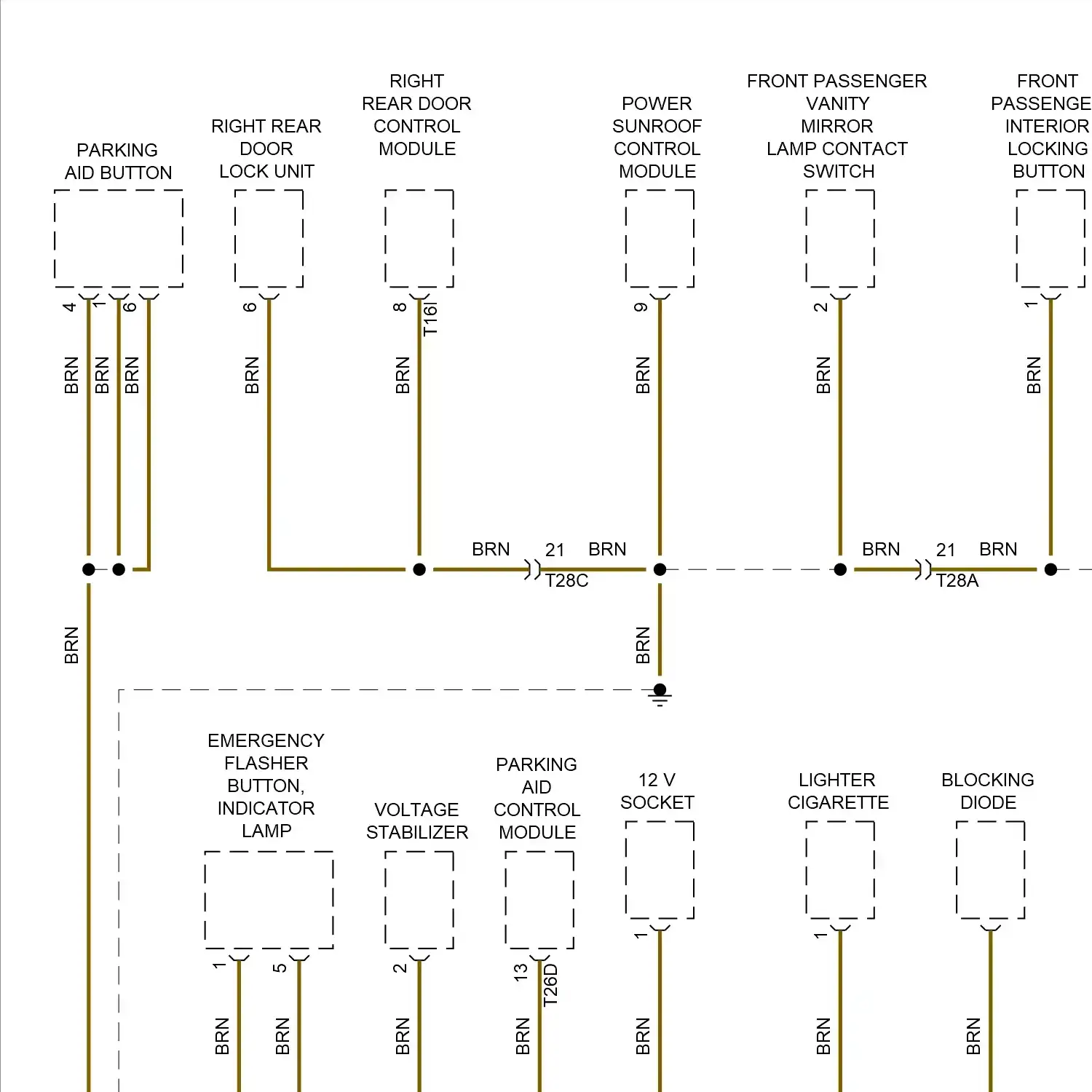

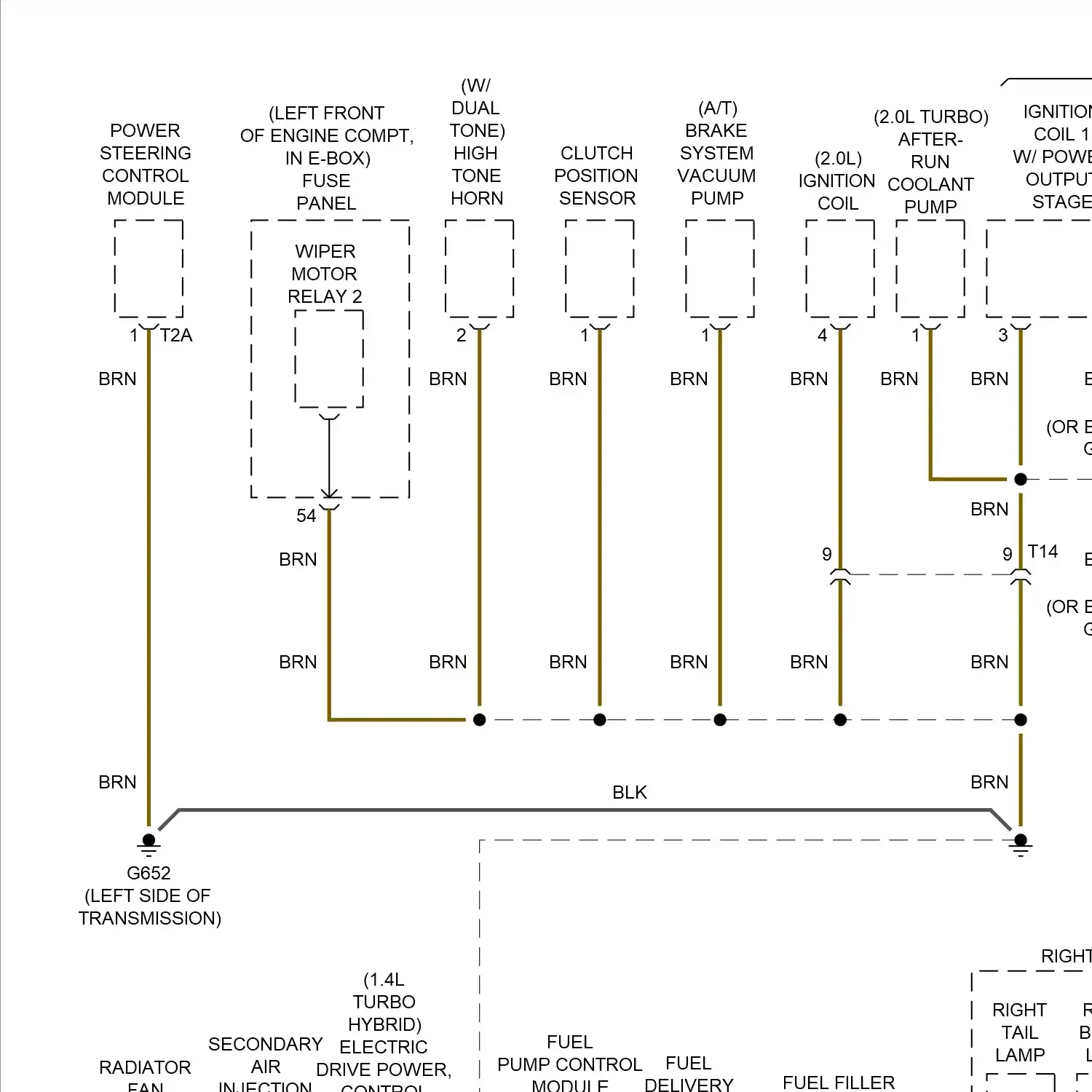

Ground distribution circuit, w/ high equipment Ground distribution circuit, w/ low equipment

Headlights circuit, w/ hid headlamps w/ high equipment Headlights circuit, w/ hid headlamps w/ low equipment Headlights circuit, w/o hid headlamps w/ high equipment Headlights circuit, w/o hid headlamps w/ low equipment

Horn circuit, w/ high equipment Horn circuit, w/ low equipment

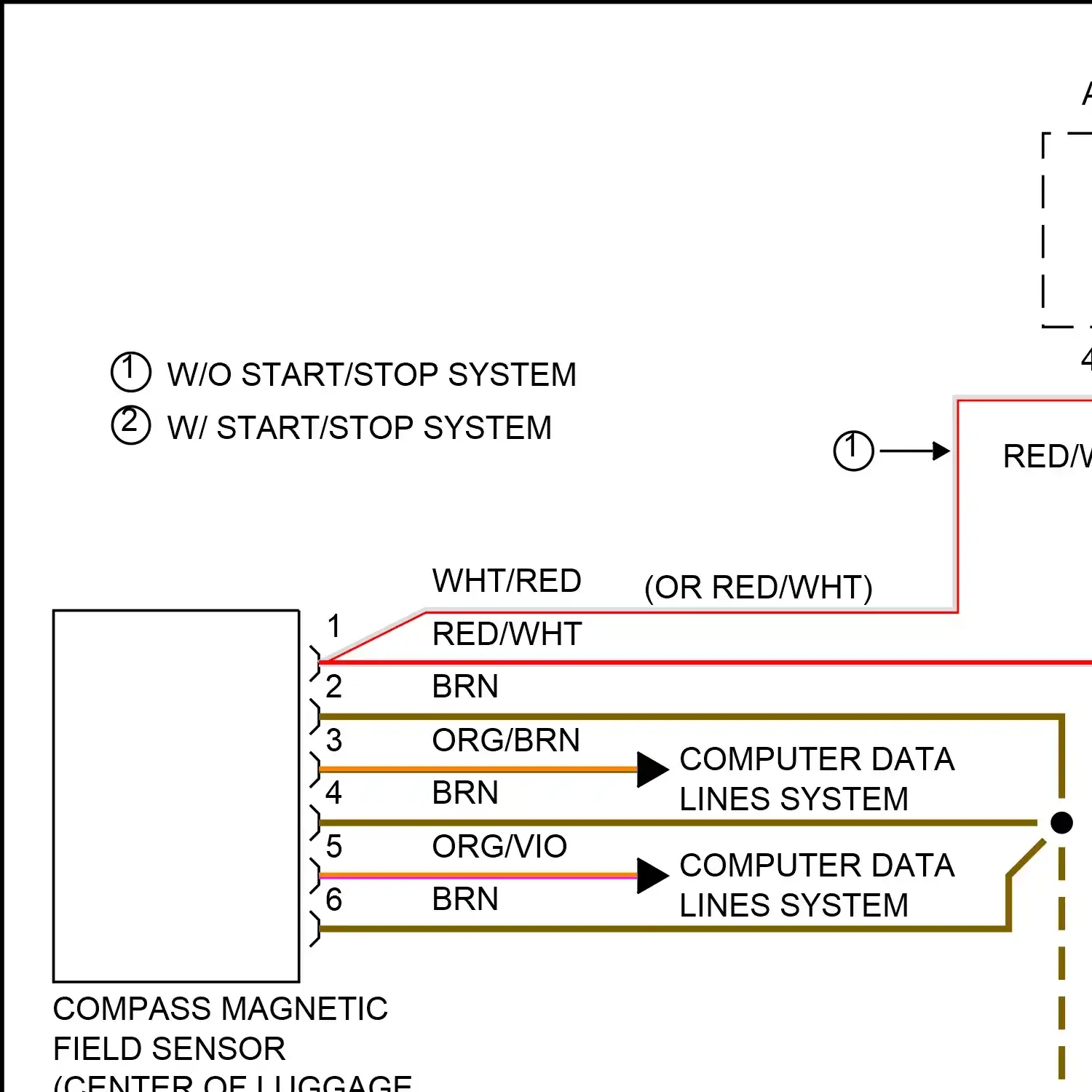

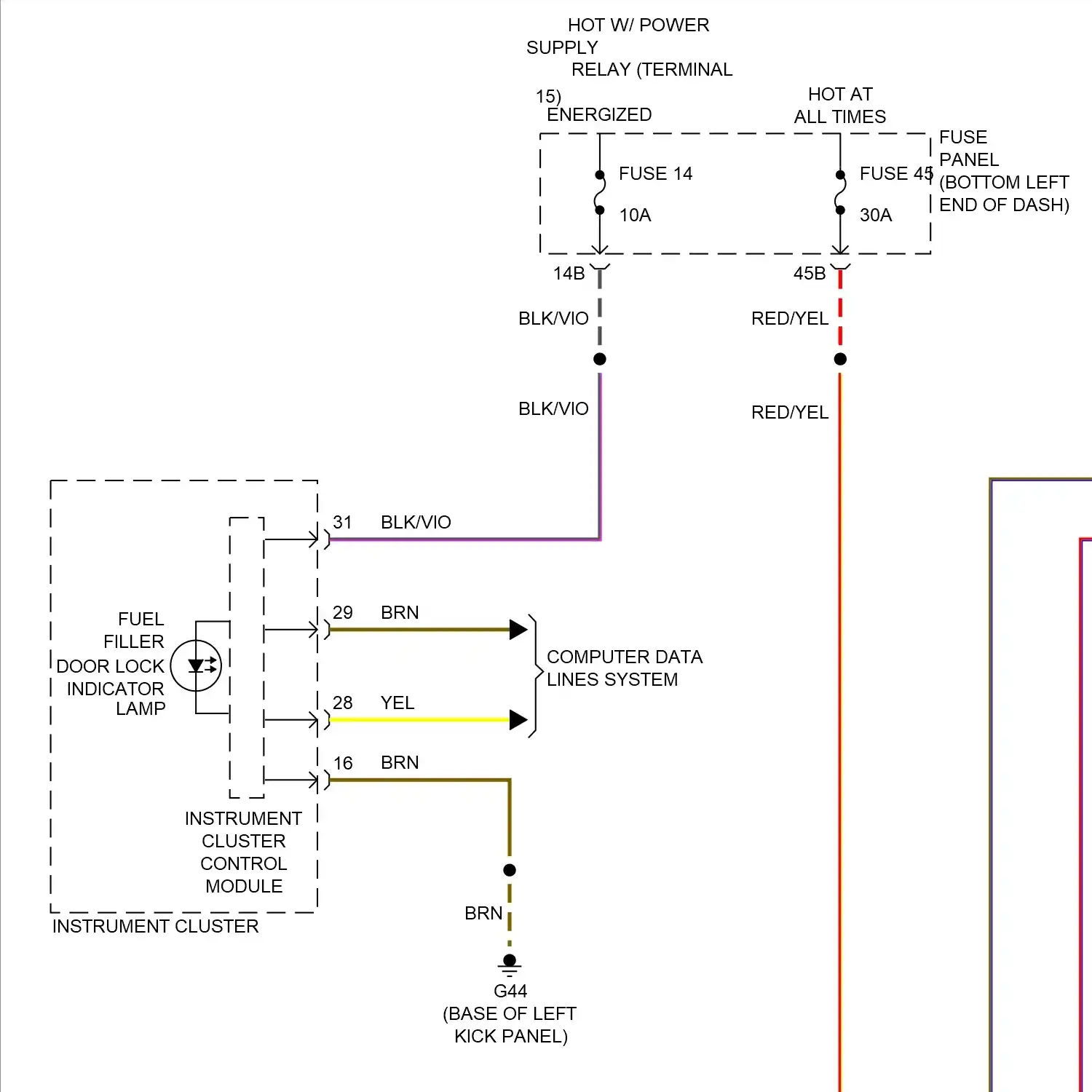

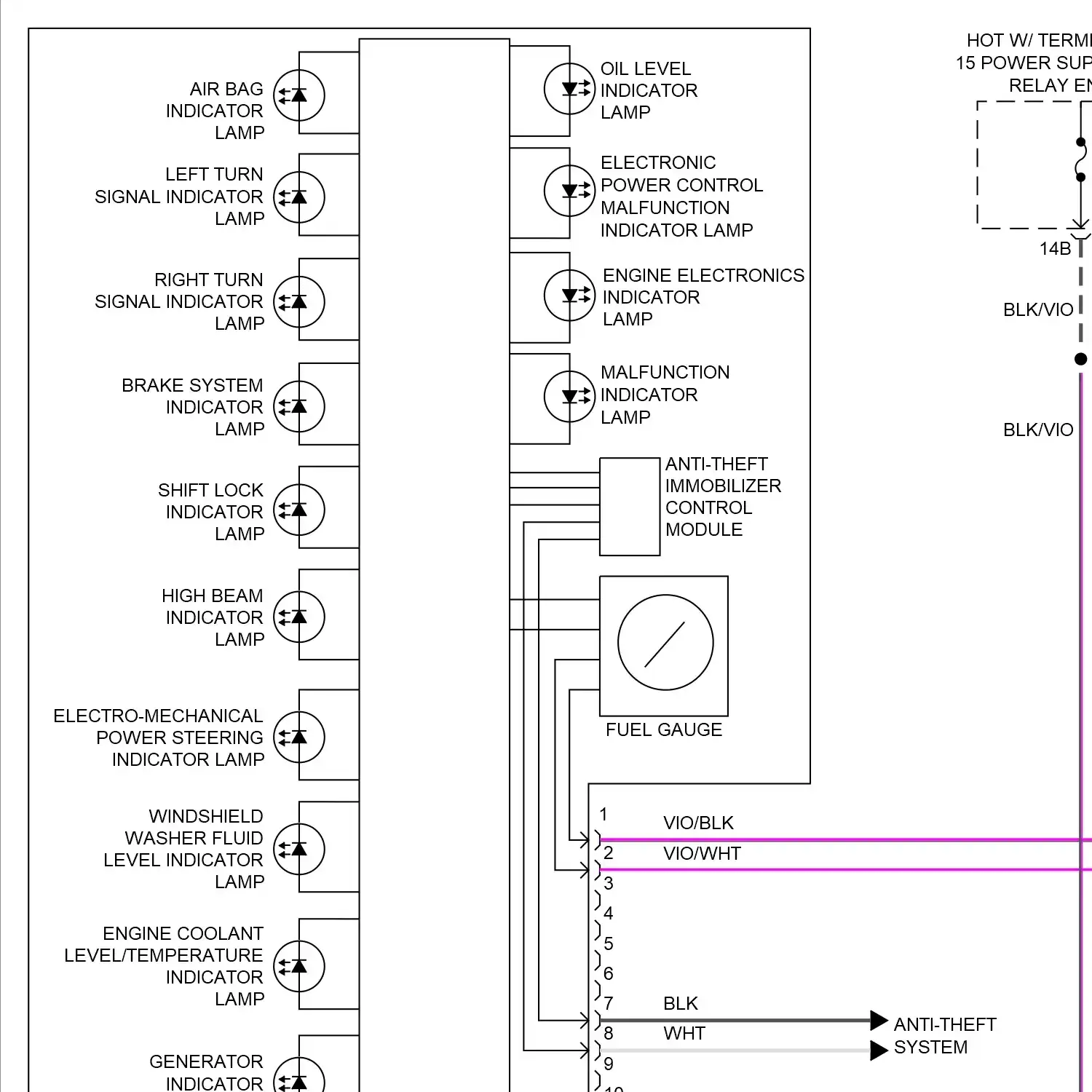

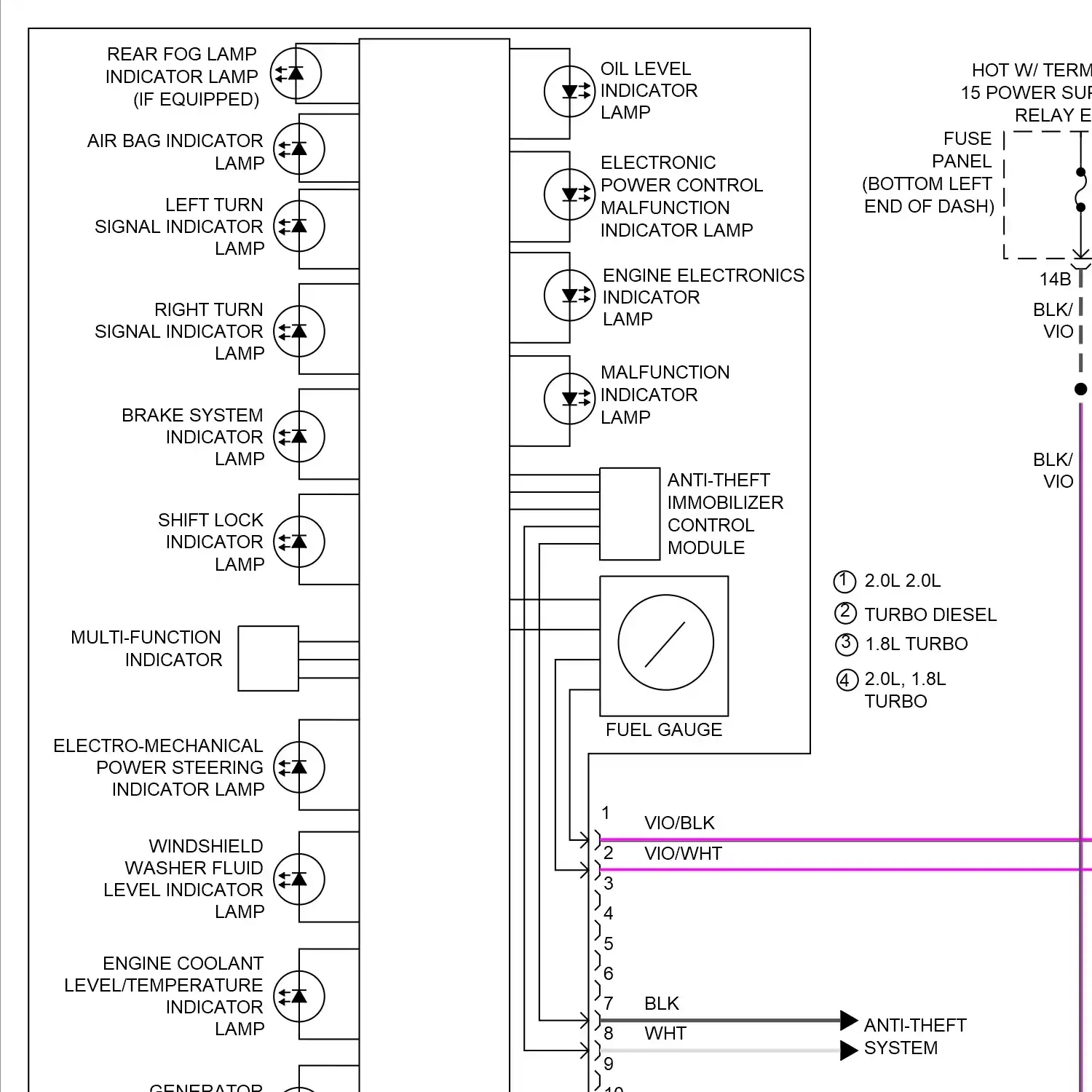

Electronic compass circuit Instrument cluster circuit, w/ high equipment Instrument cluster circuit, w/ low equipment

Courtesy lamps circuit, w/ high equipment Courtesy lamps circuit, w/ low equipment Instrument illumination circuit, w/ high equipment Instrument illumination circuit, w/ low equipment

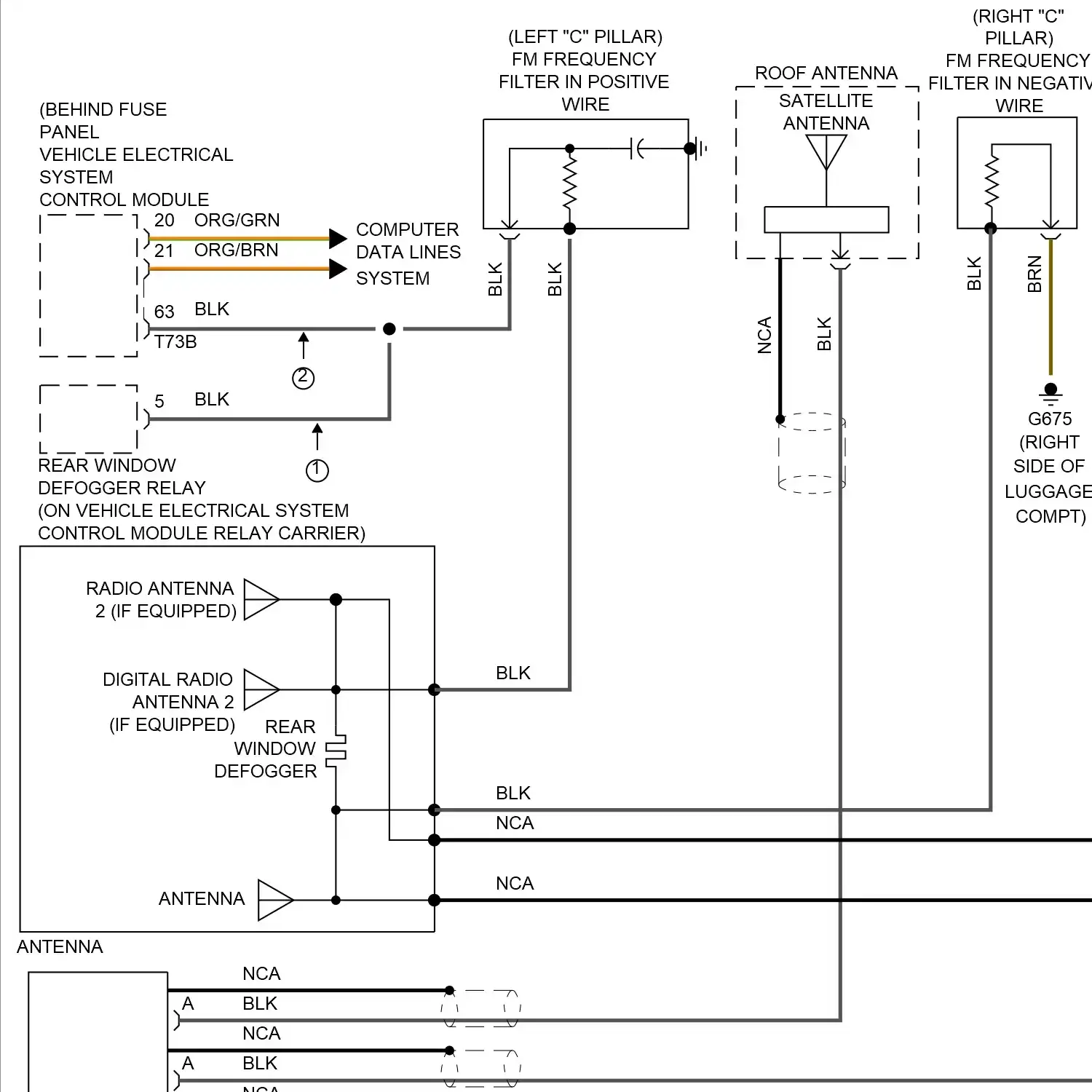

Blind spot monitoring circuit Emergency call circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Parking assistant circuit Rear view camera circuit

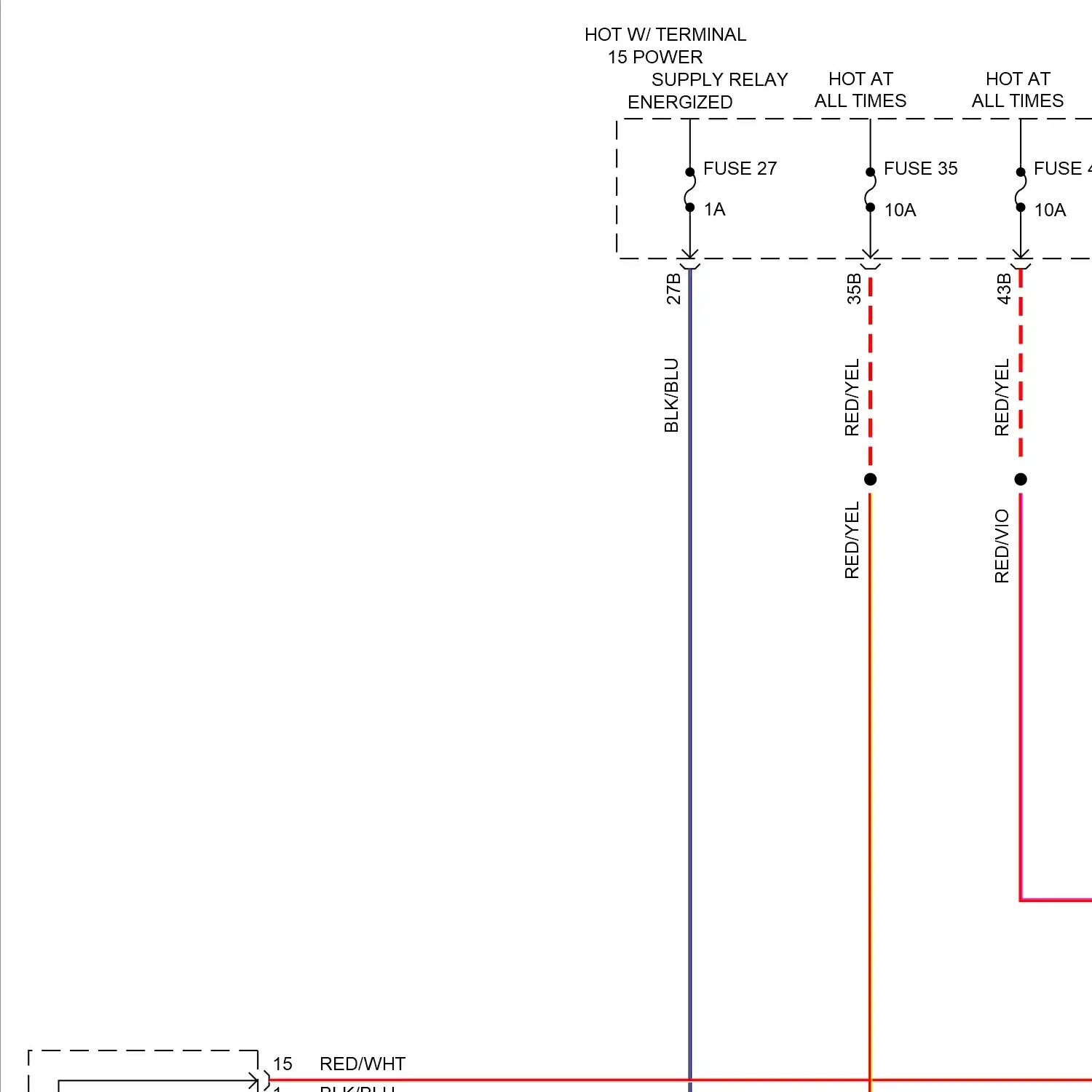

Power distribution circuit, w/ high equipment Power distribution circuit, w/ low equipment

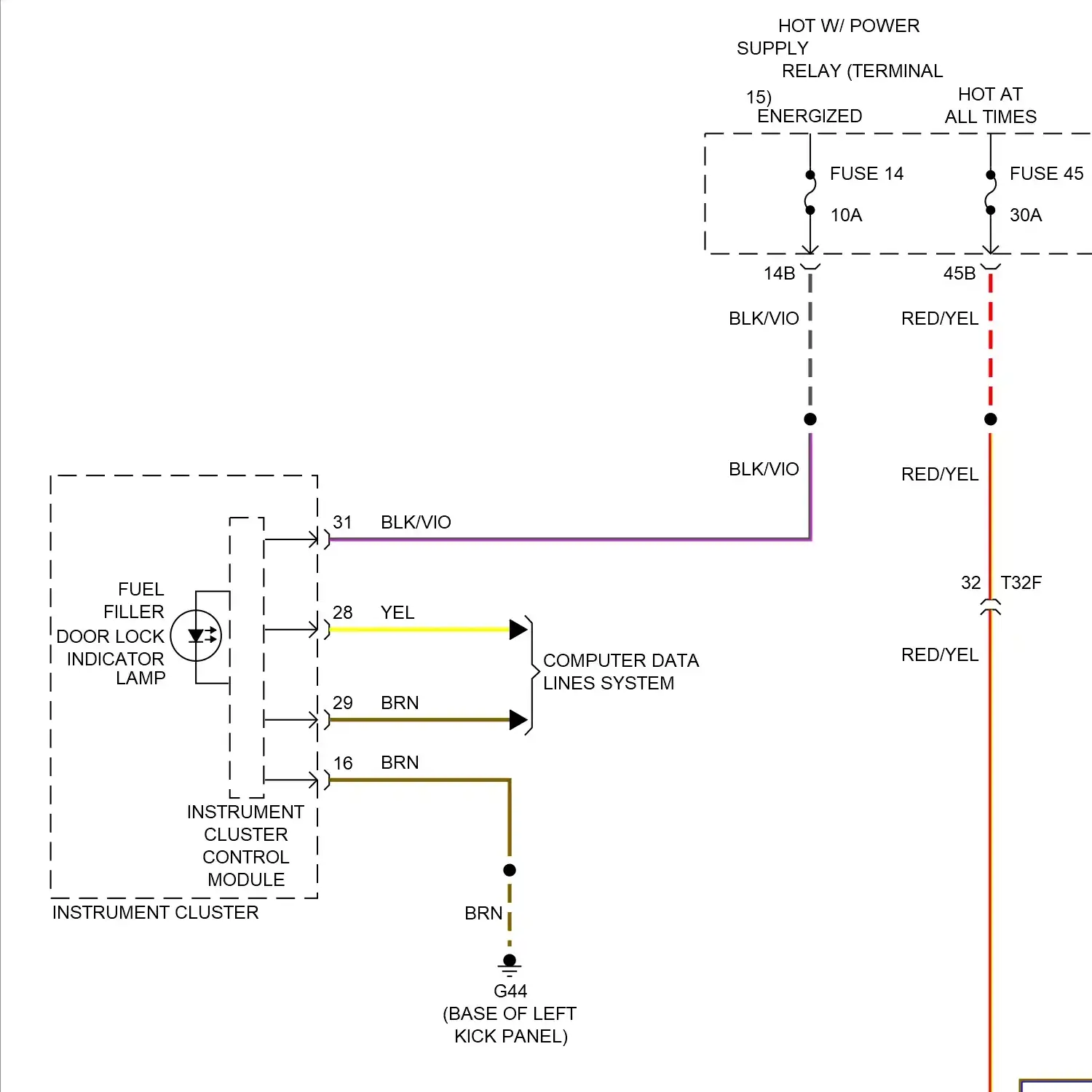

Power door locks circuit, w/ high equipment Power door locks circuit, w/ low equipment

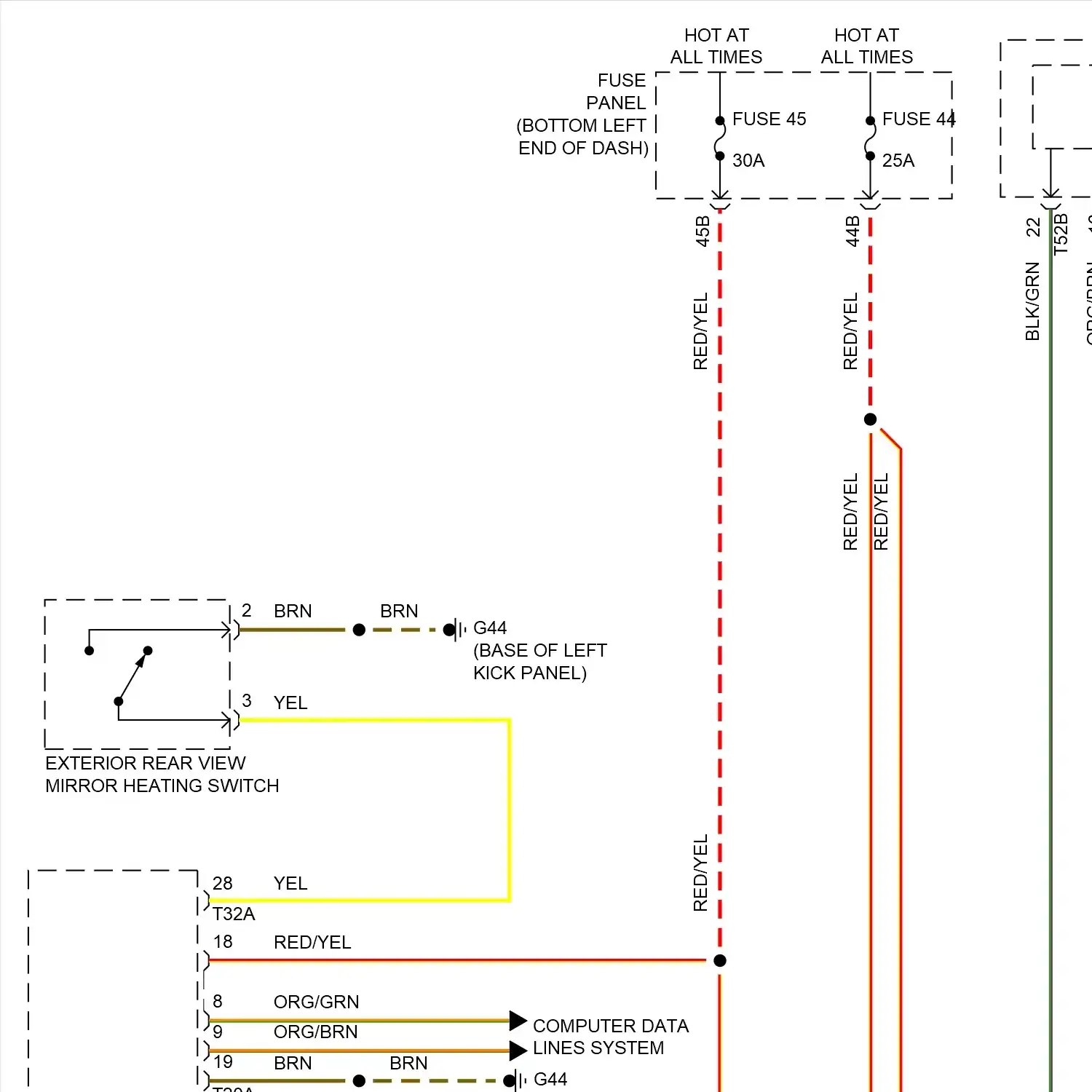

Automatic day/night mirror circuit, w/ high equipment & humidity sensor w/o high beam assist Automatic day/night mirror circuit, w/ low equipment & humidity sensor w/o high beam assist Automatic day/night mirror circuit, w/o humidity sensor w/ high beam assist Power mirrors circuit, w/ high equipment Power mirrors circuit, w/ low equipment

Heated seats circuit Lumbar circuit Power seats circuit

Power top/sunroof circuit

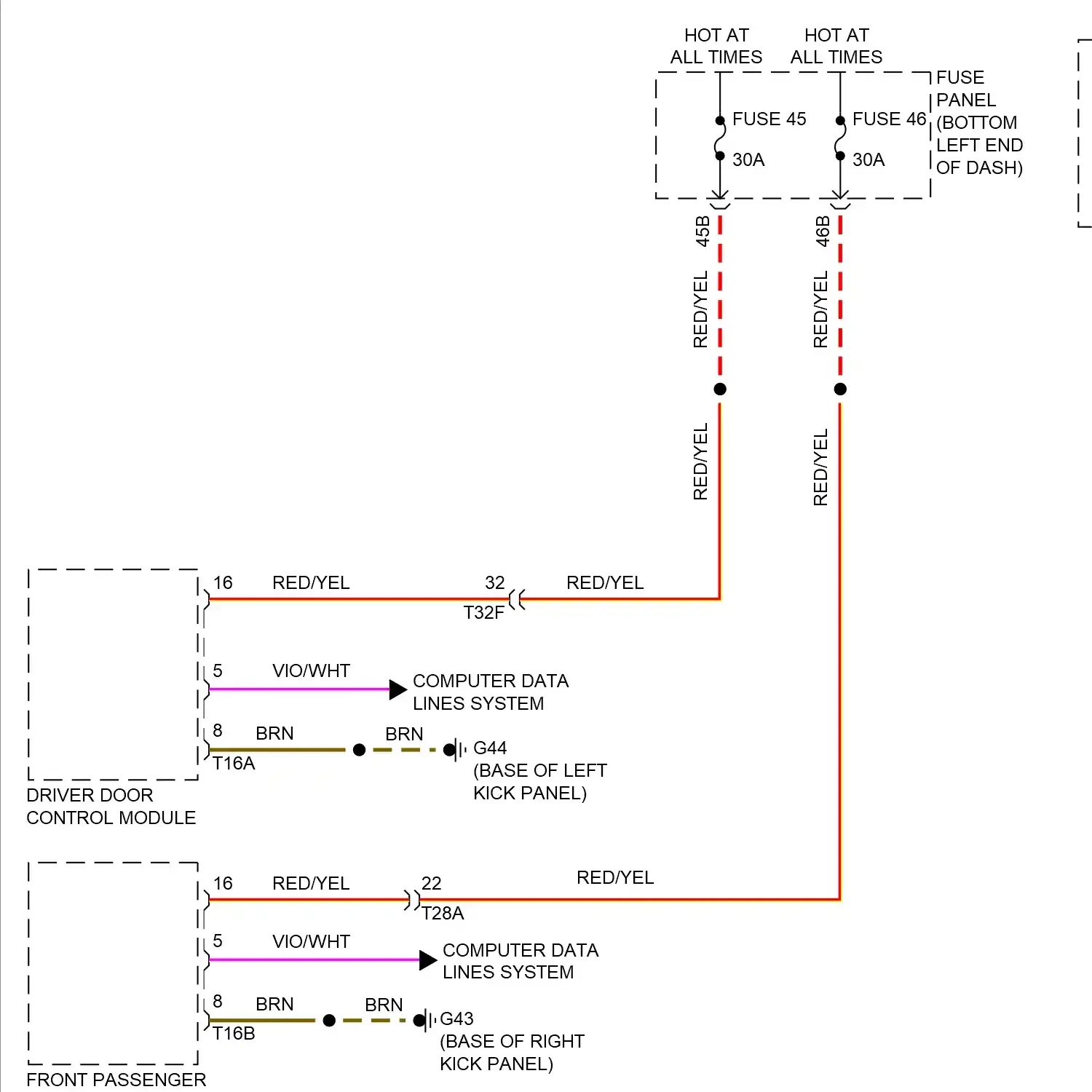

Power windows circuit, w/ high equipment Power windows circuit, w/ low equipment

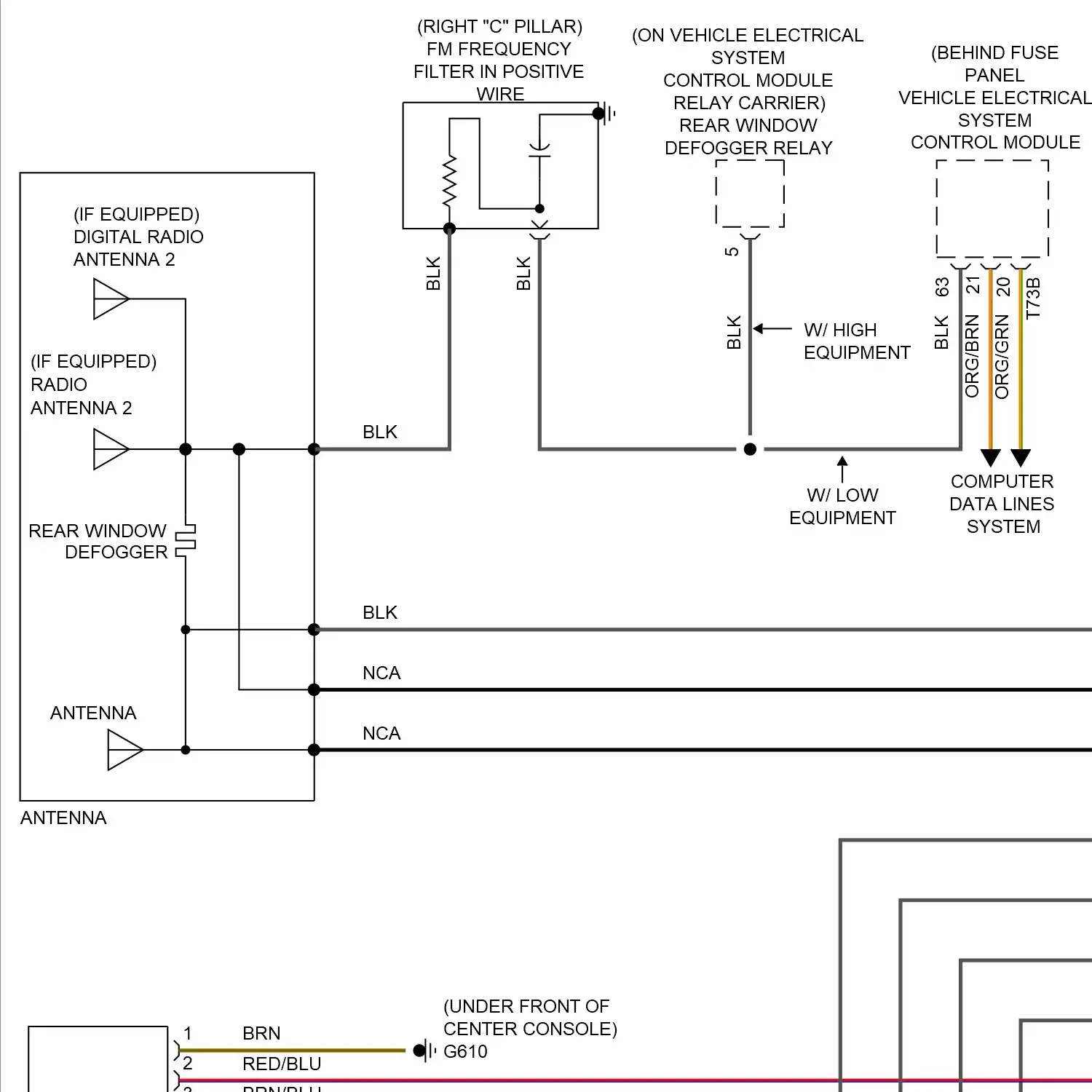

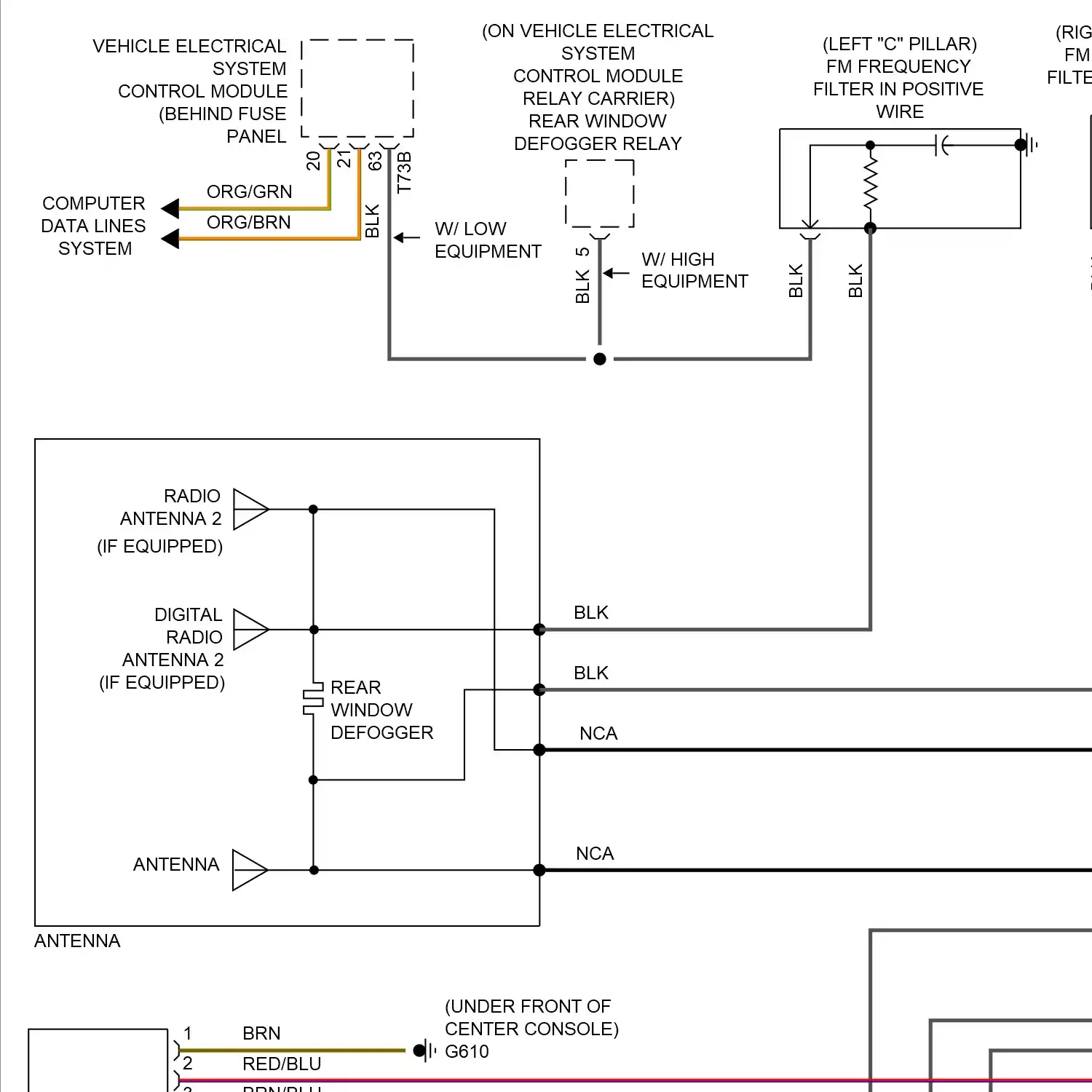

Multimedia interface circuit Radio circuit, w/ navigation & amplifier Radio circuit, w/ navigation w/o amplifier Radio circuit, w/o navigation & amplifier Radio circuit, w/o navigation w/ amplifier

1.8l turbo, shift interlock circuit, w/o direct shift

2.0l, shift interlock circuit, w/o direct shift

1.8l turbo, charging circuit 1.8l turbo, starting circuit

2.0l, charging circuit 2.0l, starting circuit

2.0l turbo, charging circuit 2.0l turbo, starting circuit

2.0l turbo diesel, charging circuit 2.0l turbo diesel, starting circuit

Supplemental restraints circuit

1.4l turbo hybrid, direct shift a/t circuit

1.8l turbo, a/t circuit

2.0l, a/t circuit

2.0l turbo, direct shift a/t circuit

2.0l turbo diesel, direct shift a/t circuit

Trunk & fuel door release circuit, w/ high equipment Trunk & fuel door release circuit, w/ low equipment

Buzzer circuit, w/ high equipment Buzzer circuit, w/ low equipment Tire pressure monitoring circuit

Headlamp washer circuit Wiper/washer circuit, w/ high equipment Wiper/washer circuit, w/ low equipment

ALARM SYSTEM HORN ANTI-LOCK BRAKES SYSTEM ANTI-THEFT IMMOBILIZER READER COIL BATTERY FAN 1 BLOCKING DIODE EXTERIOR LIGHTS, ANTI-LOCK BRAKES SYSTEMS GENERATOR IND LAMP HIGH TONE HORN HORN SIGNAL ACTIVATION HORN SYSTEM IGNITION COIL IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE LEFT WASHER NOZZLE HEATER LOW TONE HORN RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION TELEPHONE TRANSCEIVER W/ LOCK & START SYSTEM, "KEYLESS ACCESS"

(LOWER LEFT REAR OF ENGINE COMPT, (RIGHT FRONT OF ENGINE ADJUSTMENT MOTOR AUXILIARY ENGINE COOLANT HEATER RADIO FREQUENCY RECEIVER CENTRAL LOCKING LOCK MOTOR CENTRAL LOCKING SYSTEM MOTOR CHARGE AIR PRESSURE ACTUATOR CHARGE PRESSURE ACTUATOR DECOUPLER PRESSURE ACTUATOR DRIVER BACKREST ADJUSTMENT MOTOR DRIVER EXTERIOR REAR VIEW MIRROR FOLDING MOTOR DRIVER MIRROR ADJUSTMENT MOTOR DRIVER MIRROR ADJUSTMENT MOTOR 2 DRIVER SEAT ANGLE ADJUSTMENT MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR EGR VALVE 1/EGR MOTOR, EGR POTENTIOMETER ELECTRO- MECHANICAL POWER STEERING MOTOR ENGINE CONTROLS SYSTEM ENGINE COOLANT CIRCULATION PUMP 2 ENGINE COOLANT LEVEL/ TEMPERATURE IND LAMP ENGINE COOLANT TEMPERATURE GAUGE FRONT PASSENGER BACKREST ADJUSTMENT MOTOR FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FOLDING MOTOR FRONT PASSENGER MIRROR ADJUSTMENT MOTOR FRONT PASSENGER SIDE MIRROR ADJUSTMENT MOTOR 2 FUEL FILLER DOOR UNLOCK MOTOR HYDRAULIC PUMP MOTOR LEFT ADAPTIVE CORNERING LAMP MOTOR LEFT LOW BEAM HEADLAMP REFLECTOR MOTOR LEFT TEMPERATURE CONTROL DOOR MOTOR LEFT VARIABLE HEADLAMP POSITIONING MOTOR RADIATOR SHUTTER MOTOR REAR LID OPENING MOTOR RECIRCULATION DOOR MOTOR RIGHT ADAPTIVE CORNERING LAMP MOTOR RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR RIGHT LOW BEAM HEADLAMP REFLECTOR MOTOR RIGHT TEMPERATURE DOOR MOTOR/ RIGHT TEMPERATURE DOOR POTENTIOMETER/ ACTUATOR RIGHT VARIABLE HEADLAMP POSITIONING MOTOR SECONDARY AIR INJECTION PUMP MOTOR STEERING COLUMN LOCK ACTUATOR SUNROOF MOTOR WINDSHIELD WIPER MOTOR

ANTENNA ASSEMBLY DIGITAL RADIO ANTENNA DIGITAL RADIO ANTENNA 2 GPS ANTENNA LEFT ANTENNA MODULE LUGGAGE COMPARTMENT ACCESS/START SYSTEM ANTENNA RADIO ANTENNA 2 REAR BUMPER ACCESS/START SYSTEM ANTENNA RIGHT ANTENNA MODULE ROOF ANTENNA SATELLITE ANTENNA TELEPHONE ANTENNA VEHICLE INTERIOR ACCESS/ START SYSTEM ANTENNA 1 VEHICLE INTERIOR ACCESS/ START SYSTEM ANTENNA 2

A/C COMPRESSOR REGULATOR VALVE ASR SWITCH/ PUSH BUTTON ILLUMINATION LAMP ASR/ESP BUTTON BACKREST ADJUSTMENT BUTTON 2 CHILD SAFETY LOCK BUTTON CRUISE CONTROL SET BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER'S INTERIOR LOCKING BUTTON EMERGENCY CALL BUTTON EMERGENCY FLASHER BUTTON, INDICATOR LAMP EVAP CANISTER PURGE REGULATOR VALVE 1 EXTENDED ELECTRIC DRIVING MODE BUTTON FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH, PUSH BUTTON ILLUMINATION BULB FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER'S INTERIOR LOCKING BUTTON FUEL FILLER DOOR RELEASE BUTTON FUEL PRESSURE REGULATOR VALVE GENERATOR, VOLTAGE REGULATOR LEFT FRONT WINDOW REGULATOR SWITCH LEFT REAR DOOR POWER WINDOW SWITCH, PUSH BUTTON ILLUMINATION BULB LEFT REAR WINDOW REGULATOR SWITCH PARKING AID BUTTON PRESSURE EQUALIZATION, REAR LID REMOTE RELEASE BUTTON PUSH BUTTON ILLUMINATION BULB REAR LID HANDLE RELEASE BUTTON REAR LID REMOTE RELEASE BUTTON REAR LID REMOTE RELEASE BUTTON, PUSH BUTTON ILLUMINATION BULB REAR WINDOW DEFOGGER BUTTON RIGHT FRONT DOOR WINDOW REGULATOR SWITCH, PUSH BUTTON ILLUMINATION BULB RIGHT REAR DOOR WINDOW SWITCH, PUSH BUTTON ILLUMINATION BULB RIGHT REAR WINDOW REGULATOR SWITCH START SYSTEM BUTTON SUNROOF TILT BUTTON 1, SUNROOF ADJUSTMENT REGULATOR TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC DOWNSHIFT BUTTON ON STEERING WHEEL TIPTRONIC UPSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON ON STEERING WHEEL TIRE PRESSURE MONITORING DISPLAY BUTTON WASTEGATE BYPASS REGULATOR VALVE WINDOW REGULATOR MOTOR WINDSHIELD WIPER INTERMITTENT REGULATOR

REAR VIEW CAMERA

12 V SOCKET DATA LINK CONNECTOR DIAGNOSTIC CONNECTOR DIAGNOSTICS CONNECTOR PILOT LINE CONNECTOR 1 TWO-WAY RADIO SOCKET

A/C COMPRESSOR CONTROL MODULE A/C CONTROL MODULE ABS CONTROL MODULE ACCESS/ START AUTHORIZATION CONTROL MODULE ACCESS/START AUTHORIZATION CONTROL MODULE AIR BAG CONTROL MODULE ANTI-THEFT IMMOBILIZER CONTROL MODULE AUTOMATIC GLOW TIME CONTROL MODULE AUXILIARY HEATER CONTROL MODULE BATTERY MONITORING CONTROL MODULE BLIND SPOT DETECTION CONTROL MODULE BLIND SPOT DETECTION CONTROL MODULE 2 CELL PHONE OPERATING ELECTRONICS CONTROL MODULE CLIMATRONIC CONTROL MODULE COOLANT FAN CONTROL MODULE CORNERING LAMP, HEADLAMP RANGE CONTROL MODULE DISTANCE REGULATION CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER'S DOOR CONTROL MODULE ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE EMERGENCY CALL CONTROL MODULE, COMMUNICATION UNIT CONTROL MODULE EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE ENGINE CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE FRONT SEAT HEATING CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE/ FUEL DELIVERY UNIT GARAGE DOOR OPENER CONTROL HEAD, GARAGE DOOR OPENER CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE HEADLAMP RANGE/ CORNERING LAMP CONTROL MODULE HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE HEATER CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LEFT DAYTIME RUNNING LAMP, POSITION LAMP CONTROL MODULE LEFT DRL, POSITION LAMP CONTROL MODULE LEFT HID HEADLAMP CONTROL MODULE LEFT REAR DOOR CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MULTI-FUNCTION STEERING WHEEL CONTROL MODULE MULTIMEDIA SYSTEM CONTROL MODULE PARKING AID CONTROL MODULE PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE PASSENGER'S OCCUPANT DETECTION SYSTEM CONTROL MODULE POWER STEERING CONTROL MODULE POWER SUNROOF CONTROL MODULE RADIATOR CONTROL MODULE RADIATOR FAN CONTROL MODULE RADIO/ NAVIGATION DISPLAY CONTROL MODULE RADIO/ NAVIGATION DISPLAY UNIT CONTROL MODULE RADIO/ NAVIGATION DISPLAY UNIT CONTROL MODULE SHIELD RADIO/NAVIGATION DISPLAY UNIT CONTROL MODULE REDUCING AGENT HEATER CONTROL MODULE RIGHT DAYTIME RUNNING LAMP, POSITION LAMP CONTROL MODULE RIGHT DRL, POSITION LAMP CONTROL MODULE RIGHT HID HEADLAMP CONTROL MODULE RIGHT RADIATOR FAN CONTROL MODULE RIGHT REAR DOOR CONTROL MODULE STEERING COLUMN ELECTRONIC CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE CIRCUIT STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING COLUMN ELECTRONICS SYSTEMS CONTROL MODULE CIRCUIT STRUCTURE BORNE SOUND CONTROL MODULE TELEPHONE CONTROL HEAD CONTROL MODULE THROTTLE VALVE CONTROL MODULE TOWING RECOGNITION CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE DATA BUS ON BOARD DIAGNOSTIC INTERFACE VEHICLE POSITIONING SYSTEM CONTROL MODULE

DRIVER DOOR LOCK UNIT DRIVER'S DOOR LOCK UNIT EXHAUST DOOR CONTROL UNIT FRONT PASSENGER DOOR LOCK UNIT FRONT PASSENGER'S DOOR LOCK UNIT FUEL DELIVERY UNIT HYBRID BATTERY UNIT LEFT REAR DOOR LOCK UNIT LUGGAGE COMPARTMENT LAMP SWITCH/REAR LID LOCK UNIT/REAR LID OPENING MOTOR MICROPHONE UNIT REAR LID LOCK UNIT REDUCING AGENT METERING SYSTEM DELIVERY UNIT RIGHT REAR DOOR LOCK UNIT

FRESH AIR BLOWER SERIES RESISTOR W/ FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 55 FUSE 56 FUSE 57 FUSE 58 FUSE 59 FUSE 60 FUSE 163 FUSE PANEL A FUSE PANEL B FUSE PANEL C HIGH VOLTAGE SYSTEM FUSE 1

AUXILIARY COOLANT HEATER RADIO FREQUENCY RECEIVER AUXILIARY HEATER HEATING ELEMENT DRIVER BACKREST HEATING ELEMENT FRONT PASSENGER BACKREST HEATING ELEMENT POSITIVE CRANKCASE VENTILATION HEATING ELEMENT REDUCING AGENT LINE HEATER W/ AUXILIARY COOLANT HEATER W/ AUXILIARY HEATER W/O AUXILIARY HEATER

ABS INDICATOR LAMP AIR BAG INDICATOR LAMP ANTI-THEFT IMMOBILIZER INDICATOR LAMP ANTI-THEFT IMMOBILIZER SYSTEM INDICATOR LAMP ANTI-THEFT IMMOBILIZER SYSTEM INDICATOR LAMP GLOW PLUG INDICATOR LAMP ASR/ESP INDICATOR LAMP AUTOMATIC LIGHT CONTROL INDICATOR LAMP BRAKE PAD WEAR INDICATOR LAMP BRAKE SYSTEM INDICATOR LAMP CENTRAL LOCKING SAFE INDICATOR LAMP CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP CONTROL INDICATOR CRUISE CONTROL INDICATOR LAMP DAYTIME RUNNING LAMP INDICATOR LAMP DOOR AJAR INDICATOR LAMP ELECTRICAL DRIVE INDICATOR LAMP ELECTRO- MECHANICAL POWER STEERING INDICATOR LAMP ELECTRONIC POWER CONTROL MALFUNCTION INDICATOR LAMP ENGINE COOLANT LEVEL/ TEMPERATURE INDICATOR ENGINE COOLANT LEVEL/ TEMPERATURE INDICATOR LAMP ENGINE COOLANT LEVEL/TEMPERATURE INDICATOR LAMP ENGINE ELECTRONICS INDICATOR LAMP FOG INDICATOR LAMP FOG LAMP INDICATOR LAMP FRONT PASSENGER'S AIR BAG DISABLED INDICATOR LAMP FUEL FILLER DOOR LOCK INDICATOR LAMP GENERATOR INDICATOR LAMP GLOW PLUG INDICATOR LAMP HIGH BEAM INDICATOR LAMP HOOD OPEN INDICATOR LAMP INDICATOR LAMP LAMP FAILURE INDICATOR LAMP LEFT TURN SIGNAL INDICATOR LAMP LOW FUEL LEVEL INDICATOR LAMP MALFUNCTION INDICATOR LAMP MULTI- FUNCTION INDICATOR LAMP MULTI-FUNCTION INDICATOR OIL LEVEL INDICATOR LAMP OIL PRESSURE INDICATOR LAMP PARKING AID INDICATOR LAMP PARKING BRAKE INDICATOR LAMP SWITCH REAR FOG LAMP INDICATOR LAMP REAR WINDOW DEFOGGER INDICATOR LAMP RIGHT TURN SIGNAL INDICATOR LAMP SEAT BELT INDICATOR LAMP SEAT BELT INDICATOR LAMP FUEL FILLER DOOR LOCK INDICATOR LAMP SHIFT LOCK INDICATOR LAMP TIRE PRESSURE MONITORING DISPLAY INDICATOR LAMP WINDSHIELD WASHER FLUID LEVEL INDICATOR LAMP

ABS IND LAMP AIR CONDITIONING, INTERIOR LIGHTS SYSTEMS ANTI-THEFT IMMOBILIZER SYSTEM IND LAMP ASR/ESP IND LAMP BLIND SPOT DETECTION WARNING LAMP BRAKE PAD WEAR IND LAMP BRAKE SYSTEM IND LAMP CRUISE CONTROL IND LAMP CRUISE CONTROL, EXTERIOR LIGHTS SYSTEMS CRUISE CONTROL, EXTERIOR LIGHTS, TRANSMISSIONS SYSTEMS DOOR AJAR IND LAMP DRIVER DOOR AMBIENT LIGHTING BULB DRIVER READING LAMP DRIVER VANITY MIRROR LAMP DRIVER'S VANITY MIRROR LAMP ELECTRONIC POWER CONTROL MALFUNCTION IND LAMP EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, MIRRORS, NAVIGATION SYSTEMS FOG LAMP FRESH AIR CONTROL ILLUMINATION BULB FRESH AIR, RECIRCULATION MODE IND LAMP FRONT INTERIOR LAMP FRONT PASSENGER DOOR AMBIENT LIGHTING BULB FRONT PASSENGER READING LAMP FRONT PASSENGER VANITY MIRROR LAMP FRONT PASSENGER'S EXTERIOR REARVIEW MIRROR TURN SIGNAL LAMP GLOVE COMPARTMENT LAMP HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HEADLIGHTS, INTERIOR LIGHTS SYSTEMS HIGH-MOUNTED BRAKE LAMP HIGH-MOUNTED BRAKE LAMP BULB HOOD-OPEN IND LAMP ILLUMINATION BULB LEFT BACKUP LAMP LEFT BRAKE LAMP LEFT CENTER READING LAMP LEFT CORNERING LAMP, LEFT FRONT FOG LAMP LEFT DAYTIME RUNNING LAMP BULB LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT DRL, POSITION LAMP LED MODULE LEFT FOOTWELL LAMP LEFT FRONT FOG LAMP BULB LEFT FRONT FOG LAMP/ CORNERING LAMP BULB LEFT FRONT FOG LAMP/CORNERING LAMP BULB LEFT FRONT SIDE MARKER LAMP LEFT FRONT SIDE MARKER LAMP BULB LEFT FRONT TURN SIGNAL BULB LEFT FRONT TURN SIGNAL LAMP LEFT FRONT TURN SIGNAL LAMP BULB LEFT HID HEADLAMP BULB LEFT HIGH BEAM HEADLAMP BULB LEFT LICENSE PLATE LAMP LEFT LOW BEAM HEADLAMP BULB LEFT POSITION BULB LEFT POSITION LAMP LEFT POSITION LAMP BULB LEFT REAR READING LAMP LEFT REAR TURN SIGNAL LAMP LEFT TAIL LAMP LEFT TAIL LAMP 2 LEFT TURN SIGNAL IND LAMP LICENSE PLATE LAMP LOW FUEL LEVEL IND LAMP LUGGAGE COMPARTMENT LAMP MALFUNCTION IND LAMP OIL PRESSURE IND LAMP POSITION LAMP REAR INTERIOR LAMP REAR WINDOW DEFOGGER IND LAMP REAR WINDOW DEFOGGER LAMP RIGHT BACKUP LAMP RIGHT BRAKE LAMP RIGHT CENTER READING LAMP RIGHT CORNERING LAMP, RIGHT FRONT FOG LAMP RIGHT DAYTIME RUNNING LAMP BULB RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT DRL, POSITION LAMP LED MODULE RIGHT FOOTWELL LAMP RIGHT FRONT FOG LAMP BULB RIGHT FRONT FOG LAMP/ CORNERING LAMP BULB RIGHT FRONT FOG LAMP/CORNERING LAMP BULB RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT SIDE MARKER LAMP BULB RIGHT FRONT TURN SIGNAL BULB RIGHT FRONT TURN SIGNAL LAMP RIGHT FRONT TURN SIGNAL LAMP BULB RIGHT HID HEADLAMP BULB RIGHT HIGH BEAM HEADLAMP BULB RIGHT LICENSE PLATE LAMP RIGHT LOW BEAM HEADLAMP BULB RIGHT POSITION BULB RIGHT POSITION LAMP RIGHT POSITION LAMP BULB RIGHT REAR READING LAMP RIGHT REAR TURN SIGNAL LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP 2 RIGHT TURN SIGNAL IND LAMP SEAT BELT IND LAMP SELECTOR LEVER SCALE ILLUMINATION BULB SELECTOR LEVER SCALE ILLUMINATION BULB TRANSMISSION RANGE DISPLAY TURN SIGNAL BULB WINDSHIELD WASHER FLUID LEVEL IND LAMP

ABS HYDRAULIC PUMP AFTER-RUN COOLANT PUMP BRAKE SYSTEM VACUUM PUMP CHARGE AIR COOLING PUMP HEAD- LAMP WASHER PUMP HEADLAMP WASHER PUMP HEATER SUPPORT PUMP HIGH PRESSURE PUMP IF EQUIPPED W/ SECONDARY AIR INJECTION PUMP LEAK DETECTION PUMP LOW TEMPERATURE CIRCUIT COOLANT PUMP W/ SECONDARY AIR INJECTION PUMP WINDSHIELD WASHER PUMP

A/C CLUTCH RELAY ALARM HORN RELAY AUXILIARY HEATER OPERATION RELAY BRAKE SYSTEM VACUUM PUMP, VACUUM PUMP RELAY DUAL TONE HORN RELAY ENGINE COMPONENT POWER SUPPLY RELAY FAN ACTIVATION RELAY FUEL PUMP RELAY HEADLAMP WASHER RELAY HIGH HEAT OUTPUT RELAY HOT W/ MOTRONIC ENGINE CONTROL POWER SUPPLY RELAY ENERGIZED HOT W/ TERMINAL 15 POWER SUPPLY RELAY 2 ENERGIZED HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED FUSE PANEL C HOT W/ TERMINAL 15 POWER SUPPLY RELAY HOT AT ENERGIZED ALL TIMES HOT W/ TERMINAL 15 POWER SUPPLY SUPPLY RELAY ENERGIZED HOT W/ TERMINAL 75 POWER SUPPLY RELAY 1 ENERGIZED HOT W/ TERMINAL 75 POWER SUPPLY RELAY ENERGIZED LOW HEAT OUTPUT RELAY PARKING HEATER OPERATION RELAY PARKING HEATER OPERATION RELAY 2 POWER SUPPLY RELAY ENERGIZED POWERTRAIN CAN BUS CUT OFF RELAY POWERTRAIN CAN BUS CUTOFF RELAY REAR WINDOW DEFOGGER RELAY REDUCING AGENT METERING SYSTEM RELAY SECONDARY AIR INJECTION PUMP RELAY STARTER RELAY 1 STARTER RELAY 2 TERMINAL 15 POWER SUPPLY RELAY TERMINAL 75 POWER SUPPLY RELAY TERMINAL 75 POWER SUPPLY RELAY 1 VACUUM PUMP RELAY WIPER MOTOR RELAY 1 WIPER MOTOR RELAY 2

ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR 1, 2 ACCELERATOR PEDAL POSITION SENSOR 2 ACCELERATOR PEDAL POSITION SENSOR, ACCELERATOR PEDAL POSITION SENSOR 2 AIR DISTRIBUTION DOOR MOTOR/AIR DISTRIBUTION DOOR MOTOR POSITION SENSOR AIR QUALITY SENSOR BRAKE BOOSTER PRESSURE SENSOR BRAKE PRESSURE SENSOR 1 CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR 3 CENTRAL AIR DOOR MOTOR/ CENTRAL DOOR MOTOR POSITION SENSOR CHARGE AIR PRESSURE SENSOR CHARGE AIR PRESSURE SENSOR/ INTAKE AIR TEMPERATURE SENSOR CHARGE AIR TEMPERATURE SENSOR AFTER CHARGE AIR COOLER CHARGE PRESSURE ACTUATOR POSITION SENSOR CLUTCH POSITION SENSOR COMPASS MAGNETIC FIELD SENSOR CYLINDER 1 COMBUSTION CHAMBER PRESSURE SENSOR, GLOW PLUG 1 CYLINDER 2 COMBUSTION CHAMBER PRESSURE SENSOR, GLOW PLUG 2 CYLINDER 3 COMBUSTION CHAMBER PRESSURE SENSOR, GLOW PLUG 3 CYLINDER 4 COMBUSTION CHAMBER PRESSURE SENSOR, GLOW PLUG 4 DEFROSTER DOOR MOTOR/ DEFROSTER DOOR MOTOR POSITION SENSOR DIFFERENTIAL PRESSURE SENSOR DRIVE SHAFT SPEED SENSOR 1 DRIVE SHAFT SPEED SENSOR 2 DRIVER EXTERIOR DOOR HANDLE TOUCH SENSOR DRIVER FRONT AIR BAG CRASH SENSOR DRIVER HEATED SEAT TEMPERATURE SENSOR/ HEATING ELEMENT DRIVER SEAT POSITION SENSOR DRIVER SIDE AIR BAG CRASH SENSOR DRIVER SIDE REAR SIDE AIR BAG CRASH SENSOR DRIVER'S ACCESS/START SYSTEM ANTENNA, EXTERIOR DOOR HANDLE TOUCH SENSOR DRIVER'S HEATED SEAT TEMPERATURE SENSOR/HEATING ELEMENT EGR VALVE 2/EGR MOTOR 2, EXHAUST GAS RECIRCULATION POSITION SENSOR 2 ENGINE COOLANT LEVEL SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET ENGINE SPEED SENSOR EPC THROTTLE DRIVE ANGLE SENSOR 1 EPC THROTTLE DRIVE ANGLE SENSOR 1, 2 EPC THROTTLE DRIVE ANGLE SENSOR 2 ESP SENSOR UNIT, TRANSVERSE ACCELERATION, ROTATION RATE SENSOR EVAPORATOR TEMPERATURE SENSOR EVAPORATOR VENT TEMPERATURE SENSOR EXHAUST GAS RECIRCULATION TEMPERATURE SENSOR 2 EXHAUST GAS TEMPERATURE SENSOR 1 EXHAUST GAS TEMPERATURE SENSOR 2 EXHAUST GAS TEMPERATURE SENSOR 3 EXHAUST GAS TEMPERATURE SENSOR 4 EXHAUST PRESSURE SENSOR 1 FRESH AIR/RECIRCULATING AIR/BACK PRESSURE DOOR MOTOR/POSITION SENSOR FRESH/RECIRCULATED AIR DOOR MOTOR, RECIRCULATION DOOR MOTOR POSITION SENSOR FRONT PASSENGER ACCESS/START SYSTEM ANTENNA, EXTERIOR DOOR HANDLE TOUCH SENSOR FRONT PASSENGER EXTERIOR DOOR HANDLE TOUCH SENSOR FRONT PASSENGER HEATED SEAT TEMPERATURE SENSOR/ SEAT HEATING ELEMENT FRONT PASSENGER HEATED SEAT TEMPERATURE SENSOR/SEAT HEATING ELEMENT FRONT PASSENGER SEAT POSITION SENSOR FRONT PASSENGER SIDE AIR BAG CRASH SENSOR FRONT PASSENGER'S HEATED SEAT TEMPERATURE SENSOR/HEATING ELEMENT FUEL LEVEL SENSOR, TRANSFER FUEL PUMP FUEL LEVEL SENSOR/TRANSFER FUEL PUMP FUEL PRESSURE SENSOR FUEL TANK PRESSURE SENSOR FUEL TEMPERATURE SENSOR HEATED OXYGEN SENSOR HEATED OXYGEN SENSOR, OXYGEN SENSOR HEATER HEATER FOR OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER HIGH PRESSURE SENSOR HORIZONTAL POSITION SENSOR HYDRAULIC PRESSURE SENSOR HYDRAULIC PRESSURE SENSOR 1 HYDRAULIC PRESSURE SENSOR 2 INTAKE AIR TEMPERATURE SENSOR INTAKE MANIFOLD RUNNER POSITION SENSOR INTAKE MANIFOLD SENSOR INTERIOR MONITORING, VEHICLE INCLINATION SENSOR DEACTIVATION BUTTON KNOCK SENSOR 1 LEFT FOOTWELL VENT TEMPERATURE SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT PARKING AID SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR PARKING AID SENSOR LEFT SWIVEL MODULE POSITION SENSOR LEFT SWIVEL POSITION MODULE SENSOR LEFT VARIABLE HEADLAMP POSITIONING MOTOR SENSOR LEFT VENT TEMPERATURE SENSOR LIGHT RECOGNITION SENSOR LOW FUEL PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR, INTAKE AIR TEMPERATURE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR, INTAKE MANIFOLD/AIR TEMPERATURE SENSOR NOX SENSOR NOX SENSOR CONTROL MODULE OIL LEVEL THERMAL SENSOR OUTSIDE AIR TEMPERATURE SENSOR OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 BEFORE CATALYTIC CONVERTER OXYGEN SENSOR AFTER THREE WAY CATALYTIC CONVERTER OXYGEN SENSOR HEATER PASSENGER FRONT AIR BAG CRASH SENSOR PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE SENSOR PASSENGER SIDE REAR SIDE AIR BAG CRASH SENSOR RAIN/LIGHT RECOGNITION SENSOR REDUCING AGENT QUALITY SENSOR RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR PARKING AID SENSOR RIGHT SWIVEL MODULE POSITION SENSOR RIGHT SWIVEL POSITION MODULE SENSOR RIGHT VARIABLE HEADLAMP POSITIONING MOTOR SENSOR RIGHT VENT TEMPERATURE SENSOR SECONDARY AIR INJECTION SENSOR 1/ SOLENOID VALVE SECONDARY AIR SYSTEM, INJECTION SENSOR 1 SELECT LEVER SENSOR SYSTEM CONTROL MODULE SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE SENSOR 1 SENSOR 2 STEERING ANGLE SENSOR STEERING TORQUE/ STEERING ANGLE SENSOR SUNLIGHT PHOTO SENSOR, SUNLIGHT PHOTO SENSOR 2 TEMPERATURE SENSOR THROTTLE POSITION SENSOR TRANSFER FUEL PUMP, FUEL LEVEL SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SPEED SENSOR TRANSMISSION INPUT SPEED SENSOR 1 TRANSMISSION INPUT SPEED SENSOR 2 TRANSMISSION INPUT SPEED SENSOR 3 TRANSMISSION INPUT SPEED SENSOR, CLUTCH OIL TEMPERATURE SENSOR TRANSMISSION OUTPUT SPEED SENSOR TRANSMISSION OUTPUT SPEED SENSOR 2 TRANSMISSION OUTPUT SPEED, INPUT SPEED SENSOR VERTICAL POSITION SENSOR WATER SEPARATOR SENSOR WINDSHIELD WASHER FLUID LEVEL SENSOR

BASS SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT BASS SPEAKER/ LEFT FRONT MIDRANGE SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR BASS SPEAKER LEFT REAR TREBLE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT BASS SPEAKER/ RIGHT FRONT MIDRANGE SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASS SPEAKER RIGHT REAR TREBLE SPEAKER

A/C SWITCH ASR SWITCH BACKUP LAMP SWITCH BACKUP SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LAMP SWITCH BRAKE LAMP SWITCH, BRAKE PEDAL SWITCH BRAKE LAMP SWITCH/BRAKE PEDAL SWITCH BRAKE LAMP/ PEDAL SWITCH BRAKE LIGHT SWITCH, BRAKE PEDAL SWITCH BRAKE LIGHT/ BRAKE PEDAL SWITCH BRAKE PEDAL SWITCH BRAKE PEDAL SWITCH, BRAKE LAMP SWITCH BRAKE PEDAL SWITCH/BRAKE LAMP SWITCH CONTACT SWITCH CRUISE CONTROL SWITCH DOOR CONTACT SWITCH DRIVER DOOR CONTACT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SIDE POWER WINDOW SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 2 DRIVING DYNAMICS REGULATION SWITCH VALVE 1 DRIVING DYNAMICS REGULATION SWITCH VALVE 2 ENGINE HOOD CONTACT SWITCH EXTERIOR REAR VIEW MIRROR HEATER SWITCH EXTERIOR REAR VIEW MIRROR HEATING SWITCH EXTERIOR REAR VIEW MIRROR SWITCH EXTERIOR REARVIEW MIRROR HEATING SWITCH FOG LAMP SWITCH FRESH AIR BLOWER SWITCH FRESH AIR/ RECIRCULATION DOOR SWITCH FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER SEAT BELT SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH FUEL FILLER DOOR UNLOCK MOTOR, FUEL FILLER DETECTION SWITCH GLOVE COMPARTMENT LAMP SWITCH HEADLAMP DIMMER/ FLASHER SWITCH HEADLAMP DIMMER/FLASHER SWITCH HEADLAMP SWITCH HEADLAMP SWITCH ILLUMINATION BULB HEADLIGHT DIMMER/ FLASHER SWITCH HEATER/HEAT OUTPUT SWITCH IGNITION SWITCH KEY LOCK SOLENOID IGNITION/ STARTER SWITCH IGNITION/STARTER SWITCH INSTRUMENT PANEL ILLUMINATION DIMMER SWITCH INSTRUMENT PANEL, DIMMER SWITCH HEADLAMP RANGE CONTROL ADJUSTER INSTRUMENT PANEL, SWITCH ILLUMINATION DIMMER SWITCH INTERIOR LAMP W/ DELAY SWITCH INTERIOR MONITORING DEACTIVATION SWITCH LAMP SWITCH LEFT REAR DOOR POWER WINDOW SWITCH LEFT STEERING COLUMN SWITCH LIGHT SWITCH MIRROR ADJUSTING SWITCH MIRROR ADJUSTMENT ILLUMINATION SWITCH BULB MIRROR ADJUSTMENT SWITCH MIRROR ADJUSTMENT SWITCH ILLUMINATION BULB MIRROR FOLDING SWITCH MIRROR SELECTOR SWITCH MULTI-FUNCTION TRANSMISSION RANGE SWITCH OIL PRESSURE SWITCH RADIATOR FAN CONTROL THERMAL SWITCH REAR CENTER INTERIOR LOCKING SWITCH REAR FOG LAMP SWITCH REAR LID LOCK/ ALARM CENTRAL LOCKING SWITCH REAR LID LOCK/ ALARM/CENTRAL LOCKING SWITCH REDUCED OIL PRESSURE SWITCH RIGHT FRONT POWER WINDOW SWITCH RIGHT REAR DOOR POWER WINDOW SWITCH RIGHT REAR DOOR WINDOW SWITCH RIGHT STEERING COLUMN SWITCH SELECTOR LEVER PARK POSITION LOCK SWITCH SELECTOR LEVER PARK POSITION LOCK, TIPTRONIC SWITCH TANK SWITCH-OFF VALVE TIPTRONIC DOWNSHIFT SWITCH TIPTRONIC SWITCH TIPTRONIC SWITCH, SELECTOR LEVER PARK POSITION LOCK SWITCH TIPTRONIC UPSHIFT SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH WINDSHIELD, HEADLAMP WASHER PUMP SWITCH

ABS OUTLET VALVE AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 1 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 3 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 4 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 5 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 7 CAMSHAFT ADJUSTMENT VALVE 1 COOLANT CIRCULATION VALVE COOLING CIRCUIT SOLENOID VALVE EXHAUST CAMSHAFT ADJUSTMENT VALVE 1 FUEL METERING VALVE INTAKE MANIFOLD RUNNER CONTROL VALVE LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE OIL PRESSURE REGULATION VALVE PRESSURE REGULATING VALVE 1 PRESSURE REGULATING VALVE 2 PRESSURE REGULATING VALVE 3 PRESSURE REGULATING VALVE 4 PRESSURE REGULATING VALVE 5 PRESSURE REGULATING VALVE 6 RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR ABS OUTLET VALVE LEFT REAR SECONDARY AIR INJECTION SOLENOID VALVE SHIFT LOCK SOLENOID SOLENOID VALVE 1 SOLENOID VALVE 2 SOLENOID VALVE 3 SOLENOID VALVE 4 SOLENOID VALVE 5 SOLENOID VALVES TRANSMISSION TURBOCHARGER RECIRCULATION VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/VIO WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE TERMINAL 30 WIRE JUNCTION VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE

1.4L TURBO HYBRID 2.0L TURBO 2.0L 1.4L TURBO HYBRID 2.0L TURBO DIESEL 1.8L TURBO, 2.0L TURBO 2.0L 1.4L TURBO HYBRID 2.0L TURBO, 2.0L TURBO DIESEL 1.4L TURBO HYBRID, 2.0L 2.0L TURBO 1.4L TURBO HYBRID, 2.0L TURBO DIESEL 1.8L TURBO 1.8L TURBO, 2.0L 1.8L TURBO, 2.0L TURBO 1.8L TURBO, 2.0L TURBO 2.0L TURBO DIESEL 2.0L 2.0L 1.8L TURBO 2.0L TURBO DIESEL 2.0L 2.0L TURBO 2.0L 2.0L TURBO DIESEL 2.0L 2.0L TURBO DIESEL 1.8L TURBO 2.0L, 1.8L TURBO 2.0L TURBO 2.0L TURBO 1.4L TURBO HYBRID 2.0L 2.0L TURBO 2.0L 1.4L TURBO HYBRID 2.0L TURBO DIESEL 2.0L TURBO DIESEL 1.8L TURBO 2.0L 2.0L TURBO DIESEL 2.0L TURBO 2.0L TURBO DIESEL 2.0L, 1.8L TURBO 2.0L TURBO DIESEL, 2.0L 2.0L TURBO EXCEPT 2.0L TURBO 2.0L, 1.4L TURBO HYBRID 2.0L TURBO 2.0L, 1.8L TURBO 2.0L, 2.0L TURBO DIESEL 1.8L TURBO 6 SPEED A/T (OR (RIGHT SIDE OF TRANSMISSION ACCELERATOR PEDAL MODULE ADAPTER CABLE AIR BAG SPIRAL SPRING/RETURN SPRING W/ SLIP RING AIR BAG SPIRAL SPRING/RETURN SPRING W/ SLIPRING AIR BAG SPIRAL SPRING/RETURN W/ SLIP RING AIR BAG SPIRAL/ RETURN SPRING W/ SLIP RING AIR CONDITION SYSTEM AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM AUTOMATIC A/C AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR AUTOMATIC LIGHT BACKUP LAMPS CIRCUIT BRAKE MASTER CYLINDER) CAN L CAN-H CELLULAR TELEPHONE PREPARATION CONTROL HEAD CHARGING CIRCUIT CHARGING SYSTEM CIGARETTE LIGHTER CLUTCH PEDAL POSITION SENSORS COMPUTER DATA COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEMS COMPUTER LINES DATA SYSTEM CONVERTER BOX COOLING FANS COOLING FANS SYSTEM COURTESY LAMPS CRUISE CONTROL CRUISE CONTROL SYSTEM CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA LINES DEFOGGER SYSTEM DIRECT SHIFT GEARBOX TRANSMISSION MECHATRONIC DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER AIR BAG IGNITER DRIVER EXTERIOR REAR VIEW MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER HEATED SEAT ADJUSTER DRIVER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 DRIVER SEAT ADJUSTMENT CONTROL HEAD DRIVER SEAT BELT TENSIONER IGNITER 1, DRIVER BELT FORCE LIMITER DRIVER THORAX AIR BAG IGNITER DRIVER'S HEATED SEAT ADJUSTER DRL IND DSG TRANSMISSION MECHATRONIC ELECTRIC DRIVE POWER, CONTROL ELECTRONICS EPC THROTTLE EPC THROTTLE DRIVE EXCEPT 1.8L TURBO EXCEPT 2.0L TURBO EXCEPT HYBRID EXTERNAL AUDIO SOURCE CONNECTION FORWARD /BACK FRESH AIR BLOWER FRONT PARKING AID WARNING BUZZER FRONT PASSENGER EXTERIOR DOOR HANDLE FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEATED EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEATED SEAT ADJUSTER FRONT PASSENGER'S EXTERIOR REAR VIEW MIRROR FRONT PASSENGER'S HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER'S HEATED SEAT ADJUSTER FRONT PASSENGER'S THORAX AIR BAG IGNITER FUEL FILLER DOOR UNLOCK FUEL GAUGE FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDERS GEAR POSITION DISTANCE SENSORS GLOVE BOX) HEADLAMP BEAM HEADLIGHTS SYSTEM HIGH BEAM HIGH BEAM IND HORNS SYSTEM HOT ALL ALL TIMES HOT AT ALL TIMES HOT W/ TERMINAL 15 HYBRID EXCEPT HYBRID IF EQUIPPED 2.0L TURBO DIESEL IGNITER 1 IGNITER 2 IGNITION COILS W/ POWER OUTPUT STAGE INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT LEFT "C" PILLAR) LEFT FRONT HEADLAMP LEFT HEADLAMP POWER OUTPUT MODULE LEFT MULTI-FUNCTION BUTTONS ON STEERING WHEEL LEFT TAILLAMP 2 LICENSE PLATE LIGHT LIGHTER CIGARETTE LINES SYSTEM LOW BEAM MANUAL A/C MANUAL A/C 1.4L TURBO HYDRID 2.0L TURBO 2.0L MIRRORS SYSTEM MULTI-FUNCTION IND NAVIGATION SYSTEM NAVIGATION SYSTEM INTERFACE OUTPUT MODULE PASSENGER HEATED SEAT ADJUSTER PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE MODULE POWER DISTRIBUTION SYSTEM R-O-L RADIATOR FAN RADIATOR FAN 2/ RIGHT RADIATOR FAN RADIATOR FAN 2/RIGHT RADIATOR FAN RADIO SHIELD REAR FOG REAR PARKING AID WARNING BUZZER REAR WINDOW DEFOGGER REDUCING AGENT INJECTOR RIGHT FRONT HEADLAMP RIGHT HEADLAMP POWER RIGHT HEADLAMP POWER OUTPUT MODULE RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL RIGHT REAR TURN SIGNAL RIGHT TAILLAMP 2 SEATS SYSTEM SELECTOR LEVER SHIFT INTERLOCK SYSTEM SPIRAL SPRING STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUB- TRANSMISSION 1 VALVES SUB- TRANSMISSION 2 VALVES SUPPLEMENTAL RESTRAINTS SYSTEM TELEPHONE BASE PLATE TEMPERATURE SELECTOR KNOB POTENTIOMETER THREE-PHASE CURRENT DRIVE TO SPARK PLUG TOP OF TRANSMISSION) TRANSMISSION ASSEMBLY TRANSMISSION RANGE DISPLAY TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIGNAL VOLTAGE STABILIZER W/ 6 SPEED TRANSMISSION W/ A/C SYSTEM, W/ AUTOMATIC MIRROR ADJUSTMENT W/O AUTOMATIC MIRROR ADJUSTMENT W/ DIRECT SHIFT W/ DIRECT SHIFT A/T W/ ESP W/ ESP W/O ESP W/ HID W/ HID HEADLAMPS W/ HIGH EQUIPMENT W/ HIGH EQUIPMENT W/ LOW EQUIPMENT W/ LED W/ LOW EQUIPMENT W/ LOW EQUIPMENT W/ HIGH EQUIPMENT W/ MULTI-FUNCTION DISPLAY W/ MULTI-FUNCTION STEERING WHEEL CONTROLS W/ MULTI-MEDIA INTERFACE W/O MULTI-MEDIA INTERFACE W/ MULTIMEDIA INTERFACE W/ NAVIGATION W/ START/ STOP SYSTEM W/ START/STOP SYSTEM W/O ACCESS/ START AUTHORIZATION SYSTEM W/O DIRECT SHIFT W/O ESP W/O ESP W/ ESP W/O HEATED SEATS W/O HID W/O HID HEADLAMPS W/O LED W/O MIRROR ADJUSTMENT W/O MULTI-FUNCTION STEERING WHEEL CONTROLS W/O MULTIMEDIA INTERFACE W/O NAVIGATION W/O START/STOP SYSTEM W/O START/STOP SYSTEM W/ START/STOP SYSTEM WARNING BUZZER, TONE WIPER/WASHER SYSTEM
