Shift interlock

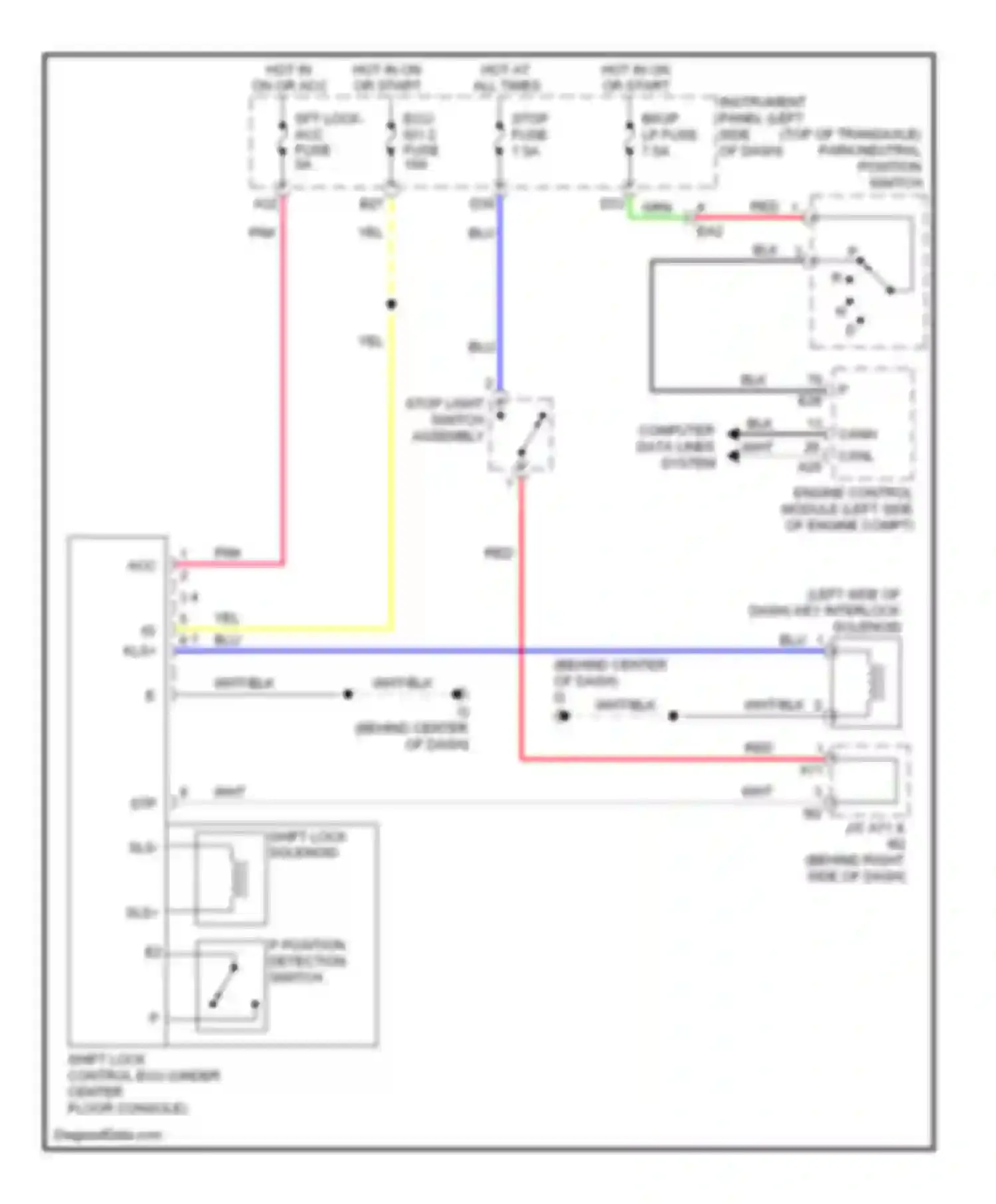

# Shift interlock circuit, except hybrid without smart key system
Components on the diagram
Components on these wiring diagrams 12
Click a component to highlight it on every diagram it appears on.
