Wiring Diagrams for Subaru XV GP facelift (2015-2017)

Active bodyworks circuit

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit, w/ hev Anti-lock brakes circuit, w/o hev & eyesight Anti-lock brakes circuit, w/o hev w/ eyesight

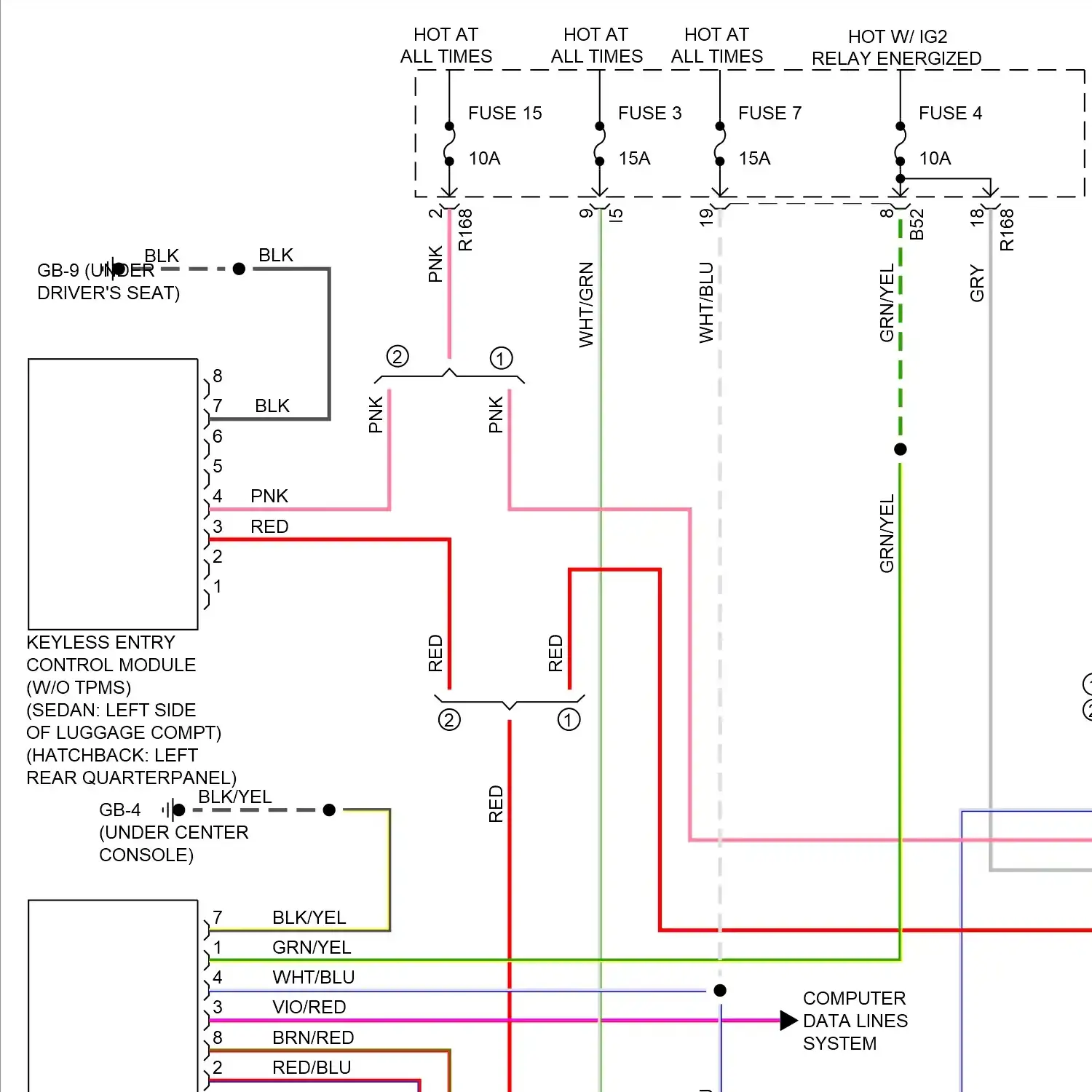

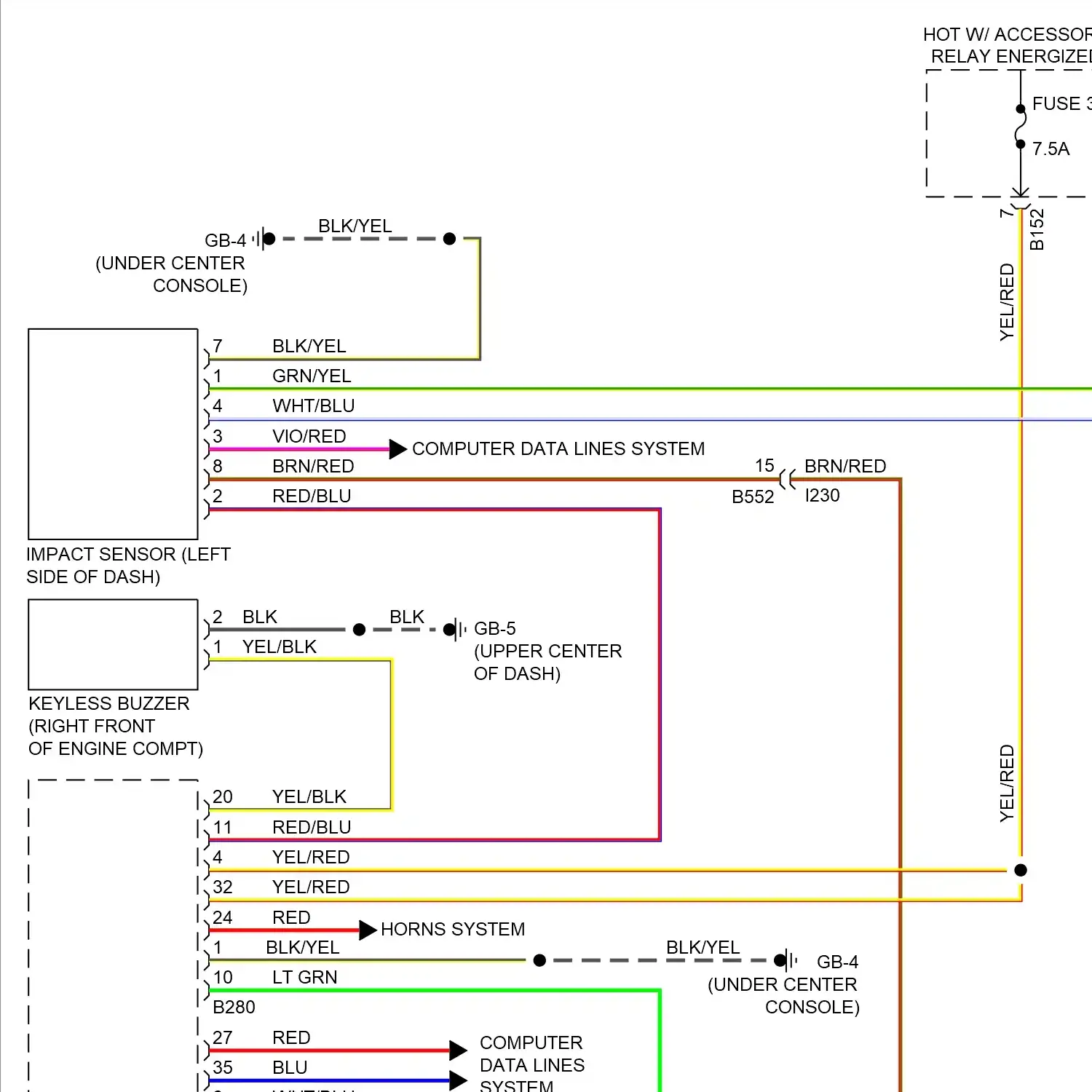

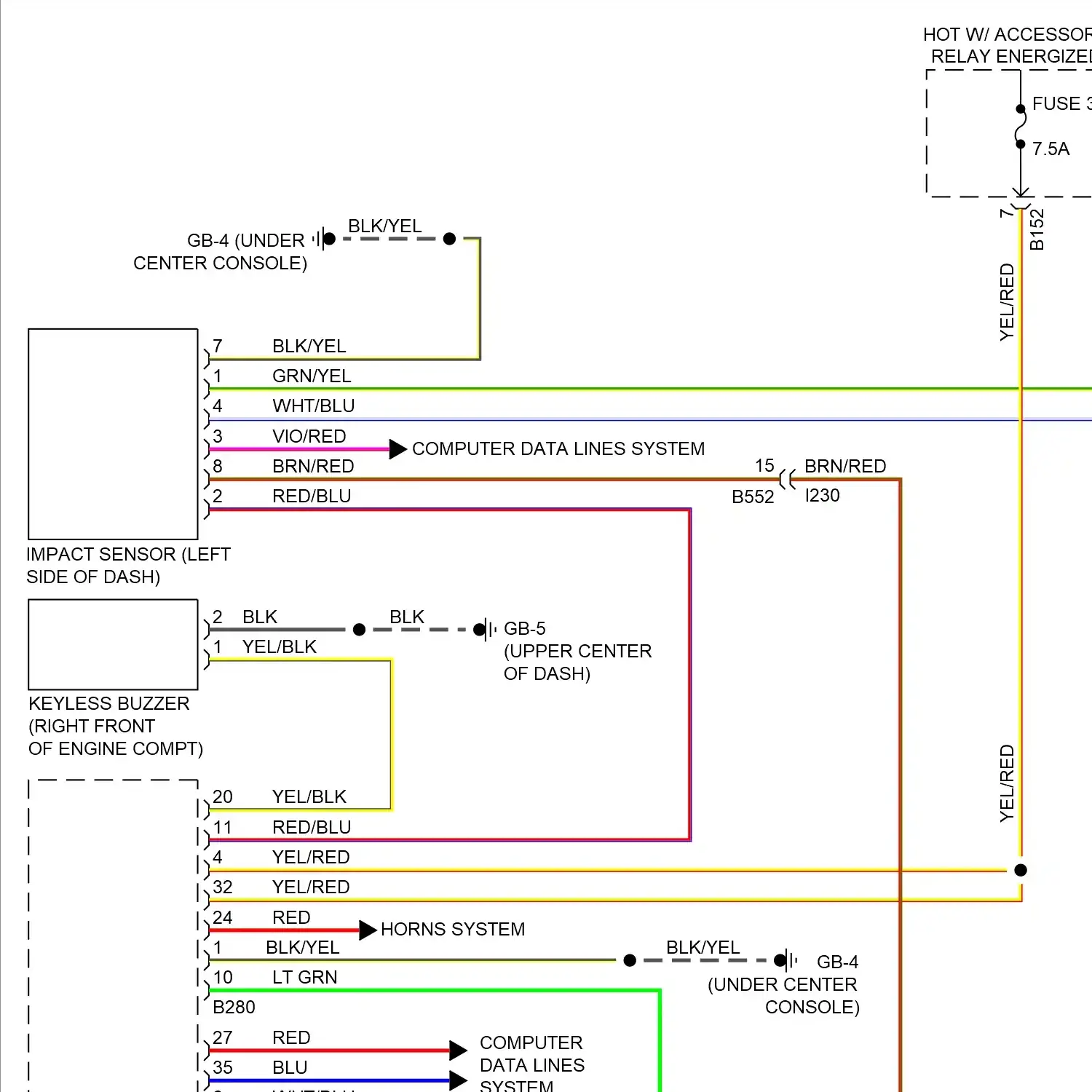

Forced entry circuit, w/ hev Forced entry circuit, w/o hev & keyless access system Forced entry circuit, w/o hev w/ keyless access system Immobilizer circuit

Body control modules circuit, w/ hev Body control modules circuit, w/o hev

Computer data lines circuit, w/ hev Computer data lines circuit, w/o hev

Cooling fan circuit

Cruise control circuit, w/ hev Cruise control circuit, w/o hev

Mirror heater & rear defogger circuit Wiper deicer circuit

Electronic power steering circuit

Wiring diagram engine performance 2.0l

Wiring diagram engine performance 2.0l hybrid

Backup lamps circuit, w/ hev Backup lamps circuit, w/o hev Exterior lamps circuit, w/ hev Exterior lamps circuit, w/o hev

Ground distribution circuit, w/ hev Ground distribution circuit, w/o hev

Headlamps circuit, w/ hev Headlamps circuit, w/o hev Headlamps leveling circuit, w/ hev Headlamps leveling circuit, w/o hev

Horn circuit

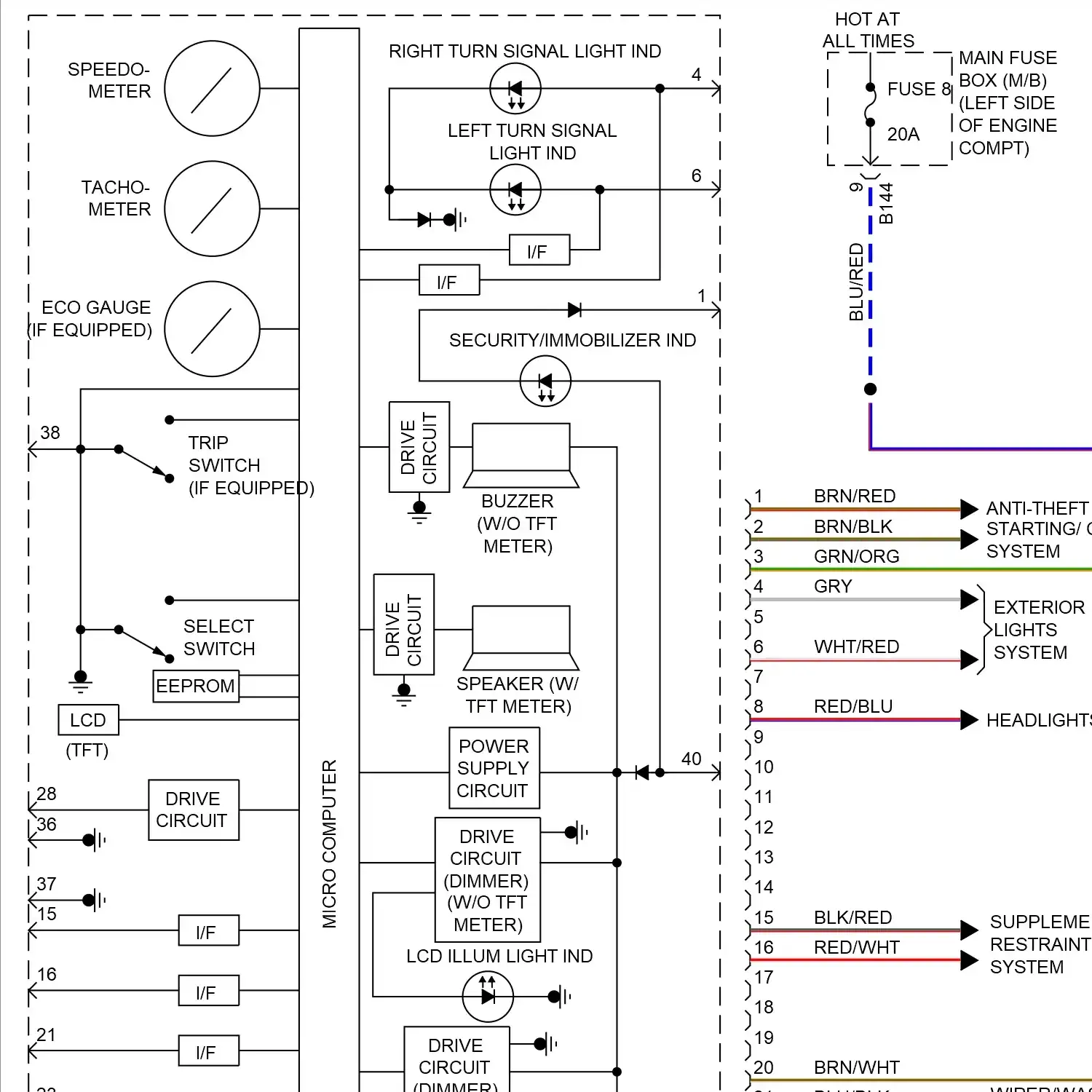

Instrument cluster circuit, w/ hev Instrument cluster circuit, w/o hev

Courtesy lamps circuit, w/ hev Courtesy lamps circuit, w/o hev Instrument illumination circuit, w/ hev Instrument illumination circuit, w/o hev

Eyesight circuit Navigation circuit, except hybrid w/o telematics Navigation circuit, except hybrid w/ telematics Navigation circuit, hybrid w/o telematics Navigation circuit, hybrid w/ telematics Rear vehicle detection circuit Rear view camera circuit

Power distribution circuit, w/ hev Power distribution circuit, w/o hev & push button start Power distribution circuit, w/o hev w/ push button start

Power door locks circuit, w/ hev Power door locks circuit, w/o hev & keyless access system Power door locks circuit, w/o hev w/ keyless access system

Automatic day/night mirror circuit, w/ hev Automatic day/night mirror circuit, w/o hev Power mirror circuit, w/ hev Power mirror circuit, w/o hev

Power seats circuit

Power top/sunroof circuit, w/ hev Power top/sunroof circuit, w/o hev

Power windows circuit

Radio circuit, except hybrid w/o telematics Radio circuit, except hybrid w/ telematics Radio circuit, hybrid w/o telematics Radio circuit, hybrid w/ telematics

Shift interlock circuit

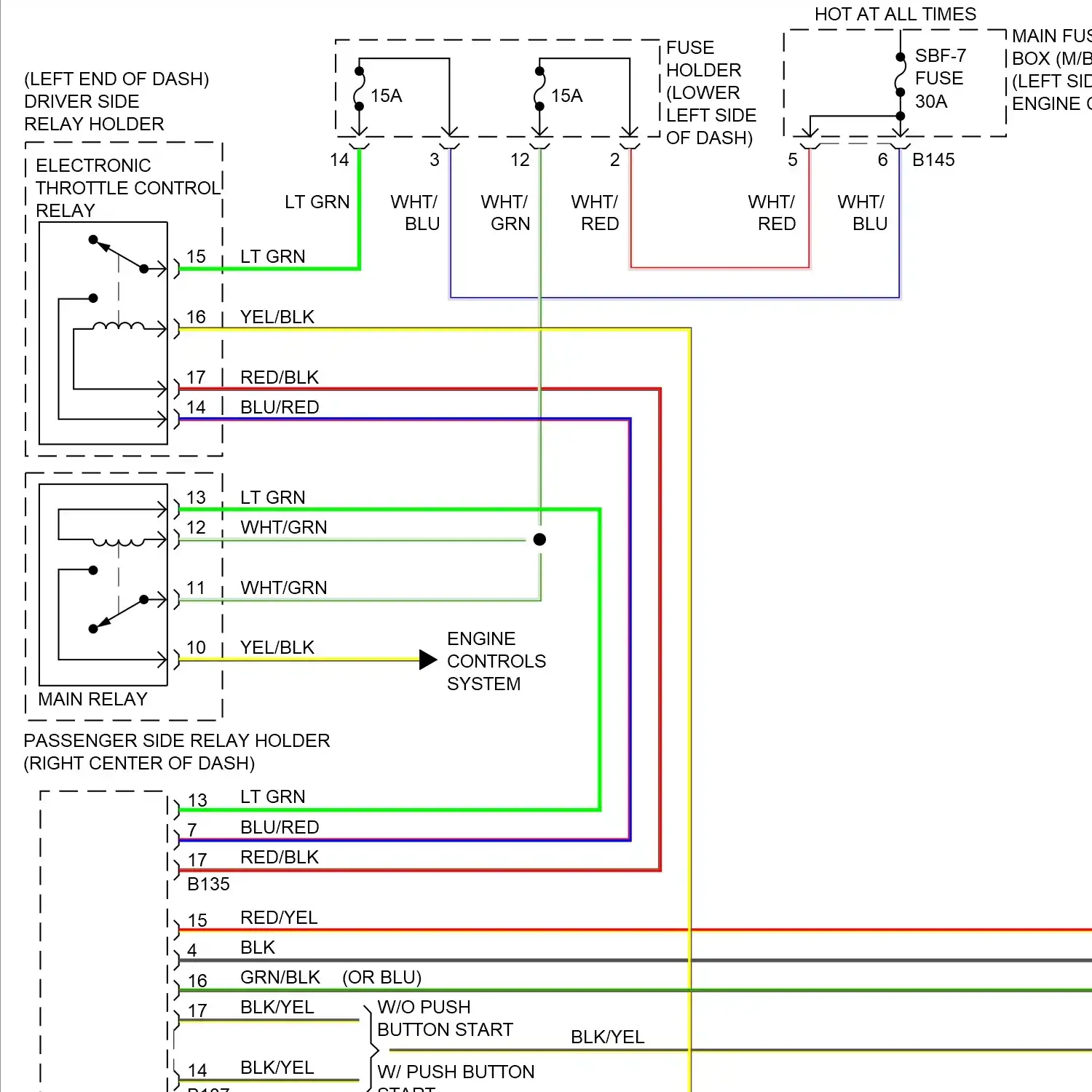

Charging circuit Remote starting circuit, w/ hev Starting circuit, w/ hev Starting circuit, w/o hev & push button start Starting circuit, w/o hev w/ push button start

Supplemental restraints circuit, except hybrid Supplemental restraints circuit, hybrid

Transmission circuit, w/ hev Transmission circuit, w/o hev

Chime circuit Tire pressure monitoring circuit, w/ hev Tire pressure monitoring circuit, w/o hev

Front wiper/washer circuit Rear wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, HEADLIGHTS SYSTEMS AUXILIARY BATTERY BECM HIGH VOLTAGE BATTERY BLOWER DIODE CAN TRANSCEIVER CAN TRANSCEIVER, RECEIVER DAYTIME RUNNING LIGHT RESISTOR DMCM, HIGH VOLTAGE BATTERY COOLING FAN SHIELDS HIGH VOLTAGE BATTERY HIGH VOLTAGE BATTERY COOLING FAN HIGH VOLTAGE BATTERY SHIELD IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 INTEGRATED STARTER GENERATOR KEY LOCK LOCK UP

(RIGHT FRONT OF ENGINE AIR MIX DOOR ACTUATOR BLOWER MOTOR BLOWER MOTOR RESISTOR DRIVE MOTOR DRIVE MOTOR INVERTER DRIVE MOTOR INVERTER SHIELD ENGINE CONTROLS SYSTEM ENGINE COOLANT ENGINE COOLANT TEMP IND/ ENGINE COOLANT TEMP WARNING LIGHT IND ENGINE COOLANT TEMPERATURE IND ENGINE COOLANT TEMPERATURE WARNING LIGHT IND ENGINE COOLANT TEMPERATURE WARNING LIGHT IND/ ENGINE COOLANT TEMPERATURE IND ENGINE COOLANT TEMPERATURE WARNING LIGHT/ENGINE COOLANT TEMPERATURE IND FRONT WASHER MOTOR FRONT WIPER MOTOR INTAKE DOOR ACTUATOR LEFT AIR MIX DOOR ACTUATOR LEFT FRONT DOOR LOCK ACTUATOR LEFT FRONT POWER WINDOW MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT TUMBLE GENERATOR VALVE ACTUATOR LEFT/ RIGHT MOTOR LOW ENGINE LOW ENGINE OIL LOW ENGINE OIL WARNING LIGHT IND MAIN FAN MOTOR MODE DOOR ACTUATOR REAR WASHER MOTOR REAR WIPER MOTOR RIGHT AIR MIX DOOR ACTUATOR RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT POWER WINDOW MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR RIGHT TUMBLE GENERATOR VALVE ACTUATOR STARTER MOTOR SUB FAN MOTOR SUNROOF MOTOR ASSEMBLY, UP/ DOWN MOTOR WIPER/WASHER SYSTEM ENGINE CONTROLS SYSTEM

CENTER KEYLESS ACCESS INTERIOR ANTENNA FRONT KEYLESS ACCESS INTERIOR ANTENNA GPS ANTENNA IMMOBILIZER ANTENNA REAR KEYLESS ACCESS EXTERIOR ANTENNA REAR KEYLESS ACCESS INTERIOR ANTENNA SATELLITE ANTENNA TEL SUB ANTENNA TELEMATICS ANTENNA W/ SATELLITE ANTENNA

PUSH BUTTON IGNITION SWITCH REAR GATE OPENER BUTTON REAR LOCK BUTTON, REAR GATE OPENER BUTTON TELEMATICS BUTTON TRUNK OPENER BUTTON W/ PUSH BUTTON START W/O PUSH BUTTON START W/O PUSH BUTTON START W/ PUSH BUTTON START W/O PUSH BUTTON START W/ PUSH BUTTON START W/O EYESIGHT W/ EYESIGHT

REAR VIEW CAMERA REAR VIEW CAMERA CIRCUIT STEREO CAMERA

DATA LINK CONNECTOR FRONT ACCESSORY POWER SUPPLY SOCKET REAR ACCESSORY POWER SUPPLY SOCKET ROLL CONNECTOR THROUGH JOINT CONNECTOR TRAILER CONNECTOR

AIR BAG CONTROL MODULE AUTO HEAD- LIGHT BEAM LEVELER CONTROL MODULE AUTO HEADLIGHT BEAM LEVELER CONTROL MODULE ENGINE CONTROL MODULE HYBRID POWERTRAIN CONTROL MODULE KEYLESS ACCESS CONTROL MODULE KEYLESS ENTRY CONTROL MODULE OCCUPANT DETECTION CONTROL MODULE PEDESTRIAN ALERT CONTROL MODULE POWER STEERING CONTROL MODULE REMOTE ENGINE START CONTROL MODULE SECURITY CONTROL MODULE STEERING LOCK CONTROL MODULE TPMS CONTROL MODULE TPMS, KEYLESS ENTRY CONTROL MODULE TRANSMISSION CONTROL MODULE VDC CONTROL MODULE

BODY INTEGRATED UNIT INTEGRATED UNIT NAVIGATION UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 5 FUSE 2 FUSE 5 FUSE 7 FUSE 5 N/A FUSE 6 FUSE 7 FUSE 7 FUSE 31 FUSE 8 FUSE 8 FUSE 14 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 14 FUSE 8 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 31 FUSE 4 FUSE 32 FUSE 33 FUSE HOLDER MAIN SBF FUSE SBF-1 FUSE SBF-2 FUSE SBF-3 FUSE SBF-4 FUSE SBF-5 FUSE SBF-6 FUSE SBF-7 FUSE SBF-8 FUSE SLOW BLOW FUSE SLOW BLOW FUSE BOX

AUTO HEADLIGHT BEAM LEVELER WARNING LIGHT IND

LEFT SEAT HEATER MIRROR HEATER MIRROR HEATER, REAR DEFOGGER CIRCUIT RIGHT SEAT HEATER

HILL START ASSIST OFF INDICATOR/ HILL START ASSIST WARNING LIGHT IND HILL START ASSIST OFF INDICATOR/ HILL START WARNING LIGHT IND HYBRID READY INDICATOR LIGHT IND INDICATOR LIGHT IND INDICATOR NEEDLE ILLUMINATION LIGHT LOW-WASHER FLUID WARNING LIGHT INDICATOR

ANTI-THEFT, DOOR LOCKS, INTERIOR LIGHTS SYSTEMS BACKUP LIGHTS CIRCUIT EV MODE LAMP IND EXTERIOR LIGHTS, INTERIOR LIGHTS, HEADLIGHTS SYSTEMS FAIL LAMP IND HEADLIGHTS SYSTEM, EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS HYBRID FAIL LAMP IND INTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS, EXTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS, EXTERIOR LIGHTS, HEADLIGHTS SYSTEMS LEFT REAR COMBINATION LAMP RIGHT REAR COMBINATION LAMP SOUND, NAVIGATION, INTERIOR LIGHTS SYSTEMS

BRAKE VACUUM PUMP ELCM VACUUM PUMP ELECTRIC OIL PUMP ELECTRIC OIL PUMP INVERTER ELECTRIC OIL PUMP INVERTER SHIELD FUEL PUMP FUEL PUMP ASSEMBLY VACUUM PUMP VACUUM PUMP FAIL LAMP IND

A/C RELAY ACCESSORY RELAY BACKUP LIGHT RELAY BLOWER MOTOR RELAY BRAKE RELAY BRAKE VACUUM PUMP RELAY DAYTIME RUNNING LIGHT RELAY DAYTIME RUNNING LIGHT RELAY ENGINE COMPARTMENT RELAY HOLDER DMCM RELAY DRIVER SIDE RELAY HOLDER DRIVER SIDE RELAY HOLDER IG RELAY 2 ELECTRONIC THROTTLE CONTROL RELAY ENGINE COMPARTMENT RELAY HOLDER FRONT FOG LIGHT RELAY FRONT FOG LIGHT RELAY PASSENGER SIDE RELAY HOLDER FUEL PUMP RELAY FUEL PUMP RELAY PASSENGER SIDE RELAY HOLDER FUEL PUMP RELAY RELAY HOLDER HIGH HEADLIGHT RELAY HIGH VOLTAGE BATTERY COOLING FAN/ DRIVE MOTOR INVERTER RELAY HIGH VOLTAGE BATTERY COOLING FAN/DRIVE MOTOR INVERTER RELAY HORN RELAY HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ HORN RELAY ENERGIZED HOT W/ IG 1 RELAY ENERGIZED HOT W/ IG 2 RELAY ENERGIZED HOT W/ IG RELAY 1 ENERGIZED HOT W/ SELF-SHUT RELAY ENERGIZED HOT W/ TAIL, ILLUMINATION RELAY ENERGIZED IG RELAY IG RELAY 1 IG RELAY 2 LEFT FRONT FOG LIGHT RELAY LOW HEADLIGHT RELAY MAIN FAN RELAY 1 MAIN FAN RELAY 2 MAIN RELAY OUTPUT CLUTCH RELAY PASSENGER SIDE RELAY HOLDER POWER WINDOW RELAY PRE CHARGE RELAY REAR DEFOGGER RELAY REAR RELAY HOLDER RELAY ENERGIZED RELAY HOLDER RIGHT FRONT FOG LIGHT RELAY SEAT HEATER RELAY SELF-SHUT RELAY STARTER CUT RELAY STARTER RELAY STARTER RELAY 1 STARTER RELAY 1 DRIVER SIDE RELAY HOLDER STARTER RELAY DRIVER SIDE RELAY HOLDER STOP LIGHT RELAY STOP LIGHT RELAY RELAY HOLDER SUB FAN RELAY SUB FAN RELAY ENGINE COMPARTMENT RELAY HOLDER TAIL RELAY TAIL, ILLUMINATION RELAY WIPER DEICER RELAY WIPER RELAY

A/F OXYGEN SENSOR RELAY ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR POSITION SENSOR AIR TEMPERATURE SENSOR AMBIENT SENSOR BATTERY CURRENT SENSOR BATTERY TEMPERATURE SENSOR BRAKE BOOSTER PRESSURE SENSOR 1 BRAKE BOOSTER PRESSURE SENSOR 2 BRAKE STROKE SENSOR BRAKE STROKE SENSOR SHIELD CRANKSHAFT POSITION SENSOR DRIVE MOTOR INVERTER AMPERAGE SENSOR DRIVE MOTOR SPEED SENSOR DRIVER MOTOR INVERTER AMPERAGE SENSOR SHIELD DRIVER MOTOR INVERTER AMPERAGE SENSOR, HIGH VOLTAGE BATTERY COOLING FAN SHIELDS ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAPORATOR SENSOR FRONT WHEEL SPEED SENSOR FUEL LEVEL SENSOR FUEL SUB LEVEL SENSOR HEATER CORE SENSOR IMPACT SENSOR IN-VEHICLE SENSOR KNOCK SENSOR KNOCK SENSOR SHIELD LEFT CURTAIN AIR BAG SENSOR LEFT EXHAUST CAMSHAFT POSITION SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT DOOR IMPACT SENSOR LEFT FRONT SUB SENSOR LEFT INTAKE CAMSHAFT POSITION SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT SIDE AIR BAG SENSOR LIGHT CONTROL SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR MASS AIR FLOW/ INTAKE AIR TEMPERATURE SENSOR OCCUPANT DETECTION SENSOR PRESSURE SENSOR PRIMARY SPEED SENSOR REAR OXYGEN SENSOR REAR OXYGEN SENSOR SHIELD REAR VEHICLE HEIGHT SENSOR RESOLVER SENSOR RIGHT CURTAIN AIR BAG SENSOR RIGHT EXHAUST CAMSHAFT POSITION SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT DOOR IMPACT SENSOR RIGHT FRONT SUB SENSOR RIGHT INTAKE CAMSHAFT POSITION SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT SIDE AIR BAG SENSOR SATELLITE SAFING SENSOR SECONDARY PRESSURE SENSOR SECONDARY SPEED SENSOR STEERING ANGLE SENSOR SUNLOAD SENSOR TEMPERATURE SENSOR TEMPERATURE/ HUMIDITY SENSOR TORQUE SENSOR TURBINE SPEED SENSOR WASHER FLUID LEVEL SENSOR

BUZZER/ SPEAKER LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER PEDESTRIAN ALERT SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER

BACKUP LIGHT SWITCH BLOWER FAN SWITCH BRAKE FLUID LEVEL SWITCH BRAKE FLUID LEVER SWITCH BRIGHT SWITCH BSD/ RCTA OFF SWITCH BSD/RCTA OFF SWITCH BUCKLE SWITCH CANCEL SWITCH CHANGE OVER SWITCH CLUTCH SWITCH COMBINATION SWITCH CRUISE CONTROL SWITCH CRUISE SWITCH DIMMER, PASSING SWITCH DOOR LOCK SWITCH FOG LIGHT SWITCH FOLLOWING DISTANCE SETTING SWITCH FRONT FOG LIGHT SWITCH FRONT POWER WINDOW SUB SWITCH FRONT WASHER SWITCH FRONT WIPER SWITCH HAZARD SWITCH HOOD SWITCH HORN SWITCH IGNITION SWITCH ILLUMINATION CONTROL SWITCH INHIBITOR SWITCH KEY WARNING SWITCH LANE DEPARTURE WARNING OFF SWITCH LEFT FRONT DOOR SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SUB SWITCH LEFT SEAT BELT SWITCH LIGHTING SWITCH LOW/MANUAL MODE SWITCH MFD SWITCH NEUTRAL POSITION SWITCH 1 OIL LEVEL SWITCH OIL PRESSURE SWITCH P RANGE SWITCH PADDLE SHIFT SWITCH PARKING BRAKE SWITCH PASSENGERS DOOR LOCK SWITCH POCKET SWITCH POWER WINDOW LOCK SWITCH POWER WINDOW MAIN SWITCH PRE-COLLISION BRAKE OFF SWITCH PRE-COLLISION BRAKE OFF, LANE DEPARTURE WARNING OFF SWITCH ILLUMINATION LIGHT PRESSURE SWITCH REAR DEFOGGER SWITCH REAR GATE LATCH SWITCH REAR GATE LOCK ACTUATOR, LATCH SWITCH REAR WIPER/ WASHER SWITCH REMOTE CONTROL MIRROR SWITCH REMOTE CONTROL SWITCH RES/+ SWITCH RIGHT FRONT DOOR SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SUB SWITCH SATELLITE SWITCH SATELLITE SWITCH ILLUMINATION LIGHT SEAT HEATER SWITCH SELECT SWITCH SET SWITCH SRF OFF SWITCH STEERING SWITCH STEERING SWITCH ILLUMINATION LIGHT STOP LIGHT, BRAKE SWITCH STOPLIGHT, BRAKE SWITCH SUNROOF SWITCH SUNROOF TILT SWITCH SWITCH ILLUMINATION LIGHT TRIP SWITCH TRUNK LID LOCK ACTUATOR, SWITCH TRUNK LID SWITCH TURN SIGNAL SWITCH VDC OFF SWITCH VDC OFF SWITCH ILLUMINATION LIGHT WIPER DEICER, REAR DEFOGGER SWITCH

AWD SOLENOID CONTROL VALVE BODY DUTY SOLENOID EGR CONTROL VALVE KEY LOCK SOLENOID LEFT EXHAUST OIL CONTROL SOLENOID LEFT INTAKE OIL CONTROL SOLENOID LINEAR SOLENOID PURGE CONTROL SOLENOID VALVE RIGHT EXHAUST OIL CONTROL SOLENOID RIGHT INTAKE OIL CONTROL SOLENOID SHIFT LOCK SOLENOID SWITCHING VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/LT GRN WIRE BLK/ORG WIRE BLK/PNK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/PNK WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/GRN WIRE GRY/RED WIRE GRY/WHT WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE LT GRN/WHT WIRE LT GRN/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/WHT WIRE PNK SEDAN WIRE PNK SOUND SYSTEMS WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/GRN WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/ORG WIRE YEL/RED WIRE YEL/WHT WIRE YELLOW)

2.0L TURBO 6 2.5L TURBO, 2.0L, 2.0L HYBRID 4 DOOR 4 DOOR 5 DOOR 5 DOOR 5 DOOR 4 DOOR 5-DOOR 4-DOOR W/ 6.2 INCH DISPLAY W/ 7 INCH DISPLAY & RECEIVER (IF (OR (OR LT (RIGHT SIDE OF TRANSMISSION A/C CONTROL PANEL A/T SELECT LEVER ILLUMINATION ABS WARNING LIGHT IND ACCESS KEY WARNING LIGHT IND ACTIVE BODYWORKS SYSTEM ACTIVE GRILLE SHUTTER AIR BAG IND AIR BAG OFF IND AIR BAG ON IND AIR BAG WARNING LIGHT IND AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS SYSTEMS AT SELECT LEVER AT SELECT LEVER ILLUMINATION LIGHT ATF TEMPERATURE ATF TEMPERATURE WARNING LIGHT IND AUDIO BRACKET GROUND AUDIO, NAVIGATION SYSTEMS AUTO DOWN AUTO HEAD LIGHT BEAM LEVELER WARNING LIGHT IND AUTO OFF AUTO UP AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C AUX INPUT TERMINAL AUXILIARY INPUT TERMINAL AWD WARNING LIGHT IND BACKUP LAMPS CIRCUIT BACKUP LIGHT BAG IND LIGHT BELT WARNING BSD/RCTA OFF IND CHARGE WARNING CHARGE WARNING LIGHT IND CLEARANCE LIGHT COMBI- NATION METER COMBINATION METER COMPUTER DATA LINES SYSTEM CONSTANT VOLTAGE CONSTANT VOLTAGE CIRCUIT COOLING FANS SYSTEM CRUISE CONTROL SYSTEM DATA COMMUNI- CATION MODULE DATA COMMUNICATION MODULE DATA LINK DC/DC CONVERTER DC/DC CONVERTER SHIELD DEFOGGER SYSTEM DEFOGGER SYSTEM HEADLIGHTS SYSTEM DMCM SHIELD DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS ANTI-THEFT SYSTEM DOOR LOCKS, WARNING, ANTI-THEFT SYSTEMS DOOR WARNING IND DOOR WARNING LIGHT IND DOOR WARNING LIGHT IND BUZZER DRIVE CIRCUIT DRIVE DIMMER CIRCUIT DRIVE'S KNEE AIR BAG MODULE DRIVE'S SEAT BELT WARNING LIGHT IND DRIVER CIRCUIT DRIVER KNEE AIR BAG MODULE DRIVER'S SEAT BELT WARNING LIGHT IND ECO GAUGE ECT IND ECT WARNING ELECTRIC NOISE FILTER ELECTRONIC THROTTLE CONTROL ELECTRONIC THROTTLE CONTROL SHIELD EXCEPT HYBRID EXCEPT HYBRID HYBRID F, R FRONT FOG LIGHT IND FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL LEVEL WARNING LIGHT IND GAP- GB-1 GB-2 GB-2 GB-2 GB-3 GB-4 GB-5 GB-6 GB-7 GB-8 GB-9 GB-9 (UNDER DRIVER'S GB-10 GB-11 GB-12 GB-13 GB-14 GB-15 GB-16 GB-17 GB-18 GB-19 GB-20 GB-21 GB-22 GE-1 GE-2 GLOVE BOX ILLUMINATION LIGHT HEADLIGHTS SYSTEM HEADLIGHTS SYSTEMS HI BEAM LIGHT IND HI-BEAM IND LIGHT HI-MOUNTED STOP LIGHT HIGH GRADE MFD HIGH MOUNTED STOP LIGHT HILL START ASSIST OFF IND/HILL START ASSIST OFF WARNING LIGHT IND HILL START ASSIST WARNING LIGHT IND/ HILL START ASSIST OFF IND HORNS SYSTEM HOT AT ALL TIMES HOT AT ALL TIMES SBF HOLDER HOT IN ON OR ACC HOT IN ON OR START HOT W/ HYBRID READY I/F COMPUTER I/F I/F ID CODE BOX IG DETECTING CIRCUIT IMPREZA, CROSSTREK INSTRUMENT CLUSTER SYSTEM INT OFF INT OFF ON INTERMITTENT VOLUME KEY ILLUMINATION KEY ILLUMINATION LIGHT KEYLESS BUZZER LANE DEPARTURE WARNING OFF LANE DEPARTURE WARNING OFF IND LCD ILLUM LIGHT IND LCD ILLUMINATION LIGHT IND LEFT "C" PILLAR) LEFT CURTAIN AIR BAG MODULE LEFT FRONT COMBINATION LIGHT LEFT FRONT FOG LIGHT LEFT HI-BEAM LEFT LICENSE PLATE LIGHT LEFT OUTER HANDLE LEFT OUTER MIRROR ASSEMBLY LEFT PRETENSIONER LEFT REAR COMBINATION LEFT REAR COMBINATION LIGHT LEFT SIDE AIR BAG MODULE LEFT SIDE TWEETER LEFT TURN IND LEFT TURN SIGNAL LIGHT IND LIGHT IND LIGHTING IND LO INT LOW-WASHER FLUID WARNING LIGHT IND LUGGAGE ROOM LIGHT M/T CVT MAGNET CLUTCH MAIN SW MALFUNCTION IND LIGHT MALFUNCTION LIGHT IND MANUAL A/C MANUAL A/C AUTOMATIC A/C MANUAL A/C AUTOMATIC A/C W/ SRF W/O SRF MICRO - MICRO COMPUTER MULTI-FUNCTION DISPLAY MUTE/ ENTER NAVIGATION SYSTEM NEEDLE ILLUM LIGHT IND NORMAL METER OFF HOOK OFF LO OFF LO INT INT OFF UP OIL PRESSURE OIL PRESSURE WARNING LIGHT IND OIL WARNING ON HOOK ON OFF ON+WASH ON+WASH WASH ONE STEP OUTPUT CLUTCH PARKING BRAKE/ BRAKE FLUID LEVEL WARNING LIGHT IND PARKING BRAKE/BRAKE FLUID LEVEL WARNING LIGHT IND PASSENGER'S PASSENGER'S AIR PASSENGER'S SEAT BELT WARNING LIGHT IND PASSENGER'S SEAT) PC BOARD PEDESTRIAN ALERT WARNING LIGHT IND PLATE ILLUM LIGHT IND PLATE ILLUMINATION LIGHT PLATE ILLUMINATION LIGHT IND POCKET LIGHT POWER DISTRIBUTION SYSTEM POWER STEERING BRACKET GROUND POWER SUPPLY POWER SUPPLY CIRCUIT POWER SUPPLY I/F CIRCUIT POWER TRANSISTOR POWER WINDOW CIRCUIT BREAKER POWER WINDOW CONTROLLER PRE-CHARGE PRE-COLLISION BRAKE OFF PRE-COLLISION BRAKE OFF IND PRIMARY DOWN PRIMARY UP REAR DEFOGGER REAR VIEW MIRROR) RES+ RIGHT CURTAIN AIR BAG MODULE RIGHT END OF DASH) RIGHT FRONT COMBINATION LIGHT RIGHT FRONT FOG LIGHT RIGHT HI-BEAM RIGHT LAP SEAT BELT PRETENSIONER RIGHT LICENSE PLATE LIGHT RIGHT OUTER HANDLE RIGHT OUTER MIRROR ASSEMBLY RIGHT PRETENSIONER RIGHT REAR COMBINATION RIGHT REAR COMBINATION LIGHT RIGHT SIDE AIR BAG MODULE RIGHT SIDE TWEETER RIGHT TURN IND RIGHT TURN SIGNAL LIGHT IND ROOM LIGHT SBF 5 SBF 7 SBF HOLDER SEAT) SECURITY/ IMMOBILIZER IND SECURITY/ IMMOBILIZER IND LIGHT SECURITY/IMMOBILIZER IND SERVICE DISCONNECT PLUG SET- SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK, HEADLIGHTS SYSTEMS SHOWER LIGHT SIDE MARKER SIDE MARKER LIGHT SOUND SYSTEMS SPEEDO- METER SPOT MAP LIGHT STANDARD MFD STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WARNING LIGHT IND STOP LIGHT SUPPLEMENTAL RESTRAINTS SYSTEM TACHO- METER TAIL- LIGHT TEMPERATURE IND TIRE INFLATION PRESSURE WARNING LIGHT IND TOUCH - TRANSMISSION SHIELD TRANSMISSIONS SYSTEM TRUNK ROOM LIGHT TURN LIGHT TURN SIG LIGHT TURN SIGNAL LIGHT TURN SIGNAL LIGHT, HAZARD LIGHT MODULE TURN SIGNAL LIGHT, HAZARD MODULE TURN SIGNAL, HAZARD LIGHT MODULE UP LEFT REAR UP RIGHT FRONT UP RIGHT REAR VDC OFF LIGHT IND VDC WARNING LIGHT/ VDC OPERATION LIGHT IND VDC WARNING LIGHT/VDC OPERATION LIGHT IND W/ 6.2 INCH DISPLAY W/ 6.2 INCH DISPLAY W/ 7 INCH DISPLAY W/ 7 INCH DISPLAY W/ 6.2 INCH DISPLAY W/ AUTO LIGHT W/ COLOR TFT METER W/ EYESIGHT W/ EYESIGHT SYSTEM W/O EYESIGHT SYSTEM W/ EYESIGHT W/O EYESIGHT W/ HEATED MIRRORS W/O HEATED MIRRORS W/ HEV W/ HIGH GRADE MFD W/ ID CODE BOX W/ ID CODE BOX W/O ID CODE BOX W/ ID CODE BOX W/O ID CODE BOX W/O EYESIGHT W/ EYESIGHT W/ KEYLESS ACCESS SYSTEM W/ L/R INDEPENDENT AIR CONDITIONER W/ NAVIGATION W/ NORMAL METER W/ REAR SPOILER W/ SRF W/ SRF W/O SRF W/ SUNROOF W/ SUNROOF W/O SUNROOF W/ SUNROOF W/O SUNROOF W/ EYESIGHT W/O EYESIGHT W/ SUNROOF W/O SUNROOF W/O KEYLESS ACCESS SYSTEM W/ KEYLESS ACCESS SYSTEM W/ TELEMATICS W/ TFT METER W/O TFT METER W/ TPMS W/ TPMS W/O TPMS W/O ACTIVE GRILLE SHUTTER W/ ACTIVE GRILLE SHUTTER W/O EYESIGHT W/O EYESIGHT W/ EYESIGHT W/O EYESIGHT W/ EYESIGHT, W/O HEV W/ HEV 6 W/O HEV W/O HEV W/O HEV W/ HEV W/O KEYLESS ACCESS SYSTEM W/O L/R INDEPENDENT AIR CONDITIONER W/O NAVIGATION W/O NAVIGATION W/ NAVIGATION W/O REAR SPOILER W/O SUNROOF W/O TPMS W/O TPMS W/ TPMS W/O TPMS W/ TPMS IMPREZA, XV CROSSTREK WRX WARNING LIGHT IND WARNING SYSTEMS WIPER DEICER WIPER/WASHER SYSTEM
