Engine (Diagnostics) (H4SO): Diagnosis Subaru Legacy BL/BP

INSPECTION

Before performing diagnostics, check the following items which might affect engine problems

MODE $01 (CURRENT POWERTRAIN DIAGNOSTIC DATA)

Refers to data denoting the current operating condition of analog input/output, digital input/output and/or the powertrain system.

A list of the support data and PID (Parameter Identification) codes are shown in the following table.

Scheme 13

Note. Refer to OBD-II general scan tool manufacturer's instruction manual to access generic OBD-II PIDs (MODE $01).

MODE $03 (EMISSION-RELATED POWERTRAIN DIAGNOSTIC TROUBLE CODE)

Refer to the Read Diagnostic Trouble Code for information about data denoting emission-related powertrain diagnostic trouble codes. Refer to READ DIAGNOSTIC TROUBLE CODE .

MODE $04 (CLEAR/RESET EMISSION-RELATED DIAGNOSTIC INFORMATION)

Refers to the mode used to clear or reset emission-related diagnostic information (OBD-II trouble diagnostic information).

Note. Refer to OBD-II general scan tool manufacturer's instruction manual to clear or reset emission-related diagnostic information (MODE $04).

Scheme 14

Scheme 15

Scheme 16

Scheme 17

1. Prepare Subaru Select Monitor kit. Refer to «PREPARATION TOOL»(ref-208365-S21859467282005120700000) .
2. Connect diagnosis cable to Subaru Select Monitor.
3. Insert cartridge into Subaru Select Monitor. Refer to «PREPARATION TOOL»(ref-208365-S21859467282005120700000) .
4. Connect Subaru Select Monitor to data link connector. Data link connector (A) located in the lower portion of the instrument panel (on the driver's side). Connect diagnosis cable to data link connector. CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
5. Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
6. Using Subaru Select Monitor, call up diagnostic trouble code(s) and various data, then record them.

READ DIAGNOSTIC TROUBLE CODES FOR ENGINE (NORMAL MODE)

Refer to the Read Diagnostic Trouble Code for information about how to indicate DTC. Refer to READ DIAGNOSTIC TROUBLE CODE .

READ DIAGNOSTIC TROUBLE CODES FOR ENGINE (OBD MODE)

Refer to the Read Diagnostic Trouble Code for information about how to indicate DTC. Refer to READ DIAGNOSTIC TROUBLE CODE .

Scheme 18

Scheme 19

1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
6. Using the scroll key, move the display screen up or down until the desired data is shown. A list of the support data is shown in the following table. NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual. For select monitor display details, refer to the following.

Scheme 20

1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
6. Using the scroll key, move the display screen up or down until the desired data is shown. A list of the support data is shown in the following table. NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.

Scheme 21

1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the << Engine Diagnosis >> display screen, select the {OBD System} and press the [YES] key.
5. On the << OBD Menu >> display screen, select the {Freeze Frame Data} and press the [YES] key. A list of the support data is shown in the following table. NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.

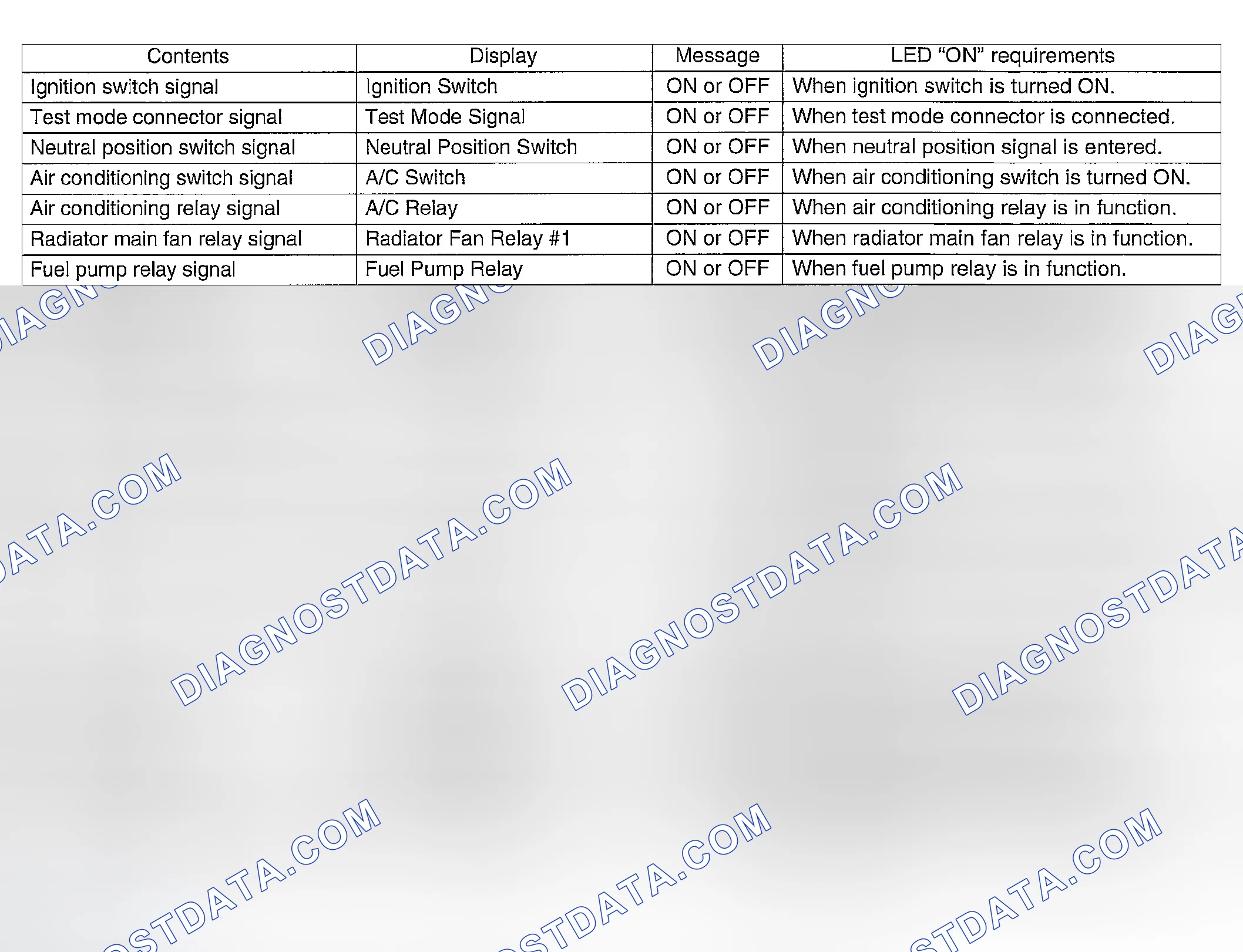

Scheme 22

1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
6. Using the scroll key, move the display screen up or down until the desired data is shown. A list of the support data is shown in the following table. NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.

Scheme 23

1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
6. Using the scroll key, move the display screen up or down until the desired data is shown. A list of the support data is shown in the following table. NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual. For select monitor display details, refer to the following.

OBD-II GENERAL SCAN TOOL

Refers to data denoting emission-related power-train diagnostic trouble codes.

For details concerning diagnostic trouble codes, refer to the List of Diagnostic Trouble Code (DTC).

Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .

Note. Refer to OBD-II general scan tool manufacturer's instruction manual to access emission-related powertrain diagnostic trouble codes (MODE $03).

For clear memory procedures using the OBD-II general scan tool, refer to the OBD-II General Scan Tool Instruction Manual.

After the memory has been cleared, the idle air control solenoid valve must be initialized. To do this, turn the ignition switch to the ON position. Wait 3 seconds before starting the engine.

Scheme 24

Scheme 25

Scheme 26

Scheme 27

Scheme 28

Scheme 29

Scheme 30

1. Prepare Subaru Select Monitor kit. Refer to «PREPARATION TOOL»(ref-208365-S21859467282005120700000) .
2. Connect diagnosis cable to Subaru Select Monitor.
3. Insert cartridge into Subaru Select Monitor. Refer to «PREPARATION TOOL»(ref-208365-S21859467282005120700000) .
4. Connect test mode connector (A) at the lower portion of instrument panel (on the driver's side), to the side of the center console box.
5. Connect Subaru Select Monitor to data link connector. Connect Subaru Select Monitor to data link connector (A) located in the lower portion of the instrument panel (on the driver's side). Connect diagnosis cable to data link connector. CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
6. Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
7. Power switch
8. On the << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
9. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
10. Press the [YES] key after displayed the information of engine type.
11. On the << Engine Diagnosis >> display screen, select the {System Operation Check Mode} and press the [YES] key.
12. On the << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
13. Select the desired compulsory actuator on the << Actuator ON/OFF Operation >> display screen and press the [YES] key.
14. Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation >> screen. A list of the support data is shown in the following table. NOTE: The following parts will be displayed but not functional. For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.

Scheme 31

Scheme 32

Scheme 33

Scheme 34

Scheme 35

1. When ignition switch is turned to ON (engine off), the CHECK ENGINE malfunction indicator lamp (MIL) in the combination meter illuminates. NOTE: If the MIL does not illuminate, perform diagnostics of the CHECK ENGINE light circuit or the combination meter circuit. Refer to «CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT COME ON»(ref-208365-S27010511262005120700000) , Engine Malfunction Indicator Lamp (MIL).
2. After starting the engine, the MIL goes out. If it does not, either the engine or the emission control system is malfunctioning.
3. If the diagnosis system senses a misfire which could damage the catalyzer, the MIL will blink at a cycle of 1 Hz.
4. When ignition switch is turned to ON (engine off) or to "START" with the test mode connector connected, the MIL blinks at a cycle of 3 Hz.

Scheme 36

Scheme 37

Scheme 38

1. DIAGNOSIS: The CHECK ENGINE malfunction indicator lamp (MIL) circuit is open or shorted.
2. TROUBLE SYMPTOM: When ignition switch is turned ON (engine OFF), MIL does not come on.
3. WIRING DIAGRAM

Scheme 39

Scheme 40

1. DIAGNOSIS: The CHECK ENGINE malfunction indicator lamp (MIL) circuit is shorted.
2. TROUBLE SYMPTOM: Although MIL comes on when engine runs, trouble code is not shown on Subaru select monitor or OBD-II general scan tool display.
3. WIRING DIAGRAM

Scheme 41

Scheme 42

1. DIAGNOSIS: The CHECK ENGINE malfunction indicator lamp (MIL) circuit is open or shorted. Test mode connector circuit is in open.
2. TROUBLE SYMPTOM: When inspection mode, MIL does not blink at a cycle of 3 Hz.
3. WIRING DIAGRAM

Scheme 43

Scheme 44

Scheme 45

1. DIAGNOSIS: Test mode connector circuit is shorted.
2. TROUBLE SYMPTOM: MIL blinks at a cycle of 3 Hz when ignition switch is turned to ON.
3. WIRING DIAGRAM

Scheme 46

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC DETECTING CONDITION

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 47

Scheme 48

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 49

Scheme 50

Scheme 51

Scheme 52

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 53

Scheme 54

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 55

Scheme 56

Scheme 57

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 58

Scheme 59

Scheme 60

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

TROUBLE SYMPTOM

1. Erroneous idling
2. Ending stalls.

Scheme 61

Scheme 62

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling
2. Engine stalls.

Scheme 63

Scheme 64

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling
2. Engine stalls.

Scheme 65

Scheme 66

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 67

Scheme 68

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

Scheme 69

Scheme 70

Scheme 71

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

Scheme 72

Scheme 73

Scheme 74

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling
2. Engine stalls.

Scheme 75

Scheme 76

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Poor driving performance

Scheme 77

Scheme 78

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Poor driving performance

Scheme 79

Scheme 80

Scheme 81

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Hard to start
2. Erroneous idling
3. Poor driving performance

Scheme 82

Scheme 83

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Hard to start
2. Erroneous idling
3. Poor driving performance

Scheme 84

Scheme 85

Scheme 86

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Engine stalls.
3. Poor driving performance

Scheme 87

Scheme 88

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Engine stalls.
3. Poor driving performance

Scheme 89

Scheme 90

Scheme 91

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Engine stalls.
3. Poor driving performance

Scheme 92

Scheme 93

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Engine would not return to idling.

Scheme 94

Scheme 95

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. abs
2. Thermostat remains open.

Scheme 96

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 97

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 98

Scheme 99

Scheme 100

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

Scheme 101

Scheme 102

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 103

Scheme 104

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 105

Scheme 106

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

Scheme 107

Scheme 108

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 109

Scheme 110

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 111

Scheme 112

Scheme 113

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 114

Scheme 115

DIAGNOSTIC PROCEDURE

Note. For the diagnostic procedure, refer to DTC P0171: SYSTEM TOO LEAN (BANK 1) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling
2. Engine stalls.
3. Poor driving performance

Scheme 116

Scheme 117

Scheme 118

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

Scheme 119

Scheme 120

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

Scheme 121

Scheme 122

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

Scheme 123

Scheme 124

Scheme 125

Note. For the diagnostic procedure refer to DTC P0304: CYLINDER 4 MISFIRE DETECTED , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P0304: CYLINDER 4 MISFIRE DETECTED , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P0304: CYLINDER 4 MISFIRE DETECTED , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction Detected simultaneously at occurrence of malfunction. (When a misfire which could damage catalyst occurs.)

1. Engine stalls.
2. Erroneous idling
3. Rough driving

Scheme 126

Scheme 127

Scheme 128

Scheme 129

Scheme 130

Scheme 131

Scheme 132

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Poor driving performance
2. Knocking occurs.

Scheme 133

Scheme 134

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Poor driving performance
2. Knocking occurs.

Scheme 135

Scheme 136

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Engine stalls.
2. Engine does not start.

Scheme 137

Scheme 138

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Engine stalls.
2. Engine does not start.

Scheme 139

Scheme 140

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Engine stalls.
2. Engine does not start.

Scheme 141

Scheme 142

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Engine stalls.
2. Engine does not start.

Scheme 143

Scheme 144

Scheme 145

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Poor driving performance on low engine speed
2. Erroneous idling
3. Poor driving performance.

Scheme 146

Scheme 147

Scheme 148

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Engine stalls.
2. Idle mixture is out of specifications.

Scheme 149

Scheme 150

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Gasoline smell
2. There is a hole of more than 1.0 mm (0.04 in) dia. in evaporation system or fuel tank.

Scheme 151

Scheme 152

Scheme 153

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 154

Scheme 155

Scheme 156

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 157

Scheme 158

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 159

Scheme 160

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 161

Scheme 162

Scheme 163

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 164

Scheme 165

Scheme 166

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Gasoline smell
2. There is a hole of more than 0.5 mm (0.020 in) dia. in evaporation system or fuel tank.

Scheme 167

Scheme 168

Scheme 169

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Gasoline smell
2. Fuel filler cap loose or missing

Scheme 170

Scheme 171

Scheme 172

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling

Scheme 173

Scheme 174

Scheme 175

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling

Scheme 176

Scheme 177

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 178

Scheme 179

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 180

Scheme 181

Scheme 182

Scheme 183

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 184

Scheme 185

Scheme 186

Scheme 187

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 188

Scheme 189

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Occurrence of noise
2. Overheating

Note. If the vehicle, with the engine idling, is placed very close to a wall or another vehicle, preventing normal cooling function, the OBD system may detect malfunction.

Scheme 190

Scheme 191

Note. For the diagnostic procedure, refer to DTC P0502: VEHICLE SPEED SENSOR CIRCUIT LOW INPUT , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction. CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) . Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 192

Scheme 193

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Engine is difficult to start.
2. Engine does not start.
3. Erroneous idling
4. Engine stalls.

Scheme 194

Scheme 195

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Engine keeps running at higher revolution than specified idling revolution.

Scheme 196

Scheme 197

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Failure of engine to start

Scheme 198

Scheme 199

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Engine keeps running at higher revolution than specified than specified idling revolution.

Scheme 200

Scheme 201

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) . Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 202

Scheme 203

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Engine does not start.
2. Engine stalls.

Scheme 204

Scheme 205

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Radiator fan does not operate properly.
2. Overheating

Scheme 206

Scheme 207

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Radiator fan does not operate properly.
2. Overheating

Scheme 208

Scheme 209

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) . Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 210

Scheme 211

Scheme 212

Note. For the diagnostic procedure, refer to DTC P0734: GEAR 4 INCORRECT RATIO , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P0734: GEAR 4 INCORRECT RATIO , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P0734: GEAR 4 INCORRECT RATIO , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Shift point too high or too low; engine brake not effected in "3" range; excessive shift shock; excessive tight corner "braking"

Scheme 213

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. No lock-up (after engine warm-up)
2. No shift or excessive tight corner "braking"

Scheme 214

Scheme 215

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling

Scheme 216

Scheme 217

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling

Scheme 218

Scheme 219

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling

Scheme 220

Scheme 221

Scheme 222

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Erroneous idling

Scheme 223

Scheme 224

Scheme 225

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 226

Scheme 227

Scheme 228

DTC DETECTING CONDTION

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 229

Scheme 230

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 231

Scheme 232

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 233

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 234

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction. CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 235

Scheme 236

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 237

Scheme 238

Scheme 239

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 240

Scheme 241

Scheme 242

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 243

Scheme 244

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Improper fuel supply

Scheme 245

Scheme 246

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 247

Scheme 248

Scheme 249

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 250

Scheme 251

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 252

Scheme 253

Note. For the diagnostic procedure, refer to DTC P1498: EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1499: EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1498: EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1499: EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to Refer to DTC P1498: EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1499: EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Engine stalls.
3. Engine breathing

Scheme 254

Scheme 255

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Engine stalls.
3. Engine breathing

Scheme 256

Scheme 257

Note. For the diagnostic procedure, refer to DTC P1516: ISC SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1517: ISC SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1516: ISC SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1517: ISC SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1516: ISC SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

Note. For the diagnostic procedure, refer to DTC P1517: ISC SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (HIGH INPUT) , Diagnostic Procedure with Diagnostic Trouble Code (DTC).

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Erroneous idling
2. Engine stalls.
3. Engine breathing

Scheme 258

Scheme 259

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction.

1. Rough idling
2. Engine stalls.
3. Engine speed varies.

Scheme 260

Scheme 261

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Failure of engine to start

Scheme 262

Scheme 263

1. DTC DETECTING CONDITION: Detected simultaneously at occurrence of malfunction. CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 264

Scheme 265

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 266

Scheme 267

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 268

Scheme 269

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Excessive shift shock

Scheme 270

Scheme 271

1. DTC DETECTING CONDITION: Two consecutive driving cycles with malfunction

1. Excessive shift shock

Scheme 272

Scheme 273

1. DTC DETECTING CONDITION: Detected when a malfunction occurs in two consecutive driving cycles. CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 274

Scheme 275

Scheme 276

Scheme 277

Scheme 278

1. DTC DETECTING CONDITION: Detected when a malfunction occurs in two consecutive driving cycles. CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode. Refer to «CLEAR MEMORY MODE»(ref-208365-S09915749072005120700000) and Inspection Mode. Refer to «INSPECTION MODE»(ref-208365-S08948594472005120700000) .

Scheme 279

Scheme 280

Scheme 281

Scheme 282

Scheme 283

Note. Malfunction of parts other than those listed is also possible. Refer to ENGINE TROUBLE IN GENERAL .

Scheme 284

Scheme 285
