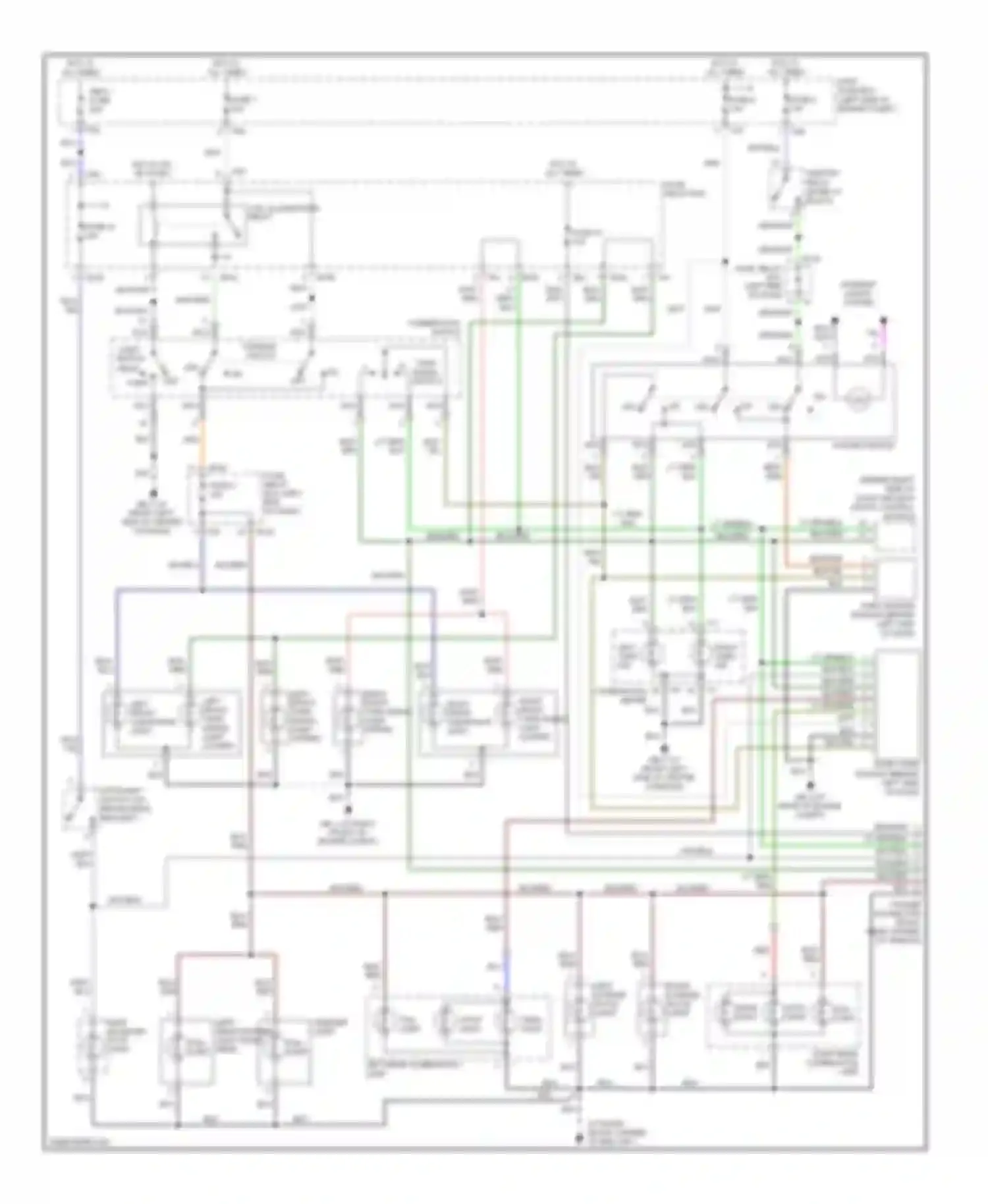

Subaru Baja I (2002-2006) Exterior lamps circuit

BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BRN WIRE BRN/RED WIRE COMBINATION METER COMBINATION SWITCH FUSE 10 FUSE 16 FUSE 5 FUSE 6 FUSE 7 FUSE, RELAY BOX (LEFT END OF DASH) FUSE 5 FUSE/ RELAY BOX FUSE/ RELAY BOX (LEFT END OF DASH) GB-1 (AT RIGHT FRONT OF ENGINE COMPT) GB-3 (AT REAR OF ENGINE COMPT) GB-7 (AT FRONT LEFT SIDE OF CENTER CONSOLE) GRN WIRE GRN/WHT WIRE HAZARD SWITCH HEAD HIGH MOUNTED STOP LIGHT HOT AT ALL TIMES HOT IN ON OR START IGNITION RELAY (IN RELAY BLOCK) LEFT LICENSE PLATE LIGHT LEFT REAR COMBINATION LAMP LEFT REAR FINISHER LIGHT RIGHT REAR FINISHER LIGHT LEFT TURN IND LIGHT SWITCH LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE MAIN FUSE BOX NCA WIRE OFF OFF ON OFF PARK ON OFF ON ON OFF ORG/ WIRE PARKING SWITCH RED WIRE RIGHT FRONT CLEARANCE LIGHT RIGHT FRONT TURN SIGNAL LIGHT (LOWER) RIGHT FRONT TURN SIGNAL LIGHT (UPPER) RIGHT LICENSE PLATE LIGHT RIGHT REAR COMBINATION LAMP RIGHT TURN IND SBF-2 FUSE STOP, TURN MODULE (BEHIND LEFT SIDE OF DASH) STOP- LIGHT TURN LIGHT TAIL- LIGHT STOPLIGHT SWITCH (ON BRAKE PEDAL BRACKET) TAIL LIGHT STOP LIGHT TAIL, ILLUMINATION RELAY TAIL- LIGHT TAIL- LIGHT TRAILER CONNECTOR (RIGHT REAR CORNER OF VEHICLE) TURN LIGHT TURN SIGNAL SWITCH TURN, HAZARD MODULE (BEHIND LEFT SIDE OF DASH) VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE YEL WIRE
