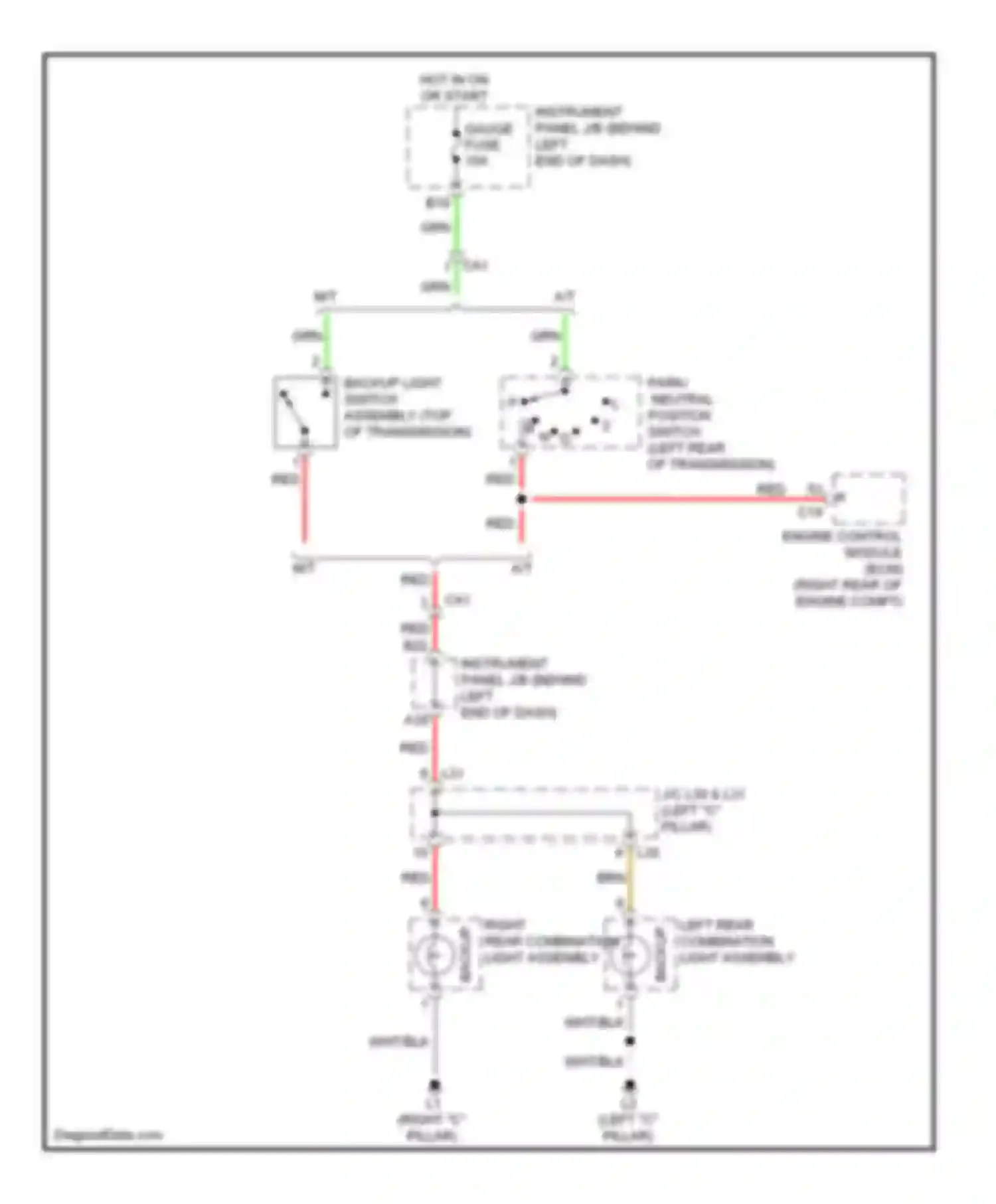

Exterior lights — Backup lamps circuit Scion xD I
All systems — 28 systems
- Air conditioning
- Anti-lock brakes
- Anti-theft 2
- Body control modules
- Computer data lines
- Cooling fan
- Cruise control
- Defoggers
- Electronic power steering
- Engine performance 1.8l
- Exterior lights 2
- Ground distribution
- Headlights 2
- Horn
- Instrument cluster
- Interior lights 2
- Power distribution
- Power door locks
- Power mirrors
- Power windows
- Radio
- Shift interlock
- Starting/charging 2
- Supplemental restraints
- Transmission
- Trunk, tailgate, fuel door
- Warning systems 2
- Wiper/washer 2
Components on these wiring diagrams 10
Click a component to highlight it on every diagram it appears on.
