Porsche Cayman GTS 982 (2016–2024) 2.0L TURBO, 2.5L TURBO, 4.0L TURBO wiring diagrams

Active bodyworks circuit

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit

Anti-theft circuit

Front controller circuit Rear control unit circuit

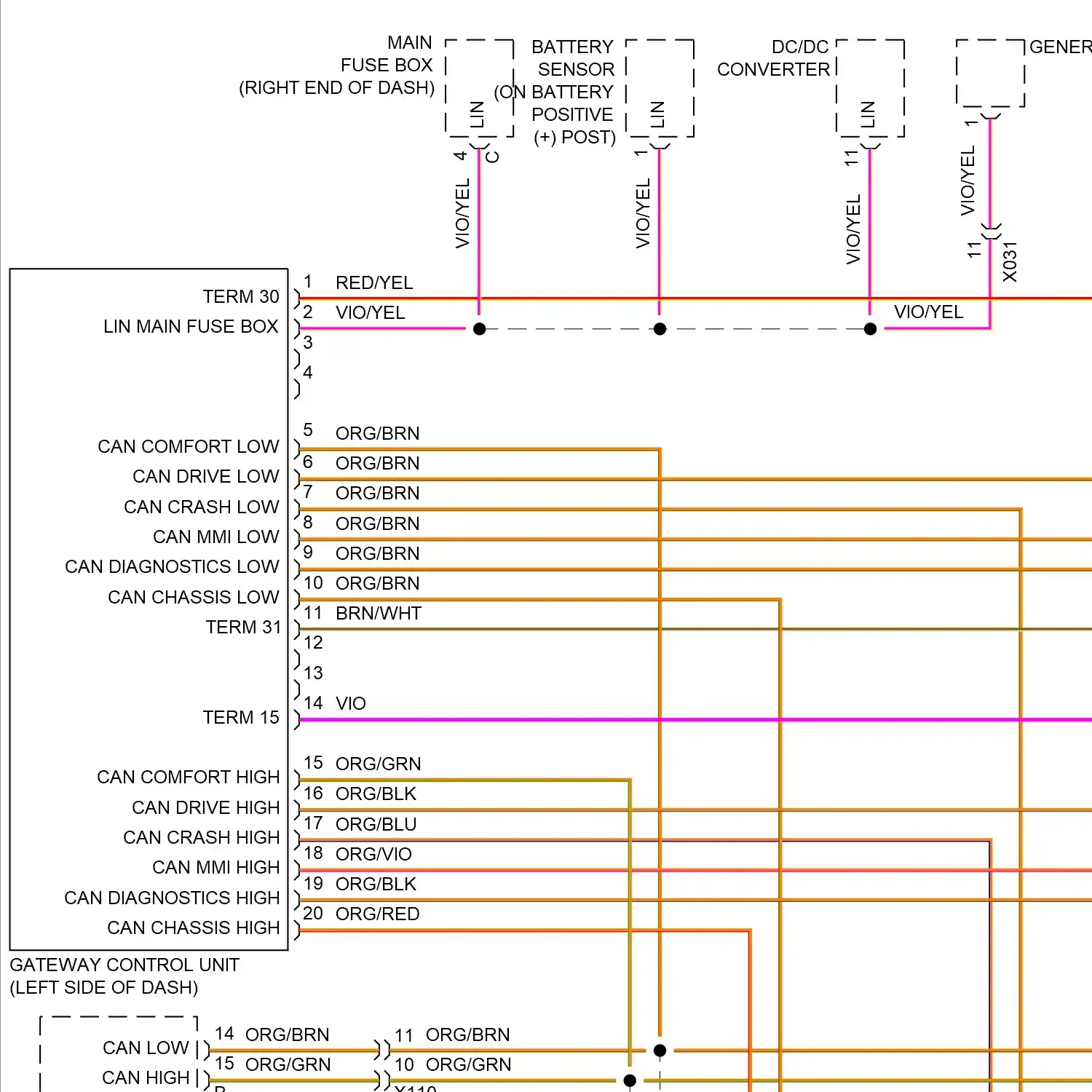

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defogger circuit Heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.5l turbo

Wiring diagram engine performance 4.0l turbo

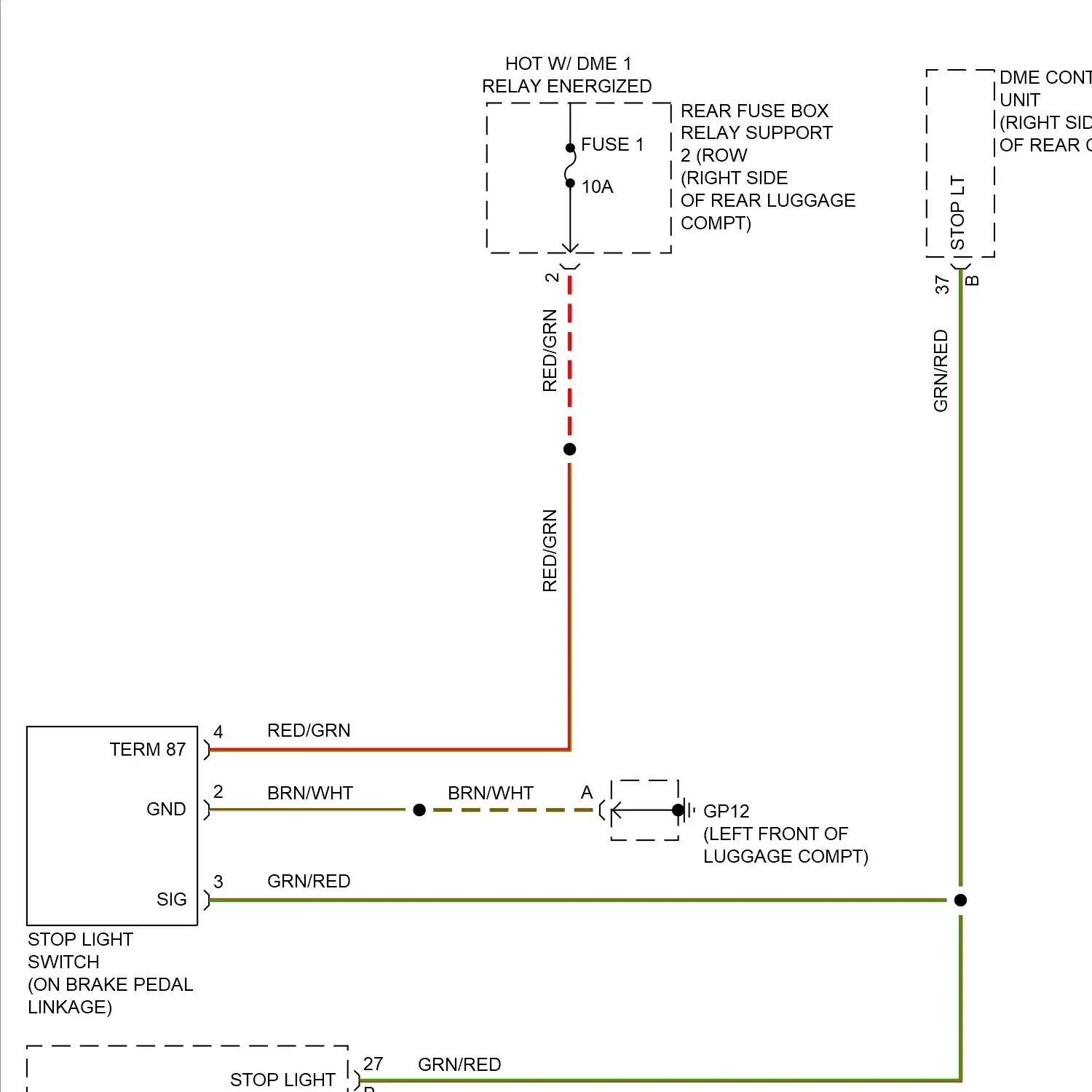

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit, w/ led headlights Headlights circuit, w/o led headlights

Horn circuit

Instrument cluster circuit

Interior lights circuit

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

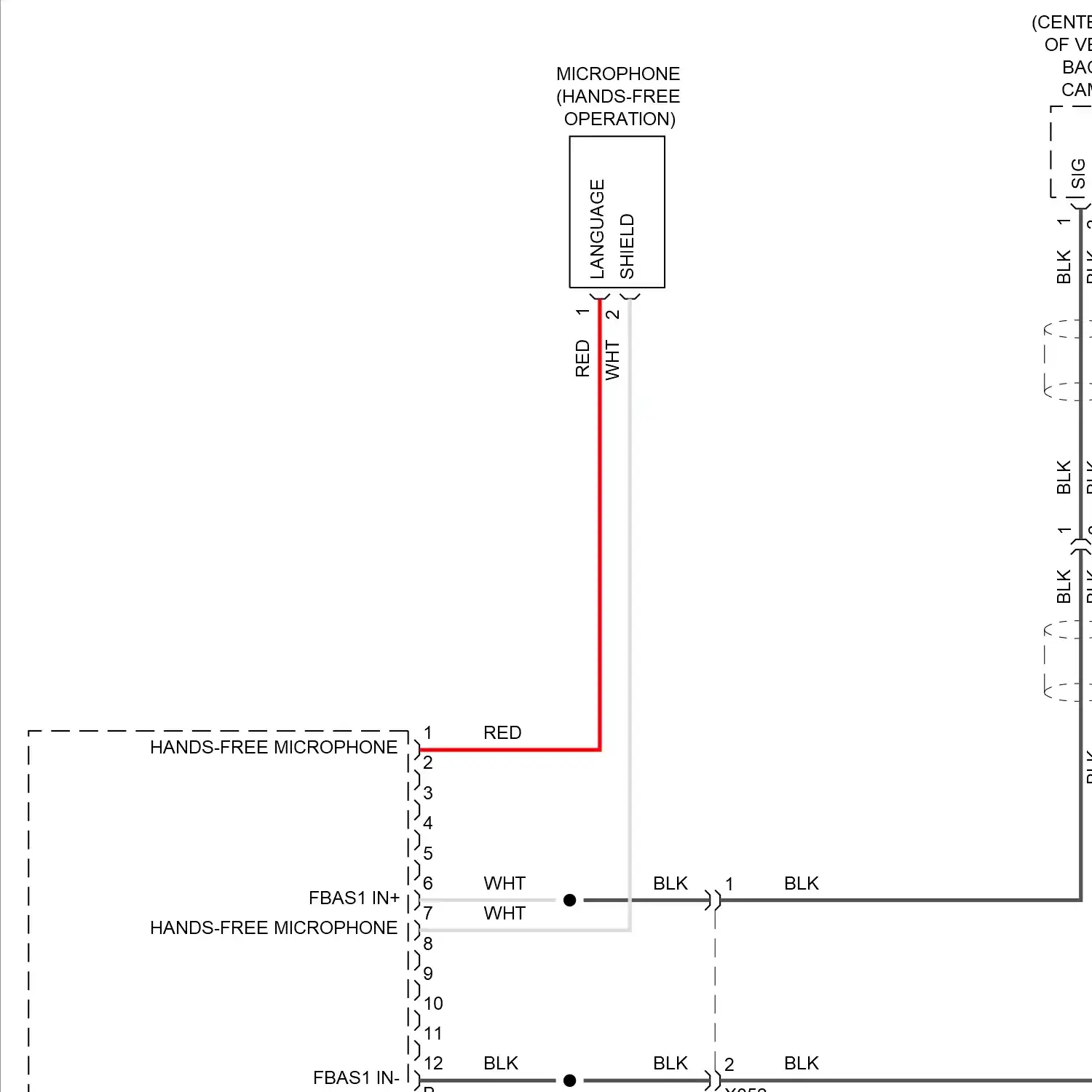

Front camera circuit Lane change assistance circuit Navigation circuit, base Navigation circuit, premium w/ bose Navigation circuit, premium w/ burmester Parking assistant circuit Rear camera circuit

Power distribution circuit

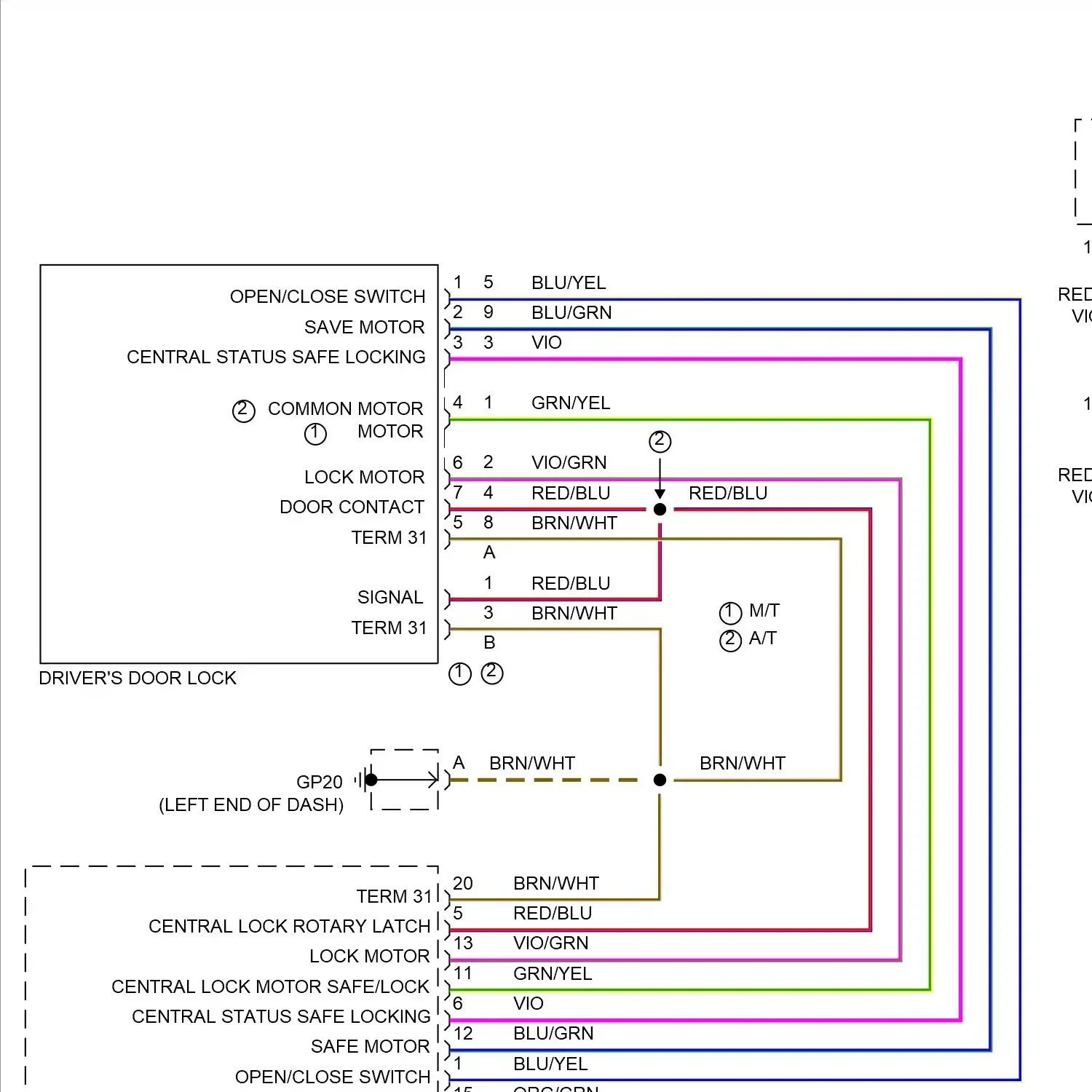

Power door locks circuit

Auto anti-dazzling mirror circuit Power mirrors circuit

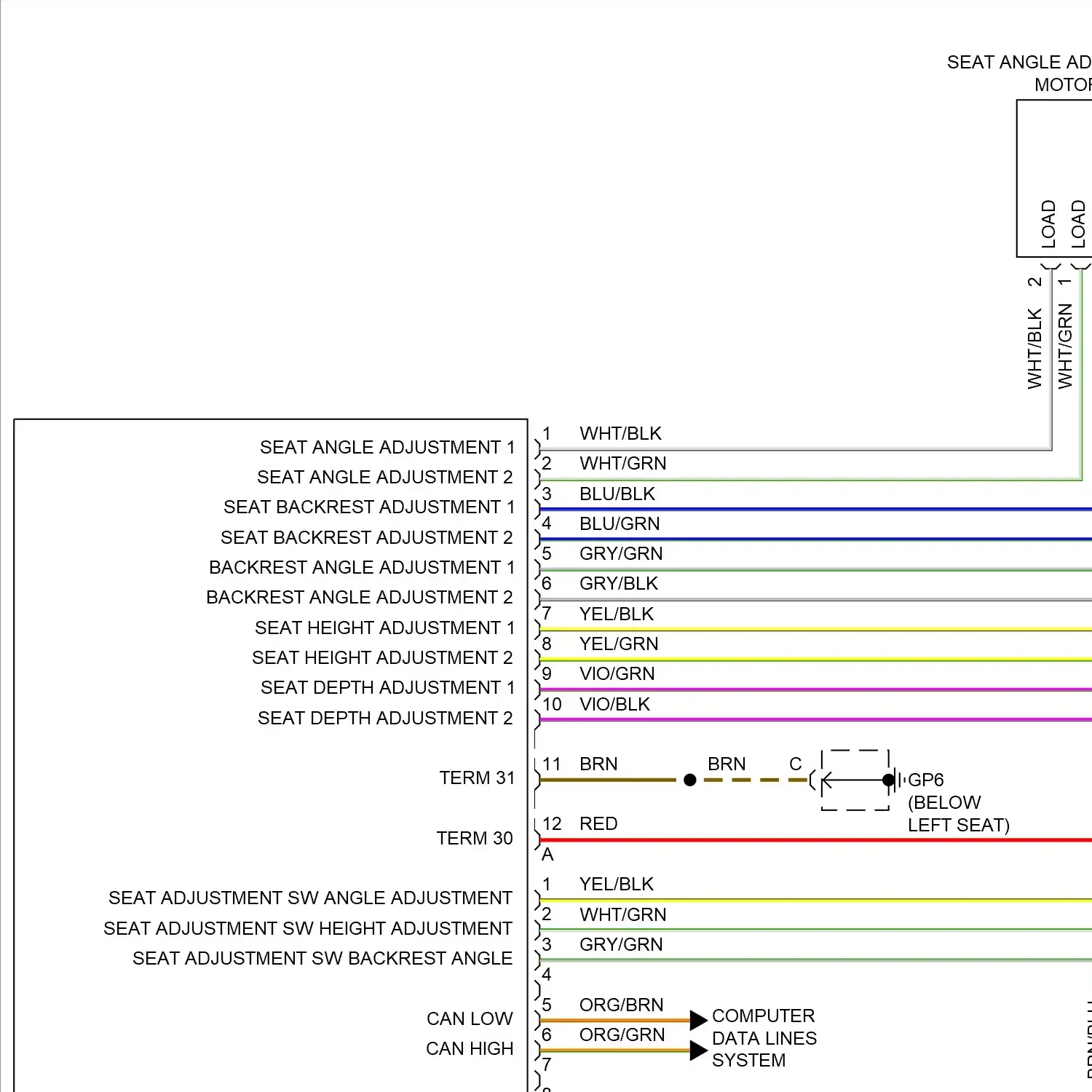

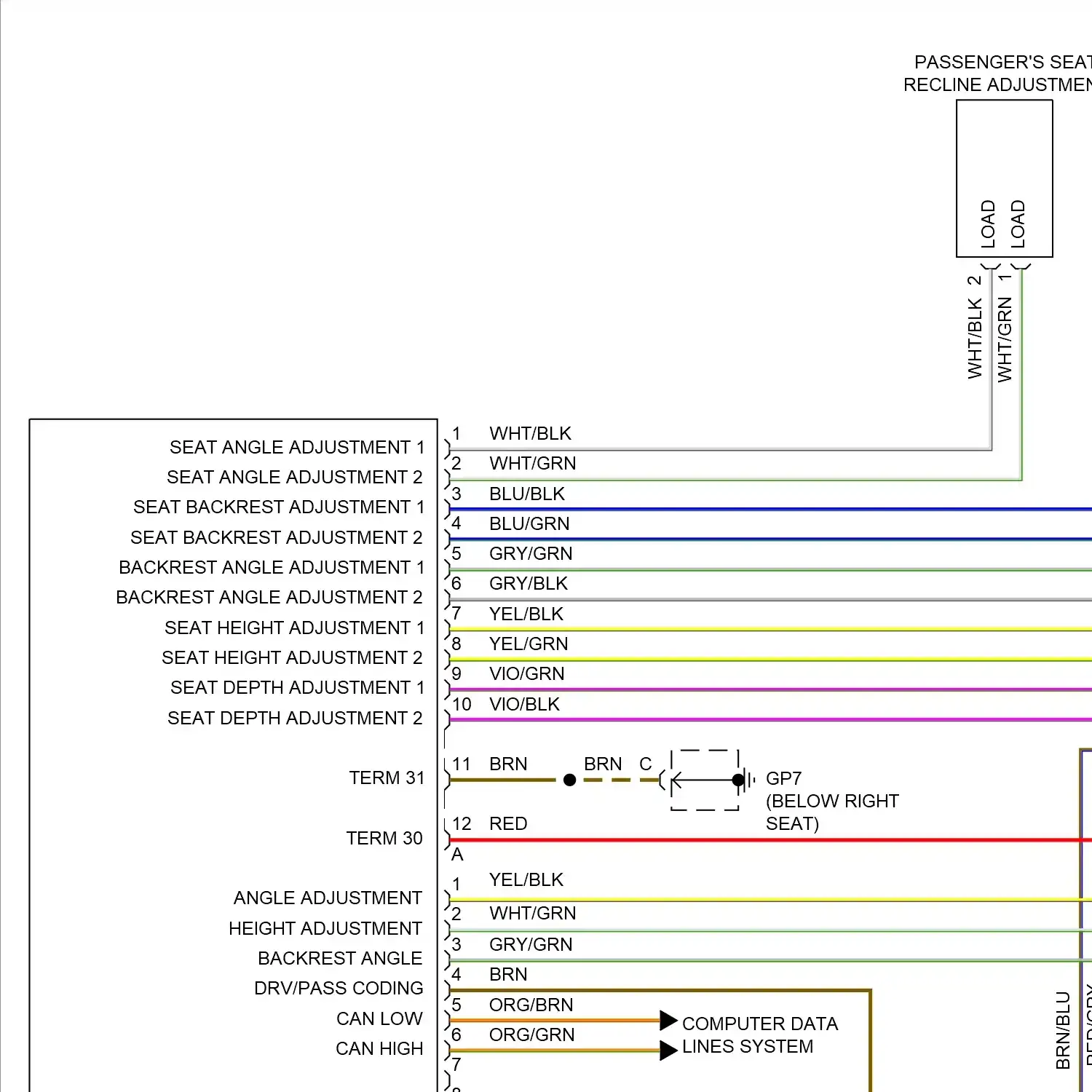

Driver heated seat circuit Driver power seat circuit Front passenger heated seat circuit Heated steering wheel circuit Passenger power seat circuit

Power top/sunroof circuit

Power windows circuit

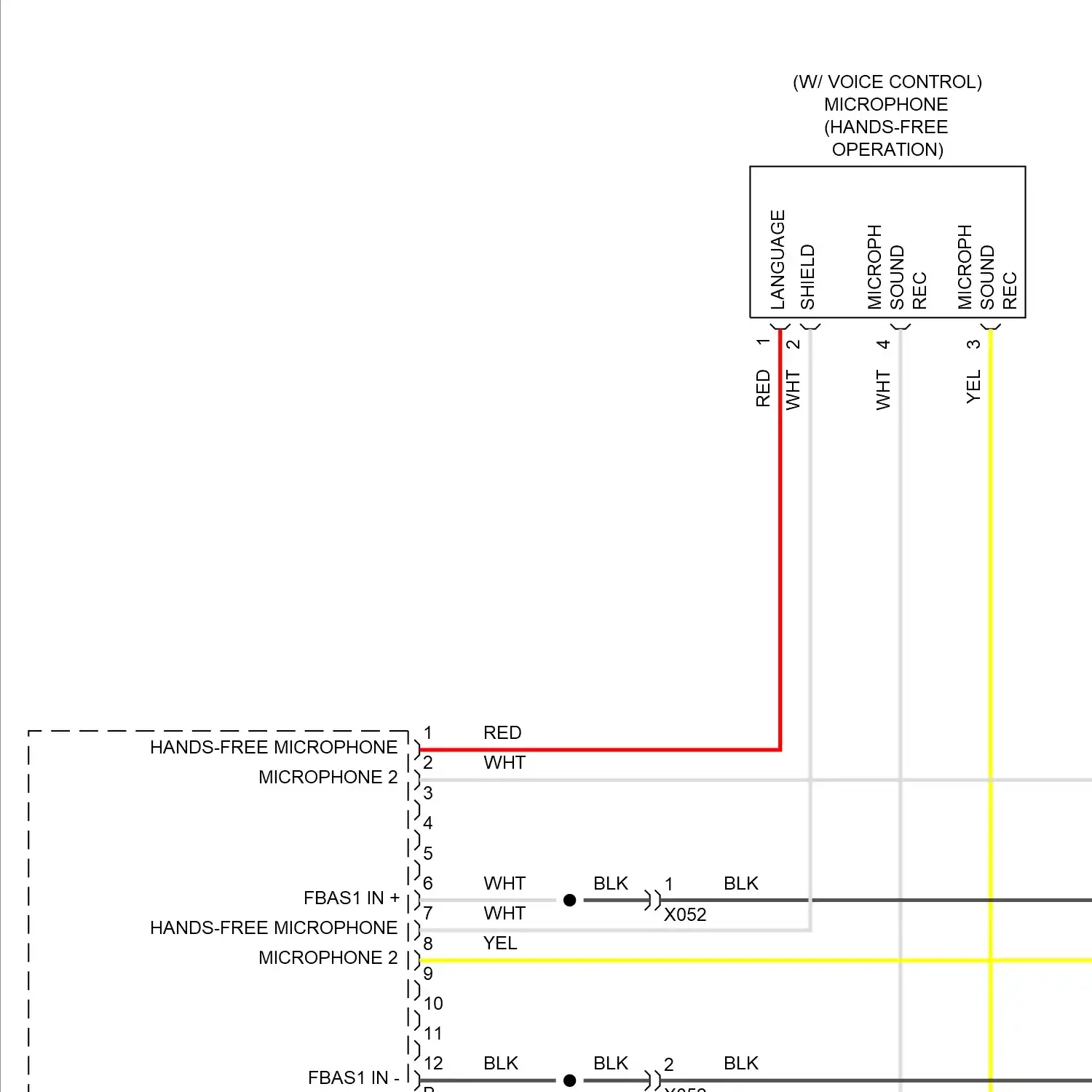

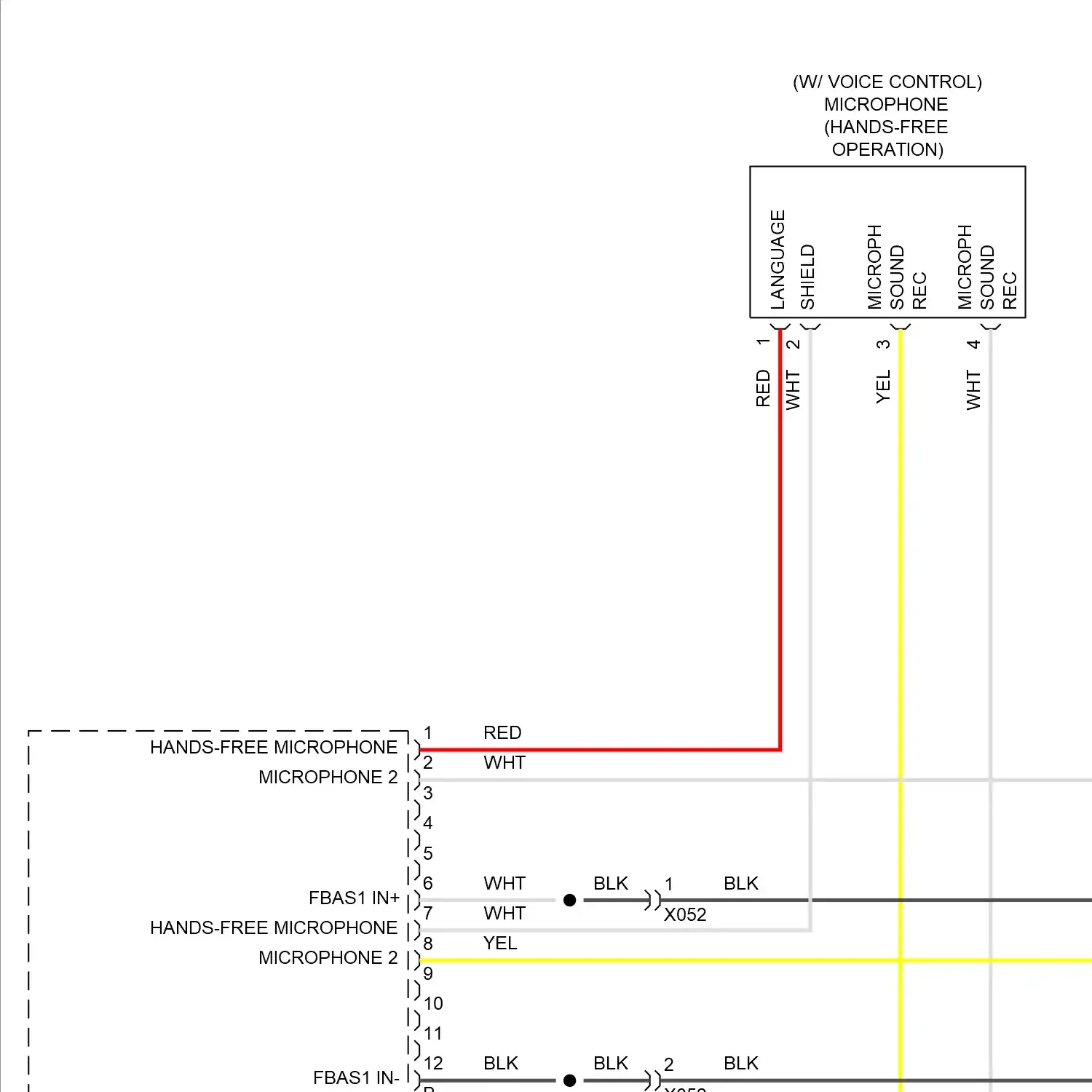

Base radio circuit Optical wave guide circuit Premium radio circuit, w/ bose Premium radio circuit, w/ burmester Tv tuner circuit

Electronic parking brake circuit Shift interlock circuit

Charging circuit Starting circuit

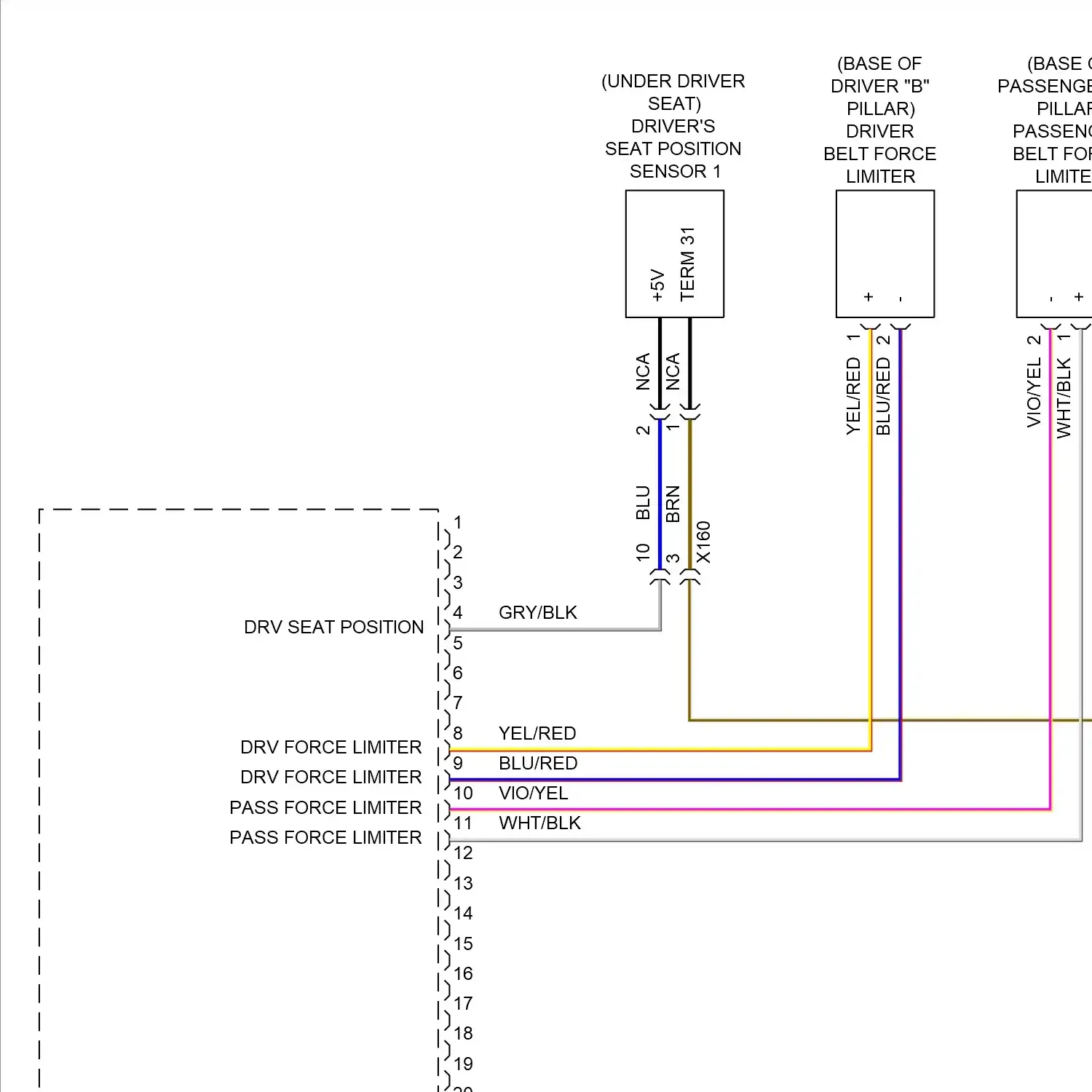

Supplemental restraints circuit

Transmission circuit

Tailgate & fuel door release circuit

Warning systems circuit

Front wiper/washer circuit Rear wiper circuit
