Porsche 911 Carrera 4S 992 (2018–2024) 3.0L TURBO, 3.8L TURBO wiring diagrams

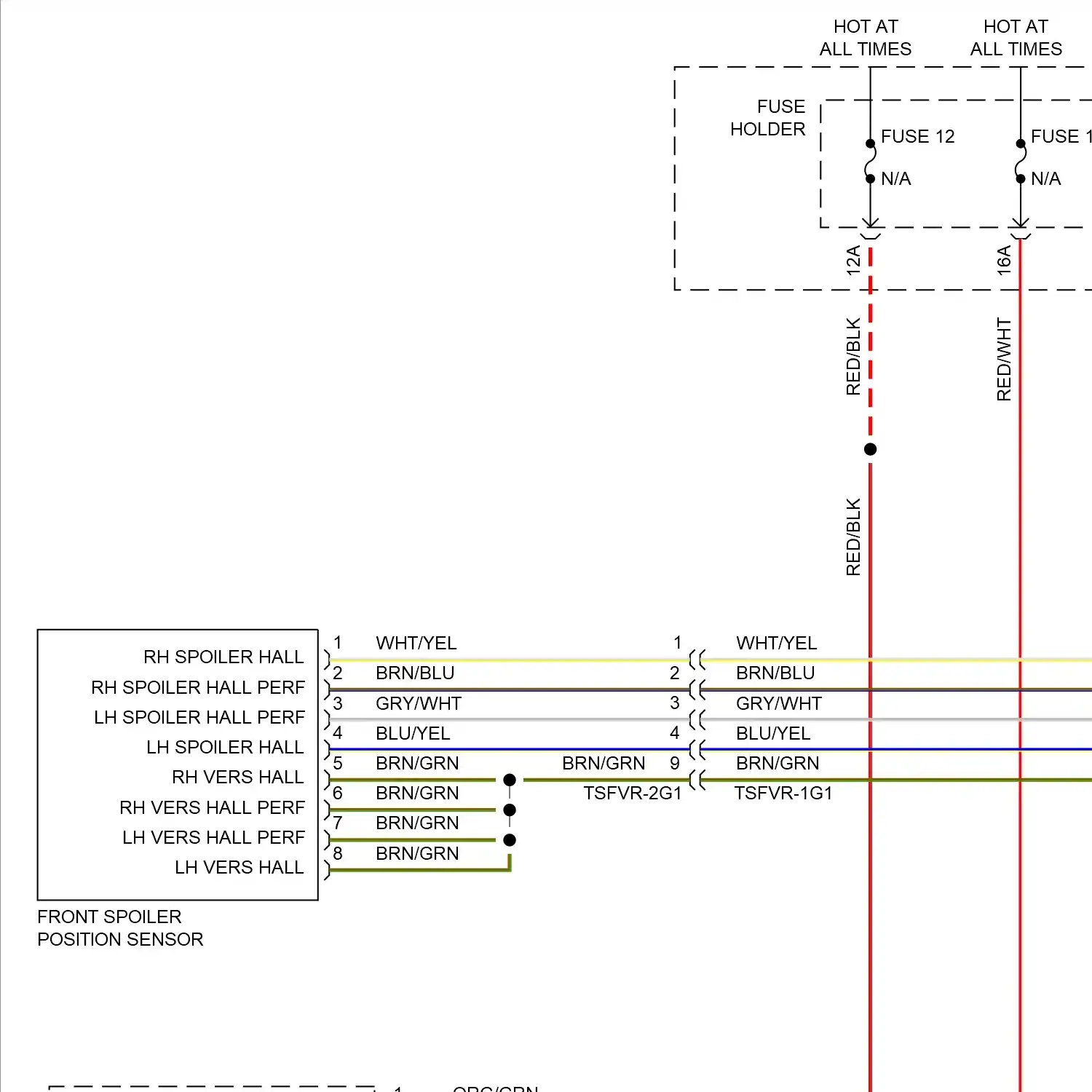

Active rear spoiler circuit, w/ aerodynamics Active rear spoiler circuit, w/o aerodynamics Virtual engine sound system circuit

Automatic a/c circuit

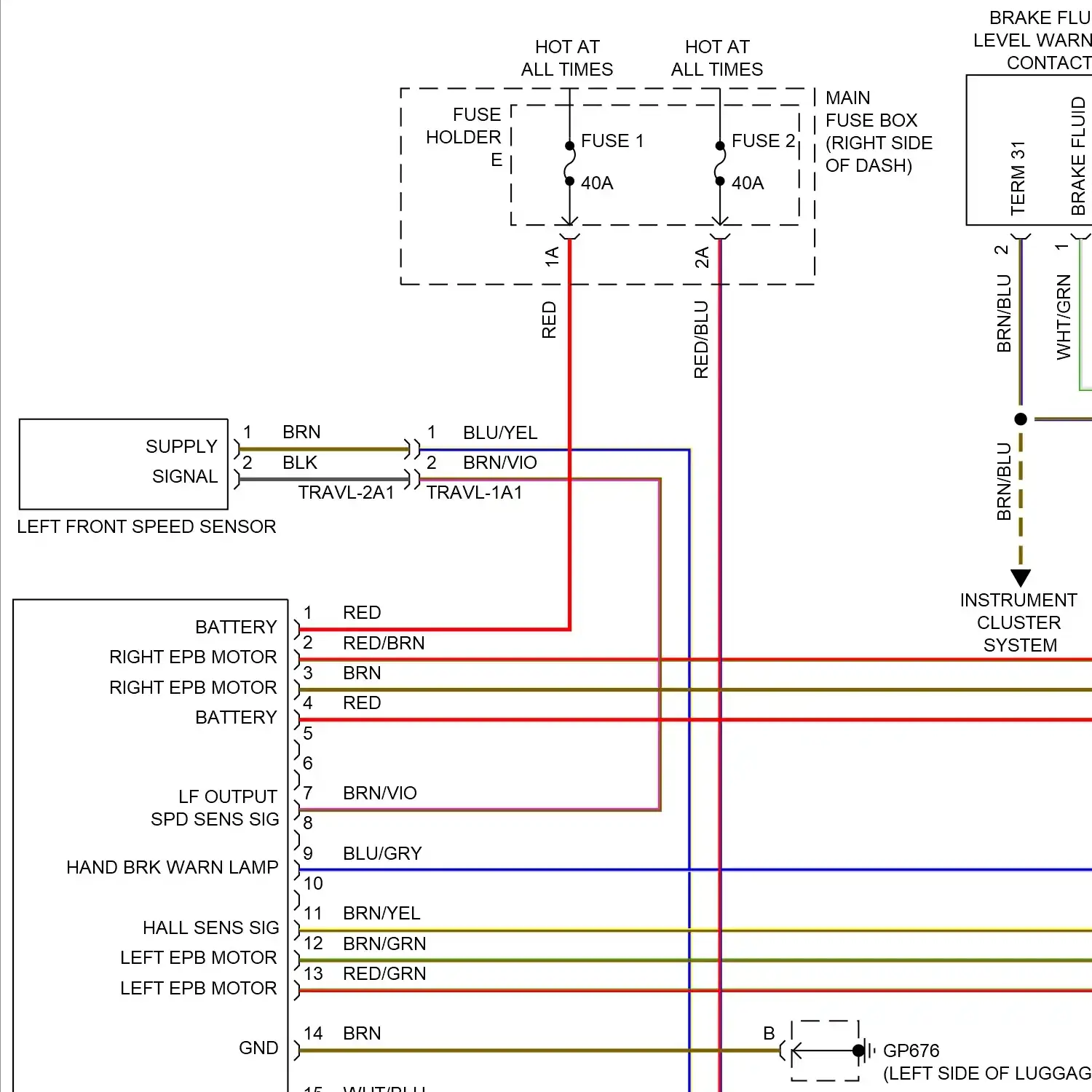

Anti-lock brakes circuit

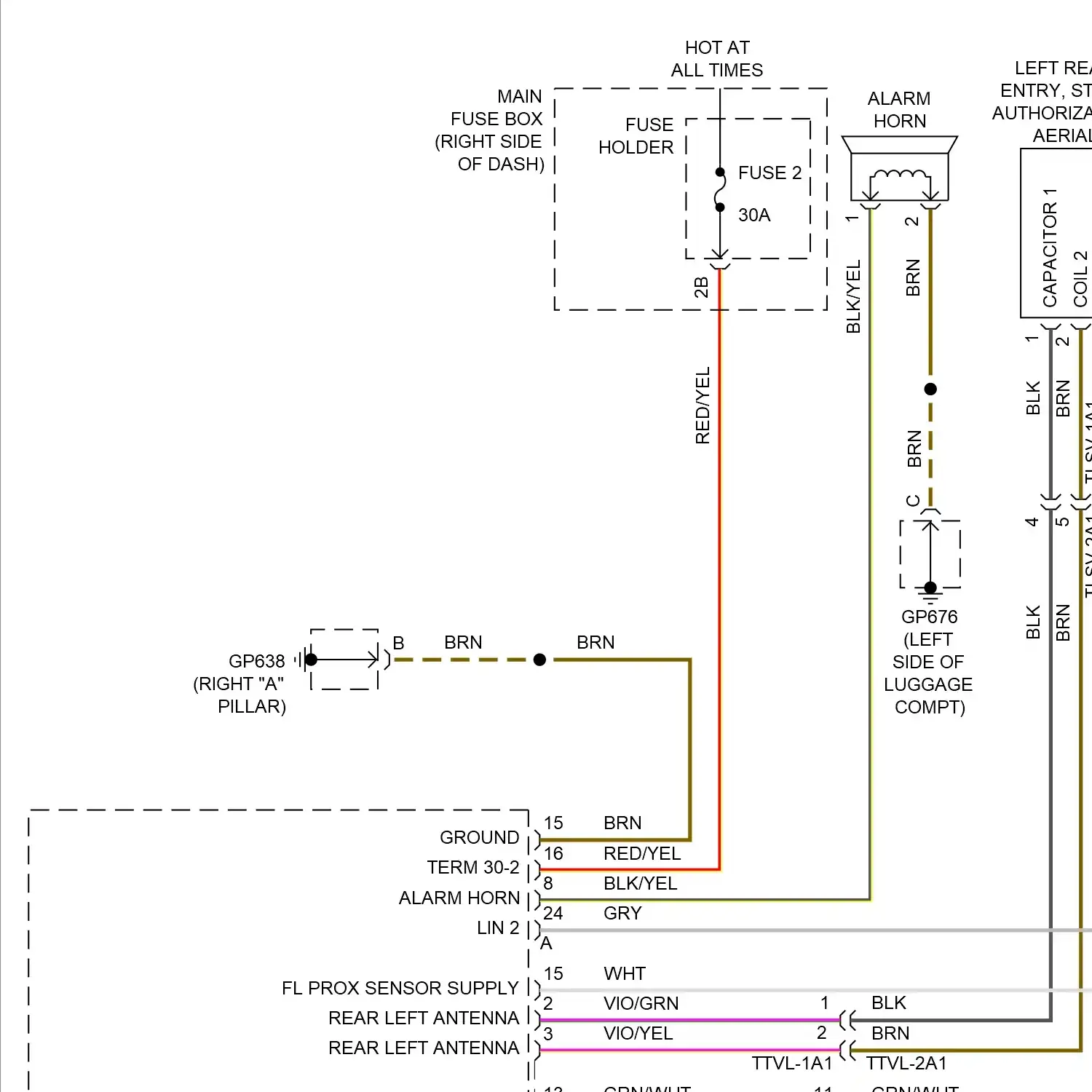

Anti-theft circuit

Body control modules circuit

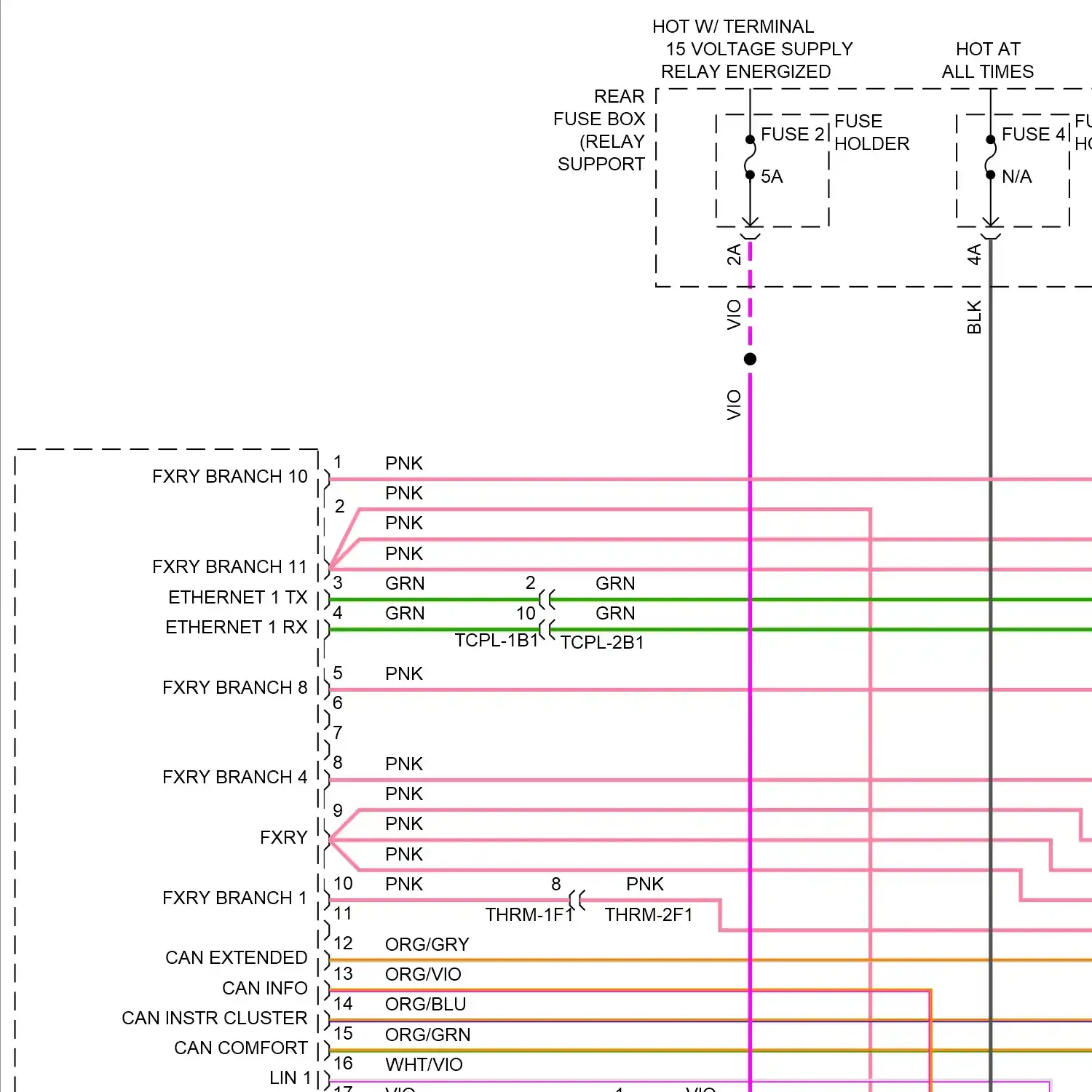

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defogger circuit Heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit Rear axle steering circuit

Electronic suspension circuit

Wiring diagram engine performance 3.0l turbo

Wiring diagram engine performance 3.8l turbo

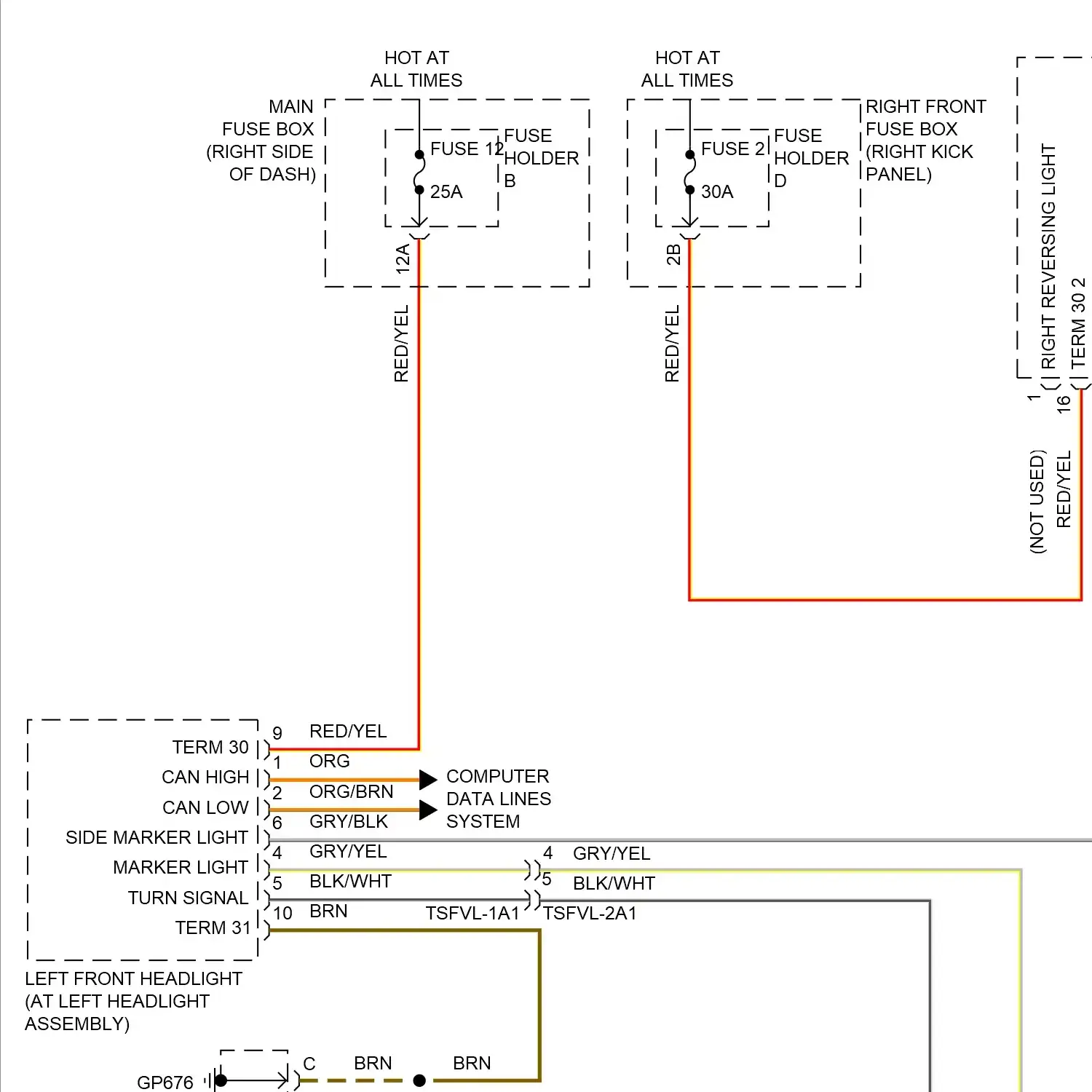

Exterior lights circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit Night vision circuit

Interior lights circuit

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

Emergency call circuit Lane change assistance circuit Navigation circuit, base Navigation circuit, premium w/ bose Navigation circuit, premium w/ burmester Parking assistant circuit Real top view circuit Rear camera circuit Vehicle positioning system circuit

Power distribution circuit

Power door locks circuit

Auto anti-dazzling mirror circuit Power mirrors circuit

Driver heated seat circuit Driver power seat circuit Front passenger heated seat circuit Front passenger power seat circuit

Convertible top circuit Sunroof circuit

Power windows circuit

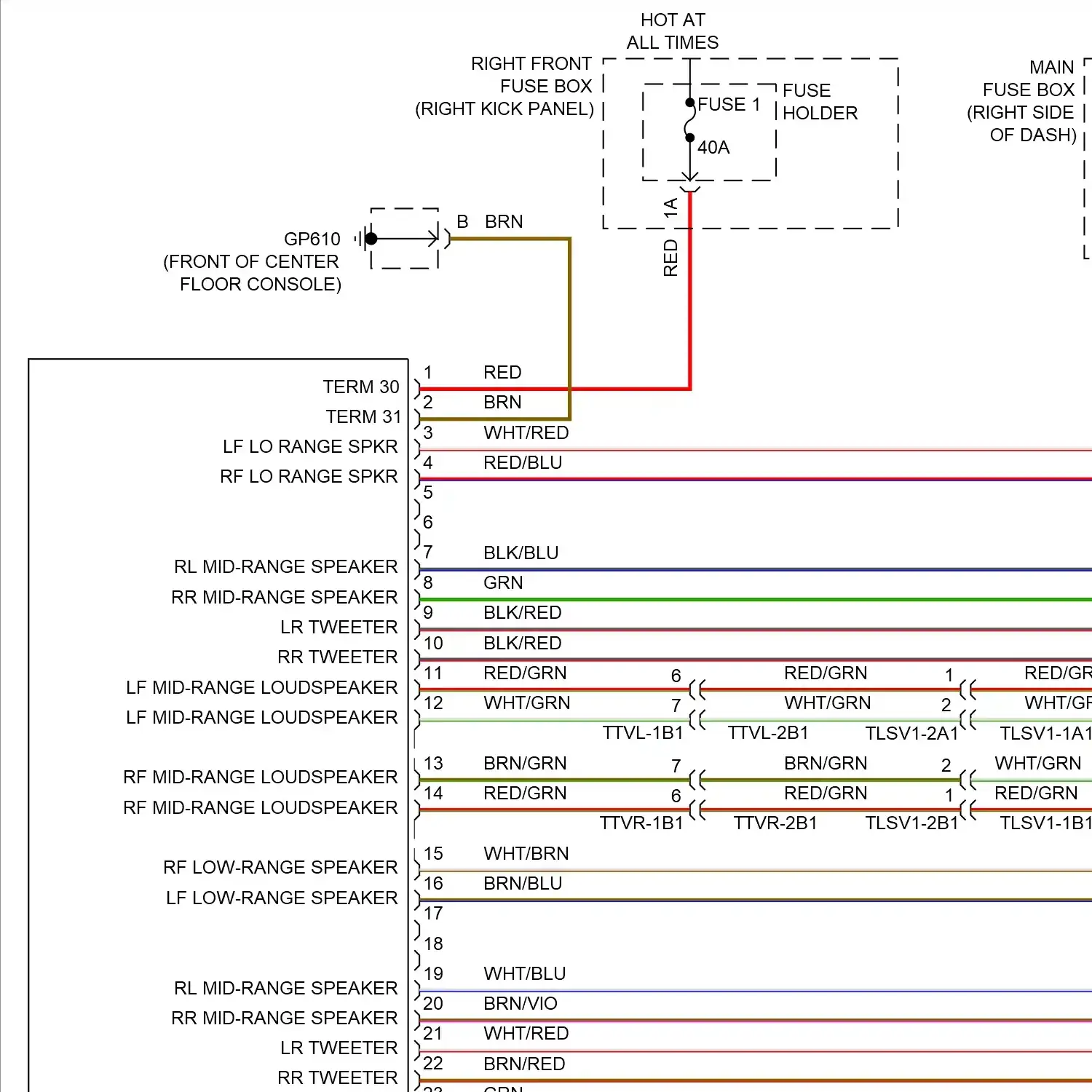

Base radio circuit Optical wave guide circuit Premium radio circuit, w/ bose Premium radio circuit, w/ burmester

Electronic parking brake circuit Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

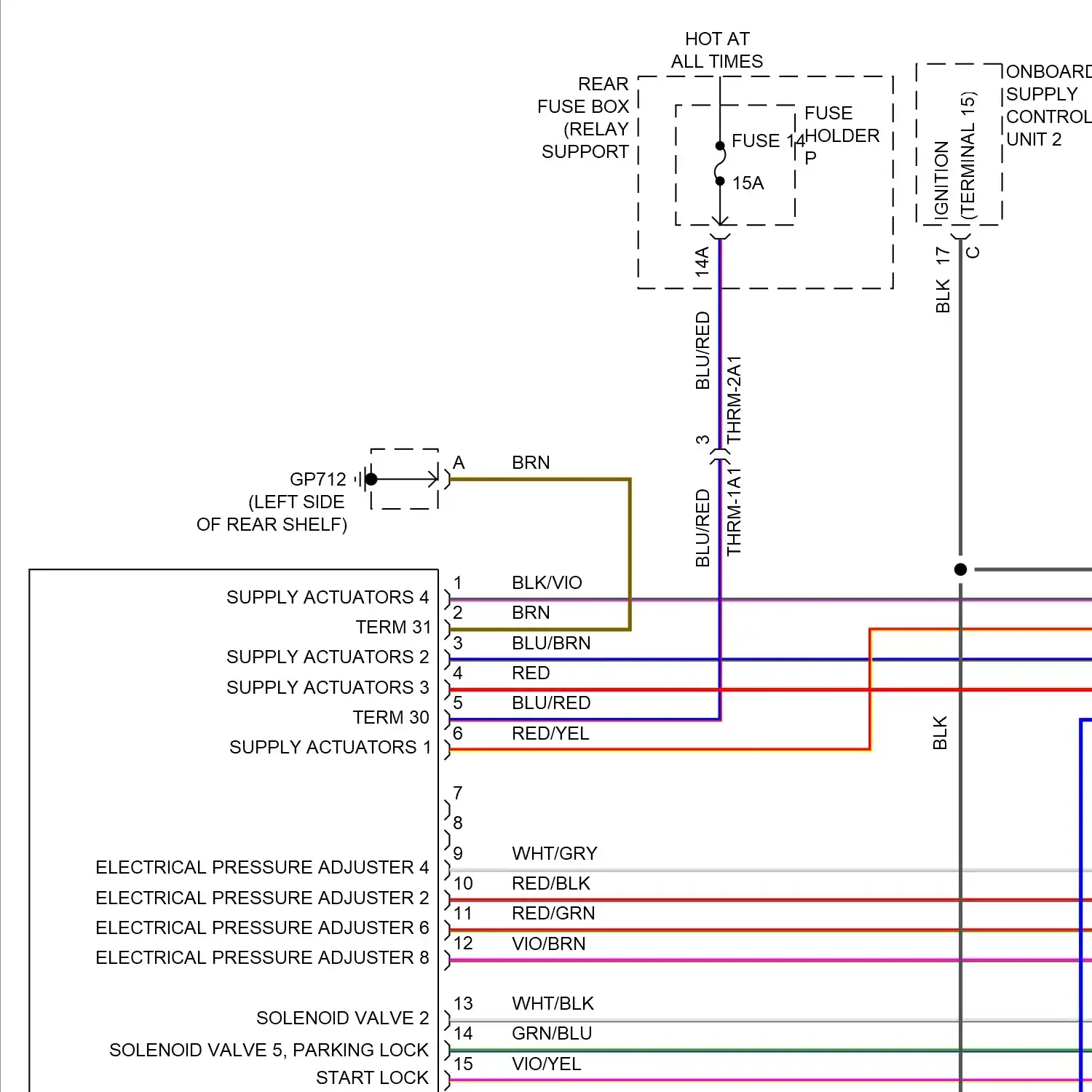

A/t circuit Awd circuit Rear differential lock circuit

Tailgate & fuel door release circuit

Warning systems circuit

Front wiper/washer circuit Rear wiper circuit

Porsche 911 Carrera 4S 992 (2018–2024) wiring diagrams

List of systems:

Porsche 911 Carrera 4S 992 (2018–2024) wiring diagrams

List of systems:

Active bodyworks

Air conditioning

Anti-lock brakes

Anti-theft

Body control modules

Computer data lines

Cooling fan

Cruise control

Defoggers

Electronic power steering

Electronic suspension

Engine performance 3.0l turbo

Engine performance 3.8l turbo

Exterior lights

Ground distribution

Headlights

Horn

Instrument cluster

Interior lights

Memory systems

Navigation

Power distribution

Power door locks

Power mirrors

Power seats

Power top/sunroof

Power windows

Radio

Shift interlock

Starting/charging

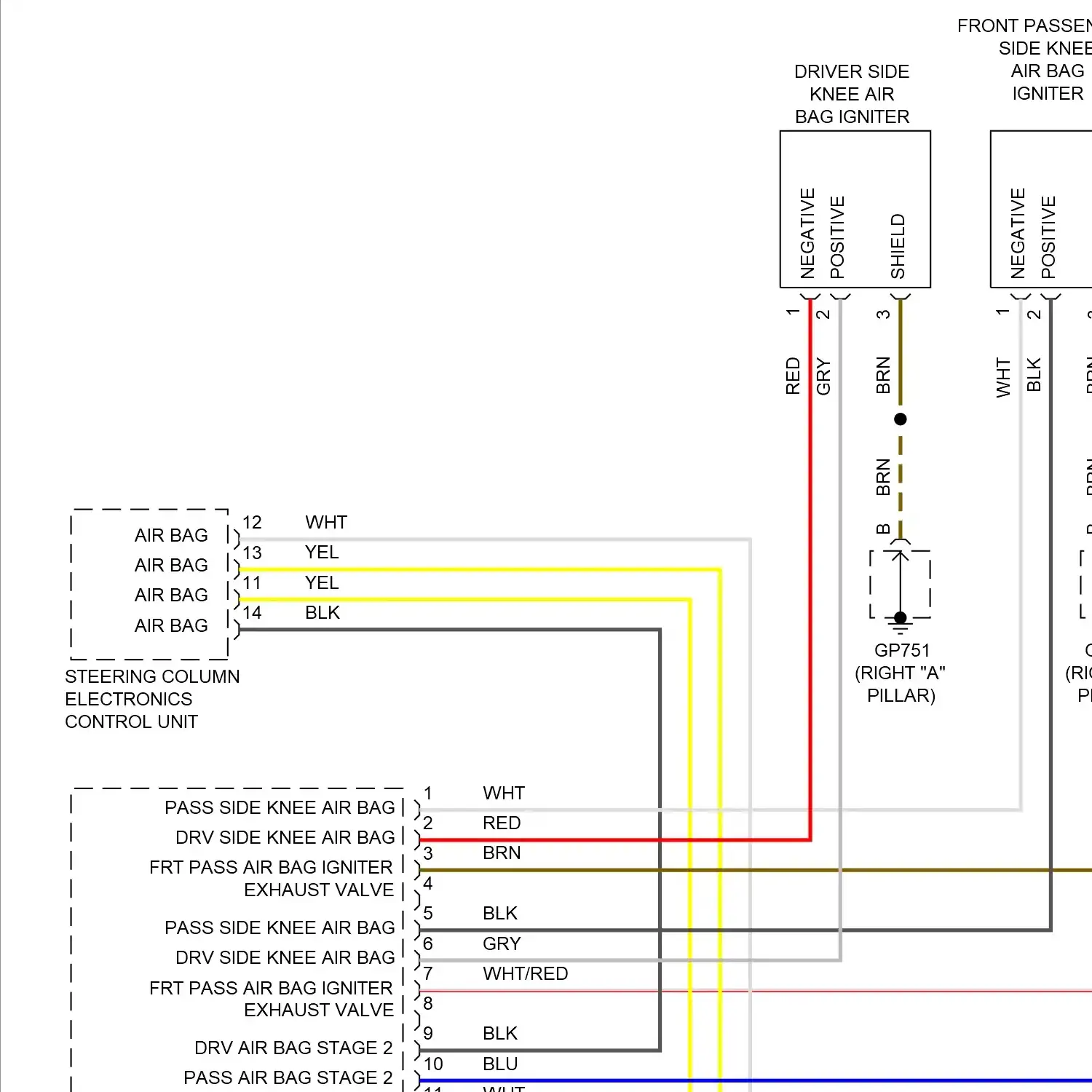

Supplemental restraints

Transmission

Trunk, tailgate, fuel door

Warning systems

Wiper/washer
