DTC INDEX
| DTC | Description |
|---|
| DTC C1143 | STEERING ANGLE SENSOR |
| DTC C1601 | BATTERY POWER SUPPLY |
| DTC C1602 | NO TUNING SET |
| DTC C1606 | EPS MOTOR |
| DTC C1607, C1608 | POWER STEERING CONTROL MODULE |
| DTC C160A | HEAT PROTECTION |
| DTC U1000 | CAN COMM CIRCUIT |
VALUES ON THE DIAGNOSIS TOOL
Note. The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
| Monitor item | Data monitor |
|---|
| Condition | Display value |
| BATTERY VOLT | Engine running | Battery voltage (V) |
| STR ANG SPD | The steering wheel is not steered. | Approx. 0.0 deg/s |
| The steering wheel is steered. | Displays steering angle speed (deg/s) |
| MOTOR CURRENT | Engine running | Steering wheel: Not steering (There is no steering force) | MAX approx. 10 A (1) |
| Steering wheel: Right or left turn | Displays consumption current of power steering control module (A) |
| MTR REV SPD COMM | Engine running | Steering wheel: Not steering (There is no steering force) | Shows an almost constant value (RPM) |
| Steering wheel: Right or left turn | The value changes as a steering speed (RPM) |
| MTR REV SPD | Engine running | Steering wheel: Not steering (There is no steering force) | Shows an almost constant value (RPM) (2) |
| Steering wheel: Right or left turn | The value changes as a steering speed (RPM) (2) |
| C/U TEMP | Engine running | Displays temperature of inside of power steering control module (°C or °F) |
| C/U TEMP A | Engine running | Displays temperature of inside of power steering control module (°C or °F) |
| MTR ASSIST | Engine running | 100% (3) |
| ESTM VHCL SPD | Vehicle stopped | 0.00 km/h or mph |
| While driving | Approximately equal to the indication on speedometer (4) (inside of ±10%) |
| WARNING LAMP | Hydraulic pump electric power steering warning lamp: ON | On |
| Hydraulic pump electric power steering warning lamp: OFF | Off |
| ENGINE STATUS | Engine not running | STOP |
| Engine running | RUN |
| Engine cranking | CRANK |
| VHCL SPD JUDGE | Vehicle speed signal can be received via CAN communication | OK |
| Vehicle speed signal cannot be received via CAN communication | NG |
| (1) The value changes according to load of power steering motor. (2) This is in close agreement with a motor speed command value. Although a quick steering operation may cause disagreement, this is not a malfunction. (3) Usually, 100% is displayed. An excessive steering operation gradually lowers the percentage. When left standing, the percentage returns to 100%. (4) This may not agree with the speedometer indication immediately after the ignition switch is turned ON. This is not a malfunction. |
| (1) | The value changes according to load of power steering motor. |
| (2) | This is in close agreement with a motor speed command value. Although a quick steering operation may cause disagreement, this is not a malfunction. |
| (3) | Usually, 100% is displayed. An excessive steering operation gradually lowers the percentage. When left standing, the percentage returns to 100%. |
| (4) | This may not agree with the speedometer indication immediately after the ignition switch is turned ON. This is not a malfunction. |
Scheme 7

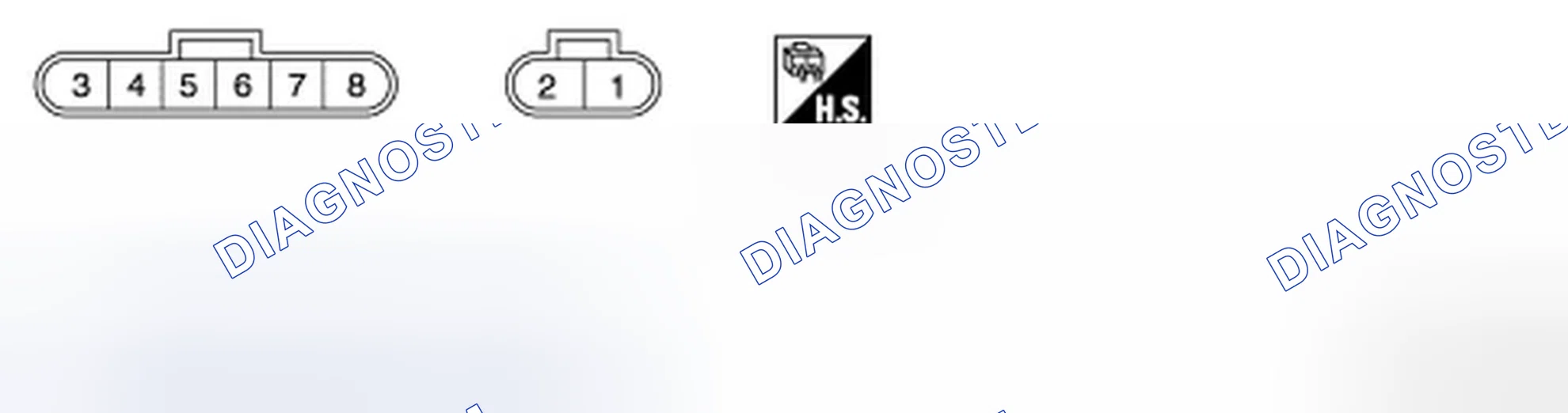

Scheme 7: TERMINAL LAYOUT
DTC Inspection Priority Chart
When multiple DTCs are detected simultaneously, check one by one depending on the following priority list.
| Priority | Priority order item (DTC) |
|---|
| 1 | C1602 NO TURNING SET |
| 2 | C1601 BATTERY VOLT C1606 EPS MOTOR C1608 CONTROL UNIT |
| 3 | C1607 EEPROM |
| 4 | C160A HEAT PROTECTION |
| 5 | C1143 ST ANG SEN CIRCUIT U1000 CAN COMM CIRCUIT |
| DTC | Items (CONSULT screen terms) | Reference |
|---|
| C1143 | ST ANG SEN CIRCUIT | " DTC LOGIC " |
| C1601 | BATTERY VOLT | " DTC LOGIC " |
| C1602 | NO TURNING SET | " DTC LOGIC " |
| C1606 | EPS MOTOR | " DTC LOGIC " |
| C1607 | EEPROM | " DTC LOGIC " |
| C1608 | CONTROL UNIT | " DTC LOGIC " |
| C160A | HEAT PROTECTION | " DTC LOGIC " |
| U1000 | CAN COMM CIRCUIT | " DTC LOGIC " |
Note. If two or more DTCs are detected, refer to " DTC INSPECTION PRIORITY CHART ".
Scheme 8
Scheme 9
DTC DETECTION LOGIC
| DTC | Display item | Malfunction detected condition | Possible cause |
|---|
| C1143 | ST ANG SEN CIRCUIT | When a malfunction is detected in steering angle sensor. | Harness or connector Steering angle sensor Power steering control module |
DTC CONFIRMATION PROCEDURE
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "C1143" detected? YES: Proceed to diagnosis procedure. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S05264096592014112400000) ". NO: INSPECTION END
Diagnosis Procedure
- CHECK STEERING ANGLE SENSOR CIRCUIT Check steering angle sensor circuit. Refer to " «DIAGNOSIS PROCEDURE»(ref-672633-S14594792552014112400000) ". Is the inspection result normal? YES: GO TO 2. NO: Repair or replace error-detected parts.
- CHECK TERMINALS AND HARNESS CONNECTORS Check the power steering control module pin terminals for damage or loose connection with harness connector. Is the inspection result normal? YES: Power steering control module is malfunctioning. Replace power steering oil pump assembly. Refer to " «REMOVAL AND INSTALLATION»(ref-672626-S16919633442014112400000) ". NO: Repair or replace error-detected parts.
| DTC | Display item | Malfunction detected condition | Possible cause |
|---|
| C1601 | BATTERY VOLT | When a power supply voltage to the power steering control module is maintained at 18.5 V or more or at less than 8.5 V continuously for 0.5 seconds or more. | Harness or connector Power steering control module Fuse Battery power supply circuit Battery |
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "C1601" detected? YES: Proceed to diagnosis procedure. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S14792186632014112400000) " NO: INSPECTION END
- CHECK POWER STEERING CONTROL MODULE GROUND CIRCUIT Turn ignition switch OFF. Disconnect power steering control module harness connector. Check continuity between power steering control module harness connector terminal and ground. Power steering control module - Continuity Connector Terminal E33 2 Ground Existed Is the inspection result normal? YES: GO TO 2. NO: Repair open circuit or short to ground or short to power in harness or connectors, and repair or replace error-detected parts.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (1) Check voltage between power steering control module harness connector terminals and ground. Turn ignition switch ON. CAUTION: Never start the engine. Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E33 1 Ground 8.5 - 18.5 V Power steering control module - Voltage (Approx.) Connector Terminal E33 1 Ground 8.5 - 18.5 V Is the inspection result normal? YES: GO TO 4 . NO: GO TO 3.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (2) Turn ignition switch OFF. Check the 100A fusible link (#D). Disconnect battery terminal with fusible link harness connector. Check continuity and short between power steering control module harness connector terminal and battery terminal with fusible link harness connector terminal. Power steering control module Battery terminal with fusible link Continuity Connector Terminal Connector Terminal E33 1 E1 3 Existed Check continuity between power steering control module harness connector terminal and ground. Power steering control module - Continuity Connector Terminal E33 1 Ground Not existed Is the inspection result normal? YES: Perform the trouble diagnosis for battery power supply circuit. Refer to " «WIRING DIAGRAM - BATTERY POWER SUPPLY»(ref-672612-S02358050642014112400000) ". NO: Repair or replace error-detected parts.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (3) Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E34 5 Ground 0 V Turn ignition switch ON. CAUTION: Never start the engine. Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E34 5 Ground 8.5 - 18.5 V Is the inspection result normal? YES: GO TO 6 . NO: GO TO 5.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (4) Turn ignition switch OFF. Check the 10A fuse block (#3). Check continuity and short between power steering control module harness connector terminal and fuse block harness connector terminal. Power steering control module Fuse block (J/B) Continuity Connector Terminal Connector Terminal E34 5 E103 4F Existed Check continuity between power steering control module harness connector terminal and ground. Power steering control module - Continuity Connector Terminal E34 5 Ground Not existed Is the inspection result normal? YES: Perform the trouble diagnosis for ignition power supply circuit. Refer to " «WIRING DIAGRAM - IGNITION POWER SUPPLY»(ref-672612-S17766530462014112400000) ". NO: Repair or replace error-detected parts.
- CHECK TERMINALS AND HARNESS CONNECTORS Check the power steering control module pin terminals for damage or loose connection with harness connector. Is the inspection result normal? YES: Power steering control module is malfunctioning. Replace steering oil pump assembly. Refer to " «REMOVAL AND INSTALLATION»(ref-672626-S16919633442014112400000) ". NO: Repair or replace error-detected parts.
| DTC | Display Item | Malfunction detected condition | Possible cause |
|---|
| C1602 | NO TURNING SET | When the information in power steering control module is not the same. | Harness or connector Power steering control module Battery power supply circuit Ignition power supply circuit Battery Fuse Ground circuit |
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "C1602" detected? YES: Proceed to diagnosis procedure. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S07834964892014112400000) " NO: INSPECTION END
- CHECK TERMINALS AND HARNESS CONNECTORS Turn ignition switch OFF. Check the power steering control module harness connector for disconnection or looseness. Disconnect power steering control module harness connector and then check the power steering control module pin terminals for damage or loose connection with harness connector. Is the inspection result normal? YES: GO TO 2. NO: Repair or replace error-detected parts. GO TO 2.
- CHECK POWER STEERING CONTROL MODULE GROUND CIRCUIT Check continuity between power steering control module harness connector terminal and ground. Power steering control module - Continuity Connector Terminal E33 2 Ground Existed Is the inspection result normal? YES: GO TO 3. NO: Repair open circuit or short to ground or short to power in harness or connectors, and repair or replace error-detected parts.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (1) Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E33 1 Ground 8.5 - 18.5 V Turn ignition switch ON. CAUTION: Never start the engine. Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E33 1 Ground 8.5 - 18.5 V Is the inspection result normal? YES: GO TO 5 . NO: GO TO 4.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (2) Turn ignition switch OFF. Check the 100A fusible link (#D). Is the inspection result normal? YES: Perform the trouble diagnosis for battery power supply circuit. Refer to " «WIRING DIAGRAM - BATTERY POWER SUPPLY»(ref-672612-S02358050642014112400000) ". NO: Repair or replace error-detected parts.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (3) Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E34 5 Ground 0 V Turn ignition switch ON. CAUTION: Never start the engine. Check voltage between power steering control module harness connector terminals and ground. Power steering control module - Voltage (Approx.) Connector Terminal E34 5 Ground 8.5 - 18.5 V Is the inspection result normal? YES: GO TO 7 . NO: GO TO 6.
- CHECK POWER STEERING CONTROL MODULE POWER SUPPLY CIRCUIT (4) Turn ignition switch OFF. Check the 10A fuse (#3). Check continuity and short between power steering control module harness connector terminal and fuse block (J/B) harness connector terminal. Power steering control module Fuse block (J/B) Continuity Connector Terminal Connector Terminal E34 5 E103 4F Existed Check continuity between power steering control module harness connector terminal and ground. Power steering control module - Continuity Connector Terminal E34 5 Ground Not existed Is the inspection result normal? YES: Perform the trouble diagnosis for ignition power supply circuit. Refer to " «WIRING DIAGRAM - IGNITION POWER SUPPLY»(ref-672612-S17766530462014112400000) ". NO: Repair or replace error-detected parts.
- CHECK SELF-DIAGNOSIS RESULTS With CONSULT Perform "EPS" self-diagnosis. Is DTC "C1602" detected? YES: Power steering control module is malfunctioning. Replace steering oil pump assembly. Refer to " «REMOVAL AND INSTALLATION»(ref-672626-S16919633442014112400000) ". NO: Repair or replace error-detected parts.
| DTC | Display item | Malfunction detected condition | Possible cause |
|---|
| C1606 | EPS MOTOR | When the motor driver malfunction of power steering control module or power steering control module motor driver malfunction is detected. | Harness or connector Power steering control motor Power steering control module |
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "C1606" detected? YES: Proceed to diagnosis procedure. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S39491623952014112400000) ". NO: INSPECTION END
- PERFORM SELF-DIAGNOSIS With CONSULT Turn the ignition switch OFF to ON. Erase self-diagnostic results for "EPS". Turn the ignition switch OFF and wait for at least 10 seconds. Perform self-diagnosis for "EPS". Is DTC "C1606" detected? YES: Power steering motor is malfunctioning. Replace power steering oil pump assembly. Refer to " «REMOVAL AND INSTALLATION»(ref-672626-S16919633442014112400000) ". NO: Check pin terminal and connection of each harness connector for malfunctioning conditions.
| DTC | Display item | Malfunction detected condition | Possible cause |
|---|
| C1607 | EEPROM | When the memory (EEPROM) system malfunction is detected in power steering control module. | Power steering control module |
| C1608 | CONTROL UNIT | When the internal malfunction is detected in power steering control module. |
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "C1607" or "C1608" detected? YES: Proceed to diagnosis procedure. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S30539404232014112400000) ". NO: INSPECTION END
- PERFORM SELF-DIAGNOSIS With CONSULT Turn the ignition switch OFF to ON. Erase self-diagnostic results for "EPS". Turn the ignition switch OFF and wait for at least 10 seconds. Perform self-diagnosis for "EPS". Is DTC "C1607" or "C1608" detected? YES: Power steering control module is malfunctioning. Replace power steering oil pump assembly. Refer to " «REMOVAL AND INSTALLATION»(ref-672626-S16919633442014112400000) ". NO: Check pin terminal and connection of each harness connector for malfunctioning conditions.
| DTC | Display item | Malfunction detected condition | Possible cause |
|---|
| C160A | HEAT PROTECTION | When the steering wheel is operated excessively and the interior temperature of the power steering system reaches 118°C (244.4°F) or more. (Protection function) NOTE: Although the hydraulic pump electric power steering system warning lamp turns ON, this is not a system malfunction. The state returns to normal after stopping steering operation and waiting until the system interior temperature drops to 90°C (194°F) or less. | The protection of the hydraulic pump electric power steering system |
| NOTE |
|---|
| Although the hydraulic pump electric power steering system warning lamp turns ON, this is not a system malfunction. The state returns to normal after stopping steering operation and waiting until the system interior temperature drops to 90°C (194°F) or less. |
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "C160A" detected? YES: Go to " «WORK FLOW»(ref-672658-S08601012872014112400000) ". NO: INSPECTION END
| DTC | Display item | Malfunction detected condition | Possible cause |
|---|
| U1000 | CAN COMM CIRCUIT | Power steering control module is not transmitting/receiving CAN communication signal for 2 seconds or more. | CAN communication error |
- PRECONDITIONING If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test. : GO TO 2.
- DTC REPRODUCTION PROCEDURE With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is DTC "U1000" detected? YES: Go to " «DIAGNOSIS PROCEDURE»(ref-672658-S28657400702014112400000) ". NO: INSPECTION END
Proceed to " TROUBLE DIAGNOSIS FLOW CHART ".
- PERFORM SELF-DIAGNOSIS With CONSULT Turn the ignition switch OFF to ON. Perform "EPS" self-diagnosis. Is any DTC detected? YES: Check the DTC. Refer to " «DTC INDEX»(ref-672658-S20637639902014112400000) ". NO: GO TO 2.
- CHECK HYDRAULIC PUMP ELECTRIC POWER STEERING WARNING LAMP SIGNAL With CONSULT Turn the ignition switch ON. Select in "WARNING LAMP" in "DATA MONITOR" in "EPS". Check that the item in "DATA MONITOR" is "On". CAUTION: Never start the engine. Start the engine. CAUTION: Never drive the vehicle. Check that the item in "DATA MONITOR" is "Off". Is the inspection result normal? YES: Perform the trouble diagnosis for combination meter power supply circuit. Refer to " «COMBINATION METER: DIAGNOSIS PROCEDURE»(ref-672645-S37918920352014112400000) ". NO: GO TO 3.
- CHECK TERMINALS AND HARNESS CONNECTORS Check the power steering control module pin terminals for damage or loose connection with harness connector. Is the inspection result normal? YES: Power steering control module is malfunctioning. Replace power steering oil pump assembly. Refer to " «REMOVAL AND INSTALLATION»(ref-672626-S16919633442014112400000) ". NO: Repair or replace error-detected parts.
- CHECK THE HYDRAULIC PUMP ELECTRIC POWER STEERING WARNING LAMP Perform trouble diagnosis for the hydraulic pump electric power steering warning lamp system. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S38623076512014112400000) ". Is the inspection result normal? YES: Check that the pin terminals and the connection of each connector are normal. NO: Repair or replace error-detected parts.
- PERFORM SELF-DIAGNOSIS With CONSULT Perform "EPS" self-diagnosis. Is any DTC detected? YES: Check the DTC. Refer to " «DTC INDEX»(ref-672658-S20637639902014112400000) ". NO: GO TO 2.
- CHECK HYDRAULIC PUMP ELECTRIC POWER STEERING WARNING LAMP Perform the trouble diagnosis of hydraulic pump electric power steering warning lamp. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S38623076512014112400000) ". Is the inspection result normal? YES: GO TO 3. NO: Repair or replace error-detected parts.
- POWER STEERING CONTROL MODULE POWER SUPPLY AND GROUND CIRCUIT Perform the trouble diagnosis of power steering control module power supply and ground. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S14792186632014112400000) ". Is the inspection result normal? YES: Check that the pin terminals and the connection of each connector are normal. NO: Repair or replace error-detected parts.
- PERFORM SELF-DIAGNOSIS With CONSULT Perform "EPS" self-diagnosis. Is a malfunctioning system displayed? YES: Check malfunctioning system. Refer to " «DTC INDEX»(ref-672658-S20637639902014112400000) ". NO: GO TO 2.
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (1) With CONSULT Start the engine. CAUTION: Never drive the vehicle. Turn the steering wheel until it stops. Select "MTR ASSIST" in "DATA MONITOR" in "EPS". Is the display value "100%"? YES: GO TO 4 . NO: GO TO 3.
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (2) With CONSULT Select "C/U TEMP" and "C/U TEMP A" in "DATA MONITOR" in "EPS". Stop the system until the DATA MONITOR display value drops to "90°C (194°F)" or less. Check whether symptom continues. Did symptom continue? YES: GO TO 4. NO: This occurs because the protection function lowers the assist force. It is not a system malfunction. INSPECTION END
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (3) With CONSULT Turn the steering wheel to the straight-ahead position. (There is no steering force) Select "BATTERY VOLT" in "DATA MONITOR" in "EPS". Is the display value "10.5 V" or more? YES: GO TO 5. NO: Check the battery power system. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S14792186632014112400000) ".
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (4) With CONSULT Select "ESTM VHCL SPD" in "DATA MONITOR" in "EPS". Monitor item Test condition Display value ESTM VHCL SPD When stopped 0.00 km/h or mph While driving Approximately equal to the indication on speedometer (1) (Inside of ±10%) (1) This may not agree with the speedometer indication immediately after the ignition switch is turned ON. This is not a malfunction. Is the check result normal? YES: GO TO 6. NO: Check the combination meter, ABS actuator and electric unit (control unit). Refer to " «CONSULT FUNCTION»(ref-672645-S38849769152014112400000) " and " «CONSULT FUNCTION»(ref-672633-S36687801222014112400000) ".
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (5) With CONSULT Select "STR ANG SPD" in "DATA MONITOR" in "EPS". Monitor item Test condition Display value STR ANG SPD The steering wheel is not steered. Approx. 0.0 deg/s The steering wheel is steered. Displays steering angle speed (deg/s) Is the check result normal? YES: GO TO 7. NO: Check the steering angle sensor. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S05264096592014112400000) ".
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (6) With CONSULT Select "ENGINE STATUS" in "DATA MONITOR" in "EPS". Is the display value "RUN"? YES: GO TO 8. NO: Check the ECM. Refer to " «CONSULT FUNCTION»(ref-672625-S10372405532014112400000) ".
- CHECK THE STEERING FORCE Check the steering force. Refer to " «BASIC INSPECTION»(ref-672626-S27560578832014112400000) ". Is the check result normal? YES: INSPECTION END NO: It is possible that there is a mechanical malfunction. Check the steering system. Refer to " «INSPECTION»(ref-672626-S19975318762014112400000) ".
- CHECK THE ILLUMINATION OF THE HYDRAULIC PUMP ELECTRIC POWER STEERING WARNING LAMP Check the hydraulic pump electric power steering warning lamp while engine is running. Does the hydraulic pump electric power steering warning lamp turn OFF? YES: GO TO 2. NO: Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S36480988272014112400000) ".
- CHECK WHEEL ALIGNMENT Check the wheel alignment. Refer to " «INSPECTION»(ref-672631-S30150407522014112400000) ". Is the inspection result normal? YES: GO TO 3. NO: Adjustment of wheel alignment. Refer to " «ADJUSTMENT»(ref-672631-S17210124032014112400000) ".
- CHECK STEERING WHEEL TURNING FORCE Check the steering wheel turning force. Refer to " «BASIC INSPECTION»(ref-672626-S27560578832014112400000) ". Is the inspection result normal? YES: INSPECTION END NO: Check the steering wheel turning force for mechanical malfunction. Refer to " «INSPECTION»(ref-672626-S19975318762014112400000) ".
- PERFORM SELF-DIAGNOSIS With CONSULT Perform "EPS" self-diagnosis. Is a malfunctioning system displayed? YES: Check malfunctioning system. Refer to " «DTC INDEX»(ref-672658-S20637639902014112400000) ". NO: GO TO 2.
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (1) With CONSULT Start the engine. CAUTION: Never drive the vehicle. Turn the steering wheel until it stops. Select "MTR ASSIST" in "DATA MONITOR" in "EPS". Is the display value "100%"? YES: GO TO 4 . NO: GO TO 3.
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (2) With CONSULT Select "C/U TEMP" and "C/U TEMP A" in "DATA MONITOR" in "EPS". Stop the system until the DATA MONITOR display value drops to "90°C (194°F)" or less. Check whether symptom continues. Did symptom continue? YES: GO TO 4. NO: This occurs because the protection function lowers the assist force. It is not a system malfunction. INSPECTION END
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (3) With CONSULT Turn the steering wheel to the straight-ahead position. (There is no steering force) Select "BATTERY VOLT" in "DATA MONITOR" in "EPS". Is the display value "10.5 V" or more? YES: GO TO 5. NO: Check the battery power system. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S14792186632014112400000) ".
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (4) With CONSULT Select in "ESTM VHCL SPD" in "DATA MONITOR" in "EPS". Monitor item Test condition Display value ESTM VHCL SPD When stopped 0.00 km/h or mph While driving Approximately equal to the indication on speedometer (1) (Inside of ±10%) (1) This may not agree with the speedometer indication immediately after the ignition switch is turned ON. This is not a malfunction. Is the check result normal? YES: GO TO 6. NO: Check the combination meter, ABS actuator and electric unit (control unit). Refer to " «CONSULT FUNCTION»(ref-672645-S38849769152014112400000) " and " «CONSULT FUNCTION»(ref-672633-S36687801222014112400000) ".
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (5) With CONSULT Select "STR ANG SPD" in "DATA MONITOR" in "EPS". Monitor item Test condition Display value STR ANG SPD The steering wheel is not steered. Approx. 0.0 deg/s The steering wheel is steered. Displays steering angle speed (deg/s) Is the check result normal? YES: GO TO 7. NO: Check the steering angle sensor. Refer to " «DIAGNOSIS PROCEDURE»(ref-672658-S05264096592014112400000) ".
- CHECK THE POWER STEERING CONTROL MODULE SIGNAL (6) With CONSULT Select "ENGINE STATUS" in "DATA MONITOR" in "EPS". Is the display value "RUN"? YES: GO TO 8. NO: Check the ECM. Refer to " «CONSULT FUNCTION»(ref-672625-S10372405532014112400000) ".
- CHECK STEERING COLUMN AND STEERING GEAR Check the steering column assembly and steering gear assembly. Steering column assembly. Refer to " «EXPLODED VIEW»(ref-672626-S05287429072014112400000) ". Steering gear assembly. Refer to " «EXPLODED VIEW»(ref-672626-S30228936602014112400000) ". Is the inspection result normal? YES: GO TO 9. NO: Repair or replace error-detected parts.
- CHECK STEERING WHEEL TURNING FORCE Check the steering wheel turning force. Refer to " «BASIC INSPECTION»(ref-672626-S27560578832014112400000) ". Is the inspection result normal? YES: INSPECTION END NO: Check the steering wheel turning force for mechanical malfunction. Refer to " «INSPECTION»(ref-672626-S19975318762014112400000) ".
