Nissan Frontier D22 (1998–2007) wiring diagrams

List of systems:

Manual a/c circuit

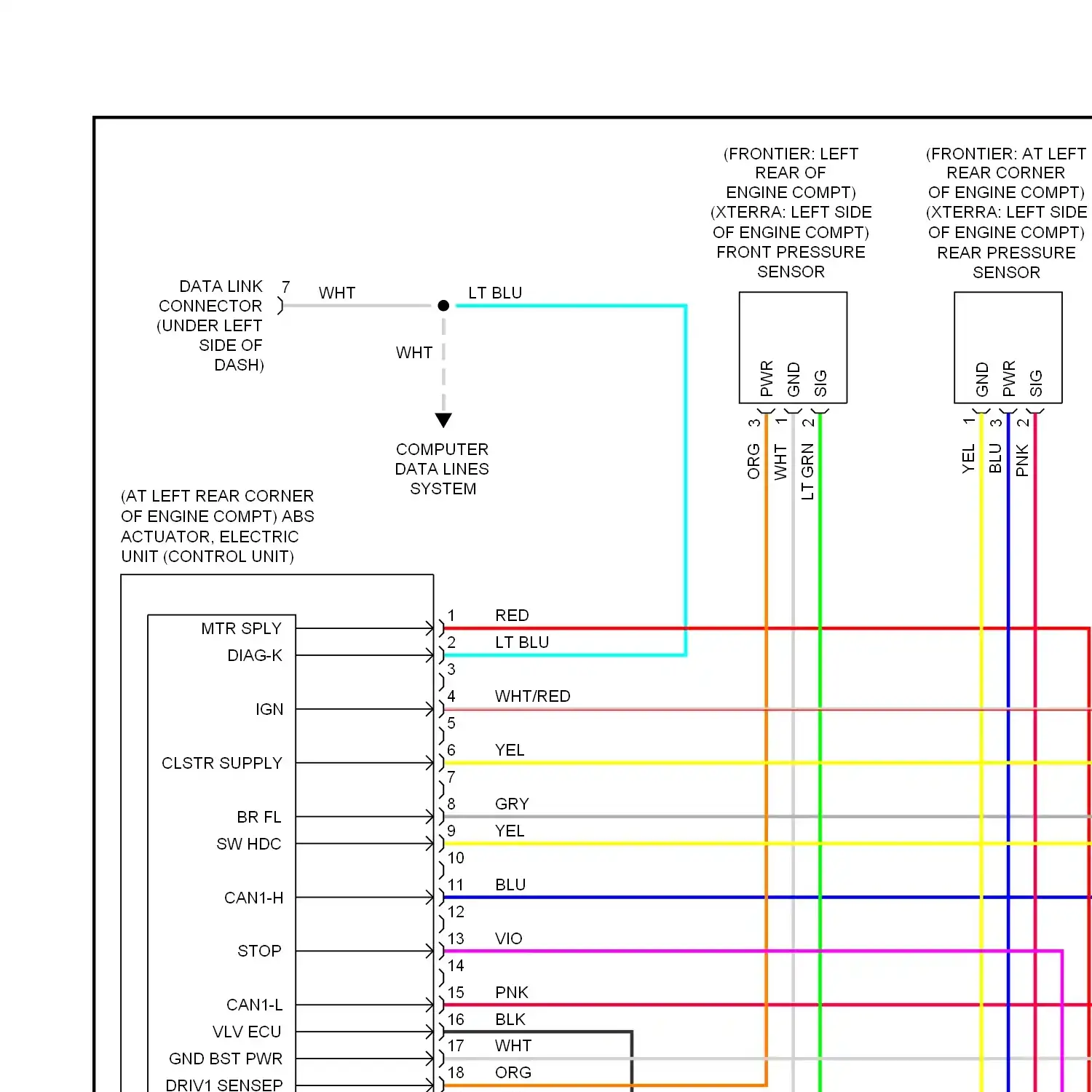

Anti-lock brakes circuit, without traction control Anti-lock brakes circuit, with traction control Anti-lock brakes circuit, with traction control & stability assist with hill assist

Forced entry circuit Immobilizer circuit

Body control modules circuit

Computer data lines circuit

4.0l, cooling fan circuit

Cruise control circuit

Defoggers circuit

Wiring diagram engine performance 2.4l

Wiring diagram engine performance 4.0l

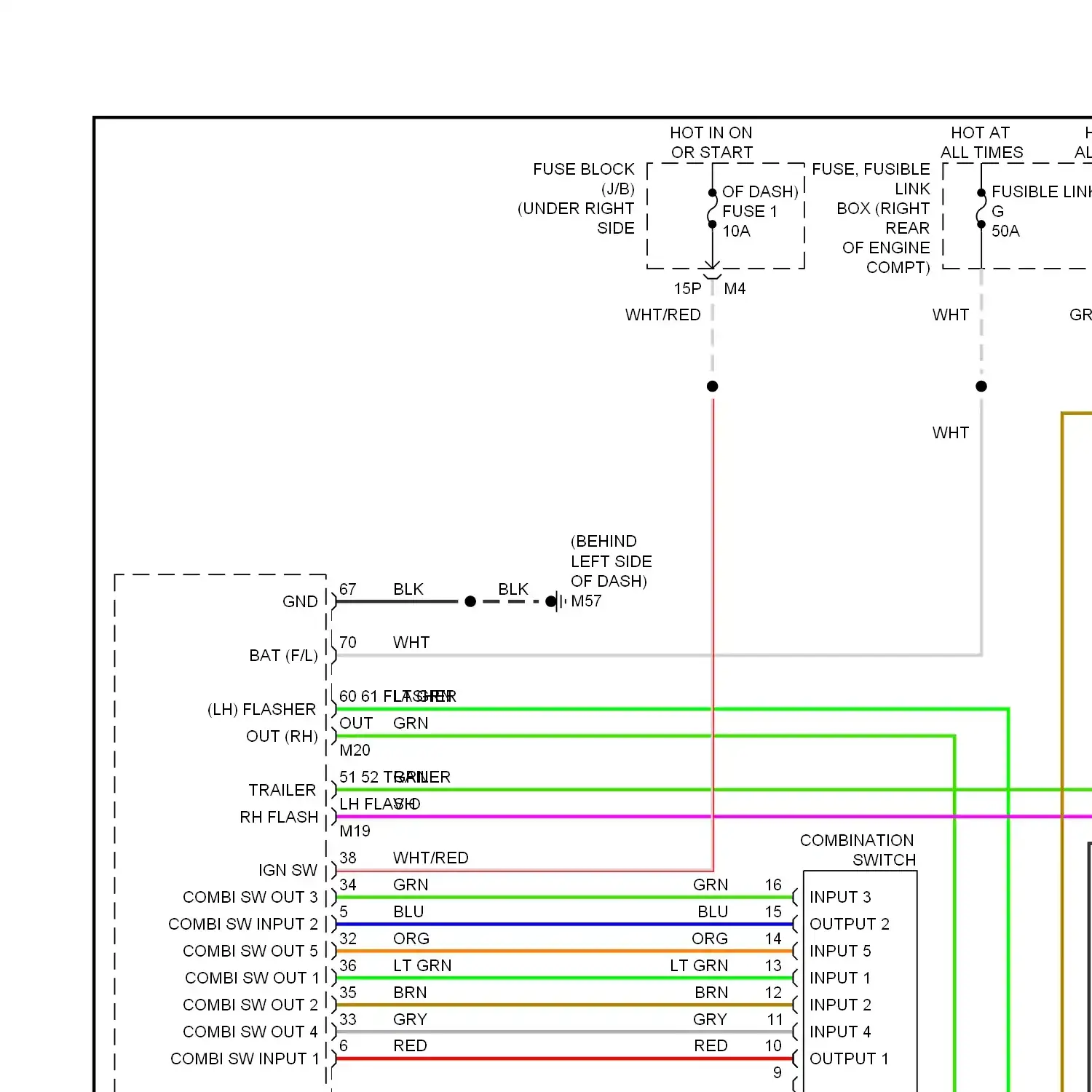

Back-up lamps circuit Exterior lamps circuit

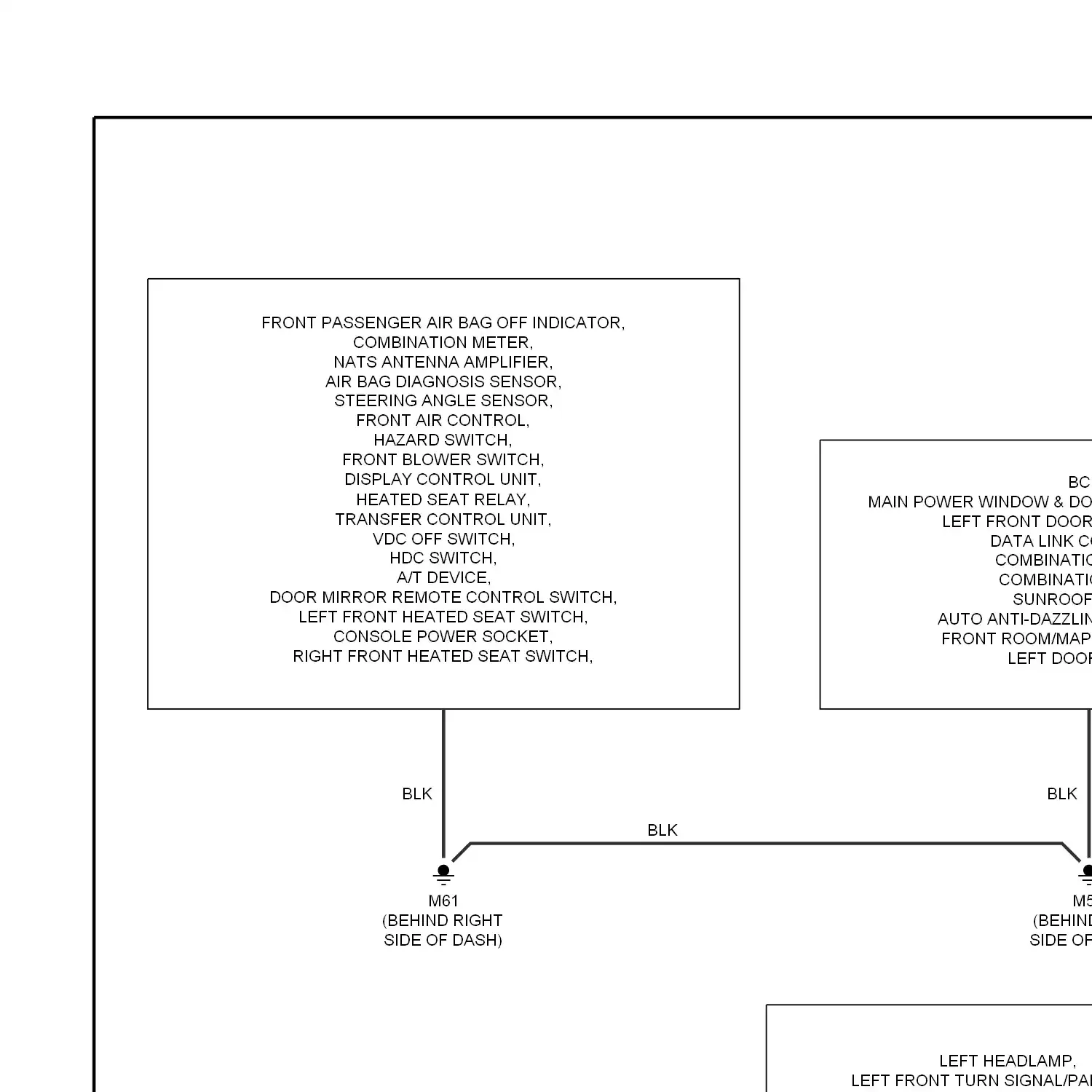

Ground distribution circuit

Headlights circuit, with drl Headlights circuit, without drl

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit, without power door locks Courtesy lamps circuit, with power door locks Instrument illumination circuit

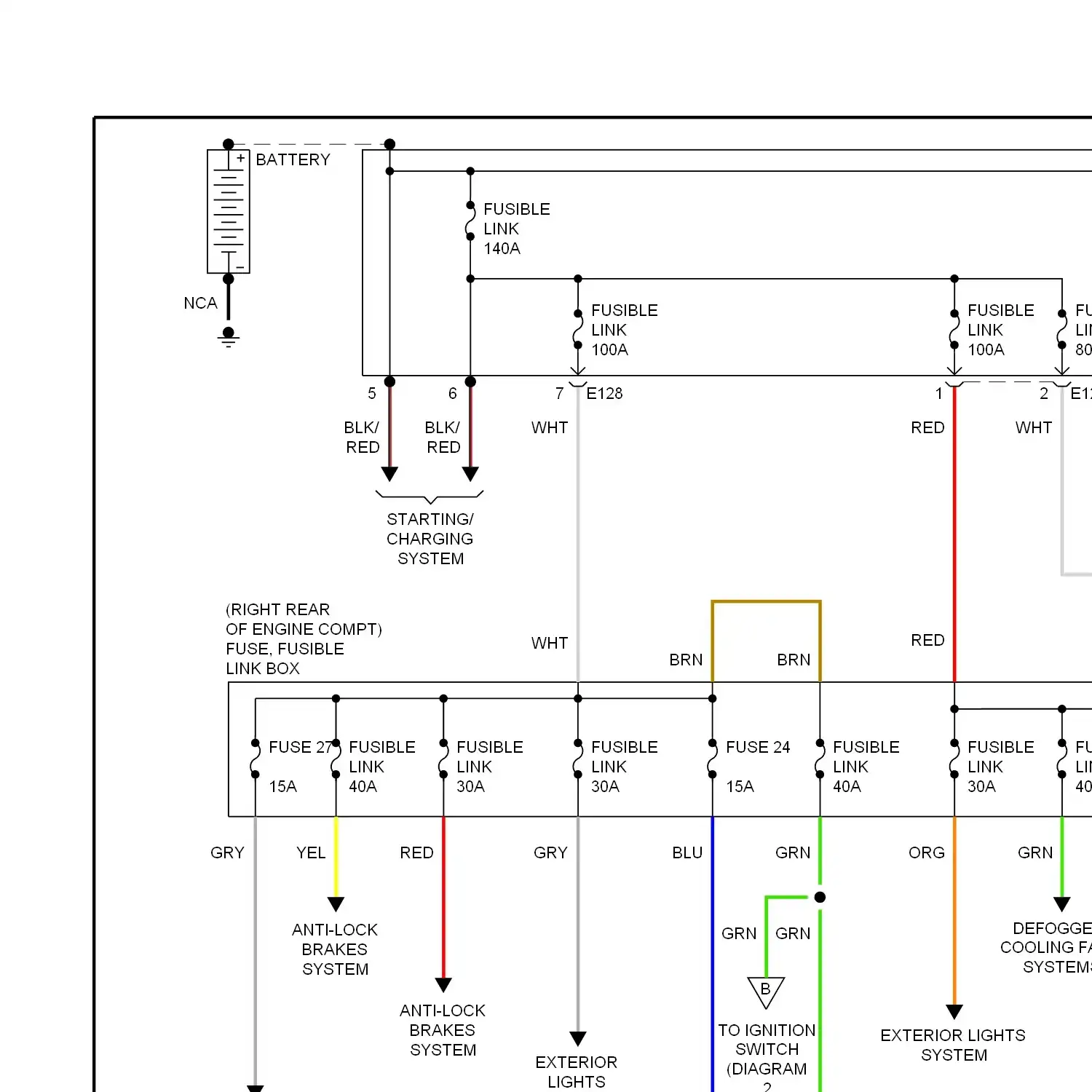

Power distribution circuit

Door lock circuit, crew cab Door lock circuit, king cab Door lock & keyless entry circuit, crew cab Door lock & keyless entry circuit, king cab

Auto anti-dazzling mirror circuit Power mirror circuit

Heated seats circuit Power seat circuit

Power top/sunroof circuit

Power windows circuit, crew cab Power windows circuit, king cab

Base radio circuit Premium sound radio circuit, crew cab Premium sound radio circuit, king cab

Shift interlock circuit

Charging circuit Starting circuit, a/t Starting circuit, m/t with clutch interlock Starting circuit, m/t without clutch interlock

Supplemental restraints circuit

4wd circuit, a/t 4wd circuit, m/t A/t circuit

Warning systems circuit

Front wiper/washer circuit
