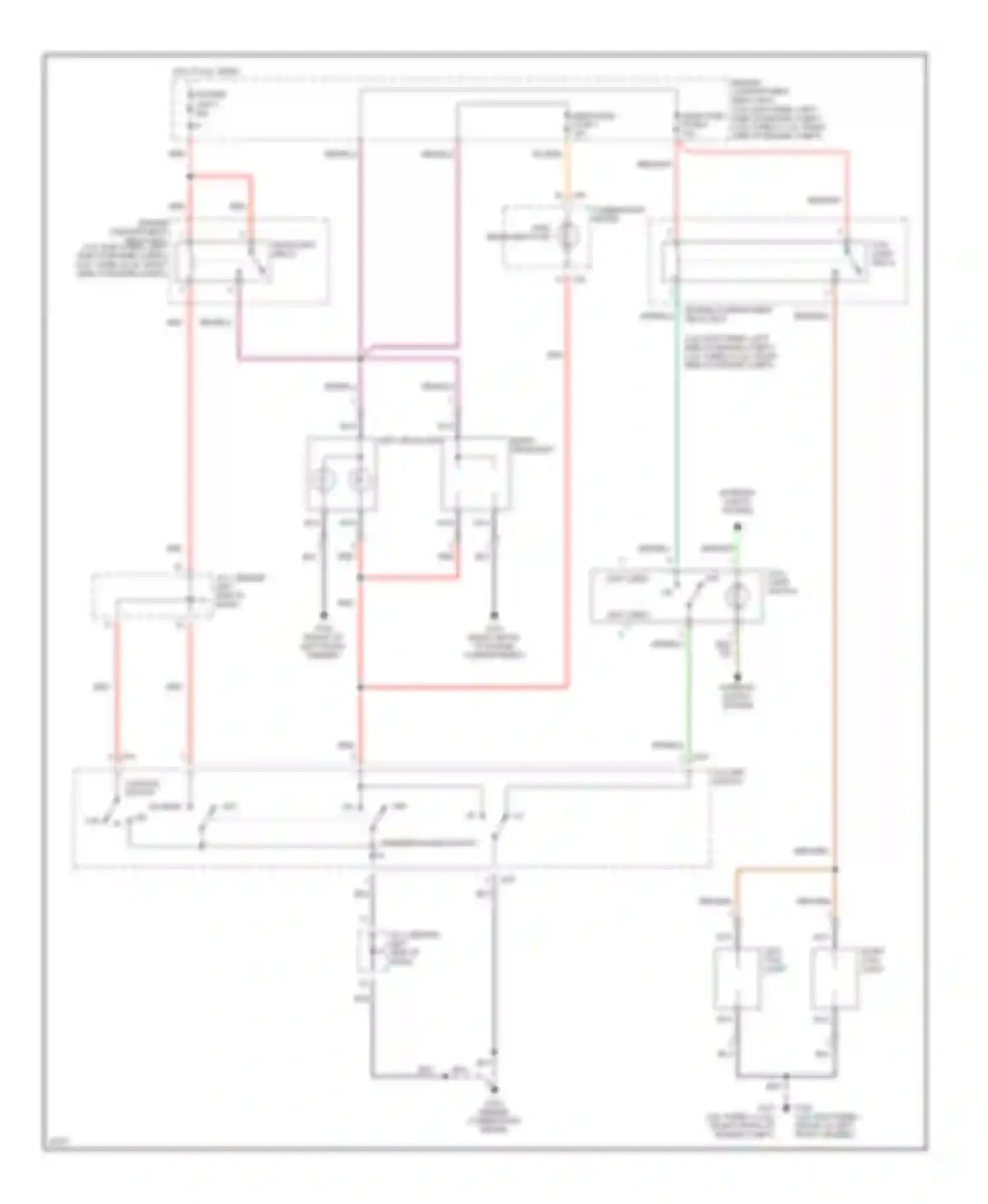

Wiring diagram: Headlights — Headlight circuit Mitsubishi Eclipse II
All systems — 37 systems
- Air conditioning 2.0l 4
- Air conditioning 2.4l 2
- Anti-lock brakes 2.0l 3
- Anti-lock brakes 2.4l
- Anti-theft
- Body computer
- Computer data lines 2.0l 2
- Computer data lines 2.4l
- Cooling fan 2.0l 3
- Cooling fan 2.4l
- Cruise control 2.0l 3
- Cruise control 2.4l
- Defoggers
- Engine performance 2.0l 2
- Engine performance 2.4l
- Exterior lights 2
- Ground distribution
- Headlights
- Horn
- Instrument cluster
- Interior lights 2
- Power antenna
- Power distribution 2.0l 2
- Power distribution 2.4l
- Power door locks 2
- Power mirrors
- Power seats
- Power top/sunroof 2
- Power windows 2
- Radio 2
- Starting/charging 2.0l 8
- Starting/charging 2.4l 4
- Supplemental restraints
- Transmission 2.0l 2
- Transmission 2.4l
- Warning systems
- Wiper/washer 2
Components on these wiring diagrams 18
Click a component to highlight it on every diagram it appears on.
