Computer data lines — High/low bus circuit Mercedes-Benz GLC-class Coupe C253 facelift

1 system 5 wiring diagrams 1586 components
All systems — 34 systems

Computer data lines

# High/low bus circuit

# High/low bus circuit (1 of 5)

Computer data lines — High/low bus circuit — High/low bus circuit (1 of 5). Mercedes-Benz GLC-class Coupe C253 facelift (2019-2023)
Components on the diagram

    # High/low bus circuit (2 of 5)

    Computer data lines — High/low bus circuit — High/low bus circuit (2 of 5). Mercedes-Benz GLC-class Coupe C253 facelift (2019-2023)
    Components on the diagram

      # High/low bus circuit (3 of 5)

      Computer data lines — High/low bus circuit — High/low bus circuit (3 of 5). Mercedes-Benz GLC-class Coupe C253 facelift (2019-2023)
      Components on the diagram

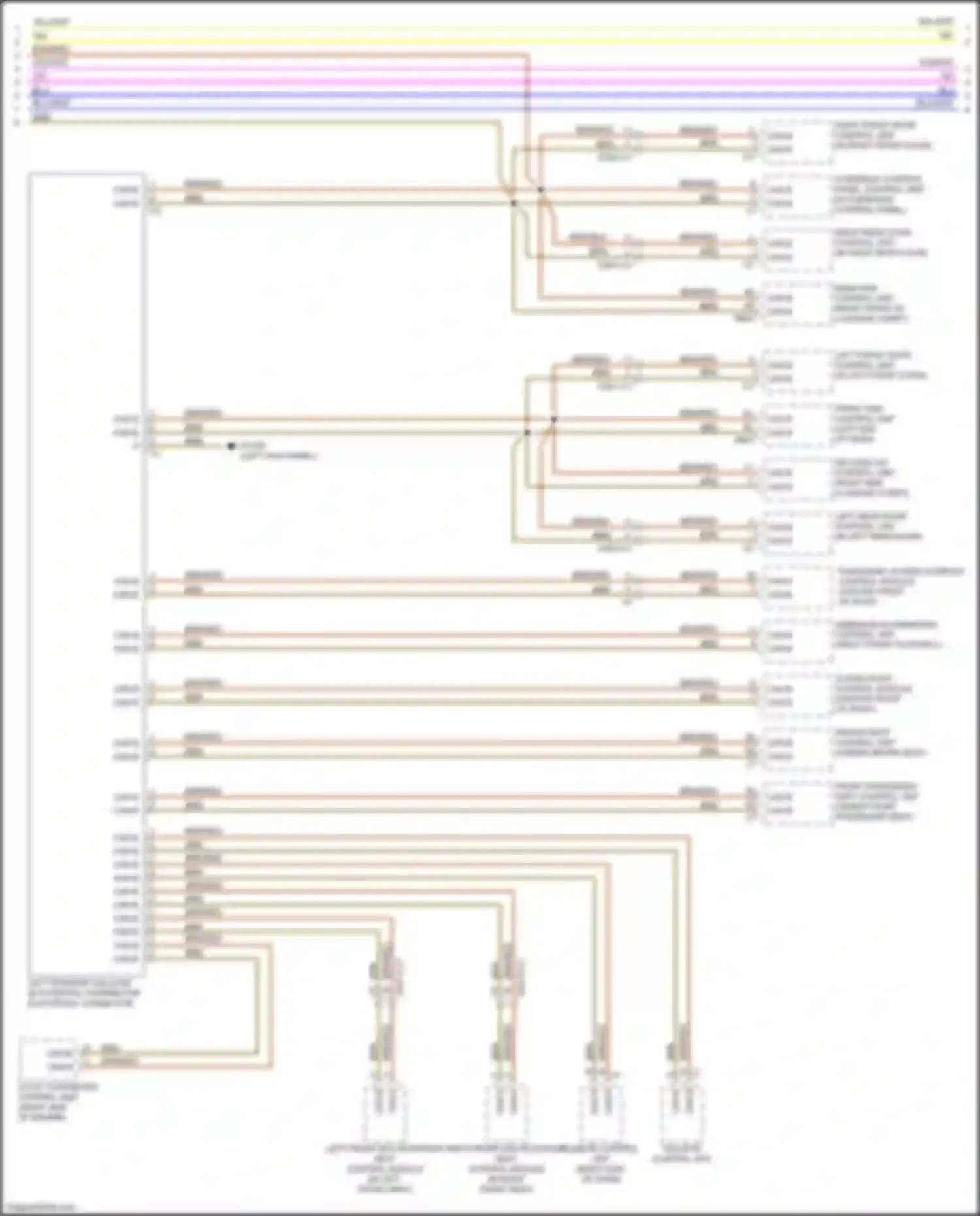

        # High/low bus circuit (4 of 5)

        Computer data lines — High/low bus circuit — High/low bus circuit (4 of 5). Mercedes-Benz GLC-class Coupe C253 facelift (2019-2023)
        Components on the diagram

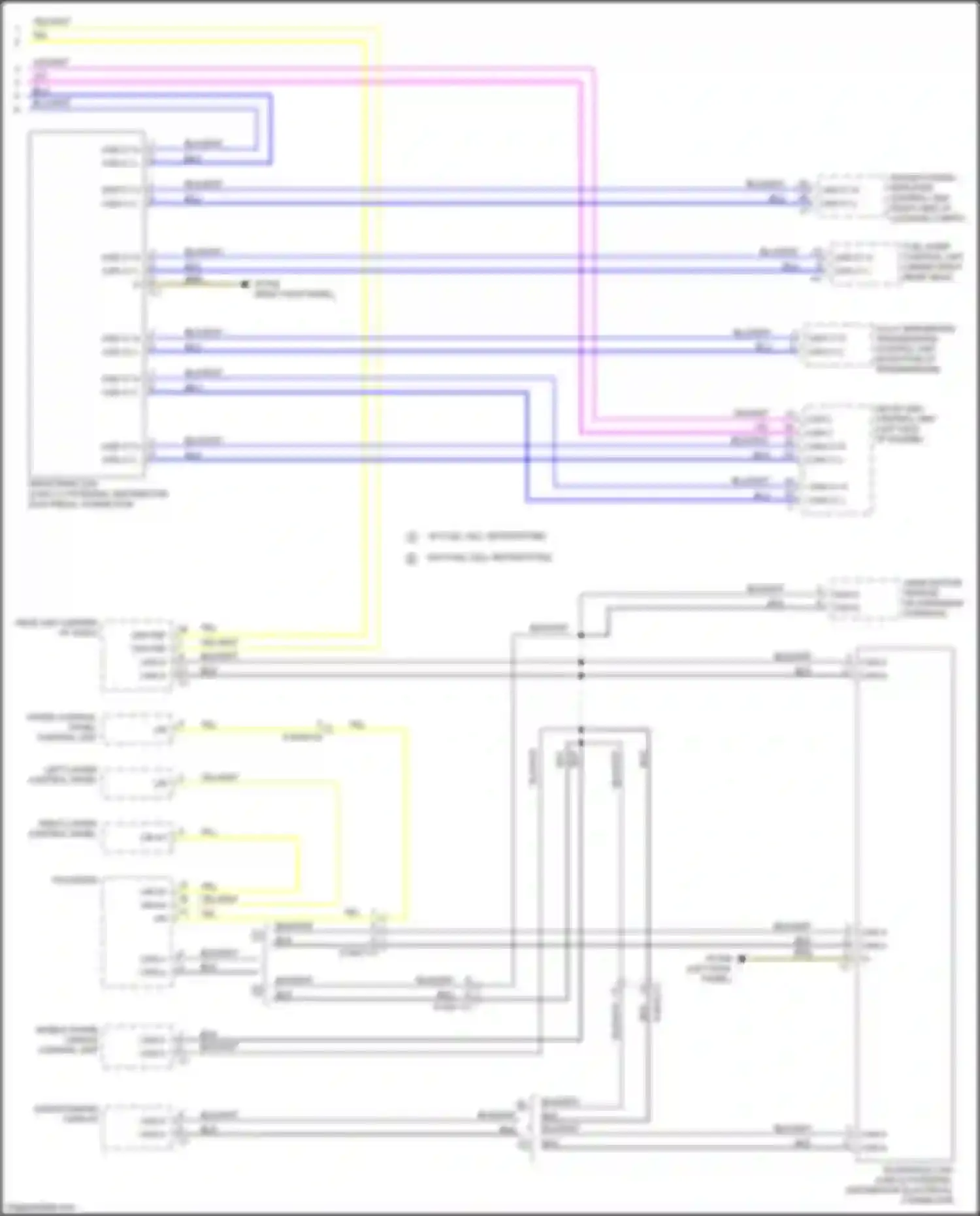

          # High/low bus circuit (5 of 5)

          Computer data lines — High/low bus circuit — High/low bus circuit (5 of 5). Mercedes-Benz GLC-class Coupe C253 facelift (2019-2023)
          Components on the diagram

            Components on these wiring diagrams 81

            Click a component to highlight it on every diagram it appears on.
