# Comand actuation circuit, w/o dvd

# Comand actuation circuit, w/o dvd (1 of 5)

Radio — Comand actuation circuit, w/o dvd — Comand actuation circuit, w/o dvd (1 of 5). Mercedes-Benz GLA-class X156 facelift (2017-2020)

Components on the diagram

# Comand actuation circuit, w/o dvd (2 of 5)

Radio — Comand actuation circuit, w/o dvd — Comand actuation circuit, w/o dvd (2 of 5). Mercedes-Benz GLA-class X156 facelift (2017-2020)

Components on the diagram

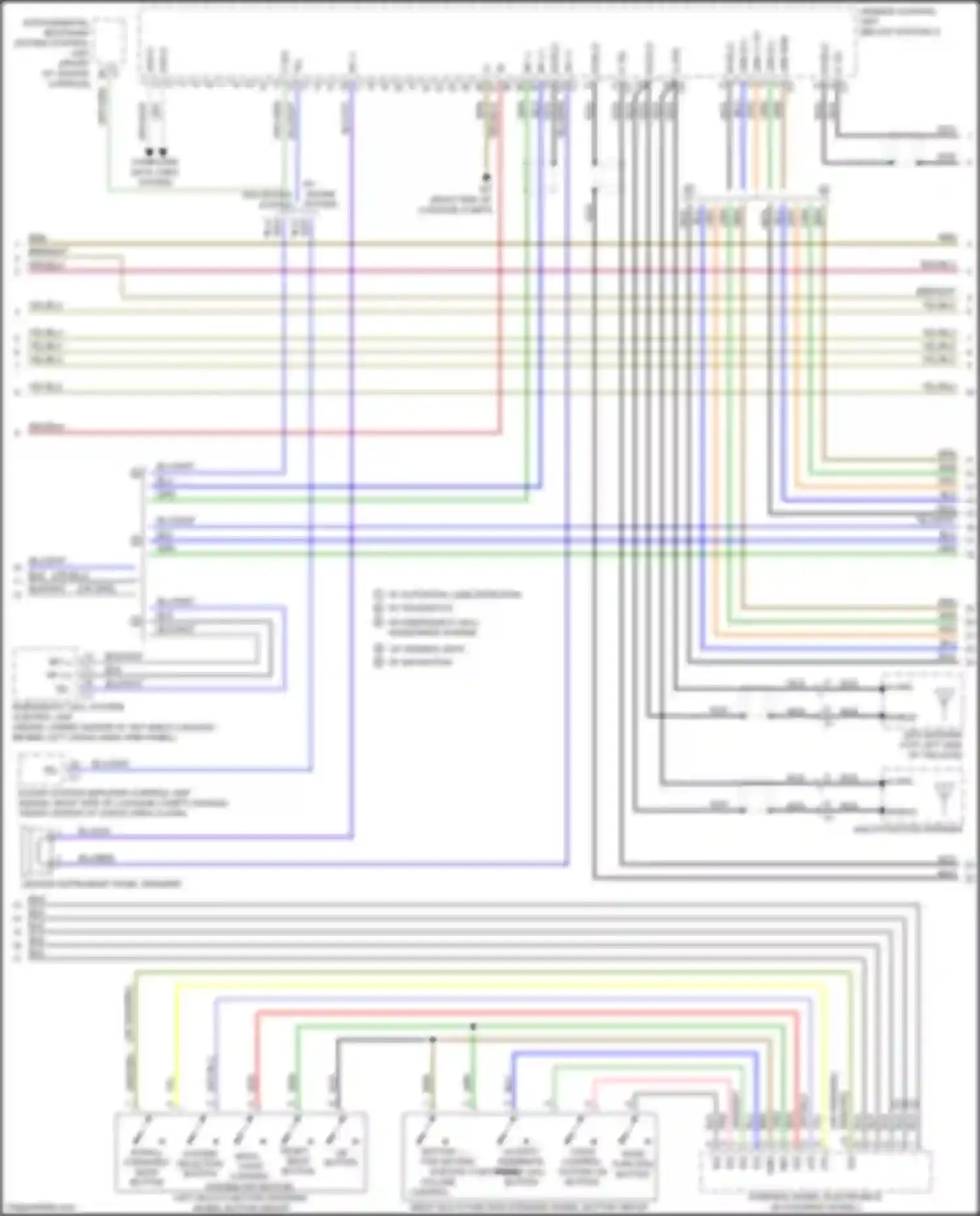

# Comand actuation circuit, w/o dvd (3 of 5)

Radio — Comand actuation circuit, w/o dvd — Comand actuation circuit, w/o dvd (3 of 5). Mercedes-Benz GLA-class X156 facelift (2017-2020)

Components on the diagram

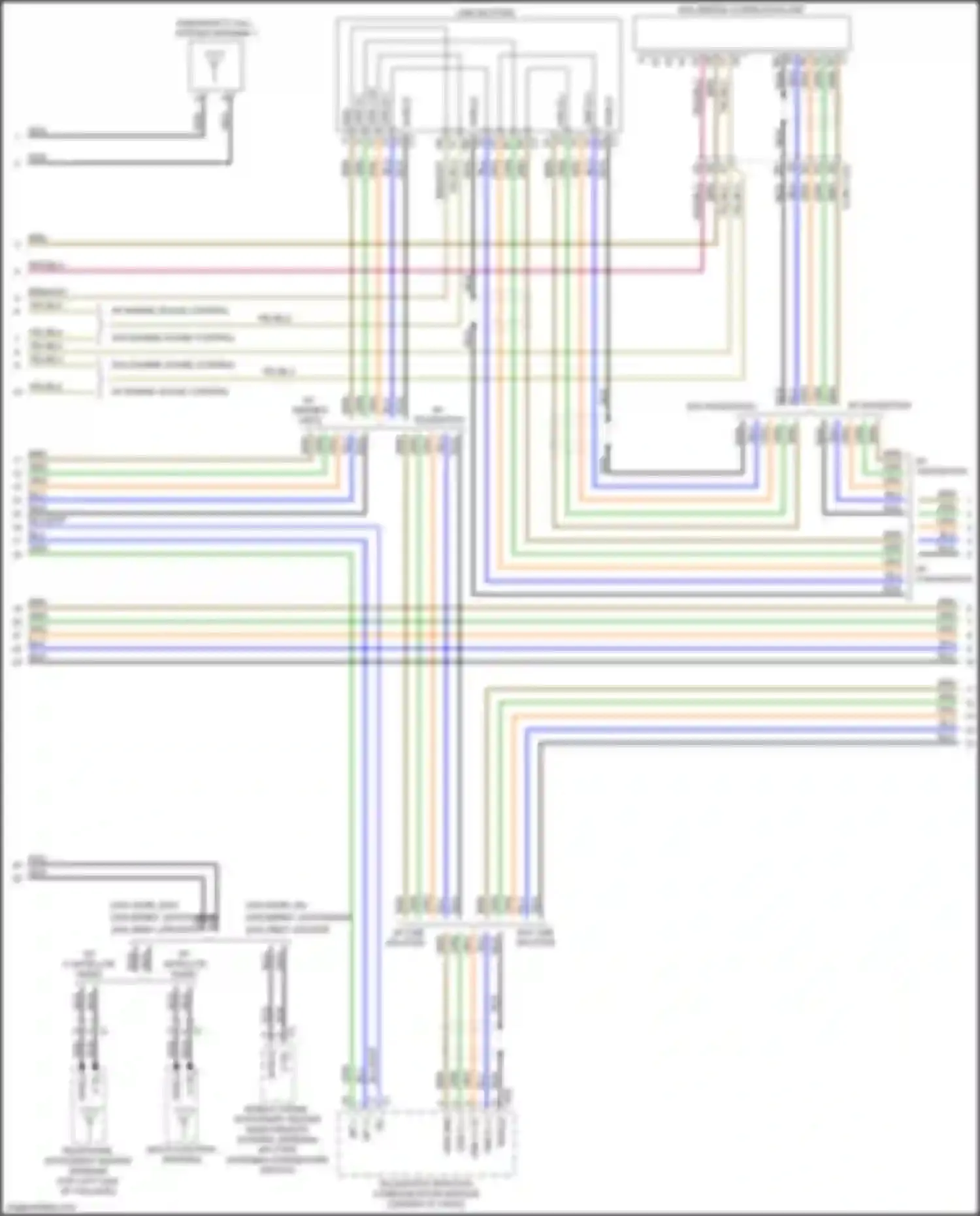

# Comand actuation circuit, w/o dvd (4 of 5)

Radio — Comand actuation circuit, w/o dvd — Comand actuation circuit, w/o dvd (4 of 5). Mercedes-Benz GLA-class X156 facelift (2017-2020)

Components on the diagram

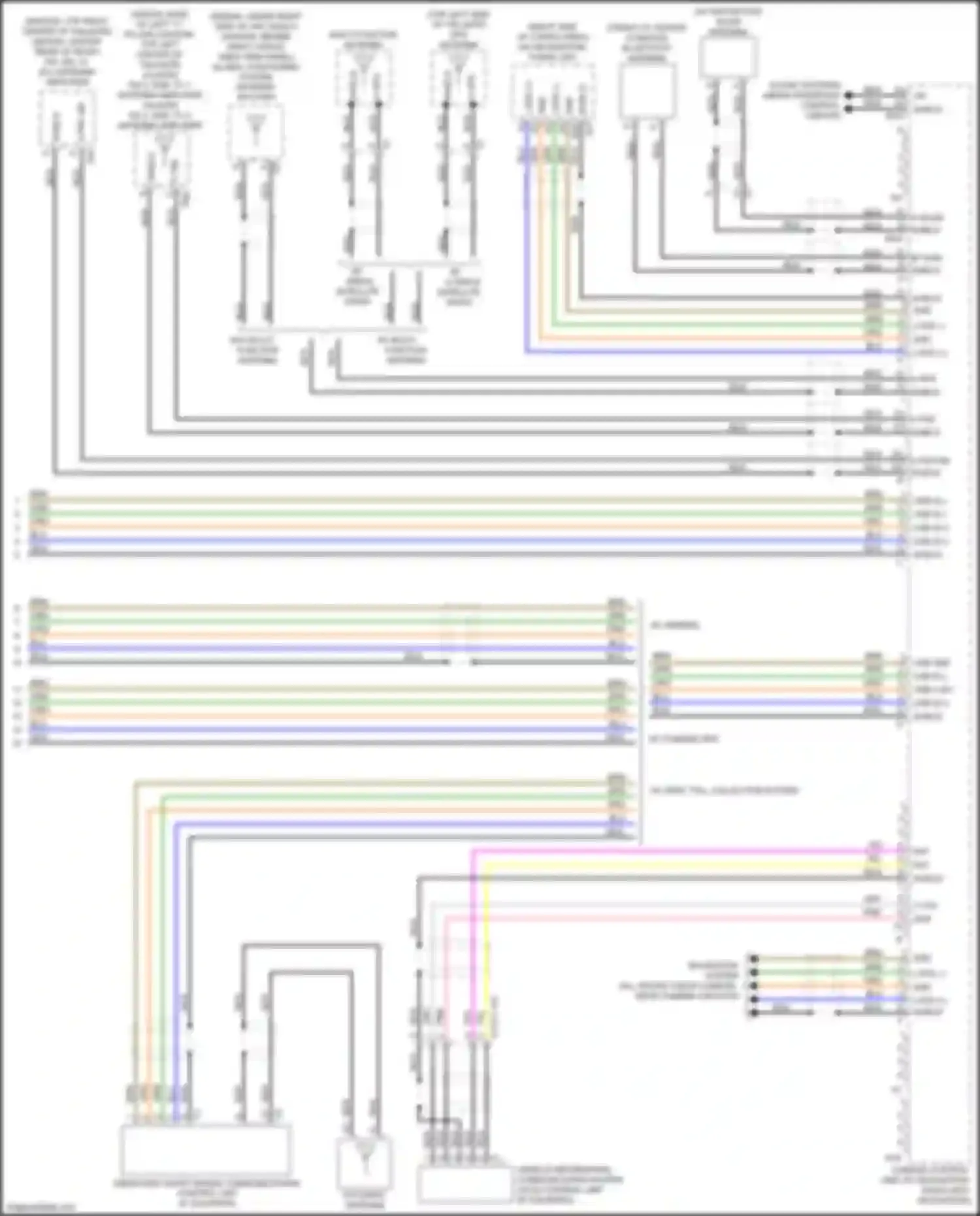

# Comand actuation circuit, w/o dvd (5 of 5)

Radio — Comand actuation circuit, w/o dvd — Comand actuation circuit, w/o dvd (5 of 5). Mercedes-Benz GLA-class X156 facelift (2017-2020)

Components on the diagram
