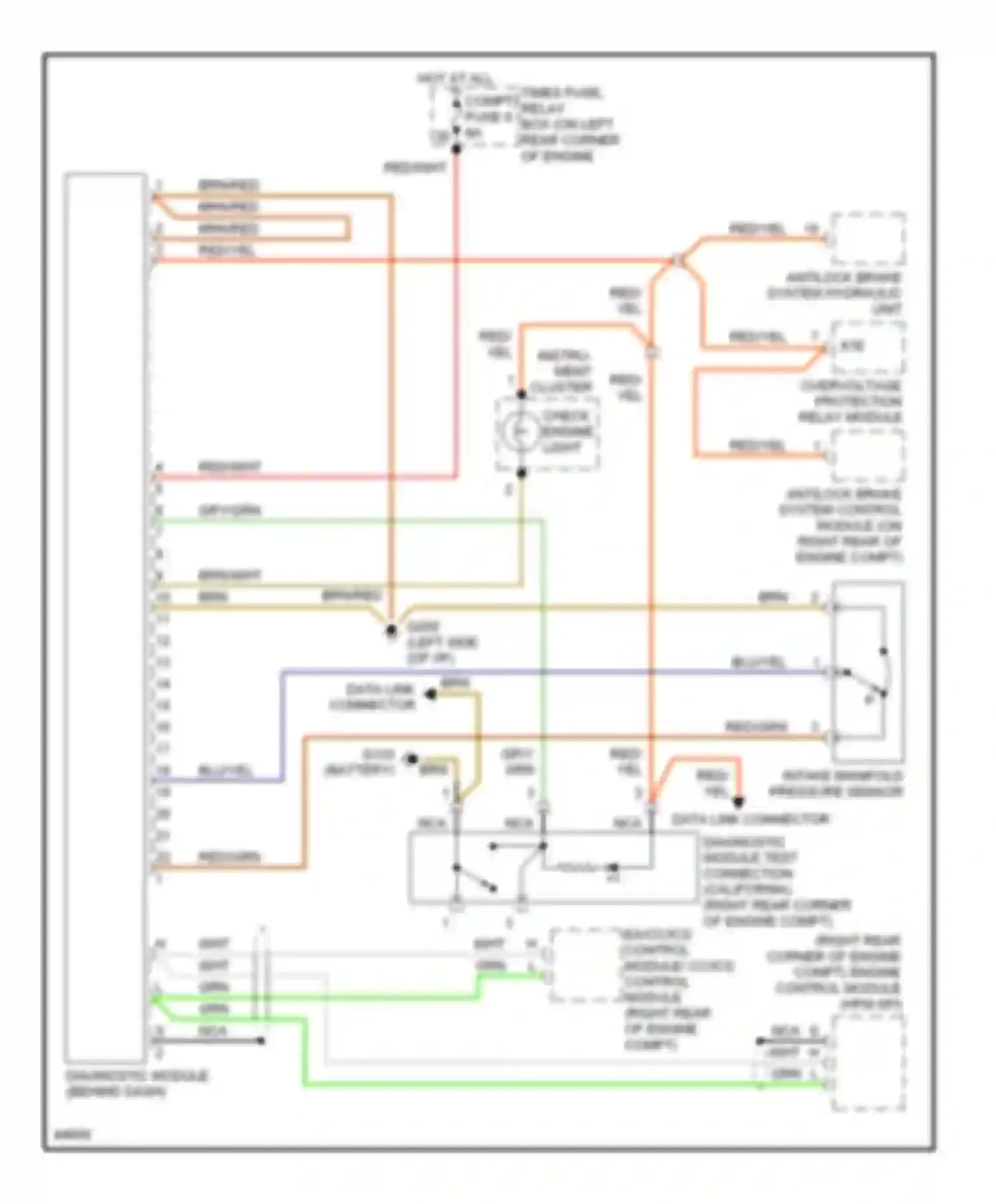

Computer data lines — Diagnostic socket circuit Mercedes-Benz E-class W124/S124/C124/A124
All systems — 30 systems
