Radio
# Radio circuit, with navigation

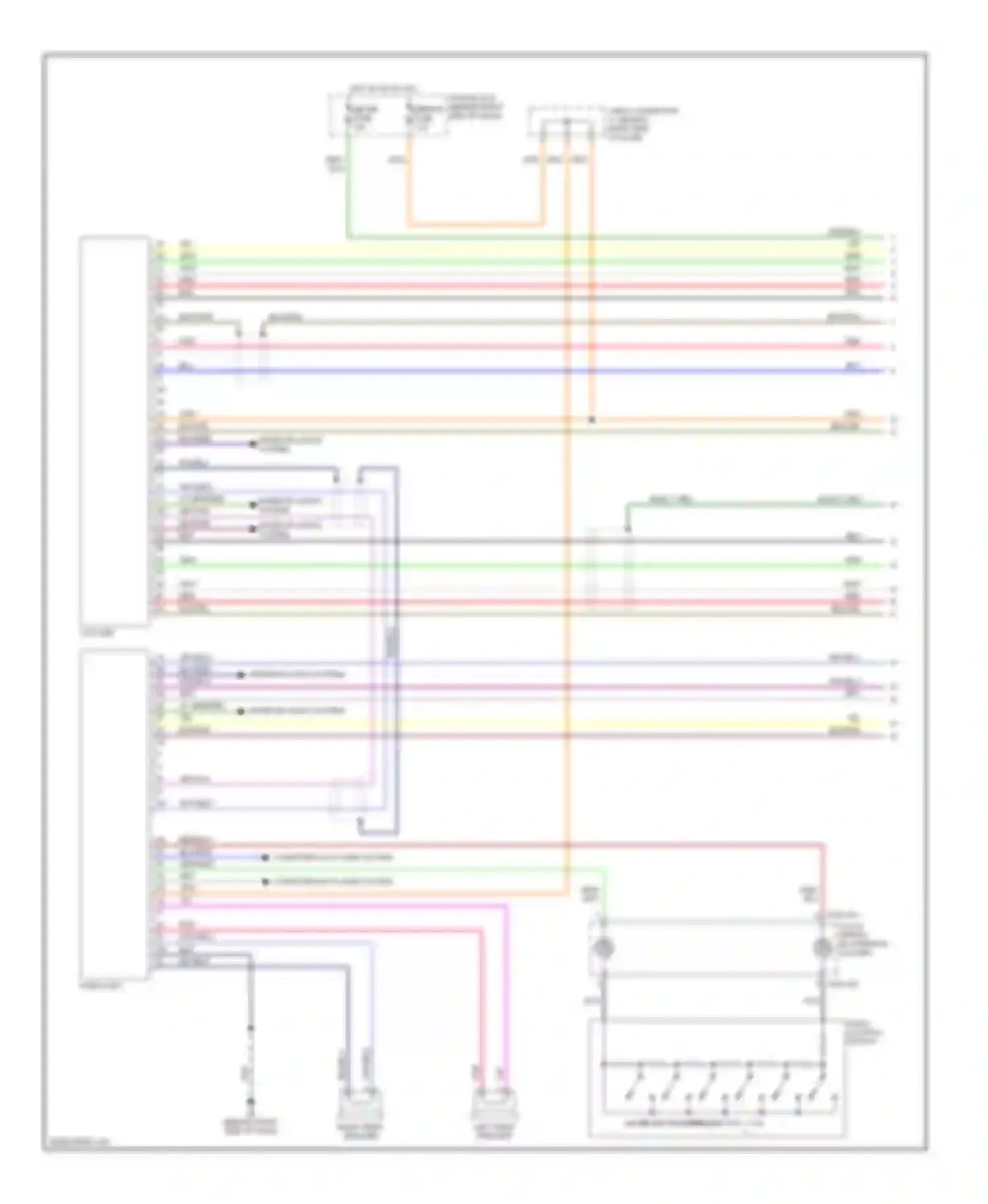

# Radio circuit, with navigation (1 of 2)
Components on the diagram

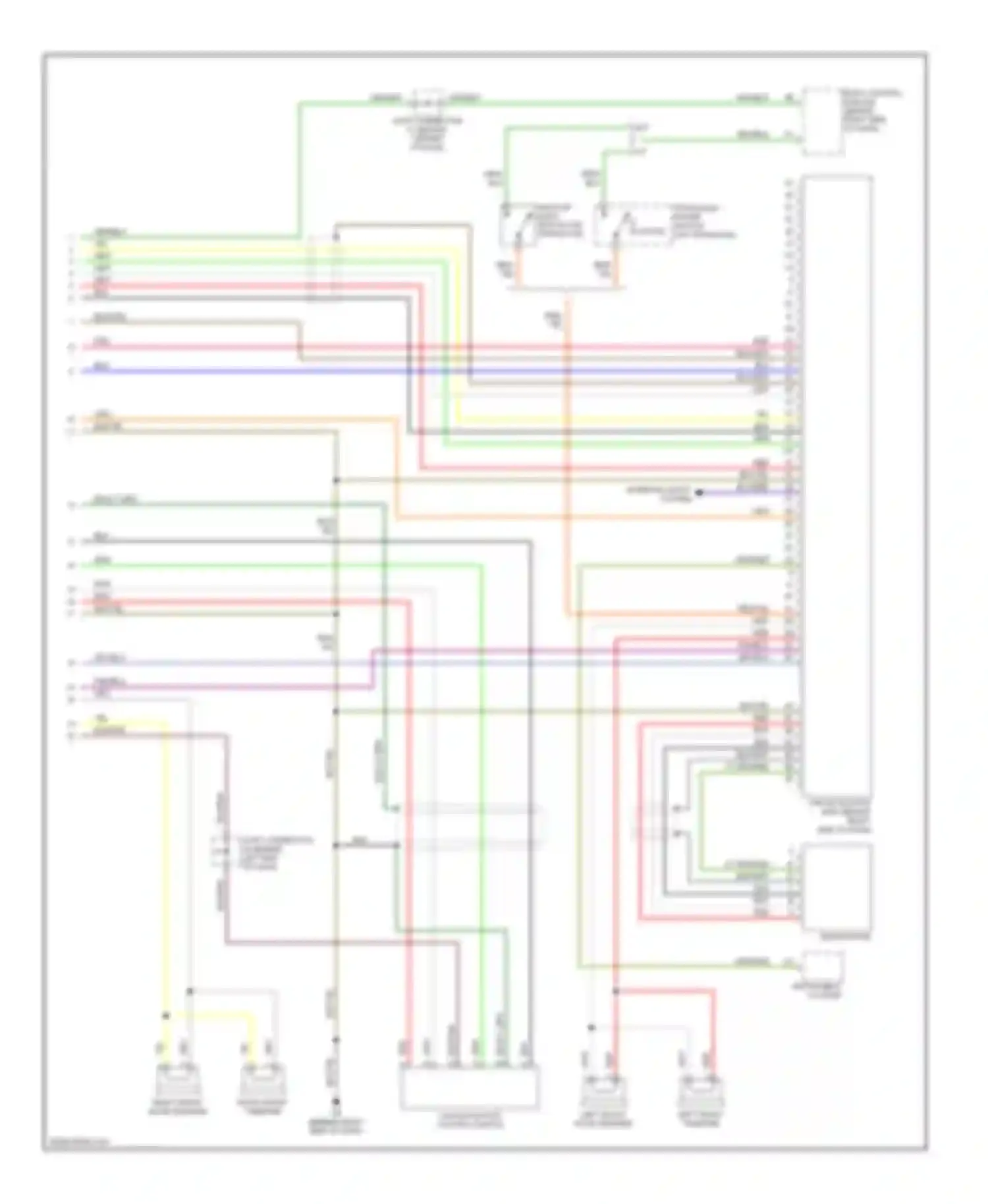

# Radio circuit, with navigation (2 of 2)
Components on the diagram
Components on these wiring diagrams 18
Click a component to highlight it on every diagram it appears on.
