Wiring Diagrams for Lexus NX Z10 (2014-2017)

Active bodyworks circuit

Automatic a/c circuit

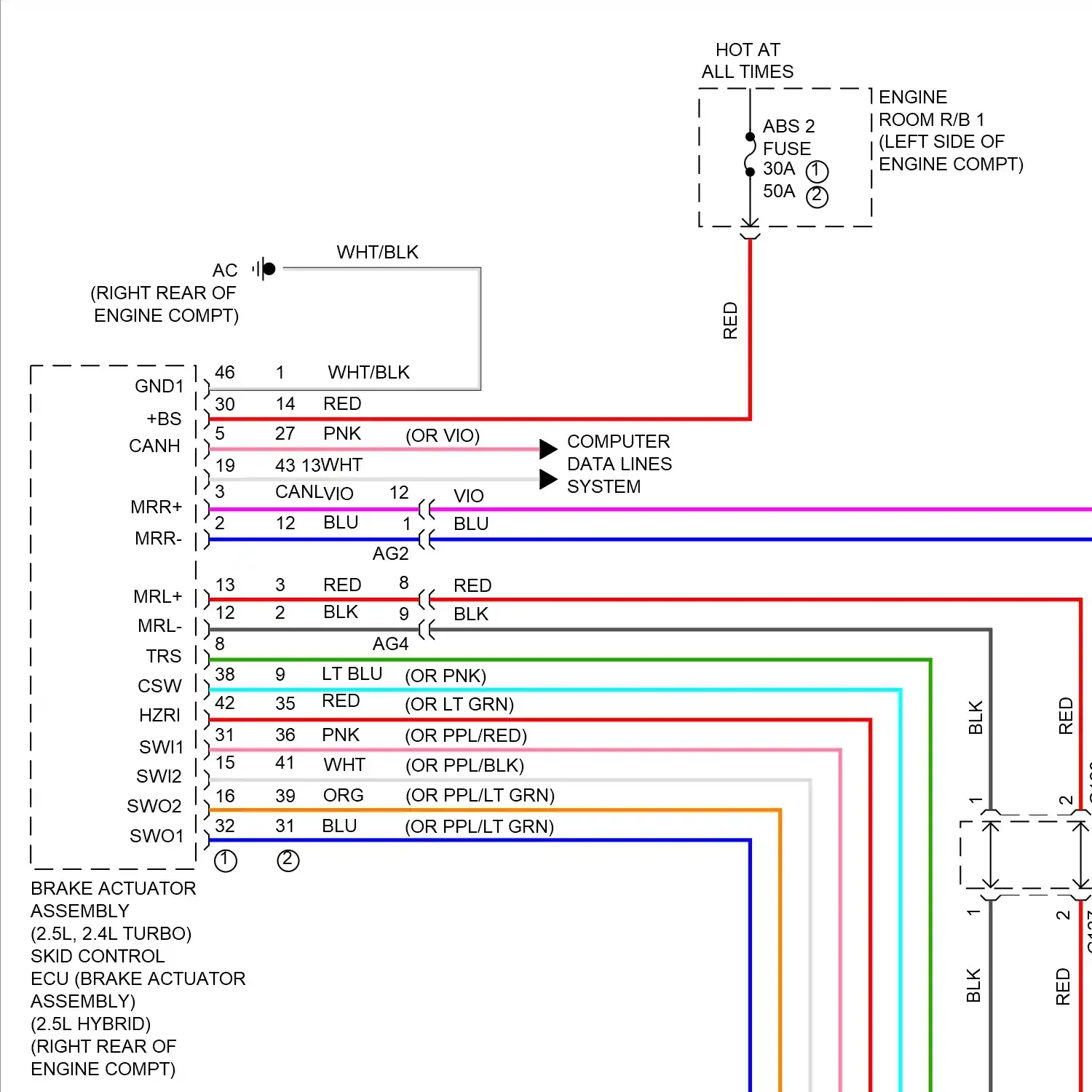

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

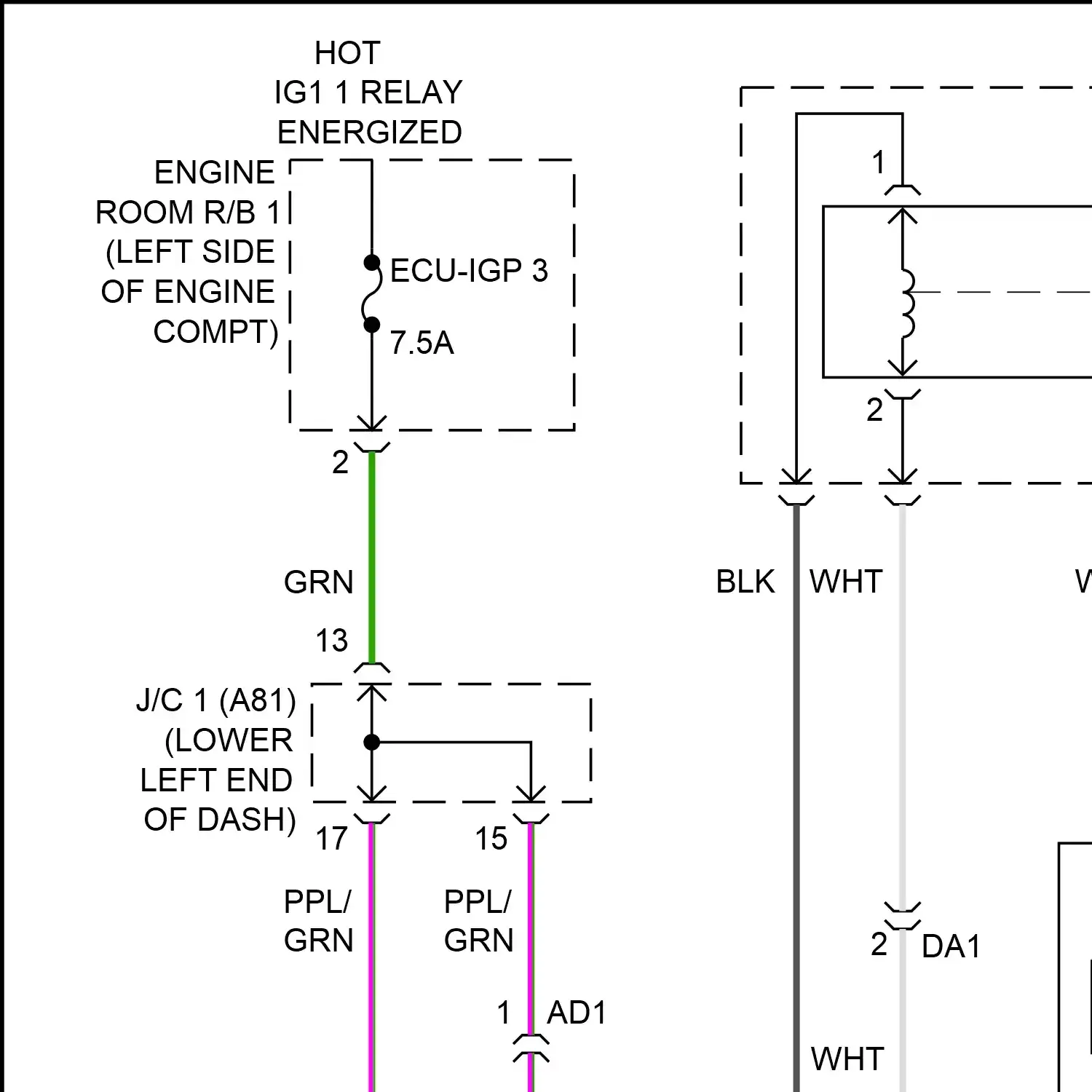

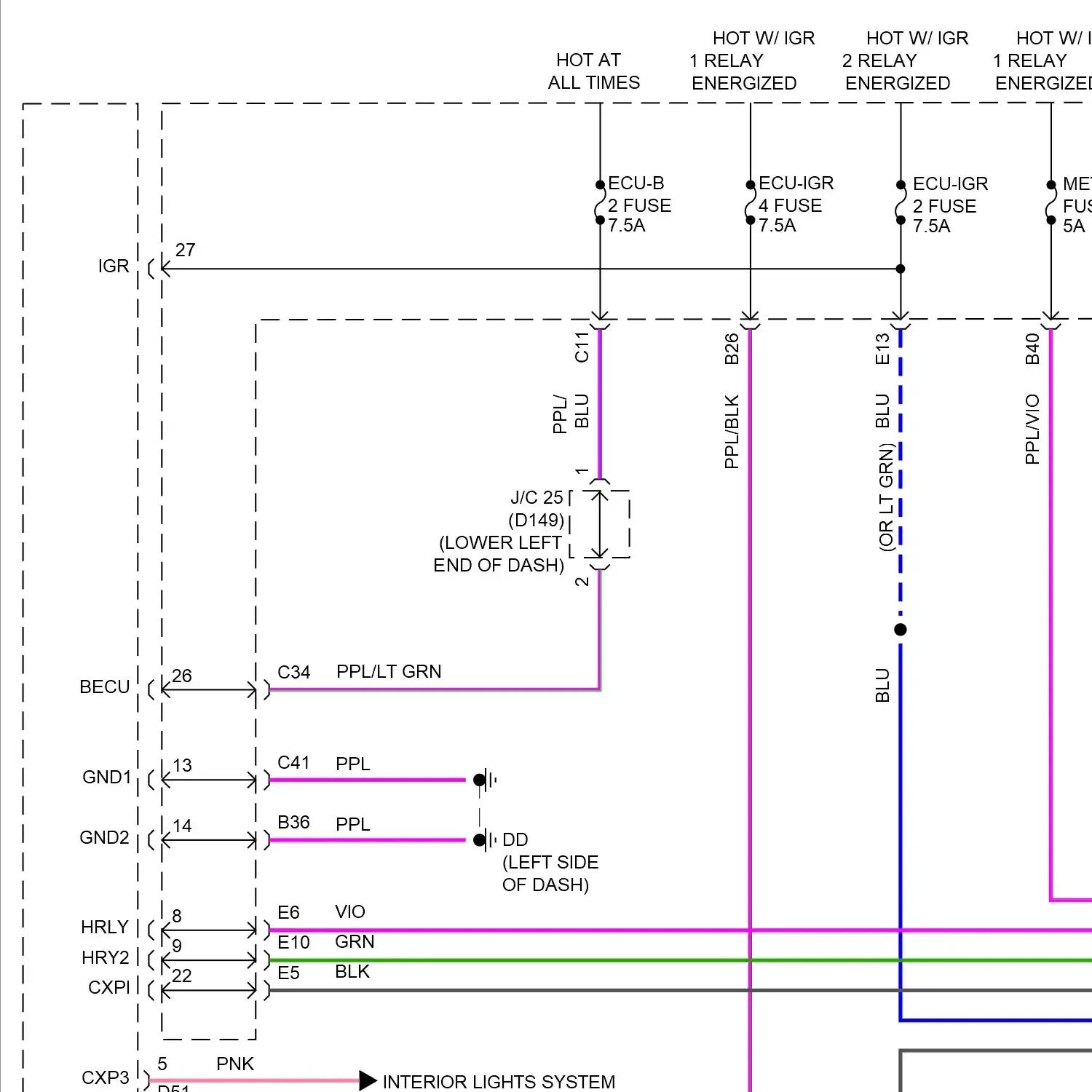

Body ecu circuit Integration control and panel circuit Semiconductor power integration ecu circuit

Computer data lines circuit

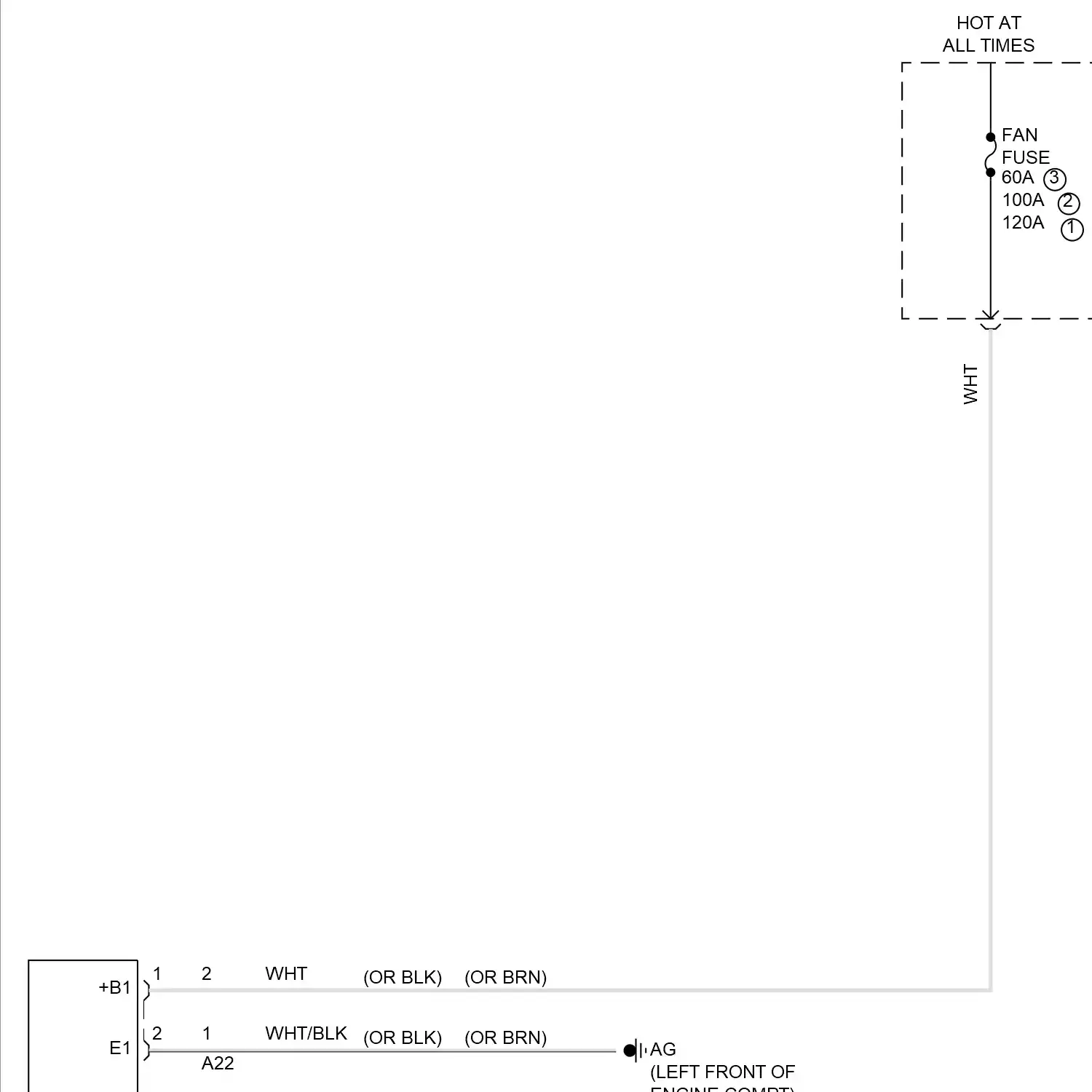

Cooling fan circuit

Cruise control circuit

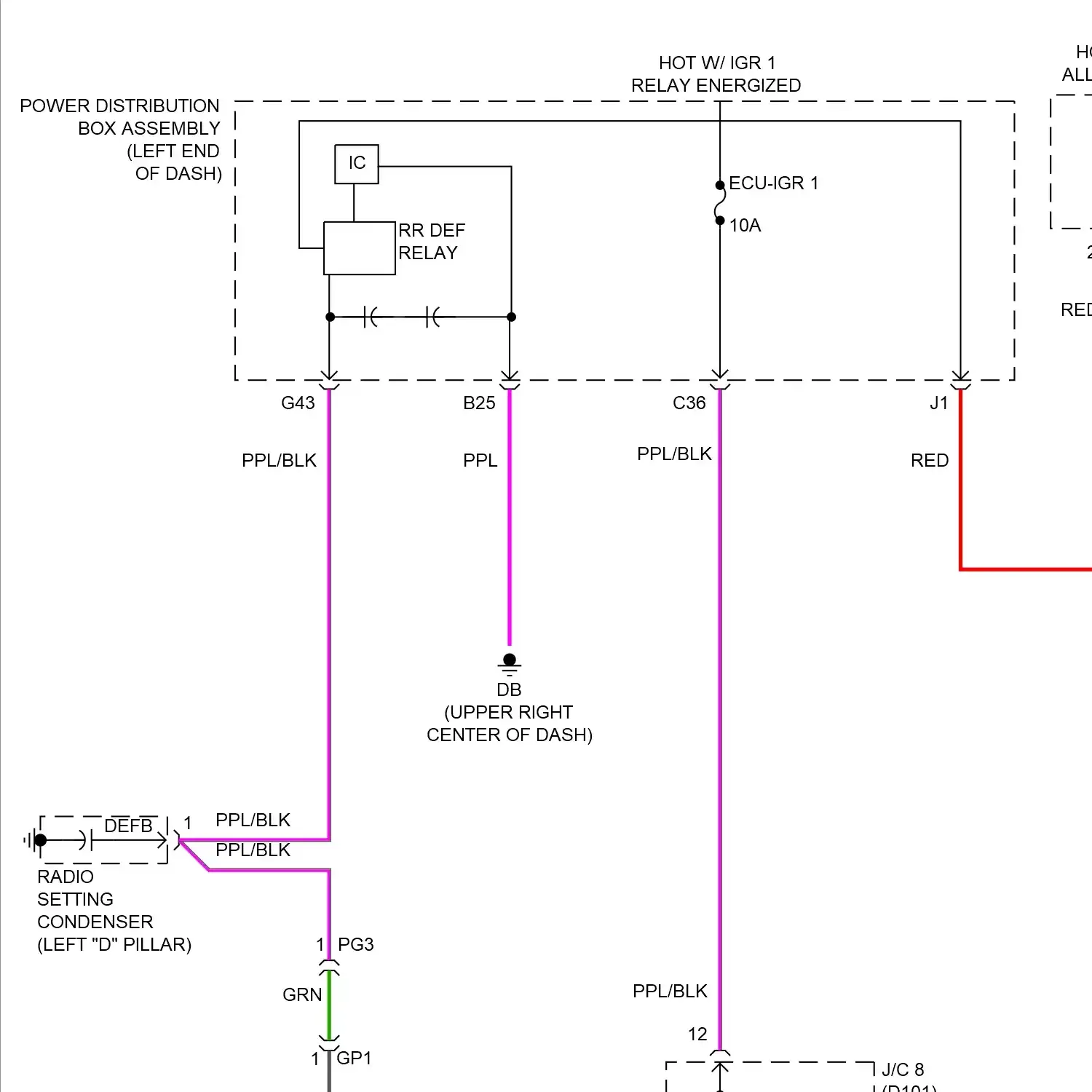

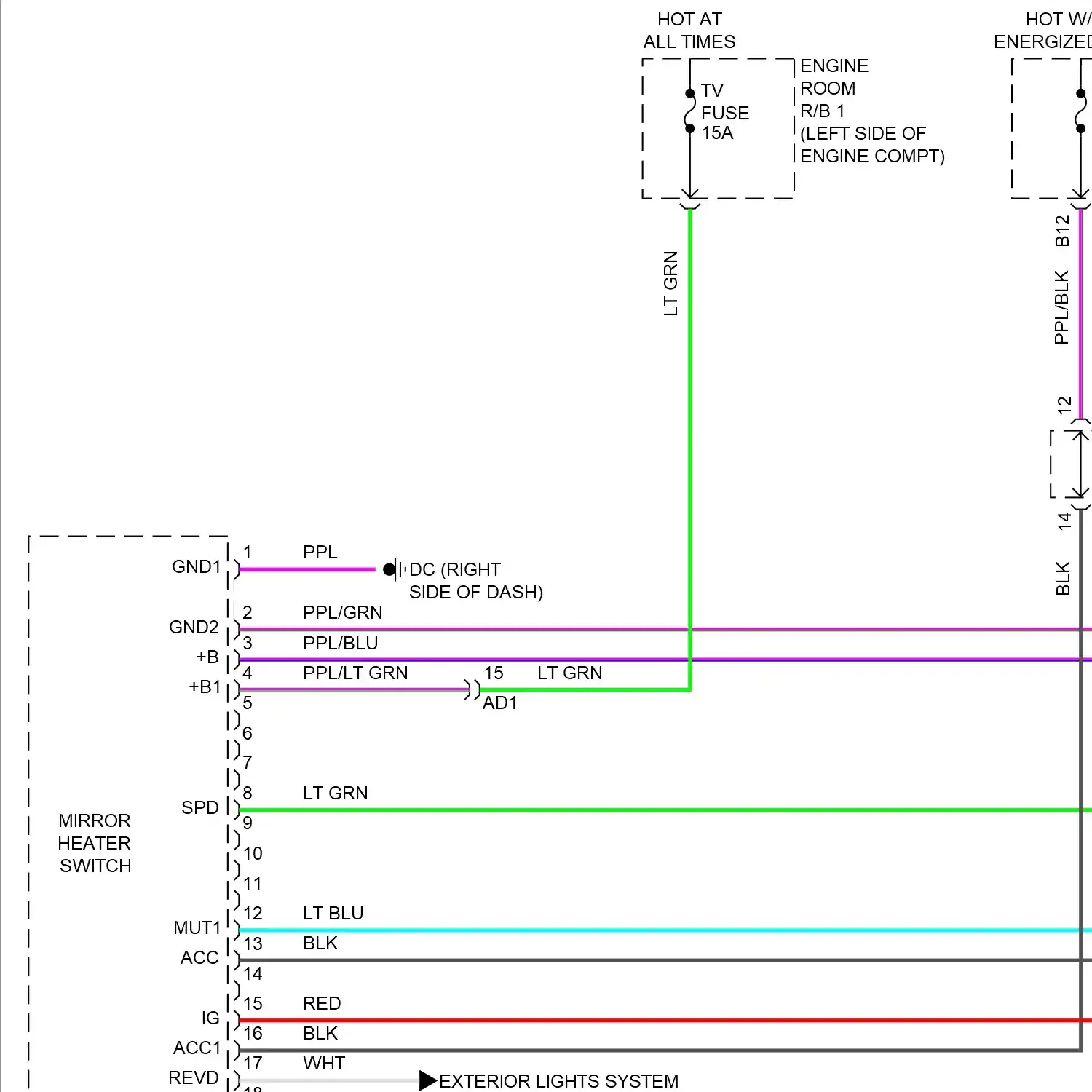

Front deicer circuit Rear defogger & heated mirrors circuit

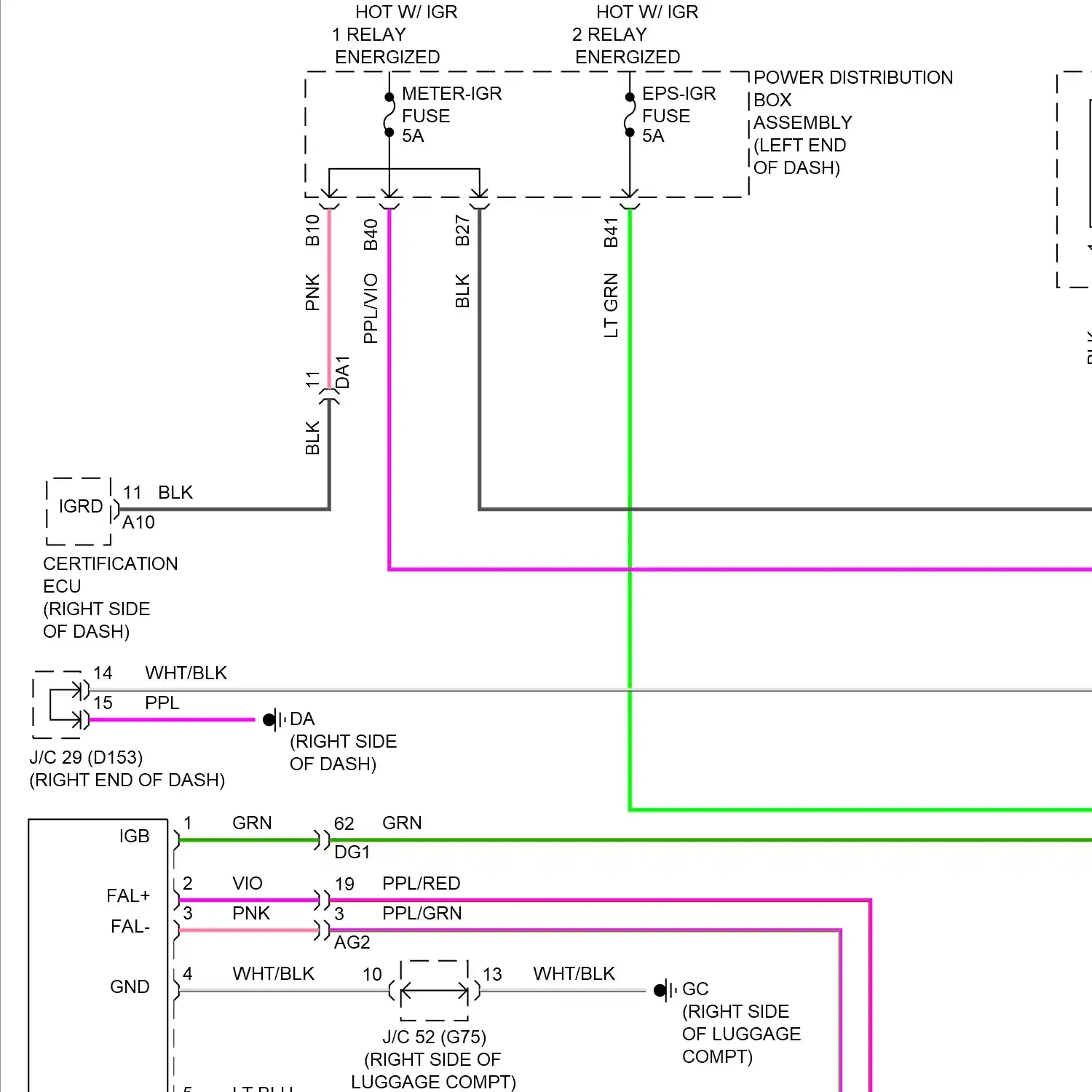

Electronic power steering circuit Power tilt steering column circuit

Electronic suspension circuit

Wiring diagram engine performance 2.4l turbo

Wiring diagram engine performance 2.5l

Backup lamps circuit Exterior lamps circuit

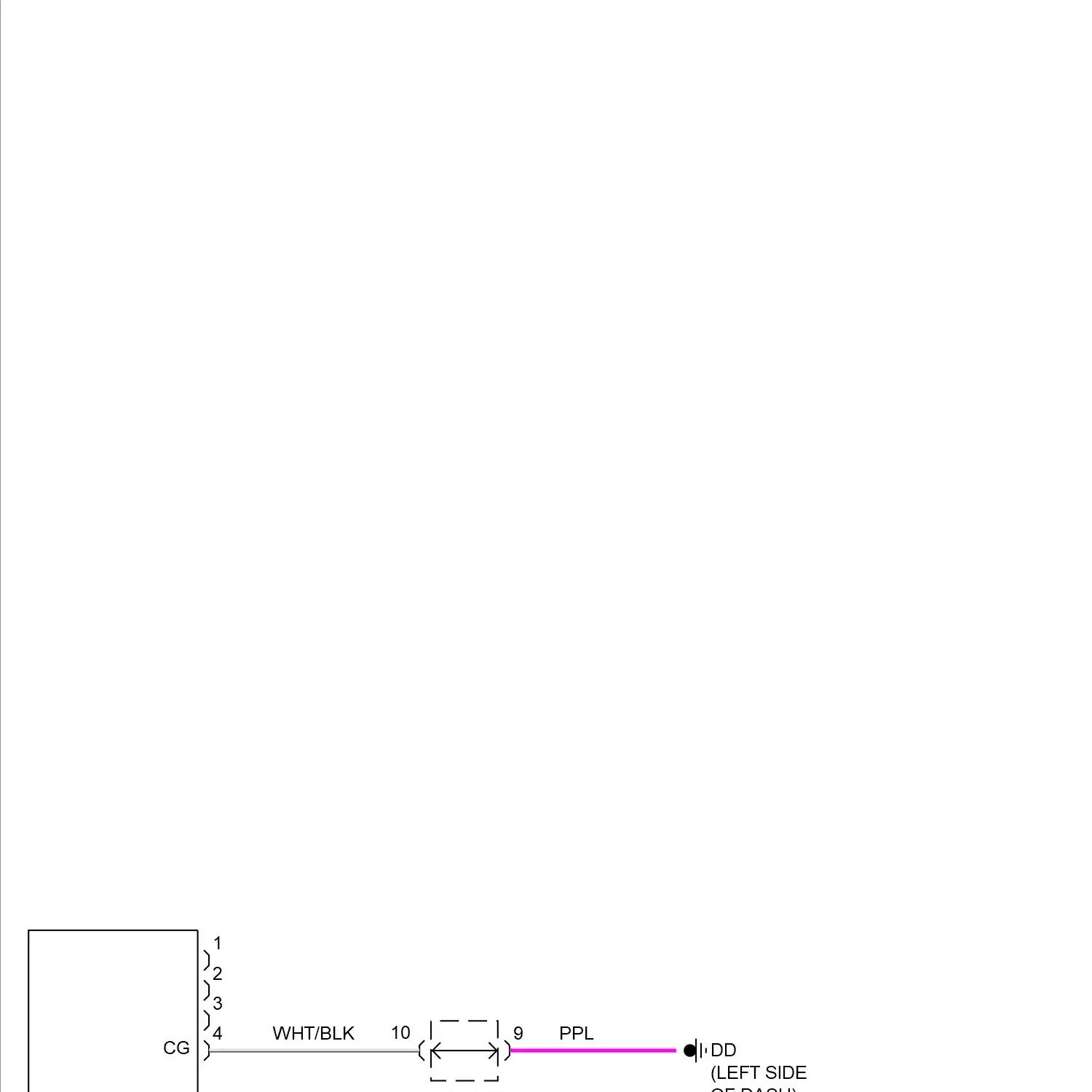

Ground distribution circuit

Headlights circuit

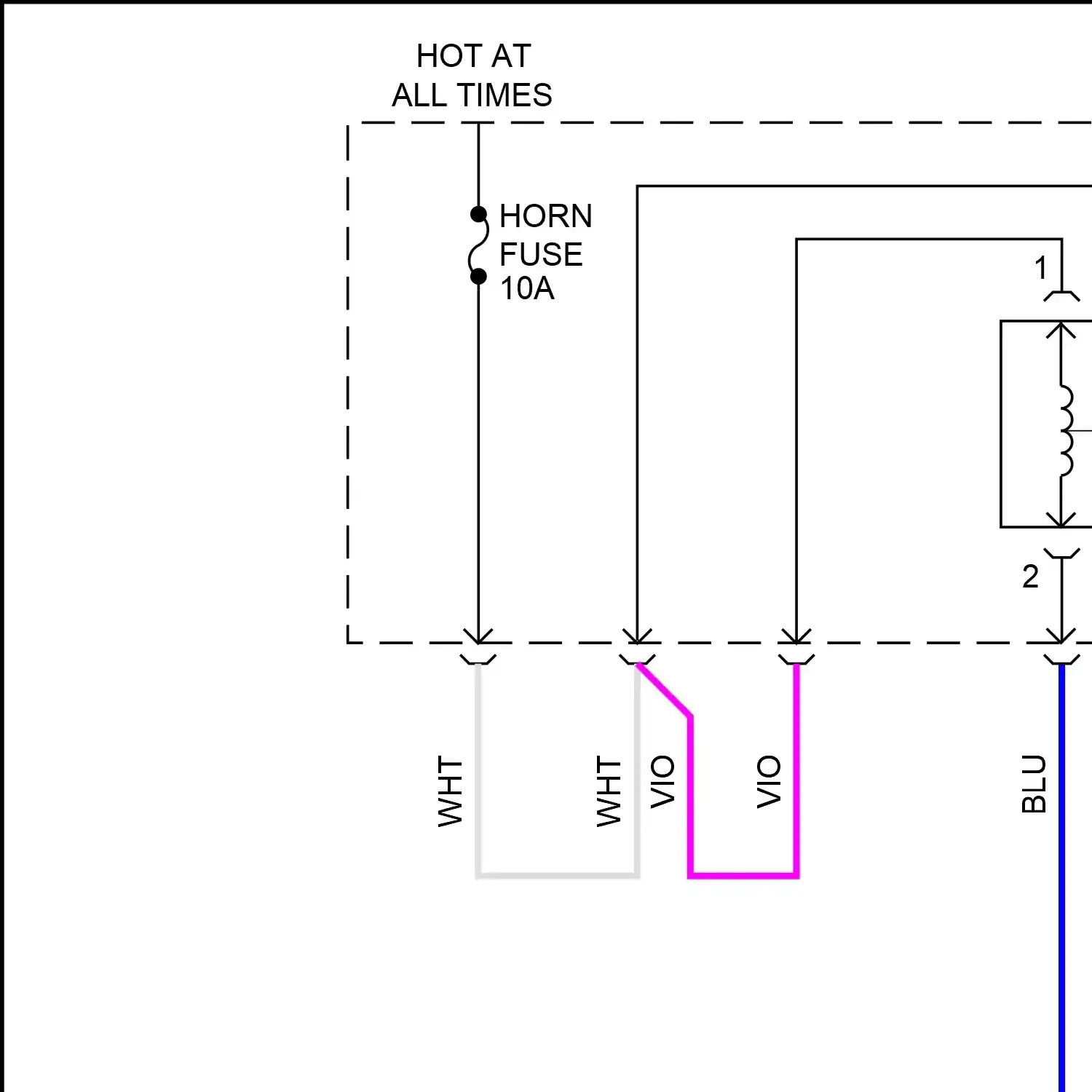

Horn circuit

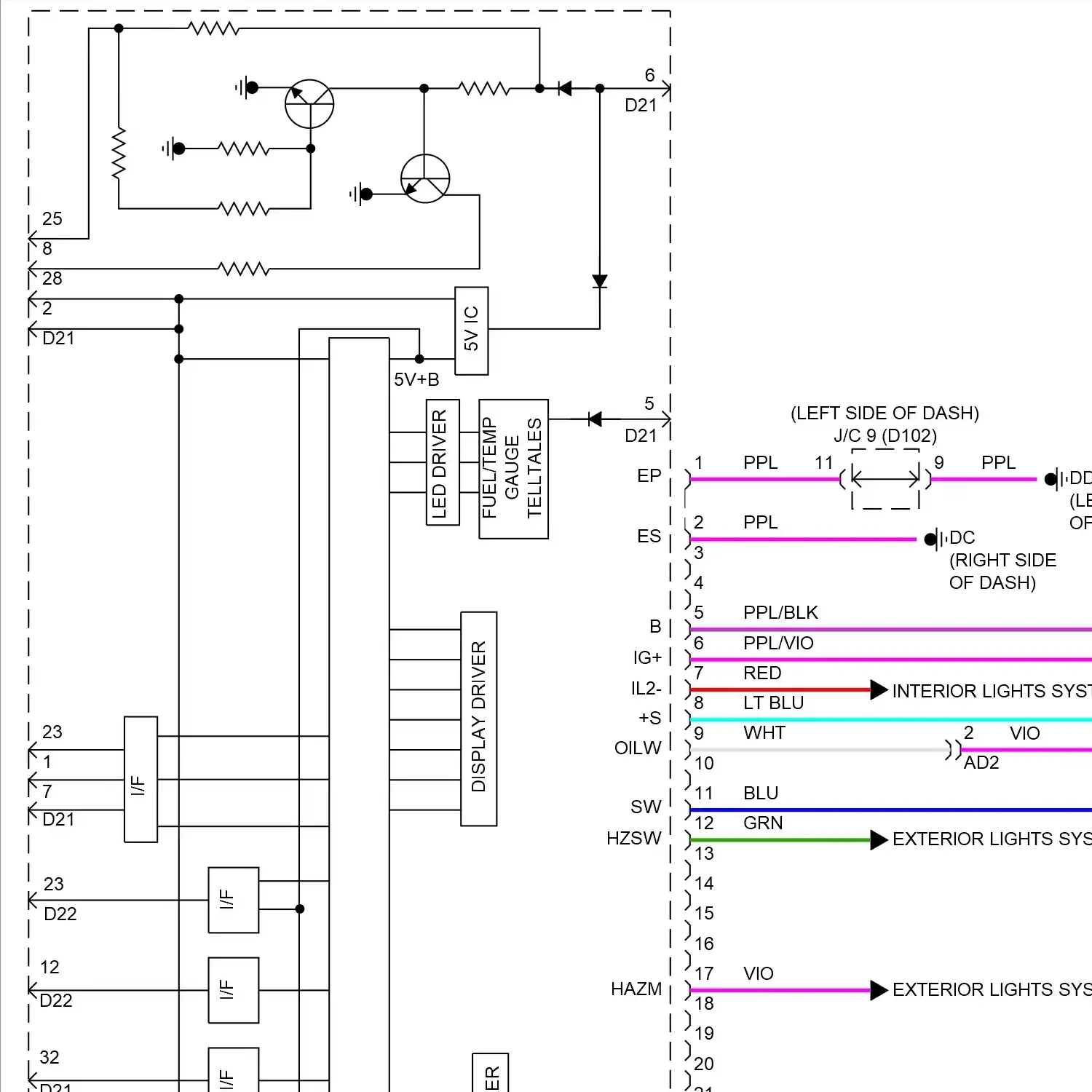

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Memory power tilt & power telescopic circuit

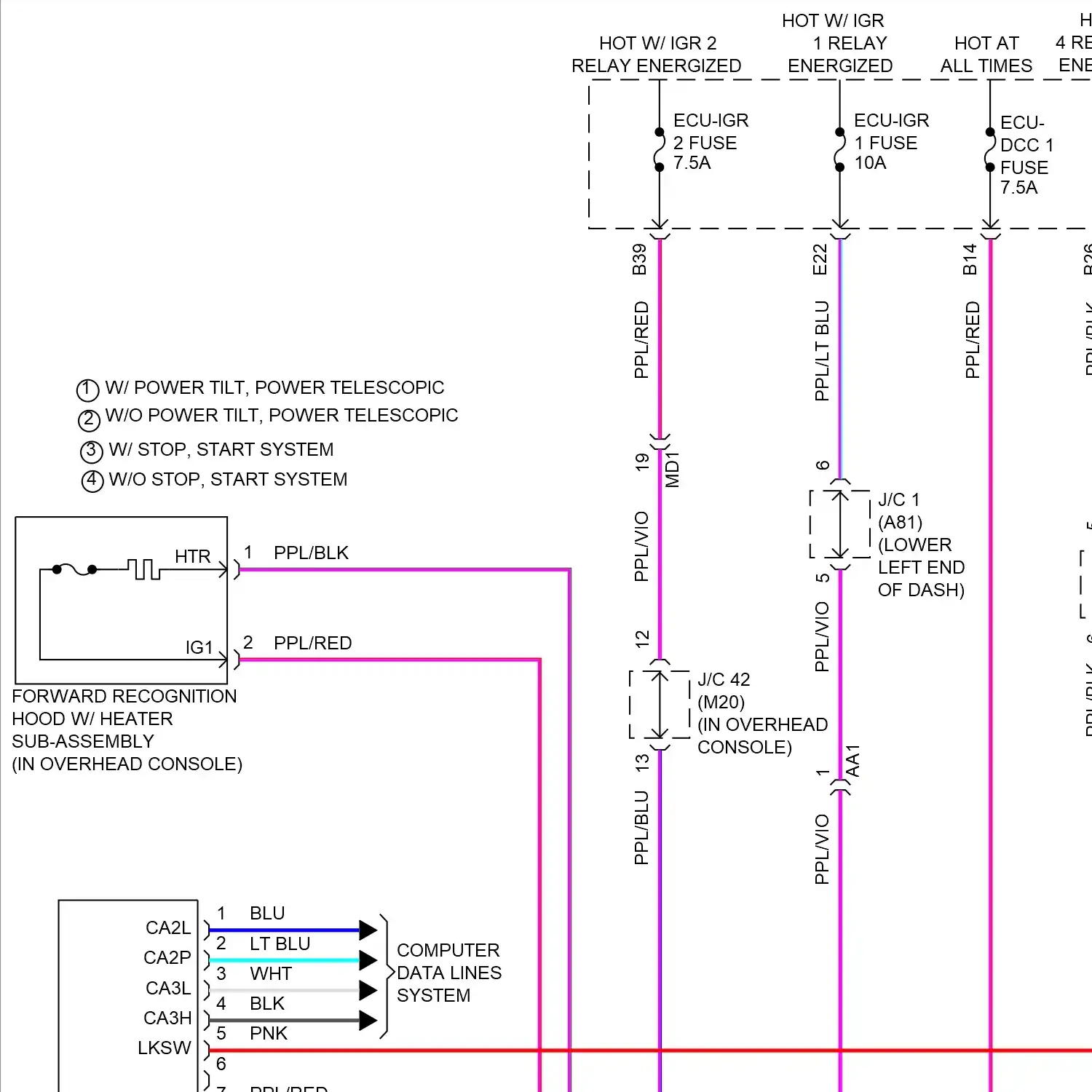

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit Parking assistant circuit Rear sonar circuit Telematics circuit

Passive restraints circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Climate control seats circuit Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Rear folding seat circuit Rear heated seats circuit

Power top/sunroof circuit

Power windows circuit

Active sound control circuit Radio circuit

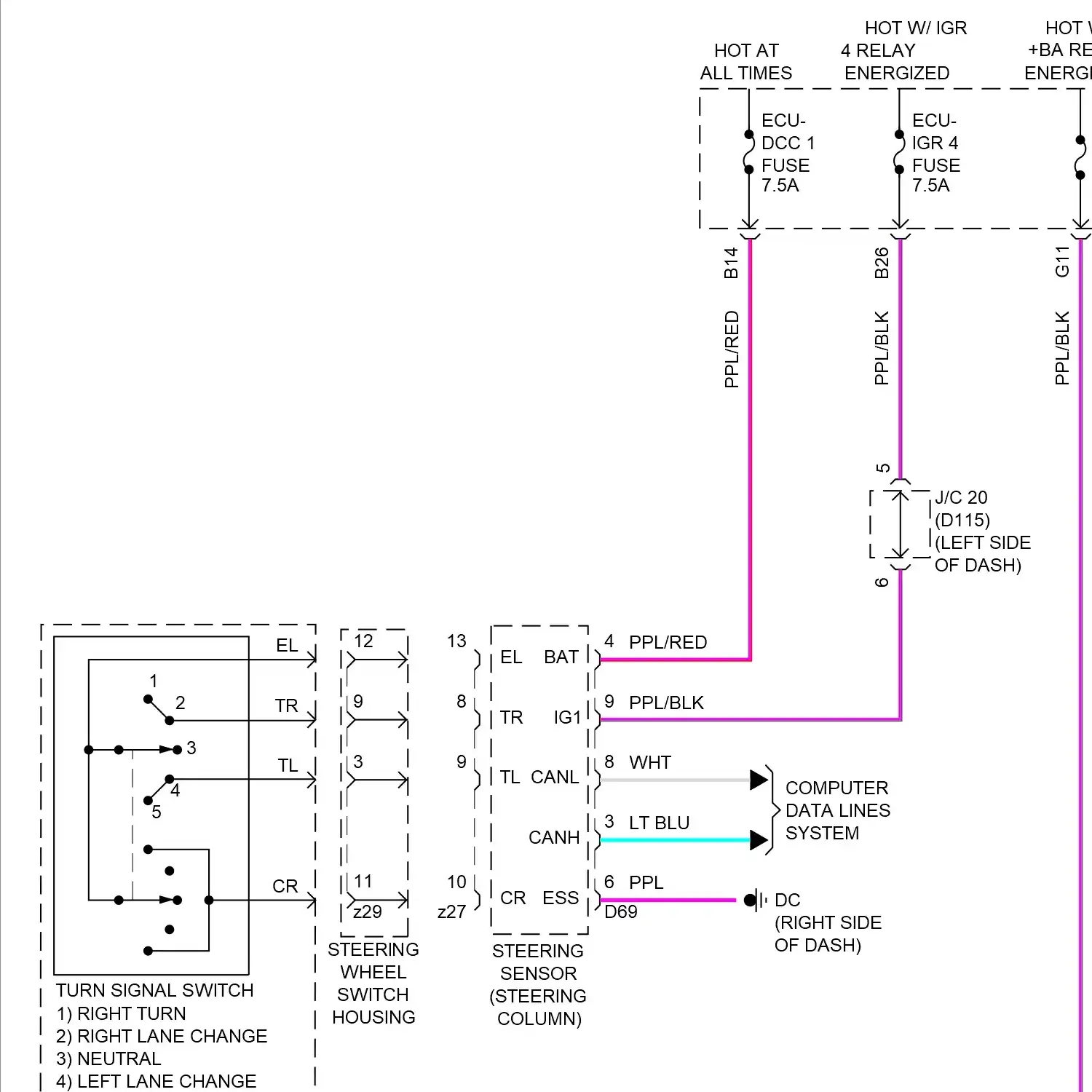

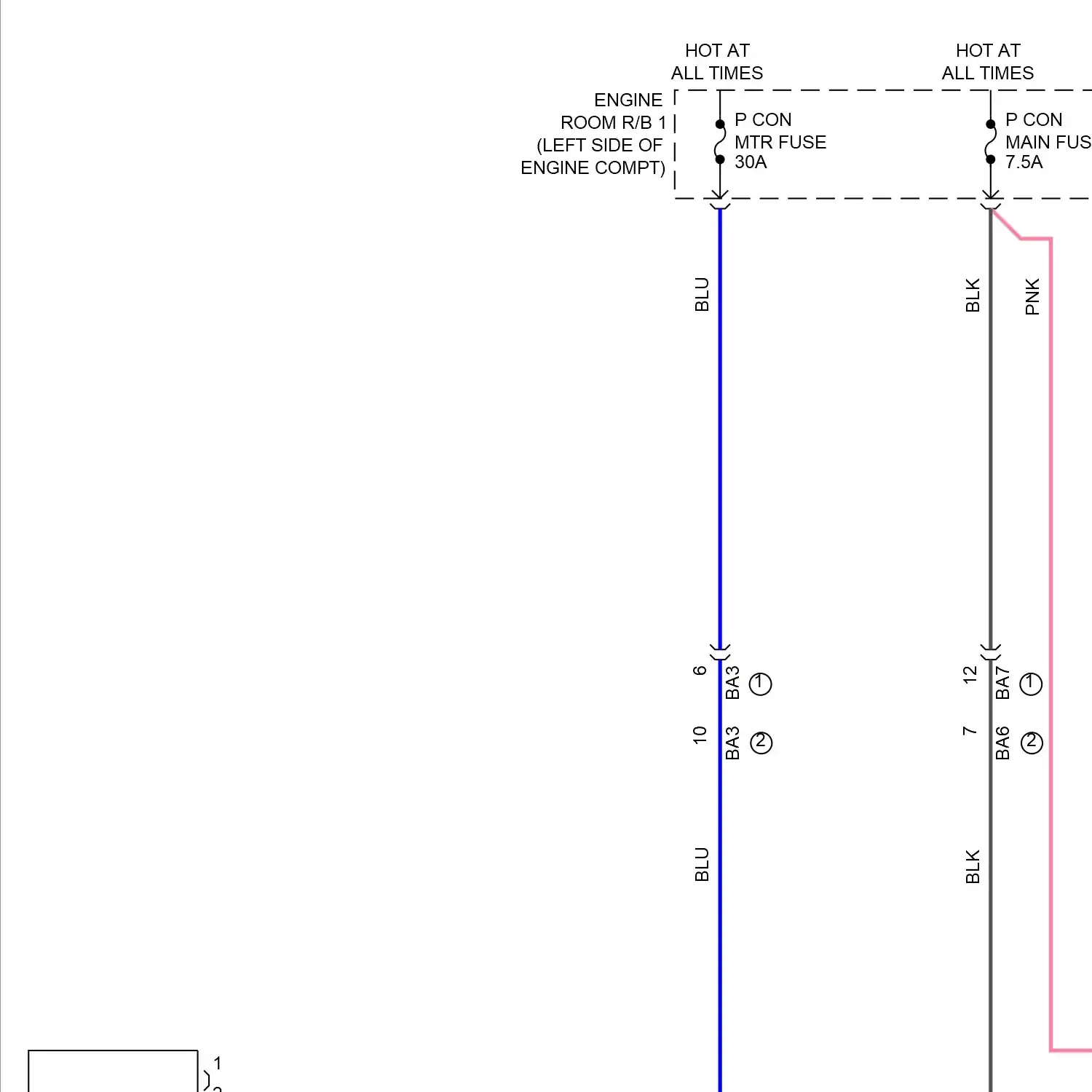

Park brake release circuit Shift interlock circuit Steering column circuit

Charging circuit Starting circuit Stop & start circuit

Supplemental restraints circuit

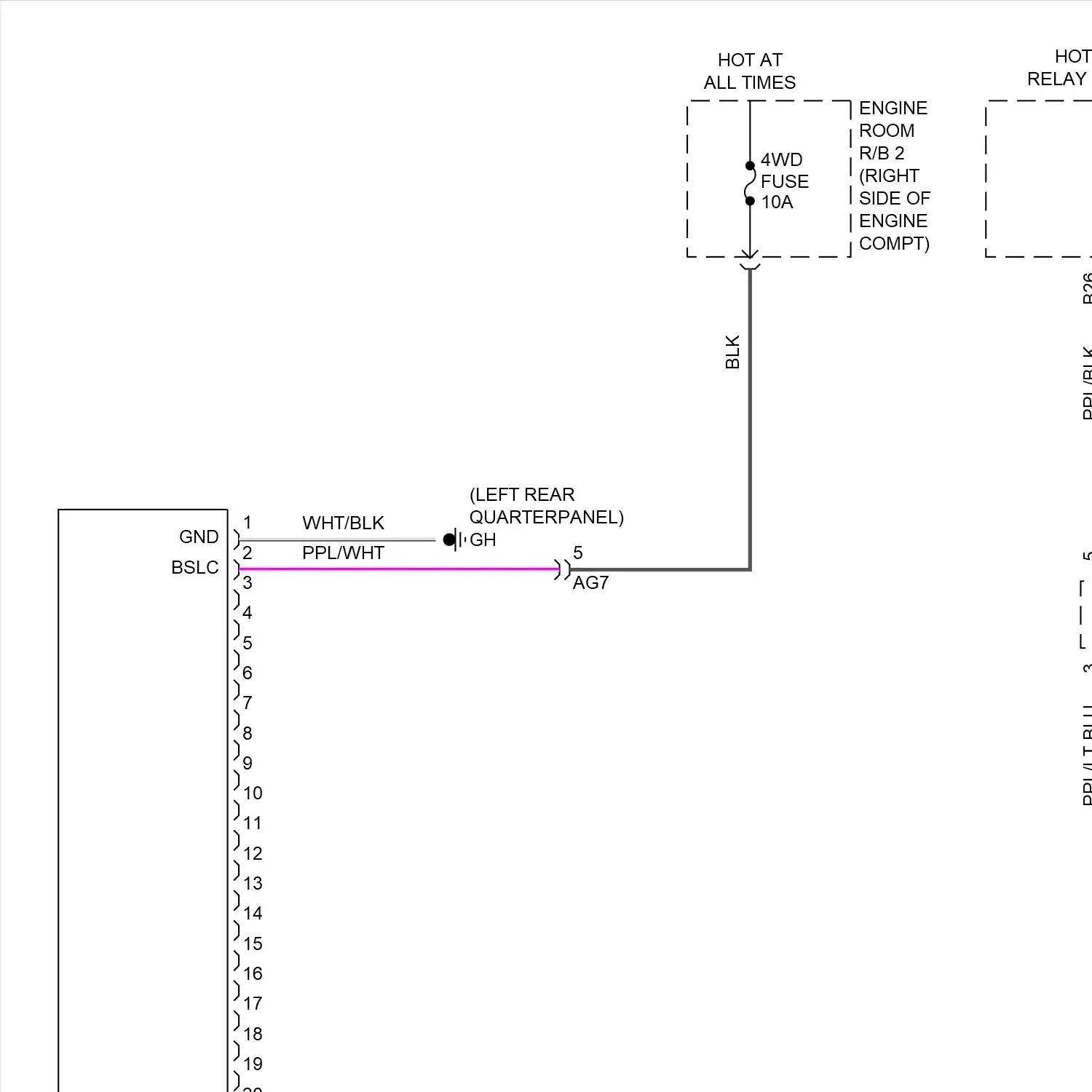

4wd circuit A/t circuit

Back door opener circuit, w/o power back door Back door opener circuit, w/ power back door Fuel door release circuit

Seat belt warning circuit Tire pressure monitoring circuit

Headlamp washer circuit Wiper/washer circuit

AIR CONDITIONING AMPLIFIER ASSEMBLY ANTI-LOCK BRAKES SYSTEM BATTERY COOLING BLOWER ASSEMBLY GENERATOR ASSEMBLY HIGH PITCHED HORN ASSEMBLY HV BATTERY JUNCTION BLOCK ASSEMBLY HV SUPPLY BATTERY ASSEMBLY IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 LEFT REAR SEATBACK LOCK ASSEMBLY LOW PITCHED HORN ASSEMBLY RIGHT REAR SEATBACK LOCK ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY TELEMATICS TRANSCEIVER THEFT WARNING SIREN ASSEMBLY WIRELESS DOOR LOCK BUZZER

(RIGHT FRONT OF ENGINE BLOWER MOTOR W/ FAN SUB-ASSEMBLY BRAKE ACTUATOR ASSEMBLY CAM TIMING OIL CONTROL MOTOR W/ EDU ASSEMBLY COMPRESSOR W/ MOTOR ASSEMBLY ENGINE CONTROLS SYSTEM ENGINE ROOM J/B 1 ENGINE ROOM J/B 2 ENGINE ROOM R/B 1 ENGINE ROOM R/B 2 ENGINE STOP, START SOLENOID FILTER FAN W/ MOTOR ASSEMBLY FUEL LID LOCK W/ MOTOR ASSEMBLY HEADLIGHT CLEANER MOTOR, PUMP ASSEMBLY HEADLIGHT LEVELING ACTUATOR LEFT FRONT DOOR LOCK W/ MOTOR ASSEMBLY LEFT FRONT POWER SEAT LUMBAR SUPPORT MOTOR LEFT FRONT POWER SEAT SLIDE MOTOR LEFT PARKING BRAKE ACTUATOR ASSEMBLY LEFT POWER SEAT LIFTER MOTOR ASSEMBLY LEFT POWER SEAT RECLINING MOTOR LEFT POWER SEAT TILT MOTOR ASSEMBLY LEFT REAR DOOR LOCK W/ MOTOR ASSEMBLY REAR WIPER MOTOR ASSEMBLY RIGHT FRONT DOOR LOCK W/ MOTOR ASSEMBLY RIGHT PARKING BRAKE ACTUATOR ASSEMBLY RIGHT POWER SEAT LIFTER MOTOR ASSEMBLY RIGHT POWER SEAT RECLINING MOTOR RIGHT POWER SEAT TILT MOTOR ASSEMBLY RIGHT REAR DOOR LOCK W/ MOTOR ASSEMBLY SHIFT CONTROL ACTUATOR ASSEMBLY STEERING LOCK ACTUATOR ASSEMBLY TELESCOPIC MOTOR TILT MOTOR WINDSHIELD WASHER MOTOR, PUMP ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

FRONT ELECTRICAL KEY ANTENNA INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 3 REAR ELECTRICAL KEY ANTENNA

LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

FORWARD RECOGNITION CAMERA FRONT TELEVISION CAMERA ASSEMBLY INNER MIRROR CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY SIDE CAMERA LEFT SIDE TELEVISION CAMERA ASSEMBLY SIDE CAMERA RIGHT SIDE TELEVISION CAMERA ASSEMBLY

DATA LINK CONNECTOR 3 POWER OUTLET SOCKET POWER OUTLET SOCKET ASSEMBLY 1 POWER OUTLET SOCKET ASSEMBLY 2 POWER OUTLET SOCKET ASSEMBLY 3 USB CHARGER SOCKET

4 WHEEL DRIVE CONTROL ECU ABSORBER CONTROL ECU CERTIFICATION ECU CLEARANCE WARNING ECU ASSEMBLY DIGITAL KEY ECU ASSEMBLY ECU B+ ECU- DCC 1 FUSE ECU- DCC 3 FUSE ECU- DDC 2 FUSE ECU- IGP 1 FUSE ECU- IGP 2 FUSE ECU-ACC FUSE ECU-B 1 FUSE ECU-B 2 FUSE ECU-B 3 FUSE ECU-DCC 2 FUSE ECU-IG 2 FUSE ECU-IGP 3 ECU-IGP 3 FUSE ECU-IGR 1 ECU-IGR 1 FUSE ECU-IGR 2 FUSE ECU-IGR 3 FUSE ECU-IGR 4 FUSE ECU-IGR 13 FUSE ECU-IGR FUSE ENGINE STOP, START ECU FOLD SEAT CONTROL ECU FUEL PUMP CONTROL ECU HEAT PUMP ECU ASSEMBLY HEATER ECU HYBRID VEHICLE CONTROL ECU LEFT FRONT POSITION CONTROL ECU ASSEMBLY LEFT HEADLIGHT ECU SUB-ASSEMBLY LEFT HEADLIGHT ECU SUB-ASSEMBLY 1 LEFT HEADLIGHT UNIT ASSEMBLY LEFT OUTER MIRROR CONTROL ECU ASSEMBLY LEFT POWER BACK DOOR UNIT ASSEMBLY SET MAIN BODY ECU MULTIPLEX NETWORK DOOR ECU MULTIPLEX TILT, TELESCOPIC ECU NETWORK GATEWAY ECU NETWORK MULTIPLEX DOOR ECU PARKING ASSIST ECU RIGHT HEADLIGHT ECU SUB- ASSEMBLY 1 RIGHT HEADLIGHT ECU SUB-ASSEMBLY RIGHT HEADLIGHT UNIT ASSEMBLY RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY RIGHT POWER BACK DOOR UNIT ASSEMBLY SET SEMICONDUCTOR POWER INTEGRATION ECU W/O ILLUMINATION ECU W/O ILLUMINATION ECU 2.5L HYBRID

+BA 1 FUSE +BA 2 FUSE A/BAG-IGR FUSE ABS 1 FUSE ABS 2 FUSE ABS 3 FUSE ABS MTR FUSE ABS- MAIN FUSE ALT FUSE AMP 1 FUSE AMP 2 FUSE AVS FUSE AWD FUSE BATT-S 1 FUSE BATT-S 2 FUSE BBC 1 FUSE BBC 2 FUSE BKUP LP FUSE D INJ FUSE D/C CUT FUSE DC/DC ALT FUSE DCM FUSE DEICER FUSE DOME FUSE DOOR BACK FUSE DOOR DBL/L FUSE DOOR F/L FUSE DOOR F/R FUSE DOOR R/L FUSE DOOR R/R FUSE E-LATCH 1 FUSE E-LATCH 2 FUSE E-LATCH 3 FUSE E-LATCH 4 FUSE EDU 1 FUSE EDU 2 FUSE EDU 3 FUSE EDU 4 FUSE EFI 1 FUSE EFI 2 FUSE EFI 4 FUSE EFI 5 FUSE EFI 6 FUSE EFI 8 FUSE EFI- MAIN 1 FUSE EFI- MAIN 2 FUSE EFI- MAIN 3 FUSE EFI-B 1 FUSE EFI-B 2 FUSE EFI-B 3 FUSE EPS FUSE EPS-IGR FUSE FAN FUSE FUEL OPN 1 FUSE FUEL OPN 2 FUSE H-LP CLN FUSE HAZ FUSE HORN FUSE HTR FUSE HWD 1 FUSE HWD 2 FUSE IGP- MAIN 1 FUSE IGPT-IG FUSE INJ FUSE INP STD 1 FUSE INP STD 2 FUSE INP STD 3 FUSE INP STD FUSE INV FUSE INV W/PMP 2 FUSE MAIN 2 FUSE MAIN FUSE METER-IGR FUSE MG FUSE NOISE FILTER FUSE OBD FUSE OIL PMP FUSE P CON MAIN FUSE P CON MTR FUSE P/I FUSE P/OUTLET 1 FUSE P/SEAT F/L FUSE P/SEAT R/L FUSE PANEL FUSE PBD FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE R/B 2 FUSE R/B 3 FUSE R/B 4 FUSE S ROOF FUSE S-HORN FUSE S/HTR F/L FUSE S/HTR F/R FUSE S/HTR R/L FUSE S/HTR RR FUSE S/HTR- MAIN FUSE S/ROOF FUSE ST 1 FUSE STOP FUSE STRG HTR FUSE STRG LOCK FUSE TAIL FUSE TI, TE FUSE TOWING- ALT FUSE TOWING-B FUSE TV FUSE USB 1 FUSE VVT FUSE WASHER FUSE WASHER RR FUSE WIPER FUSE WIPER RR FUSE

W/ HEADLIGHT BEAM LEVEL CONTROL W/O HEADLIGHT BEAM LEVEL CONTROL

BACK HEATER CUSHION BOLSTER HEATER CUSHION CENTER HEATER FORWARD RECOGNITION HOOD W/ HEATER SUB-ASSEMBLY HEATER ACCESSORY ASSEMBLY LEFT FRONT SEAT CUSHION HEATER LEFT SEAT HEATER CONTROL SUB-ASSEMBLY QUICK HEATER ASSEMBLY RIGHT FRONT SEAT CUSHION HEATER RIGHT REAR SEATBACK HEATER ASSEMBLY 1 RIGHT SEAT HEATER CONTROL SUB-ASSEMBLY W/ SEAT HEATER SWITCHING CIRCUIT TYPE 1 W/ SEAT HEATER SWITCHING CIRCUIT TYPE 2

PASSENGER AIR BAG ON/OFF INDICATOR THEFT WARNING INDICATOR LIGHT ASSEMBLY

INTERIOR LIGHTS

CANISTER PUMP MODULE ELECTRIC WATER PUMP ASSEMBLY FUEL PUMP ASSEMBLY FUEL PUMP ASSEMBLY SHIELD FUEL SUCTION TUBE W/ PUMP, GAUGE ASSEMBLY OIL PUMP ASSEMBLY WATER INLET W/ WATER PUMP HOUSING SUB-ASSEMBLY

+BA RELAY ACC RELAY BKUP LP RELAY D INJ RELAY DEICER RELAY DOME CUT RELAY DOME CUT RELAY 2 DOOR BACK RELAY EFI MAIN 2 RELAY EFI MAIN RELAY 1 EFI MAIN RELAY 2 EFI- MAIN 1 RELAY EFI- MAIN 3 RELAY EFI- MAIN RELAY 3 FOG FR RLY-S RELAY FOG RR RELAY FUEL OPEN RELAY FUEL OPN RELAY FUEL OPN RELAY POWER DISTRIBUTION BOX ASSEMBLY H-LP CLN RELAY HORN RELAY HOT W/ +BA RELAY ENERGIZED HOT W/ ACC RELAY ENERGIZED HOT W/ EFI-MAIN 1 RELAY ENERGIZED HOT W/ IG 1 RELAY ENERGIZED HOT W/ IGP 1 RELAY ENERGIZED HOT W/ IGP 3 RELAY ENERGIZED HOT W/ IGR 1 RELAY ENERGIZED HOT W/ IGR 2 RELAY ENERGIZED HOT W/ IGR 3 RELAY ENERGIZED HOT W/ IGR 4 RELAY ENERGIZED IGCT RELAY IGP 1 RELAY IGP RELAY 1 IGR 1 RELAY IGR 2 RELAY IGR 3 RELAY IGR 3 RELAY INSTRUMENT PANEL R/B 2 IGR RELAY 1 IGR RELAY 2 IGR RELAY 3 INJ RELAY INV RELAY INV W/ PMP RELAY INV W/PMP RELAY LUGGAGE ROOM RELAY BLOCK 1 LUGGAGE ROOM RELAY BOX 1 OIL PMP RELAY P/OUTLET RELAY PTC HTR 1 RELAY PTC HTR 2 RELAY RELAY ENERGIZED ROOM LIGHT CONTROL RELAY RR DEF RELAY S-HORN RELAY S/ HTR 1 RELAY S/HTR 1 RELAY S/HTR 2 RELAY S/HTR RELAY 1 S/HTR RELAY 2 ST 1 RELAY ST RELAY 1 TAIL RELAY TO IGR 2 RELAY VVT RELAY WINDSHIELD WIPER RELAY ASSEMBLY WIPER RELAY

ACCELERATOR PEDAL W/ SENSOR ROD ASSEMBLY AIR BAG SENSOR ASSEMBLY AIR CONDITIONER PRESSURE SENSOR AIR FUEL RATIO SENSOR AIR FUEL RATIO SENSOR 2 AIR FUEL RATIO SENSOR 2 SHIELD AIR FUEL RATIO SENSOR SHIELD AUTOMATIC LIGHT CONTROL SENSOR BATTERY STATE SENSOR ASSEMBLY BATTERY VOLTAGE SENSOR BRAKE PEDAL STROKE SENSOR ASSEMBLY CRANK POSITION SENSOR EFI VACUUM SENSOR ASSEMBLY ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR HORIZONTAL SENSOR KICK DOOR CONTROL SENSOR KNOCK CONTROL SENSOR KNOCK CONTROL SENSOR SHIELD LEFT ACCELERATION SENSOR LEFT BLIND SPOT MONITOR SENSOR LEFT DOOR SIDE AIR BAG SENSOR LEFT FLOOR SIDE AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT CORNER ULTRASONIC SENSOR LEFT FRONT SIDE RADAR SENSOR LEFT FRONT SIDE ULTRASONIC SENSOR LEFT FRONT SPEED SENSOR LEFT FRONT SPEED SENSOR WIRE LEFT POWER BACK DOOR SENSOR ASSEMBLY LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR CORNER ULTRASONIC SENSOR LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR SIDE ULTRASONIC SENSOR LEFT REAR SPEED SENSOR MILLIMETER WAVE RADAR SENSOR ASSEMBLY OIL PRESSURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OIL TEMPERATURE SENSOR RAIN SENSOR RIGHT ACCELERATION SENSOR RIGHT BLIND SPOT MONITOR SENSOR RIGHT DOOR SIDE AIR BAG SENSOR RIGHT FLOOR SIDE AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT CORNER ULTRASONIC SENSOR RIGHT FRONT OCCUPANT CLASSIFICATION SENSOR RIGHT FRONT SIDE RADAR SENSOR RIGHT FRONT SIDE ULTRASONIC SENSOR RIGHT FRONT SPEED SENSOR RIGHT FRONT SPEED SENSOR WIRE RIGHT POWER BACK DOOR SENSOR ASSEMBLY RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR CORNER ULTRASONIC SENSOR RIGHT REAR OCCUPANT CLASSIFICATION SENSOR RIGHT REAR SIDE ULTRASONIC SENSOR RIGHT REAR SPEED SENSOR STEERING SENSOR STEERING TORQUE SENSOR BOARD SUB-ASSEMBLY THROTTLE BODY W/ THROTTLE POSITION SENSOR ASSEMBLY TORQUE SENSOR TURBO PRESSURE SENSOR 1 VERTICAL SENSOR WATER TEMPERATURE SENSOR YAW RATE SENSOR

10 SPEAKER 17 SPEAKER FRONT SPEAKER ASSEMBLY 4 LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 3 LEFT REAR SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 3 RIGHT REAR SPEAKER ASSEMBLY 2 SPEAKER W/ BOX ASSEMBLY 1 VEHICLE APPROACHING SPEAKER ASSEMBLY VEHICLE APPROACHING SPEAKER ASSEMBLY 2 VEHICLE APPROACHING SPEAKER CONTROL VEHICLE APPROACHING SPEAKER CONTROLLER

AUTOMATIC HIGH BEAM SWITCH BACK DOOR LOCK W/ COURTESY LIGHT SWITCH ASSEMBLY BACK DOOR LOCK W/ LIGHT SWITCH ASSEMBLY BACK DOOR OPENER SWITCH ASSEMBLY COMBINATION SWITCH ASSEMBLY COURTESY SWITCH DIMMER SWITCH DOOR CONTROL SWITCH DOWN SWITCH ELECTRIC PARKING BRAKE SWITCH ASSEMBLY ENGINE SWITCH FOLD SEAT SWITCH ASSEMBLY FRONT VERTICAL SWITCH FUEL LID OPENER SWITCH HAZARD WARNING SIGNAL SWITCH ASSEMBLY HORN SWITCH LEFT FRONT POWER SEAT SWITCH LEFT REAR DOOR CONTROL SWITCH ASSEMBLY LEFT REAR POWER SEAT SWITCH LEFT SEAT MEMORY SWITCH LEFT SIDE SHIFT DOWN SWITCH LEFT STEERING PAD SWITCH LEVEL WARNING SWITCH ASSEMBLY LIFTER SWITCH LIGHT CONTROL SWITCH LOCK SWITCH LUMBAR SUPPORT SWITCH MIRROR HEATER SWITCH MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY NORMAL/ CUSTOM SWITCH PARKING SUPPORT SWITCH PBD SWITCH POWER BACK DOOR CONTROL SWITCH 1 POWER SWITCH REAR SEAT HEATER SWITCH REAR WINDOW DEFOGGER SWITCH RECLINING SWITCH RELEASE SWITCH RIGHT FRONT DOOR CONTROL SWITCH ASSEMBLY RIGHT FRONT POWER SEAT SWITCH RIGHT REAR DOOR CONTROL SWITCH ASSEMBLY RIGHT REAR POWER SEAT SWITCH RIGHT SIDE SHIFT UP SWITCH RIGHT STEERING PAD SWITCH SHIFT UP SWITCH SLIDE SWITCH STEERING PAD SWITCH ASSEMBLY STEERING WHEEL SWITCH HOUSING STOP LIGHT SWITCH ASSEMBLY TILT, TELESCOPIC SWITCH TRANSMISSION SHIFT SWITCH TRIP SWITCH TURN SIGNAL SWITCH UP SWITCH VIEW SWITCH WASHER SWITCH WINDSHIELD WIPER SWITCH ASSEMBLY

OIL PRESSURE CONTROL VALVE ASSEMBLY VACUUM REGULATING VALVE ASSEMBLY VACUUM SWITCHING VALVE VACUUM SWITCHING VALVE ASSEMBLY 1 WATER CONTROL VALVE WATER VALVE 1 WATER VALVE 2

(OR RED/ WIRE -WR PNK +B WIRE BLK WIRE BLK/BLU WIRE BLK/DK GRN WIRE BLK/GRN WIRE BLK/RED WIRE BLK/YEL WIRE BLU WIRE BLU/YEL WIRE BRN WIRE BRN/RED WIRE CANL PNK CANH WIRE CANN PNK CANP WIRE EC- PNK TRN+ WIRE FUL PNK CLSW WIRE GRN WIRE GRY WIRE HDL PNK RRUL WIRE HZRI PNK WIRE IG PNK BFB+ WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE ORG/LT GRN WIRE PNK CRSR WIRE PNK DCTY WIRE PNK LKSW WIRE PNK MPX 1 WIRE PNK NE- WIRE PNK PNK WIRE PNK SW WIRE PNK TRN+ WIRE PNK WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/ORG WIRE PPL/PNK WIRE PPL/RED WIRE PPL/TAN WIRE PPL/VIO WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE SIGN PNK BBS WIRE TAN WIRE TNS PNK CRSR WIRE VIO WIRE WHT WIRE WHT) PPL/VIO WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE

1) LEFT TURN 2) LEFT LANE CHANGE 3) NEUTRAL 4) RIGHT LANE CHANGE 5) RIGHT TURN 2.4L TURBO, 2.5L 2.4L TURBO, 2.5L HYBRID 2.5L 2.5L 2.4L TURBO, 2.5L HYBRID 2.5L HYBRID 2.5L, 2.4L TURBO 2.5L, 2.4L TURBO W/O TELEMATICS SYSTEM 5 6 WPS (IF (LEFT SIDE (RIGHT SIDE (RIGHT SIDE OF TRANSMISSION +1 +S +BA +BM +SM -DP -WR AIR CONDITIONING HARNESS ASSEMBLY AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY 3 ANTI-THEFT SYSTEM ASSIST CONTROL AUTO HV/EV AUTO TAIL B+ BUS BACKUP LAMPS CIRCUIT BAT EL BAT HEAD BBL+ BBR+ BCB+ BCL+ BCR+ BCV- BD+2 BD- BD-2 BDL- BFB- BFL+ BFR+ BIN 2 BLIND SPOT BLIND SPOT MONITOR IND BLOWER DAMPER SERVO SUB-ASSEMBLY 1 BLUETOOTH LOW ENERGY INDOOR DIGITAL KEY RECEIVER ASSEMBLY BLUETOOTH LOW ENERGY LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY BM WA BU+B BUS - BUS G CAN I/F CAN J/C TERMINAL 1 CAN J/C TERMINAL 3 CAN JUNCTION TERMINAL 1 CAN JUNCTION TERMINAL 2 CAN JUNCTION TERMINAL 3 CAN JUNCTION TERMINAL 4 CAN L CANH 19 3 43 13 CANL CANL +S CANH CANL CANH CANL ESS CB+ CBR+ CEB+ CENTER STOP LIGHT ASSEMBLY CEV- COMBINATION METER ASSEMBLY COMPRESSOR W/ MAGNET CLUTCH ASSEMBLY COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEMS COOLER THERMISTOR 1 COOLING FANS SYSTEM CPUB PPL GND CRUISE CONTROL SYSTEM CSW+ CTR + CV+ DC- DISPLAY CAN I/F DRIVER DISPLAY DRIVER DISPLAY DRIVER I/F DISPLAY I/F DRIVER DISTANCE CONTROL DK+ DOOR LINKAGE IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOWN PPL DOWNHILL ASSIST CONTROL DRIVER DOOR DRIVER'S DOOR DRL/ PARKING EC MIRROR EC+ ECI+ ECO RUN VEHICLE CONVERTER ASSEMBLY EGA+ EGB- ELECTRICAL KEY, TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY ELECTROCHROMIC MIRROR CIRCUIT EMP+ ET+ EXCEPT 2.4L TURBO EXCEPT 2.5L HYBRID EXCEPT HYBRID FAL+ FAR- FCM+ FCP+ FCP- FCP+ FDL+ FE, B FL+ RR+ FLASHER CIRCUIT FP- FRONT DOME LIGHT FRONT VERTICAL FRV- FSW+ FUEL SENDER GAUGE ASSEMBLY 2 FUP UP FUSIBLE LINK BLOCK GAUGE TELLTALE GB+ GLASS ROOF CLOSE GLASS ROOF OPEN GLASS ROOF VENT GLOVE BOX LIGHT ASSEMBLY GOV+ GVO+ H/T- HEAD CANL HEAD OFF HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HF HU HGV+ HORNS SYSTEM HOT AT ALL TIMES HOT W/ HV/EV HOLD CHG HYBRID W/ FUEL VAPOR CONTAINMENT HYBRID W/O FUEL VAPOR CONTAINMENT, EXCEPT HYBRID ICL- ICR+ ID CODE BOX INNER REAR VIEW MIRROR ASSEMBLY INP STD 1 INSTRUMENT ILLUMINATION CIRCUIT INSTRUMENT PANEL PASSENGER AIR BAG W/O DOOR ASSEMBLY INSTRUMENT PANEL R/B 2 INTAKE MASS AIR FLOW METER SUB-ASSEMBLY INTEGRATION CONTROL SUPPLY INTEGRATION CONTROL, PANEL ASSEMBLY INTERIOR ILLUMINATION LIGHT ASSEMBLY 4 INVERTER W/ CONVERTER ASSEMBLY JB JA L+ L- LANE DEPARTURE WARNING LANE DEPARTURE WARNING CIRCUIT LBE- LSP- LBR- LCB+ LCV- LE- LED DRIVER LEFT BLUETOOTH LOW ENERGY DOOR DIGITAL KEY RECEIVER ASSEMBLY LEFT CONSOLE BOX LIGHT ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT FOG LIGHT ASSEMBLY LEFT FRONT LEFT FRONT ACTIVE NOISE CONTROL MICROPHONE LEFT FRONT COURTESY LIGHT ASSEMBLY LEFT FRONT DOOR INSIDE HANDLE ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT INTERIOR ILLUMINATION LIGHT ASSEMBLY 2 LEFT FRONT SEAT AIR BAG ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT TURN SIGNAL LIGHT LEFT INTERIOR ILLUMINATION LIGHT ASSEMBLY 1 LEFT LICENSE PLATE LIGHT ASSEMBLY LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT REAR ACTIVE NOISE CONTROL MICROPHONE LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR DOOR INSIDE HANDLE ASSEMBLY LEFT REAR DOOR OUTSIDE HANDLE ASSEMBLY LEFT REAR INTERIOR ILLUMINATION LIGHT ASSEMBLY 2 LEFT REAR LIGHT ASSEMBLY LEFT REAR SEAT LEFT REAR SEAT BELT ASSEMBLY INNER 1 LEFT REAR SEAT INNER BELT ASSEMBLY 1 LEFT REAR SEAT INNER BELT W/ CENTER ASSEMBLY LEFT REAR SHOCK ABSORBER ASSEMBLY LEFT SEAT BACK CLIMATE CONTROL BLOWER LEFT SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LEFT SPOT LIGHT ASSEMBLY LEFT STOP LIGHT ASSEMBLY LEFT TELEPHONE MICROPHONE ASSEMBLY LEFT TURN IND LEFT VANITY LIGHT ASSEMBLY LEFT VISOR ASSEMBLY LFT- LIGHT ASSEMBLY 2 LIN 1 LIN 2 LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 LS PPL IG LS+ LSP + LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 LUGGAGE COMPT) (RIGHT SIDE OF MAIN BOARD MAP LIGHT MAP LIGHT ASSEMBLY MAIN BOARD MAP LIGHT SUB-ASSEMBLY MCI- MCO- METER MIRROR SUB-ASSEMBLY MGV- MI+ MICRO COMPUTER MIRRORS SYSTEM MO- MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MOP+ MPX 1 MPX 2 MRL+ MSM+ MUTE CANP CANN NAVIGATION SYSTEM NE+ P-AB PASSIVE RESTRAINTS SYSTEM PASSIVE RESTRAINTS, MEMORY SYSTEMS PL- PLR+ POWER BACK DOOR WARNING BUZZER POWER CIRCUIT POWER DISTRIBUTION BOX POWER DISTRIBUTION BOX ASSEMBLY POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PPL BRGD PPL DB PPL DC PPL DD PPL ES PPL ESS PPL ESS CR PPL GH PPL GND PPL PPL PPL SGND PR- PRR- R+ R- RADIO SETTING CONDENSER RADIO, DISPLAY RECEIVER ASSEMBLY RAL+ RAR+ RBE+ RBR- RCB+ RCL- RCLR REAR RE- REAR FOLDING SEAT CIRCUIT REAR SLDR RETRACTED/ NORMAL RIGHT BLUETOOTH LOW ENERGY DOOR DIGITAL KEY RECEIVER ASSEMBLY RIGHT CONSOLE BOX LIGHT ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT RIGHT FRONT ACTIVE NOISE CONTROL MICROPHONE RIGHT FRONT COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR INSIDE HANDLE ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT INTERIOR ILLUMINATION RIGHT FRONT INTERIOR ILLUMINATION LIGHT ASSEMBLY 2 RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT CUSHION AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT TURN SIGNAL LIGHT RIGHT INTERIOR ILLUMINATION LIGHT ASSEMBLY 1 RIGHT LICENSE PLATE LIGHT ASSEMBLY RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY 2 RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT REAR ACTIVE NOISE CONTROL MICROPHONE RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR DOOR RIGHT REAR DOOR INSIDE HANDLE ASSEMBLY RIGHT REAR DOOR OUTSIDE HANDLE ASSEMBLY RIGHT REAR INTERIOR ILLUMINATION LIGHT ASSEMBLY 2 RIGHT REAR LIGHT ASSEMBLY RIGHT REAR SEAT RIGHT REAR SEAT BELT INNER ASSEMBLY 1 RIGHT REAR SEAT INNER BELT ASSEMBLY 1 RIGHT REAR SHOCK ABSORBER ASSEMBLY RIGHT SEAT BACK CLIMATE CONTROL BLOWER RIGHT SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY RIGHT SPOT LIGHT ASSEMBLY RIGHT STOP LIGHT ASSEMBLY RIGHT TELEPHONE MICROPHONE ASSEMBLY RIGHT TURN IND RIGHT VANITY LIGHT ASSEMBLY RIGHT VISOR ASSEMBLY ROOM LIGHT ASSEMBLY 1 SEAT BACK) SEAT CUSHION) SEATS SYSTEM SECOND POWER SUPPLY REMOTE PARKING CIRCUIT SFL- SFR+ SFR- SFR- SG-1 SG-2 SG-4 SG-6 SG-7 SHADE CLOSE SHADE OPEN SHIELD GVIF- SHIFT INTERLOCK SYSTEM SL- SLC+ SLT- SLU+ SOL + SOUND SYSTEMS SP- SPI+ SPIRAL CABLE SUB-ASSEMBLY SPO- SR- STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEERING COLUMN) STEREO COMPONENT EQUALIZER ASSEMBLY STEREO JACK ADAPTER ASSEMBLY 1 STP+ SUPPLEMENTAL RESTRAINTS SYSTEM TAIL AUTO HEAD TELESCOPIC SHORTEN TELESCOPIC STRETCH THR+ TILT DOWN TILT UP TL CANL TL TR TMC MADE TMMC MADE TOUCH - TRANSMISSION FLOOR SHIFT ASSEMBLY TRG+ TRN+ TRUNK, TAILGATE, FUEL DOORS SYSTEM TWL- TWR+ UDO+ VOLTAGE INVERTER VOR- VOT+ VSC OFF VV- VVE- VVI+ W/ ACTIVE NOISE CONTROL W/ CLIMATE CONTROL SEAT W/ CORNERING LIGHT W/ DIGITAL INNER MIRROR W/ ENTRY FUNCTION W/ MEMORY W/ NAVIGATION W/ PANORAMIC VIEW MONITOR W/ PARKING SUPPORT BRAKE SYSTEM W/ POWER SEAT W/ POWER TILT AND POWER TELESCOPIC W/ POWER TILT, POWER TELESCOPE W/ REAR POWER SEAT W/ SAFETY CONNECT W/ SLIDING ROOF W/ STOP/ START SYSTEM W/ TELEMATICS SYSTEM W/ TELEMATICS SYSTEM 2.5L W/ TMC MADE W/O DOOR TRIM ILLUMINATION W/O HEADUP DISPLAY W/O MEMORY W/O NAVIGATION W/O PANORAMIC VIEW MONITOR SYSTEM W/O PARKING SUPPORT BRAKE W/O PARKING SUPPORT BRAKE SYSTEM W/O POWER TILT AND POWER TELESCOPIC W/O POWER TILT, POWER TELESCOPE W/O POWER TILT, POWER TELESCOPIC W/O SAFETY CONNECT W/O STOP/ START SYSTEM W/O TELEMATICS SYSTEM W/O TMC MADE WARNING SYSTEMS WASHER FLUID RESERVOIR) WFL- WFR- WGV+ WIPER/WASHER SYSTEM
