Wiring Diagrams for Lexus IS II (2005-2008)

Automatic a/c circuit

Anti-lock brakes circuit, without vehicle dynamics integrated management Anti-lock brakes circuit, with vehicle dynamics integrated management

Anti-theft circuit, without smart key system Anti-theft circuit, with smart key system

Body ecu circuit Front controller circuit

Data link connector circuit High/low bus circuit

Cooling fan circuit

2.5l, cruise control circuit, with dynamic radar controls 2.5l, cruise control circuit, without dynamic radar controls

3.5l, cruise control circuit, with dynamic radar controls 3.5l, cruise control circuit, without dynamic radar controls

Rear defogger & heated mirrors circuit

Electronic power steering circuit

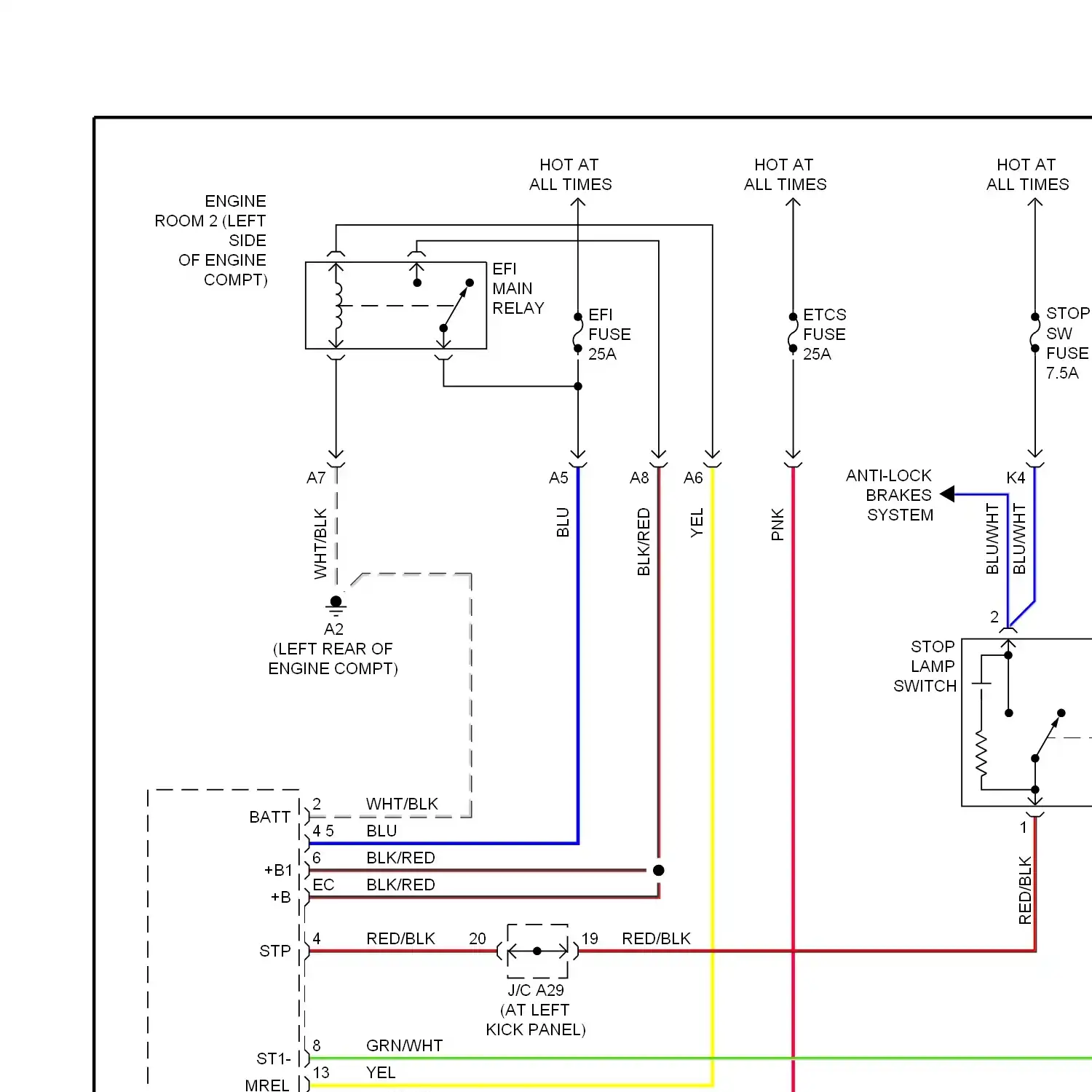

Wiring diagram engine performance 2.5l

Wiring diagram engine performance 3.5l

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit, with drl Headlamps circuit, without drl

Horn circuit

Clock circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Memory power tilt & power telescopic circuit Passenger"s memory seat circuit

Navigation circuit Rear sonar circuit Rear view monitoring circuit

Passive restraints circuit Power shoulder belt anchorage circuit

Power distribution circuit

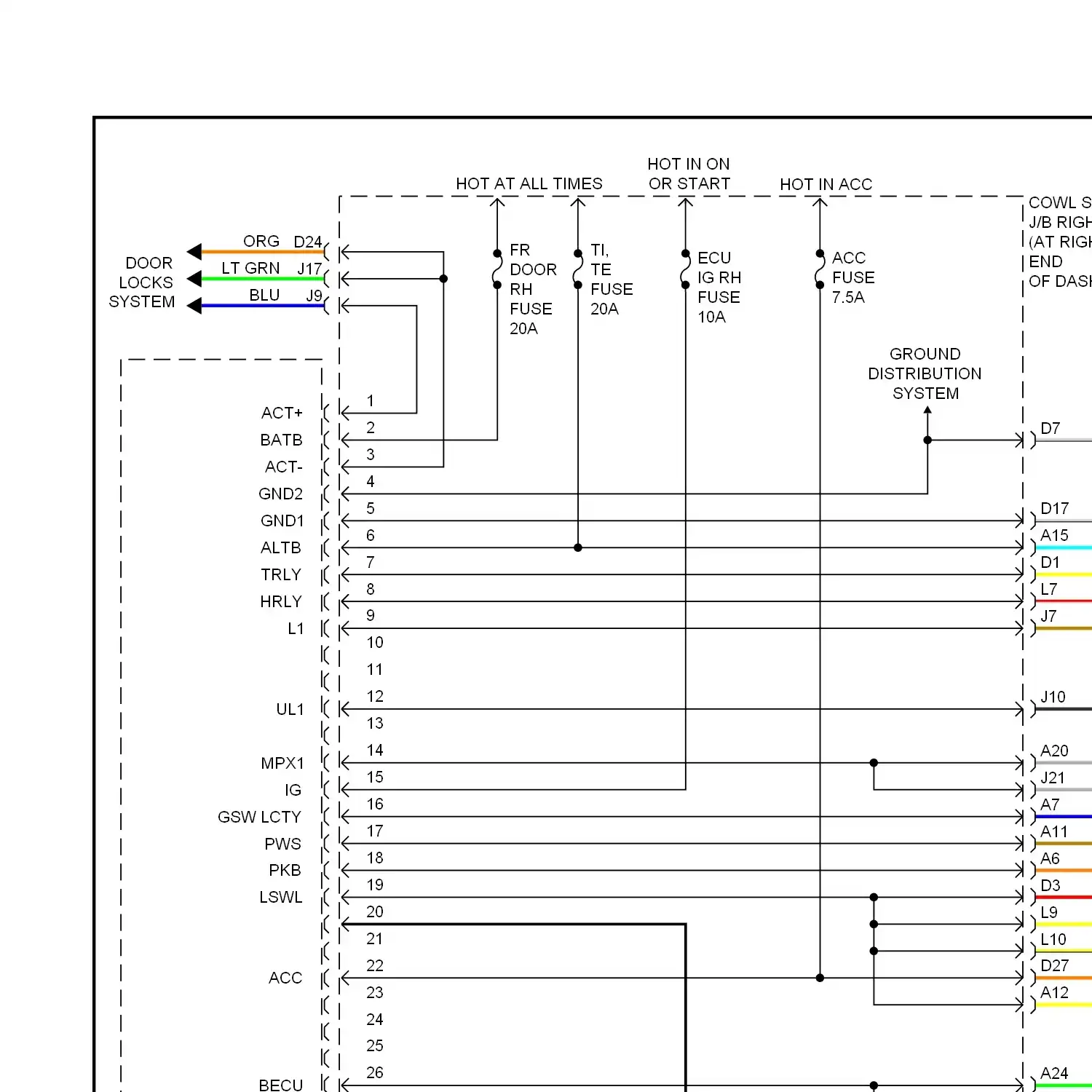

Power door locks circuit, without smart key system Power door locks circuit, with smart key system

Power mirrors circuit

Climate control seats circuit Driver power seat circuit Heated seats circuit Passenger power seat circuit

Power top/sunroof circuit

Power windows circuit Rear window sun shade circuit

Radio circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

4wd circuit A/t circuit

Trunk & fuel door release circuit

Seat belt warning circuit Tire pressure monitoring circuit

Headlamp washer circuit Wiper/washer circuit

A/C AMPLIFIER A/C AMPLIFIER MPX+ ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, CRUISE CONTROL, WIPER/WASHER, EXTERIOR LIGHTS SYSTEMS BATTERY GROUND GENERATOR IG HIGH HORN HORN SYSTEM DOOR LOCKS SYSTEM IGNITION COIL 1 IGNITION COIL 3 IGNITION COIL 5 LEFT FRONT DOOR LOCK ASSEMBLY LEFT REAR DOOR LOCK ASSEMBLY LOW HORN LUGGAGE COMPARTMENT DOOR LOCK CYLINDER LUGGAGE COMPT DOOR LOCK CYLINDER LUGGAGE DOOR LOCK ASSEMBLY LUGGAGE ROOM LAMP DIODE RIGHT FRONT DOOR LOCK ASSEMBLY RIGHT REAR DOOR LOCK ASSEMBLY STEREO COMPONENT AMPLIFIER W/ WIRELESS DOOR LOCK CONTROL WIRELESS DOOR LOCK BUZZER

32 31 NE+ NR- ENGINE CONTROLS SYSTEM BLOWER MOTOR BRAKE ACTUATOR COOLING FAN MOTOR CRUISE CONTROL, ENGINE CONTROLS, TRANSMISSIONS SYSTEMS ENGINE CONTROLS SYSTEM CRUISE CONTROL, ENGINE CONTROLS, TRANSMISSIONS, ANTI-LOCK BRAKES SYSTEMS ENGINE CONTROL ENGINE CONTROLS SYSTEM ENGINE ROOM ENGINE ROOM 1 R/B ENGINE ROOM 2 J/B HEADLAMP LEVELING MOTOR HEADLAMP SWIVEL MOTOR LEFT FRONT SEAT OUTER BELT MOTOR LEFT/RIGHT MOTOR POWER STEERING MOTOR SHIELD RETRACTABLE MOTOR RIGHT FRONT ABSORBER CONTROL ACTUATOR RIGHT FRONT SEAT OUTER BELT MOTOR RIGHT REAR FUEL LID OPENER MOTOR COMBINATION LAMP SWIRL CONTROL VALVE ACTUATOR TILT MOTOR UP/DOWN MOTOR W/ ACTUATOR WINDSHIELD WIPER MOTOR

ANTENNA AMPLIFIER ELECTRICAL KEY ANTENNA

LEFT FRONT POWER WINDOW REGULATOR MOTOR LEFT REAR POWER WINDOW REGULATOR MOTOR RIGHT FRONT POWER WINDOW REGULATOR MOTOR RIGHT REAR POWER WINDOW REGULATOR MOTOR

TELEVISION CAMERA

DATA LINK CONNECTOR 3 JUNCTION CONNECTOR POWER OUTLET SOCKET

ENGINE CONTROL MODULE

BATB BODY ECU BATB BODY ECU TR+ BODY ECU BODY ECU DCTY BODY ECU DCTY PKB BODY ECU FUSE BODY ECU GRD BODY ECU GRD GSW BODY ECU HEAD HDLO BODY ECU HRLY BODY ECU LCTY BODY ECU MPXB BODY ECU PWR BODY ECU S/S +2 S/M BODY ECU TR+ CERTIFI- CATION ECU CERTIFICATION ECU CLEARANCE WARNING ECU COMBINATION METER SKID CONTROL ECU CONTROL ECU DATA LINK CONNECTOR 3 TIRE PRESSURE WARNING ECU DISTANCE CONTROL ECU ECU-IG FUSE ECU-IG LH FUSE ECU-IG RH FUSE GATEWAY ECU HEADLAMP SWIVEL ECU LEFT FRONT SEAT POSITION CONTROL ECU, SWITCH LEFT OUTER MIRROR CONTROL ECU LIGHT CONTROL ECU POWER SOURCE CONTROL ECU POWER STEERING ECU RIGHT FRONT SEAT POSITION CONTROL ECU, SWITCH RIGHT OUTER MIRROR CONTROL ECU SEAT BELT CONTROL ECU SKID CONTROL ECU SKID CONTROL ECU W/ ACTUATOR SKID CONTROL ECU W/ OR W/O ACTUATOR SKID CONTROL ECU WITH ACTUATOR SLIDING ROOF CONTROL ECU STEERING LOCK ECU TILT, TELESCOPIC ECU TIRE PRESSURE WARNING ECU

A/C COMP FUSE A/C FUSE A/C FUSE TV 1 FUSE S/ROOF FUSE A/F FUSE ABS 1 FUSE ABS 2 FUSE ABS 3 FUSE ALT FUSE ALT-S FUSE CIG FUSE D/C CUT FUSE DEFOG FUSE DOME FUSE DOME FUSE MAIN FUSE E/G-AM FUSE E/G-B FUSE EFI 2 FUSE EFI FUSE EPS FUSE ETCS FUSE ETCS FUSE A/F FUSE ETCS FUSE EFI 2 FUSE F/PMP FUSE FAN-2 FUSE FR CTRL-AM FUSE FR CTRL-B FUSE FR DOOR LH FUSE FR DOOR RH FUSE FR DOOR RH FUSE TI, TE FUSE FR FOG FUSE FR P/ SEAT LH FUSE FUEL OPN FUSE PSB FUSE MIR HTR FUSE FR P/ SEAT RH FUSE FR S/ HTR LH FUSE FR S/ HTR RH FUSE FR TAIL FUSE FR WIP FUSE FR WIP FUSE LH-IG FUSE FRONT DOOR FUSE FRONT DOOR FUSE FUSE FRONT DOOR LCTY FUSE FRONT DOOR LCTY GSW FUSE FRONT P/SEAT FUSE FRONT S/HTR FUSE FRONT S/HTR FUSE IG FUSE FRONT WIPER FUSE FUEL OPEN FUSE FUSE FUSE GAUGE FUSE GAUGE FUSE IGN FUSE GLW FUSE FUSE FUSE H-LP CLN FUSE H-LP L LWR FUSE H-LP LVL FUSE H-LP R LWR FUSE H-LP UPR FUSE H-LP UPR FUSE FR TAIL FUSE HEATER FUSE HORN FUSE HOT AT ALL TIMES FR TAIL FUSE IG FUSE IGN FUSE IGN FUSE GAUGE FUSE INJ FUSE LH J/B-AM FUSE LH J/B-B FUSE LH-IG FUSE MAIN FUSE MIR HTR FUSE MPX-B FUSE MPX/B FUSE OBD FUSE P/I-B FUSE PANEL FUSE PSB FUSE PWR OUTLET FUSE RAD 1 FUSE RAD 2 FUSE RAD 3 FUSE RADIO 1 FUSE RADIO 2 FUSE RADIO 3 FUSE RDI FAN FUSE REAR DOOR FUSE RH J/B-AM FUSE RH J/B-B FUSE RH-IG FUSE RR DOOR LH FUSE RR DOOR RH FUSE S/ROOF FUSE SECURITY FUSE STARTER FUSE STOP SW FUSE STR LOCK FUSE TAIL FUSE TEL FUSE TI, TE FUSE TURN, HAZ FUSE TV 3 FUSE WASHER FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY W/ HEADLIGHT CLEANER

LEFT SEAT HEATER MIRROR HEATER RIGHT SEAT HEATER SEAT HEATER CONTROL

CHARGE INDICATOR DRIVER'S SEAT BELT INDICATOR MALFUNCTION INDICATOR LAMP MASTER INDICATOR TIRE PRESSURE INDICATOR

ANTI-THEFT SYSTEM INTERIOR LIGHTS SYSTEM INSTRUMENT CLUSTER SYSTEM CENTER STOP LAMP CONSOLE BOX LAMP DOME LAMP DOOR LOCKS, INTERIOR LIGHTS, MEMORY, POWER WINDOWS, ANTI-THEFT SYSTEMS EXTERIOR LIGHTS SYSTEM MIRRORS SYSTEM FOOT LAMP GLOVE BOX LAMP) HEADLIGHTS SYSTEM NAVIGATION, EXTERIOR LIGHTS SYSTEM COMPUTER DATA LINES SYSTEM HORNS SYSTEM HORNS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM DOOR LOCKS SYSTEM INTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM LEFT FOOT LAMP LEFT FRONT DOOR COURTESY LAMP LEFT FRONT FOG LAMP LEFT FRONT MAP LAMP LEFT LICENSE PLATE LAMP LEFT OUTER REAR VIEW MIRROR FOOT LAMP LEFT OUTER SCUFF LAMP LEFT REAR COMBINATION LAMP LEFT REAR MAP LAMP LEFT RIGHT FRONT FOG LAMP FRONT FOG LAMP LEFT VANITY LAMP LUGGAGE ROOM LAMP LUGGAGE ROOM LAMP NOISE FILTER RIGHT FOOT LAMP RIGHT FRONT DOOR COURTESY LAMP RIGHT FRONT FOG LAMP RIGHT FRONT MAP LAMP RIGHT FRONT MAP LAMP LEFT FRONT MAP LAMP RIGHT OUTER REAR VIEW MIRROR FOOT LAMP RIGHT OUTER SCUFF LAMP RIGHT REAR COMBINATION LAMP RIGHT REAR MAP LAMP RIGHT VANITY LAMP ROOM LAMP W/ DAYTIME RUNNING LIGHTS W/O DAYTIME RUNNING LIGHTS WIPER/WASHER SYSTEM EXTERIOR LIGHTS SYSTEM

CANISTER PUMP ASSEMBLY FUEL SUCTION PUMP, GAGE ASSEMBLY FUEL SUCTION PUMP, GAUGE ASSEMBLY

A/C COMP RELAY A/F RELAY ABS SOL RELAY BRAKE LAMP RELAY BRK-LP RELAY C/OPN RELAY DEFOG NOISE FILTER RELAY DEFOG RELAY EFI 2 RELAY EFI MAIN RELAY F/PMP RELAY FAN 1 RELAY FAN 2 RELAY FAN 3 RELAY FR FOG RELAY FR TAIL RELAY GLOW RELAY 1 GLOW RELAY 2 HEAD HI RELAY HEAD LP RELAY HEAD- LAMP RELAY HEADLAMP CLEANER CONTROL RELAY WINDSHIELD WASHER MOTOR HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ IG 2 RELAY ENERGIZED HOT W/ IGN 2 RELAY ENERGIZED IG 2 RELAY INJ RELAY INJ RELAY SHIELD PWR OUTLET RELAY REAR SUNSHADE RELAY RELAY ENERGIZED ST CUT RELAY STARTER RELAY TAIL RELAY WASH RELAY

A/C EVAPORATOR TEMPERATURE SENSOR A/C PRESSURE SENSOR AIRBAG SENSOR ASSEMBLY CENTER AIRBBAG SENSOR ASSEMBLY CENTER AUTOMATIC LIGHT CONTROL SENSOR CENTER AIRBAG SENSOR ASSEMBLY CRANKSHAFT POSITION SENSOR CRANKSHAFT POSITION SENSOR SHIELD CRUISE CONTROL) MILLIMETER WAVE RADAR SENSOR ENGINE OIL LEVEL SENSOR HEATED OXYGEN SENSOR BANK 2 SENSOR 2 INTRUSION SENSOR KNOCK SENSOR SHIELD LEFT FRONT AIRBAG SENSOR LEFT FRONT CORNER ULTRASONIC SENSOR LEFT FRONT SIDE AIRBAG SENSOR LEFT FRONT SIDE AIRBAG SENSOR BCL+ LEFT FRONT SPEED SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR CORNER ULTRASONIC SENSOR LEFT REAR SPEED SENSOR LOCK SENSOR MILLIMETER WAVE RADAR SENSOR MILLIMETER WAVE RADOR SENSOR OCCUPATION DETECTION SENSOR PRESSURE SENSOR RAIN SENSOR RIGHT FRONT AIRBAG SENSOR RIGHT FRONT CORNER ULTRASONIC SENSOR RIGHT FRONT SIDE AIRBAG SENSOR RIGHT FRONT SPEED SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR CORNER ULTRASONIC SENSOR RIGHT REAR SPEED SENSOR SEAT POSITION AIRBAG SENSOR STEERING SENSOR STEERING SENSOR ECU TELESCOPIC SENSOR VENTILATION SENSOR YAW RATE SENSOR

CENTER SPEAKER LEFT FRONT DOOR MIDRANGE SPEAKER LEFT FRONT DOOR TWEETER SPEAKER RIGHT FRONT DOOR WOOFER SPEAKER LEFT FRONT DOOR WOOFER SPEAKER LEFT REAR DOOR MIDRANGE SPEAKER LEFT REAR DOOR TWEETER SPEAKER LEFT REAR DOOR WOOFER SPEAKER LEFT SATELLITE SPEAKER RIGHT FRONT DOOR MIDRANGE SPEAKER RIGHT FRONT DOOR TWEETER SPEAKER RIGHT REAR DOOR MIDRANGE SPEAKER RIGHT REAR DOOR MIDRANGE SPEAKER RIGHT REAR DOOR WOOFER SPEAKER RIGHT REAR DOOR TWEETER SPEAKER RIGHT SATELLITE SPEAKER SUBWOOFER SPEAKER W/ 14 SPEAKER AUDIO SYSTEM W/ 13 SPEAKER AUDIO SYSTEM

ADJUSTING SWITCH BACK-UP LAMP SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE PEDAL ROAD SENSING SWITCH BUCKLE SWITCH CRUISE CONTROL SWITCH DIMMER SWITCH DOOR LOCK CONTROL SWITCH DRIVER'S SEAT MEMORY SWITCH ELECTRONICALLY CONTROLLED TRANSMISSION PATTERN SELECT SWITCH ENGINE HOOD COURTESY SWITCH ENGINE OIL PRESSURE SWITCH ETCS SNOW SWITCH FOG SWITCH FOLD AWAY SWITCH FRONT PASSENGER'S SEAT MEMORY SWITCH HEADLAMP CLEANER SWITCH HEADLAMP DIMMER SWITCH ASSEMBLY HEADLAMP SUNSHADE SWITCH HORN SWITCH LEFT FRONT DOOR COURTESY SWITCH LEFT FRONT SEAT LUMBAR SUPPORT POWER SEAT SWITCH LEFT OUTER REAR VIEW MIRROR OUTER MIRROR SWITCH LEFT PADDLE SHIFT SWITCH LEFT REAR DOOR COURTESY SWITCH LEFT REAR POWER WINDOW SWITCH LEFT SWITCH LEFT VANITY LAMP SWITCH LIGHT CONTROL SWITCH LUGGAGE COMPARTMENT DOOR OPENER SWITCH LUGGAGE COMPT DOOR OPENER SWITCH LUGGAGE ELECTRICAL KEY SWITCH MAIN LUGGAGE COMPT DOOR OPENER SWITCH OUTER MIRROR SWITCH P POSITION DETECTION SWITCH PADDLE SHIFT SWITCH PARK/ NEUTRAL POSITION SWITCH PARK/ NEUTRAL POSITION SWITCH BACK-UP LAMP SWITCH PARK/NEUTRAL POSITION SWITCH PARKING BRAKE SWITCH POWER SEAT SWITCH POWER SWITCH POWER WINDOW MASTER SWITCH REAR SUNSHADE SWITCH RIGHT DISTANCE CONTROL STEERING PAD SWITCH RIGHT FRONT DOOR COURTESY SWITCH RIGHT FRONT POWER WINDOW SWITCH RIGHT FRONT SEAT LUMBAR SUPPORT POWER SEAT SWITCH RIGHT REAR DOOR COURTESY SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT SWITCH RIGHT VANITY LAMP SWITCH SATELLITE SWITCH SEAT HEATER SWITCH SELECT SWITCH SHIFT SWITCH LEFT PADDLE STEERING PAD SWITCH STOP LAMP SWITCH TILT, TELESCOPIC SWITCH TRACTION CONTROL SWITCH TRANSMISSION CONTROL SWITCH TURN SIGNAL SWITCH WATER LEVEL WARNING SWITCH WINDSHIELD WIPER SWITCH WINDSHIELD WIPER SWITCH ASSEMBLY

CANISTER CLOSED VALVE FLOW CONTROL VALVE SHIFT LOCK SOLENOID SPILL CONTROL VALVE SHIELD
