Kia K5 II (2015-2020) brn Wiring diagrams

This page contains all the electrical diagrams for the component. brn, in which he is found in the car Kia K5 II (2015-2020). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

brn wiring diagram (161 of 280)

1.6L TURBO 2.0L TURBO, 2.4L 4.0 VERSION, PIO 1.0 VERSION 4.0 VERSION, 1.0 VERSION A/C CONTROL MODULE AMP (RIGHT SIDE OF LUGGAGE COMPT) AUTOMATIC A/C B-CAN B-CAN HIGH B-CAN LOW BLK WIRE BLU WIRE BRN WIRE C-CAN C-CAN HIGH C-CAN LOW CCP-CAN HIGH CCP-CAN LOW DATA LINK CONNECTOR DBL UNIT FLEX RAY HIGH FLEX RAY LOW GRN WIRE GROUND DISTRIBUTION SYSTEM GRY WIRE HOT AT ALL TIMES I/P-D I/P-E INSTRUMENT CLUSTER IPS CONTROL MODULE KEYBOARD LANE KEEPING ASSIST MODULE LEAK CURRENT AUTO CUT DEVICE M-CAN HIGH M-CAN HIGH 29 32 M-CAN LOW M-CAN LOW M-CAN LOW M-CAN HIGH MANUAL A/C MDPS UNIT (RACK TYPE) (LEFT REAR OF ENGINE ROOM) MEMORY 1 FUSE NCA WIRE ORG/ WIRE PIO SMART JUNCTION BLOCK STEERING ANGLE SENSOR (W/ ESC, W/O MDPS) (TOP OF STEERING COLUMN) W/ LED W/O LED W/ LKAS W/O LKAS WHT WIRE YEL WIRE

Go to component -> Computer data lines circuit, except hybrid (1 of 3) -> BRN WIRE

brn wiring diagram (162 of 280)

2.0L TURBO 2.4L 1.6L TURBO ABS 2 FUSE ATM SHIFT LEVER AUDIO AUTO HEADLAMP LEVELING DEVICE MODULE B-CAN HIGH B-CAN LOW BLK WIRE BLU WIRE BLU/BLK WIRE BRN WIRE C-CAN C-CAN HIGH C-CAN LOW C-CAN LOW C-CAN HIGH CCP CAN HI CCP CAN LO CCP-CAN HIGH CCP-CAN LOW DCT DISPLAY DRIVER DOOR MODULE DRIVER IMS MODULE E/R JUNCTION BLOCK ESC MODULE ESC UNIT FLEX RAY HIGH FLEX RAY LOW GRN WIRE GRY/ORG WIRE HOT AT ALL TIMES IMMOBILIZER MODULE K LINE LOCAL LOCAL CAN HIGH LOCAL CAN LOW M-CAN HIGH M-CAN LOW MULTI FUSE (TYPE B) ORG/ WIRE PASSENGER DOOR MODULE PCM (2.0L TURBO, 2.4L) ECM (1.6L TURBO) (LEFT SIDE OF ENGINE COMPT) PNK WIRE RED/WHT WIRE SRS CONTROL MODULE STANDARD W/ EPB W/O NAVIGATION W/O SMART KEY WHT WIRE WIRELESS CHARGER YEL WIRE

Go to component -> Computer data lines circuit, except hybrid (2 of 3) -> BRN WIRE

brn wiring diagram (163 of 280)

1.6L TURBO 2.0L TURBO, 1.6L TURBO 2.0L TURBO 2.4L ABS 3 FUSE AEB MODULE (RIGHT END OF DASH) B-CAN HIGH B-CAN LOW BLK WIRE BRN WIRE C-CAN C-CAN HIGH C-CAN LOW CAN-HIGH CAN-LOW CAN-LOW CAN-HIGH E/R-F FUEL PUMP CONTROL MODULE GRN WIRE GRY/ORG WIRE HOT IN ON OR START LEFT "C" PILLAR) LEFT BLIND SPOT DETECTION RADAR NCA WIRE OCCUPANT DETECTION SENSOR ORG/ WIRE PCB BLOCK PNK WIRE REAR VIEW CAMERA, TRUNK LID HANDLE SWITCH RIGHT BLIND SPOT DETECTION RADAR RIGHT END OF DASH) SMART CRUISE CONTROL UNIT SMART KEY CONTROL MODULE SURROUND VIEW MONITOR (UNDER RIGHT FRONT SEAT) VACUUM PUMP W/ AUTO- CRUISE W/ BSD W/O AUTO- CRUISE W/O BSD WHT WIRE YEL WIRE

Go to component -> Computer data lines circuit, except hybrid (3 of 3) -> BRN WIRE

brn wiring diagram (164 of 280)

2.0L PLUG-IN HYBRID A/C CONTROL MODULE A/V, NAVIGATION HEAD UNIT AUDIO B-CAN HI B-CAN LO BLK WIRE BLU WIRE BRN WIRE C-CAN HI C-CAN LO CAN HI CAN LO D-CAN HI D-CAN LO DATA LINK CONNECTOR ELECTRONIC A/C COMPRESSOR GATEWAY GRN WIRE GRY WIRE HOT AT ALL TIMES I/P-D I/P-E I/P-F IGPM IPS CONTROL MODULE LEAK CURRENT AUTO CUT DEVICE M-CAN HI M-CAN LO MEMORY 1 FUSE ORG/ WIRE P-CAN HI P-CAN LO RED WIRE RIGHT END OF DASH) SMART KEY CONTROL MODULE SRS CONTROL MODULE VESS UNIT W/ ACC W/ NAVIGATION W/ UVO W/O ACC W/O NAVIGATION W/O UVO WHT WIRE YEL WIRE

Go to component -> Computer data lines circuit, hybrid (1 of 5) -> BRN WIRE

brn wiring diagram (165 of 280)

2.0L PLUG-IN HYBRID BATT-CAN HI BATT-CAN LO BLK WIRE BLU WIRE BMS COOLING FAN 2 BRN WIRE ELECTRIC WATER PUMP (ENGINE) ELECTRIC WATER PUMP (HEV) FLEX RAY HI FLEX RAY LO FUEL PUMP CONTROL MODULE GRN WIRE H-CAN HI H-CAN LO HYBRID POWER CONTROL UNIT HPCU NCA WIRE ORG/ WIRE P-CAN HI P-CAN LO PASSENGER OCCUPANT DETECTION SENSOR PCM PNK WIRE RED WIRE WHT WIRE YEL WIRE

Go to component -> Computer data lines circuit, hybrid (2 of 5) -> BRN WIRE

brn wiring diagram (166 of 280)

2.0L HYBRID, 2.0L PLUG IN HYBRID 2.0L PLUG-IN HYBRID ACTIVE AIR FLAP UNIT B-CAN HI B-CAN LO BATT-CAN BATT-CAN HI BATT-CAN LO BLK WIRE BLU WIRE BLU/ORG WIRE BMS ASSEMBLY (2.0L HYBRID) BMS ASSEMBLY (MAIN) BMS ASSEMBLY (SUB) (2.0L PLUG-IN HYBRID) BMS BLOWER MOTOR BMS CONTROL MODULE (SUB) BMS COOLING FAN 1 BRN WIRE CHARGER INDICATOR ELECTRIC OIL PUMP UNIT GRN WIRE H-CAN HI H-CAN LO OBC UNIT ORG/ WIRE P-CAN HI P-CAN LO PNK WIRE RED WIRE RED/ORG WIRE WHT WIRE WIRELESS CHARGER YEL WIRE

Go to component -> Computer data lines circuit, hybrid (3 of 5) -> BRN WIRE

brn wiring diagram (167 of 280)

2.0L HYBRID, 2.0L PLUG IN HYBRID 2.0L PLUG-IN HYBRID AMP BLK WIRE BLU WIRE BRN WIRE C-CAN HI C-CAN LO CAN HI CAN LO ELECTRIC PARKING BRAKE MODULE GRN WIRE GRY WIRE INTEGRATED BRAKE ACTUATION UNIT KEYBOARD LEFT BLIND SPOT DETECTION RADAR LOCAL-CAN HI LOCAL-CAN LO M-CAN HI M-CAN LO ORG/ WIRE P-CAN HI P-CAN LO REAR VIEW CAMERA RED WIRE RIGHT BLIND SPOT DETECTION RADAR SMART CRUISE CONTROL UNIT SURROUND VIEW MONITOR WHT WIRE YEL WIRE

Go to component -> Computer data lines circuit, hybrid (4 of 5) -> BRN WIRE

brn wiring diagram (168 of 280)

2.0L HYBRID, 2.0L PLUG IN HYBRID ACTIVE HYDRAULIC BOOSTER 2 FUSE ACTIVE HYDRAULIC BOOSTER 3 FUSE AFLS UNIT B-CAN HI B-CAN LO BCM BLK WIRE BLU WIRE BLU/BLK WIRE BRN WIRE C-CAN HI C-CAN LO DRIVER DOOR MODULE DRIVER IMS MODULE E/R JUNCTION BLOCK E/R-F GRN WIRE HOT AT ALL TIMES INSTRUMENT CLUSTER LANE DEPARTURE WARNING MODULE LOCAL-CAN HI LOCAL-CAN LO M-CAN HI M-CAN LO MDPS UNIT MULTI FUSE (TYPE A) MULTI-PURPOSE CHECK CONNECTOR ORG/ WIRE PASSENGER DOOR MODULE PCB BLOCK PNK WIRE RED WIRE RED/WHT WIRE RELAY ENERGIZED RIGHT END OF DASH) W/ LDWS W/ MEMORY W/O LDWS WHT WIRE YEL WIRE

Go to component -> Computer data lines circuit, hybrid (5 of 5) -> BRN WIRE

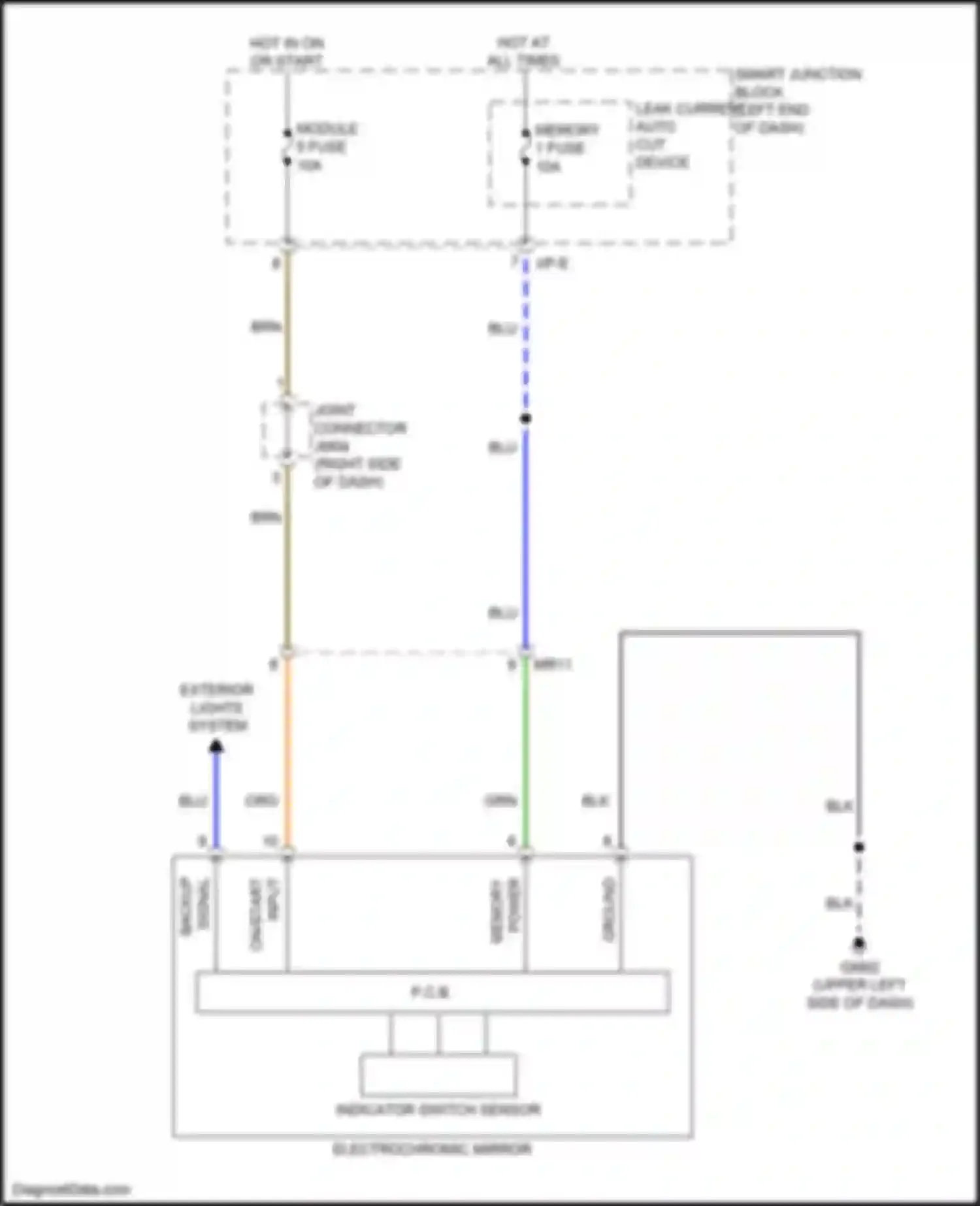

brn wiring diagram (169 of 280)

BACKUP BLK WIRE BLU WIRE BRN WIRE ELECTROCHROMIC MIRROR GRN WIRE GROUND HOT AT ALL TIMES HOT IN ON OR START I/P-E INDICATOR SWITCH SENSOR INPUT LEAK CURRENT AUTO CUT DEVICE MEMORY MEMORY 1 FUSE MODULE 5 FUSE ON/START ORG/ WIRE PCB POWER SIGNAL SMART JUNCTION BLOCK

Go to component -> Electrochromic mirror circuit, except hybrid & plug-in hybrid -> BRN WIRE

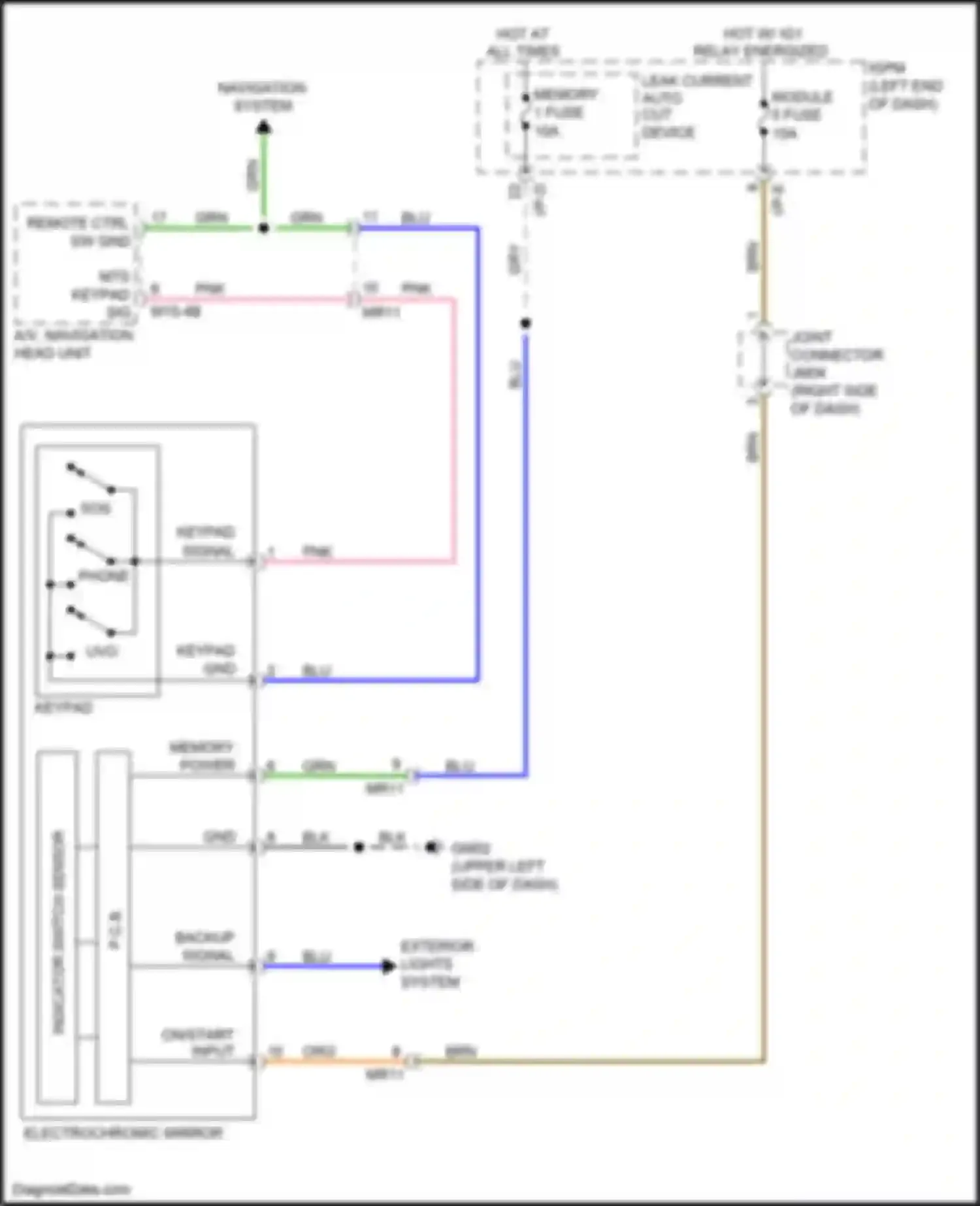

brn wiring diagram (170 of 280)

A/V, NAVIGATION HEAD UNIT BACKUP SIGNAL BLK WIRE BLU WIRE BRN WIRE ELECTROCHROMIC MIRROR GRN WIRE GRY WIRE HOT AT ALL TIMES I/P-D I/P-E IGPM INDICATOR SWITCH SENSOR KEYPAD KEYPAD GND KEYPAD SIGNAL LEAK CURRENT AUTO CUT DEVICE MEMORY 1 FUSE MEMORY POWER MODULE 5 FUSE MTS KEYPAD SIG NAVIGATION SYSTEM ON/START INPUT ORG/ WIRE PCB PHONE PNK WIRE RELAY ENERGIZED REMOTE CTRL SW GND SOS UVO

Go to component -> Electrochromic mirror circuit, plug-in hybrid w/ mts -> BRN WIRE
