Infiniti QX60 II (2021-2024) combination meter Wiring diagrams

ABS IND. AUTOMATIC BRAKE HOLD SWITCH AUTOMATIC BRAKE HOLD SWITCH IND BCM (BODY CONTROL MODULE) BLK WIRE BLU WIRE BRAKE FLUID LEVEL SWITCH BRAKE IND BRAKE PEDAL POSITION SWITCH BRN WIRE CAN L CAN-H COMBINATION METER COMPUTER DATA LINES SYSTEM ELECTRONIC SUSPENSION SYSTEM FUSE 20 FUSE 21 FUSE 32 FUSE 6 FUSE BLOCK (J/B) GRN WIRE GRY WIRE HOT AT ALL TIMES HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED ILL LEFT PARKING BRAKE ACTUATOR LT BLU WIRE LT GRN WIRE PARKING BRAKE SWITCH (ON PARKING BRAKE PEDAL ASSEMBLY) PARKING BRAKE SWITCH IND PNK WIRE PPL PPL/LT GRN WIRE PPL/PNK WIRE PPL/TAN WIRE RED WIRE RIGHT PARKING BRAKE ACTUATOR SLIP IND STOP LAMP SW 1 STOP LAMP SW 2 STOP LAMP SWITCH TAN WIRE UNIFIED METER CONTROL UNIT VDC OFF IND W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WHT WIRE YEL WIRE

BATTERY BATTERY CURRENT SENSOR BLK WIRE BLU WIRE BUZZER CAN L CAN-H CHARGE IND COMBINATION METER COMPUTER DATA LINES SYSTEM FUSE 101 FUSE 6 FUSE BLOCK (J/B) FUSE, FUSIBLE LINK, RELAY BOX FUSIBLE LINK A FUSIBLE LINK BOX (BATTERY) FUSIBLE LINK D FUSIBLE LINK O GENERATOR GRY WIRE HOT W/ IGNITION RELAY 1 ENERGIZED IGN IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) LIN NCA WIRE PNK BATTERY WIRE PNK WIRE POWER DISTRIBUTION SYSTEM PPL/TAN WIRE RED WIRE STARTER MOTOR TOP OF TRANSMISSION) UNIFIED METER CONTROL UNIT W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER YEL WIRE

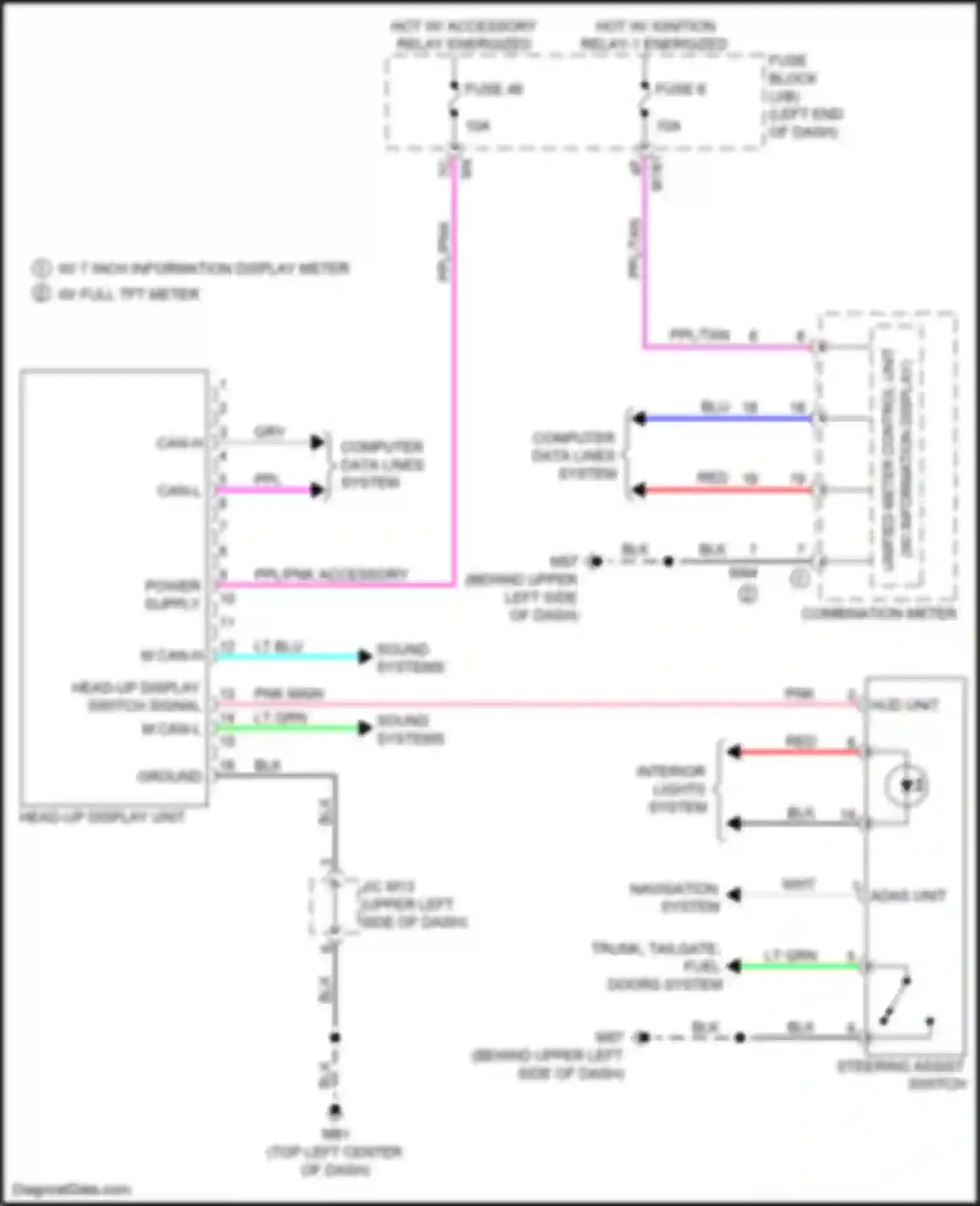

ADAS UNIT BLK WIRE BLU WIRE CAN-H COMBINATION METER COMPUTER DATA LINES SYSTEM FUSE 48 FUSE 6 FUSE BLOCK (J/B) GROUND GRY WIRE HEAD UP DISPLAY UNIT HEAD-UP DISPLAY PNK MAIN SWITCH SIGNAL WIRE HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED HUD UNIT LT BLU WIRE LT GRN WIRE M CAN-H M CAN-L NAVIGATION SYSTEM PNK WIRE PPL CAN-L PPL/PNK ACCESSORY POWER SUPPLY WIRE PPL/PNK WIRE PPL/TAN WIRE RED WIRE SOUND SYSTEMS STEERING ASSIST SWITCH TRUNK, TAILGATE, FUEL DOORS SYSTEM UNIFIED METER CONTROL UNIT W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WHT WIRE

ABS IND. AEB OFF IND AIR BAG IND AUTO HOLD BRAKE IND BELT IND BLK WIRE BLU WIRE BRAKE IND BRN WIRE BSW WARNING IND BUZZER CHARGE IND COMBINATION METER COMPUTER DATA LINES SYSTEM DOWN E-PARK IND (RED) WIRE E-PARK WARNING (YELLOW) IND ELECTRIC SHIFT CONTROL SYSTEM IND EPS IND FCW WARNING IND FUEL GAUGE FUEL LEVEL SENSOR UNIT, FUEL PUMP FUSE 15 FUSE 29 FUSE 40 FUSE 6 FUSE BLOCK (J/B) GRN WIRE GRY WIRE HANDS OFF WARNING IND HI BEAM (BLUE) IND HIGH BEAM ASSIST (GREEN) IND HOT AT ALL TIMES HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED ILLUMINATION ILLUMINATION CONTROL SWITCH LDW WARNING IND LEFT TURN IND LIGHT (GREEN) IND LOW FUEL IND LT BLU WIRE LT GRN WIRE MALFUNCTION IND LAMP (MIL) MASTER SPEAKER MASTER WARNING IND (RED/YELLOW) WIRE METER ILLUMINATION IND OIL PRESSURE IND PILOT IND PNK WIRE PPL PPL/BLU WIRE PPL/GRN WIRE PPL/RED WIRE PPL/TAN WIRE PPL/WHT WIRE REAR AEB OFF IND RED WIRE RIGHT TURN IND SEATS SYSTEM SHIELD SLIP IND SOUND SYSTEMS SPEEDOMETER STOP/START IND TACHOMETER TAN WIRE TIRE PRESSURE IND UNIFIED METER CONTROL UNIT VDC OFF IND W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WATER TEMPERATURE GAUGE YEL WIRE

AV CONTROL UNIT (UNDER CENTER CONSOLE) BLK WIRE BLU WIRE CAN L CAN-H COMBINATION METER COMPUTER DATA LINES SYSTEM D - DOUT ETHERNET COMMUNICATION (+) FRONT AUXILIARY INPUT JACKS GRN WIRE GRY WIRE HEAD UP DISPLAY UNIT HF/VR MIC 1 INPUT HF/VR MODE CHANGE IGN SIG ILL LT BLU WIRE LT GRN WIRE M CAN-H M CAN-L MIC IN - (GND) NAVIGATION SYSTEM NAVIGATION SYSTEM (TELEMATICS CIRCUIT) PNK WIRE PPL PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/TAN WIRE RED WIRE SHIELD SIG A STRG SW STRG SW B STRG SW GND TAN WIRE TCU TEL IN- TCU TEL SHIELD UNIFIED METER CONTROL UNIT (W/ INFORMATION DISPLAY) VBUS W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WHT WIRE YEL WIRE

AV CONTROL UNIT (UNDER CENTER CONSOLE) BLK WIRE BLU WIRE CAMERA COMP + CAMERA GND CAMERA V + CAN L CAN-H COMBINATION METER COMPUTER DATA LINES SYSTEM D - FRONT AUXILIARY INPUT JACKS GRN WIRE GRY WIRE HEAD UP DISPLAY UNIT HF/VR HF/VR MIC 1 INPUT HF/VR MODE CHANGE IGN SIG ILL LT BLU WIRE LT GRN WIRE M CAN-H M CAN-L MIC GND MIC IN - (GND) MIC SIG MIC VCC MODE CHG NAVIGATION SYSTEM NAVIGATION SYSTEM (REAR VIEW CAMERA CIRCUIT) NAVIGATION SYSTEM (TELEMATICS CIRCUIT) PNK WIRE PPL PPL/BRN WIRE PPL/TAN WIRE RED WIRE SHIELD SIG A STRG SW STRG SW 8 STRG SW GND TAN WIRE TCU TEL IN- TCU TEL SHIELD UNIFIED METER CONTROL UNIT (W/ INFORMATION DISPLAY) VBUS W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WHT WIRE

ACCESSORY BLK WIRE BLU WIRE BRN WIRE CAN L CAN-H COMBINATION METER COMPUTER DATA LINES SYSTEM FIL SENSOR SIG FIR SENSOR SIG FOL SENSOR SIG FOR SENSOR SIG FR SENSOR GND FR SENSOR POWER FUSE 41 FUSE 6 FUSE BLOCK (J/B) GRN WIRE GRY WIRE HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED IGN LEFT INNER FRONT SONAR SENSOR LEFT INNER REAR SONAR SENSOR LEFT OUTER FRONT SONAR SENSOR LEFT OUTER REAR SONAR SENSOR LT BLU WIRE LT GRN WIRE PNK WIRE PPL PPL/TAN WIRE RED WIRE RIGHT INNER FRONT SONAR SENSOR RIGHT INNER REAR SONAR SENSOR RIGHT OUTER FRONT SONAR SENSOR RIGHT OUTER REAR SONAR SENSOR RIL SENSOR SIG RIR SENSOR SIG ROL SENSOR SIG ROR SENSOR SIG RR SENSOR GND RR SENSOR PWR SENS GND SENS PWR SENS SIG SENSOR GND SENSOR PWR SENSOR SIG SONAR CONTROL UNIT (LEFT SIDE OF DASH) TAN WIRE UNIFIED METER CONTROL UNIT (W/ INFORMATION DISPLAY) W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WHT WIRE YEL WIRE

ACTIVE GRILLE SHUTTER BATTERY BLK WIRE BLU WIRE BRN WIRE CAN L CAN-H COMBINATION METER COMPUTER DATA LINES SYSTEM CONDENSER 1 ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE EVAP CANISTER VENT CONTROL VALVE F/PUMP- FPC FPCCK FUEL PUMP CONTROL MODULE (FPCM) GENERATOR GRN WIRE GROUND GRY WIRE IGN IGNITION IGNITION COIL 1 (W/ POWER TRANSISTOR) IGNITION COIL 2 (W/ POWER TRANSISTOR) IGNITION COIL 3 (W/ POWER TRANSISTOR) IGNITION COIL 4 (W/ POWER TRANSISTOR) IGNITION COIL 5 (W/ POWER TRANSISTOR) IGNITION COIL 6 (W/ POWER TRANSISTOR) LIN LOOP WIRE LT BLU WIRE LT GRN WIRE MALFUNCTION INDICATOR LAMP (MIL) NCA WIRE PLUG PNK WIRE PPL PPL/BRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/TAN WIRE PPL/YEL WIRE RED WIRE SHIELD SPARK TAN WIRE UNIFIED METER CONTROL UNIT (W/ INFORMATION DISPLAY) VIAS CONTROL SOLENOID VALVE 1 VIAS CONTROL SOLENOID VALVE 2 W/ 7 INCH INFORMATION DISPLAY METER W/ FULL TFT METER WHT WIRE YEL WIRE
