Wiring Diagrams for Infiniti QX50 II (2017-2024)

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

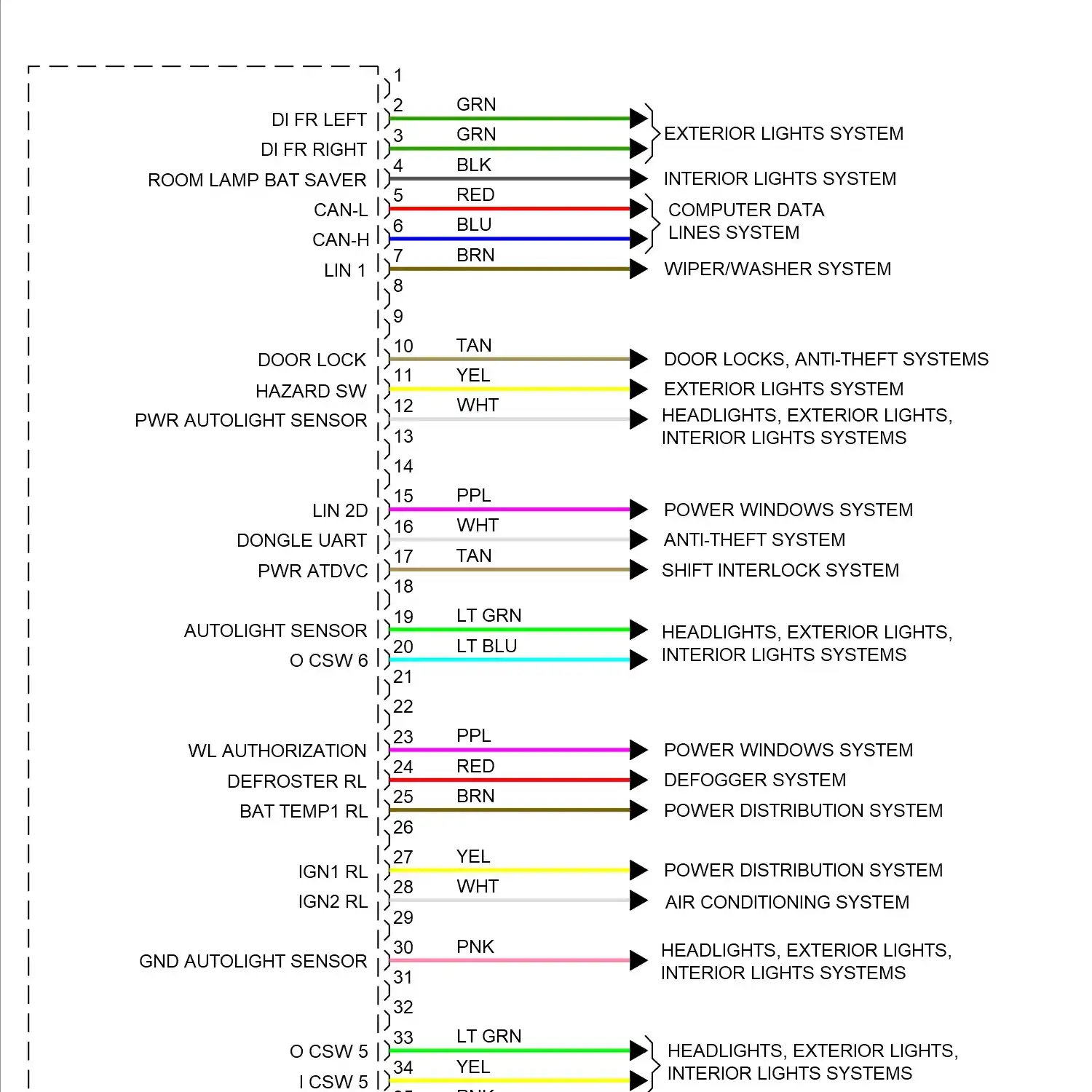

Body control modules circuit

Computer data lines circuit, w/o propilot assist Computer data lines circuit, w/ propilot assist

Cooling fan circuit

Cruise control circuit Intelligent cruise control circuit

Defoggers circuit

Direct adaptive steering circuit Electromechanical power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit

Horn circuit

Head-up display circuit Instrument cluster circuit

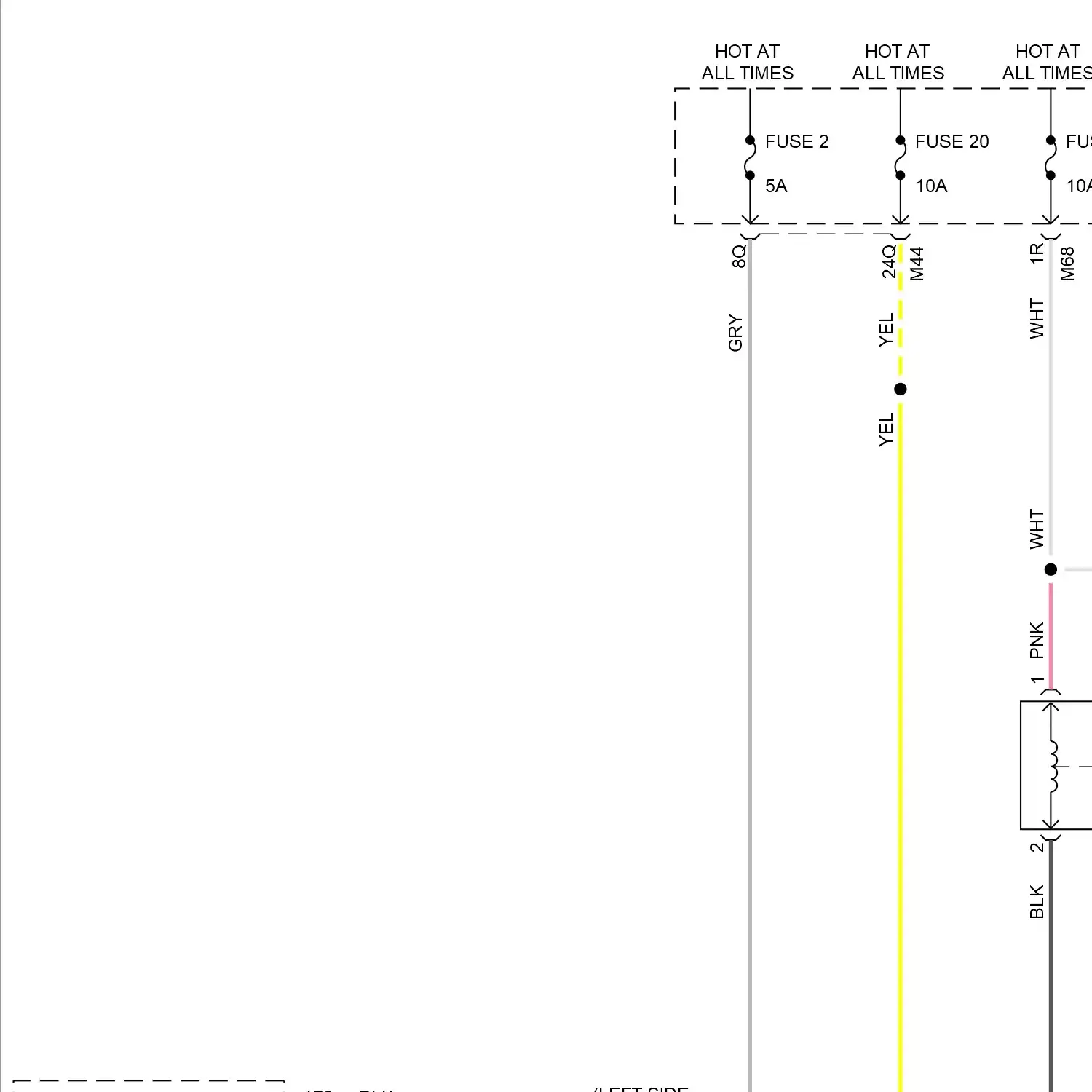

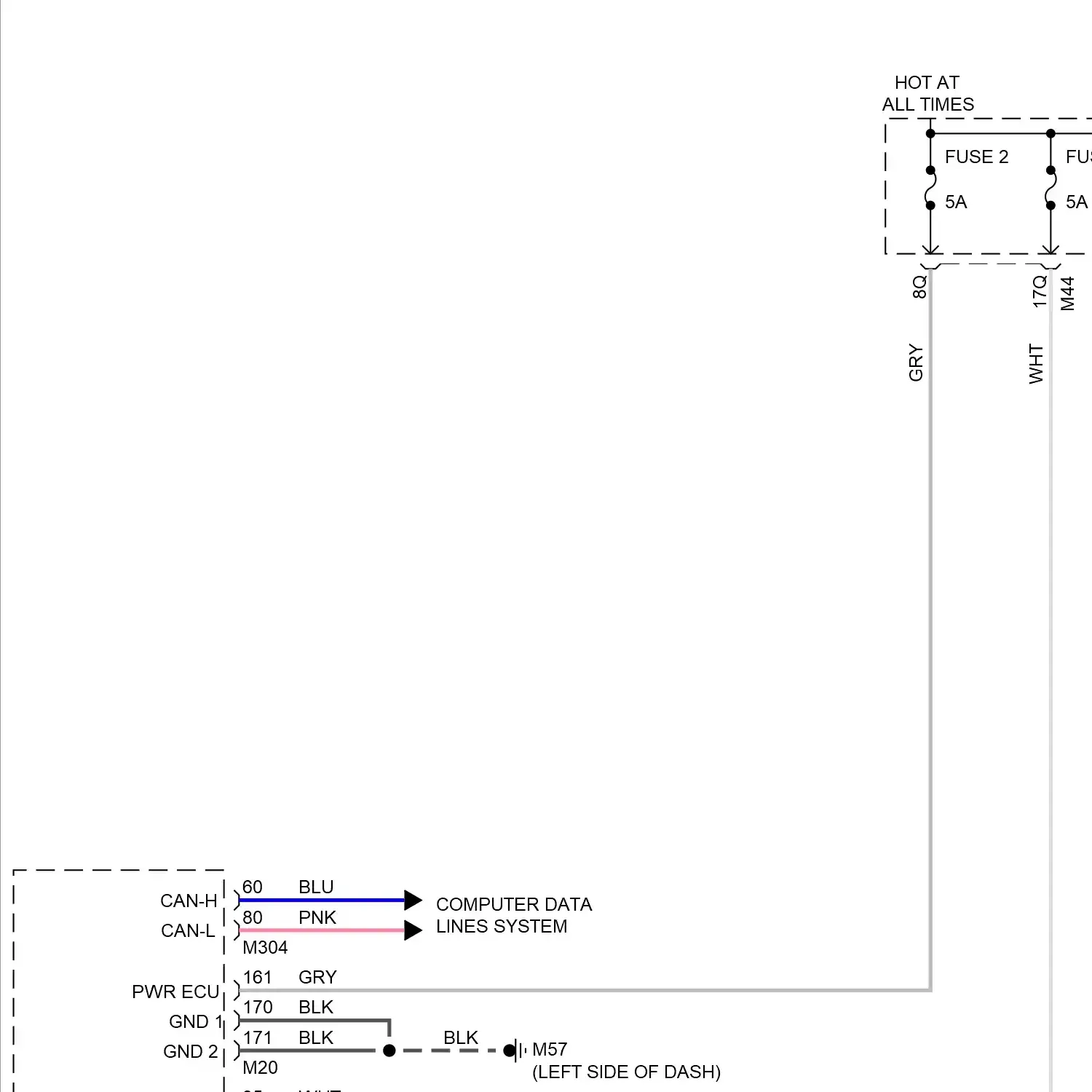

Courtesy lamps circuit, w/ interior ambient lighting Courtesy lamps circuit, w/o interior ambient lighting Instrument illumination circuit

Memory systems circuit

Around vision camera circuit Driver assistance system circuit Navigation circuit, w/ bose Navigation circuit, w/o bose Rear view camera circuit Sonar circuit Telematics circuit

Power distribution circuit

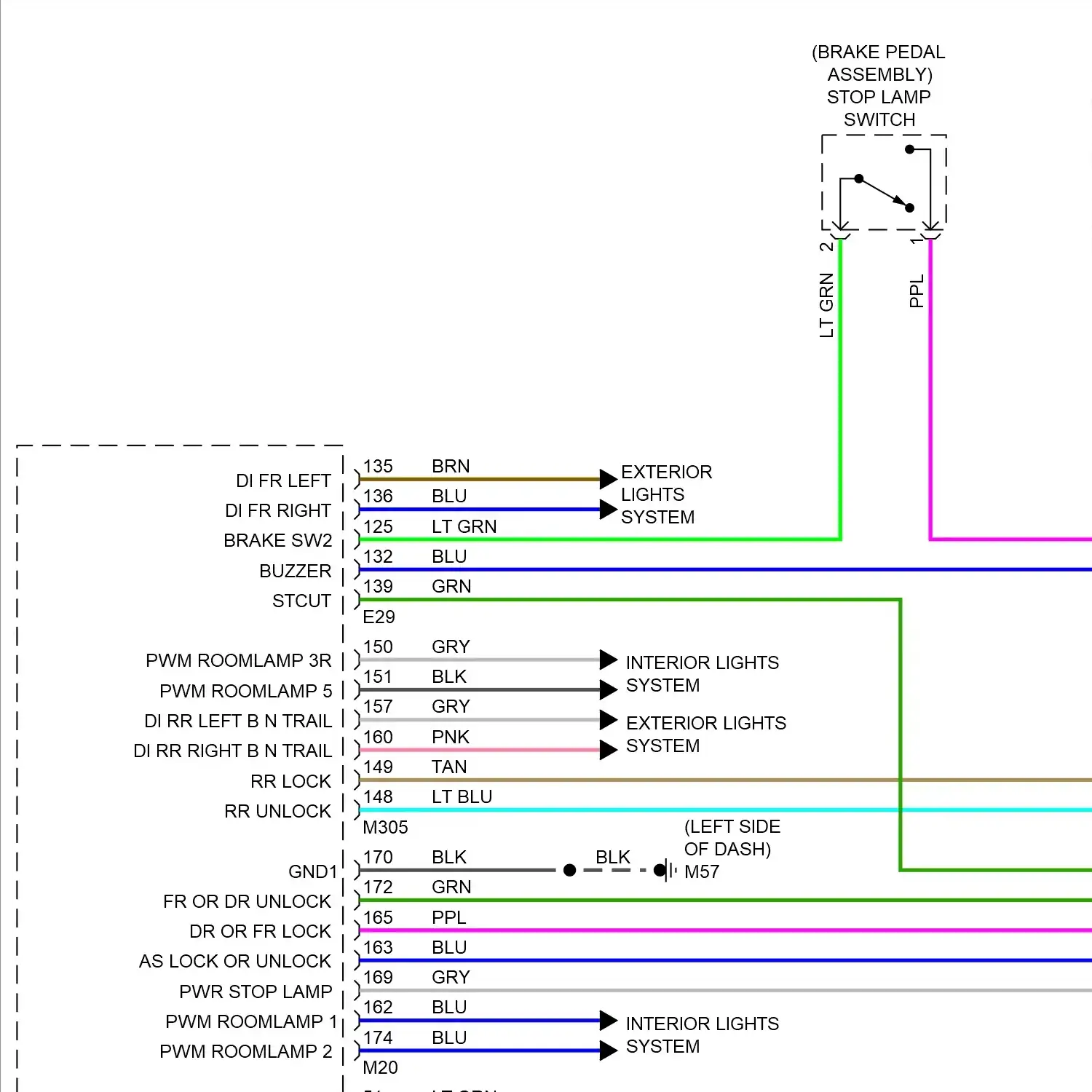

Power door locks circuit

Auto anti-dazzling inside mirror circuit Power mirrors circuit

Climate control seats circuit Heated seats circuit Heated steering wheel circuit Lumbar circuit Power seats circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit, w/ bose Radio circuit, w/o bose

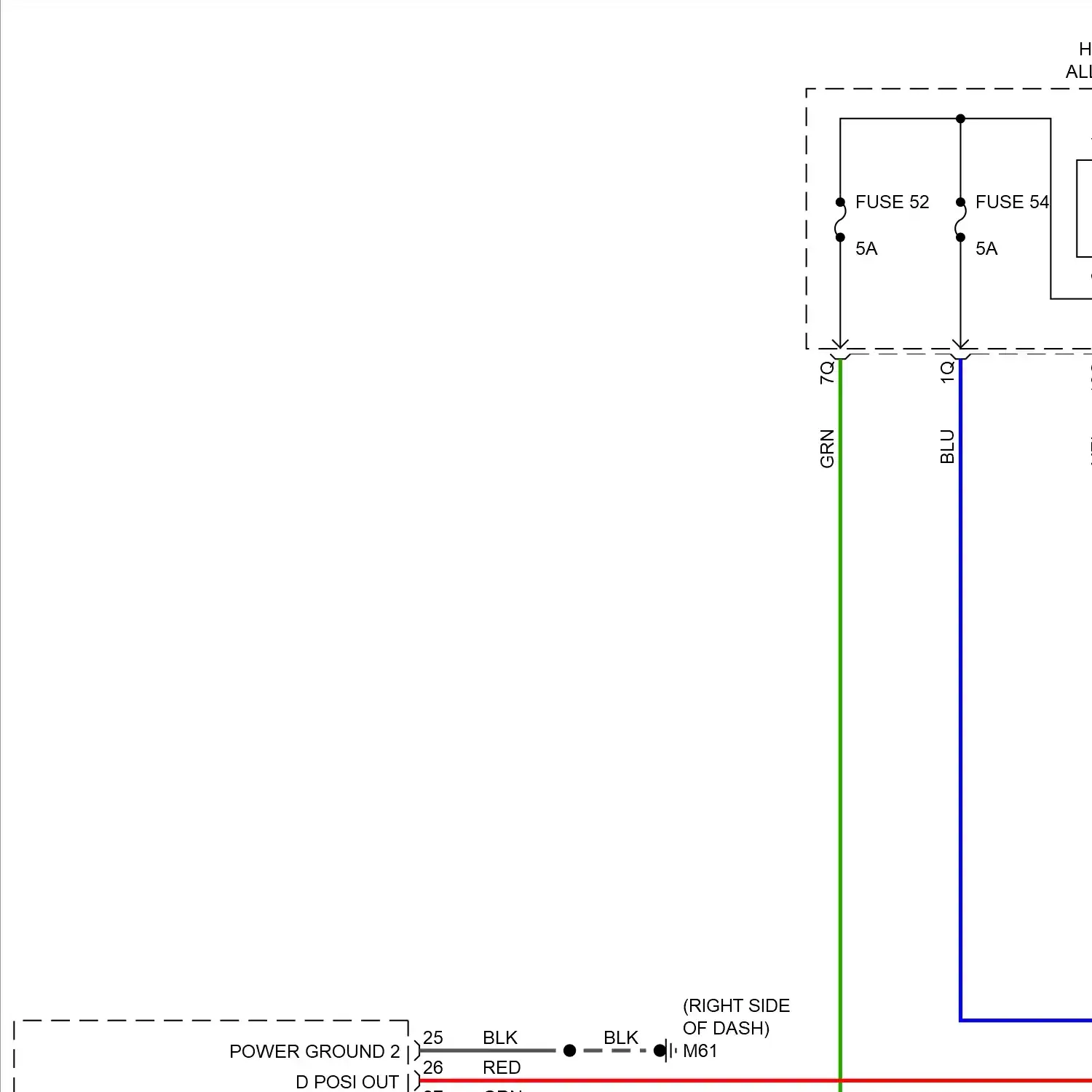

Park brake release circuit Shift interlock circuit

Charging circuit Starting circuit

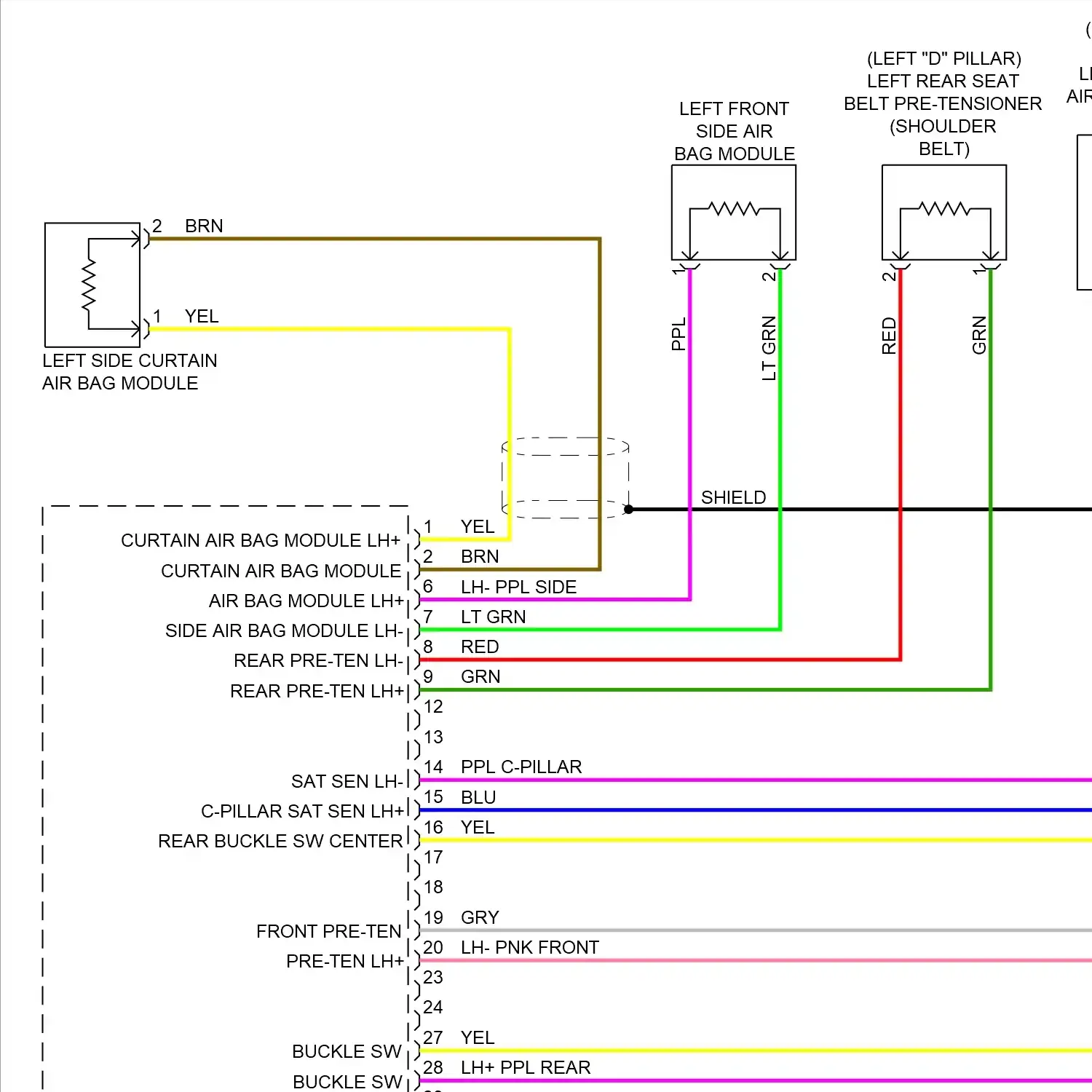

Supplemental restraints circuit

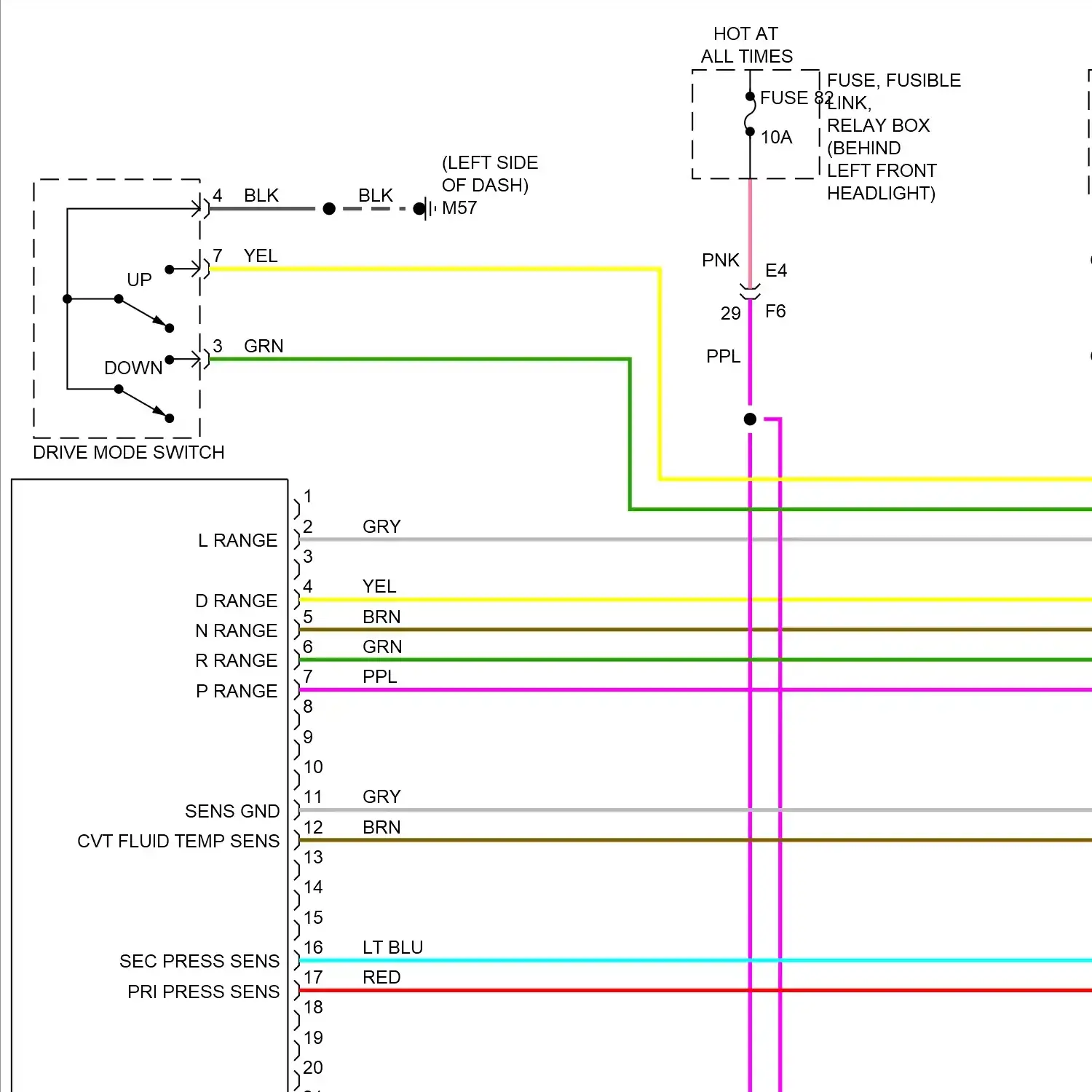

A/t circuit Awd circuit

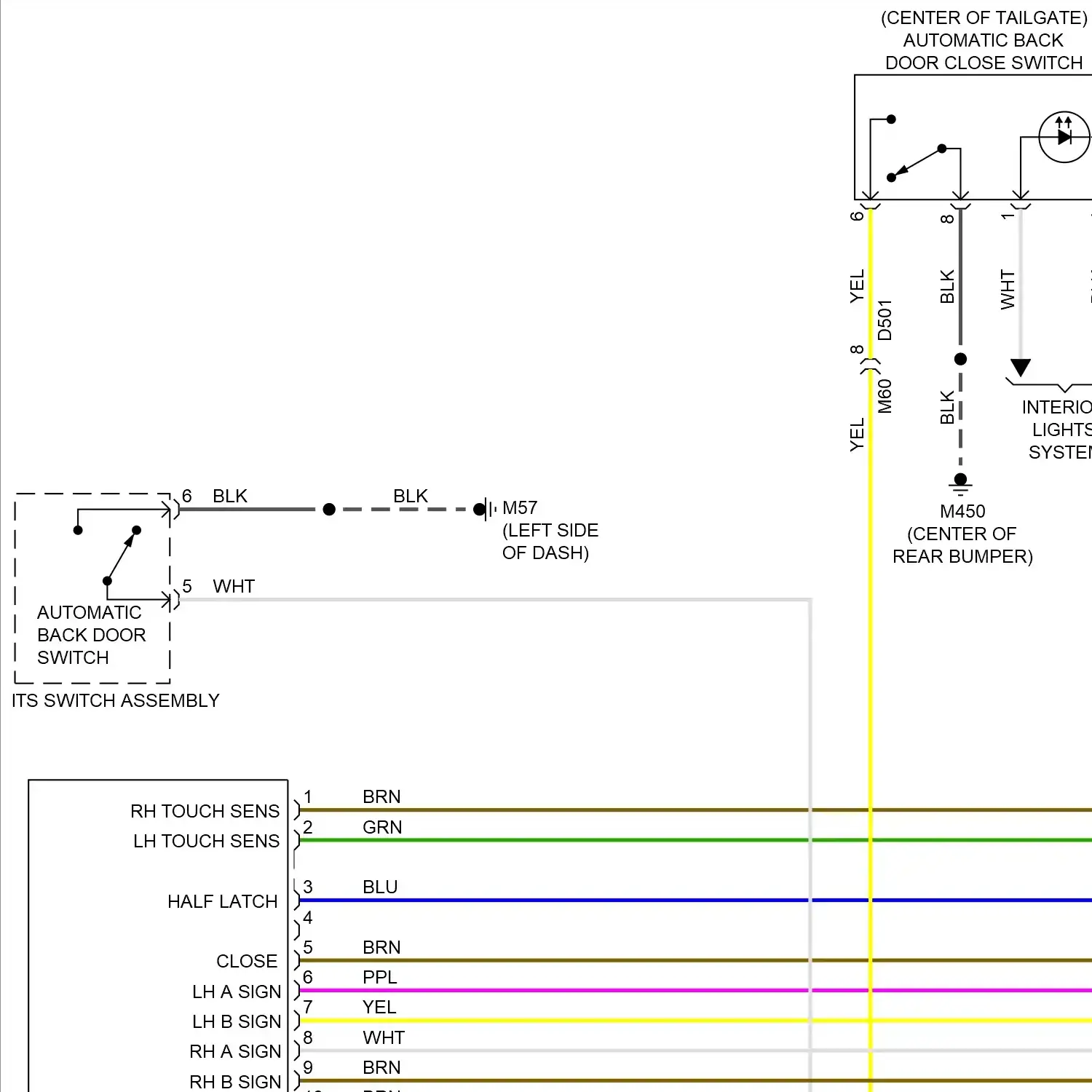

Automatic back door circuit

Chime circuit Tire pressure monitoring circuit

Front wiper/washer circuit Rear wiper/washer circuit

AS LOCK OR UNLOCK D BACK DOOR LOCK ASSEMBLY BATTERY CURRENT SENS BATTERY TEMPERATURE SENS DOOR LOCK IND DOOR LOCK LED DOOR LOCK SW DR OR FR LOCK D KEY CYLINDER LOCK SW LEFT FRONT DOOR LOCK ASSEMBLY PWR DOOR LOCK 1 PWR DOOR LOCK 2 RR LOCK B UNLOCK LOCK

ACTUATOR SHIELD ACTUATOR UP - ATR ACTUATOR B+ MOTOR L B+ MOTOR R CINCH LATCH MOTOR COOLING FAN MOTOR CTRL ACTUATOR DC MOTOR + ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR ELECTRIC THROTTLE CONTROL ACTUATOR ELECTRIC THROTTLE CONTROL ACTUATOR SHIELD ELECTRIC WASTEGATE CONTROL ACTUATOR ELECTRIC WASTEGATE CONTROL ACTUATOR SHIELD ELECTRIC WASTEGATE CTRL ACTUATOR ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMPERATURE SENS 1 ENGINE COOLANT TEMPERATURE SENS 2 ENGINE OIL PRESSURE CONTROL SOLENOID VALVE ENGINE OIL PRESSURE CTRL SOLENOID VALVE ENGINE OIL PRESSURE SENS ENGINE OIL TEMPERATURE SENS ENGINE SPD SIG ENGINE TACH+ EPS MOTOR FR WASH MOTOR FRONT BLOWER MOTOR FRONT WIPER MOTOR FRONT, REAR WASHER MOTOR FUEL FILLER LID DOOR LOCK ACTUATOR GND MOTOR L GND MOTOR R INTAKE DOOR MOTOR INTAKE MANIFOLD RUNNER CONTROL VALVE MOTOR INTAKE MANIFOLD RUNNER CONTROL VALVE MOTOR SHIELD INTAKE VALVE TIMING CONTROL MOTOR LEFT AIR MIX DOOR MOTOR LEFT FRONT LIFTING MOTOR LEFT FRONT POWER WINDOW MOTOR LEFT LUMBAR SUPPORT MOTOR LEFT PARKING BRAKE ACTUATOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR LIFTING MOTOR LEFT REAR POWER WINDOW MOTOR LEFT RECLINING MOTOR LEFT SLIDING MOTOR LEVELING ACTUATOR GND LEVELING ACTUATOR SIG LEVELING MOTOR LOWER RIGHT FRONT OF ENGINE) MODE DOOR MOTOR MOONROOF MOTOR ASSEMBLY MOTOR A PHASE U MOTOR A PHASE V MOTOR A PHASE W MOTOR B PHASE U MOTOR B PHASE V MOTOR B PHASE W MOTOR COIL A MOTOR COIL B MOTOR L+ MOTOR R- REAR WIPER MOTOR RIGHT AIR MIX DOOR MOTOR RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT LIFTING MOTOR RIGHT FRONT POWER WINDOW MOTOR RIGHT LUMBAR SUPPORT MOTOR RIGHT PARKING BRAKE ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR LIFTING MOTOR RIGHT REAR POWER WINDOW MOTOR RIGHT RECLINING MOTOR RIGHT SLIDING MOTOR RR WASH MOTOR STARTER MOTOR STEERING ANGLE MAIN MOTOR STEERING ANGLE SUB MOTOR STEERING FORCE MOTOR STEERING VIBRATION MOTOR SUNSHADE MOTOR ASSEMBLY SWIVEL ACTUATOR GND SWIVEL ACTUATOR LIN SIG SWIVEL MOTOR THROTTLE CONTROL MOTOR THROTTLE CTRL MOTOR PWR SPLY VCR MOTOR

ANTENNA AMP ANTENNA BASE CAN-H PPL SES EXT REAR ANTENNA B GPS ANTENNA LEFT OUTSIDE KEY ANTENNA NATS ANTENNA RIGHT OUTSIDE KEY ANTENNA SATELLITE ANTENNA SES EXT LEFT ANTENNA A SES EXT LEFT ANTENNA B SES EXT REAR ANTENNA A SES EXT REAR ANTENNA B SES EXT RIGHT ANTENNA A SES EXT RIGHT ANTENNA B SES INT FRONT ANTENNA A SES INT FRONT ANTENNA A PPL SES EXT RIGHT ANTENNA B SES INT FRONT ANTENNA B SES INT MIDDLE ANTENNA A SES INT MIDDLE ANTENNA B TEL ANTENNA TELEMATICS ANTENNA

BUTTON SW PUSH BUTTON IGNITION SWITCH SES BACK DOOR BUTTON SW SES BACKDOOR BUTTON SW SES FL HANDLE BUTTON SW SES FR HANDLE BUTTON SW

CAMERA COMP + CAMERA COMP + SHIELD CAMERA COMP - CAMERA GND/ SHIELD CAMERA GND/SHIELD CAMERA SW CAMERA V + REAR VIEW CAMERA REAR VIEW CAMERA CIRCUIT SIDE CAMERA

CONNECTOR LOCK DETECTION CONSOLE POWER SOCKET DATA LINK CONNECTOR FRONT POWER SOCKET HUD REPROGRAM CONNECTOR REAR CARGO POWER SOCKET TRAILER CONNECTOR

ATR CONTROL MODULE AUTOMATIC BACK DOOR CONTROL MODULE CHASSIS CONTROL MODULE COOLING FAN CONTROL MODULE ELECTRIC INTAKE VALVE TIMING CONTROL MODULE ELECTRIC PARKING BRAKE CONTROL MODULE ELECTRIC SHIFT CONTROL MODULE ELECTRIC SHIFT CONTROL MODULE SHIELDS LED DAYTIME, PARKING LAMP CONTROL MODULE LED HEADLAMP CONTROL MODULE STEERING ANGLE MAIN CONTROL MODULE STEERING ANGLE SUB CONTROL MODULE STEERING FORCE CONTROL MODULE VCR CONTROL MODULE

ABS/TCS/VDC CONTROL UNIT ACTIVE NOISE CONTROL UNIT ADAS CONTROL UNIT ADAS CONTROL UNIT 2 ADAS CONTROL UNIT 2 SHIELD AFS CONTROL UNIT AROUND VIEW MONITOR CONTROL UNIT AUTOMATIC DRIVE POSITIONER CONTROL UNIT AV CONTROL UNIT AWD CONTROL UNIT DISPLAY CONTROL UNIT DONGLE UNIT DRIVER SEAT CONTROL UNIT EPS CONTROL UNIT FRONT AUXILIARY INPUT JACKS CONTROL UNIT FRONT CAMERA UNIT HEAD UP DISPLAY UNIT LANE CAMERA UNIT LEFT CLIMATE CONTROLLED SEAT BLOWER UNIT LEFT SPINDLE UNIT MOTION ACTIVATED BACK DOOR CONTROL UNIT OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT PWR ECU PWR ECU ACC RELAY UNIT RIGHT CLIMATE CONTROLLED SEAT BLOWER UNIT RIGHT SPINDLE UNIT SONAR CONTROL UNIT TOTAL ILLUMINATION CONTROL UNIT UNIFIED METER CONTROL UNIT

BAT FUSE FUSE 2 FUSE 5 FUSE 6 FUSE 8 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 16 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 32 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 57 FUSE 58 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 65 FUSE 66 FUSE 68 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 78 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 85 FUSE 86 FUSE 87 FUSE 88 FUSE 89

HEATED OXYGEN SENS-2 HEATER HEATER SEAT AS HEATER SEAT AS TEMP HEATER SEAT AS TEMP GND HEATER SEAT DR HEATER SEAT DR GND HEATER SEAT DR TEMP HEATER SEAT DR TEMP GND LEFT FRONT SEAT HEATER LEFT SEAT BACK HEATER LEFT SEAT CUSHION HEATER MIRROR HEATER RIGHT FRONT SEAT HEATER RIGHT SEAT BACK HEATER RIGHT SEAT CUSHION HEATER SENS-1 HEATER SUB HEATER

AUTOMATIC BRAKE HOLD SWITCH INDICATOR ELECTRIC PARKING BRAKE SWITCH INDICATOR LEFT BLIND SPOT WARNING/ BLIND SPOT INTERVENTION INDICATOR RIGHT BLIND SPOT WARNING/ BLIND SPOT INTERVENTION INDICATOR

DEMAND LAMP DIM LAMP FOG LAMP IND FRONT ROOM/ MAP LAMP ASSEMBLY FRONT ROOM/MAP LAMP ASSEMBLY GLOVE BOX LAMP) GND SOW LAMP HIGH MOUNTED STOP LAMP LAMP OUT LAMP SW LEFT FRONT COMBINATION LAMP LEFT FRONT DOOR MOOD LAMP LEFT FRONT DOOR POCKET LAMP LEFT FRONT FOG LAMP LEFT FRONT FOOT LAMP LEFT FRONT INSIDE HANDLE LAMP LEFT FRONT STEP LAMP LEFT LICENSE PLATE LAMP LEFT LUGGAGE ROOM LAMP LEFT MAP LAMP LEFT PERSONAL LAMP LEFT REAR DOOR POCKET LAMP LEFT REAR FOOT LAMP LEFT REAR INSIDE HANDLE LAMP LEFT REAR STEP LAMP LEFT VANITY LAMP LUGGAGE LAMP RL PWM ROOM LAMP 1 PWM ROOM LAMP 2 PWM ROOM LAMP 5 PWR STOP LAMP RIGHT FRONT COMBINATION LAMP RIGHT FRONT DOOR MOOD LAMP RIGHT FRONT DOOR POCKET LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOOT LAMP RIGHT FRONT INSIDE HANDLE LAMP RIGHT FRONT STEP LAMP RIGHT LICENSE PLATE LAMP RIGHT LUGGAGE ROOM LAMP RIGHT MAP LAMP RIGHT PERSONAL LAMP RIGHT REAR DOOR POCKET LAMP RIGHT REAR FOOT LAMP RIGHT REAR INSIDE HANDLE LAMP RIGHT REAR STEP LAMP RIGHT VANITY LAMP RL DOOR LAMP OUT ROOM LAMP ROOM LAMP BAT SAVER RL ROOM LAMP BATT RR DOOR LAMP OUT SHORTING PIN START SW BACKLIGHT LED SOW LAMP START SW BACKLIGHT LED STOP LAMP 2 N STOP LAMP SW TRAILER LAMP CONVERTER MODULE WELCOME LAMP OUT

FUEL PUMP GND PUMP HIGH PRESSURE FUEL PUMP

A/C RELAY ACCESSORY RELAY 1 ANTI- THEFT HORN RELAY CLIMATE CONTROLLED SEAT RELAY DAYTIME RUNNING LIGHT RELAY DIRECT FUEL INJECTOR RELAY 1 DIRECT FUEL INJECTOR RELAY 1, 2 DIRECT FUEL INJECTOR RELAY 2 ECM RELAY FRONT BLOWER MOTOR RELAY FRONT POWER SOCKET RELAY FRONT WIPER HIGH RELAY FRONT WIPER RELAY FUEL INJECTOR RELAY 1 FUEL INJECTOR RELAY 2 FUEL PUMP RELAY FUEL PUMP RELAY CTRL FUSE, FUSIBLE LINK, RELAY BOX HEATED STEERING RELAY HIGH PRESSURE FUEL PUMP RELAY HIGH PRESSURE FUEL PUMP RELAY HIGH PRESSURE FUEL PUMP RELAY, STARTER CUT RELAY HIGH PRESSURE FUEL PUMP RELAY, STARTER CUT RELAY HORN RELAY HOT W/ ACCESSORY RELAY-1 ENERGIZED HOT W/ ECM RELAY ENERGIZED HOT W/ IGNITION 1 RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED HOT W/ IGNITION RELAY-2 ENERGIZED IGNITION RELAY 1 IGNITION RELAY 2 IGNITION RELAY-2 OUTPUT LO FAN RELAY 1 LUGGAGE ROOM LAMP RELAY MOTOR RELAY POWER SOCKET RELAY POWER WINDOW RELAY REAR WINDOW DEFOGGER RELAY RELAY BOX 1) RELAY BOX 2 ROOM LAMP RELAY SHIFT ACTUATOR RELAY SHIFT ACTUATOR RELAY A SHIFT ACTUATOR RELAY A CTRL SHIFT ACTUATOR RELAY A SHIFT ACTUATOR RELAY SHIFT ACTUATOR RELAY B SHIFT ACTUATOR RELAY B CTRL SHIFT ACTUATOR RELAY B SHIFT ACTUATOR RELAY SOLENOID VALVE RELAY STARTER CUT RELAY STARTER CUT RELAY HIGH PRESSURE FUEL PUMP RELAY, STARTER CUT RELAY STARTER RELAY STRG HEATER RELAY THROTTLE CONTROL MOTOR RELAY THROTTLE MOTOR RELAY CTRL WIPER DEICER RELAY WIPER RELAY

ACCELERATOR PEDAL ACTUATOR / ACCELERATOR PEDAL POSITION SENSOR SHIELD ACCELERATOR PEDAL ACTUATOR/ ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL ACTUATOR/ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR AIR BAG DIAGNOSIS SENSOR UNIT AMBIENT SENSOR ATR G-SENSOR AUTOLIGHT SENSOR BATTERY CURRENT SENSOR BATTERY TEMPERATURE SENSOR CRANKSHAFT POSITION SENSOR CRASH ZONE SENSOR CVT FLUID TEMPERATURE SENSOR DISTANCE SENSOR DOOR UNLOCK SENSOR ENGINE COOLANT TEMPERATURE SENSOR 1 ENGINE COOLANT TEMPERATURE SENSOR 2 ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAP CONTROL SYSTEM PRESSURE SENSOR EXHAUST CAMSHAFT POSITION SENSOR EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR FORCE MOTOR ANGLE SENSOR FORCE MOTOR ANGLE SENSOR SHIELD FR SENSOR GND FR SENSOR POWER FRONT INNER OCCUPANT CLASSIFICATION SYSTEM SENSOR FUEL LEVEL SENSOR UNIT, FUEL PUMP SHIELD FUEL RAIL PRESSURE SENSOR FUEL TANK TEMPERATURE SENSOR GND AUTOLIGHT SENSOR HEAT SENSOR HEATED OXYGEN SENSOR 2 HEIGHT SENSOR HEIGHT SENSOR GND HEIGHT SENSOR PWR IN CAR SENSOR IN-VEHICLE SENSOR INPUT SPEED SENSOR INTAKE AIR TEMPERATURE SENSOR 2 INTAKE AIR TEMPERATURE SENSOR-1 INTAKE CAMSHAFT POSITION SENSOR INTAKE MANIFOLD RUNNER CONTROL VALVE POSITION SENSOR INTAKE SENSOR INTAKE VALVE TIMING CONTROL POSITION SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT FRONT DOOR SATELLITE SENSOR LEFT FRONT WHEEL SENSOR LEFT INNER FRONT SONAR SENSOR LEFT INNER REAR SONAR SENSOR LEFT OUTER FRONT SONAR SENSOR LEFT OUTER REAR SONAR SENSOR LEFT REAR SIDE AIR BAG SATELLITE SENSOR LEFT REAR SIDE AIR BAG SATELLITE SENSOR SHIELD LEFT REAR WHEEL SENSOR LEFT TOUCH SENSOR MAIN MOTOR ANGLE SENSOR MAIN MOTOR ANGLE SENSOR SHIELD OPTICAL SENSOR OUTPUT SPEED SENSOR PRIMARY PRESSURE SENSOR PRIMARY SPEED SENSOR PWR AUTOLIGHT SENSOR RAIN SENSOR REAR HEIGHT SENSOR SIG REAR INNER OCCUPANT CLASSIFICATION SYSTEM SENSOR REFRIGERANT PRESSURE SENSOR RIGHT FRONT DOOR SATELLITE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT INNER FRONT SONAR SENSOR RIGHT INNER REAR SONAR SENSOR RIGHT OUTER FRONT SONAR SENSOR RIGHT OUTER REAR SONAR SENSOR RIGHT REAR SIDE AIR BAG SATELLITE SENSOR RIGHT REAR SIDE AIR BAG SATELLITE SENSOR SHIELD RIGHT REAR WHEEL SENSOR RIGHT TOUCH SENSOR RIL SENSOR SIGNAL RIR SENSOR SIGNAL ROL SENSOR SIGNAL ROR SENSOR SIGNAL RR SENSOR GND RR SENSOR PWR SECONDARY PRESSURE SENSOR SENSOR 1 SENSOR 2 SENSOR GROUND SES FL HANDLE SENSOR SW SES FR HANDLE SENSOR SW SPEED SENSOR STEERING ANGLE SENSOR STEERING TORQUE SENSOR STEERING TORQUE SENSOR SHIELD SUB MOTOR ANGLE SENSOR SUB MOTOR ANGLE SENSOR SHIELD SUNLOAD SENSOR THROTTLE POSITION SENSOR TORQUE SENSOR TOUCH SENSOR TURBOCHARGER SPEED SENSOR TURBOCHARGER SPEED SENSOR SHIELD VACUUM SENSOR VCR MOTOR ROTATION ANGLE SENSOR, VCR CONTROL SHAFT 2 ROTATION ANGLE SENSOR

BOSE SPEAKER AMP BOSE SUBWOOFER AMP CENTER SPEAKER LEFT INSTRUMENT PANEL SPEAKER LEFT LOWER FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR SIDE SPEAKER LEFT UPPER FRONT DOOR SPEAKER RIGHT INSTRUMENT PANEL SPEAKER RIGHT LOWER FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR SIDE SPEAKER RIGHT UPPER FRONT DOOR SPEAKER SPEAKER FR SIGNAL SPEAKER PWR

ACCELERATE/ RESUME SWITCH ADP STEERING SWITCH ASCD STEERING SWITCH ASCD STRG SWITCH AUTOMATIC BACK DOOR CLOSE SWITCH AUTOMATIC BACK DOOR MAIN SWITCH AUTOMATIC BACK DOOR SWITCH AUTOMATIC BRAKE HOLD SWITCH AUTOMATIC BRAKE HOLD SWITCH IND BACK DOOR OPENER SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH BRK PDL POSI SWITCH CAMERA SWITCH CANCEL SWITCH CENTER REAR SEAT BELT BUCKLE SWITCH CLOSE SWITCH COAST/ SET SWITCH COMBINATION SWITCH DOOR AJAR SWITCH DRIVE MODE SWITCH ELECTRIC PARKING BRAKE SWITCH EXTENDED STORAGE SWITCH FRONT LIFTING SWITCH HALF SWITCH HOOD SWITCH HORN SWITCH ICC STEERING SWITCH IGN SWITCH IGNITION SWITCH ILLUMINATION CONTROL SWITCH INTEGRAL SWITCH ITS SWITCH ASSEMBLY KEY CYLINDER SWITCH LEFT FRONT DOOR SWITCH LEFT FRONT SEAT BELT BUCKLE SWITCH LEFT LUMBAR SUPPORT SWITCH LEFT POWER SEAT SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SEAT BELT BUCKLE SWITCH LEFT SEAT BELT BUCKLE SWITCH LKA SWITCH LOCK SWITCH LOCK UNLOCK SWITCH SWITCH MAIN SWITCH MASTER LIGHT SWITCH METER LIGHT SWITCH MIRROR SWITCH MOONROOF SWITCH MULTI- FUNCTION SWITCH OPEN SWITCH OPENER SWITCH PUSH SWITCH REAR LIFTING SWITCH RECLINING SWITCH REQUEST SWITCH RIGHT FRONT DOOR SWITCH RIGHT FRONT SEAT BELT BUCKLE SWITCH RIGHT LUMBAR SUPPORT SWITCH RIGHT POWER SEAT SWITCH RIGHT POWER WINDOW, DOOR LOCK/ UNLOCK SWITCH RIGHT POWER WINDOW, DOOR LOCK/UNLOCK SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT BELT BUCKLE SWITCH SAFETY SWITCH SAFETY SWITCH LED SEAT MEMORY SWITCH SELECT SWITCH SENS GND ASCD STEERING SWITCH SHIFT DOWN SWITCH SHIFT UP SWITCH SLIDING SWITCH STOP LAMP SWITCH SWITCH ASSEMBLY SWITCH INPUT TELEMATICS SWITCH TELESCOPIC SWITCH TILT SWITCH TRANSMISSION RANGE SWITCH TRIP RESET SWITCH UNLOCK SWITCH WASHER FLUID LEVEL SWITCH

AWD SOLENOID CONTROL VALVE CTRL SOLENOID VALVE CTRL VALVE ELECTRICAL CONTROL VALVE EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EVAP CANISTER VENT CONTROL VALVE EVAP CANISTER VENT CTRL VALVE EXHAUST VALVE TIMING CONTROL SOLENOID VALVE EXHAUST VALVE TIMING CTRL SOLENOID VALVE LINE PRESS SOL VALVE LINE PRESSURE SOLENOID VALVE MULTI-WAY CONTROL VALVE MULTI-WAY CONTROL VALVE POSITION SENS MULTI-WAY CONTROL VALVE SHIELD PRI PRESS SOL VALVE PRIMARY PRESSURE SOLENOID VALVE SEC PRESS SOL VALVE SECONDARY PRESSURE SOLENOID VALVE SELECT SOL VALVE SELECT SOLENOID VALVE TCC SOL VALVE TORQUE CONVERTER CLUTCH SOLENOID VALVE TURBOCHARGER BYPASS CONTROL VALVE TURBOCHARGER BYPASS CTRL VALVE VALVE POSITION SENS
