Infiniti Q45 II (1996–2001) wiring diagrams

List of systems:

Automatic a/c circuit

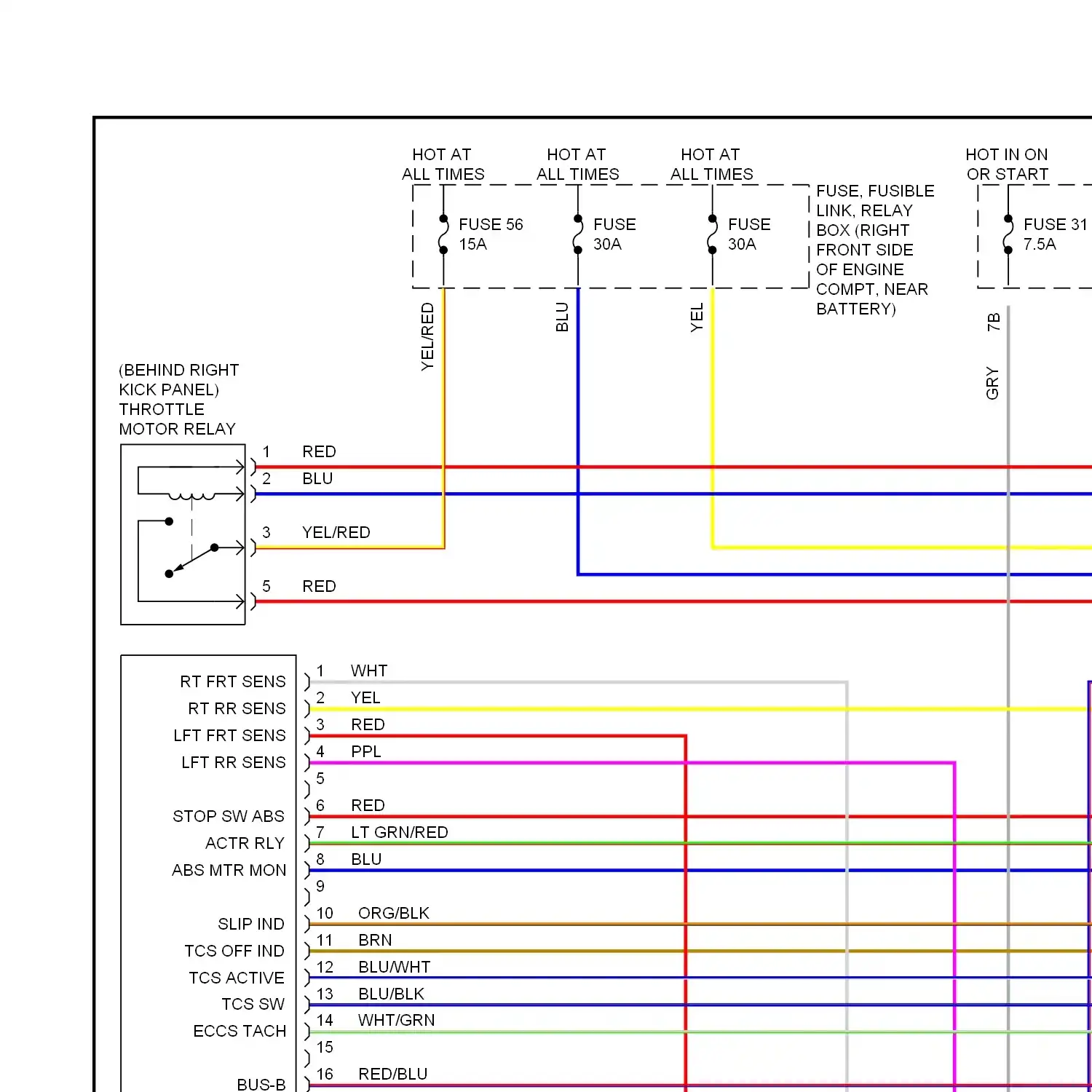

Anti-lock brake circuits

Anti-theft circuit Immobilizer circuit (nats)

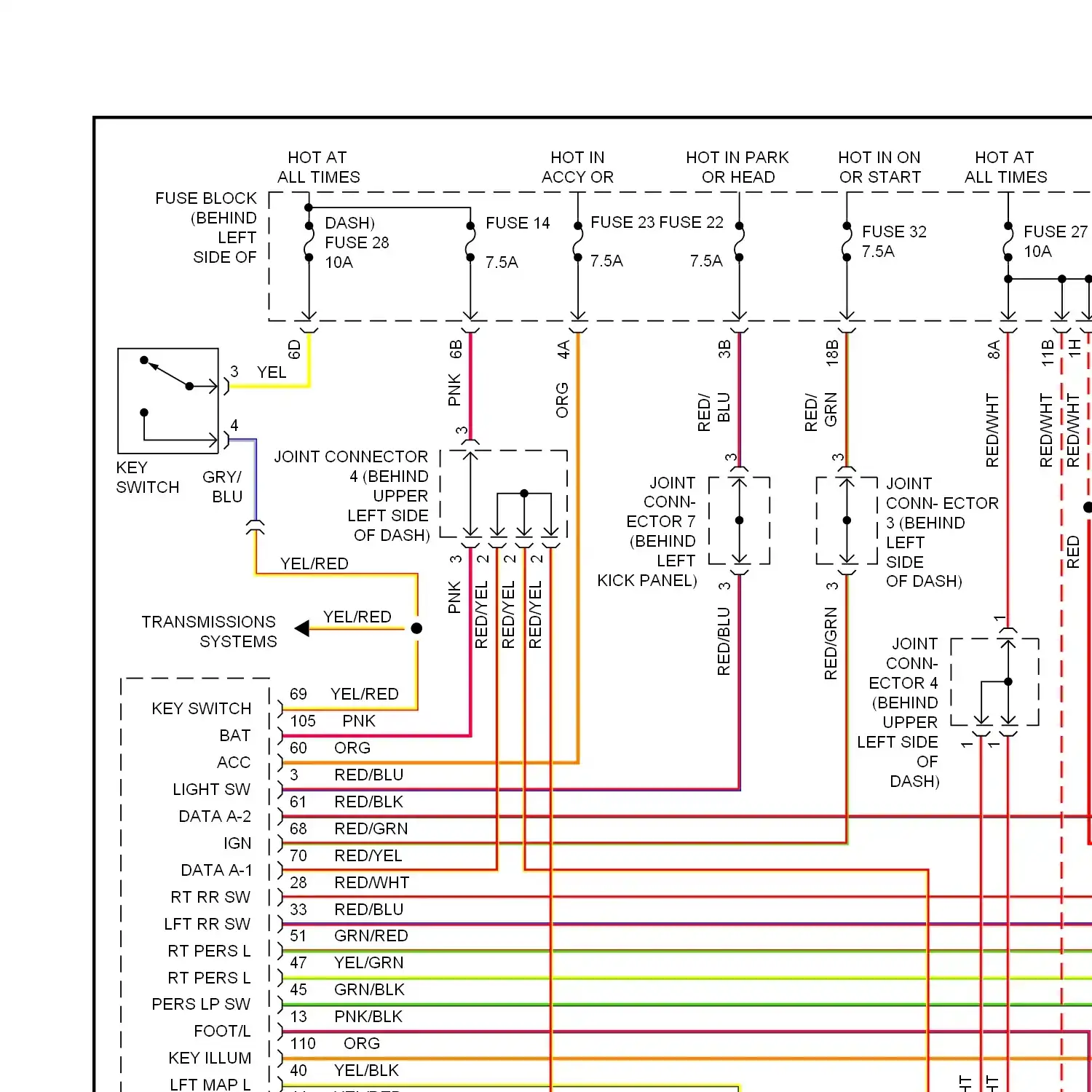

Body computer circuits

Computer data lines

Cooling fan circuit

Cruise control circuit

Defogger circuit

Electronic power steering circuit

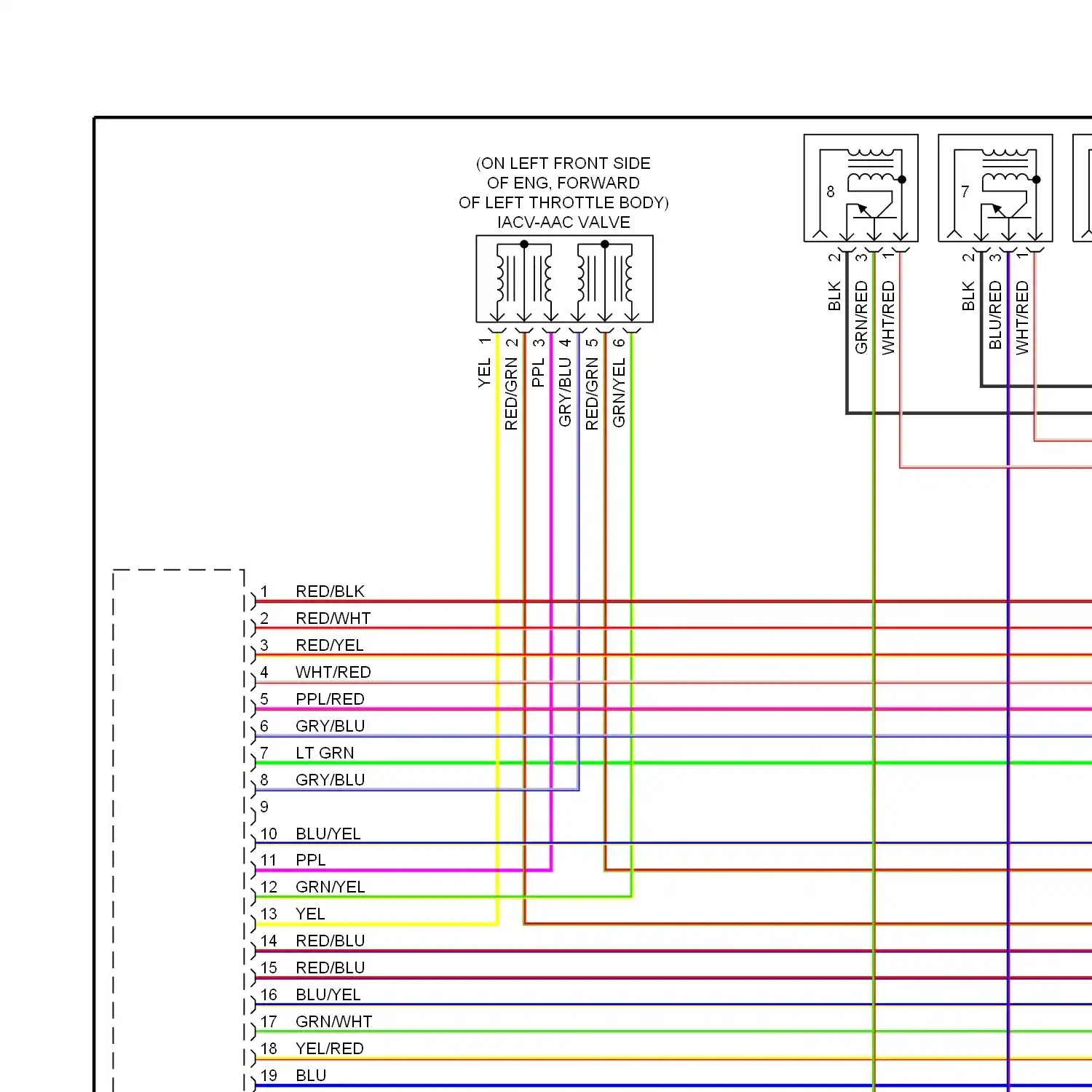

Wiring diagram engine performance 4.1ls

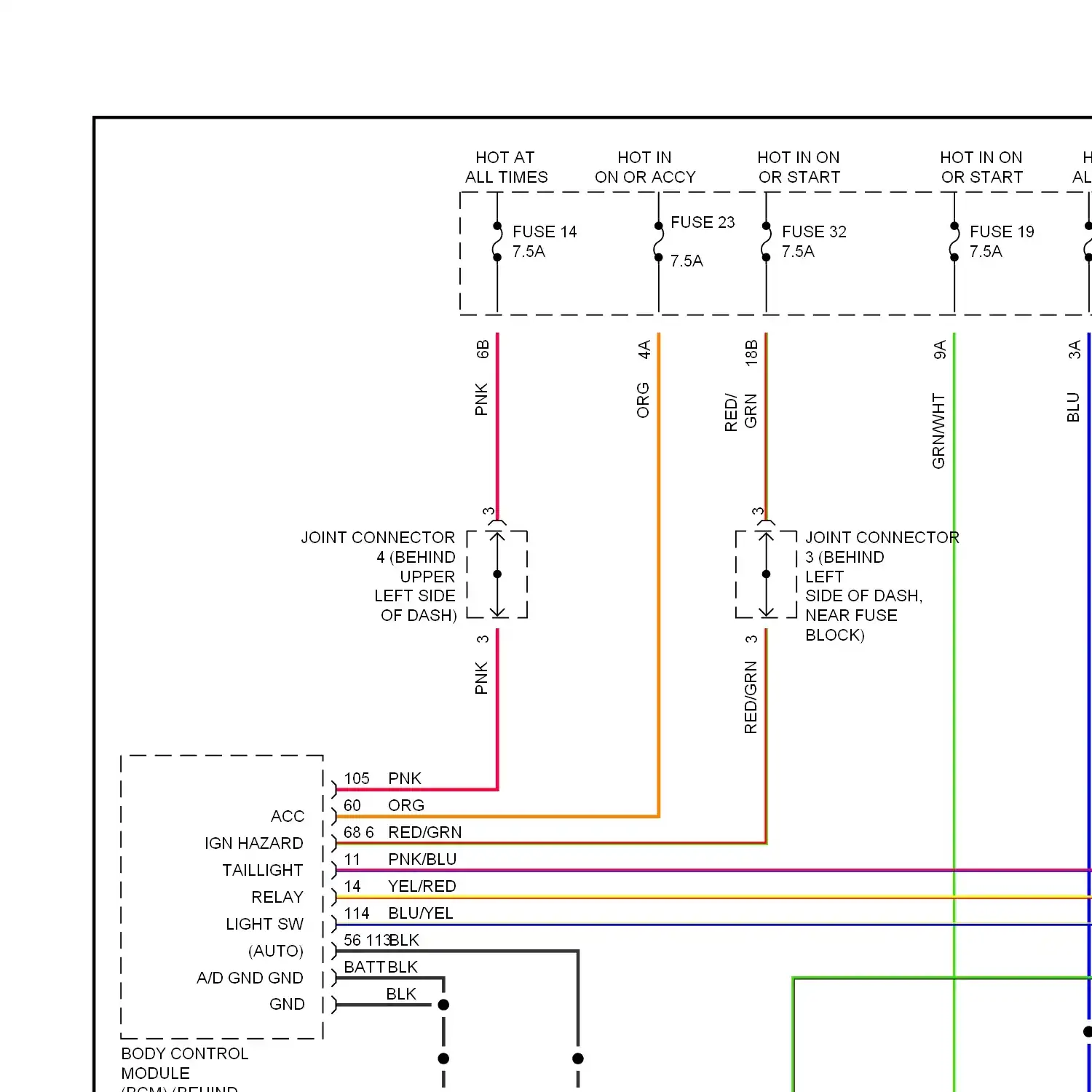

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlamp aiming circuit Headlight circuit, with drl, without xenon lamps Headlight circuit, with drl, with xenon lamps Headlight circuit, without drl, without xenon lamps Headlight circuit, without drl, with xenon lamps

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory system circuits

Power antenna circuit

Power distribution circuit

Door lock circuit Keyless entry circuit

Auto anti-dazzling inside mirror Power mirrors circuit

Heated seats circuit Passenger power seat circuit

Power top/sunroof circuits

Power window circuit

Radio circuits

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraint circuit

A/t circuit

Trunk & fuel door release circuit Trunk pull-down circuit

Warning system circuits

Wiper/washer circuit
