Infiniti FX35 I facelift (2006–2008) wiring diagrams

List of systems:

Automatic a/c circuit

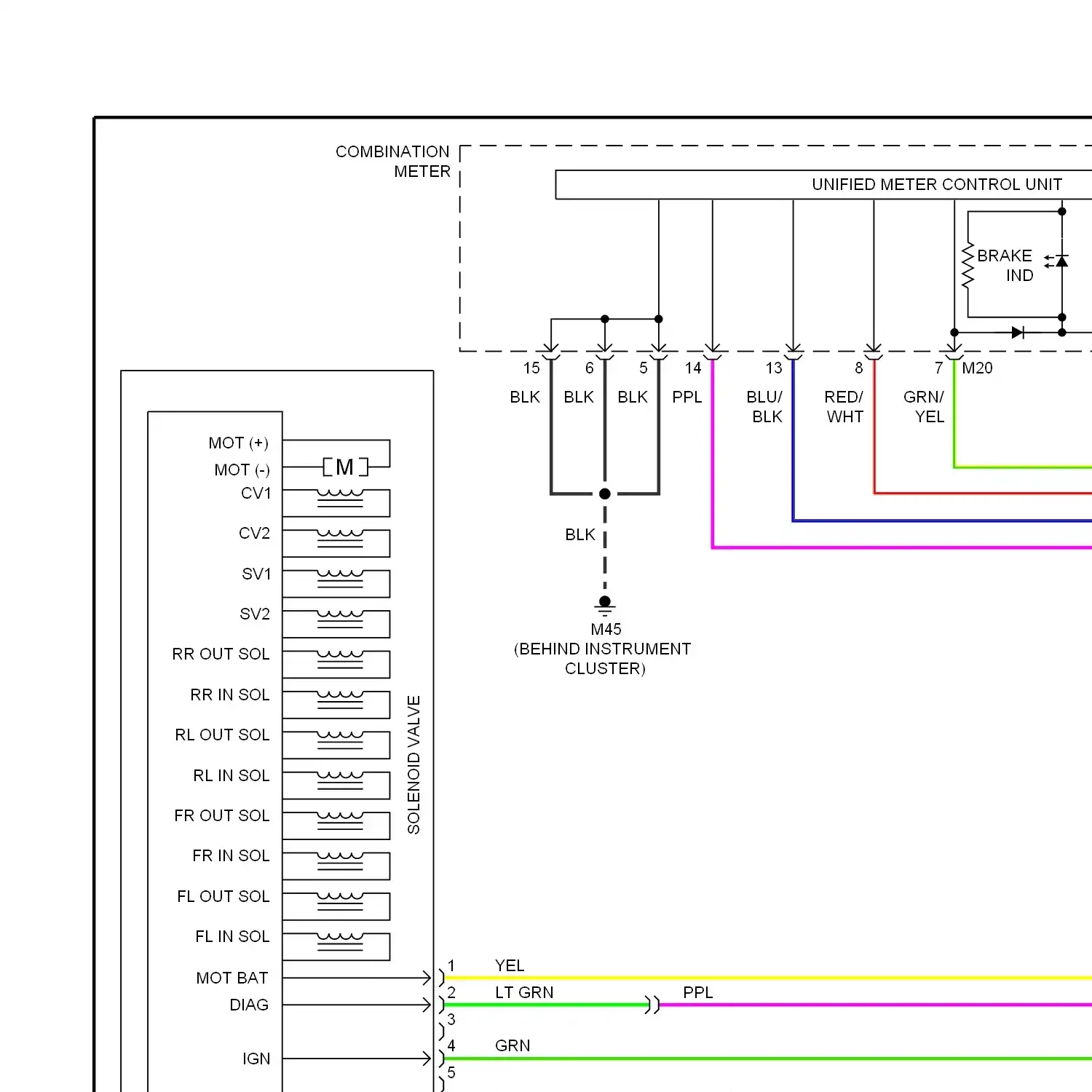

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit (nats), with intelligent key unit Immobilizer circuit (nats), without intelligent key unit

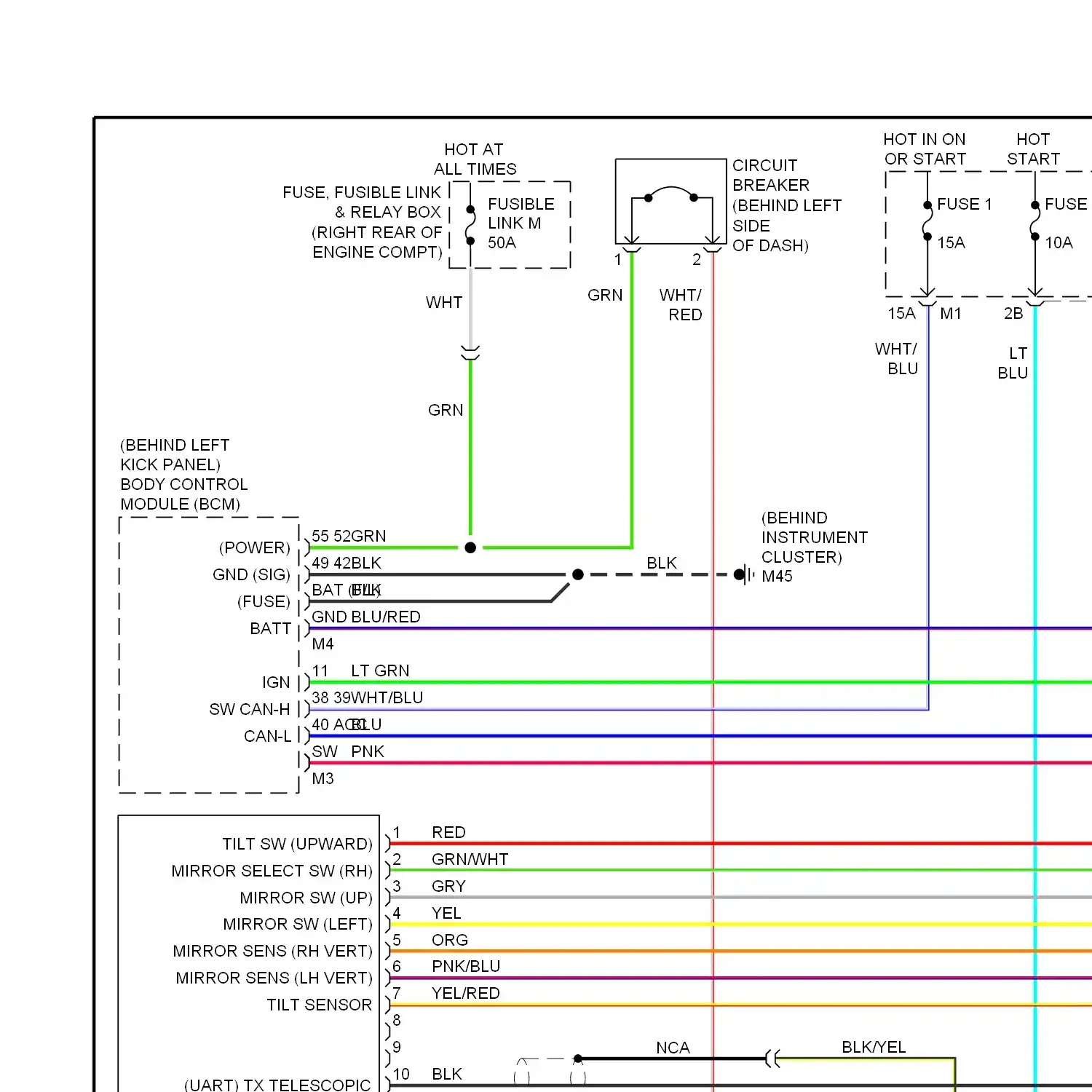

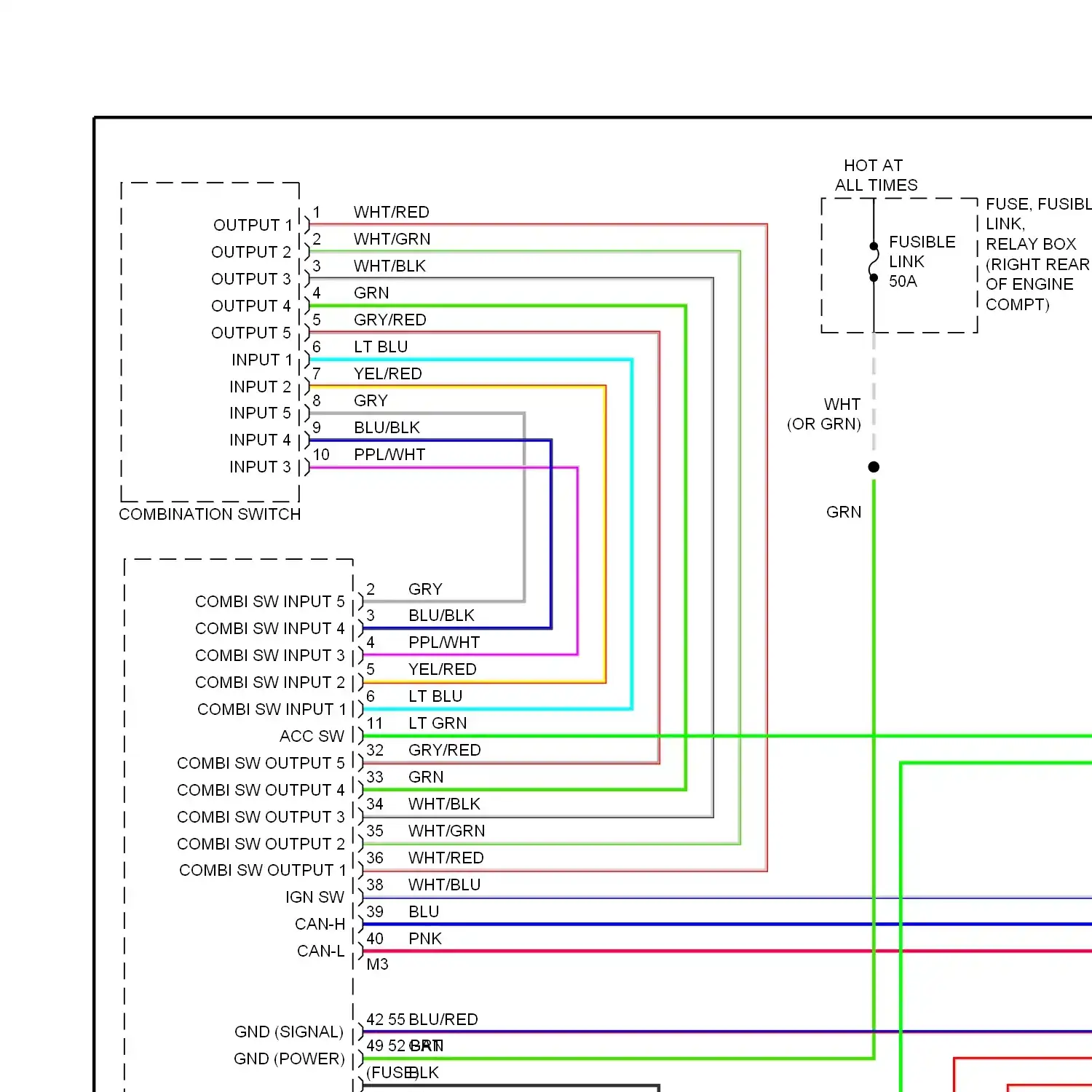

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit Intelligent cruise control circuit

Defoggers circuit

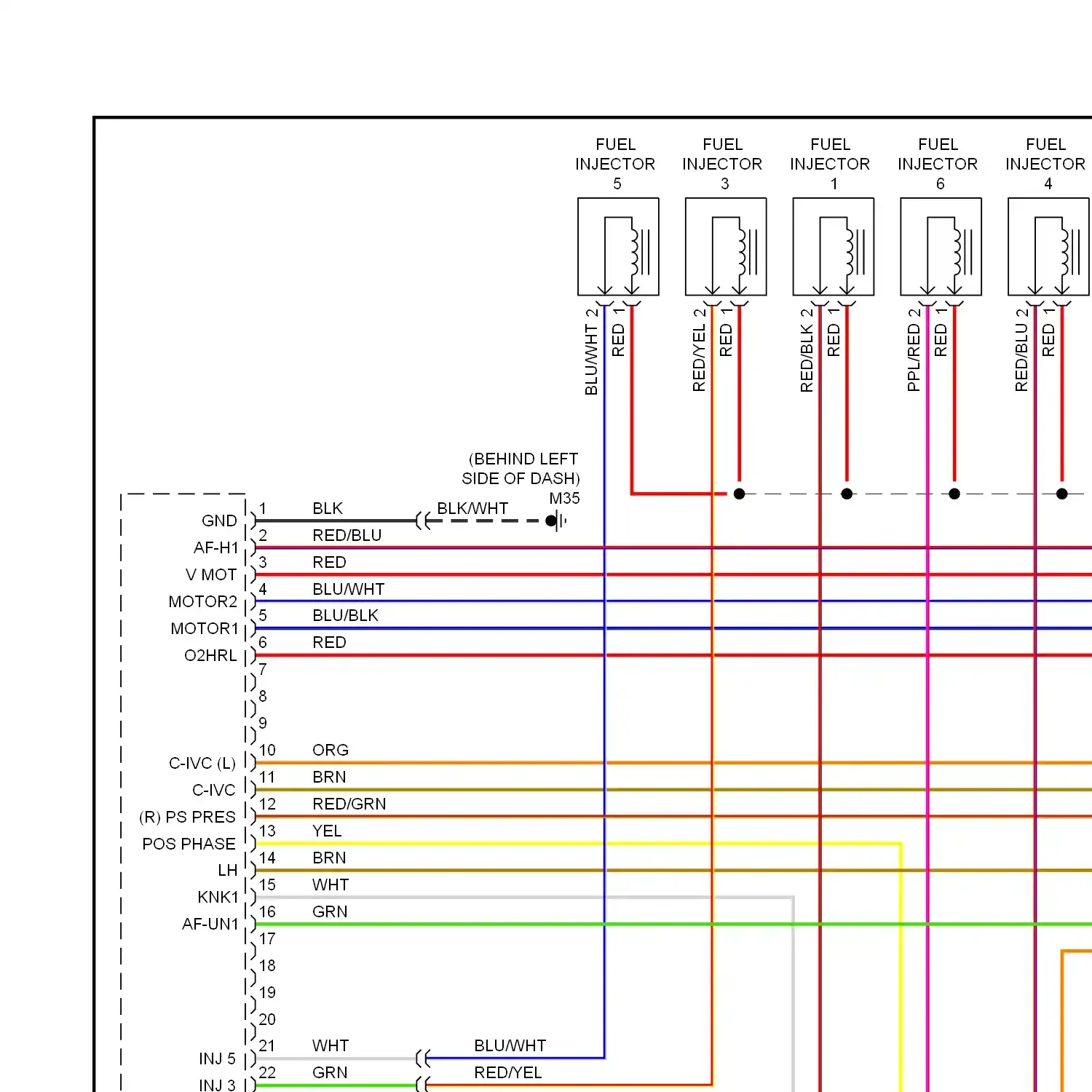

Wiring diagram engine performance 3.5l

Back-up lamps circuit Exterior lamps circuit

Ground distribution circuit

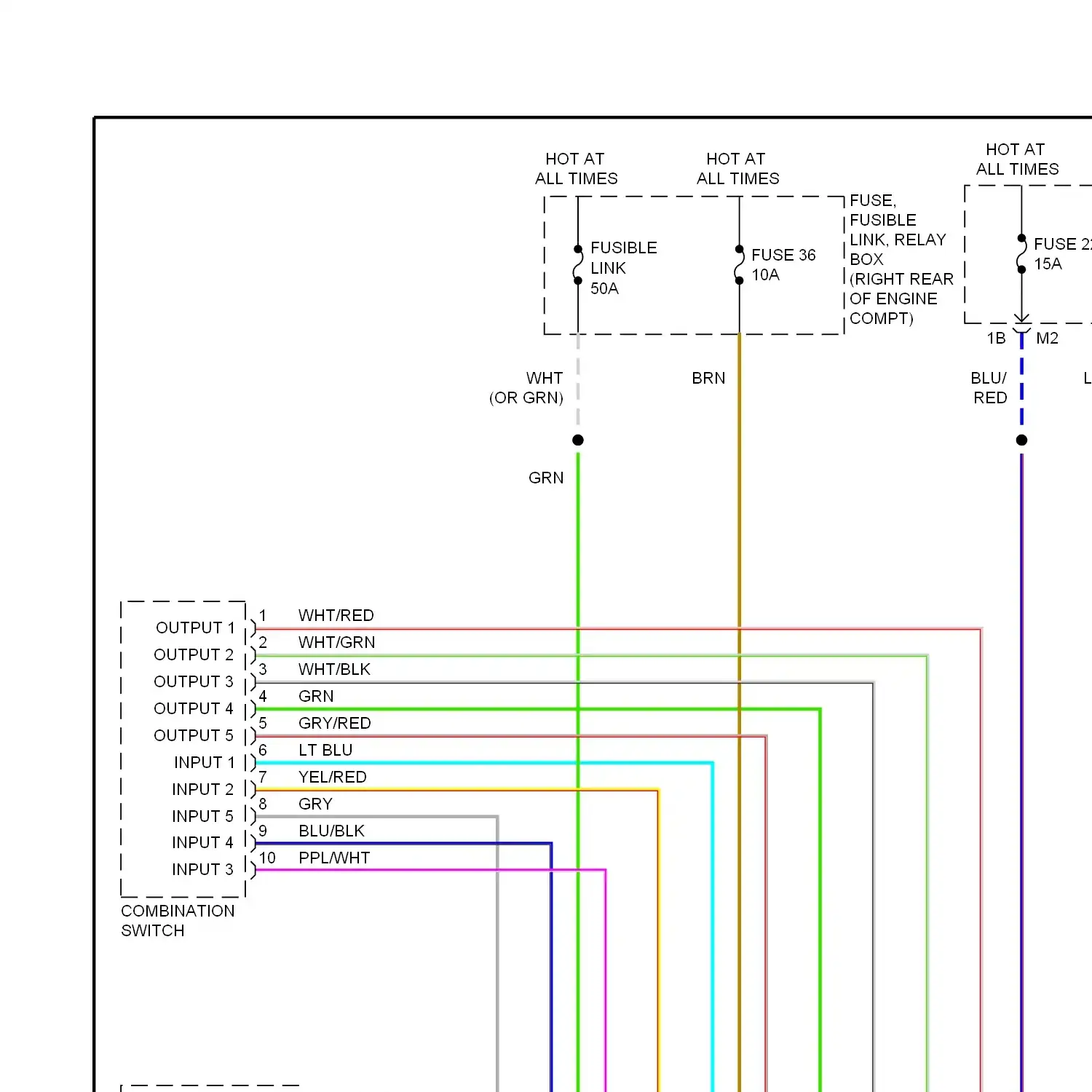

Headlights circuit

Horn circuit

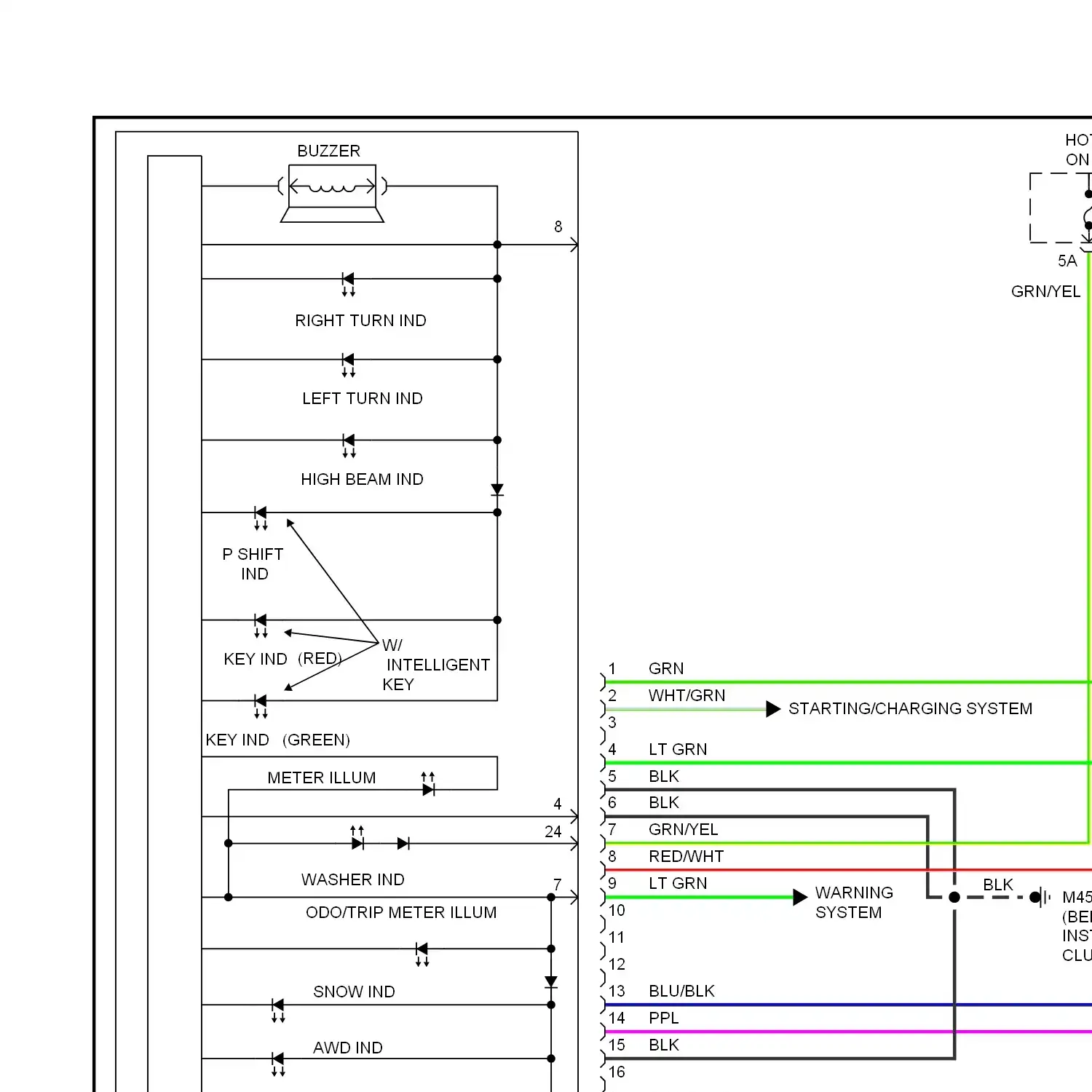

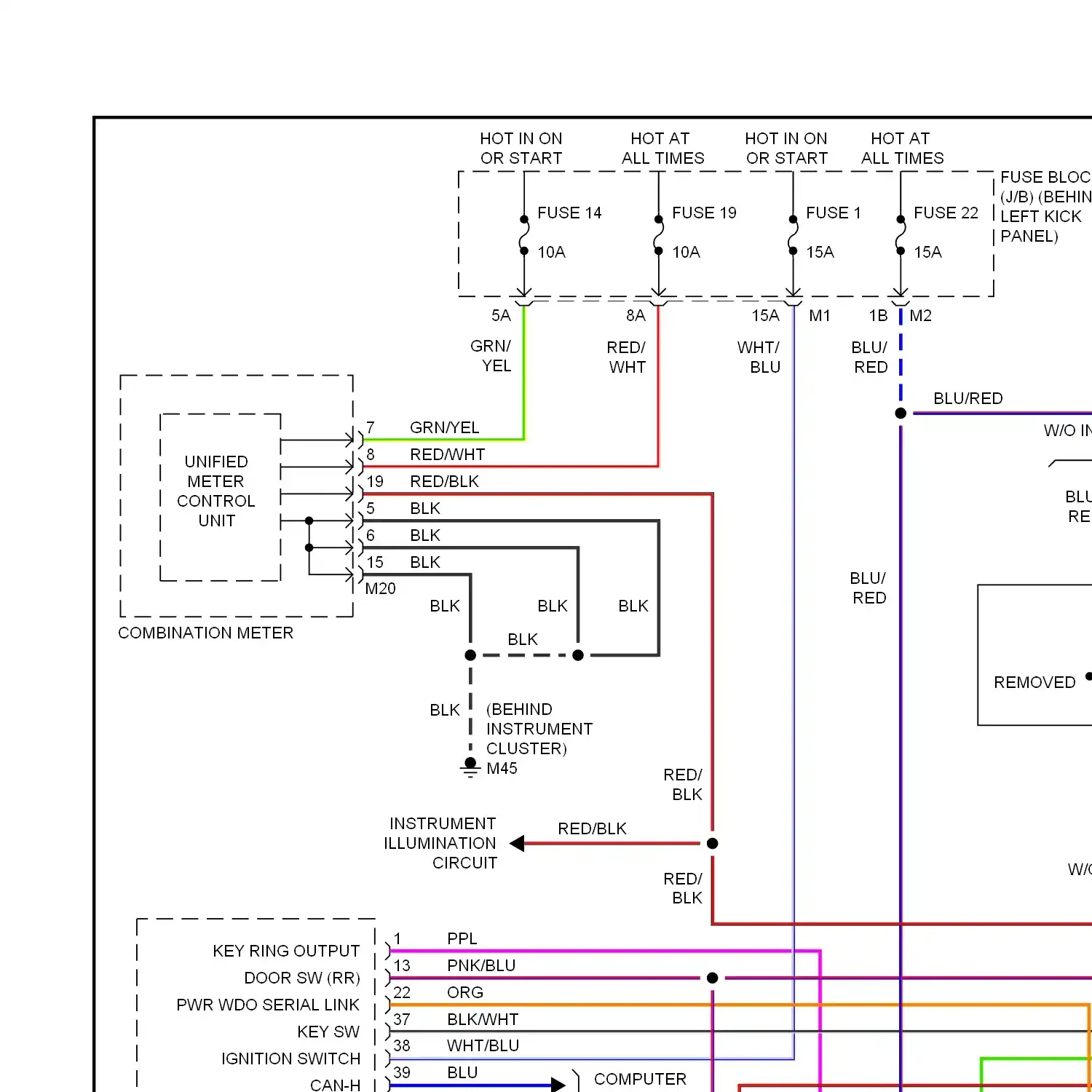

Display circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory systems circuit

Navigation circuit Rear camera circuit

Power distribution circuit

Power door locks circuit, with intelligent key unit Power door locks circuit, without intelligent key unit

Auto anti-dazzling inside mirror circuit

Heated seats circuit Power seats circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit, with navigation Radio circuit, without navigation

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Power liftgate circuit, with intelligent key unit Power liftgate circuit, without intelligent key unit

Chime circuit Lane departure warning circuit Tire pressure monitoring circuit

Front wiper/washer circuit Rear washer/wiper circuit
