Power top/sunroof circuits for Honda Civic VI (1995-2002)

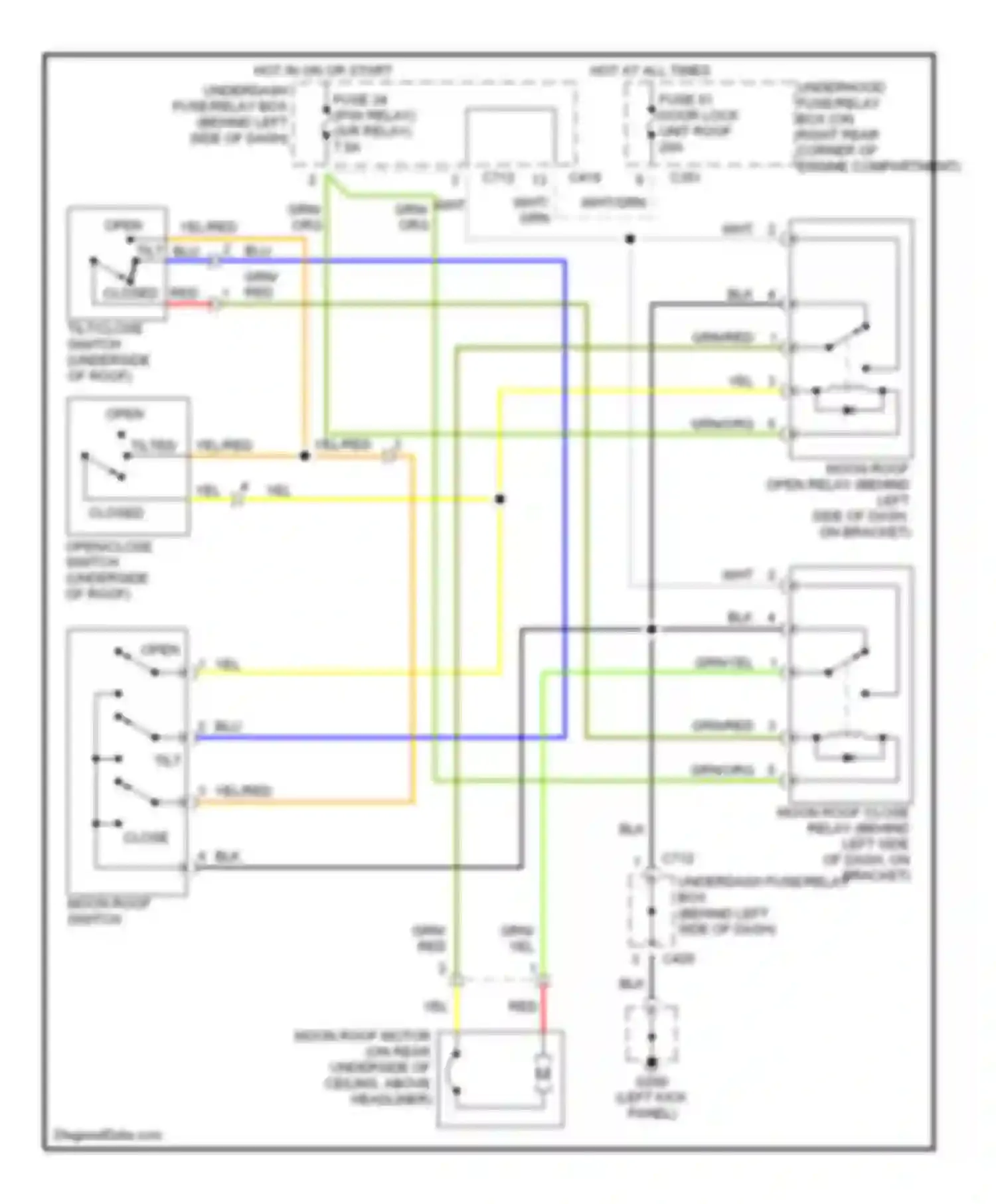

Power top/sunroof circuits
BLK WIRE
BLU WIRE
CLOSE
FUSE 51 DOOR LOCK UNIT, ROOF
GRN WIRE
GRN/ORG WIRE
GRN/RED WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
MOON ROOF CLOSE RELAY (BEHIND LEFT SIDE OF DASH, ON BRACKET)
MOON ROOF MOTOR (ON REAR UNDERSIDE OF CEILING, ABOVE HEADLINER)
MOON ROOF OPEN RELAY (BEHIND LEFT SIDE OF DASH, ON BRACKET)
MOON- ROOF SWITCH
OPEN TILT
OPEN/CLOSE SWITCH (UNDERSIDE OF ROOF)
ORG/ WIRE
RED WIRE
TILT
TILT/CLOSE SWITCH (UNDERSIDE OF ROOF)
TILTED
UNDERDASH FUSE/RELAY BOX (BEHIND LEFT SIDE OF DASH)
UNDERHOOD FUSE/RELAY BOX (ON RIGHT REAR CORNER OF ENGINE COMPARTMENT)
WHT WIRE
WHT/GRN WIRE
YEL WIRE
YEL/RED WIRE
