Honda Civic VI (1995–2002) wiring diagrams

List of systems:

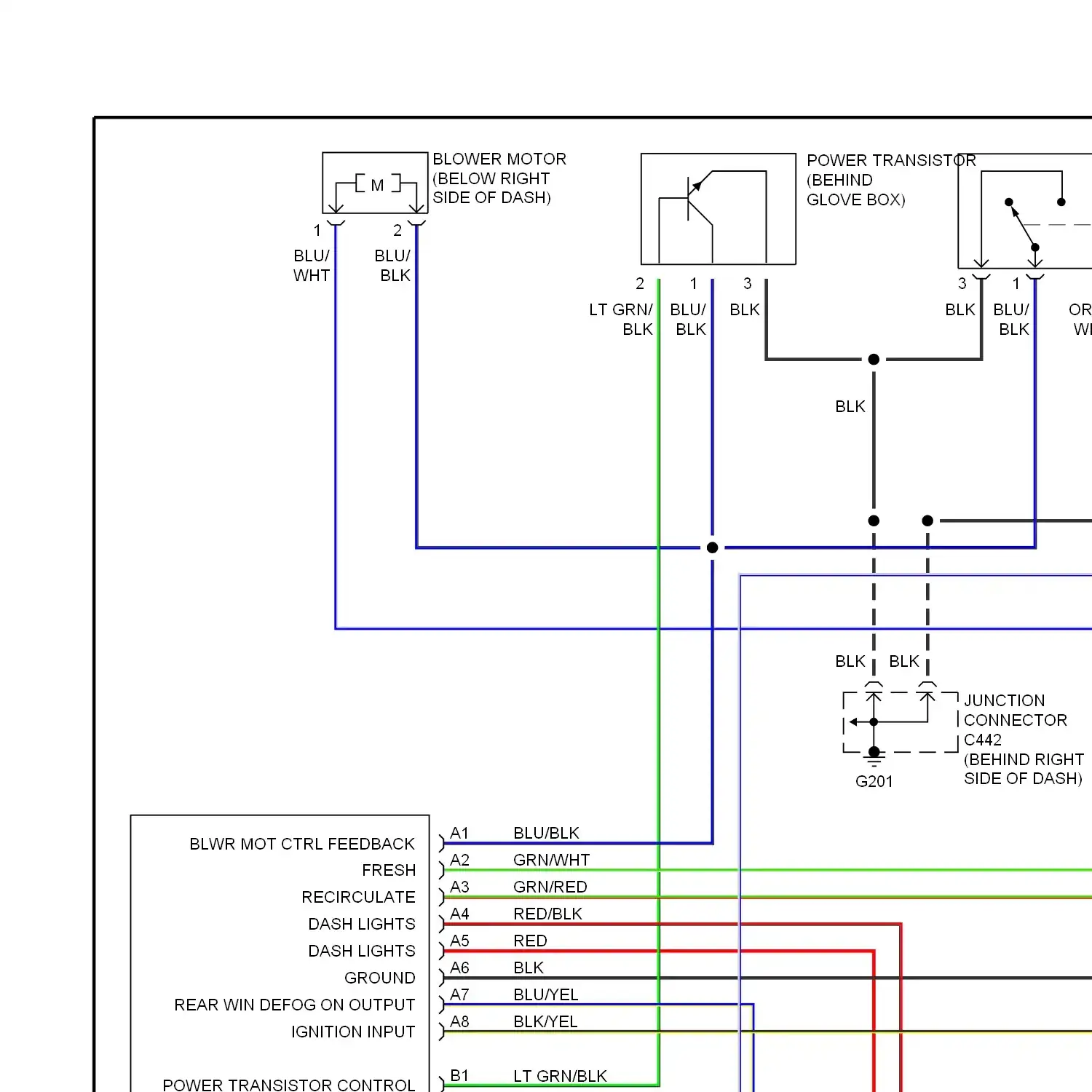

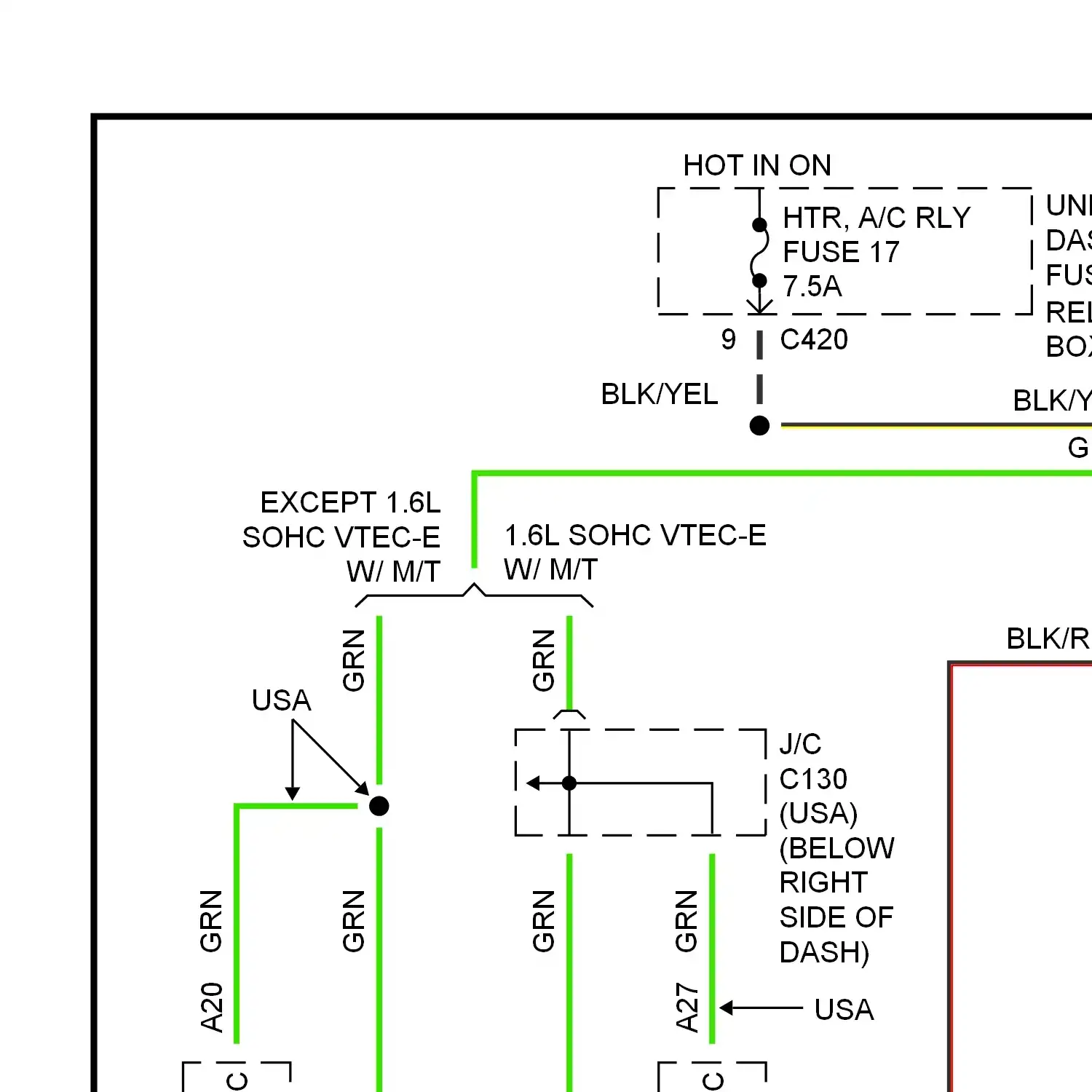

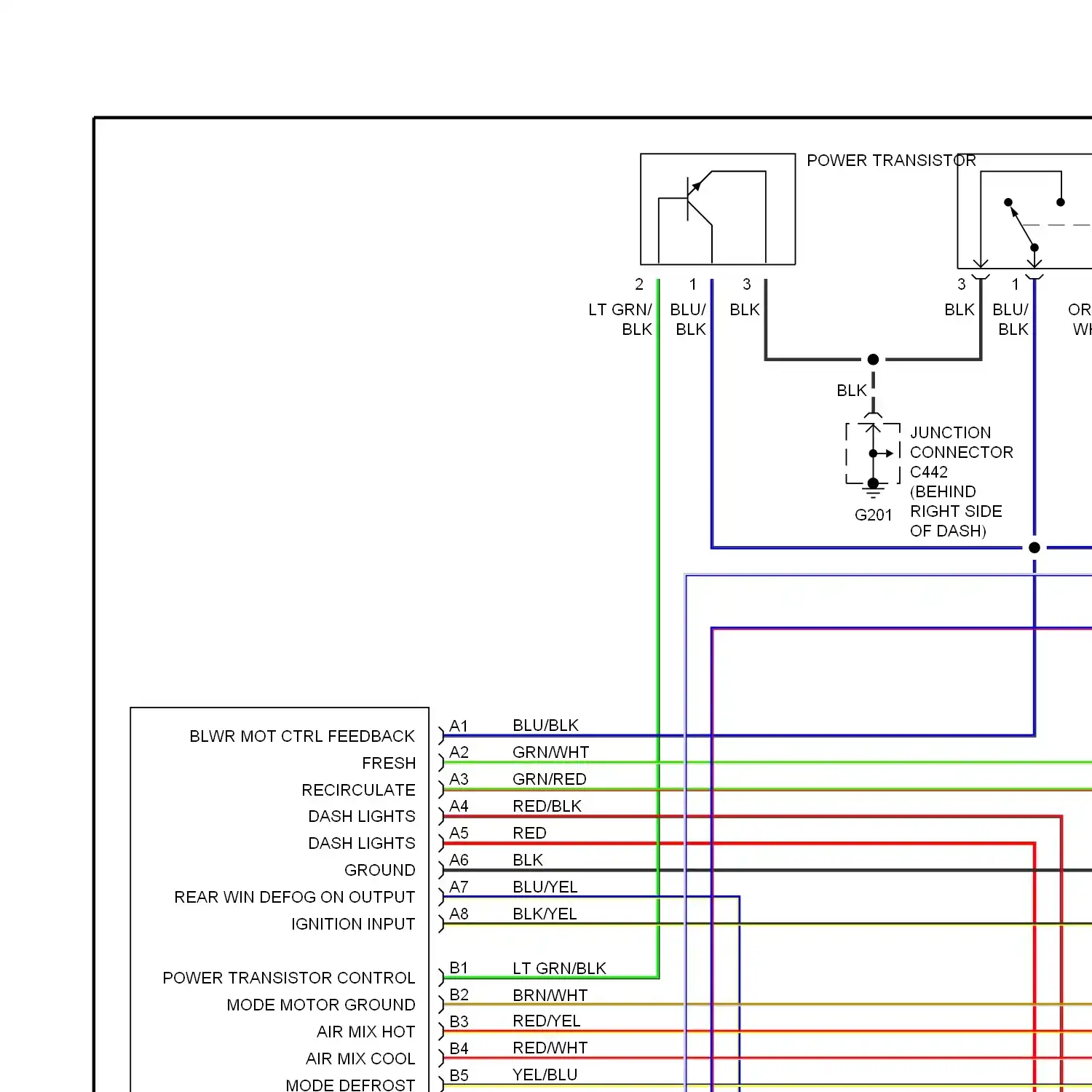

Heater circuit Manual a/c circuit

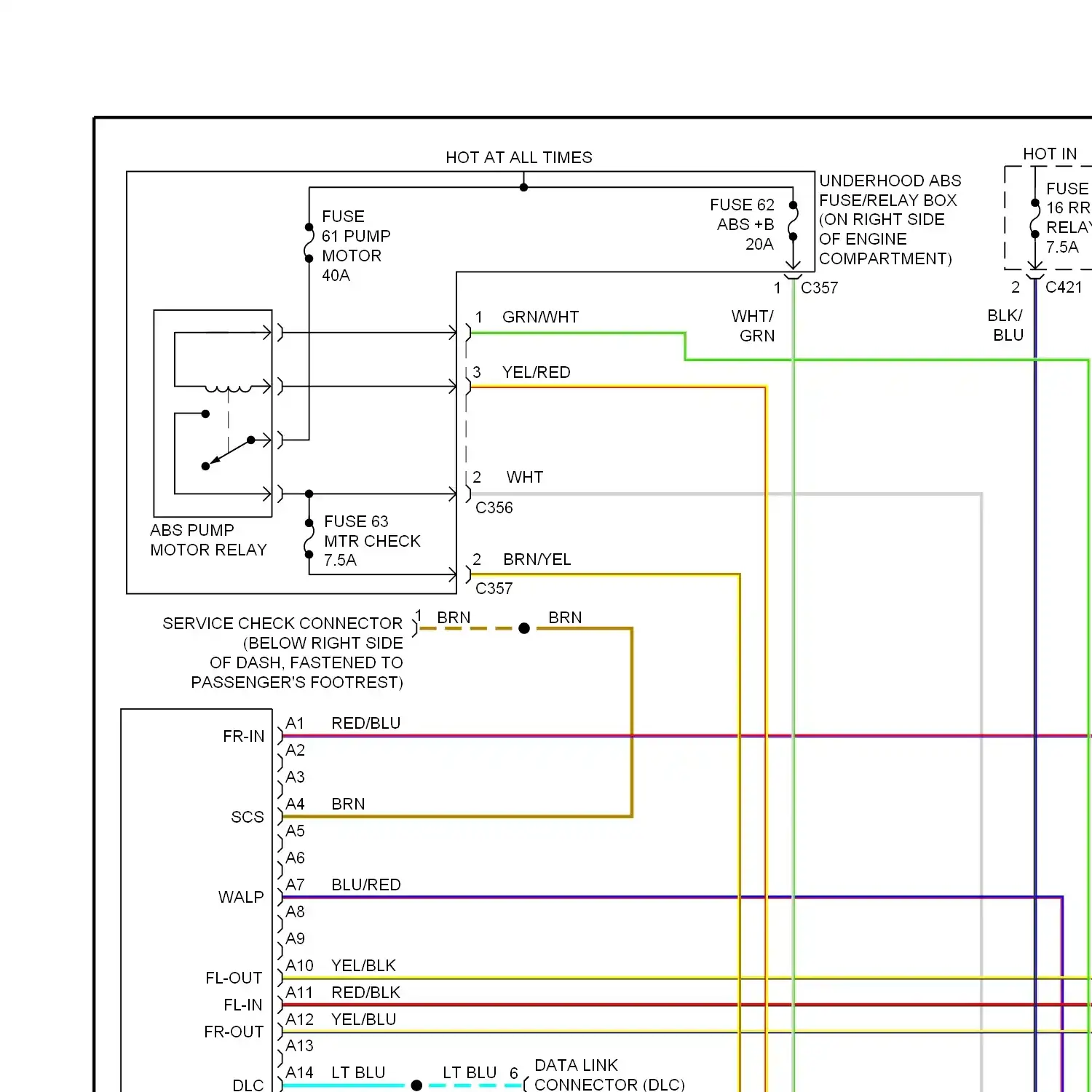

Anti-lock brake circuits

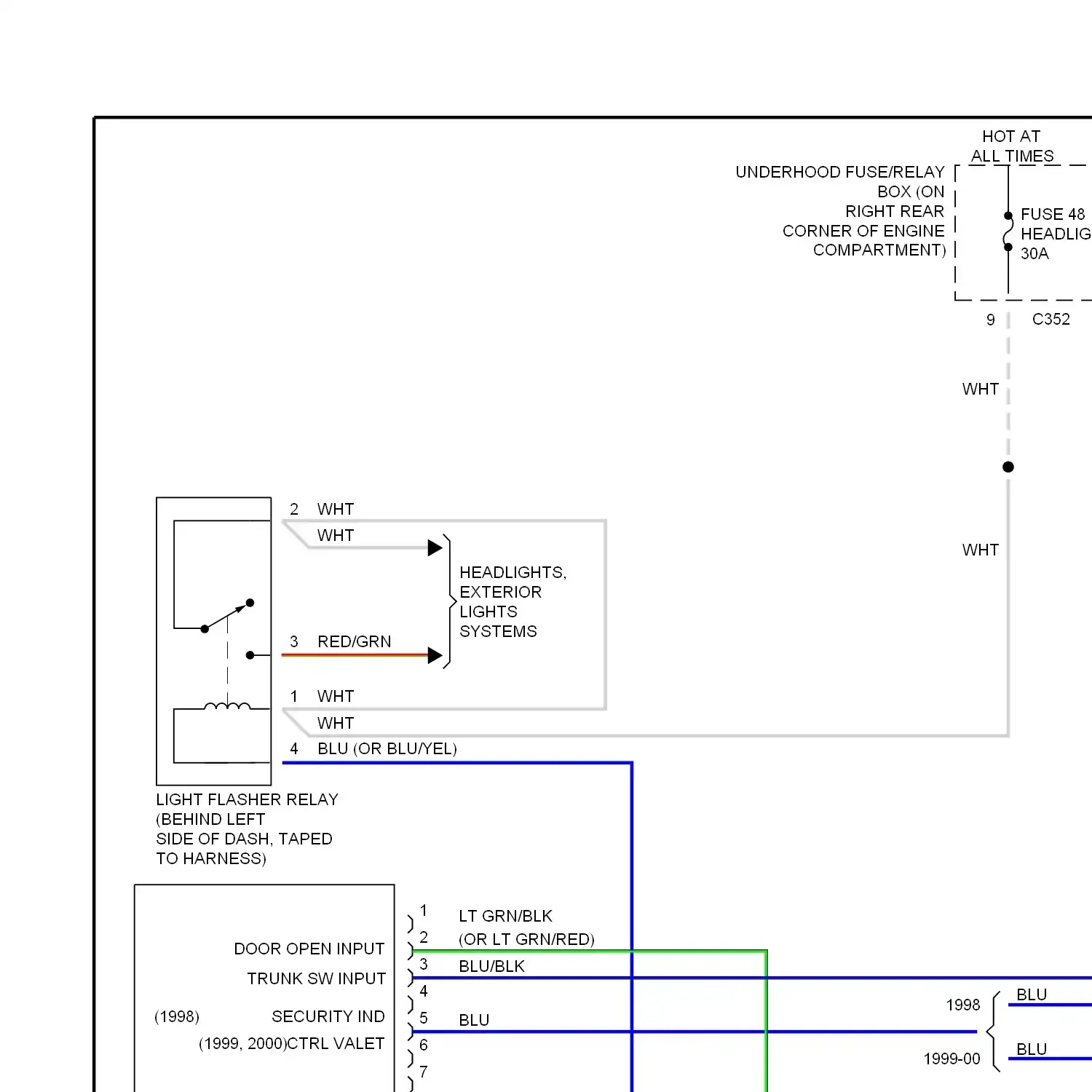

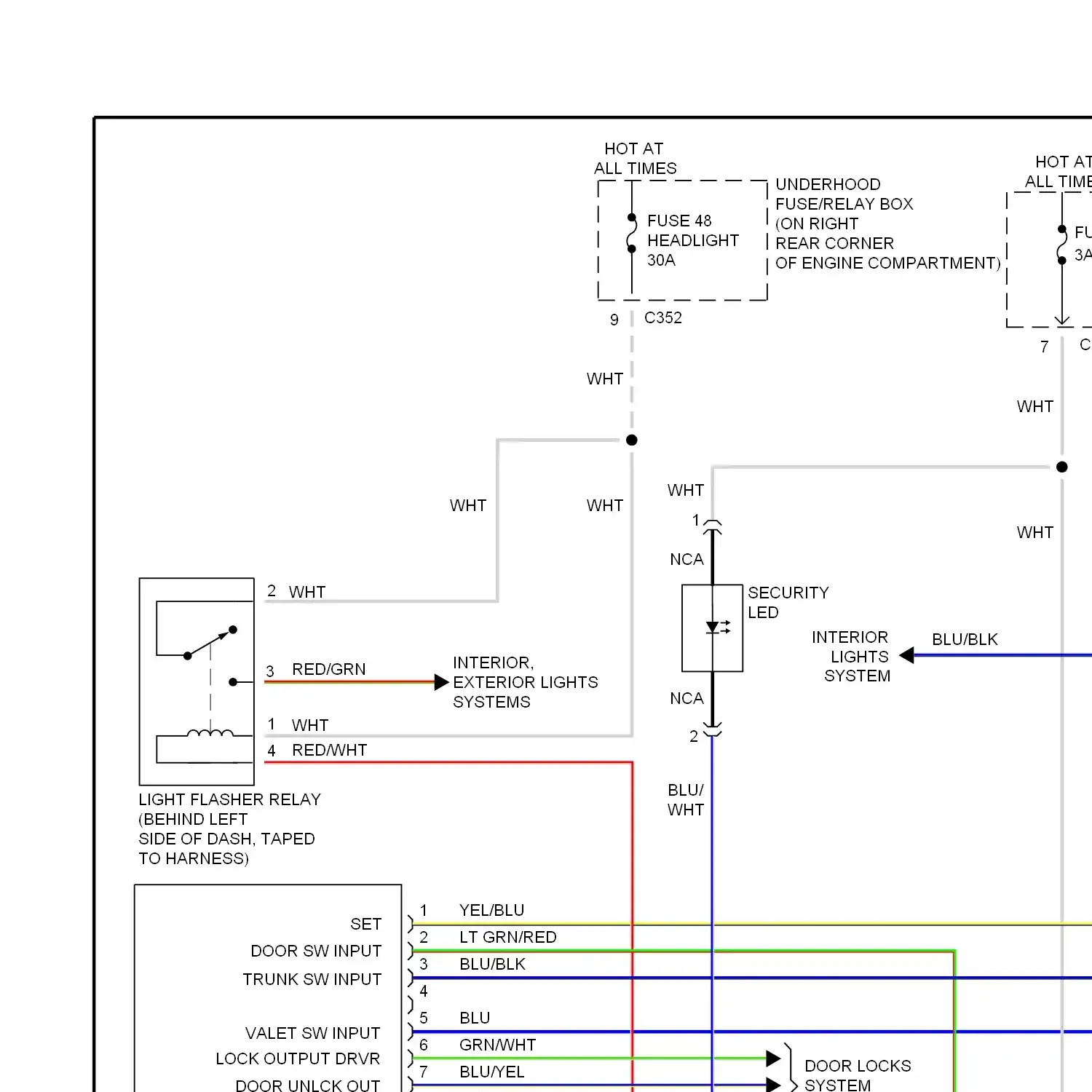

Anti-theft circuit, with keyless entry Anti-theft circuit, without keyless entry

Integrated control unit circuit

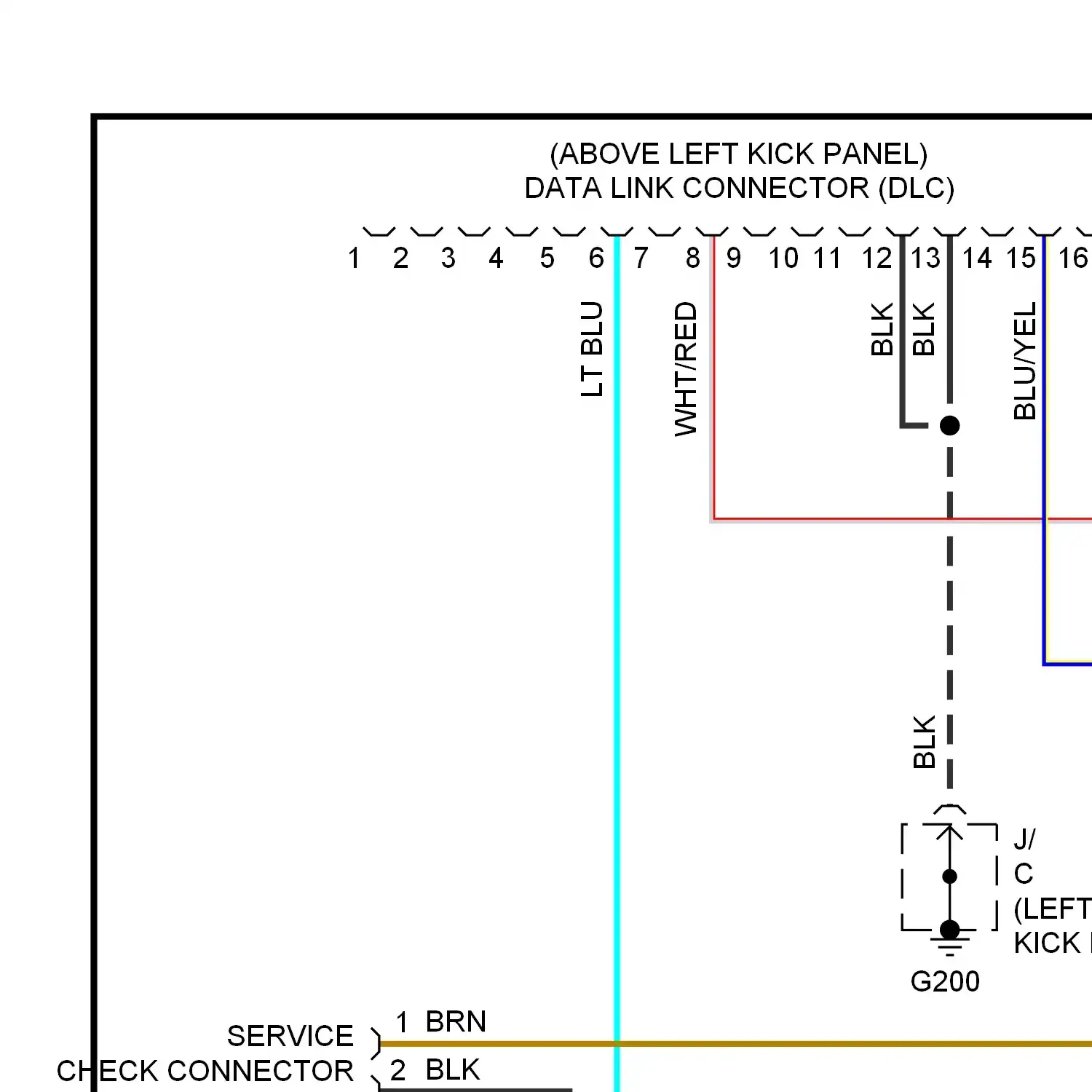

Computer data lines

Cooling fan circuit

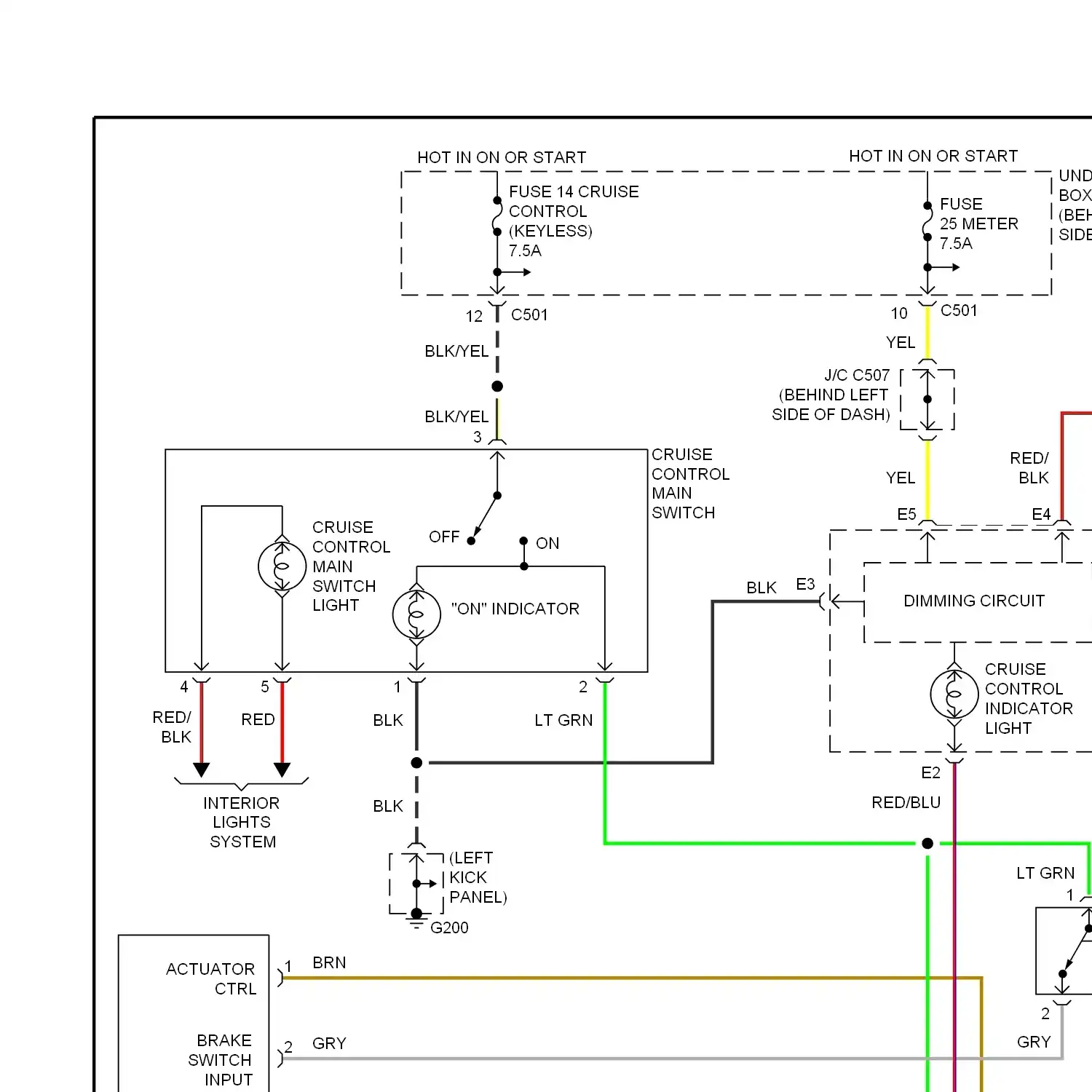

Cruise control circuit

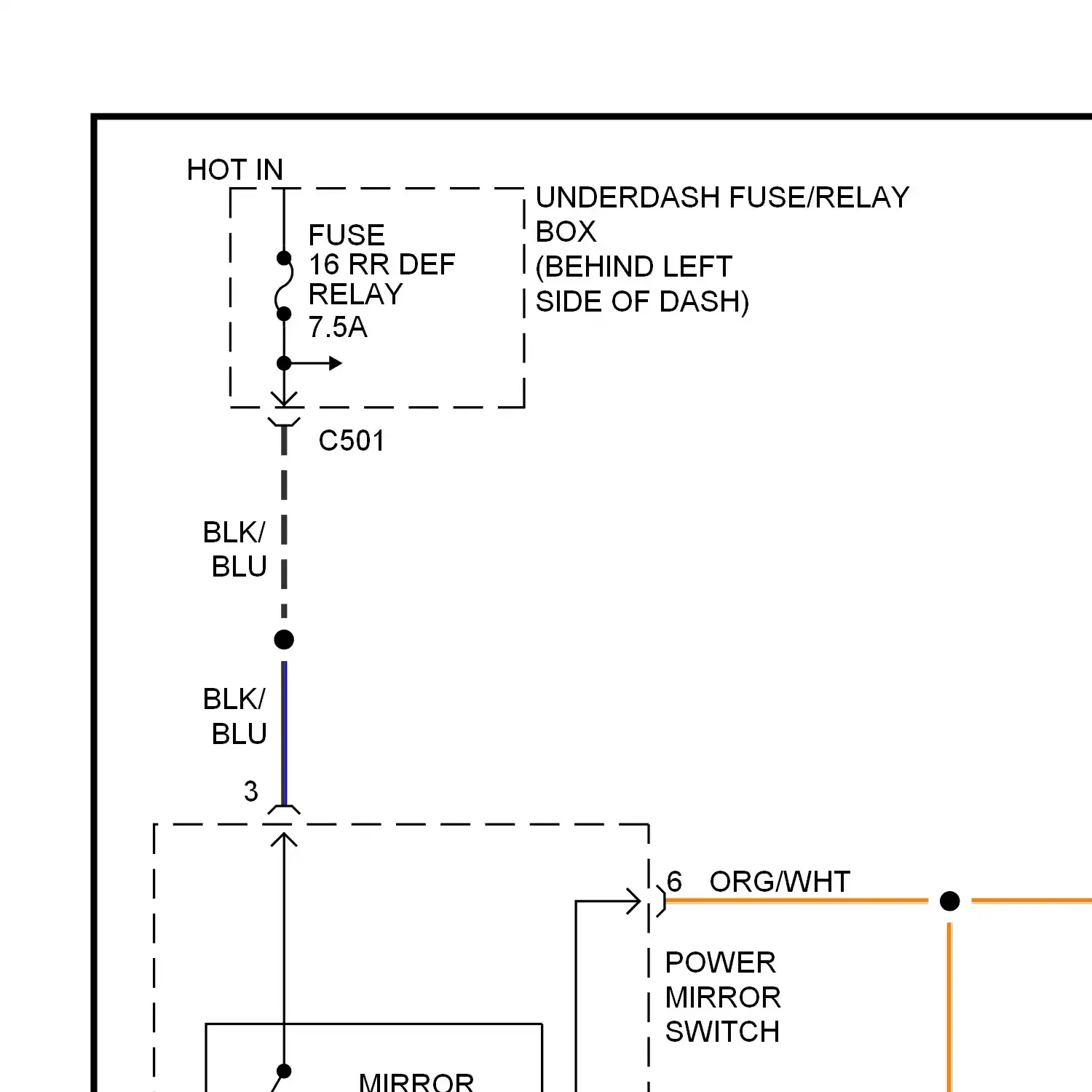

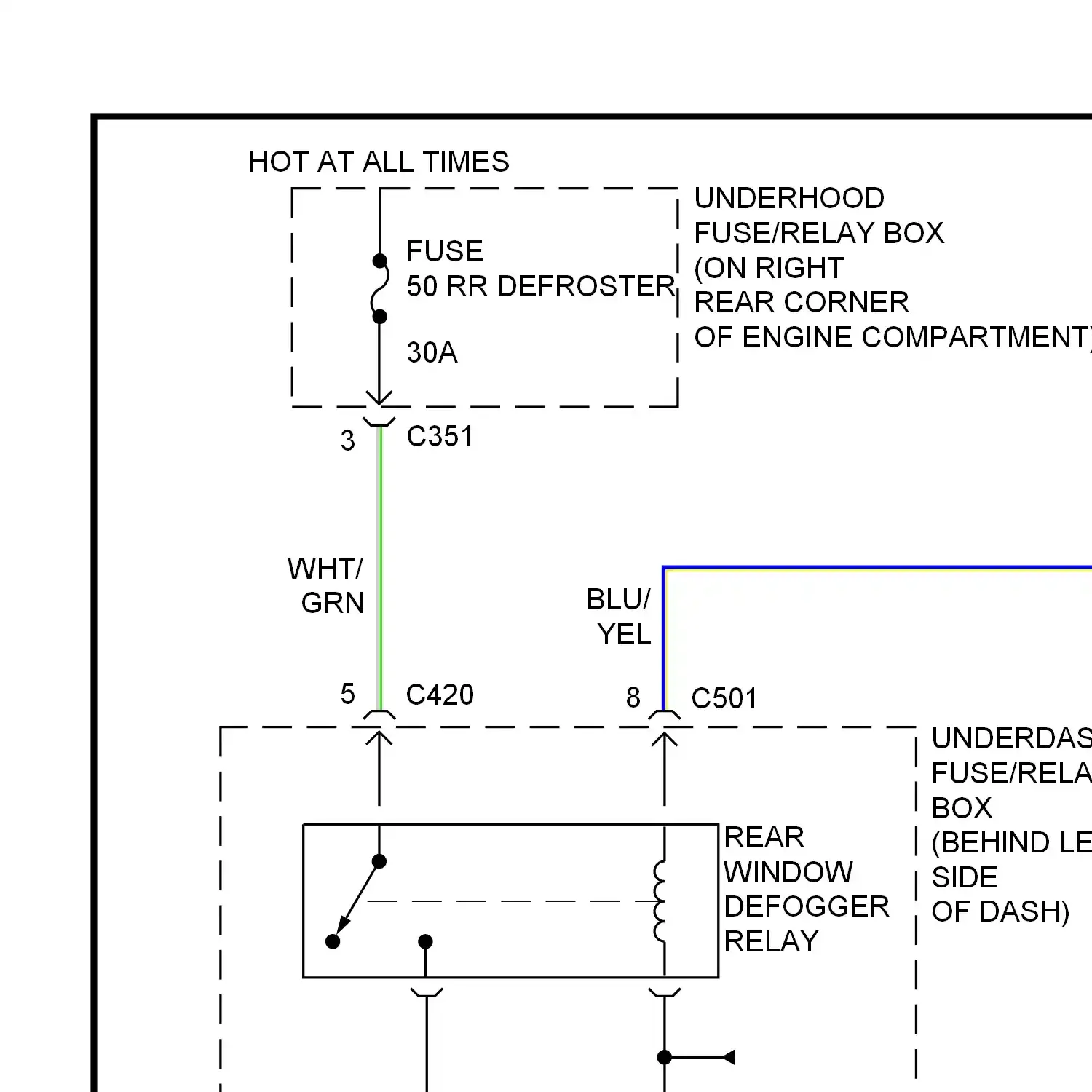

Heated mirrors circuit Rear defogger circuit

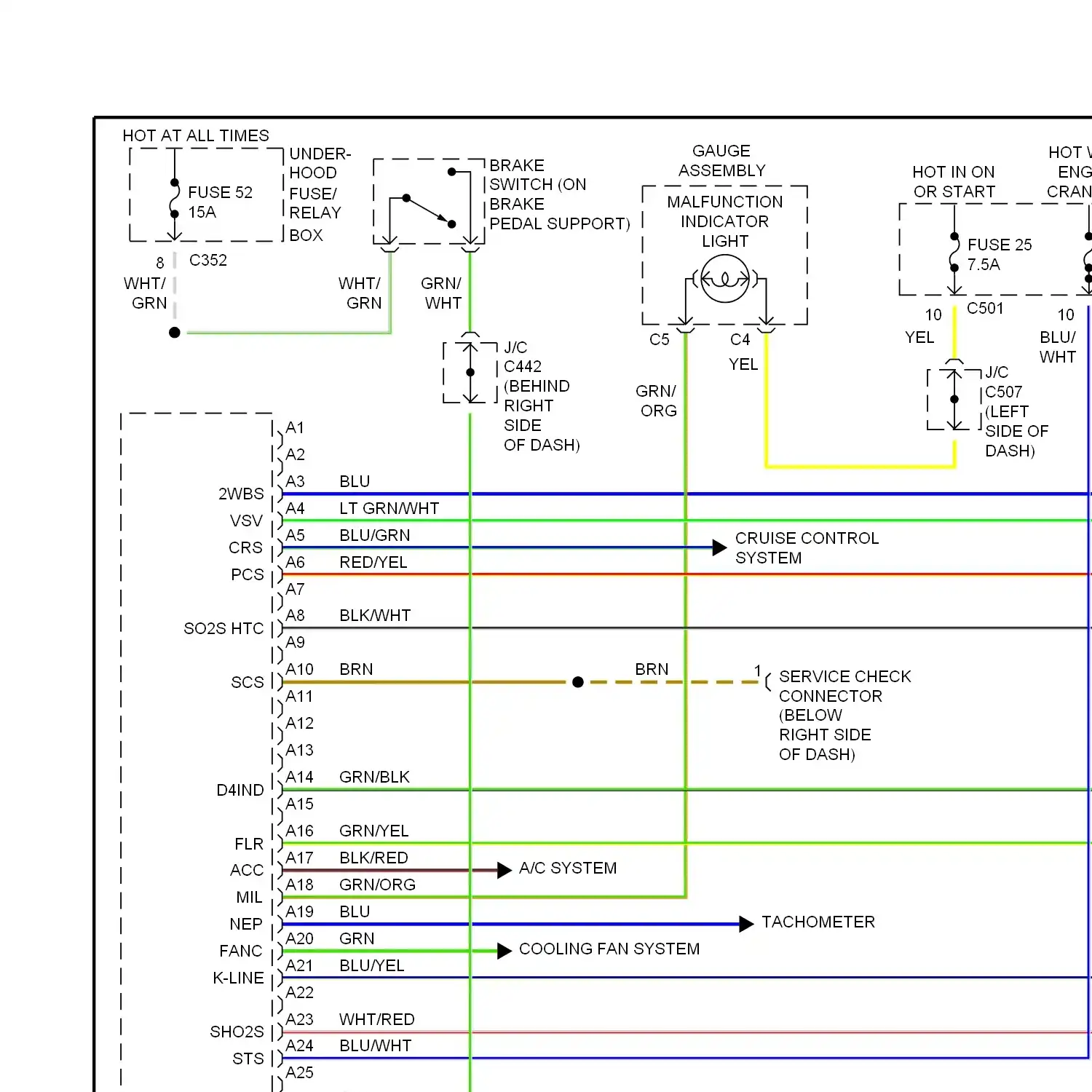

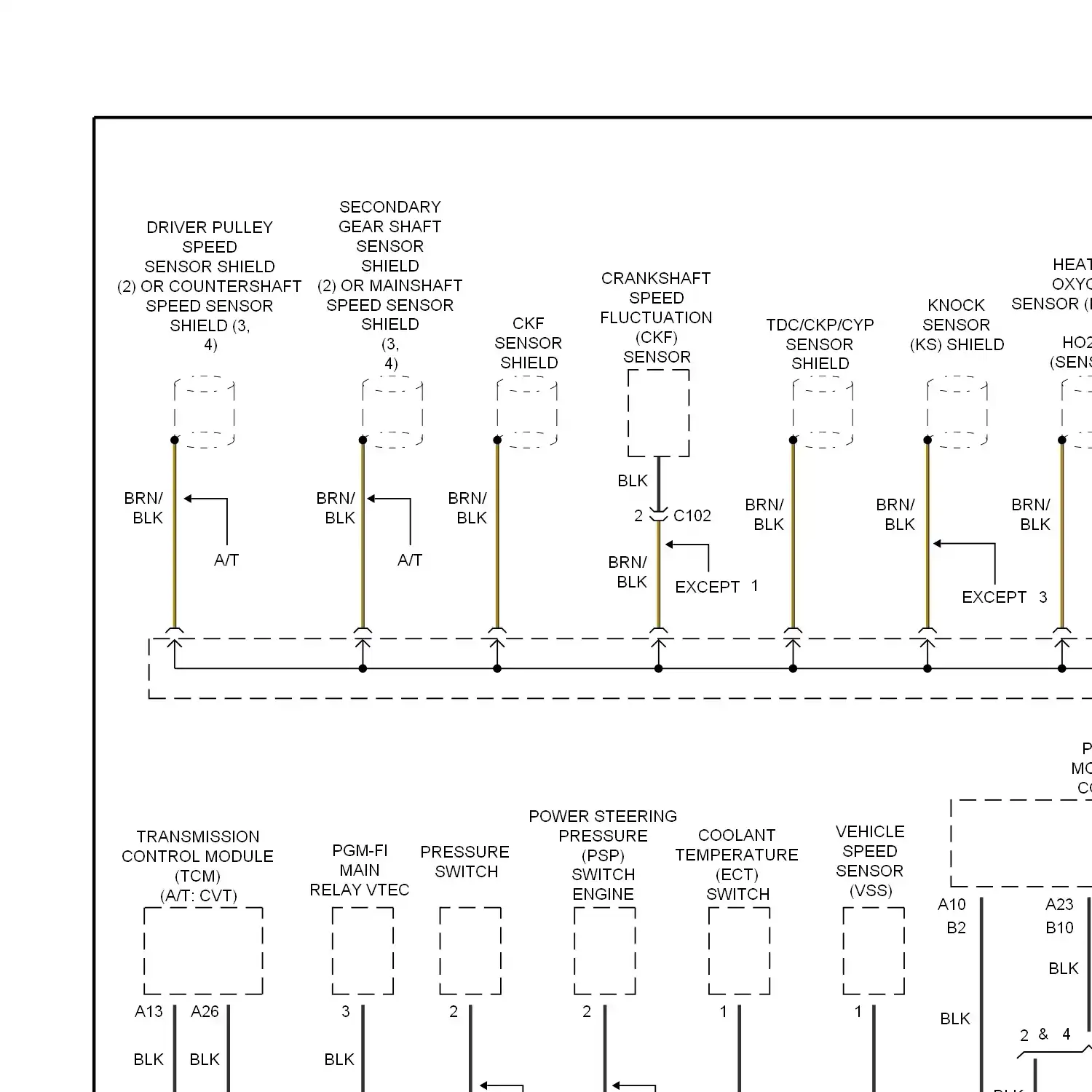

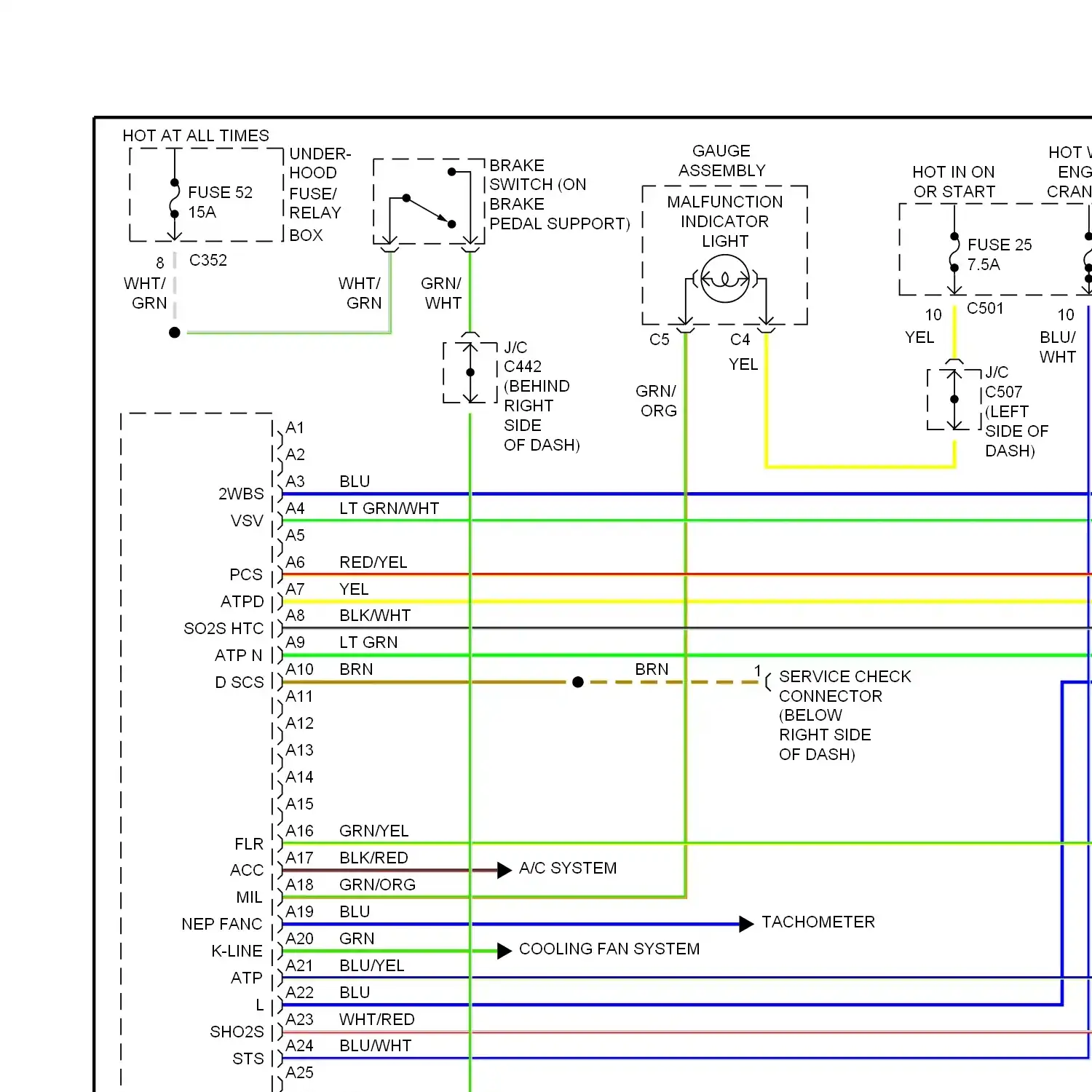

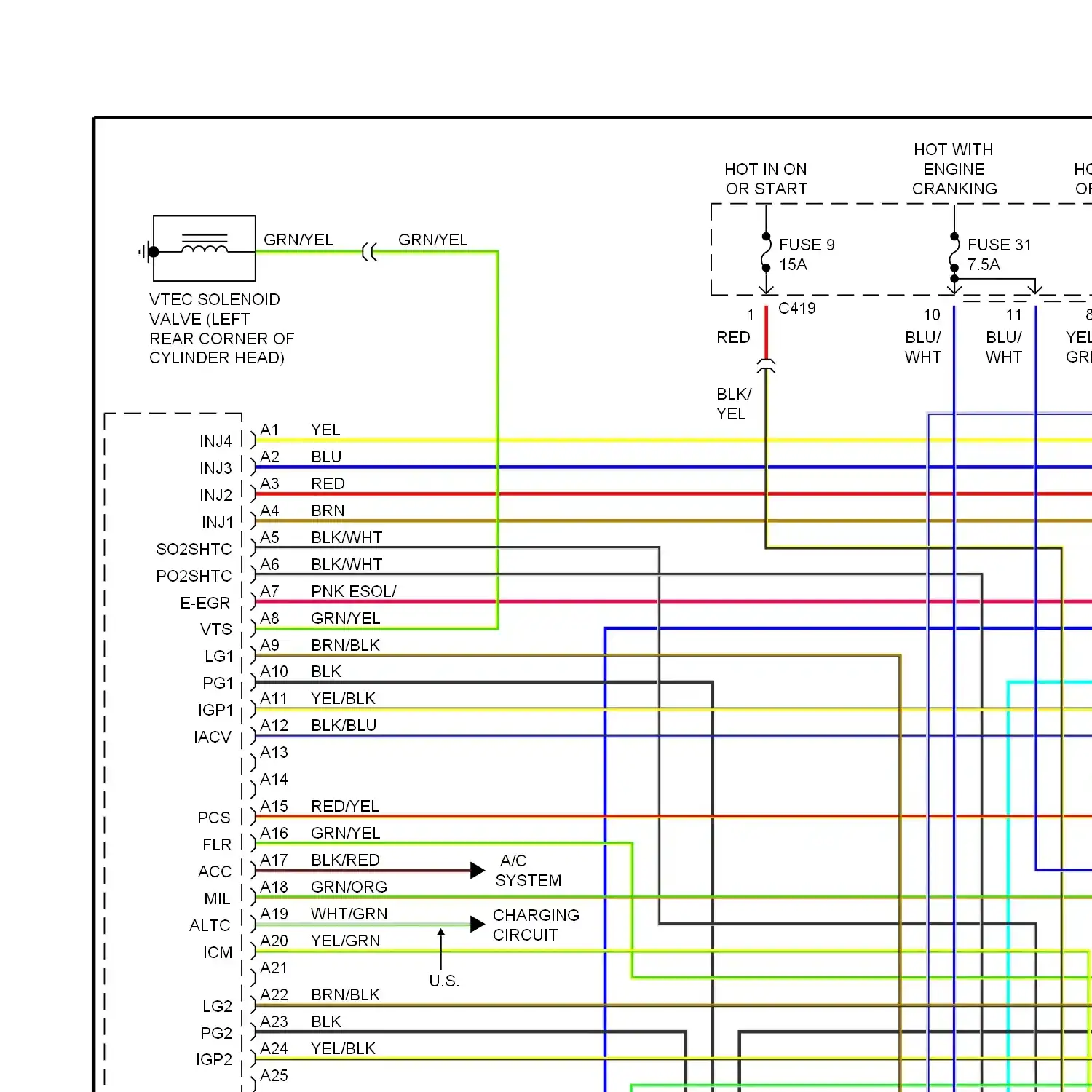

Wiring diagram engine performance 1.6ls, except hx Wiring diagram engine performance 1.6ls, hx a/t Wiring diagram engine performance 1.6ls, hx m/t

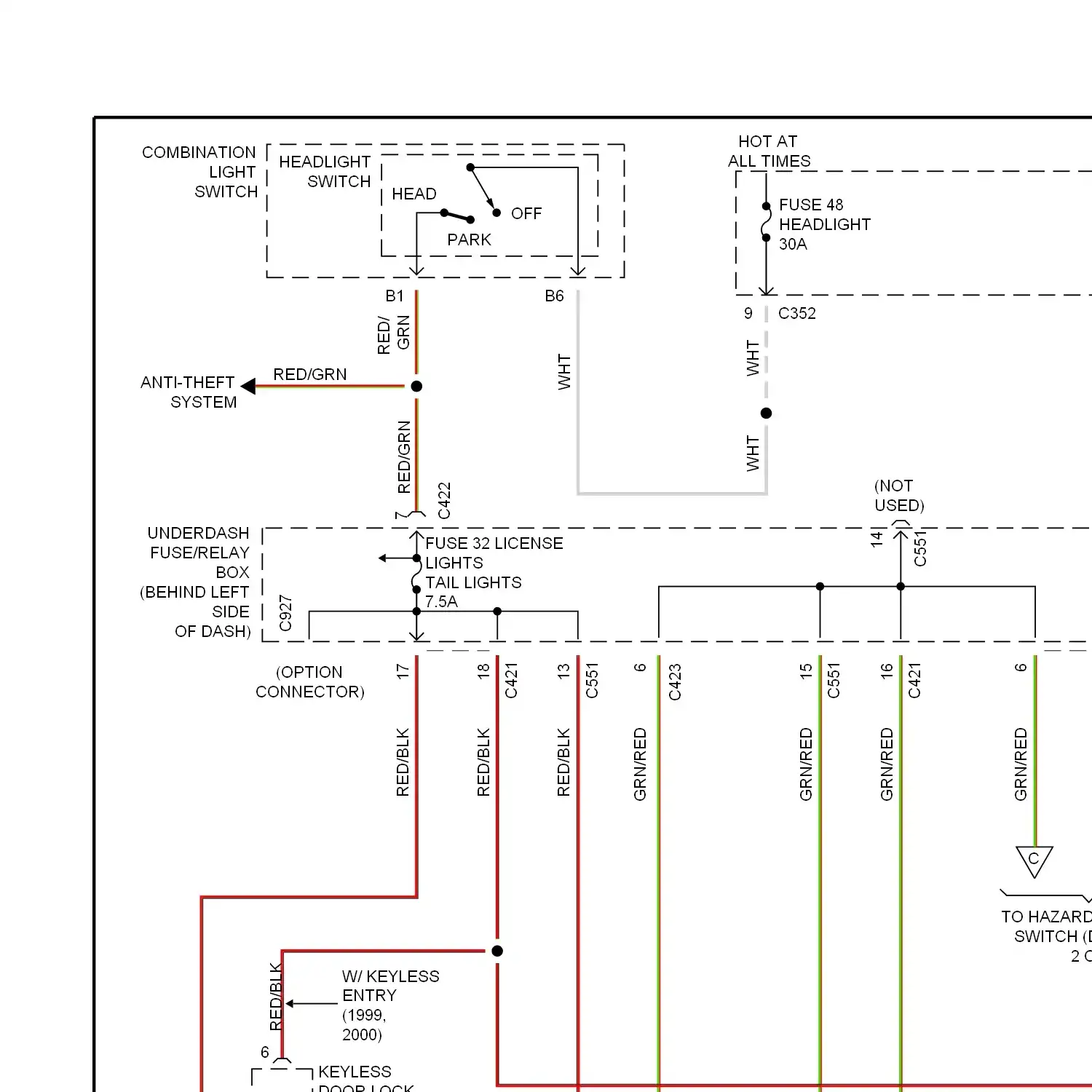

Backup lamps circuit Exterior light circuit, coupe & sedan Exterior light circuit, hatchback

Ground distribution circuit

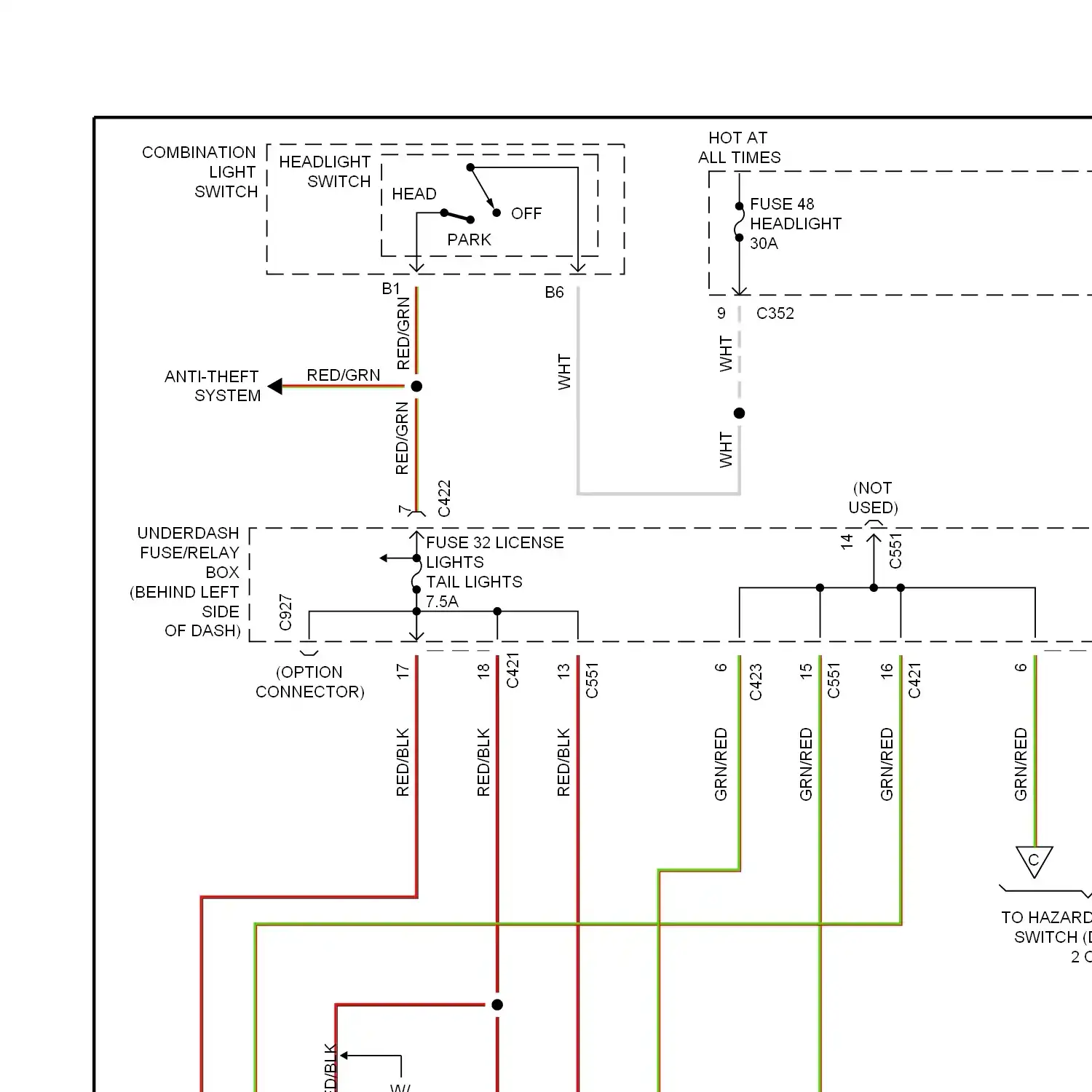

Headlight circuit, with drl Headlight circuit, without drl

Horn circuit

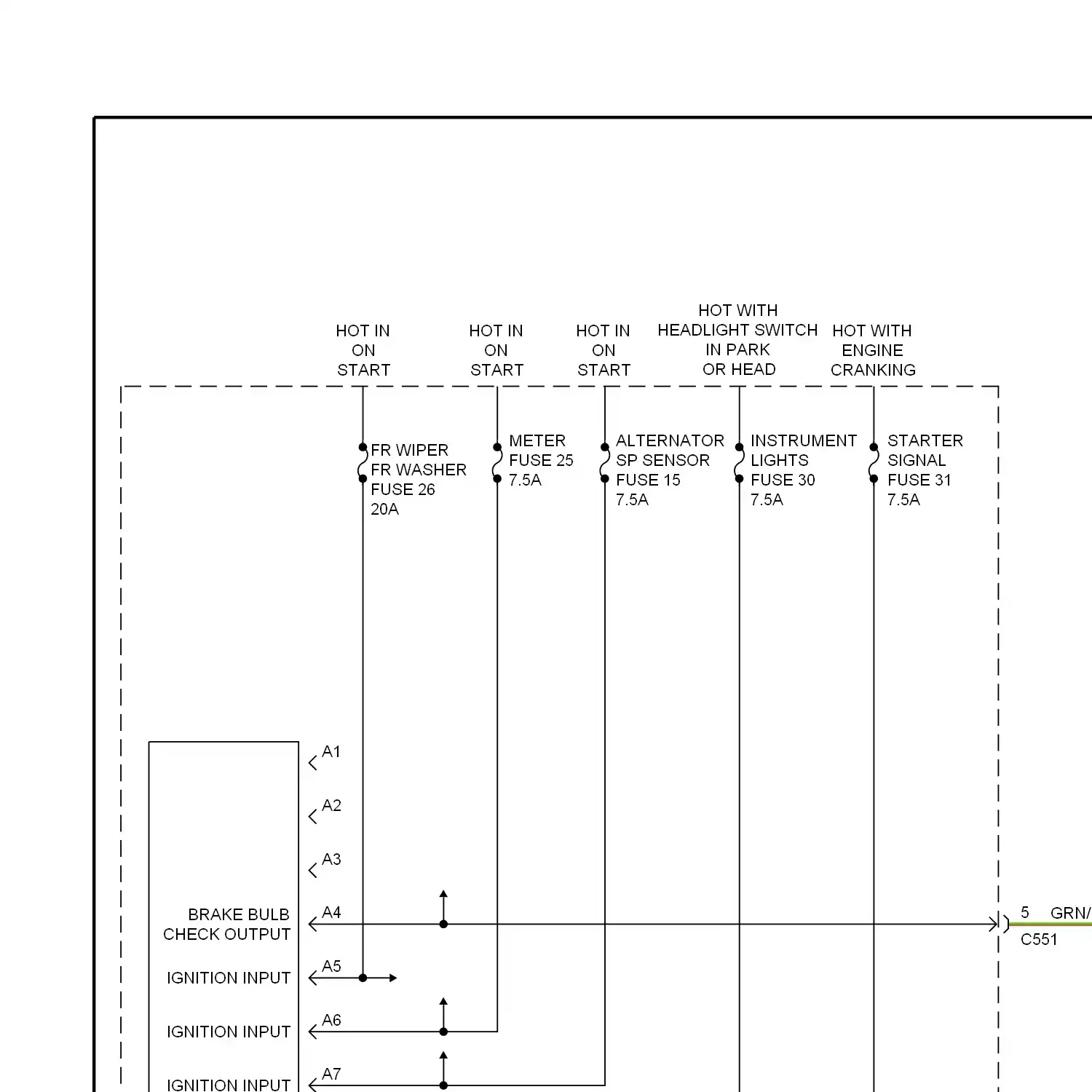

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Power distribution circuit

Power door lock circuit, with keyless entry Power door lock circuit, without keyless entry

Power mirror circuit, with defogger Power mirror circuit, without defogger

Power top/sunroof circuits

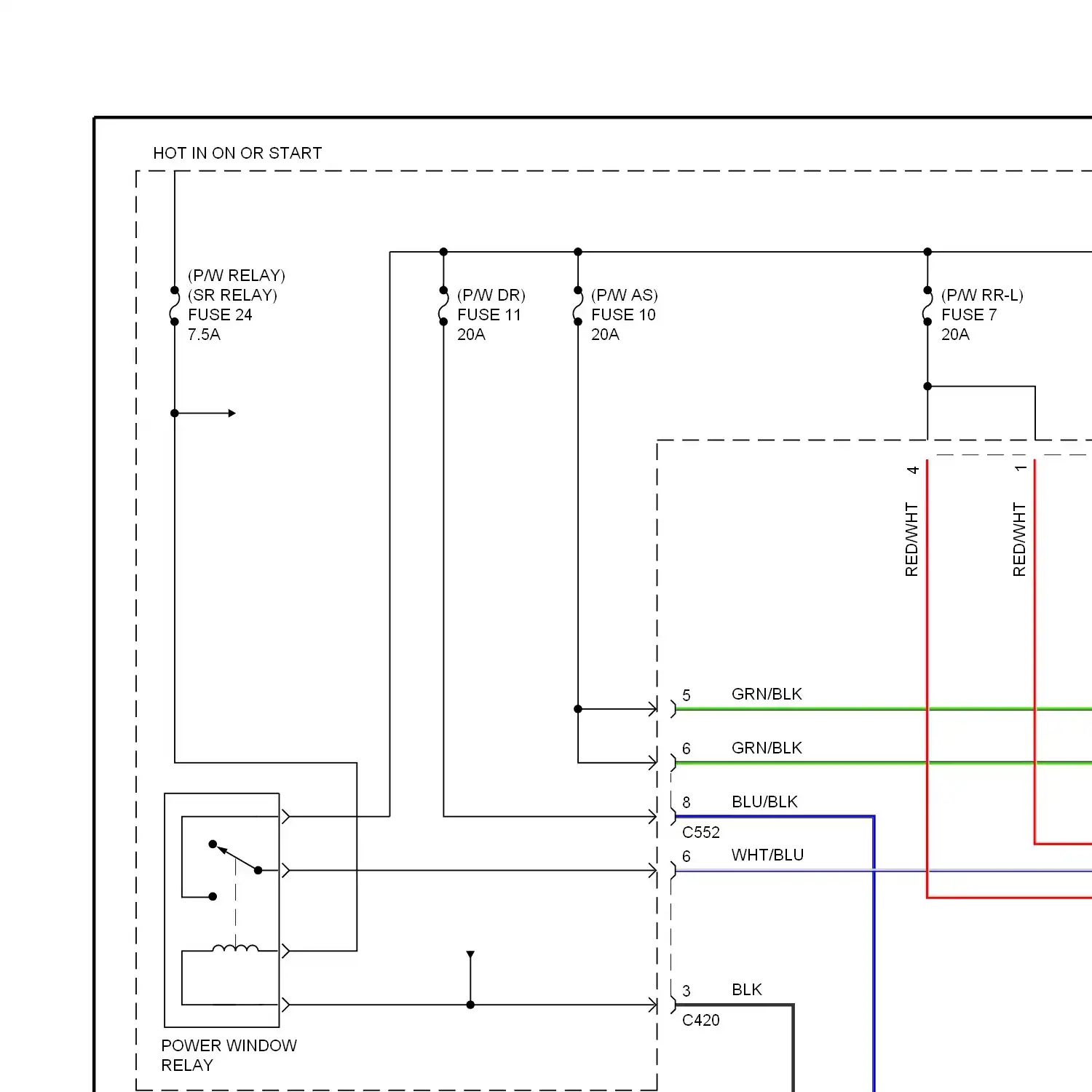

Power window circuit

Radio circuits

Shift interlock circuit

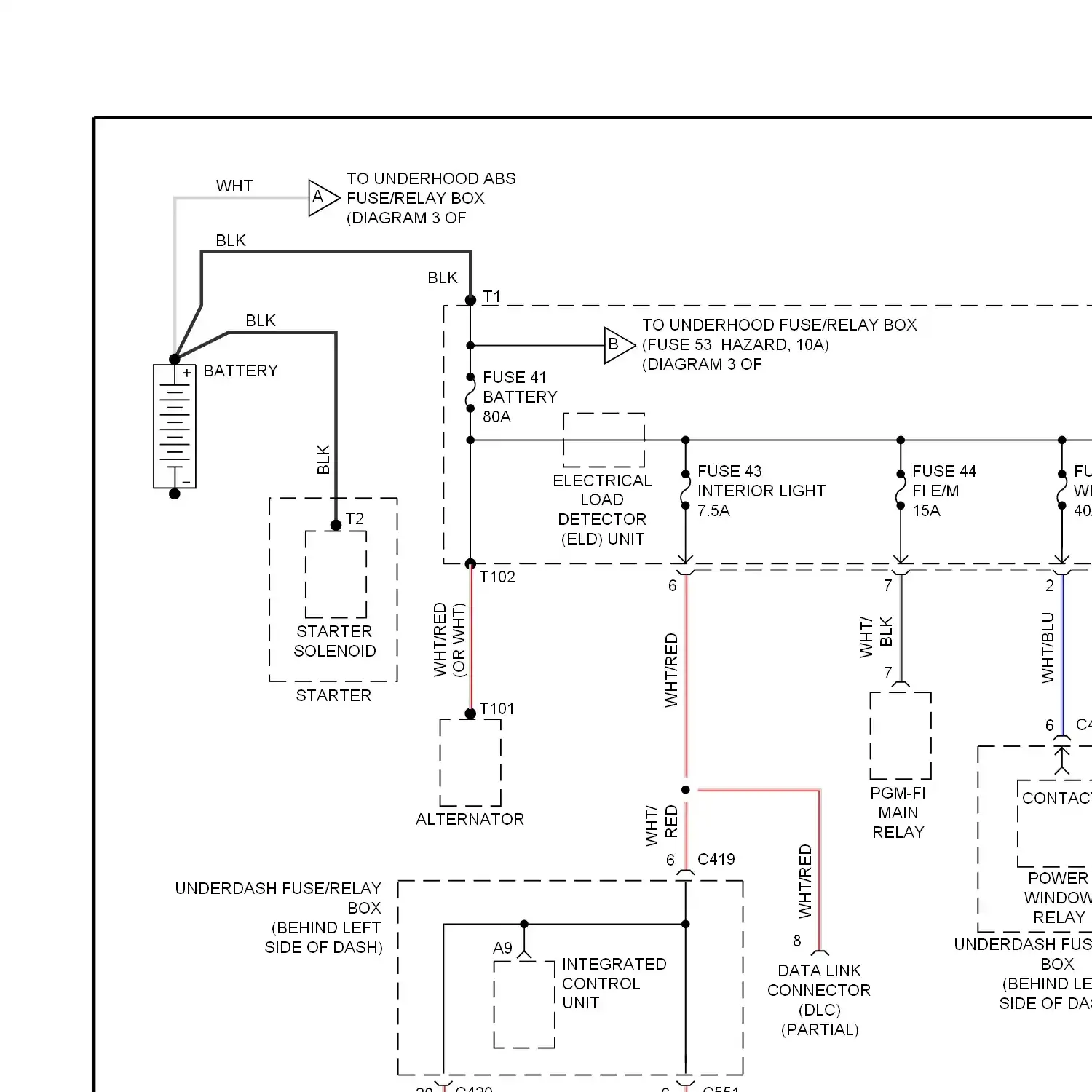

Charging circuit Starting circuit, a/t Starting circuit, m/t

Supplemental restraint circuit

A/t circuit, except hx A/t circuit, hx

Warning system circuits

Front wiper/washer circuit Rear wiper/washer circuit
