Honda Civic VI (1995-2002) w/o cruise control w/ cruise control Wiring diagrams
This page contains all the electrical diagrams for the component. w/o cruise control w/ cruise control, in which he is found in the car Honda Civic VI (1995-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

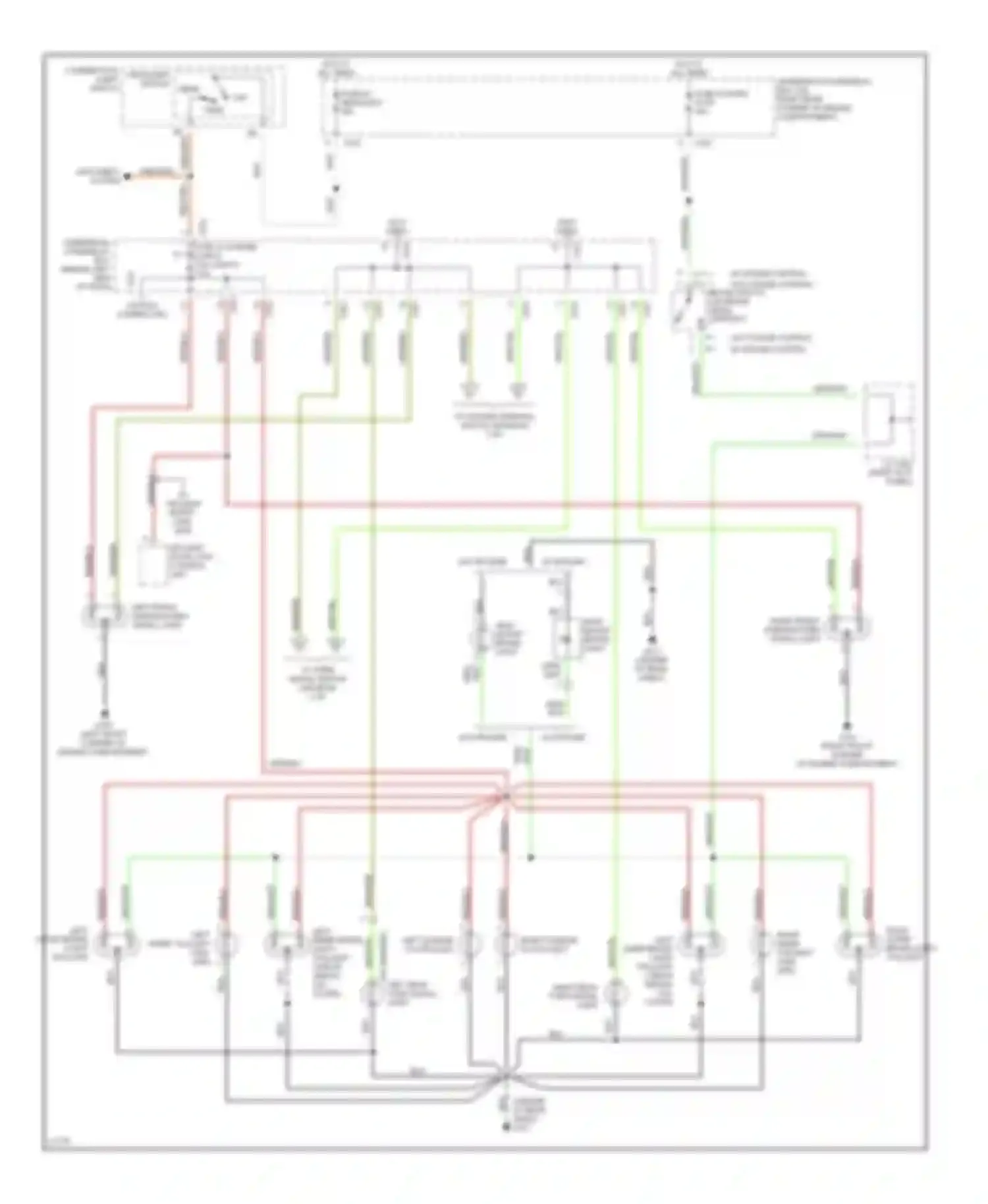

Wiring diagram w/o cruise control w/ cruise control (1 of 2)
ANTI-THEFT SYSTEM
BLK WIRE
BRAKE SWITCH (ON BRAKE PEDAL SUPPORT)
COMBINATION LIGHT SWITCH
FUSE 32 LICENSE LIGHTS TAIL LIGHTS
FUSE 48 HEADLIGHT
FUSE 52 HORN, STOP LT
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEADLIGHT SWITCH HEAD OFF PARK
HIGH MOUNT BRAKE LIGHT HIGH MOUNT BRAKE LIGHT
HOT AT ALL TIMES
KEYLESS DOOR LOCK CONTROL UNIT
LEFT FRONT PARKING/TURN SIGNAL LIGHT
LEFT INNER BRAKE LIGHT/ TAILLIGHT (1996-98 SEDAN) (ALL COUPE)
LEFT INNER TAILLIGHT (1999, 2000)
LEFT LICENSE PLATE LIGHT
LEFT OUTER BRAKE LIGHT/ TAILLIGHT
LEFT REAR TURN SIGNAL LIGHT
RED/BLK WIRE
RED/GRN WIRE
RIGHT FRONT PARKING/TURN SIGNAL LIGHT
RIGHT INNER TAILLIGHT (1999, 2000)
RIGHT LICENSE PLATE LIGHT
RIGHT OUTER BRAKE LIGHT/ TAILLIGHT
RIGHT REAR TURN SIGNAL LIGHT
TO HAZARD WARNING SWITCH (DIAGRAM 2 OF 2)
TO TURN SIGNAL SWITCH (DIAGRAM 2 OF 2)
UNDERDASH FUSE/RELAY BOX (BEHIND LEFT SIDE OF DASH)
UNDERHOOD FUSE/RELAY BOX (ON RIGHT REAR CORNER OF ENGINE COMPARTMENT)
W/ CRUISE CONTROL W/O CRUISE CONTROL
W/ KEYLESS ENTRY (1999, 2000)
W/ SPOILER W/O SPOILER
W/O CRUISE CONTROL W/ CRUISE CONTROL
WHT GRN/ WIRE
WHT WIRE
WHT/GRN WIRE
Go to component -> Exterior light circuit, coupe & sedan (1 of 2) -> W/O CRUISE CONTROL W/ CRUISE CONTROL

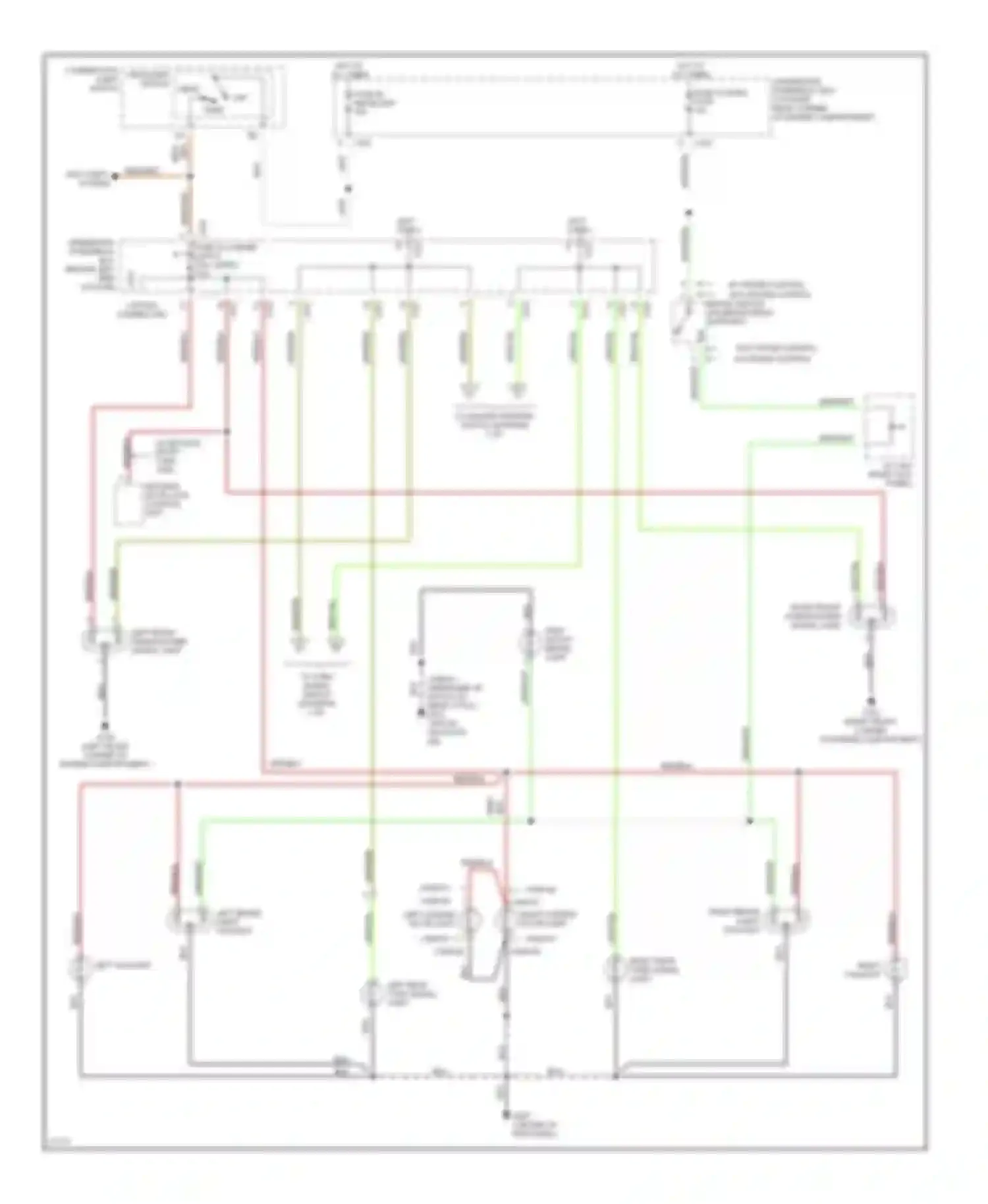

Wiring diagram w/o cruise control w/ cruise control (2 of 2)
2 1 (1996-97) (1998-00)
2 1 (1998-00) (1996-97)
ANTI-THEFT SYSTEM
BLK WIRE
BRAKE SWITCH (ON BRAKE PEDAL SUPPORT)
COMBINATION LIGHT SWITCH
FUSE 32 LICENSE LIGHTS TAIL LIGHTS
FUSE 48 HEADLIGHT
FUSE 52 HORN, STOP LT
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEADLIGHT SWITCH HEAD OFF PARK
HIGH MOUNT BRAKE LIGHT
HOT AT ALL TIMES
KEYLESS DOOR LOCK CONTROL UNIT
LEFT BRAKE LIGHT/ TAILLIGHT
LEFT FRONT PARKING/TURN SIGNAL LIGHT
LEFT LICENSE PLATE LIGHT
LEFT REAR TURN SIGNAL LIGHT
LEFT TAILLIGHT
RED GRN/ WIRE
RED/ BLK WIRE
RED/BLK WIRE
RED/GRN WIRE
RIGHT BRAKE LIGHT/ TAILLIGHT
RIGHT FRONT PARKING/TURN SIGNAL LIGHT
RIGHT LICENSE PLATE LIGHT
RIGHT REAR TURN SIGNAL LIGHT
RIGHT TAILLIGHT
TO HAZARD WARNING SWITCH (DIAGRAM 2 OF 2)
TO TURN SIGNAL SWITCH (DIAGRAM 2 OF 2)
UNDERDASH FUSE/RELAY BOX (BEHIND LEFT SIDE OF DASH)
UNDERHOOD FUSE/RELAY BOX (ON RIGHT REAR CORNER OF ENGINE COMPARTMENT)
W/ CRUISE CONTROL W/O CRUISE CONTROL
W/ KEYLESS ENTRY (1999, 2000)
W/O CRUISE CONTROL W/ CRUISE CONTROL
WHT WIRE
WHT/GRN WIRE
Go to component -> Exterior light circuit, hatchback (1 of 2) -> W/O CRUISE CONTROL W/ CRUISE CONTROL
