GMC Vandura G3500 (1985–1996) wiring diagrams
List of systems:

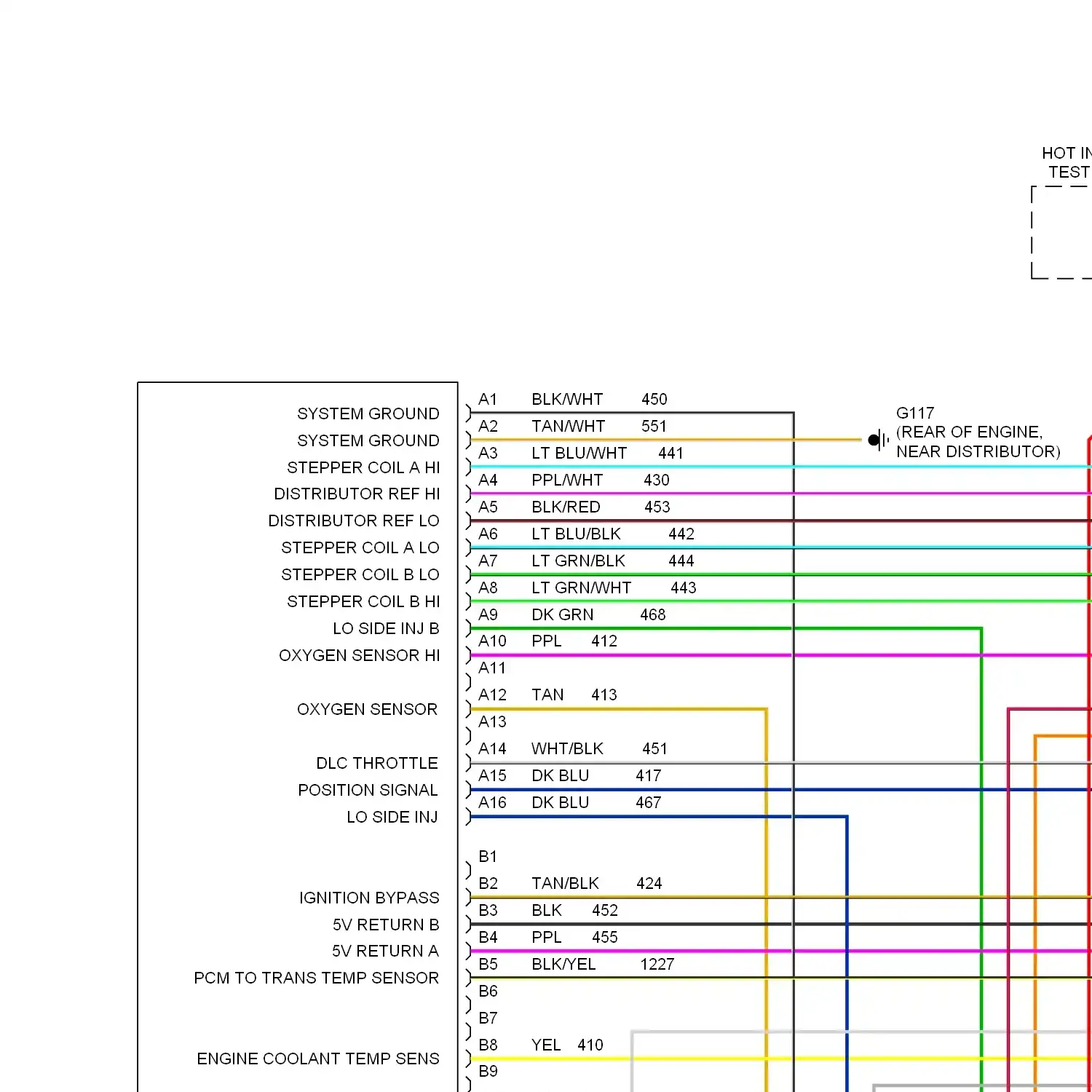

Wiring diagram engine performance 4.3l (vin z)s, 4l60e a/t

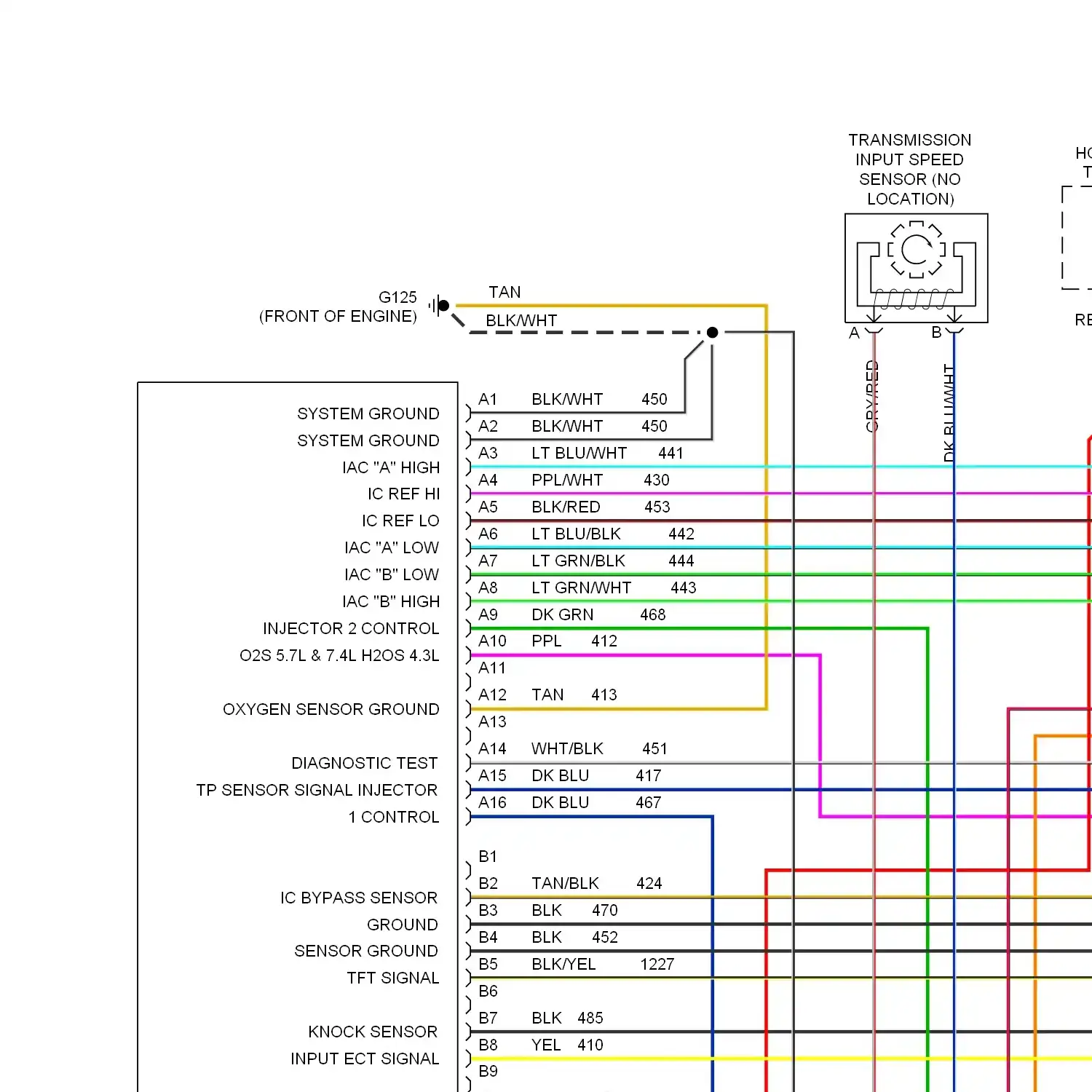

Wiring diagram engine performance 4.3l (vin z)s, 4l60-e a/t (1 of
3)

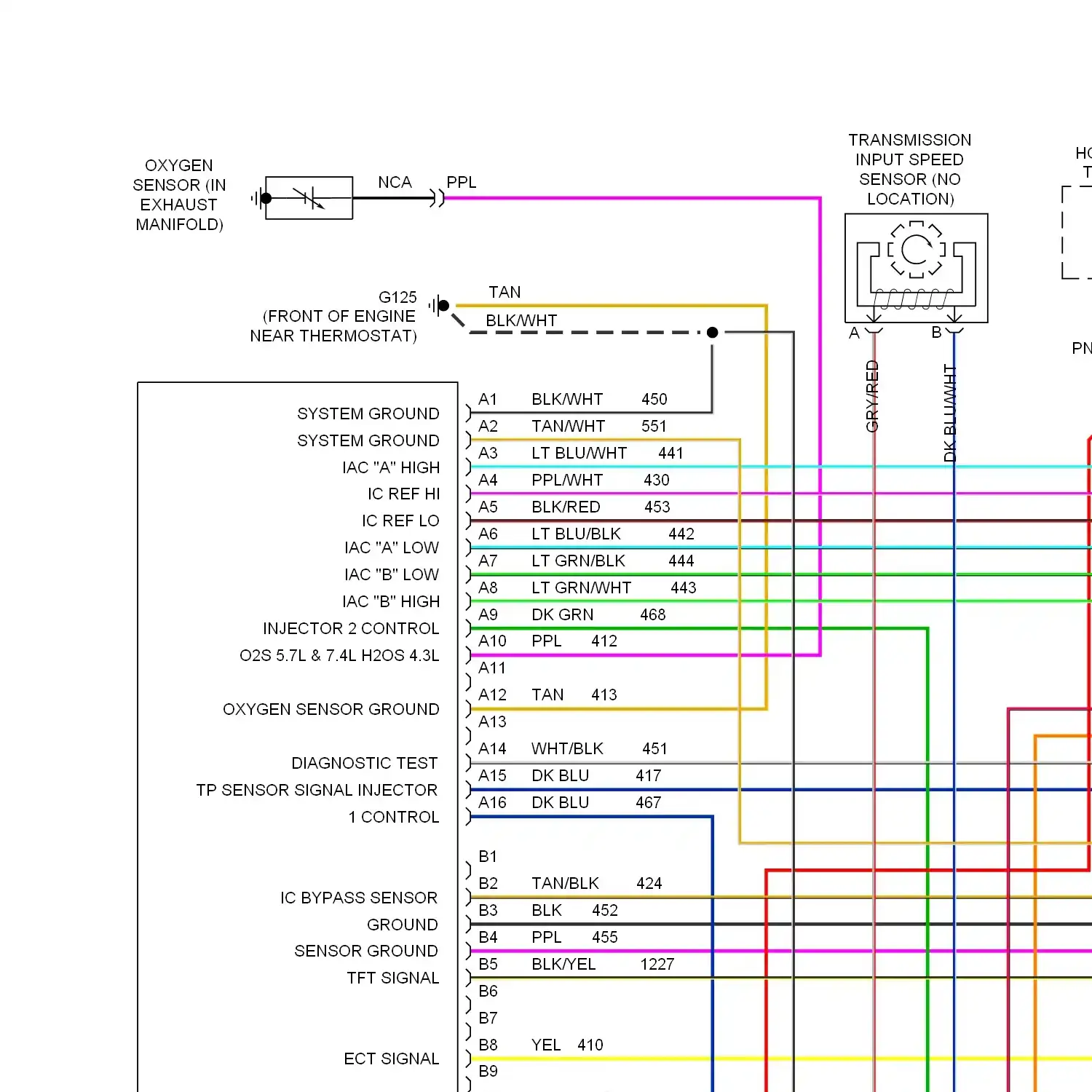

Wiring diagram engine performance 4.3l (vin z)s, 4l60-e a/t (2 of
3)
Wiring diagram engine performance 4.3l (vin z)s, 4l60-e a/t (3 of
3)
Wiring diagram engine performance 4.3l (vin z)s, 4l80e a/t
Wiring diagram engine performance 4.3l (vin z)s, 4l80-e a/t (1 of
3)
Wiring diagram engine performance 4.3l (vin z)s, 4l80-e a/t (2 of
3)
Wiring diagram engine performance 4.3l (vin z)s, 4l80-e a/t (3 of
3)
Wiring diagram engine performance 4.3l (vin z)s, a/t
Wiring diagram engine performance 4.3l (vin z)s, a/t commercial
chassis
Wiring diagram engine performance 4.3l (vin z)s, a/t except cutaway
Wiring diagram engine performance 4.3l (vin z)s, m/t
Wiring diagram engine performance 4.3l (vin z)s, m/t commercial
chassis
Wiring diagram engine performance 5.0l (vin h)s, 4l60e a/t
Wiring diagram engine performance 5.0l (vin h)s, 4l60-e a/t (1 of
3)
Wiring diagram engine performance 5.0l (vin h)s, 4l60-e a/t (2 of
3)
Wiring diagram engine performance 5.0l (vin h)s, 4l60-e a/t (3 of
3)
Wiring diagram engine performance 5.0l (vin h)s, 4l80e a/t
Wiring diagram engine performance 5.7l (vin k)s, 4l60e a/t
Wiring diagram engine performance 5.7l (vin k)s, 4l60-e a/t (1 of
3)
Wiring diagram engine performance 5.7l (vin k)s, 4l60-e a/t (2 of
3)
Wiring diagram engine performance 5.7l (vin k)s, 4l60-e a/t (3 of
3)
Wiring diagram engine performance 5.7l (vin k)s, 4l80e a/t
Wiring diagram engine performance 5.7l (vin k)s, 4l80-e a/t (1 of
3)
Wiring diagram engine performance 5.7l (vin k)s, 4l80-e a/t (2 of
3)
Wiring diagram engine performance 5.7l (vin k)s, 4l80-e a/t (3 of
3)
Wiring diagram engine performance 5.7l (vin k)s, a/t commercial
chassis and motorhome
Wiring diagram engine performance 5.7l (vin k)s, a/t except cutaway
Wiring diagram engine performance 5.7l (vin k)s, a/t p/g cutaway (1
of 3)
Wiring diagram engine performance 5.7l (vin k)s, a/t p/g cutaway (2
of 3)
Wiring diagram engine performance 5.7l (vin k)s, a/t p/g cutaway (3
of 3)
Wiring diagram engine performance 5.7l (vin k)s, cutaway chassis (1
of 3)
Wiring diagram engine performance 5.7l (vin k)s, cutaway chassis (2
of 3)
Wiring diagram engine performance 5.7l (vin k)s, cutaway chassis (3
of 3)
Wiring diagram engine performance 5.7l (vin k)s, m/t commercial
chassis
Wiring diagram engine performance 5.7l (vin r)s
Wiring diagram engine performance 7.4l (vin j)s
Wiring diagram engine performance 7.4l (vin n)s, 4l80-e a/t (1 of
3)
Wiring diagram engine performance 7.4l (vin n)s, 4l80-e a/t (2 of
3)
Wiring diagram engine performance 7.4l (vin n)s, 4l80-e a/t (3 of
3)
Wiring diagram engine performance 7.4l (vin n)s, a/t commercial
chassis and motorhome
Wiring diagram engine performance 7.4l (vin n)s, a/t except cutaway
Wiring diagram engine performance 7.4l (vin n)s, a/t p/g cutaway (1
of 3)
Wiring diagram engine performance 7.4l (vin n)s, a/t p/g cutaway (2
of 3)
Wiring diagram engine performance 7.4l (vin n)s, a/t p/g cutaway (3
of 3)
Wiring diagram engine performance 7.4l (vin n)s, cutaway chassis (1
of 3)
Wiring diagram engine performance 7.4l (vin n)s, cutaway chassis (2
of 3)
Wiring diagram engine performance 7.4l (vin n)s, cutaway chassis (3
of 3)
Backup lamps circuit
Exterior lamps circuit, with composite headlamps
Exterior lamps circuit, with sealed beam lamps
Exterior light circuit, commercial chassis
Exterior light circuit, cutaway chassis
Exterior light circuit, motor home chassis
Exterior light circuit, without quad halogen headlamps
Exterior light circuit, with quad halogen headlamps
Headlamps circuit, commercial chassis
Headlamps circuit, commercial chassis with drl
Headlamps circuit, cutaway chassis
Headlamps circuit, cutaway chassis with drl
Headlamps circuit, motor home chassis
Headlamps circuit, motor home chassis with drl
Headlamps circuit, with composite lamps
Headlamps circuit, with sealed beam lamps
Headlamps/fog lamps circuit, drl with composite lamps
Headlamps/fog lamps circuit, drl with sealed beam lamps
Headlight circuit, commercial chassis with drl
Headlight circuit, commercial chassis without drl
Headlight circuit, composite with drl
Headlight circuit, composite without drl
Headlight circuit, cutaway chassis with drl
Headlight circuit, cutaway chassis without drl
Headlight circuit, motor home chassis with drl
Headlight circuit, motor home chassis without drl
Headlight circuit, sealed beam with drl
Headlight circuit, sealed beam without drl
Headlight circuit, with drl & with composite headlamps
Headlight circuit, with drl & with sealed beam lamps
Headlight circuit, without drl & with composite headlamps
Headlight circuit, without drl & with sealed beam lamps
Courtesy lamps circuit, base
Courtesy lamps circuit, with auxiliary lighting
Courtesy lamps circuit, without auxiliary lighting
Instrument illumination circuit
Interior light circuit
Interior light circuit, commercial chassis
Interior light circuit, cutaway chassis
Interior light circuit, motor home chassis
Interior light circuit, motorhome chassis
Power distribution circuit
Power distribution circuit, commercial chassis (diesel) (1 of
2)
Power distribution circuit, commercial chassis (diesel) (2 of
2)
Power distribution circuit, commercial chassis (gasoline) (1
of 2)
Power distribution circuit, commercial chassis (gasoline) (2
of 2)
Power distribution circuit, cutaway chassis
Power distribution circuit, diesel
Power distribution circuit, gasoline
Power distribution circuit, motor home chassis
Power distribution circuit, motorhome chassis
Charging circuit
Charging circuit, commercial chassis (diesel)
Charging circuit, commercial chassis (gasoline)
Charging circuit, cutaway chassis
Charging circuit, motor home chassis
Starting circuit
Starting circuit, commercial chassis (diesel)
Starting circuit, commercial chassis (gasoline)
Starting circuit, cutaway chassis
Starting circuit, motor home chassis
4.3l (vin z), charging circuit
4.3l (vin z), starting circuit
Charging circuit, commercial chassis (diesel)
Charging circuit, commercial chassis (gasoline)
Charging circuit, cutaway chassis
Charging circuit, motor home chassis
Starting circuit, commercial chassis (diesel)
Starting circuit, commercial chassis (gasoline)
Starting circuit, cutaway chassis
Starting circuit, motor home chassis
5.0l (vin h), charging circuit
5.0l (vin h), starting circuit
Charging circuit, commercial chassis (diesel)
Charging circuit, commercial chassis (gasoline)
Charging circuit, cutaway chassis
Charging circuit, motor home chassis
Starting circuit, commercial chassis (diesel)
Starting circuit, commercial chassis (gasoline)
Starting circuit, cutaway chassis
Starting circuit, motor home chassis
5.7l (vin k), charging circuit
5.7l (vin k), starting circuit
5.7l (vin r), charging circuit
5.7l (vin r), starting circuit
Charging circuit, commercial chassis (diesel)
Charging circuit, commercial chassis (gasoline)
Charging circuit, cutaway chassis
Charging circuit, motor home chassis
Starting circuit, commercial chassis (diesel)
Starting circuit, commercial chassis (gasoline)
Starting circuit, cutaway chassis
Starting circuit, motor home chassis
6.5l (vin f), charging circuit
6.5l (vin f), starting circuit
6.5l (vin p), charging circuit
6.5l (vin p), starting circuit
6.5l (vin y), charging circuit
6.5l (vin y), starting circuit
Charging circuit, commercial chassis (diesel)
Charging circuit, commercial chassis (gasoline)
Charging circuit, cutaway chassis
Charging circuit, motor home chassis
Starting circuit, commercial chassis (diesel)
Starting circuit, commercial chassis (gasoline)
Starting circuit, cutaway chassis
Starting circuit, motor home chassis
7.4l (vin j), charging circuit
7.4l (vin j), starting circuit
7.4l (vin n), charging circuit
7.4l (vin n), starting circuit
Charging circuit, commercial chassis (diesel)
Charging circuit, commercial chassis (gasoline)
Charging circuit, cutaway chassis
Charging circuit, motor home chassis
Starting circuit, commercial chassis (diesel)
Starting circuit, commercial chassis (gasoline)
Starting circuit, cutaway chassis
Starting circuit, motor home chassis
Front washer/wiper circuit, commercial chassis
Front washer/wiper circuit, cutaway
Front washer/wiper circuit, cutaway chassis
Front wiper/washer circuit
Front wiper/washer circuit, motor home chassis
Provisions for front wiper/washer circuit, commercial chassis
Wiper/washer circuit
Wiper/washer provisions circuit, motorhome chassis
