GMC Sierra 2500 (2000-2004) ctsy lp rly lamp request Wiring diagrams
This page contains all the electrical diagrams for the component. ctsy lp rly lamp request, in which he is found in the car GMC Sierra 2500 (2000-2004). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

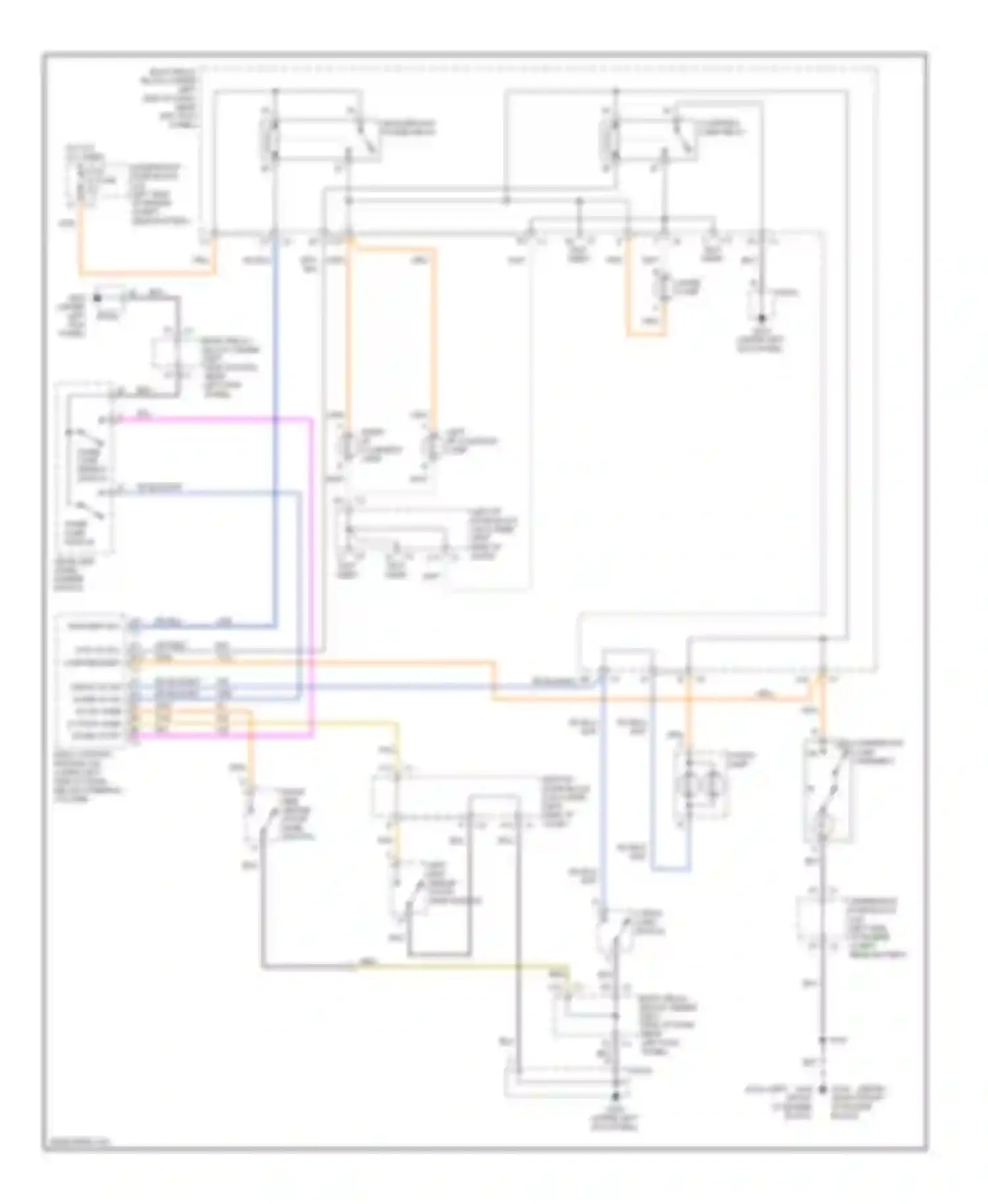

Wiring diagram ctsy lp rly lamp request (1 of 2)
BLK WIRE
BODY CONTROL MODULE (ON LOWER LEFT SIDE OF DASH, BELOW STEERING COLUMN)
BODY RELAY BLOCK (UNDER LEFT SIDE OF DASH, NEAR LEFT KICK PANEL)
BRN WIRE
CARGO LAMP
CARGO LAMP SWITCH
CARGO LP SW DOME LP SW RT DR JAMB LT DOOR JAMB DOME LP DFT
COURTESY LAMP RELAY
CTSY LP FUSE
CTSY LP RLY LAMP REQUEST
DK BLU WIRE
DK BLU/WHT WIRE
DOME LAMP
DOME LAMP DEFEAT SWITCH
DOME LAMP SWITCH
GRY WIRE
GRY/BLK WIRE
HEADLAMP, PANEL DIMMER SWITCH
HOT AT ALL TIMES
INADVERT RLY
INADVERTANT POWER RELAY
LEFT I/P COURTESY LAMP
LEFT I/P FUSE BLOCK (ON LOWER LEFT SIDE OF DASH)
LEFT MINI WEDGE (DOOR JAMB SWITCH)
ORG/ WIRE
PPL
RIGHT I/P COURTESY LAMP
RIGHT MINI WEDGE (DOOR JAMB SWITCH)
TAN WIRE
UNDERHOOD FUSE BLOCK (ON LEFT SIDE OF ENGINE COMPT, NEAR BATTERY)
UNDERHOOD LAMP ASSEMBLY OFF ON
WHT WIRE
Go to component -> Courtesy lamps circuit, base -> CTSY LP RLY LAMP REQUEST

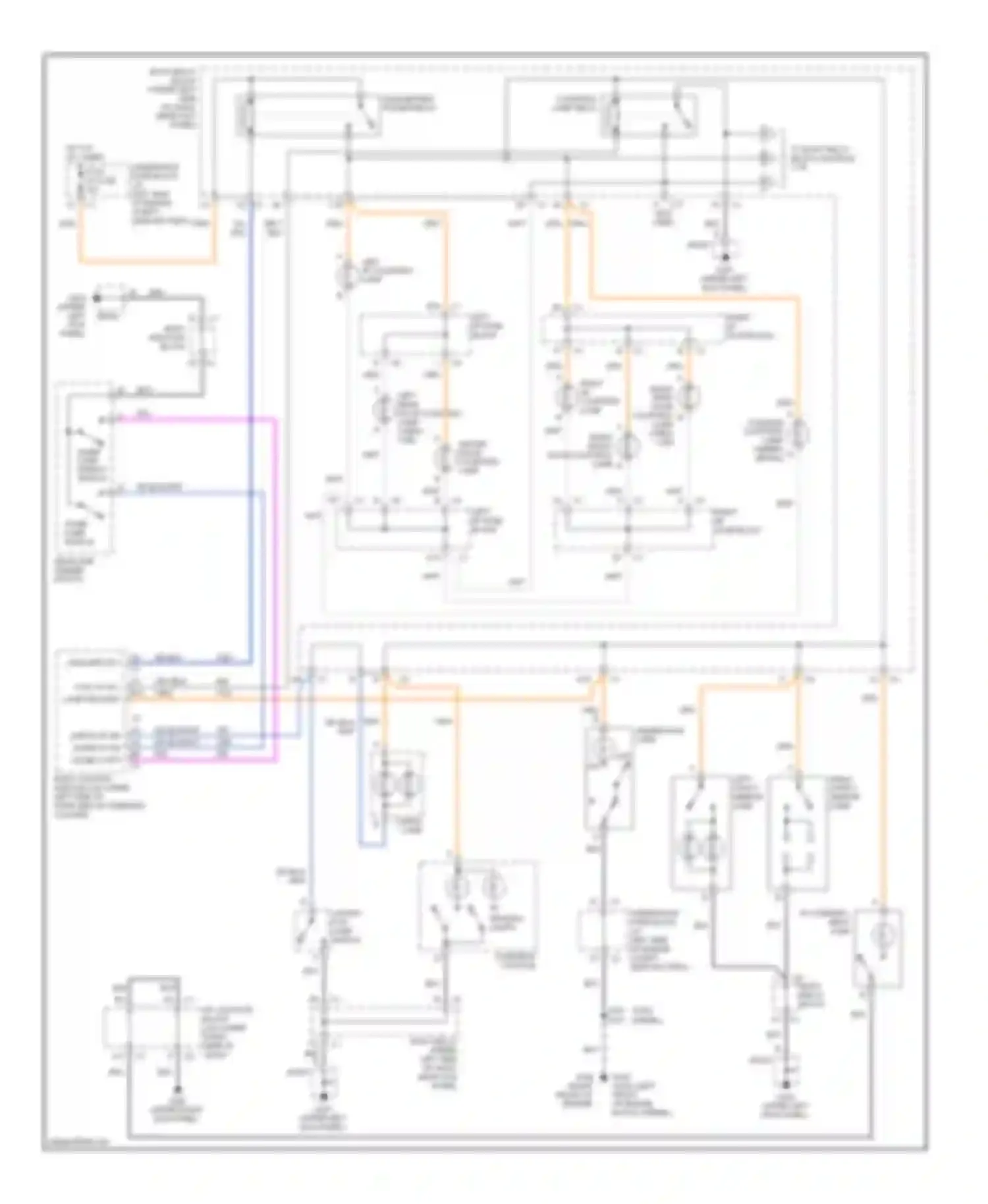

Wiring diagram ctsy lp rly lamp request (2 of 2)
BLK WIRE
BLU WIRE
BODY CONTROL MODULE (ON LOWER LEFT SIDE OF DASH, BELOW STEERING COLUMN)
BODY JUNCTION BLOCK
BODY RELAY (UNDER LEFT SIDE OF DASH, NEAR KICK PANEL)
BODY RELAY BLOCK
BODY RELAY BLOCK (UNDER LEFT SIDE OF DASH, NEAR KICK PANEL)
CARGO LAMP
CARGO LP SW DOME LP SW DOME LP DFT
CARGO/ FOG LAMP SWITCH
CONSOLE COURTESY LAMP (SIERRA DENALI)
COURTESY LAMP RELAY
CTSY LP FUSE
CTSY LP RLY LAMP REQUEST
DK BLU WIRE
DK BLU/WHT WIRE
DOME LAMP DEFEAT SWITCH
DOME LAMP SWITCH
DRIVER DOOR COURTESY LAMP
GAS DIESEL
GRY WIRE
GRY/BLK WIRE
HEADLAMP DIMMER SWITCH
HOT AT ALL TIMES
I/P COMPART- MENT LAMP
I/P JUNCTION BLOCK (ON LOWER RIGHT SIDE OF DASH)
INADVERT RLY
INADVERTENT POWER RELAY
LEFT I/P COURTESY LAMP
LEFT I/P FUSE BLOCK
LEFT REAR DOOR COURTESY LAMP (CREW CAB)
LEFT VANITY MIRROR LAMP
OFF ON
ORG/ WIRE
OVERHEAD CONSOLE
PPL
READING LAMPS
RIGHT FRONT DOOR COURTESY LAMP
RIGHT I/P COURTESY LAMP
RIGHT I/P FUSE BLOCK
RIGHT REAR DOOR COURTESY LAMP (CREW CAB)
RIGHT VANITY MIRROR LAMP
TO BODY RELAY BLOCK (DIAGRAM 2 OF 2)
UNDERHOOD FUSE BLOCK (AT LEFT SIDE OF ENGINE COMPT, NEAR BATTERY)
UNDERHOOD LAMP
WHT WIRE
Go to component -> Courtesy lamps circuit, crew cab & up level (1 of 3) -> CTSY LP RLY LAMP REQUEST
