# Power distribution circuit

# Power distribution circuit (1 of 3)

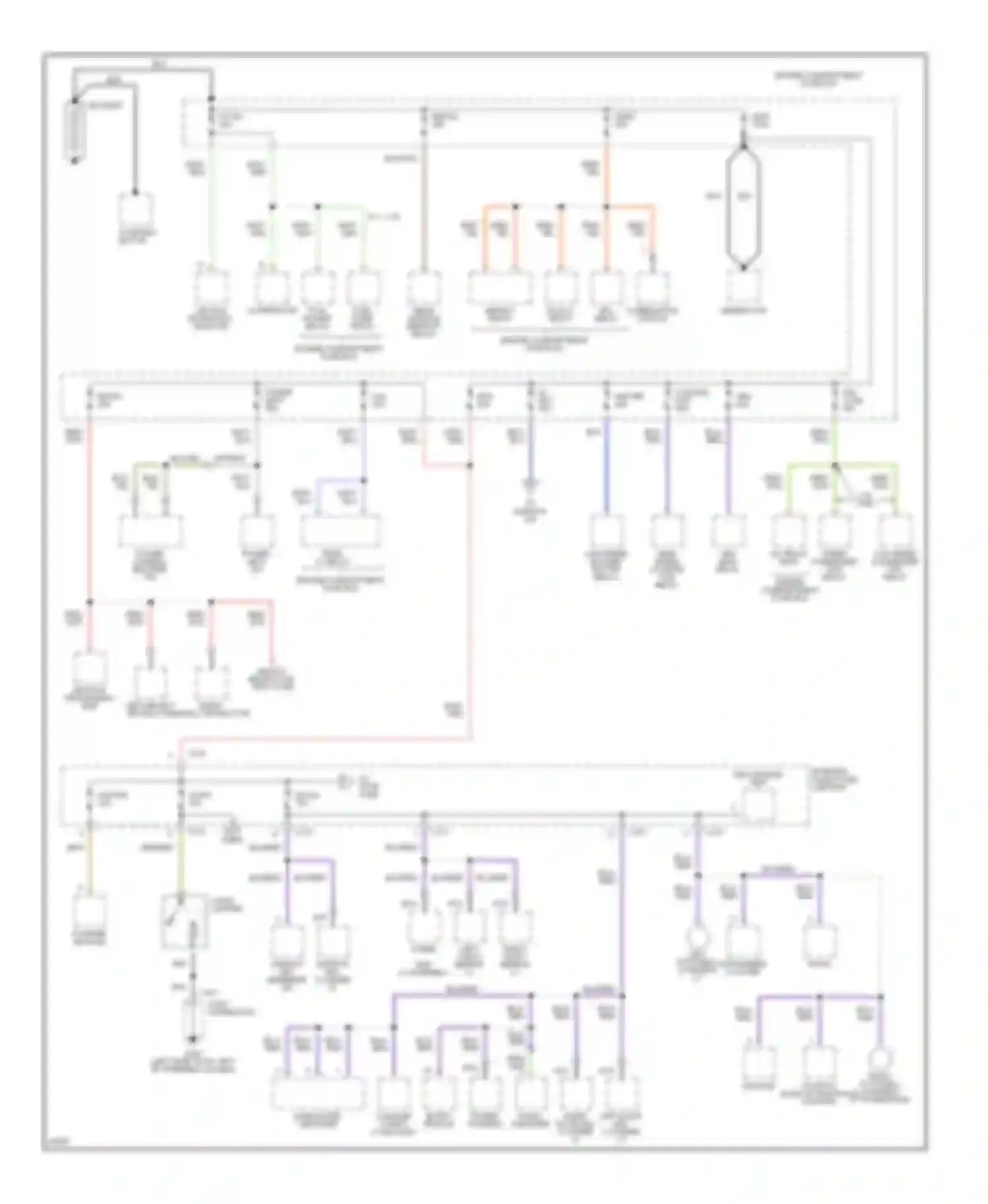

Power distribution — Power distribution circuit — Power distribution circuit (1 of 3). Ford Probe II (1992-1997)

Components on the diagram

# Power distribution circuit (2 of 3)

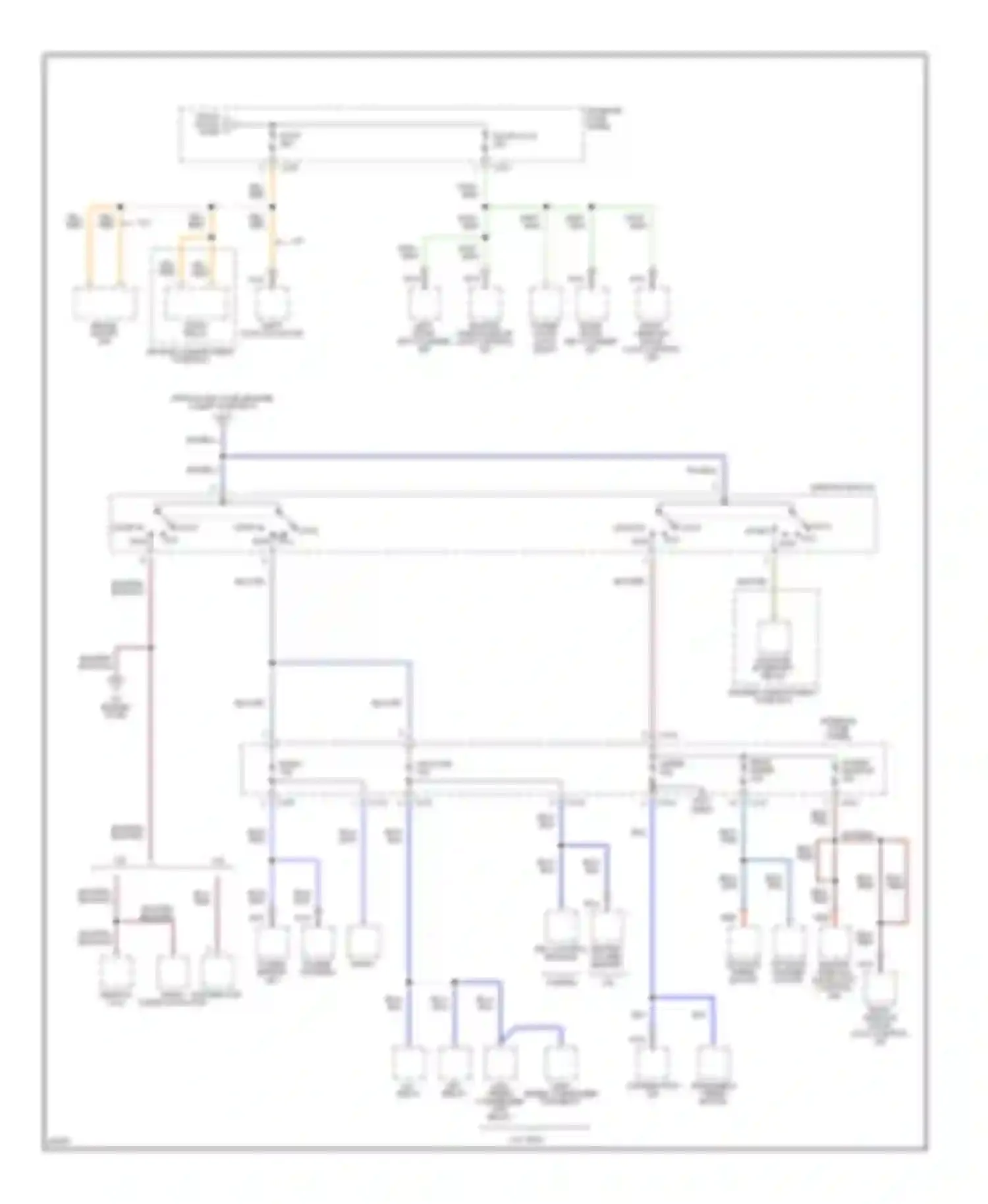

Power distribution — Power distribution circuit — Power distribution circuit (2 of 3). Ford Probe II (1992-1997)

Components on the diagram

# Power distribution circuit (3 of 3)

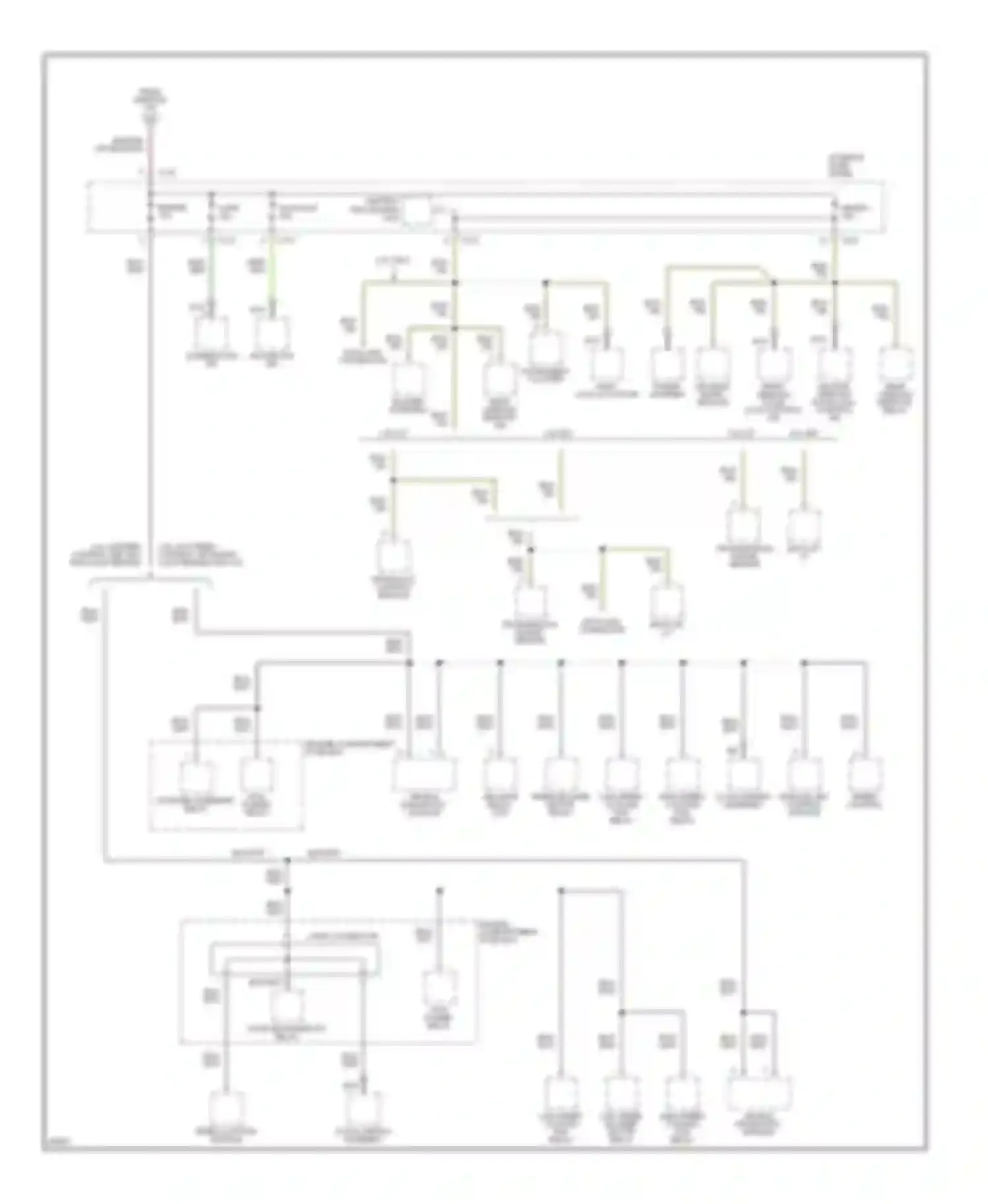

Power distribution — Power distribution circuit — Power distribution circuit (3 of 3). Ford Probe II (1992-1997)

Components on the diagram
