Wiring Diagrams for Ford Focus RS III (2016-2018)

Automatic a/c circuit, electric Automatic a/c circuit, except electric & rs Automatic a/c circuit, rs Manual a/c circuit

Anti-lock brakes circuit, electric Anti-lock brakes circuit, except electric

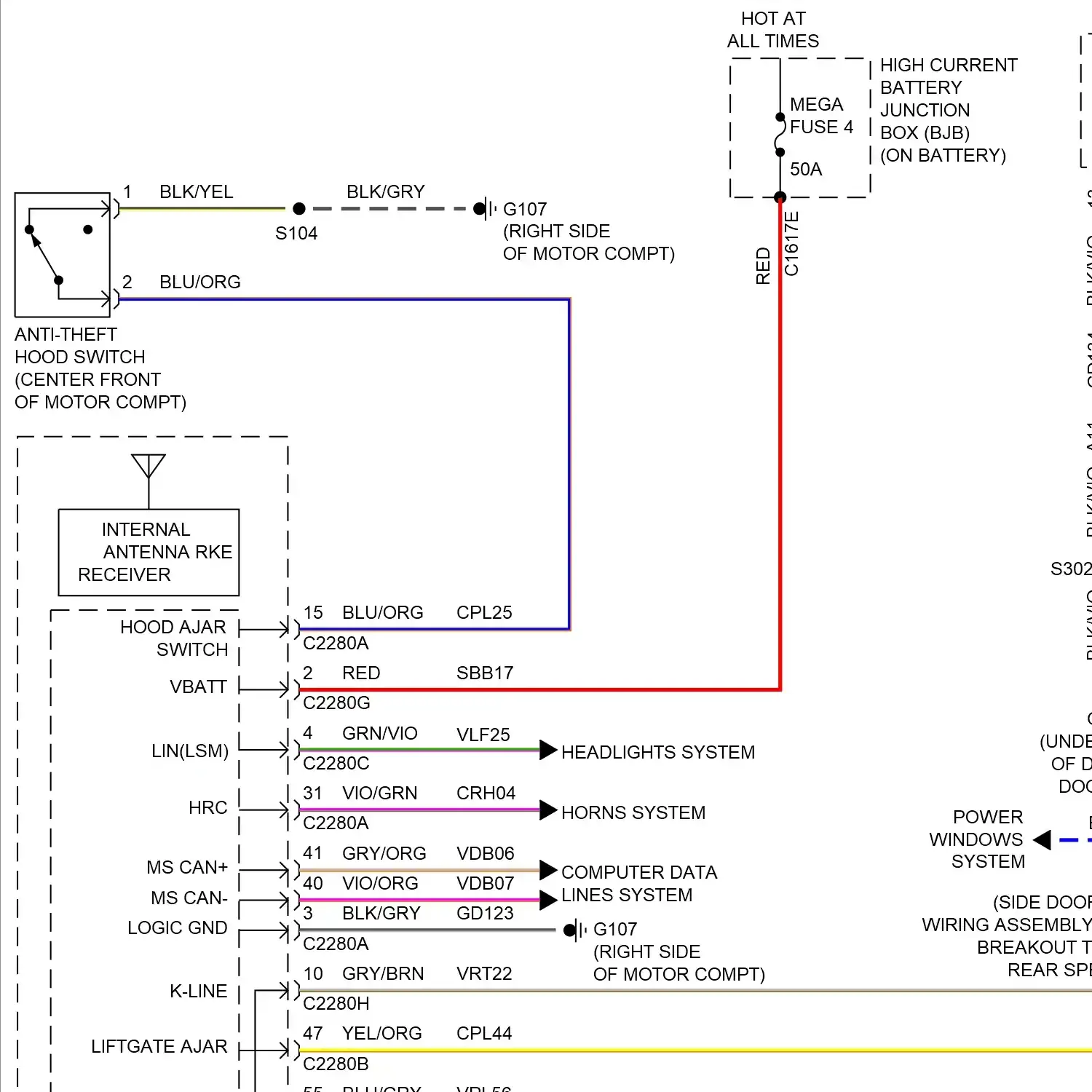

Forced entry circuit, electric Forced entry circuit, except electric & rs w/ intelligent access Forced entry circuit, except electric & rs w/o intelligent access Forced entry circuit, rs w/ intelligent access Forced entry circuit, rs w/o intelligent access Passive anti-theft circuit, electric Passive anti-theft circuit, except electric

Body control modules circuit, electric Body control modules circuit, except electric & rs Body control modules circuit, rs

Computer data lines circuit, electric Computer data lines circuit, except electric & rs Computer data lines circuit, rs

Cooling fan circuit, electric Cooling fan circuit, except electric & rs Cooling fan circuit, rs

1.0l turbo, cruise control circuit

2.0l, cruise control circuit

2.0l turbo, cruise control circuit

2.3l turbo, cruise control circuit

Electric, cruise control circuit

Defoggers circuit, electric Defoggers circuit, except electric & rs Defoggers circuit, rs

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 1.0l turbo

Wiring diagram engine performance 2.0l

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.3l turbo

Wiring diagram engine performance electric

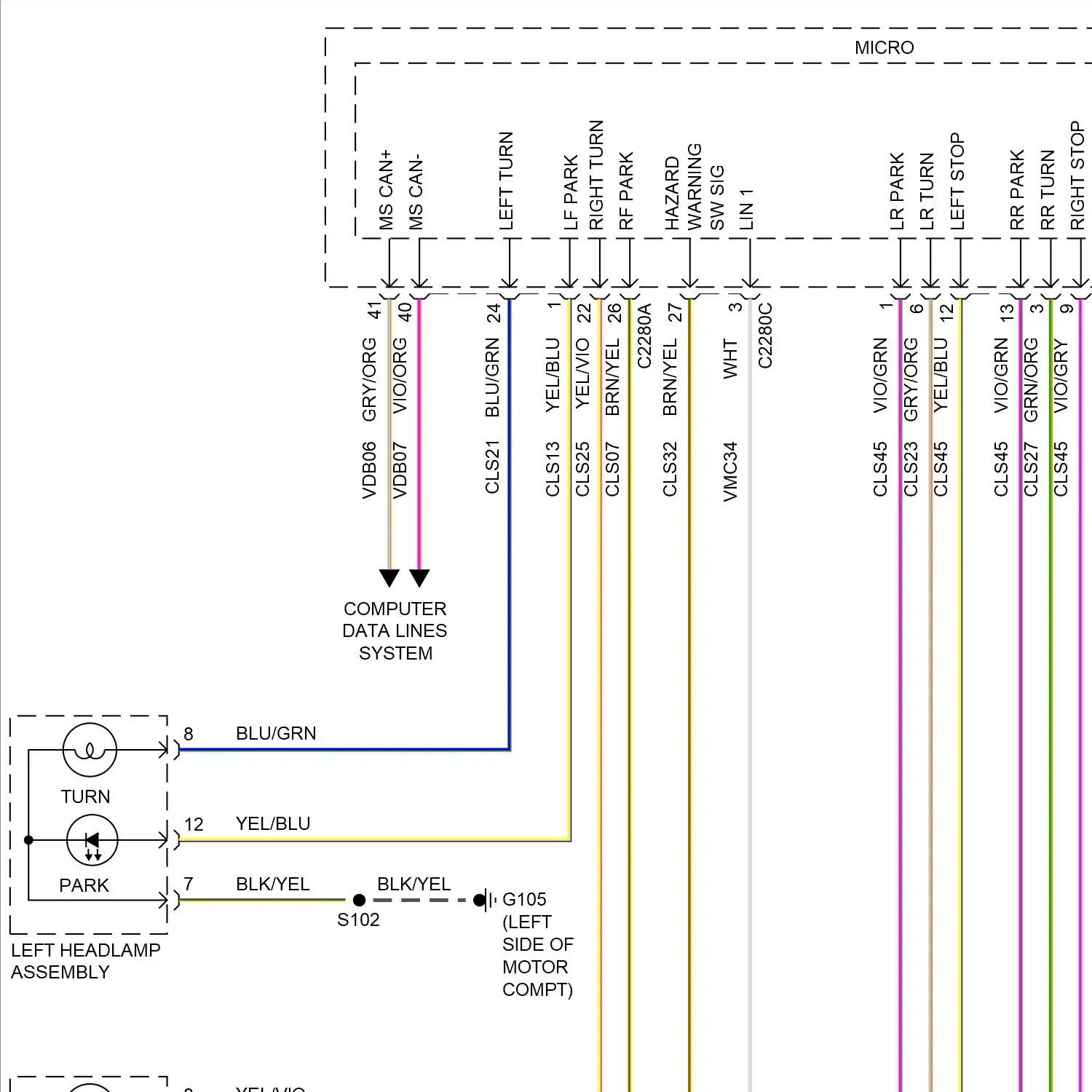

Backup lamps circuit, electric Backup lamps circuit, except electric & rs Backup lamps circuit, rs Exterior lamps circuit, electric Exterior lamps circuit, except electric & rs Exterior lamps circuit, rs

Ground distribution circuit, electric Ground distribution circuit, except electric & rs Ground distribution circuit, rs

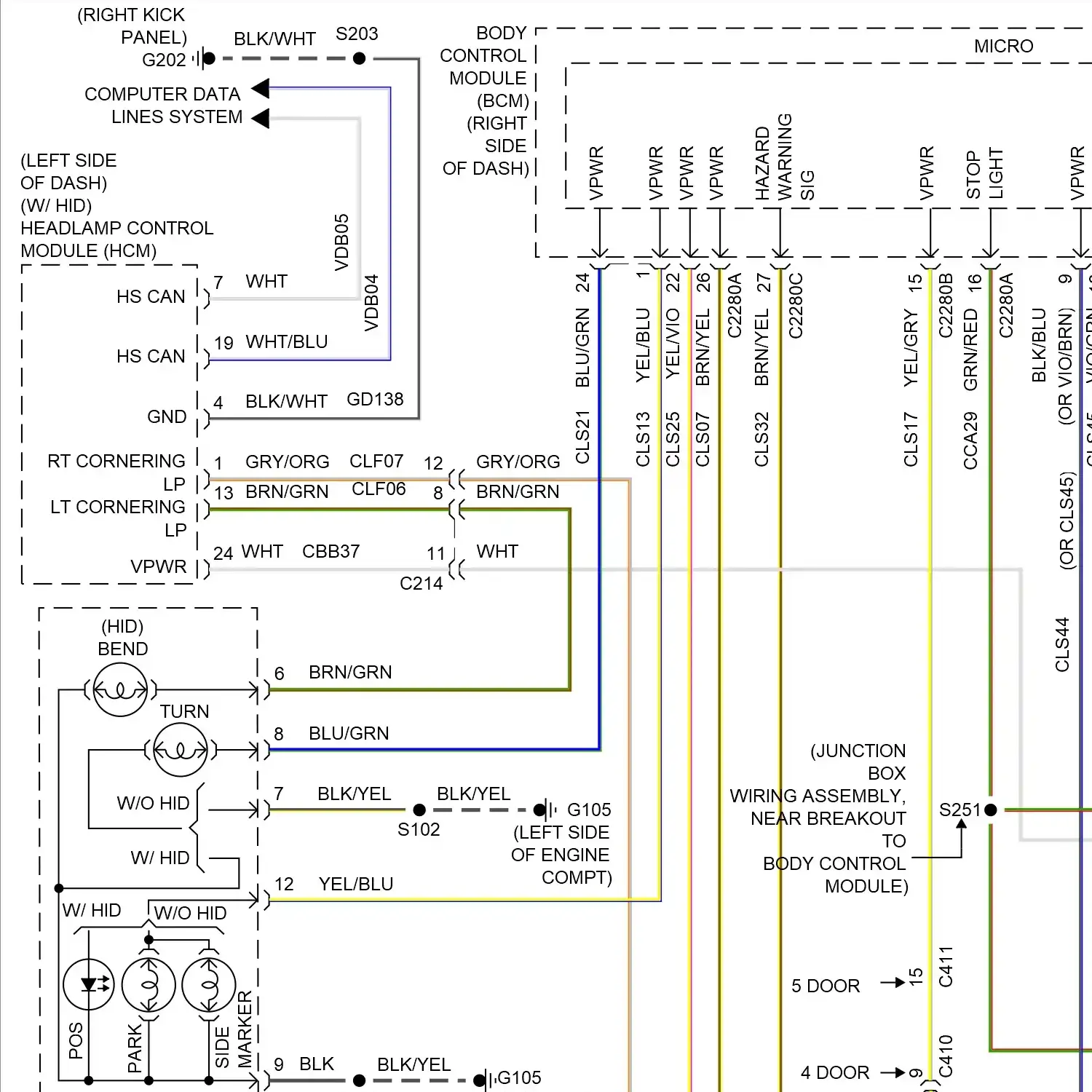

Headlights circuit, electric Headlights circuit, except electric & rs w/ high intensity gas discharge headlights Headlights circuit, except electric & rs w/o high intensity gas discharge headlights Headlights circuit, rs

Horn circuit

Instrument cluster circuit, electric Instrument cluster circuit, except electric Overhead console circuit, except electric

Courtesy lamps circuit, electric Courtesy lamps circuit, except electric & rs Courtesy lamps circuit, rs Instrument illumination circuit, electric Instrument illumination circuit, except electric & rs Instrument illumination circuit, rs

Blind spot information system circuit Crew chief circuit Lane departure warning circuit Navigation circuit, electric Navigation circuit, except rs & electric w/o sony Navigation circuit, except rs & electric w/ sony Navigation circuit, rs Parking assistant circuit, electric Parking assistant circuit, except electric Rear camera circuit, electric Rear camera circuit, except electric

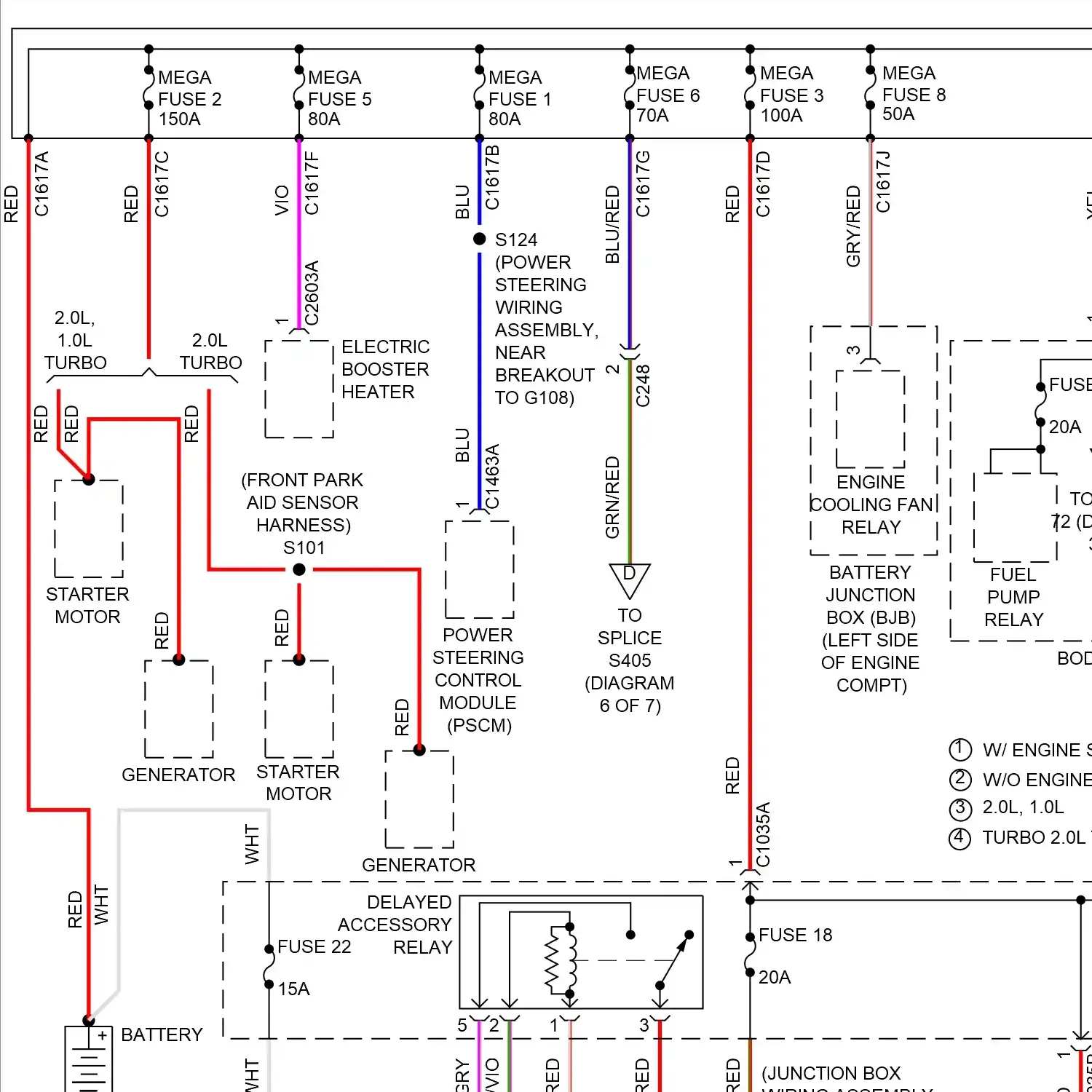

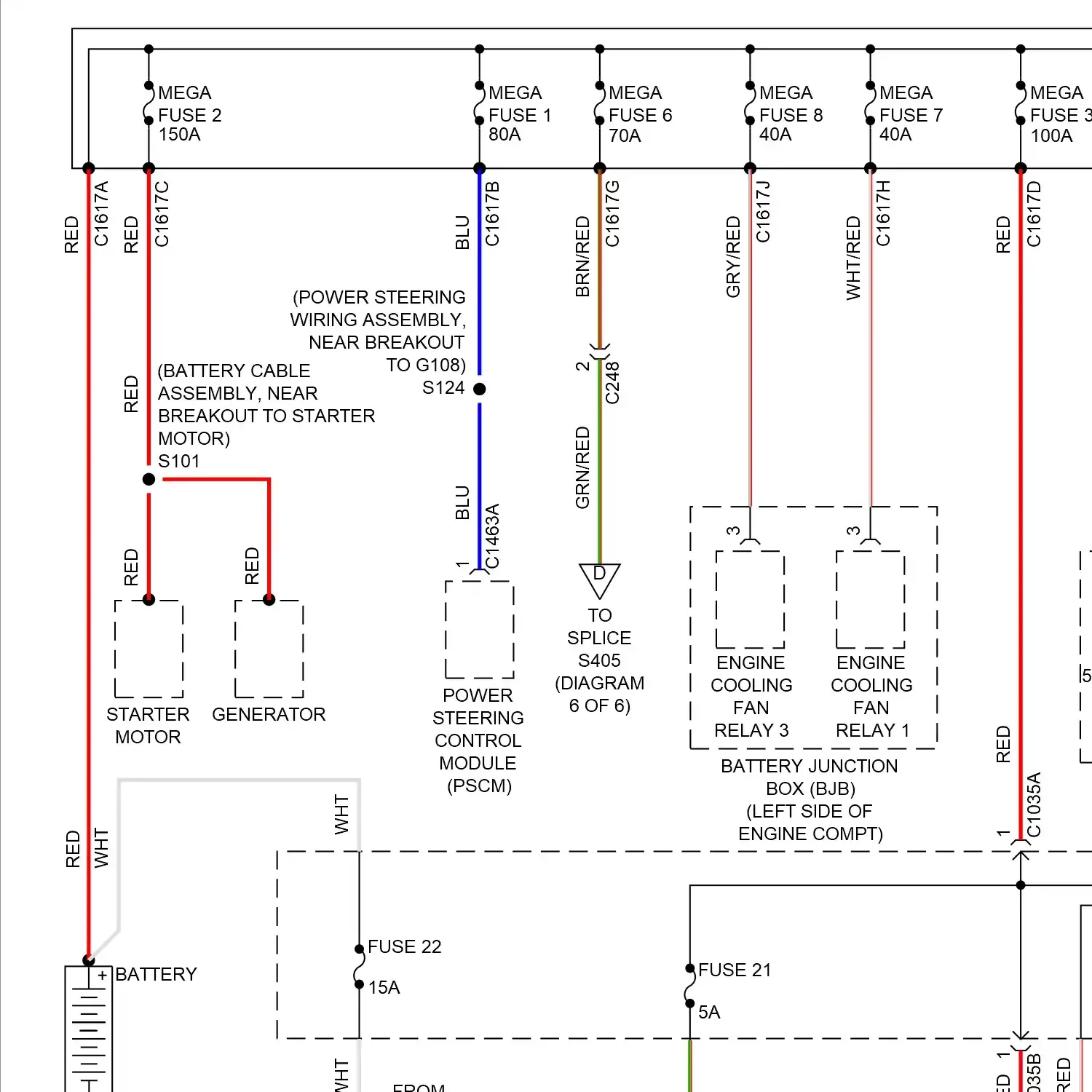

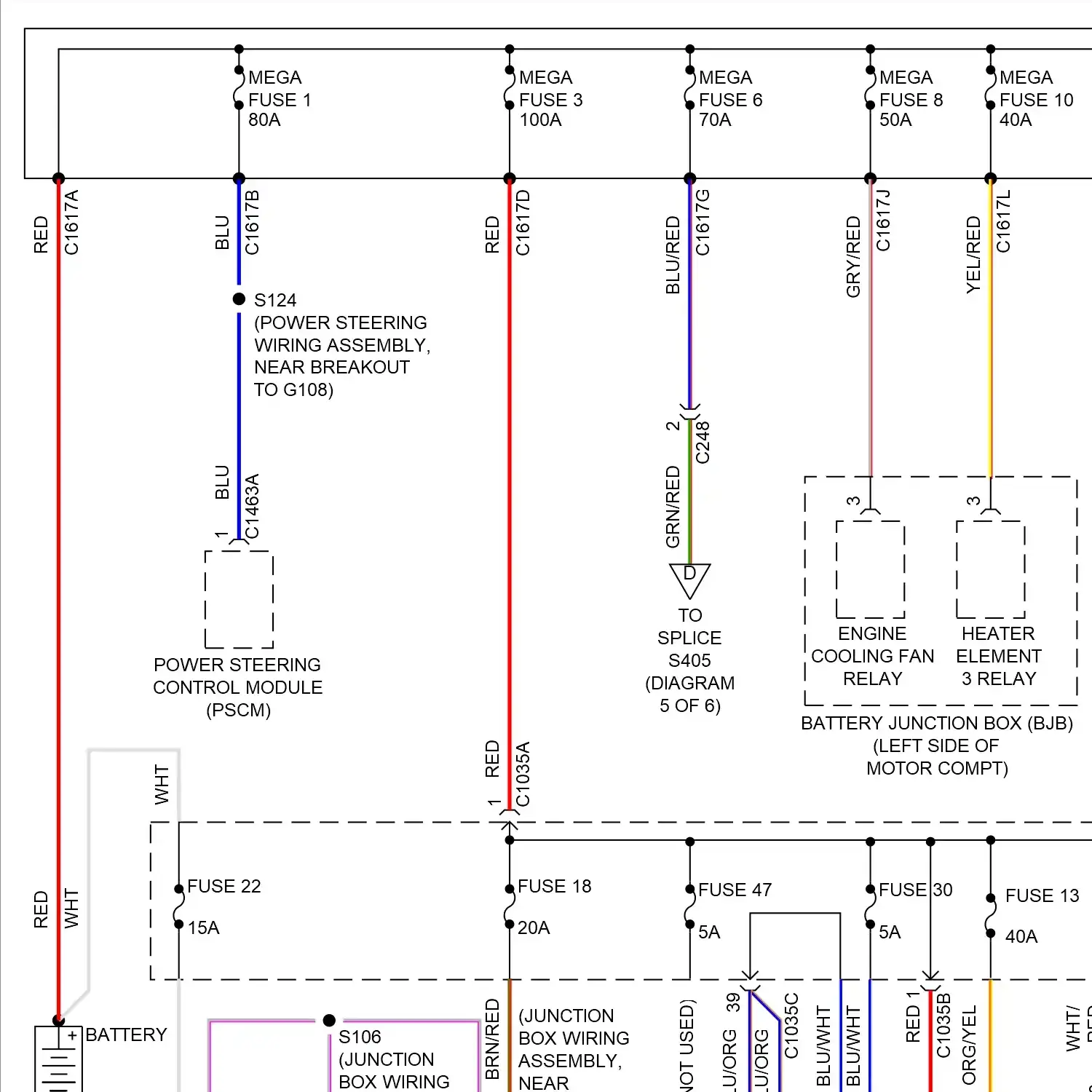

Power distribution circuit, electric Power distribution circuit, except electric & rs Power distribution circuit, rs

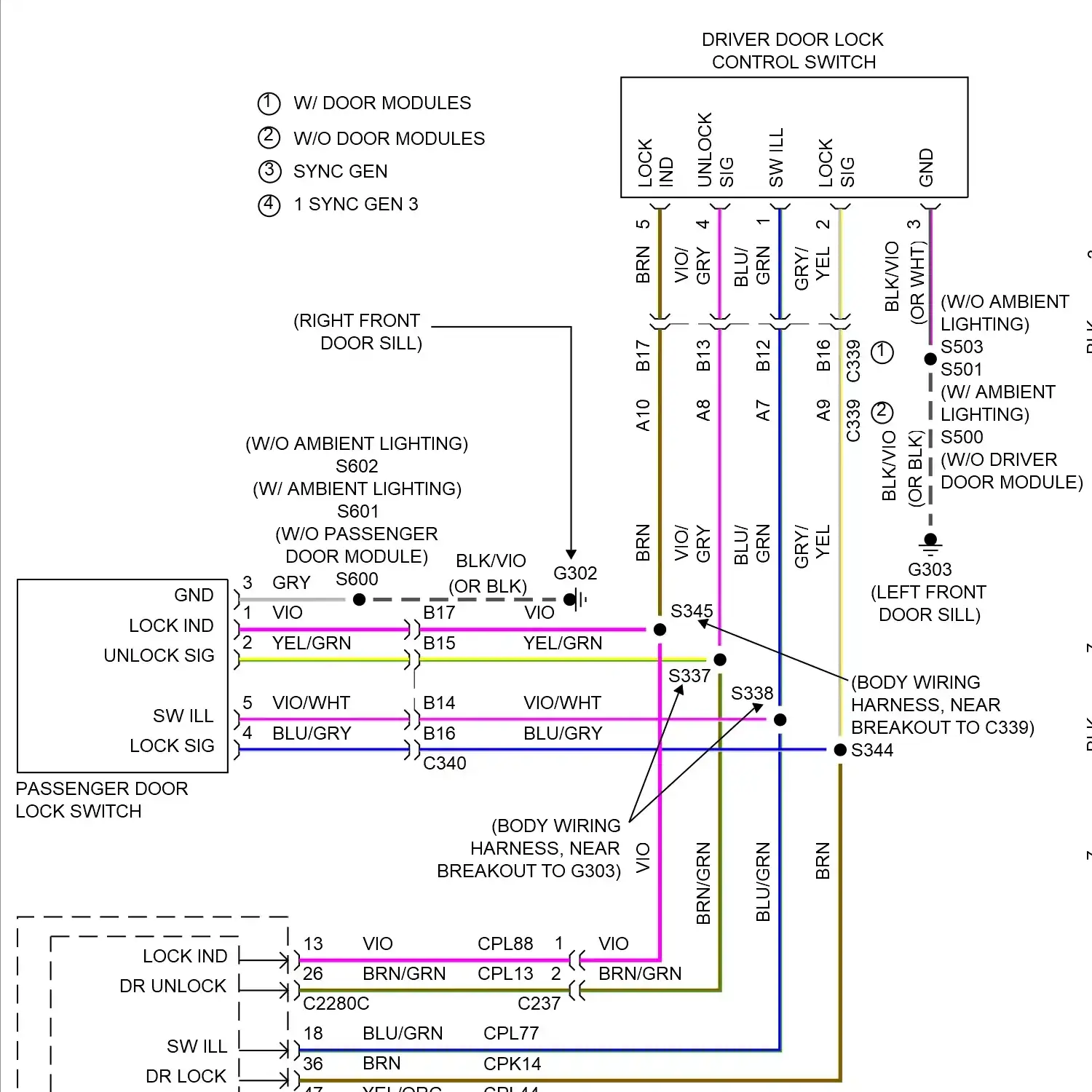

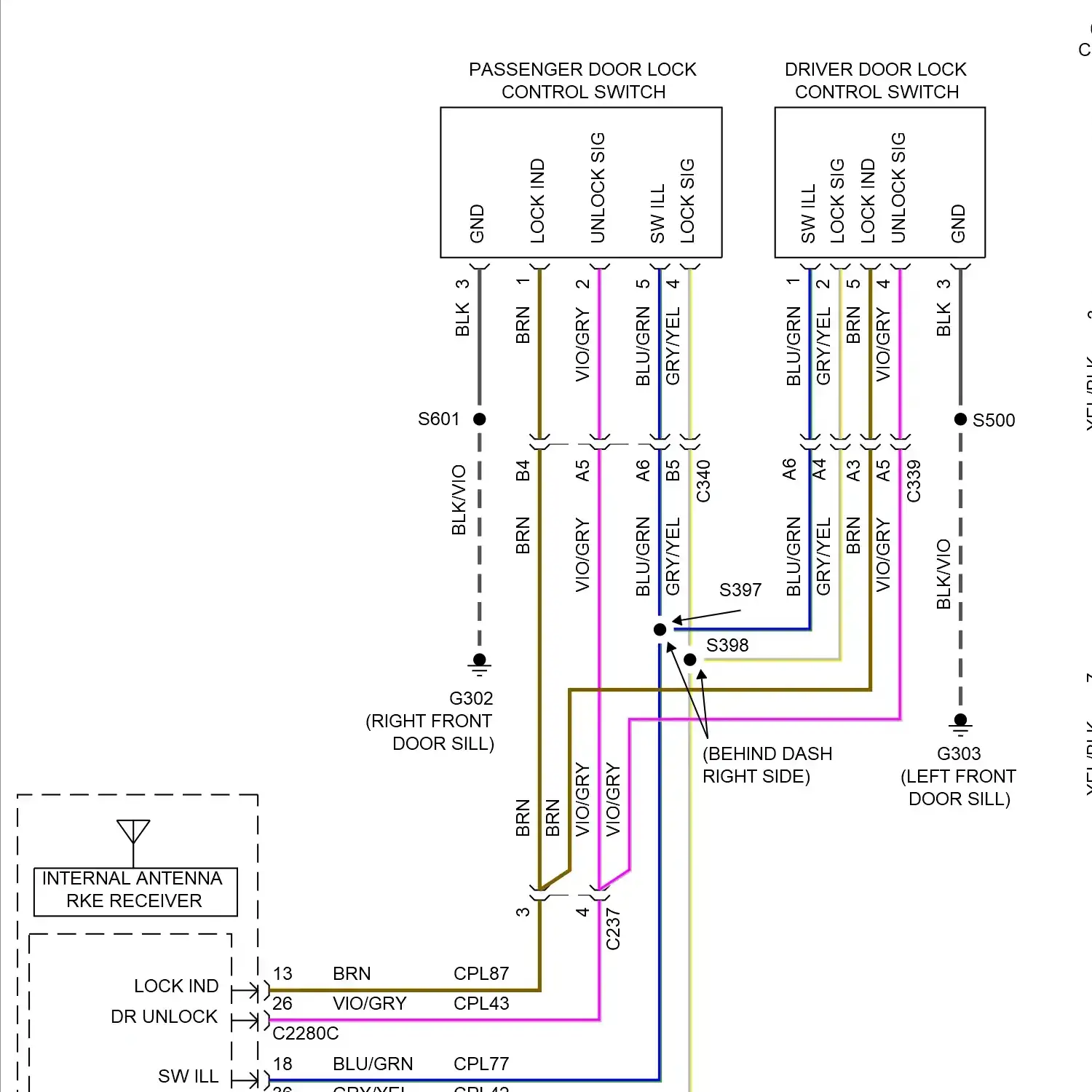

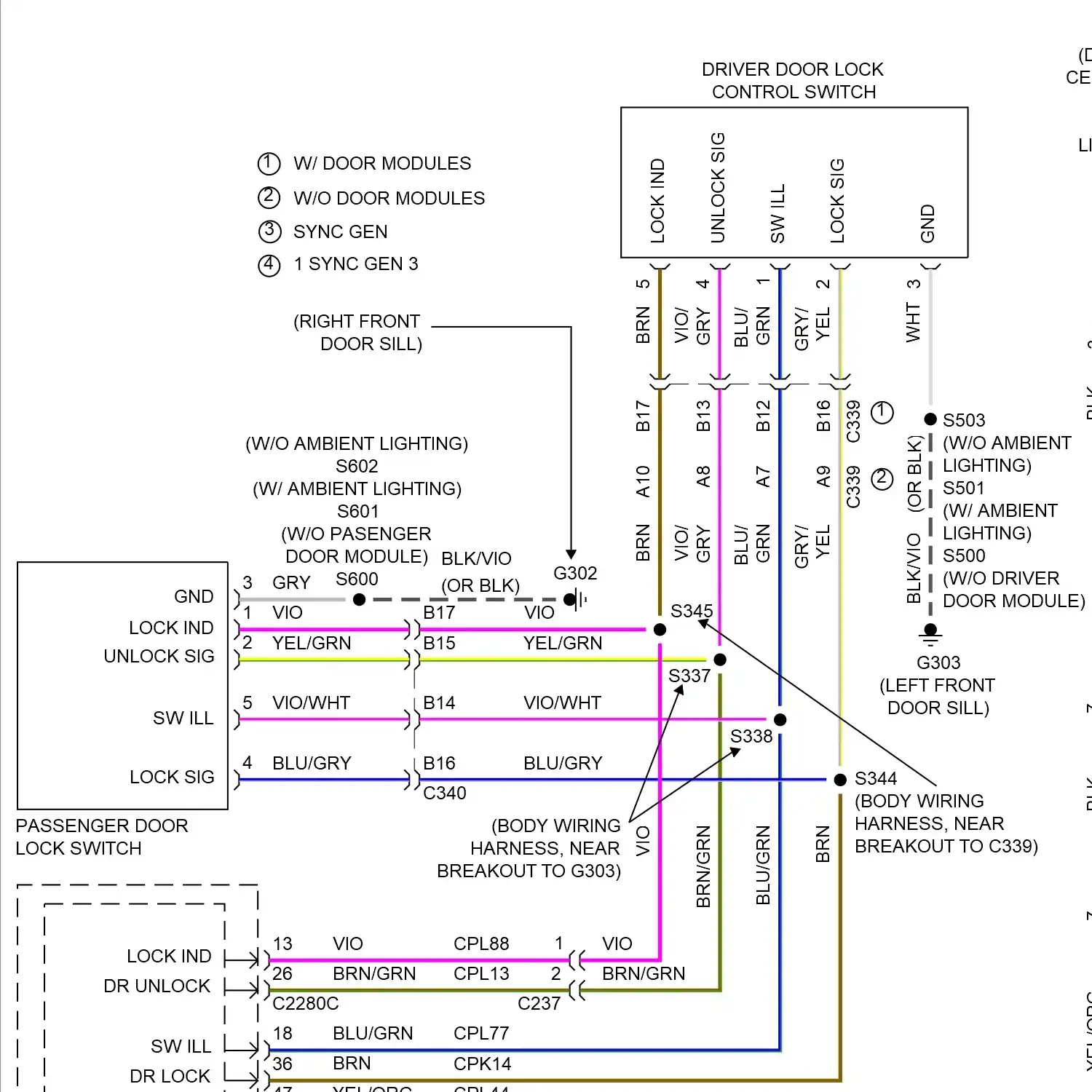

Power door locks circuit, electric Power door locks circuit, except electric & rs w/ intelligent access Power door locks circuit, except electric & rs w/o intelligent access Power door locks circuit, rs w/ intelligent access Power door locks circuit, rs w/o intelligent access

Power mirrors circuit, electric Power mirrors circuit, except electric & rs w/ door module Power mirrors circuit, except electric & rs w/o door module Power mirrors circuit, rs

Heated seats circuit, except rs Heated seats circuit, rs Heated steering wheel circuit, except rs Heated steering wheel circuit, rs Power seats circuit, except rs Power seats circuit, rs

Power top/sunroof circuit

Power windows circuit, electric Power windows circuit, except electric w/ door module Power windows circuit, except electric w/o door module & rear power window Power windows circuit, except electric w/o door module w/ rear power window

Base radio circuit, except rs Base radio circuit, rs Premium radio circuit, electric Premium radio circuit, except electric Sony radio circuit, except rs Sony radio circuit, rs Sync radio circuit, electric Sync radio circuit, except electric & rs w/ sync gen 1 Sync radio circuit, except electric & rs w/ sync gen 3 Sync radio circuit, rs

Shift interlock circuit, electric Shift interlock circuit, except electric

1.0l turbo, charging circuit 1.0l turbo, starting circuit

2.0l, charging circuit 2.0l, starting circuit

2.0l turbo, charging circuit 2.0l turbo, starting circuit

2.3l turbo, charging circuit 2.3l turbo, starting circuit

Supplemental restraints circuit, except rs Supplemental restraints circuit, rs

1.0l turbo, a/t circuit

2.0l, a/t circuit

2.0l turbo, a/t circuit

2.3l turbo, awd circuit

Electric, a/t circuit

Trunk release circuit, electric Trunk release circuit, except electric

Warning systems circuit, electric Warning systems circuit, except electric & rs Warning systems circuit, rs

Wiper/washer circuit, electric Wiper/washer circuit, except electric & rs Wiper/washer circuit, rs

A/C COMPRESSOR CLUTCH FIELD COIL ALL LOCK RLY ANTI-LOCK BRAKES SYSTEM ANTI-THEFT ALARM HORN W/ INTEGRAL BATTERY BATTERY JUNCTION BOX CHILD LOCK DOOR LOCK SW DOUBLE LOCK DR LOCK CTRL SW IND DR LOCK SW HIGH CURRENT BATTERY JUNCTION BOX HORN RC HORN RLY CTRL LEFT HORN LOCK IND LOCK SIG LOWER HIGH VOLTAGE BATTERY PACK LOWER HIGH VOLTAGE BATTERY PACK SHIELD NOISE GENERATOR ON BATTERY) PASSIVE ANTI-THEFT TRANSCEIVER PROX RESISTOR RIGHT HORN SHIFT LOCK UPPER HIGH VOLTAGE BATTERY PACK UPPER HIGH VOLTAGE BATTERY PACK SHIELD VAC PUMP ANTI-LOCK BRAKES SYSTEM

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE ACTUATOR PWR AIR DISTRIBUTION DOOR ACTUATOR AIR INLET BLEND DOOR ACTUATOR AIR INLET DOOR ACTUATOR AIR INLET MODE DOOR ACTUATOR AUXILIARY COOLANT PUMP MOTOR BLOWER MOTOR BLOWER MOTOR RLY CTRL BLOWER MOTOR SPEED CONTROL CLUTCH MOTOR 1 CLUTCH MOTOR 2 COOLING FAN MOTOR 1 COOLING FAN MOTOR 2 DEFROST MODE DOOR ACTUATOR DEFROST VENT/REGISTER DOOR ACTUATOR DRIVER SEAT HEIGHT MOTOR DRIVER SEAT HORIZONTAL MOTOR DRIVER SEAT LUMBAR MOTOR DRIVER SEAT RECLINER MOTOR DRIVER SIDE FRONT POWER WINDOW MOTOR DRIVER TEMPERATURE BLEND DOOR ACTUATOR DRIVER TEMPERATURE DOOR ACTUATOR ELECTRIC MOTOR COOLANT DIVERTER VALVE ELECTRIC MOTOR COOLANT PUMP ELECTRONICS ENGINE COOLING FAN MODULE ELECTRONICS ENGINE COOLING FAN MOTOR ENGINE CONTROLS SYSTEM ENGINE CONTROLS, TRANSMISSIONS SYSTEMS ENGINE COOLING FAN MODULE ENGINE COOLING FAN MOTOR ENGINE COOLING FAN RESISTOR 1 ENGINE COOLING FAN RESISTOR 2 ENGINE OIL PRESSURE CONTROL SOLENOID VALVE FOOTWELL VENT DOOR ACTUATOR FRONT CORNER OF ENGINE COMPT) FRONT PASSENGER POWER WINDOW MOTOR GRILLE SHUTTER ACTUATOR LEFT FRONT WINDSHIELD WIPER MOTOR LEFT REAR POWER WINDOW MOTOR LEFT TEMPERATURE BLEND DOOR ACTUATOR LOWER RIGHT FRONT OF ENGINE) PANEL/FLOOR MODE DOOR ACTUATOR PASSENGER SIDE FRONT POWER WINDOW MOTOR PASSENGER TEMPERATURE BLEND DOOR ACTUATOR PASSENGER TEMPERATURE DOOR ACTUATOR REAR WINDOW WIPER MOTOR RIGHT FRONT WINDSHIELD WIPER MOTOR RIGHT REAR POWER WINDOW MOTOR RIGHT TEMPERATURE BLEND DOOR ACTUATOR ROOF OPENING PANEL MOTOR ASSEMBLIES STARTER MOTOR TEMPERATURE DOOR ACTUATOR VACUUM PUMP MOTOR W/ ENGINE START-STOP W/O ENGINE START-STOP 2.0L, 1.0L TURBO 2.0L TURBO W/ ENGINE START/ STOP) WINDSHIELD WASHER PUMP MOTOR

AM/FM ANTENNA AM/FM SHIELD ANTENNA PWR CENTER PASSIVE START ANTENNA FRONT PASSIVE START ANTENNA INTERNAL ANTENNA RKE RECEIVER INTERNAL VPWR ANTENNA RKE RECEIVER INTERNAL VPWR ANTENNA RKE RECEIVER GND REAR PASSIVE START ANTENNA

5 DOOR W/ REAR VIEW CAMERA IPMA CAMERA HEATED WINDSHIELD ELEMENT REAR VIEW CAMERA CIRCUIT VIDEO CAMERA W/ REAR VIEW CAMERA

BRAKE BLEED CONNECTOR

AIR CONDITIONING CONTROL MODULE ALL WHEEL DRIVE CONTROL MODULE SHIELD ALL- WHEEL DRIVE CONTROL MODULE BATTERY CHARGER CONTROL MODULE BLOWER MOTOR CONTROL MODULE BODY CONTROL MODULE DATC HVAC CONTROL MODULE DC/DC CONVERTER CONTROL MODULE DIGITAL AUDIO CONTROL MODULE EMTC HVAC CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE 2 FUEL, DAMPER CONTROL MODULE HVAC CONTROL MODULE POWERTRAIN CONTROL MODULE RESTRAINTS CONTROL MODULE TRANSMISSION CONTROL MODULE

FUEL PUMP, SENDER UNIT

FRONT FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 32 35 FUSE 32 FUSE 35 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 56 FUSE 58 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 76 FUSE 77 FUSE 78 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 85 FUSE 86 FUSE 87 FUSE 88 INLINE FUSE 2 MEGA FUSE 1 MEGA FUSE 2 MEGA FUSE 3 MEGA FUSE 4 MEGA FUSE 5 MEGA FUSE 6 MEGA FUSE 7 MEGA FUSE 8 MEGA FUSE 9 MEGA FUSE 10 MIDDLE FUSE REAR FUSE

DRV HEATER FEED ELECTRIC BOOSTER HEATER LEFT FRONT SEAT BACKREST HEATER LEFT FRONT SEAT CUSHION HEATER PASS HEATER FEED PTC HEATER PTC HEATER CTRL RIGHT FRONT SEAT BACKREST HEATER RIGHT FRONT SEAT CUSHION HEATER

CHARGE STATUS INDICATOR

CENTER INTERIOR LAMP CUPHOLDER LAMP DRIVER DOOR RELEASE LAMP DRIVER MAP POCKET LAMP DRIVER POCKET MAP LAMP GLOVE COMPARTMENT LAMP HIGH MOUNTED STOP LAMP INTERIOR LIGHTS SYSTEM WIPER/WASHER SYSTEM LEFT FRONT FOG LAMP LEFT FRONT FOOTWELL LAMP LEFT FRONT MAP POCKET LAMP LEFT LUGGAGE COMPARTMENT LAMP LEFT REAR LAMP ASSEMBLY LEFT REAR PARK/STOP TURN LAMP LEFT REVERSING LAMP LEFT VANITY MIRROR LAMP LH CORNERING LAMP LR STOP LAMP LT STOP LAMP LUGGAGE COMPARTMENT LAMP PASSENGER DOOR RELEASE LAMP PASSENGER MAP POCKET LAMP PASSENGER POCKET MAP LAMP PUDDLE LAMP REAR DOME LAMP RH CORNERING LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOOTWELL LAMP RIGHT FRONT MAP POCKET LAMP RIGHT LUGGAGE COMPARTMENT LAMP RIGHT REAR LAMP ASSEMBLY RIGHT REAR PARK/ STOP/TURN LAMP RIGHT REAR PARK/STOP TURN LAMP RIGHT REVERSING LAMP RIGHT VANITY MIRROR LAMP RR STOP LAMP RT STOP LAMP TURN LAMP WIPER/WASHER, HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS

CABIN HEATER COOLANT PUMP FUEL INJECTION PUMP FUEL PUMP ASSEMBLY FUEL PUMP LEVEL GND FUEL PUMP LEVEL GND KEYPAD ILL HIGH VOLTAGE BATTERY COOLANT PUMP TRANSMISSION FLUID PUMP VAC PUMP VAC PUMP MON

A/C CLUTCH RELAY A/C RELAY ACCESSORY RELAY ACCESSORY RELAY CONTROL ACCESSORY RELAY CTRL ALL LOCK RELAY BLOWER MOTOR RELAY BLOWER MOTOR RELAY CTRL CONTACTOR RELAY DELAYED ACCESSORY RELAY DELAYED ACCESSORY RELAY CONTROL DELAYED ACCESSORY RELAY CTRL DRIVER DOOR UNLOCK RELAY DRIVER DR UNLCK RELAY SPARE RELAY LIFTGATE/DECKLID RELEASE RELAY DRIVER DR UNLCK RLY SPARE RELAY LIFTGATE/DECKLID RELEASE RELAY ENGINE COOLING FAN RELAY ENGINE COOLING FAN RELAY 4 ENGINE COOLING FAN RELAY 5 ENGINE COOLING FAN RELAY #1 ENGINE COOLING FAN RELAY #2 ENGINE COOLING FAN RELAY #3 FOG LAMP RELAY FRONT WASHER RELAY FRONT WINDOW DEFROST RELAY FUEL PUMP RELAY HEATER ELEMENT 1, 2 RELAY HEATER ELEMENT 3 RELAY HI BEAM RELAY HIGH BEAM RELAY HORN RELAY HORN RELAY CTRL HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ DELAYED ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY ENERGIZED HOT W/ INTERIOR LIGHT RELAY ENERGIZED HOT W/ PCM POWER RELAY ENERGIZED IGNITION RELAY IGNITION RELAY CONTROL INTER- COOLER RELAY INTERCOOLER RELAY INTERIOR LIGHT RELAY LEFT FRONT RELAY LIFTGATE/ DECKLID RELEASE RELAY LIFTGATE/DECKLID RELEASE RELAY NULL RELAY PASS DR UNLOCK RELAY PASSENGER DOOR UNLOCK RELAY PCM POWER RELAY PEM 2 RELAY REAR WASHER RELAY REAR WINDOW DEFROST RELAY REAR WIPER RELAY REAR WIPER RELAY CTRL LR DOOR AJAR REVERSING LAMP RELAY SPARE RELAY STARTER RELAY VACUUM PUMP CUT-OFF RELAY VACUUM PUMP RELAY

A/C HIGH PRESSURE SENSOR A/C LOW PRESSURE SENSOR ACCELERATOR PEDAL POSITION SENSOR AMBIENT AIR TEMPERATURE SENSOR AUTO LAMPS SENSOR AUTOLAMP SENSOR AUTOLAMP/ SUNLOAD SENSOR BAROMETRIC ABSOLUTE PRESSURE SENSOR BATTERY MONITORING SENSOR BRAKE BOOSTER TRAVEL SENSOR BRAKE BOOSTER VACUUM SENSOR CATALYST MONITOR SENSOR CENTER FRONT IMPACT SENSOR CENTER REAR PARKING AID SENSOR CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR CRANKCASE VENTILATION SENSOR CYLINDER HEAD TEMPERATURE SENSOR DRIVER FRONT DOOR SIDE IMPACT SENSOR DRIVER SIDE "C" PILLAR IMPACT SENSOR EVAPORATOR AIR DISCHARGE TEMPERATURE SENSOR EVAPORATOR TEMPERATURE SENSOR FRONT DRIVER DOOR SIDE IMPACT SENSOR FRONT PASSENGER DOOR SIDE IMPACT SENSOR FUEL PRESSURE SENSOR FUEL PUMP EVENT LEVEL SENSOR SIGNAL FUEL PUMP/ LEVEL SENSOR GEAR NEUTRAL SENSOR HALL SENSOR HALL SENSOR 1 HALL SENSOR 2 HALL SENSOR SUPPLY HUMIDITY SENSOR IN CAR SENSOR IN-VEHICLE TEMPERATURE/ HUMIDITY SENSOR INPUT SHAFT SPEED SENSOR 1 INPUT SHAFT SPEED SENSOR 2 LEFT ACTIVE PARK ASSIST SENSOR LEFT CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR LEFT FLOOR DISCHARGE AIR TEMPERATURE SENSOR LEFT FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR LEFT FRONT IMPACT SEVERITY SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT SEAT TRACK POSITION SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT PANEL DISCHARGE AIR TEMPERATURE SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE SECOND ROW IMPACT SENSOR LF SENSOR HI LF SENSOR LO LR SENSOR HI LR SENSOR LO PASS FRONT CRASH SENSOR + PASSENGER FRONT DOOR SIDE IMPACT SENSOR PASSENGER SEAT POSITION SENSOR PASSENGER SIDE "C" PILLAR IMPACT SENSOR RF SENSOR HI RF SENSOR LO RIGHT ACTIVE PARK ASSIST SENSOR RIGHT CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR RIGHT FLOOR AIR TEMPERATURE SENSOR RIGHT FLOOR DISCHARGE AIR TEMPERATURE SENSOR RIGHT FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR RIGHT FRONT IMPACT SEVERITY SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT SEAT TRACK POSITION SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT PANEL DISCHARGE AIR TEMPERATURE SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE SECOND ROW IMPACT SENSOR RR SENSOR HI RR SENSOR LO SENSOR GND STEERING ANGLE SENSOR STEERING ANGLE SENSOR MODULE SUNLOAD SENSOR TEMPERATURE SENSOR THERMOSTAT 1 TEMPERATURE SENSOR THERMOSTAT 2 TEMPERATURE SENSOR THERMOSTAT 3 TRANSFER CASE FLUID TEMPERATURE SENSOR VAC SENSOR GND VAC SENSOR PWR VAC SENSOR SIG

INSTRUMENT PANEL SPEAKER LEFT FRONT SPEAKER LEFT REAR SPEAKER RIGHT FRONT SPEAKER RIGHT REAR SPEAKER

A/C ON SWITCH AJAR SWITCH ANTI-THEFT HOOD SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH BUCKLE SWITCH CLUTCH PEDAL CRUISE CONTROL DEACTIVATOR SWITCH CLUTCH PEDAL SWITCH DOOR LOCK SWITCH DOOR LOCK/ HAZARD SWITCH DOOR LOCK/HAZARD SWITCH DRIVER DOOR LOCK CONTROL SWITCH DRIVER SIDE FRONT SEAT CONTROL SWITCH ECSD WASHER FLUID LEVEL SWITCH EXTERIOR REAR VIEW MIRROR SWITCH FRONT WIPER LIMP HOME SWITCH HAZARD SWITCH HEADLAMP SWITCH HOOD AJAR SWITCH HORN SWITCH IGNITION SWITCH ILL DOOR LOCK CTRL SWITCH IND IN PARK SWITCH INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY IP SWITCH ILL KEY-IN IGNITION SWITCH KEYPAD SWITCH ASSEMBLY LEFT FRONT SWITCH LEFT LOWER STEERING WHEEL SWITCH LEFT REAR SWITCH LEFT REAR WINDOW CONTROL SWITCH LEFT UPPER STEERING WHEEL SWITCH LEVEL SWITCH LIFTGATE DECKLID SWITCH LIFTGATE SWITCH LIFTGATE/ DECKLID RELEASE SWITCH LIFTGATE/ DECKLID RELEASE SWITCH/ LAMP ASSEMBLY LIFTGATE/DECKLID RELEASE SWITCH LIFTGATE/DECKLID RELEASE SWITCH LAMP ASSEMBLY LIFTGATE/DECKLID RELEASE SWITCH/LAMP ASSEMBLY LOCK OUT SWITCH LOW GEAR SECTOR SWITCH LOW GEAR SELECTOR SWITCH MASTER WINDOW CONTROL SWITCH MULTI- FUNCTION SWITCH NEUTRAL POSITION SWITCH OIL PRESSURE SWITCH OVERDRIVE CANCEL/ GRADE ASSIST SWITCH OVERDRIVE CANCEL/GRADE ASSIST SWITCH OVERHEAD CONSOLE SWITCH ASSEMBLY PARK BRAKE SWITCH DOOR UNLOCK SWITCH PARK DETECT SWITCH PARKING BRAKE SWITCH PASSENGER DOOR LOCK SWITCH PASSENGER DOOR LOCK/ CONTROL SWITCH PASSENGER SIDE WINDOW CONTROL SWITCH REVERSING LAMP SWITCH REVERSING LAMPS SWITCH RIGHT FRONT SWITCH RIGHT LOWER STEERING WHEEL SWITCH RIGHT REAR SWITCH RIGHT REAR WINDOW CONTROL SWITCH RIGHT UPPER STEERING WHEEL SWITCH RWD SWITCH SIG SWITCH/HAZARD WARNING SIGNAL, SWITCH START/STOP SWITCH STOP LIGHT SWITCH SWITCH ILL SWITCH ILLUM. WASHER FLUID LEVEL SWITCH WIPER/WASHER SWITCH

BRAKE BOOSTER SOLENOID CABIN AIR CONDITIONING ISOLATOR SOLENOID VALVE CABIN HEATER COOLANT DIVERTER VALVE EVAP CANISTER VENT VALVE EVAP VAPOR BLOCKING VALVE EXHAUST VALVE FUEL METERING VALVE HIGH VOLTAGE BATTERY COOLANT COOLER THV, ISOLATOR SOLENOID VALVE ASSEMBLY HIGH VOLTAGE BATTERY COOLANT DIVERTER VALVE LEFT FRONT DAMPER SOLENOID LEFT REAR DAMPER SOLENOID LEFT VALVE RIGHT FRONT DAMPER SOLENOID RIGHT REAR DAMPER SOLENOID RIGHT VALVE VALVE RTN

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/RED) BRN/RED WIRE BLU/WHT WIRE BLU/WHT) BLU/YEL WIRE BLU/YEL WIRE BRN BLK/ WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE LT BLU WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE PNK/GRN WIRE RED WIRE RED YEL/ WIRE RED/BLK WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE VIO WIRE VIO) BLU/RED WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/ORG WIRE WHT/PNK WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1 2 MS CAN- 1 DIMMING 1.0L TURBO 2.0L TURBO 4 DOOR 5 DOOR W/ SCUFF PLATE W/ START/STOP W/O START/STOP 1.0L TURBO EXCEPT 1.0L TURBO 1.0L TURBO, 2.0L 2.0L TURBO 1.0L TURBO 2.0L TURBO, 2.0L 1.0L TURBO, 2.0L, 2.3L TURBO 2.0L 2.0L 2.0L TURBO 2.0L 2.0L TURBO 1.0L TURBO 2.0L 2.0L TURBO 1.0L TURBO 2.0L, 2.0L TURBO 2.0L 2.0L TURBO 1.0L TURBO W/ IA, ELECTRIC A/C W/O IA, ELECTRIC A/C 2.0L 2.0L TURBO ST EXCEPT ST 2.0L M/T 2.0L TURBO 2.0L TURBO, 1.0L TURBO 2.0L TURBO, 1.0L TURBO 2.0L 2.0L TURBO, 2.0L A/T 2.0L TURBO, 2.3L TURBO 2.0L, 1.0L TURBO 2.0L TURBO 2.0L, 1.0L TURBO 2.0L TURBO A/T M/T 2.0L, 2.0L TURBO 1.0L TURBO 2.0L, 2.0L TURBO 1.0L TURBO 2.0L 4 DOOR 5 DOOR 5 DOOR W/ RVC (MAIN HARNESS, (NOT (OR (OR 5 DOOR (RIGHT SIDE OF TRANSMISSION (UNDER FRONT OF PASSENGER'S (WMM, A/C ON A/C PRESSURE TRANSDUCER A/C REQUEST A/C RLY AAT GND AAT SIG AC LINE 1 AC LINE 2 AC SOL LSD ACC RLY CTRL ACPS SIG ACPT SIG ADAPTIVE STEERING COLUMN - AGS LIN AIR CONDITIONING SYSTEM AIR CONDITIONING SYSTEM STARTING/CHARGING SYSTEM AIR CONDITIONING, HEADLAMPS SYSTEMS ALERT 1 IN - ALERT 2 IN - ALERT - ALERT AUDIO ALERT AUDIO OUT 1+ ALERT AUDIO OUT SHIELD AMBER IND AMP ENABLE ANC LF IN - ANC LF OUT - ANC REAR IN - ANC REAR OUT + ANC RF IN - ANC RF OUT - ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS SYSTEMS ASPIRATOR GND ASPIRATOR PWR ASSIST) ATCC SOL - AUDIO INPUT JACK AUDIO REMOTE- AUTO LAMPS SENS AUTOLAMPS SENS AUTOMATIC A/C BACK FORWARD/ BACKUP LAMPS CIRCUIT BBP VREF BBP- BCCM HSD EN BECM PCMP WKUPSR BEHIND REAR SEATS) BLIS GND BLIS LED - BLOWER CONTROL BLOWER REQ BLOWER REQUEST BLOWER SPEED 1 BLOWER SPEED 2 BLOWER SPEED 3 BLOWER SPEED 4 BOOST PRESS SIG BPP BOD BPS BRK DIAG BRAKE DIAGNOSTICS BRAKE FLUID LEVEL SW BRAKE SW BRK FLUID BST PWM BST PWR BTS SIG BTS VREF BUCK SW - BUCKLE SW BUMPER FASCIA) CABIN HTR PWM CASE GND CASE GROUNDED CENTER INTERIOR LAMPS CHARGE PORT CHARGE PORT A/C THERMISTOR CHARGE PORT D/C THERMISTOR CHARGE PORT LIGHT RING CHILLER SOL LSD CHMSL SPLY CHMSL SUPPLY CLOCK- SPRING CLUTCH BOT CLUTCH PDL SW CANV CLUTCH PEDAL SW CMS HTR GND CMS SIG CMS SIG GND COAXIAL CABLE COLLAPSIBLE STEERING COLUMN MODULE COMPUTER DATA COMPUTER DATA LINES SYSTEM CONT CTL NEG H CONT CTL NEG L CONT DISABLE CONT SENSE CONTACTOR DISABLE CONTACTOR SENSE CONTROL LOGIC COOLING FANS SYSTEM CPP P/N SW/ CPP P/N SW/CLUTCH 2 WAKE UP CPP SIGRTN CPP-BT CPP-TT CPPS VREF CPS SIG CPS SPLY CRANK DETECT CRANK DETECT 41 54 HS CAN - CRANK DETECT 68 69 HS CAN - CRANKCASE VENTILATION MONITOR CRUISE CONTROL SYSTEM CRUISE GND CRUISE SIG 1 CRUISE SIG 2 CTEMP OUT 2 RTN CTEMP OUT 2 SIG CURRENT SENSE DAMPER MODE SW DATA LINES DATC HVAC MODULE DC RECIRC- DC/DC HSD DC/DC HSD EN DEFOGGER SYSTEM DEFR A DEFR B DEFR C DEFR D DEPLOY STEERING COLUMN FEED DEPLOY STEERING COLUMN RTN DIMMING LIN DIMMING RTN DISC FLOOR L SENS DISC FLOOR R SENS DISC GND SENS DISC PANEL L SENS DISC PANEL R SENS DISP SIG DISP SIGNAL DISP TRIP GND DM GND DM PWR DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR POWER DOOR SILL) DOOR UNLOCK SW SIG SW/HAZARD WARNING DOWN SHIFT DOWN UP DR UNLOCK DR UNLOCK SW DRIV L/R DRIV U/D DRIVE SIDE FRONT HEATED SEAT MODULE DRIVER AIR BAG MODULE DRIVER AIR BAG MODULE STAGE 1 DRIVER C-PILLAR CRASH SENS - DRIVER DOOR MODULE DRIVER KNEE AIR BAG DRIVER LOWER AIR BAG MODULE DRIVER SAFETY BELT ANCHOR PRETENSIONER DRIVER SAFETY BELT RETRACTOR PRETENSIONER DRIVER SEAT DRIVER SEAT BUCKLE SW DRIVER SIDE FRONT HEATED SEAT MODULE DRV AIR BAG 1 FEED DRV AIR BAG 1 RTN DRV AIR BAG 2 FEED DRV AIR BAG 2 RTN DRV ANCHOR PRETENSIONER + DRV CANOPY FEED DRV CANOPY RTN DRV DOOR AJAR DRV DR AJAR DRV FRT CR SENS FEED DRV FRT CR SENS RTN DRV KNEE AIR BAG DRV KNEE AIR FEED DRV KNEE AIR RTN DRV L/R DRV RETRAC PRETENSIONER + DRV SEAT BUCKLE SW DRV SIDE AIR FEED DRV SIDE AIR RTN DRV SIDE IMPACT SENS FEED DRV SIDE IMPACT SENS RTN DRV ST NTC SENSE DRV U/D ECT FUEL LOW PRESS SIG ECT GND ECT GND SIGRTN ELECTRIC EXCEPT ELECTRIC RS EXCEPT RS ELECTRONIC 15 FEED EMC JUMPER GND ESP OFF SW EV HS CAN - EVAP TEMP SENS EVAP TEMP SNS EVEN NOTIFICATION SIGNAL EVENT NOTIFICATION SIG EVENT SIG EVHS CAN - EXCEPT BASE EXCEPT ELECTRIC ELECTRIC AUTOMATIC A/C MANUAL A/C EXCEPT RS EXCEPT RS RS EXCEPT RS RS W/ START/STOP W/O START/STOP EXCEPT ST EXCEPT SYNC GEN 2 EXHAUST MANIFOLD) FAN CONTROL VARIABLE FAN CTRL FAN PWM FIL SENS IN FIR SENS IN FLOOR SHIFTER FOL SENS IN FOR SENS IN FORWARD /BACK FP LVL FPM-FPDM FRONT CIGAR LIGHTER FRONT INTERIOR/ MAP LAMPS ASSEMBLY FRONT INTERIOR/MAP LAMPS ASSEMBLY FRONT WIPER FRT WIPER LIMP HOME SW FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL LEVEL SENS 1 FUEL LEVEL SENS 2 FUEL LEVEL SENS GND FUEL LOW PRESS SIG FUEL LVL FUEL PMP FUEL TANK GND 2 GPS D GRADE ASSIST GROUND DISTRIBUTION SYSTEM HALL 1 HALL 2 HALL 3 HALL GND HALL VACC HALL VCC HAZARD WARNING HAZARD WARNING/ SIG SW HEADLIGHTS SYSTEM HEATED SEAT LH OUT HEATED SEAT RH OUT HIGH MOUNTED STOPLAMP HOOD AJAR SW HORNS SYSTEM HOT AT ALL TIMES HS CAN YAW+ HS CAN+ HS CAN- REVERSE GEAR SW HS HS CAN+ CAN- HS VALVES HS-CAN HIGH HS-CAN LOW HSW LED HSW SIG HTD MIRR HTR RTN HTR SIG HUMIDITY SENS HV BATT - HV LOWER + HV LOWER POSITIVE HV MAIN + HV MAIN NEGATIVE HV MAIN POS HV MAIN POSITIVE HV UPPER - HV- HVB 1 HVB 2 HVBAT IL IN HVBAT IL OUT HVIL IN HVIL OUT HVIL RTN HVIL SENSE HVIL SIG HVIL SOURCE I CAN - I CAN - GND IGN IN IGN OUT IGN PLUS IGN RLY CTRL IGN SENSE IGN SW ILL SW IMP SIG IN-CAR SENS- INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INT LIGHT DIM INT LIGHTING INT LT RLY INTER COOLER FAN INTERCOOLER RLY CTRL SIGRTN INTERIOR LIGHT DIMMING RTN INTR PK B+ INTR PK WKUP INTRAPK CTL NEG H INTRPK B+ INTRPK CTL NEG H INTRPK CTL NEG L INTRPK WKUP IP SPKR + IP SW IP SW ILL IP SW ILLUM ISP-R K LINE KEY IN KEY IN IGN SW KEY IN IGNITION KEY-IN IGN KEYPAD SW A KEYPAD SW B KEYPAD SW C KS LINEAR- L SUNL SENS L TEMP A L TEMP B L TEMP C L TEMP D LAMPS) LEFT "C" PILLAR) LEFT DOWN LEFT EXTERIOR REAR VIEW MIRROR LEFT FRONT DOOR LATCH LEFT FRONT EXTERIOR DOOR HANDLE LEFT FRONT INTERIOR/ MAP LAMPS ASSEMBLY LEFT FRONT SCUFF PLATE TRIM PANEL LEFT FRONT SIDE AIR BAG MODULE LEFT FRONT TWEETER LEFT HEADLAMP ASSEMBLY LEFT LOW BEAM LEFT REAR DOOR LATCH LEFT REAR DOOR MODULE LEFT REAR TWEETER LEFT SIDE AIR CURTAIN MODULE LEFT STOP LEFT TURN LEFT TURN SIG LEVEL SW LF DAMPER LF DOOR LF DOOR AJAR LF DOOR UNLOCK LF DR AJAR LF DR UNLOCK LF IN LF PARK LF PARK LIGHT LF SENS HI LF SENS IN LF SENS LO LF SPKR LF TURN LF TWEETER+ LF WOOFER LH CORNERING LH DRL LH HEADLAMP LO BEAM LH OUT LICENSE LAMPS LICENSE PLATE LICENSE PLATE LIGHT RWDRC LICENSE PLATE LT LIFTGATE AJAR LIFTGATE SW LIFTGATE/ DECKLID LATCH ASSEMBLY LIFTGATE/ DECKLID LIN RELEASE LIFTGATE/ DECKLID RELEASE LIFTGATE/DECKLID LATCH ASSEMBLIES LIFTGATE/DECKLID LATCH ASSEMBLY LIGHT SW LIMP HOME LIMP HOME SW LIN 1 LIN 2 LIN 8 LIN 32 LIN AGS LIN LIN I CAN + LIN LH LIN RH LIN TSS/OSS/ TR VPWR LIN VIDEO- LINES SYSTEM LIQUID COOLANT PTC ELEMENT LOGIC CONTROL LOGIC GND LR DAMPER LR DOOR LR DOOR AJAR LR DOOR UNLOCK LR DR AJAR LR DR UNLOCK LR PARK LR PARK LIGHT LR POS LR SENS HI LR SENS LO LR SPKR LR STOP LR TURN LSF GND LT LOW BEAM LVL GND LVL SENS LVL SW M/T A/T MANUAL A/C MEDIA GND MEDIA HUB MIC - MIC SHIELD MICRO - MICRO SASM SUPPLY MIRR GND MIRR MTR MIRR MTR HORZ MIRR MTR VERT MIRROR SWITCHES MIRRORS SYSTEM MODE DOOR A MODE DOOR B MODE DOOR C MODE DOOR D MODE SEEK- MP GND MP SENSE MP SIG MS CAN + MS CAN + ACCESSORY RLY CTRL MULTI- FUNCTION NAVIGATION SYSTEM NERNST SPLY NEUTRAL SIG NOT USED NOT USED ON OFF ON/ OFF RESET/ CANCEL OPEN CLOSE OSS + OSS/TR GND OSS/TR PWR OSS/TR VPWR OVERDRIVE CANCEL OVERDRIVE CANCEL/ GRADE OVERDRIVE CANCEL/ GRADE ASSIST P/N SW P/N SW/ CLUTCH 2 P/N SW/ CLUTCH 2 WAKE UP HS CAN + P/N SW/CLUTCH 2 CPP CPP BT PA/FL A PA/FL B PA/FL C PA/FL D PACK CAN HI PACK CAN LO PAD IND PAD IND OFF PAD IND ON PARK BRAKE SW PARK BRK PARK DETECT PAS GND PAS SIG 1 PAS SIG 2 23 24 PAS SENSE PASS ADAPTIVE LOAD LIMITER - PASS ADAPTIVE LOAD LIMITER FEED PASS ADAPTIVE LOAD LIMITER RTN PASS AIR BAG 1 FEED PASS AIR BAG 1 RTN PASS AIR BAG 2 FEED PASS AIR BAG 2 RTN PASS AIR BAG ADAPTIVE VENTING - PASS ANCHOR PRETENSIONER - PASS C-PILLAR CRASH SENS + PASS CANOPY FEED PASS CANOPY RTN PASS DOOR PASS DOOR AJAR PASS DR AJAR PASS DR UNLOCK PASS DR UNLOCK RLY PASS FRONT AIR BAG STAGE 2 - PASS FRT CR SENS FEED PASS FRT CR SENS RTN PASS L/R PASS RETRAC PRETEN - PASS RETRAC PRETENSIONER - PASS SEAT BUCKLE SW PASS SEAT TRACK POS SENS PASS SIDE AIR FEED PASS SIDE AIR RTN PASS SIDE IMPACT PRESS SENS + PASS SIDE IMPACT SENS FEED PASS SIDE IMPACT SENS RTN PASS ST NTC SENSE PASS U/D PASSENGER AIR BAG CANISTER VENT PASSENGER SAFETY BELT ANCHOR PRETENSIONER PASSENGER SAFETY BELT BUCKLE PASSENGER SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER SAFETY BELT RETRACTOR PRETENSIONER PASSENGER SEAT PASSENGER SIDE FRONT HEATED SEAT MODULE PASSIVE ANTI-THEFT TRANS RECEIVER PATS GND PATS RX PATS TX PCM HS WAKE UP CAN + SPLY SW PCM SHUTOFF IN PCM WAKE PCM WAKE UP SPLY PCM WAKE UP SUPPLY PDL LP PEM CONT PEM PWM PHASE U PHASE V PHASE W POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PREMIUM AUDIO PRK BRK SW PRK DETECT PTC HSD EN PUMPING CURRENT PWM 2 PWM 3 PWM CTRL PWM SIG PWR GND PWR IN PWR OUT R SUNL SENS R TEMP A R TEMP B R TEMP C R TEMP D REAR POWER POINT REAR WINDOW DEFROST GRID REAR WINDOW DEFROSTER IND REAR WIPER RECIRC A RECIRC B RECIRC C RECIRC D RECIRC PWR REMOTE + REMOTE USB PORT RESET/ CANCEL REV GEAR SW REVERSED GEAR SW RF DAMPER RF DOOR RF DOOR AJAR RF DOOR UNLOCK RF DR AJAR RF DR UNLOCK RF IN RF PARK RF PARK LIGHT RF SENS HI RF SENS IN RF SENS LO RF SPKR RF TURN RF TURN SIG RF TWEETER - RF WOOFER RH CORNERING RH HEADLAMP LO BEAM RH OUT RIGHT EXTERIOR REAR VIEW MIRROR RIGHT FRONT DOOR LATCH RIGHT FRONT EXTERIOR DOOR HANDLE RIGHT FRONT SCUFF PLATE TRIM PANEL RIGHT FRONT SIDE AIR BAG MODULE RIGHT FRONT TWEETER RIGHT HEADLAMP ASSEMBLY RIGHT LEFT RIGHT LOW BEAM RIGHT REAR DOOR LATCH RIGHT REAR DOOR MODULE RIGHT REAR TWEETER RIGHT SIDE AIR CURTAIN MODULE RIGHT STOP RIGHT TURN RIGHT TURN SIG RIL SENS IN RIR SENS IN RLY CTRL ROL SENS IN ROOF OPENING PANEL MODULE ROR SENS IN RR DAMPER RR DOOR RR DOOR AJAR RR DOOR UNLOCK EVEN NOTIFICATION SIGNAL RR DR AJAR RR DR UNLOCK RR PARK RR PARK LIGHT RR POS RR SENS HI RR SENS LO RR SPKR RR STOP RR TURN RR WIPER RLY CTRL RS EXCEPT RS RT CORNERING LP LT CORNERING LP RT LOW BEAM RT RR PARK LIGHT RWD IND RWD LED SUPPLY RWD REQ RWD REQUEST RWDR CTRL SASM SPLY SDARS ANTENA SDARS SHIELD SDL - SEAT BELT BUCKLE SENS SEAT BELT BUCKLE SENS RTN SEATS SYSTEM SEEK + SEEK - SENS 1 SENS 2 SENS GND SENS PWR SENS SIG RIR SET- SHIFT INTERLOCK SYSTEM SHORTING BAR SHORTING BAR SHORTING BAR SIDE MARKER SIDE MIRROR TURN IND SIG RTN SIG SW SIG SW/HAZARD WARNING SOLID STATE SONY RADIO CIRCUIT SOUND SYSTEMS SOUND, NAVIGATION SYSTEMS SS ILLUM SS SW SSC CONTROL SSC MONITOR SST GND SST+ SST+ SST- ST+ STAGE 1 STAGE 2 START SIG START/ STOP SW START/ STOP SW 1 START/ STOP SW 2 START/STOP) STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STARTING/CHARGING, WIPER/WASHER SYSTEMS STATUS LED PAS STEERING COLUMN ASSEMBLY STEERING WHEEL) STEREO L+ STEREO R+ STEREO SHIELD STEREO- STOP HS LIGHT ENS CAN - SW STOP LIGHT STOP LIGHT SW STOP LP SW STOP LT SW SUBW 1- SUBW 2- SUNLOAD SENS SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW A SW B SW C SW ILL. SW ILLUM SW PAS SW PCL SW SAPP SW SIG SYNC ALERT - SYNC PROMPT- SYNC RADIO CIRCUIT TACM NEG TACM POS TACM+ TACM+ TPS SUP TACM- TP NS TEMP DOOR A TEMP DOOR B TEMP DOOR C TEMP DOOR D TFT SIG RTN THERM FD THERM RTN THERMAL LIMITER TO SEAT HARNESS TOP OF TRANSMISSION) TP NS TP PS TPA+ TPS GND TPS GND TSS/OSS/ TR GND TPS-SUP TR GND TR-P TRANSMISSION ASSEMBLY TRANSMISSIONS SYSTEM TRIGGER SIG TRIP SIG TRUNK, TAILGATE, FUEL DOORS SYSTEM TSS GND TSS VPWR TSS/OSS/TR GND TSS/OSS/TR VPWR TURN LP VPWR UNLOCK AJAR UNLOCK LIFTGATE SW UNLOCK SIG UP SHIFT UP SUPPLY USB CABLE USB GND USB PORT USB SHIELD USB- HUB USED) V BATT VEHICLE AUDIO SIGNAL FOR PEDESTRIAN VIDEO+ VIRTUAL GND VMC-CC VOICE MUTE VOICE/ MUTE VOL - VOL+ SEEK+ VPWR FUEL VPWR OVERDRIVE CANCEL/ GRADE ASSIST SIG RTN VPWR SENS VREF BBP W/ AMBIENT LIGHTING W/ BLIND SPOT INFORMATION SYSTEM W/ DOOR MODULE W/ DOOR MODULE W/O DOOR MODULE W/ LANE KEEPING AID W/O LANE KEEPING AID W/ DOOR MODULES W/ DOOR MODULES W/O DOOR MODULES SYNC GEN 1 SYNC GEN 3 W/ GPS W/ HEATED SEATS W/ HEATED STEERING WHEEL W/ HID W/ HILL LAUNCH ASSIST W/ INTELLIGENT ACCESS W/ LANE KEEPING AID W/ LED W/ OVERDRIVE CANCEL/GRADE ASSIST W/ PERIMETER ALARM W/ POWER SEATS W/ POWER, HEATED SEATS W/ REAR POWER WINDOWS W/ RIGHT REAR DOOR MODULE W/ ROOF OPENING PANEL W/ ROOF OPENING PANEL W/O ROOF OPENING PANEL W/ SATELLITE RADIO W/ SATELLITE RADIO W/O SATELLITE RADIO W/ SONY W/ SONY, SYNC GEN 1 W/ SONY, SYNC GEN 3 W/ START/ STOP W/ START/STOP W/ START/STOP W/O START/STOP W/ SYNC GEN 1 W/ SYNC GEN 1 W/ SYNC GEN 3 W/ SYNC GEN 2, 3 W/ SYNC GEN 3 W/ SYNC GEN 3 W/O SYNC GEN 3 W/O AMBIENT LIGHTING W/O DOOR MODULE W/O DOOR MODULES W/O DOOR MODULES W/ DOOR MODULES W/O DOOR MODULES W/ DOOR MODULES RS EXCEPT RS W/O HID W/O INTELLIGENT ACCESS W/O LANE KEEPING AID W/O LED W/O OVERDRIVE CANCEL/GRADE ASSIST W/O PADDLE SHIFTER W/ PADDLE SHIFTER W/O PASSENGER DOOR MODULE W/O POWER SEATS W/O POWER, HEATED SEATS W/O REAR POWER WINDOWS W/O RIGHT REAR DOOR MODULE W/O ROOF OPENING PANEL W/O ROOF OPENING PANEL, LED W/O SATELLITE RADIO WAKE UP FROM BECM WAKE-UP WASHER FLUID WASHER FLUID LEVEL SW WASHER FLUID RESERVOIR) WINDOW DOWN WINDOW UP WINDSCREEN HTR CTRL WIPER LIMP HOME WIPER/WASHER SYSTEM WIPER/WASHER, HEADLIGHTS SYSTEMS WIPER/WASHER, HEADLIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS
