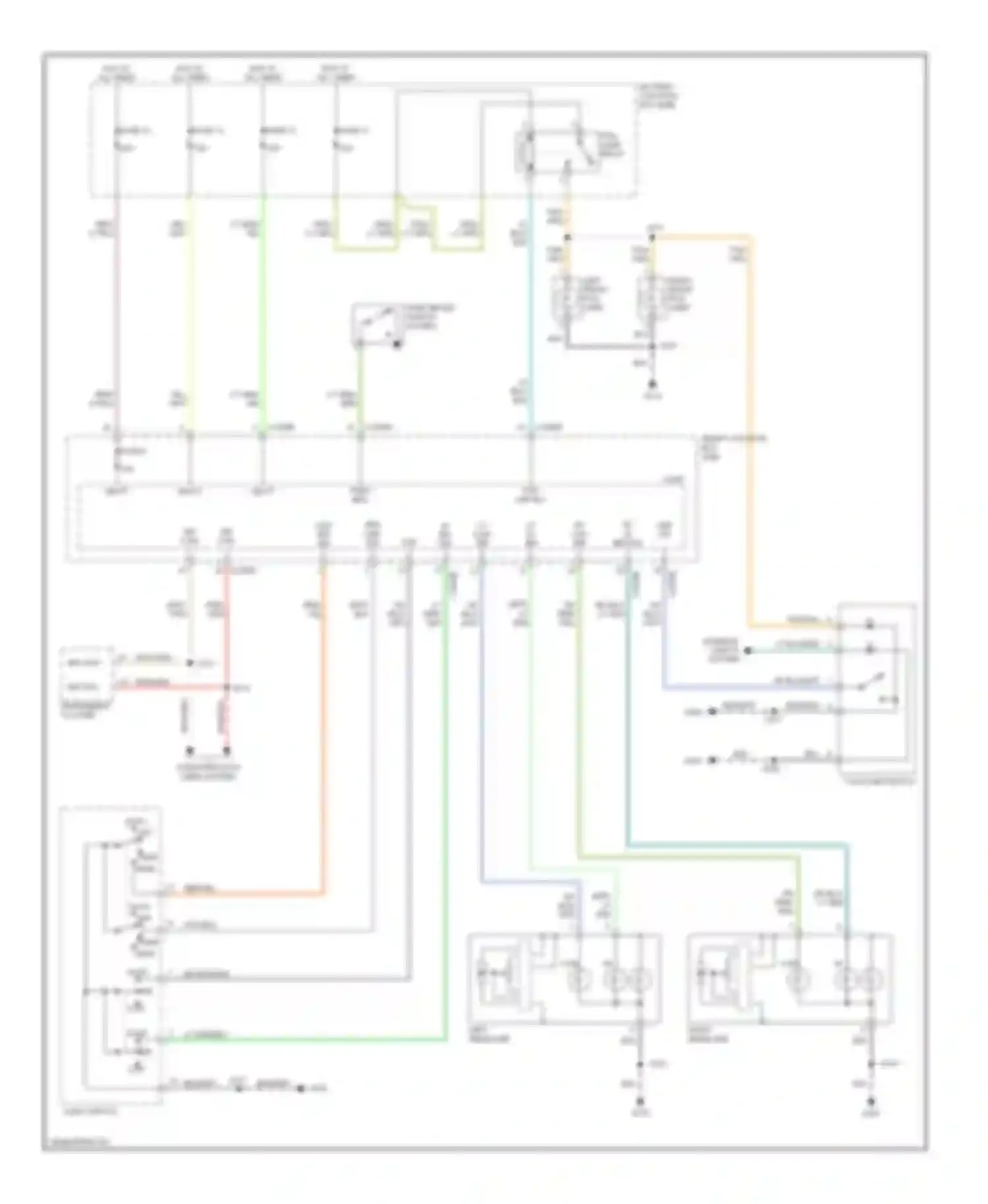

Headlights — Headlights circuit, hybrid Ford Escape I facelift
All systems — 35 systems
- Air conditioning 2.3l 2
- Air conditioning 3.0l
- Anti-lock brakes 2
- Anti-theft 4
- Body control modules 2
- Computer data lines 2
- Cooling fan 2.3l 2
- Cooling fan 3.0l
- Cruise control 2
- Defoggers 2
- Electronic power steering
- Engine performance 2.3l 2
- Engine performance 3.0l
- Exterior lights 5
- Ground distribution 2
- Headlights 2
- Horn 2
- Instrument cluster 2
- Interior lights 5
- Navigation 2
- Power distribution 2
- Power door locks 2
- Power mirrors 3
- Power seats 3
- Power top/sunroof
- Power windows 2
- Radio 4
- Shift interlock 2
- Starting/charging 3
- Supplemental restraints 2
- Transmission 2
- Transmission 2.3l 2
- Transmission 3.0l
- Warning systems 2
- Wiper/washer 4
Components on these wiring diagrams 17
Click a component to highlight it on every diagram it appears on.
