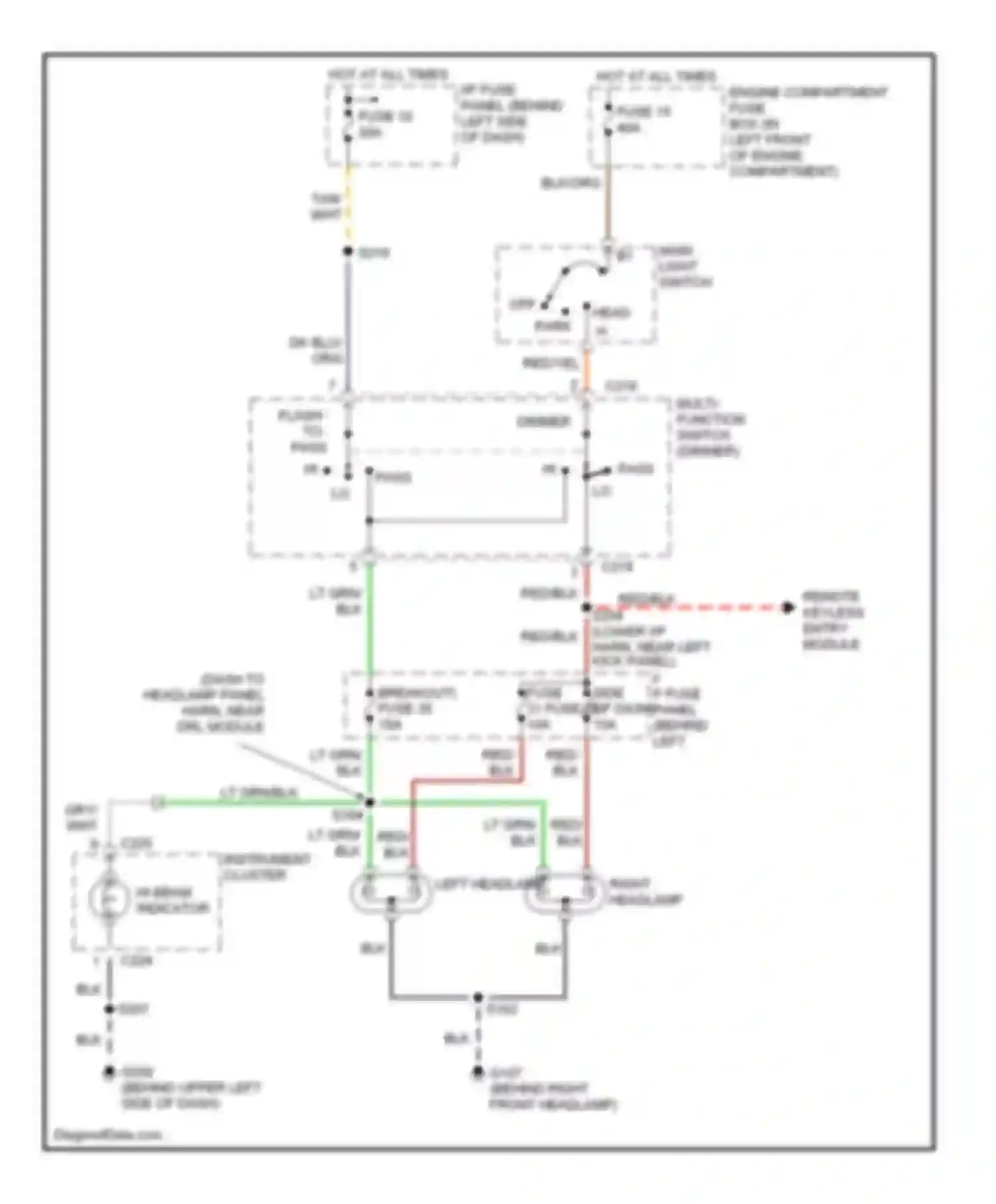

Headlights — Headlight circuit, without drl Ford Club Wagon E350
All systems — 64 systems
- Air conditioning 2
- Air conditioning 4.9l 2
- Air conditioning 5.8l 2
- Air conditioning 7.3l 2
- Air conditioning 7.5l 2
- Anti-lock brakes 2
- Anti-lock brakes 4.9l
- Anti-lock brakes 5.8l
- Anti-lock brakes 7.3l
- Anti-lock brakes 7.5l
- Anti-theft
- Computer data lines 4.9l
- Computer data lines 5.4l
- Computer data lines 5.8l 2
- Computer data lines 6.8l
- Computer data lines 7.3l
- Computer data lines 7.5l 2
- Cruise control 2
- Cruise control 4.9l
- Cruise control 5.4l
- Cruise control 5.8l
- Cruise control 6.8l
- Cruise control 7.3l
- Cruise control 7.5l
- Engine performance 4.9l
- Engine performance 5.4l 2
- Engine performance 5.8l 3
- Engine performance 6.8l
- Engine performance 7.3l 3
- Engine performance 7.5l 2
- Exterior lights 4
- Ground distribution
- Headlights 2
- Horn
- Instrument cluster 2
- Instrument cluster 4.9l 2
- Instrument cluster 5.4l 2
- Instrument cluster 5.8l 2
- Instrument cluster 6.8l
- Instrument cluster 7.3l 3
- Instrument cluster 7.5l 2
- Interior lights 2
- Power distribution
- Power door locks 3
- Power mirrors
- Power seats 3
- Power windows
- Radio 3
- Shift interlocks
- Starting/charging 4.9l 2
- Starting/charging 5.4l 4
- Starting/charging 5.8l 2
- Starting/charging 6.8l 2
- Starting/charging 7.3l 7
- Starting/charging 7.5l 2
- Supplemental restraints
- Transmission 4.9l
- Transmission 5.4l 2
- Transmission 5.8l 2
- Transmission 6.8l
- Transmission 7.3l 2
- Transmission 7.5l 2
- Warning systems
- Wiper/washer
Components on these wiring diagrams 14
Click a component to highlight it on every diagram it appears on.
